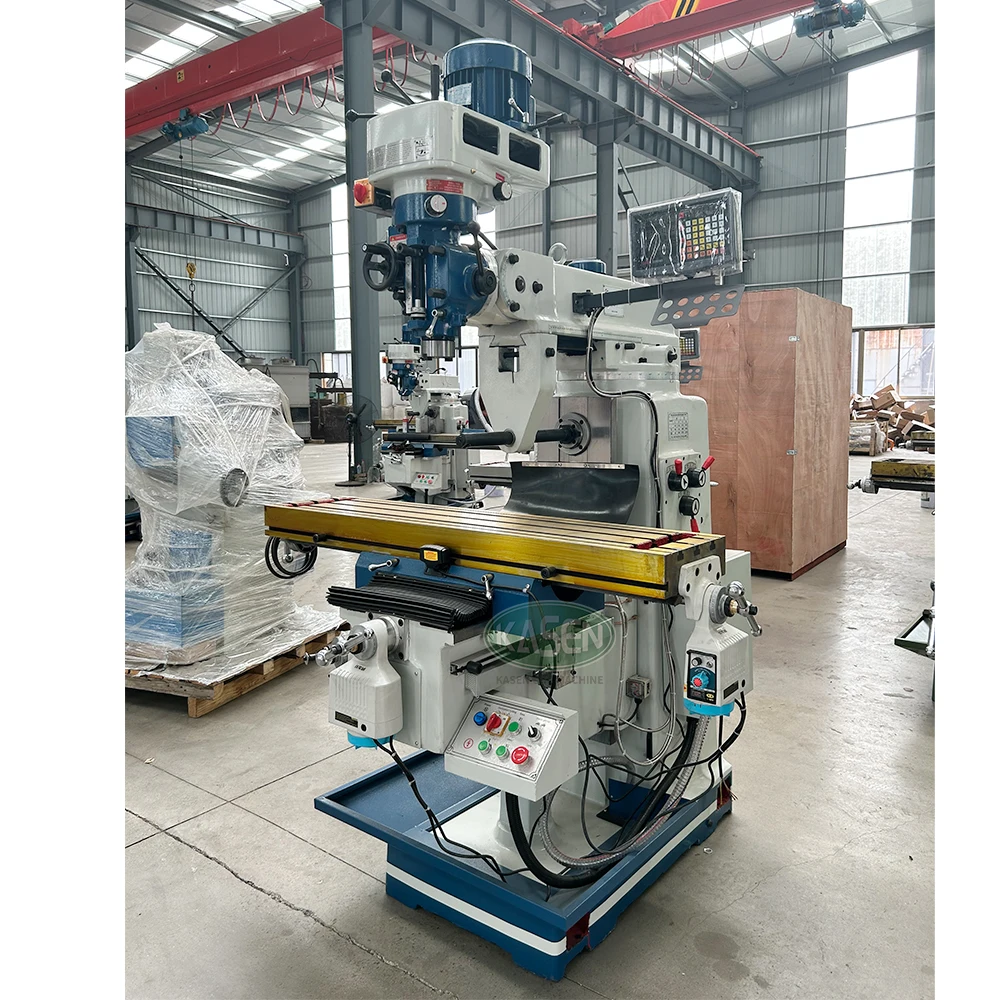

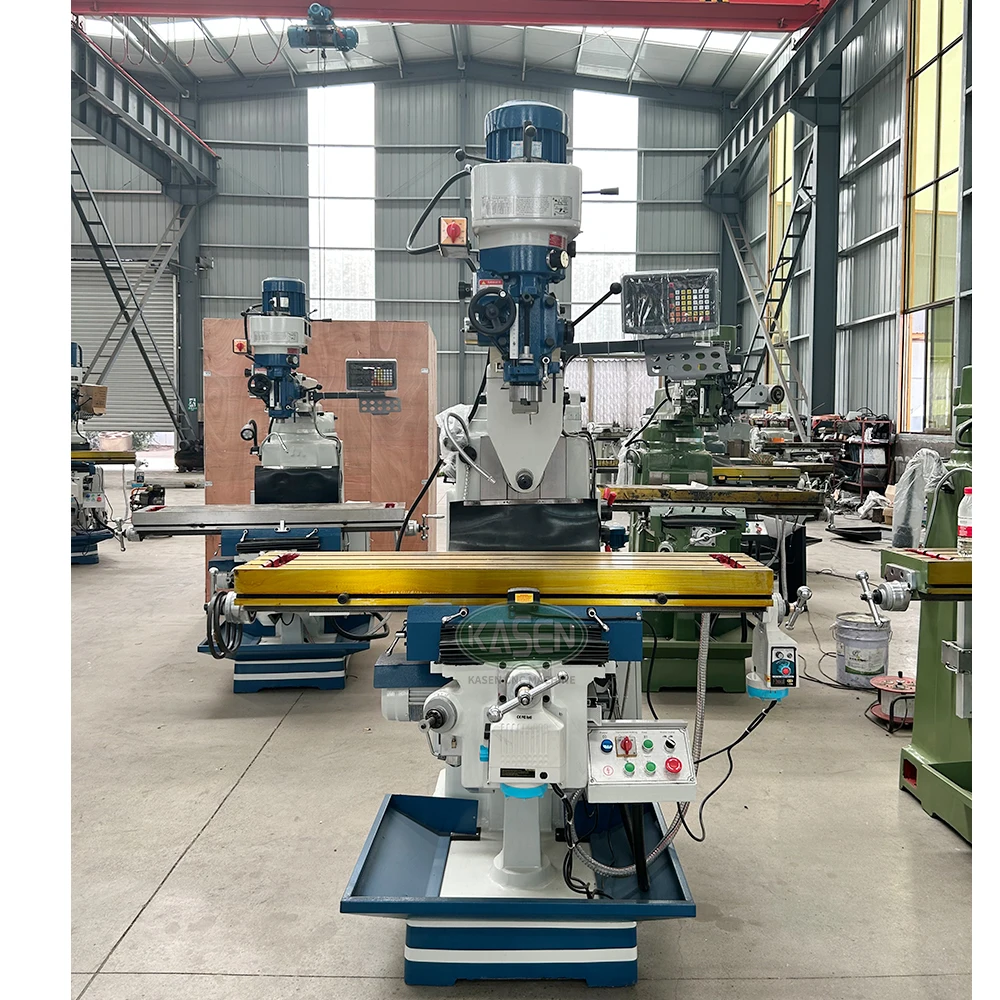

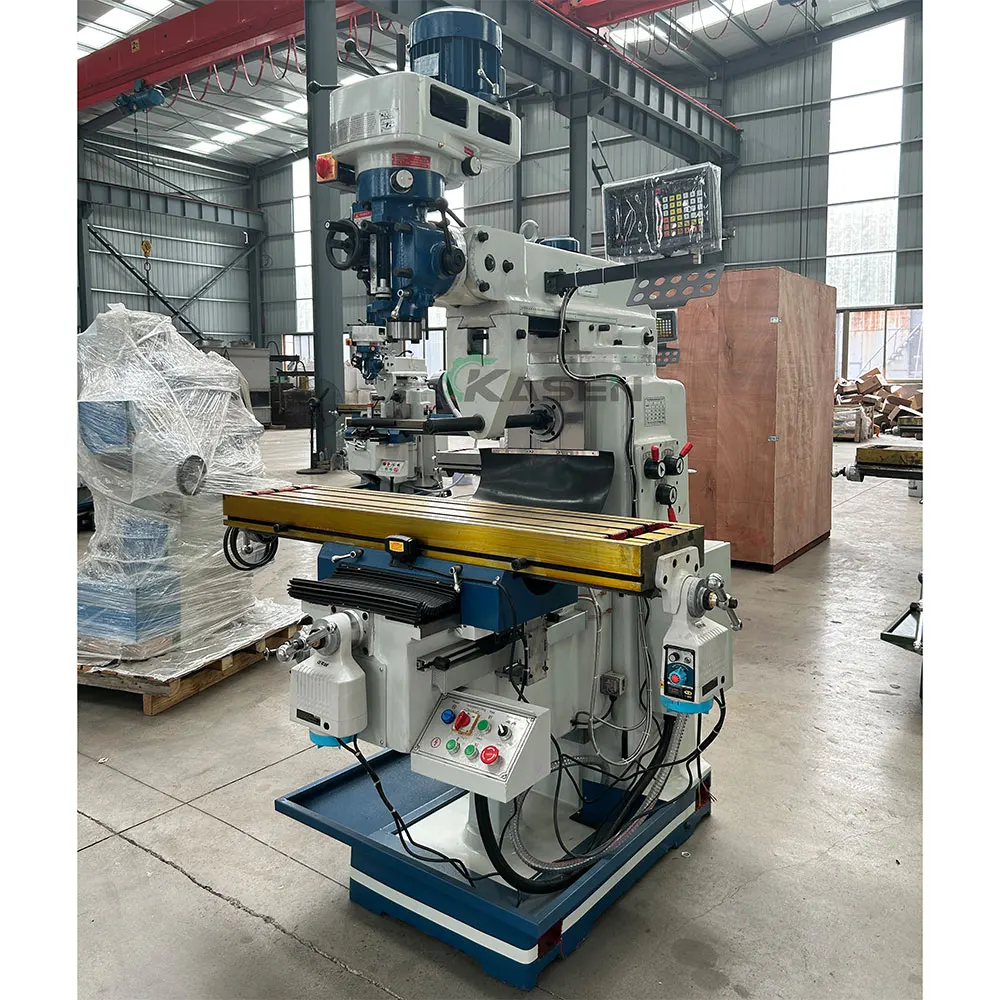

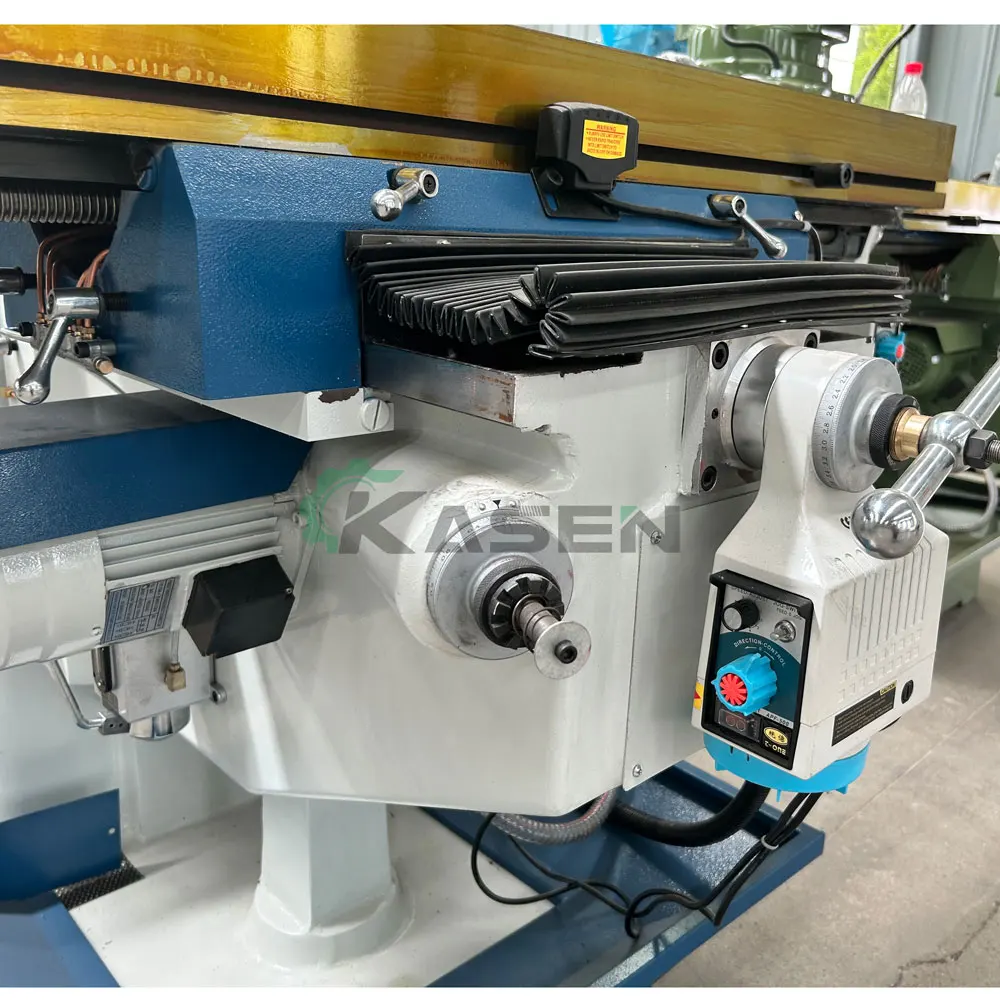

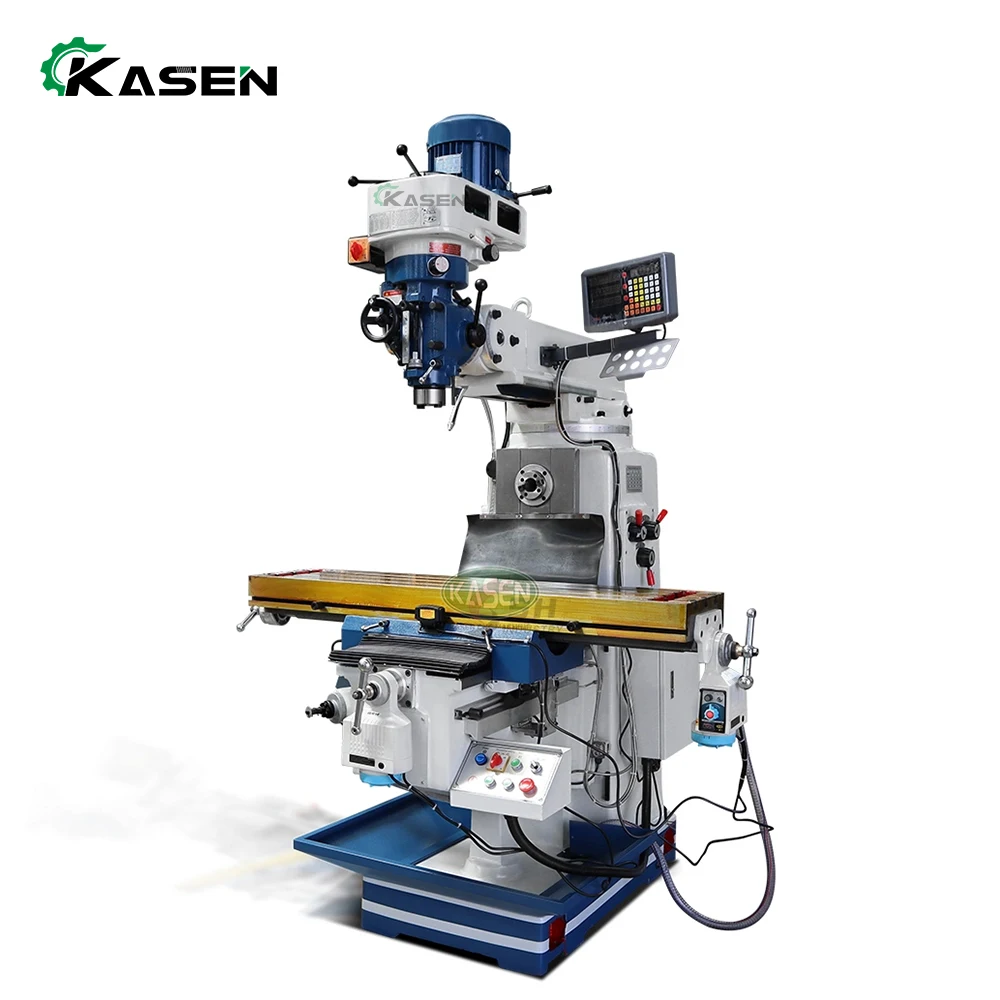

Vertical and horizontal turret milling machine 4HW 5HW high precision metal grinding and milling machine
- Category: >>>
- Supplier: Jinan Kasen Cnc Equipment Co. Ltd.
Share on (1601271136489):
Product Overview
Description
Product Description
The main performance characteristics：
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application：
The milling machine is a kind of universal light duty metal cutting machine, Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application：
The milling machine is a kind of universal light duty metal cutting machine, Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Specification
Specifications | Units | 4H | 4HW |

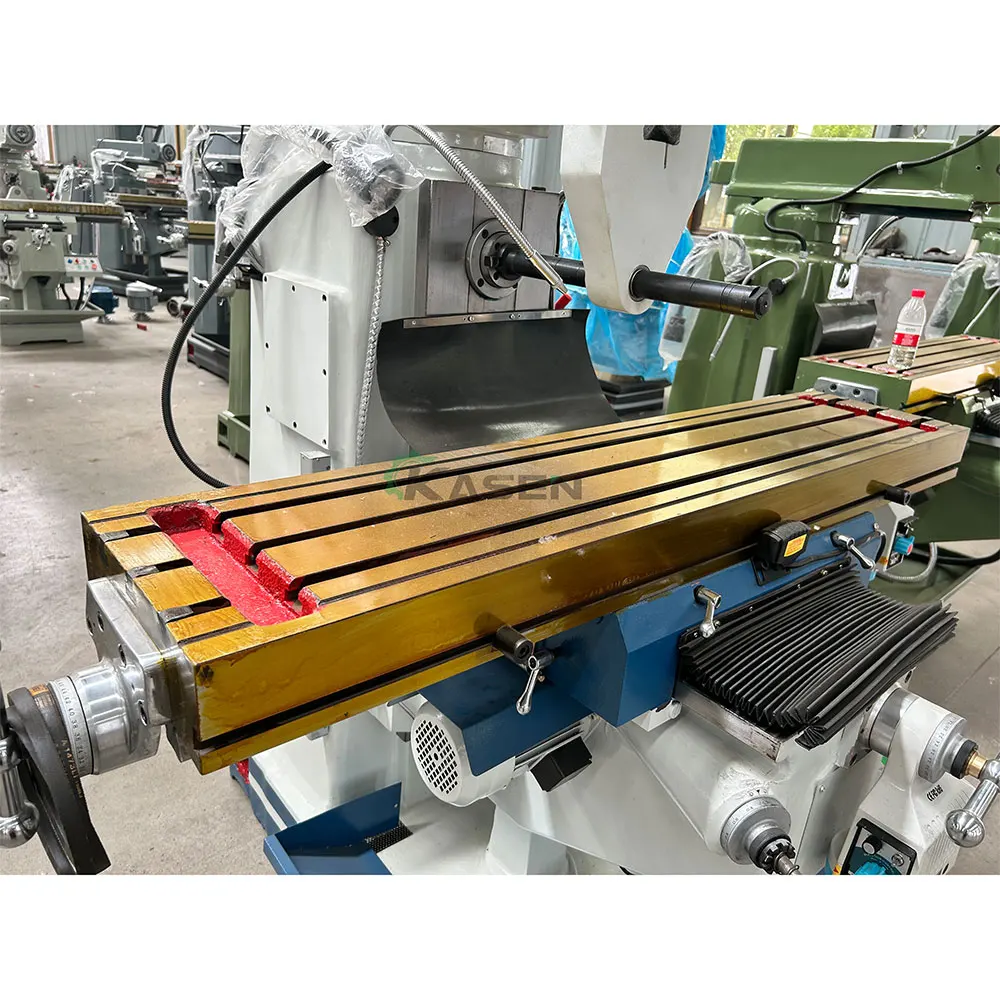

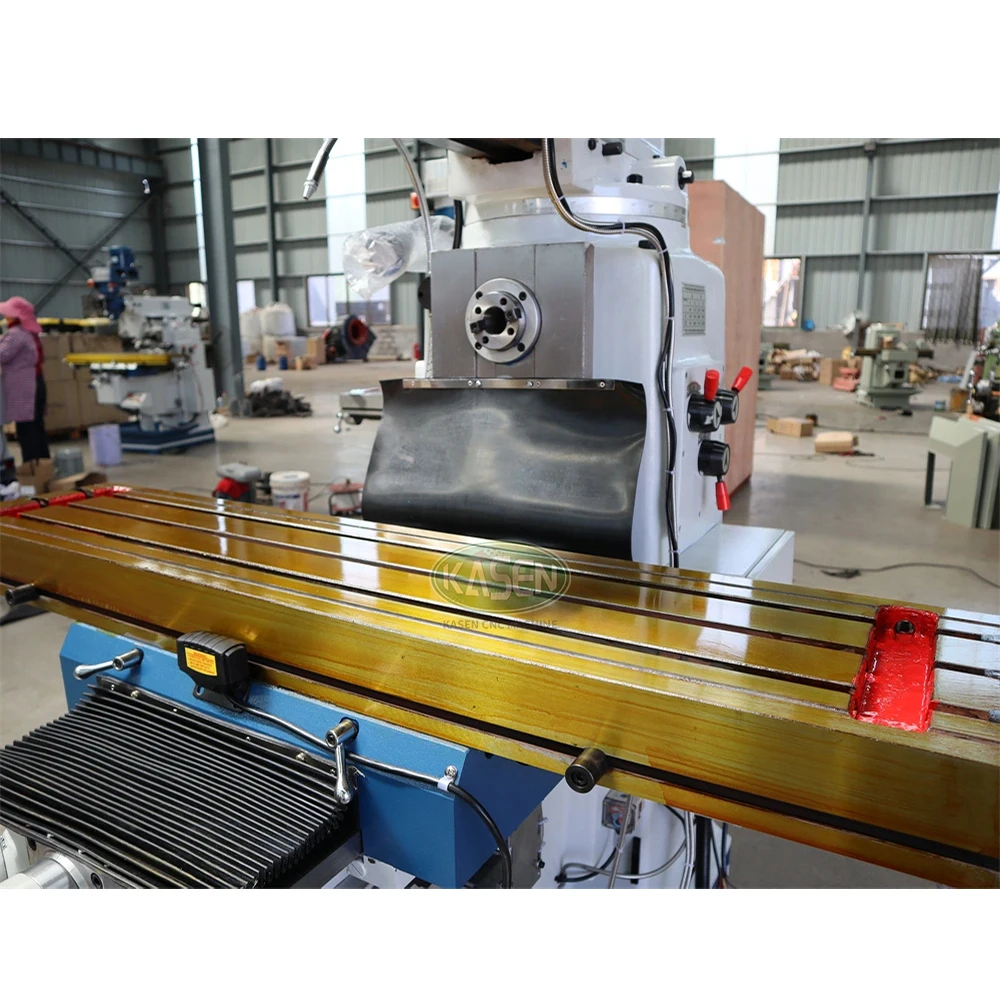

Table size | mm | 1270x254(10’’x50’’) | 1270x254(10’’x50’’) |
Table travel | mm | 780/380/400 | 780/420/400 |
T slot(number-width-pitch) | mm | 3-16-65 | 3-16-65 |
Spindle taper | R8 | Vertical (v) :R8 Horizontal (H) : ISO40 | |
Spindle speed range | rpm | (standard):16 steps 50HZ:65-4500 60HZ:80-5440 | Vertical (v) 50HZ:65-4500 60HZ:80-5440 (16 steps) Horizontal (H) 45-1350 (12 steps) |
Spindle travel | mm | 127 | 127 |
Spindle feed range | mm | 0.04,0.08,0.15 (3 steps) | 0.04,0.08,0.15 (3 steps) |
Distance between spindle nose and table surface | mm | 10-450 | 10-450 |
Main motor power | kw | 2.2(V) | 2.2(V) 3(H) |
Head rotation (left - right ) | ° | ±90° | ±90° |
Head rotation (front - rear) | ° | ±45° | ±45° |
Weight | kg | 1400 | 1750 |
Overall dimension | mm | 1700x1650x2250 | 1700x1650x2250 |
