Sy295 Sy390 Type 2 Type3 400*100*10.5mm*48.0kg/M Steel Profile U Shape Pile Sheet Pile
- Category: >>>
- Supplier: Shandong Tata Iron And Steel Co. Ltd
Share on (1601271140284):
Product Overview
Description
Details Images
1.U steel sheet pile is most common sheet pile with obvious features such as :high intensity, water-proof property and so on. In
bridge construction, u steel sheet pile has gradually played an important role and been popular with engineers.
2.Steel sheet pile from our factory owns the high-class quality, forging by the advanced technology
3.We can produce all types of sheet piles,pipe piles and accessories,we can adjust our machines to produce in any width x height x thickness
bridge construction, u steel sheet pile has gradually played an important role and been popular with engineers.
2.Steel sheet pile from our factory owns the high-class quality, forging by the advanced technology
3.We can produce all types of sheet piles,pipe piles and accessories,we can adjust our machines to produce in any width x height x thickness

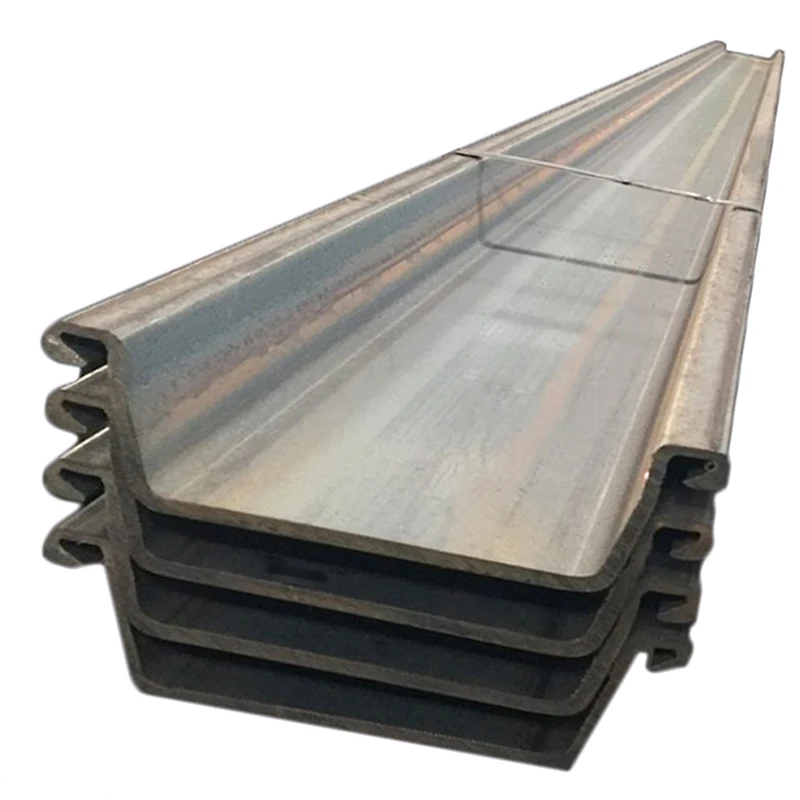

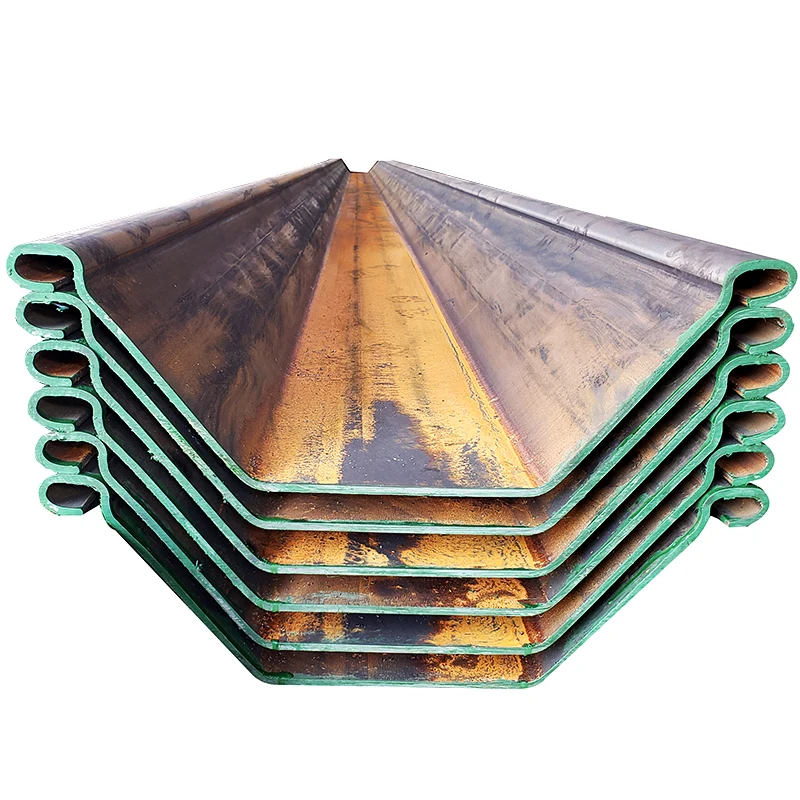

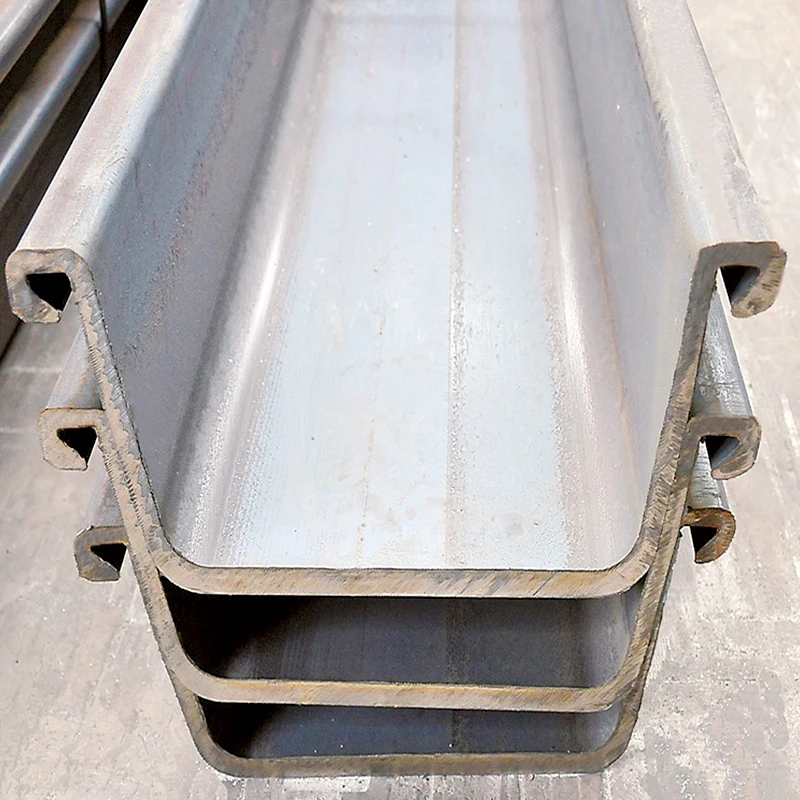

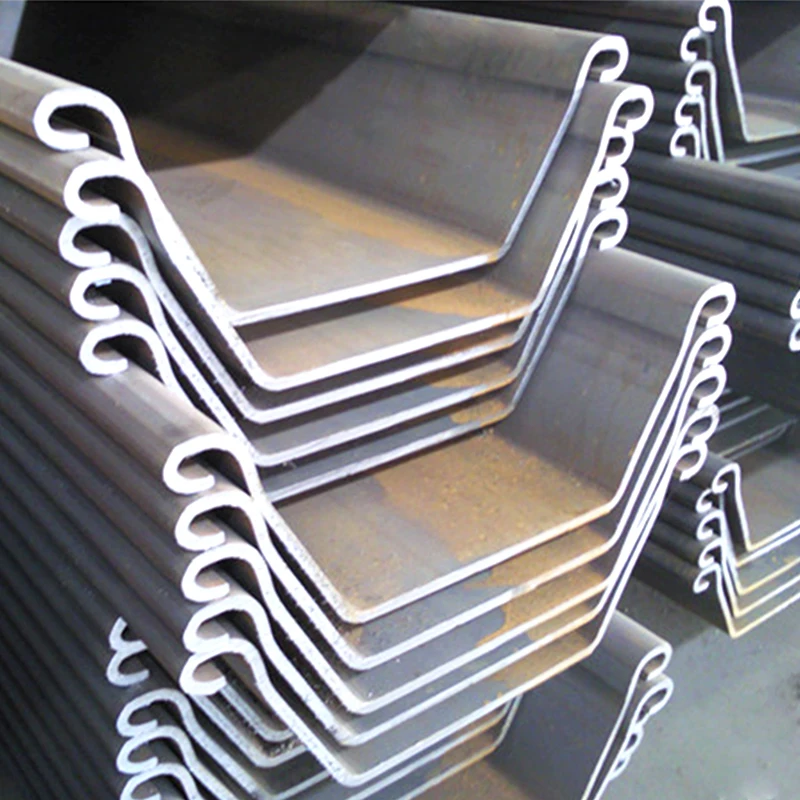

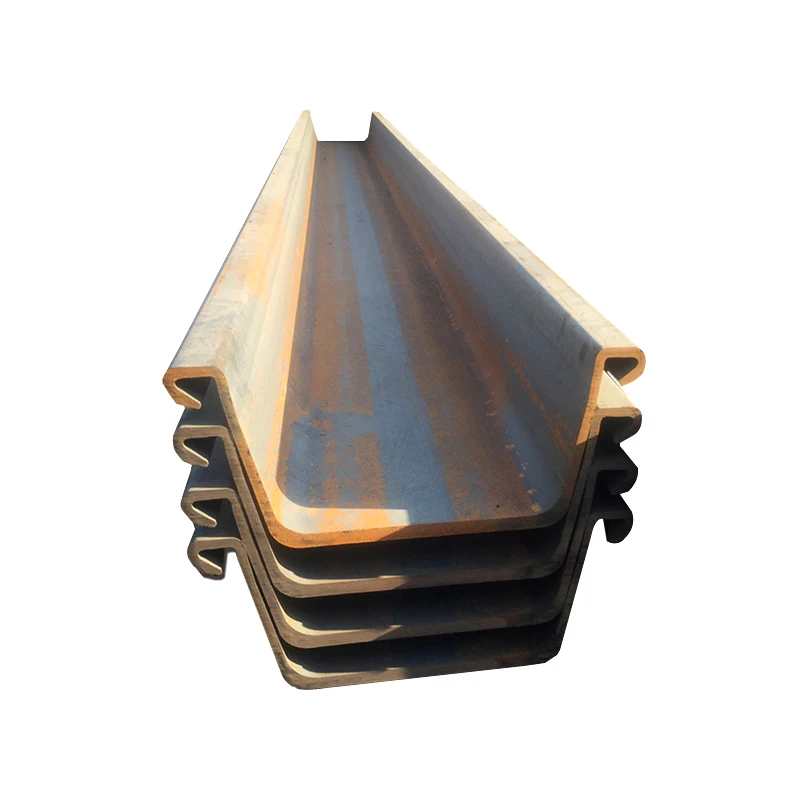

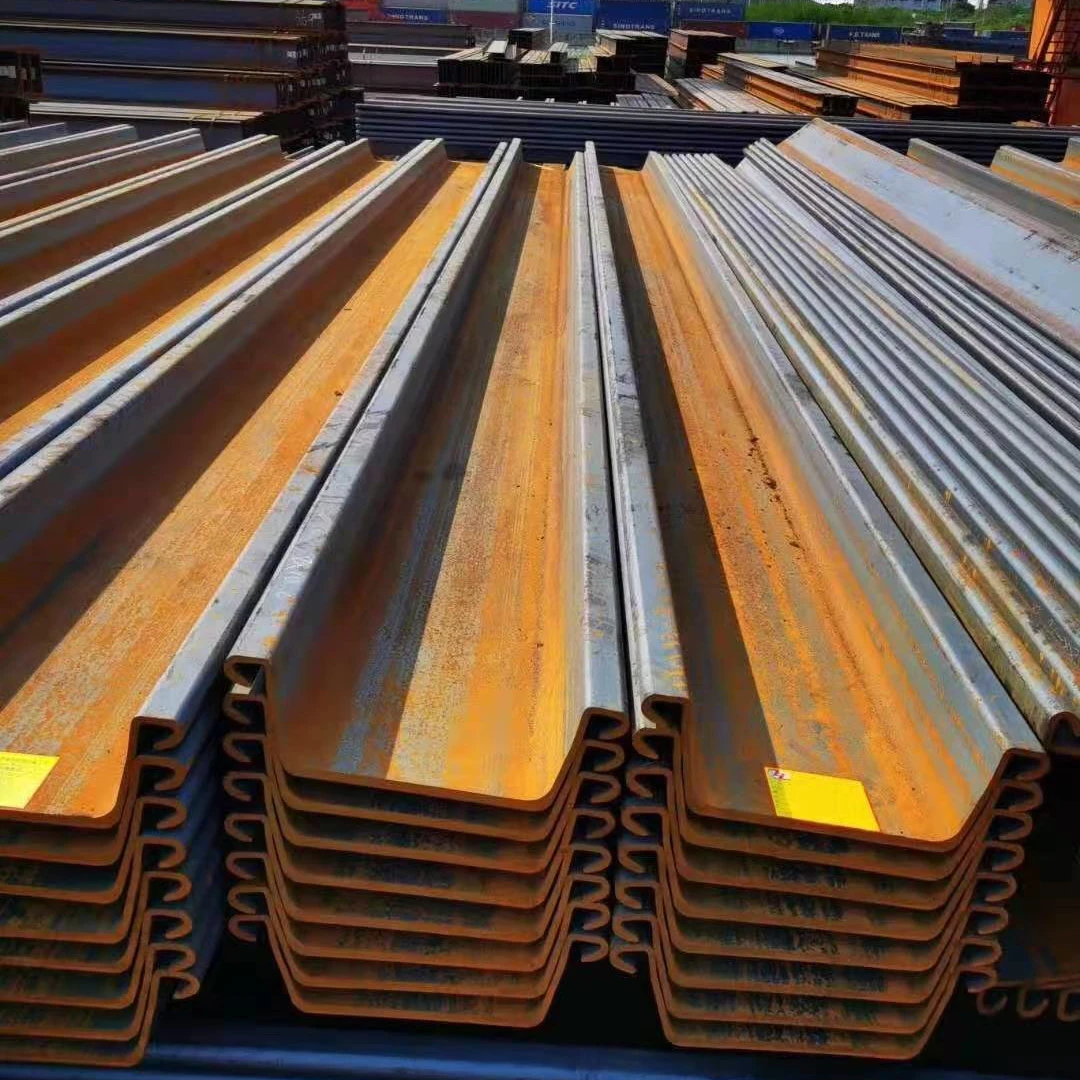

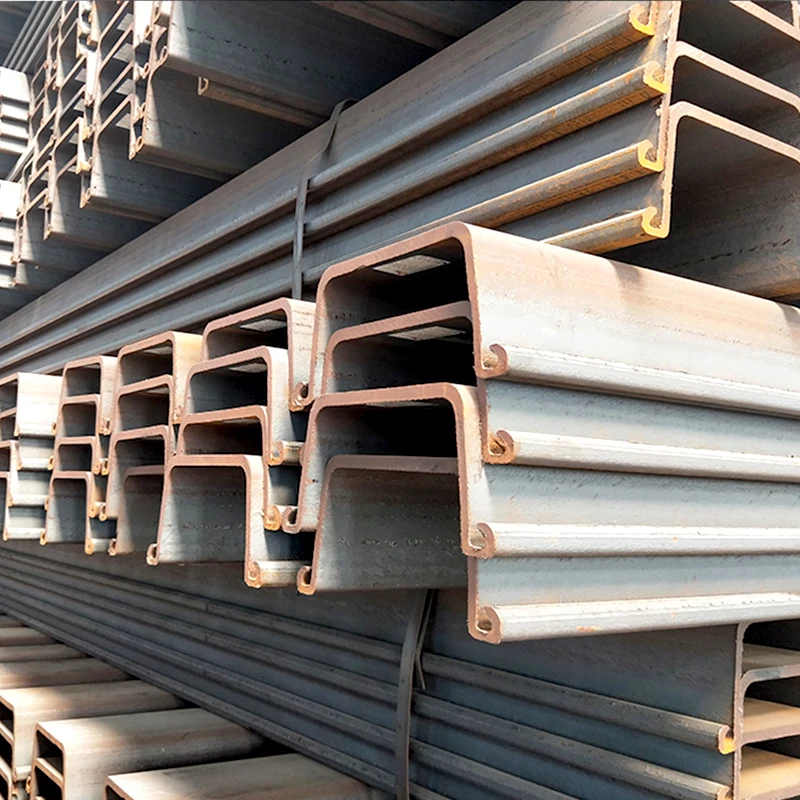

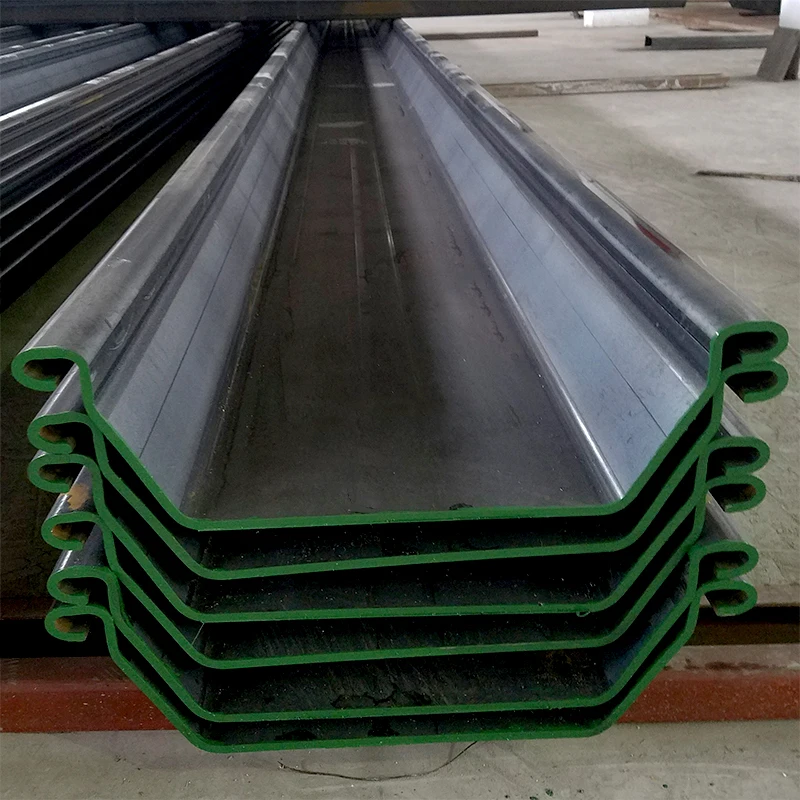

u Type Steel Sheet Pile
1.Abundant specifications and models.
2.The symmetrical structure is conducive to repeated use.
3.The length can be customizedaccording to customer requirements,which brings convenience to construction and reduces cost.
4.Convenient production,short production design and production cycle.
2.The symmetrical structure is conducive to repeated use.
3.The length can be customizedaccording to customer requirements,which brings convenience to construction and reduces cost.
4.Convenient production,short production design and production cycle.
z Type steel Sheet Pile
1.Flexible design, a relatively high section modulusand mass ratio.
2.The stiffness of sheet pile wall is increased toreduce the displacement and deformation.
3.Large width, effectively save the time of hoistingand piling.
4.With the increase of section width, the water stopperformance is improved.
5.More excellent corrosion resistance.
2.The stiffness of sheet pile wall is increased toreduce the displacement and deformation.
3.Large width, effectively save the time of hoistingand piling.
4.With the increase of section width, the water stopperformance is improved.
5.More excellent corrosion resistance.

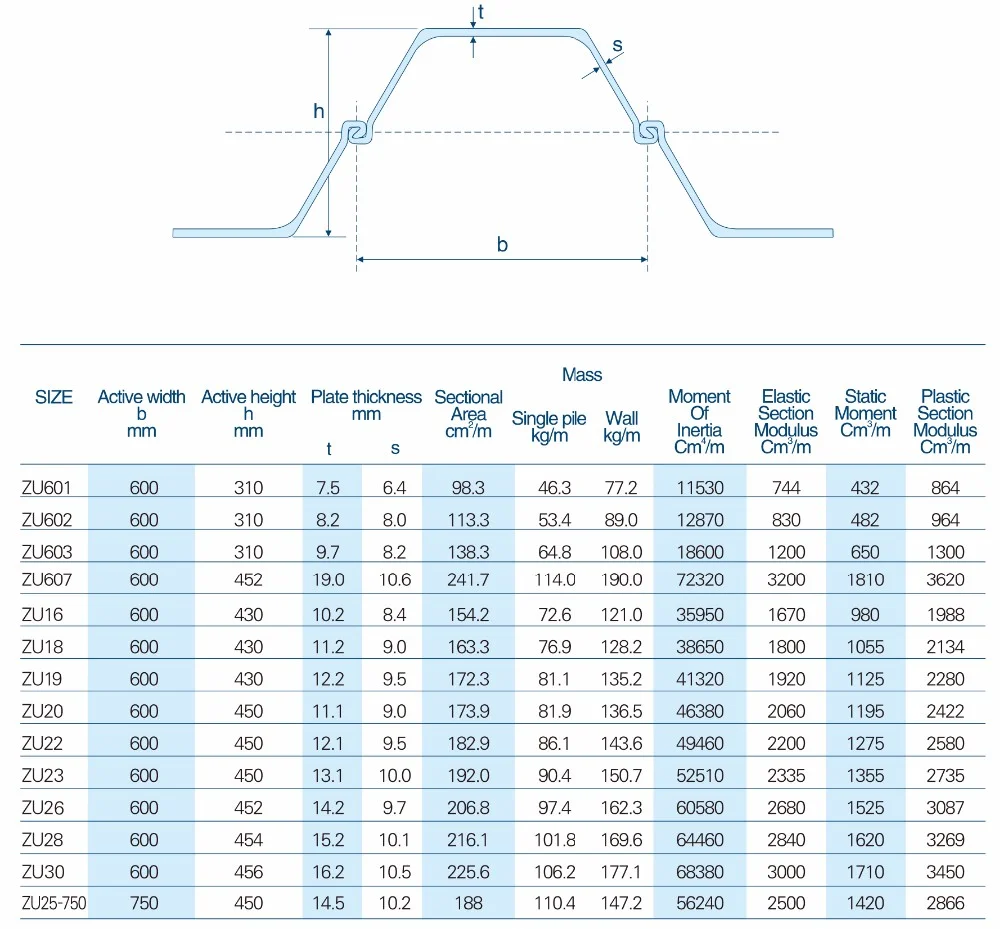

Product Parameters
Product | Hot rolled steel sheet pile for construction |
Grade | Q234B/Q345B JIS A5523/SYW295,JISA5528/SY295,SYW390,SY390 ect. |
Standard | AiSi, ASTM, DIN, GB, JISEN10249,EN10248,JIS A 5523 and JIS A 5528,ASTM A328 / ASTM A328M |
Technique | Hot rolled,cold formed |
Type | U type/Z type |
Specification | Any length as customer's request |
Packing | Bundle in bulk,seaworthy packing or as customer's request |
Application | Cofferdam /River flood diversion and control/ Water treatment system fence/Flood protection Wall/Protective embankment/Coastal berm/Tunnel cuts and tunnel bunkers/Breakwater/Weir Wall/ Fixed slope/ Baffle wall, etc. |
U type steel sheet piles
Size | Per piece | ||||||||
Specification | Width (mm) | High (mm) | Thick (mm) | Section area (cm2) | Weight (kg/m) | ||||
400 x 85 | 400 | 85 | 8.0 | 45.21 | 35.5 | ||||
400 x 100 | 400 | 100 | 10.5 | 61.18 | 48.0 | ||||
400 x 125 | 400 | 125 | 13.0 | 76.42 | 60.0 | ||||
400 x 150 | 400 | 150 | 13.1 | 74.40 | 58.4 | ||||
400 x 170 | 400 | 170 | 15.5 | 96.99 | 76.1 | ||||
600 x 130 | 600 | 130 | 10.3 | 78.7 | 61.8 | ||||
600 x 180 | 600 | 180 | 13.4 | 103.9 | 81.6 | ||||
600 x 210 | 600 | 210 | 18.0 | 135.3 | 106.2 | ||||
750 x 205 | 750 | 204 | 10.0 | 99.2 | 77.9 | ||||
750 | 205.5 | 11.5 | 109.9 | 86.3 | |||||
750 | 206 | 12.0 | 113.4 | 89.0 | |||||
Z type steel sheet piles
Specification | Width (mm) | High (mm) | Thick t (mm) | Thick s (mm) | Weight (kg/m) |
SPZ12 | 700 | 314 | 8.5 | 8.5 | 67.7 |
SPZ13 | 700 | 315 | 9.5 | 9.5 | 74 |
SPZ14 | 700 | 316 | 10.5 | 10.5 | 80.3 |
SPZ17 | 700 | 420 | 8.5 | 8.5 | 73.1 |
SPZ18 | 700 | 418 | 9.10 | 9.10 | 76.9 |
SPZ19 | 700 | 421 | 9.5 | 9.5 | 80.0 |
SPZ20 | 700 | 421 | 10.0 | 10.0 | 83.5 |
SPZ24 | 700 | 459 | 11.2 | 11.2 | 95.7 |
SPZ26 | 700 | 459 | 12.3 | 12.3 | 103.3 |
SPZ28 | 700 | 461 | 13.2 | 13.2 | 110.0 |
SPZ36 | 700 | 499 | 15.0 | 11.2 | 118.6 |
SPZ38 | 700 | 500 | 16.0 | 12.2 | 126.4 |
SPZ25 | 630 | 426 | 12.0 | 11.2 | 91.5 |
SPZ48 | 580 | 481 | 19.1 | 15.1 | 140.2 |
Certifications

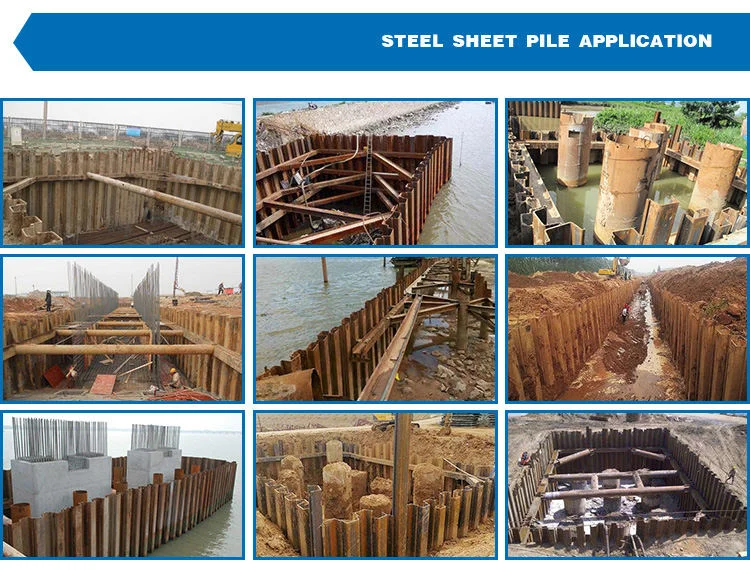

Application
1. Wharf wall, noise isolation wall, etc. Used in hydraulic engineering.
2.Used for wall protection and parking equipment in waterway civil engineering.
3.Used for the control of water conservancy project construction pollution.
2.Used for wall protection and parking equipment in waterway civil engineering.
3.Used for the control of water conservancy project construction pollution.

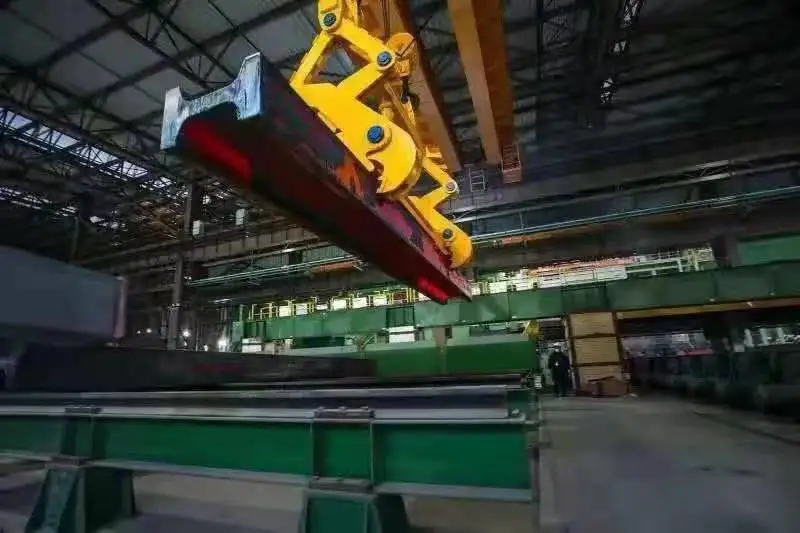

Company Profile

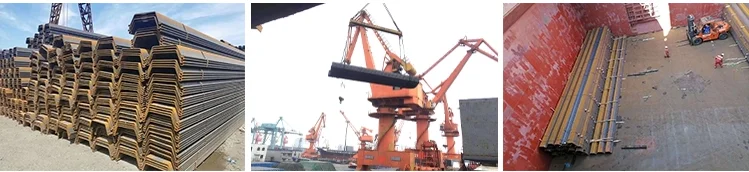

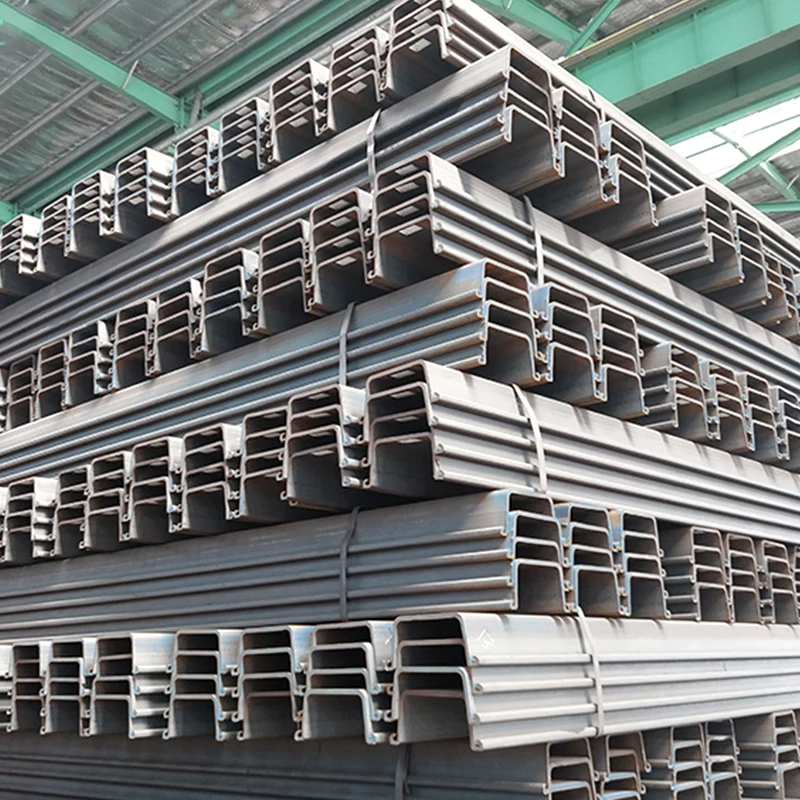

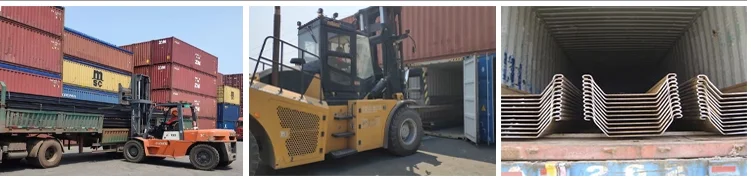

Product packaging
