Beijing Chity Wooden Panel Wood Carving Saw Cleaner Working Shop Systems Industry Dust Collector Machine for Wood Working Cnc
- Category: >>>
- Supplier: Beijing Chengtai Environmental Protection Co. Ltd.
Share on (1601271168752):
Product Overview
Description
* 24*7 Hours Online Service
* Production According to Your Drawing (2Dor3D)
* Equipped with Specialized Technical Personnel
* Welcome to Visit Our Factory!
Product Parameters
CCD Low Pressure Pulse Filter Cartridge Dust Collector is a simple single model dust removal equipment, mainly refers to small dust collector. The jet filter is a filter filter that uses compressed air as the cleaning power, uses the pulse jet mechanism to re lease compressed air instantaneously, induces several times of secondary air to shoot into the filter cartridge at high speed, and relies on shock vibration and reverse airflow to clean the dust.
The dust collector has the characteristics of compact layout, good dust removal effect, high purification efficiency, large gas treatment, easy maintenance, small workload, reliable opera tion, etc., and has been widely used in welding, chemical industry, grain processing and other departments.
The dust collector has the characteristics of compact layout, good dust removal effect, high purification efficiency, large gas treatment, easy maintenance, small workload, reliable opera tion, etc., and has been widely used in welding, chemical industry, grain processing and other departments.
The baghouse dust collector is a filter-type dust removal equipment based on the principle of filtration, which uses the fiber or inorganic fiber filter cloth of the agricultural production system to filter out the dust in the gas.
Dust removal process: the dust-containing gas enters the middle box from the air inlet, enters the bag from the outside of the filter bag, the dust is blocked on the surface outside the filter bag, the purified air enters the bag, and then enters the upper box from the upper part of the bag, and then is discharged by the exhaust pipe.
Dust removal process: the dust-containing gas enters the middle box from the air inlet, enters the bag from the outside of the filter bag, the dust is blocked on the surface outside the filter bag, the purified air enters the bag, and then enters the upper box from the upper part of the bag, and then is discharged by the exhaust pipe.
CCD-I Filter Cartridge Dust Collector | ||||||||||
Model | Filter area/㎡ | Processing air volume/m ³/h | Pulse valve | Number of pulse valves | Efficiency | |||||
48 | 2304 | DMF-Z-25 | 4 | |||||||
72 | 3456 | 6 | ||||||||
96 | 4608 | 6 | ||||||||
128 | 6144 | 8 | ||||||||
160 | 7680 | 8 | ||||||||
200 | 9600 | 10 | ||||||||
256 | 12288 | DMF-Z-40 | 10 | |||||||
320 | 15360 | 10 | ||||||||
384 | 18432 | 12 | ||||||||
480 | 23040 | 15 | ||||||||
576 | 27648 | 18 | ||||||||
640 | 30720 | 20 | ||||||||
768 | 36864 | 24 | ||||||||
832 | 39936 | 26 | ||||||||
960 | 46080 | 30 | ||||||||
1040 | 49920 | DMF-Z-50 | 26 | |||||||
1200 | 57600 | 30 | ||||||||

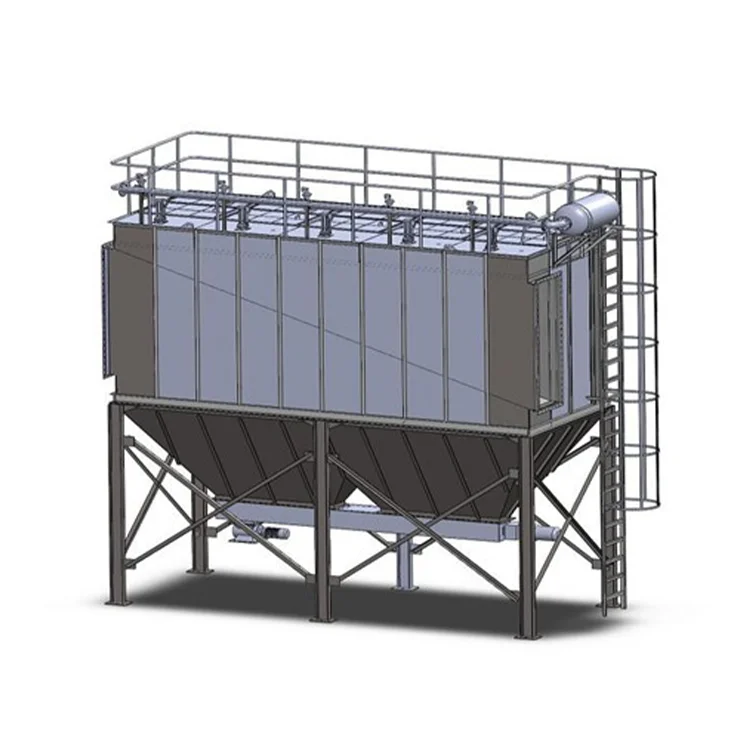

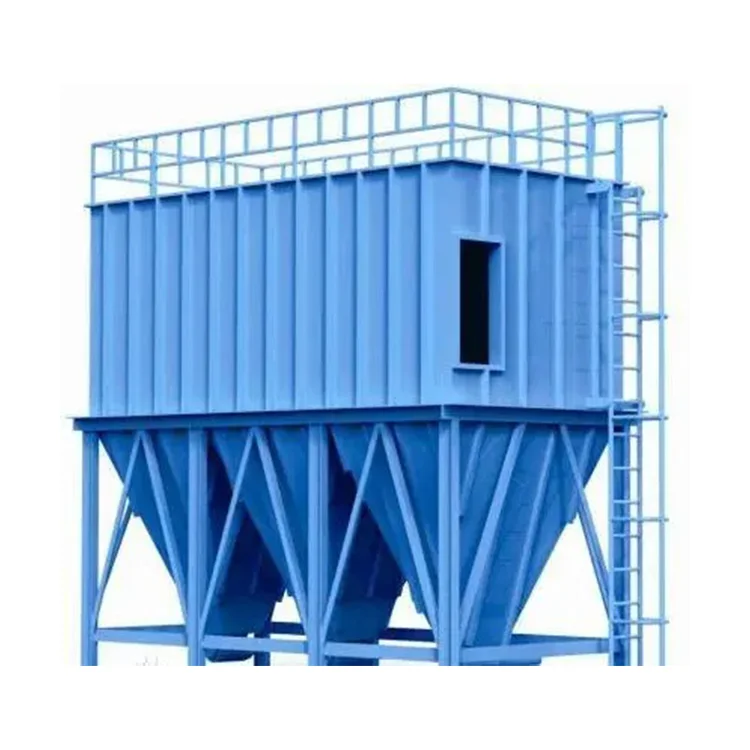

Product Photograph ：

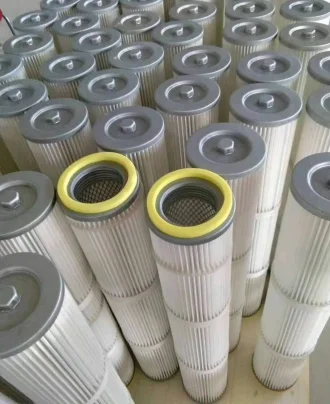

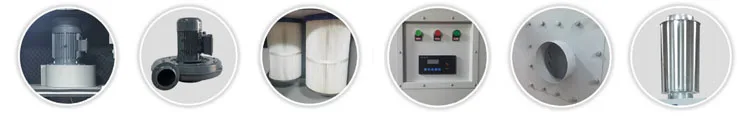

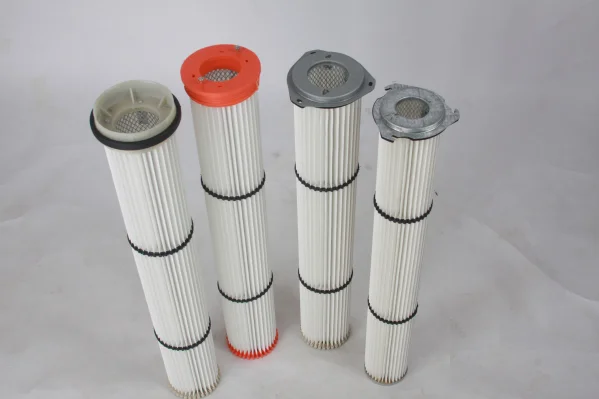

Product Accesssories :
CCD-II(L) Filter Cartridge Dust Collector | ||||||||
Model | Filter cartridge model | Number of filter cartridges | Filter area/㎡ | Processing air volume/m ³/h | ||||
φ325×660 | 4 | 33 | 2400 | |||||
6 | 50 | 3500 | ||||||
9 | 75 | 5000 | ||||||
12 | 100 | 6000 | ||||||
16 | 133 | 8000 | ||||||
20 | 166 | 10050 | ||||||
24 | 200 | 12000 | ||||||
Product Photograph ：

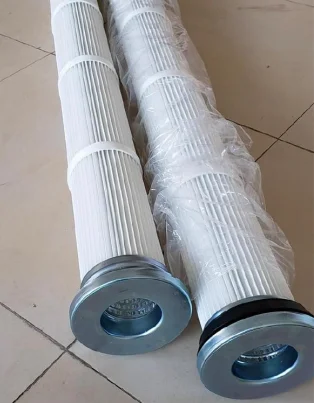

Product Accesssories ：
CCD-II(H) Filter Cartridge Dust Collector | ||||||||
Model | Filter cartridge model | Number of filter cartridges | Filter area/㎡ | Processing air volume/m ³/h | ||||
2 | 40 | 2400 | ||||||
4 | 80 | 5000 | ||||||
6 | 108 | 6000 | ||||||
9 | 162 | 8000 | ||||||
12 | 216 | 10050 | ||||||
16 | 288 | 14000 | ||||||

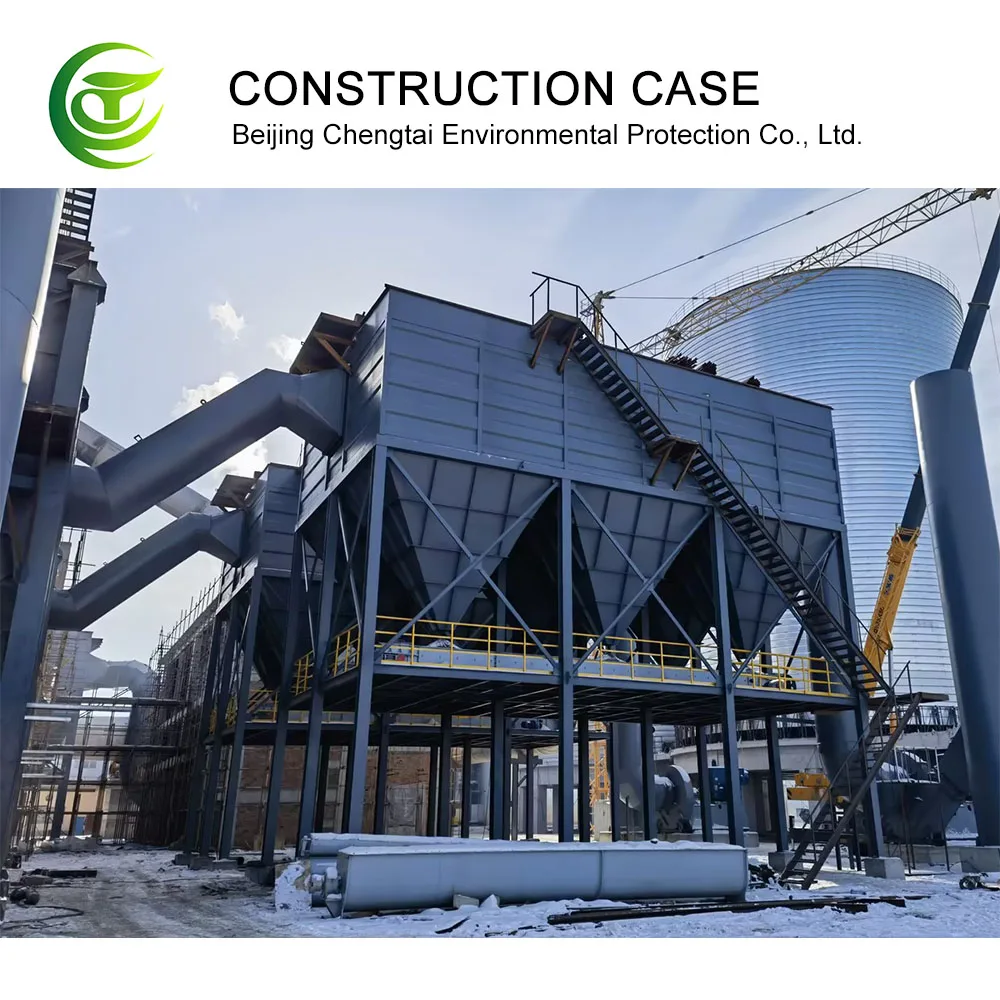

Construction Case

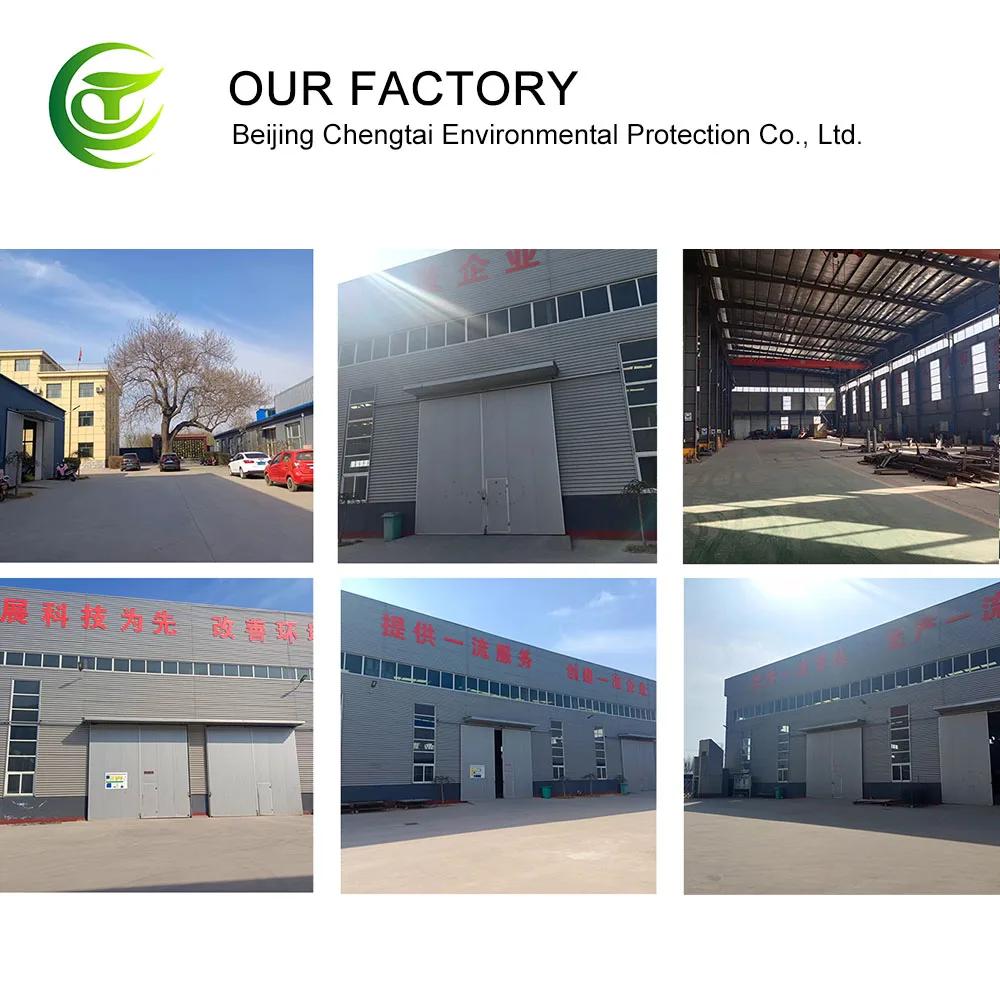

Our Factory
Company Profile
Beijing Chengtai Environmental Protection Co., Ltd. is a professional manufacturer of atmospheric environmental equipment. As a professional manufacturer and supporting manufacturer, the company currently produces various efficient environmental protection equipment and has long-term close cooperation with major universities and research institutions. It has the ability to design, manufacture, install and debug systems, and provides effective after-sales service and technical consultation. We pay attention to details and quality assurance in all aspects of system design, production, installation, and adjustment, exchanging customers' trust with sincerity.
CUSTOMER VISIT
OUR SERVICE ?
We have strong technology term and installation personnel, we are able to design and manufacture dust collector with different capacity.
FAQ
1.The quality
Welcome to our factory and check the quality of product.And we will send you the video and pictures before shipment
after you order.
after you order.
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Always final Inspection before shipment;
3.what can you buy from us?
Dust Collector, Conveying Equipment, Filter Bag, Desulfurization Equipment, De-Nox Equipment
4. Why do you want to purchase from us instead of other suppliers?
4. Why do you want to purchase from us instead of other suppliers?
1. Quick quotation within 24 hours upon inquiry.
2. High quality and cost-effectiveness make it your best choice
3. A professional R&D team designs dust removal technology based on the specific situation of the dust collector.
4. After sales service, solving all troubles
2. High quality and cost-effectiveness make it your best choice
3. A professional R&D team designs dust removal technology based on the specific situation of the dust collector.
4. After sales service, solving all troubles
5.Equipment warranty
A.Equipment with 12 months warranty, can be extended to 24 months as request.
