Cold Room Price/Walk in Cooler/Cold Storage to Store Meat/Seafood
- Category: >>>
- Supplier: OnlyKem (Jinan) Technology Co. Ltd.
Share on (1601271173800):

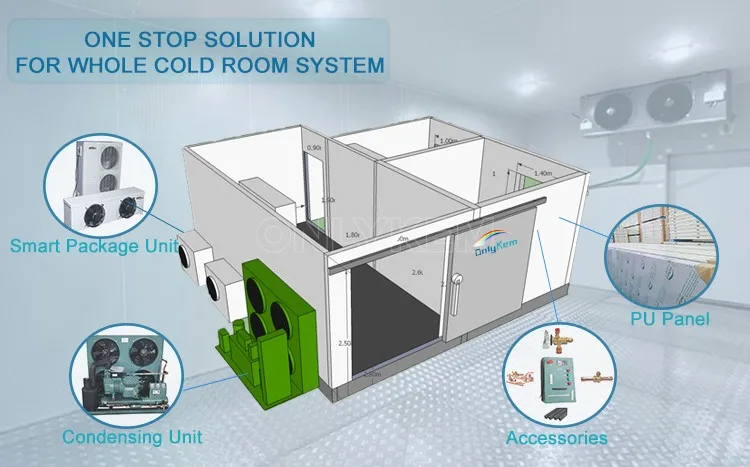

Product Overview
Description
Commercial Fruit/Vegetable Walk in Cooler with PU Panel in USA
Design
OnlyKem Cold Store has different capacity, it can be customized design according to your requirements. Temperature
The temperature can be customized from -60℃ ~ +20℃.
Capacity
OnlyKem Cold Store is from 5 CBM to 10,000CBM, the dimension can be customized according to your requirements. It applies to different products from 1 Tons to 2,500 Tons or more.
Application
Cold Room can store food, fruit, vegetable, fish, meat, ice, flower, milk, drinks, etc.
Product Details

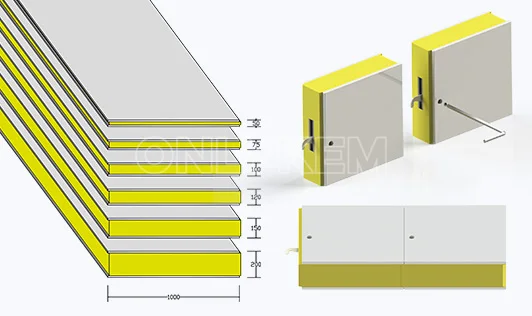

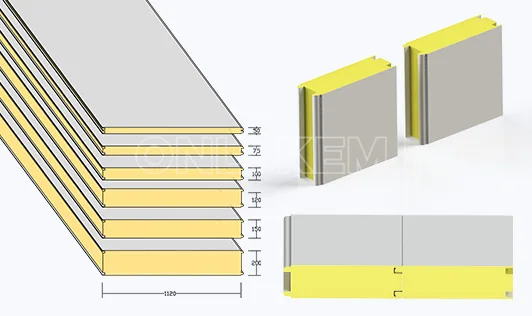

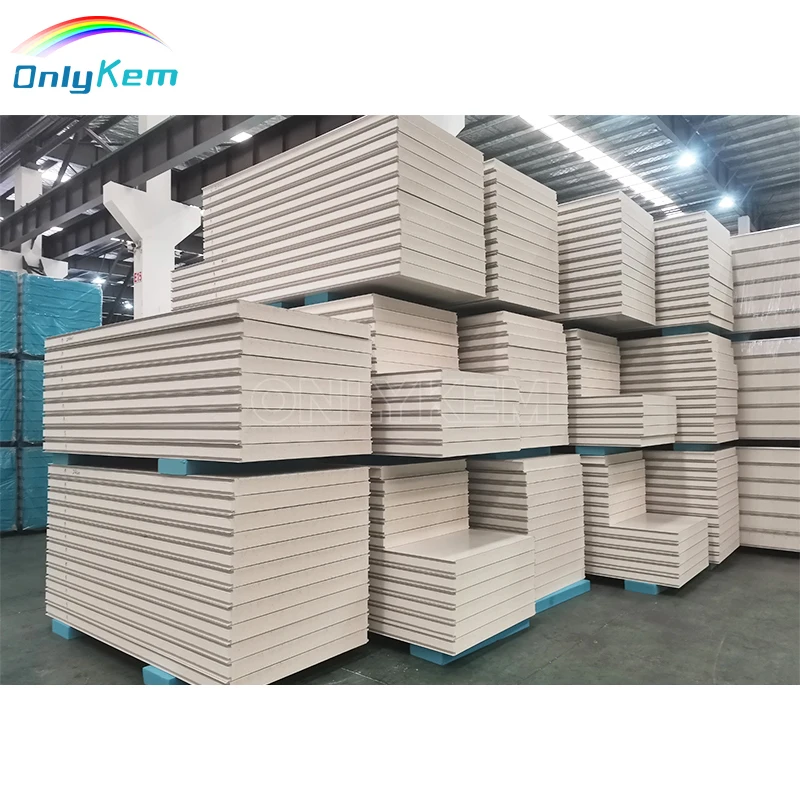

PUR/PIR Panel
Thickness | 50mm/75mm 100mm 120mm 150mm 200mm | ||
Width | Standard: 960mm 1000mm | ||
Customization Available | |||
Length | Maximum 11800mm without connection | ||
PU Parameters | Density ≥ 42kg/m³ | ||
Flame Retardent Time ≤ 5s | |||
Hook Distance = 900mm | |||
Plate | Color Steel | 0.326mm 0.376mm 0.426mm 0.476mm | |
Stainless Steel | 0.4mm 0.5mm | ||
BaoStell | 0.5mm | ||
Embossed Aluminium | 0.7mm 0.8mm | ||

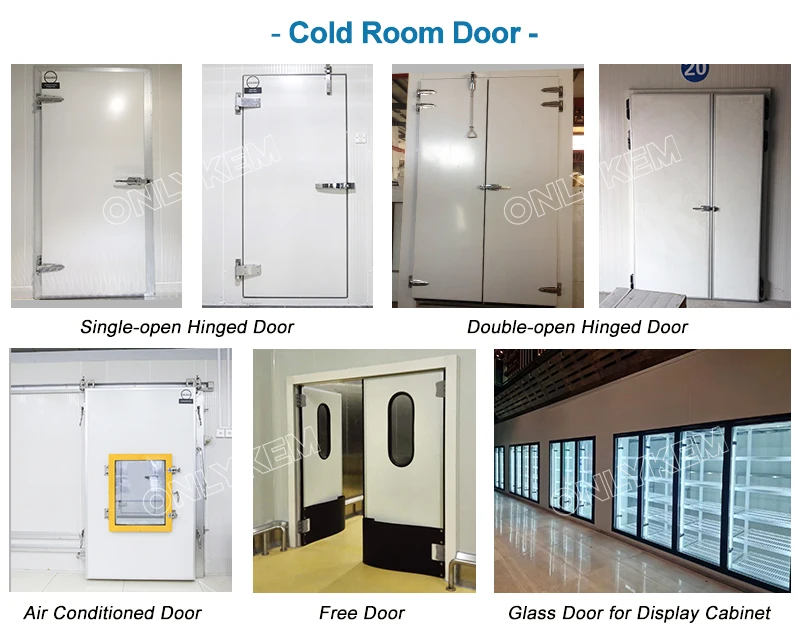

Cold Room Door Series
Sliding door
Standard size:1.5 m *2 m, very convenient for trolley get in and out. It is often used in larger freezer, such as 6 m in length
and 5 m width.
and 5 m width.
Hinged Door
Standard size: 0.8 m*1.8 m, we accept customization, but its width should not exceed 1.2 m.
Swing Door
If the width exceeds 1.2 m, we recommend double swing door. It can even the weight of hinge and extend service life.

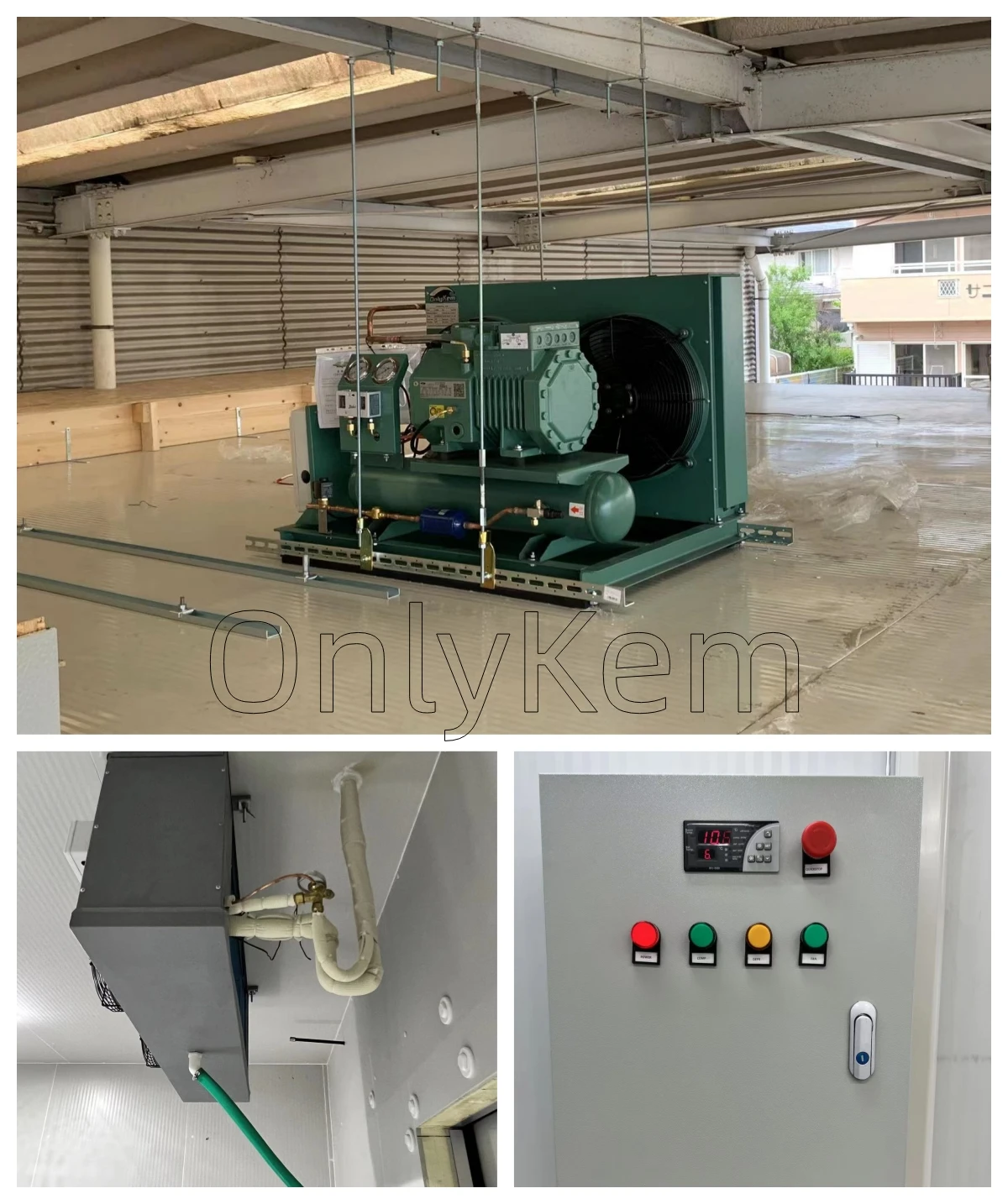

Condensing Unit
• Compressor Optional:
Original German Bitzer Brand
• Condenser:Air cooled or Water cooled(for higher ambient temperature)
• Frame:can be stell shell with spray painting or open type on stell frame
• Voltage:
220V/1PH/50HZ or 60HZ 380V-415V/3Ph/50HZ or 60HZ
220V~415V/3PH/60HZ
220V~415V/3PH/60HZ
• Refrigerant:R22/R404a/R410a
• Capacity:Singe compressor 2HP-50HP
• Capacity:Singe compressor 2HP-50HP
Evaporator
• Shell: Steel with spraying,Aluminum,SS304
•Temperature:
DL -5~5C(fin space 4.5mm)
DD -15~-20C(fin space 6.0mm)
DD -15~-20C(fin space 6.0mm)
DJ -25C(fin space 9.0mm)
•Defrosting:Hot Gas,Electric Heater
• Capacity:
DL 2.2-122KW
DD1.4-88KW
DJ:1.7-58KW
DJ:1.7-58KW
• Fins:Blue fins,better heat exchane effects
• Water Receiver:Double
• Water Receiver:Double

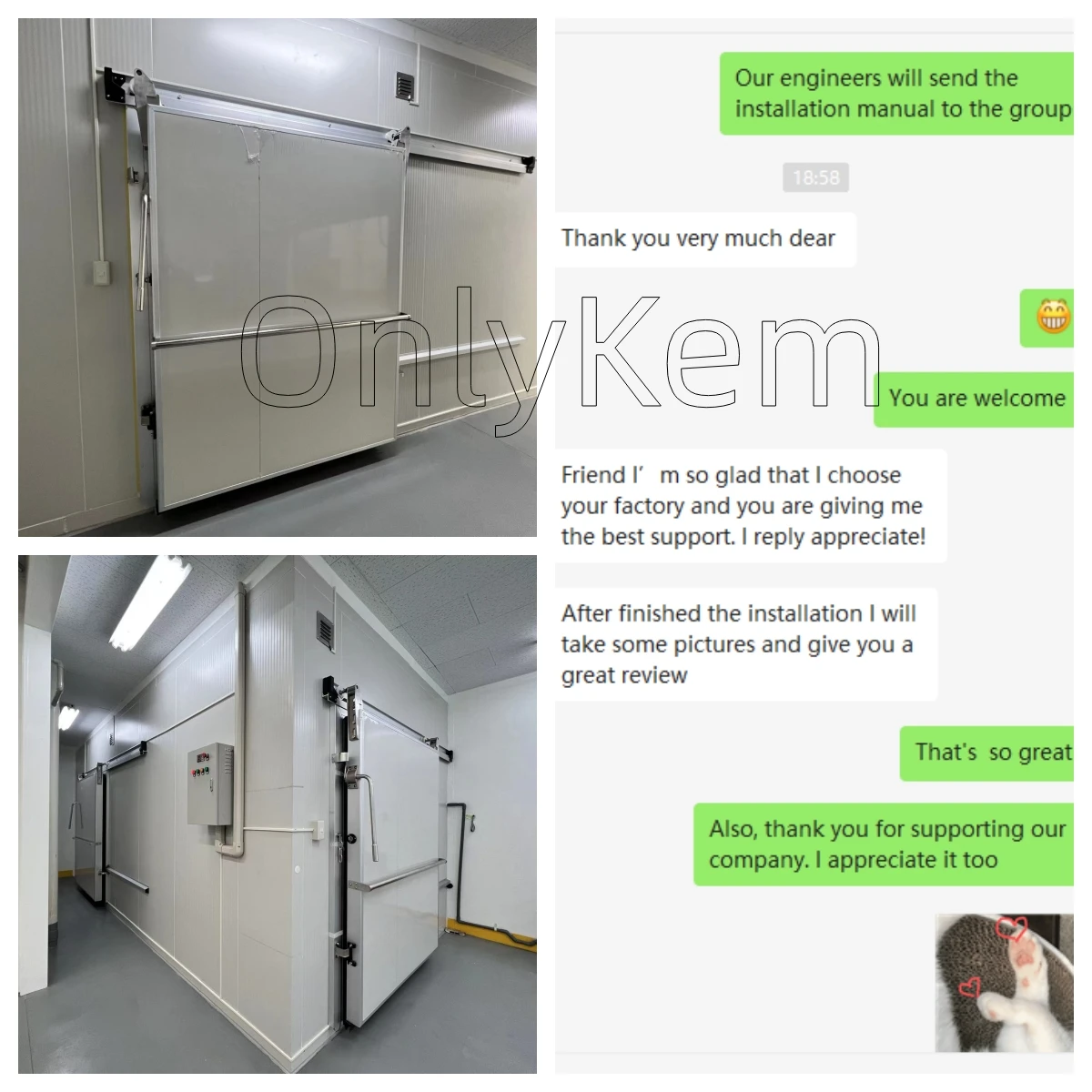

Customer Feedback
Product Packaging and Delivery
The protective packaging of the Smart Packaged Unit:
1. Wooden box: fix the compressor and fan to prevent shaking
2. Bottom support: easy to load and unload to prevent packaging damage

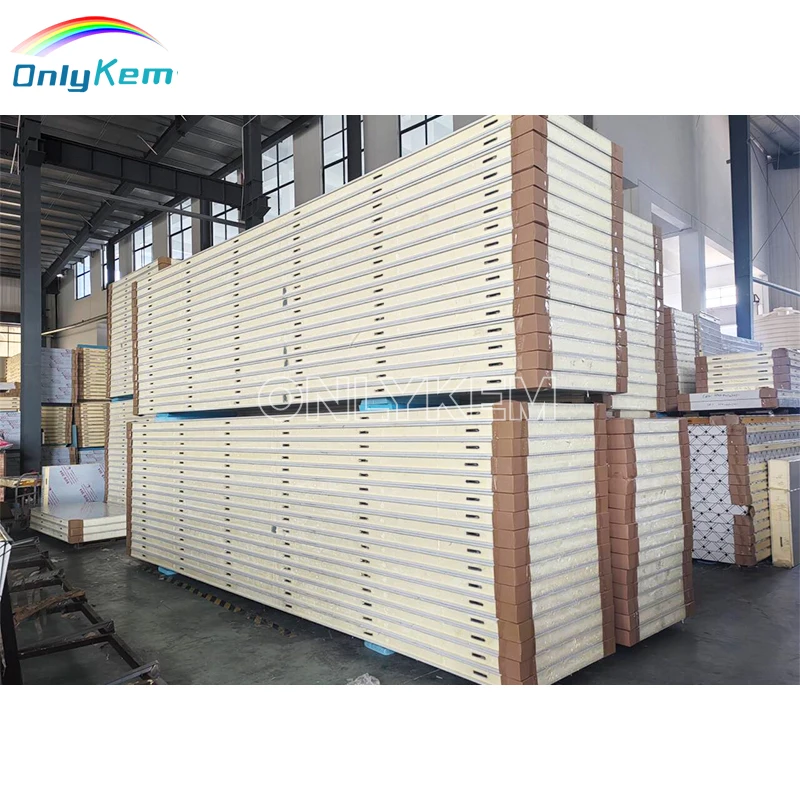

The protective packaging of the PU Panel:
1, film packaging to prevent moisture, rust and transportation scratches
2. Four-corner cardboard protection to prevent impact
3, neatly placed, avoid shaking
1. Wooden box: fix the compressor and fan to prevent shaking
2. Bottom support: easy to load and unload to prevent packaging damage
The protective packaging of the PU Panel:
1, film packaging to prevent moisture, rust and transportation scratches
2. Four-corner cardboard protection to prevent impact
3, neatly placed, avoid shaking
