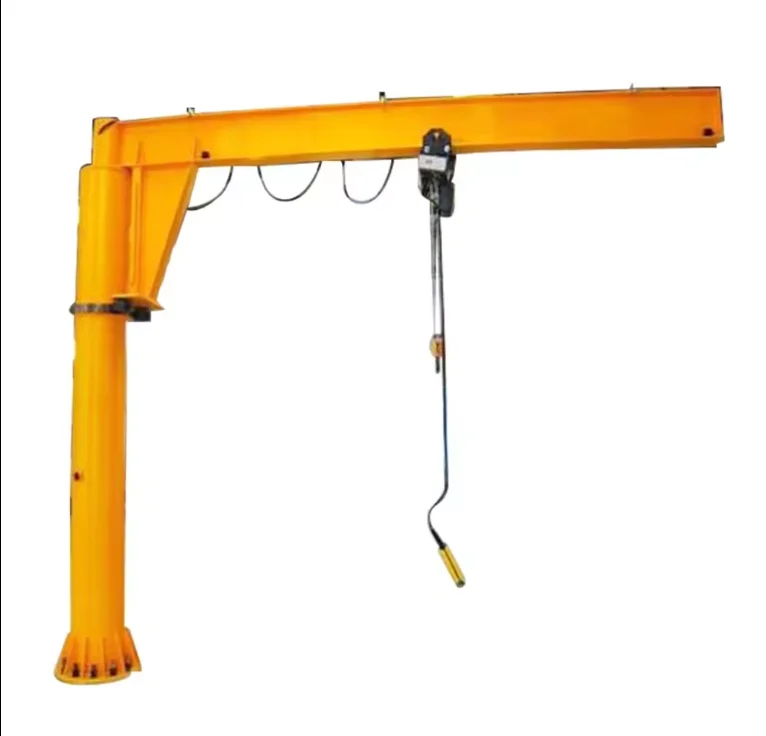

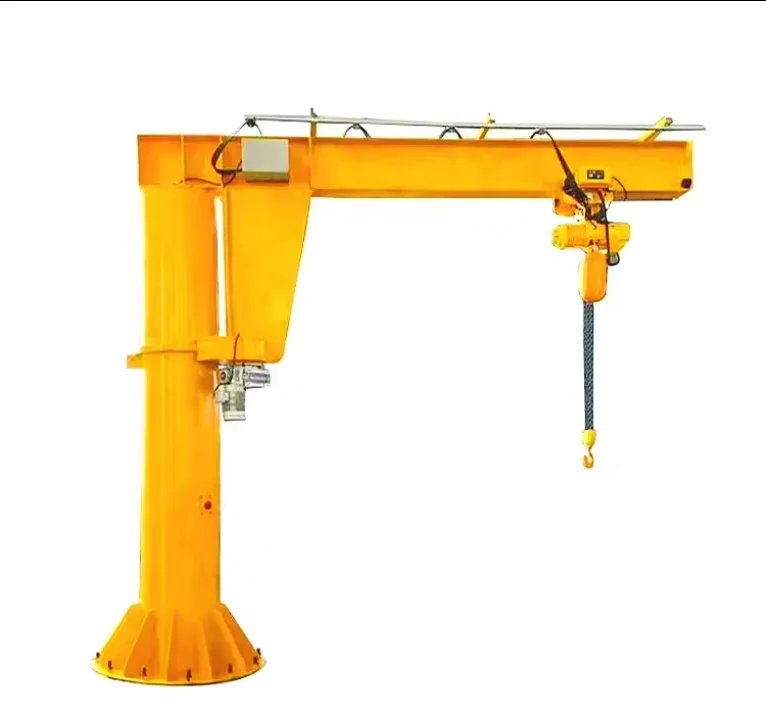

Perfect quality low price Jib crane unlimited operation electric crane
- Category: >>>
- Supplier: Henan Province Modern Crane Co. Ltd.
Share on (1601271176485):
Product Overview
Description
DESCRIPTION

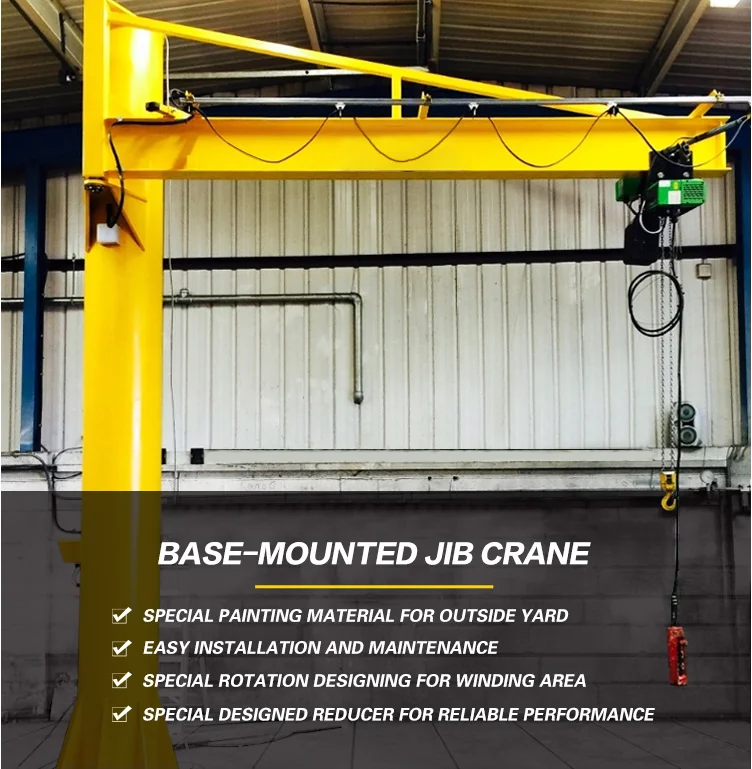

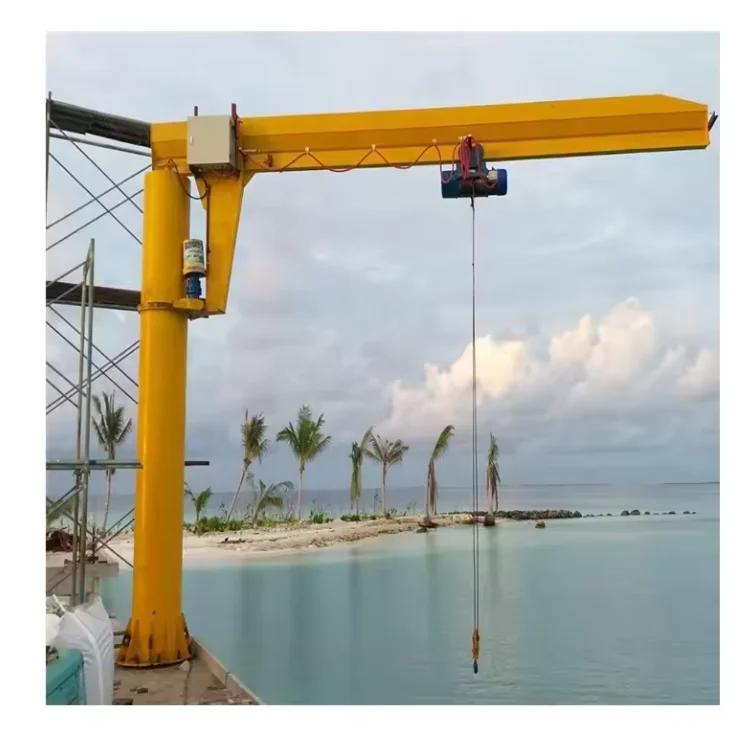

High technical 360 degrees column 3000kg jib crane

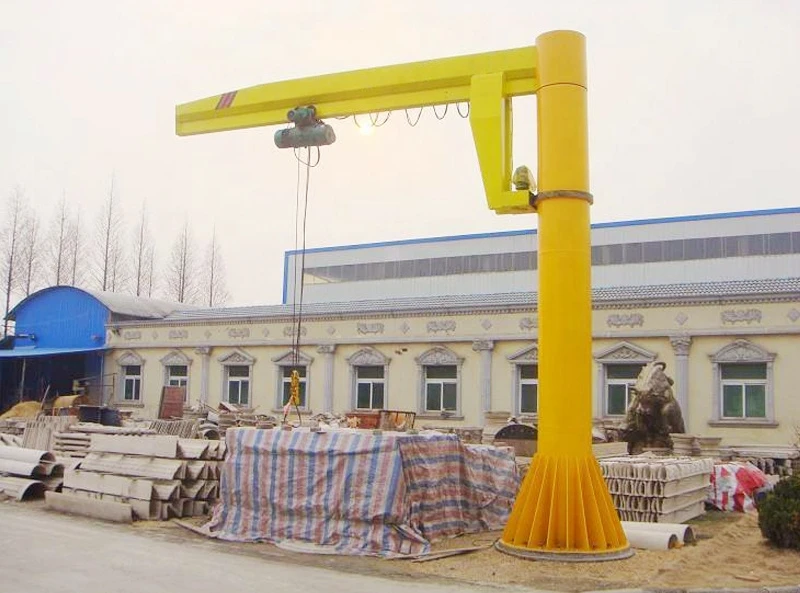

Jib crane is mainly used for boat and workshop. The leg is fixed on the floor, and work range is the circle of arm diameter. It is very convenient for loading and unloading the cargo in the small area, no need steel structure to support it, free standing. It is versatile, efficient and cost effective solutions for moving materials within an individual workstation, for transferring materials from work area to work area or for serving as auxiliary lifting devices under overhead tadano cranes.It can be handled easily by one man and have been thoroughly proven in factories, steel mills, muclear and other power stations, ship yards, stockyards, on dredgers, aboard ships, in the wood and stone working industry, in marinas and on railway stations.
Application:Workshop, warehouse, production line, etc.

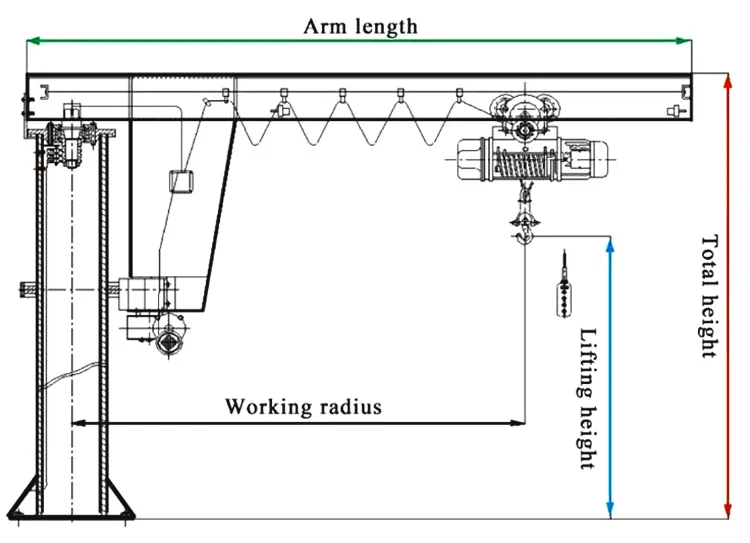

PARAMETER
Model | Unit | BZD0.5 | BZD1 | BZD2 | BZD3 | BZD5 |
Rated capacity | t | 0.5 | 1 | 2 | 3 | 5 |
Max. Lifting height | m | 3 | 5 | |||
Max. working range | m | 4 | 5 | |||
Max. turning radius | m | 5 | 4.5 | |||
Max. lifting torque | tm | 3 | 5.2 | 8.5 | 12.2 | 18.8 |
Rotation angle | ° | ≤360 | ||||
Lifting speed | m/min | 8; 8/0.8 | ||||
Trolley travelling speed | m/min | 20 | ||||
Rotation speed | m/min | 1 | 0.75 | 0.7 | 0.9 | 0.6 |
Weight | kg | 1000 | 1150 | 1350 | 3500 | 4500 |

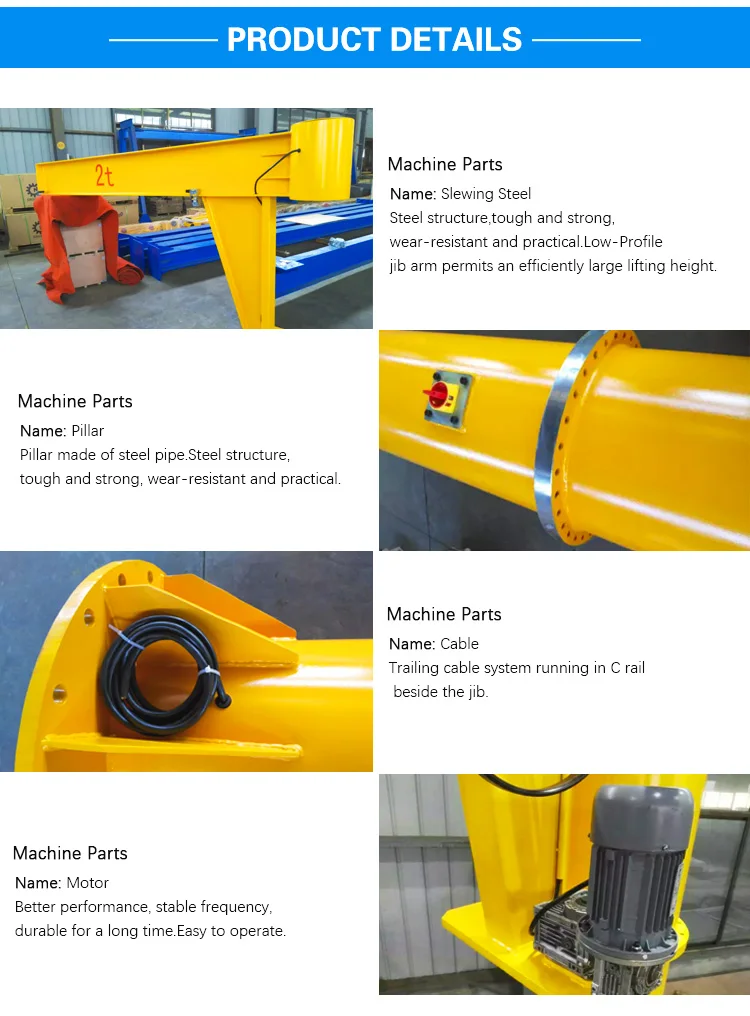

DETAILS
APPLICATION
PACKAGING
Company Information
HENAN PROVINCE MODERN CRANE CO.,LTD. focuses on lifting resolutions for more than 17 years.We provide design,production and service of different lifting equipments,which covers electric wire rope hoist,chain hoist,jib crane,bridge crane,gantry crane etc.
Our products have completely passed ISO9001,CE,GS and other quality system certificates.Thanks to our high quality products and outstanding customer service,Modern Crane has earned a reputation from our customers and gained a global saes network reaching Brazil,India,Philippine,Ukraine,Argentina,Spanish,Malaysia,and other 30 countries.
With the commitment of customer satisfaction,we are expecting t widen and deepen the cooperation and communication with all friends all over the world.
