Automatic air flotation Glass Cutting 90 Degree Table 2440 Tilting Air Float Breaking Cutting Table machine

Product Overview

Description

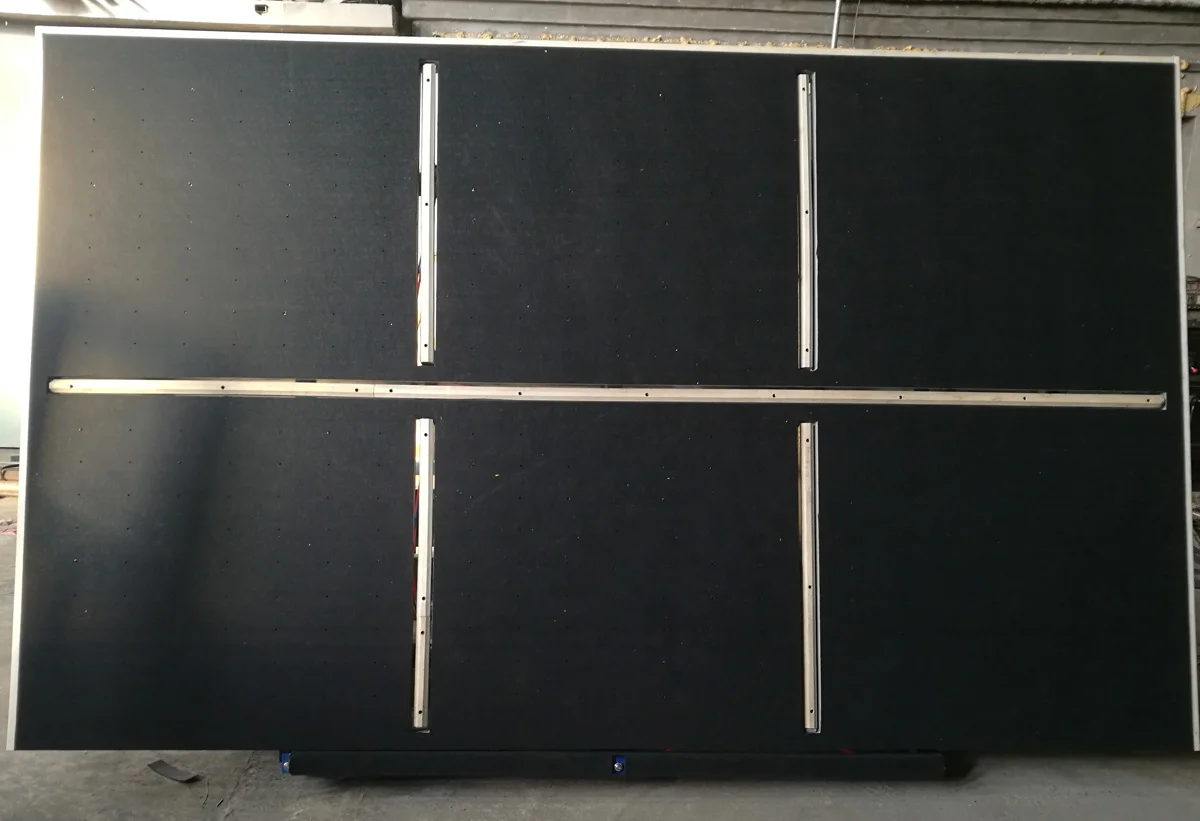

                                                 Air float glass breaking tilting table

This machine working surface is equiped with air floating blower system for easy handing and shifting movement of the glass.

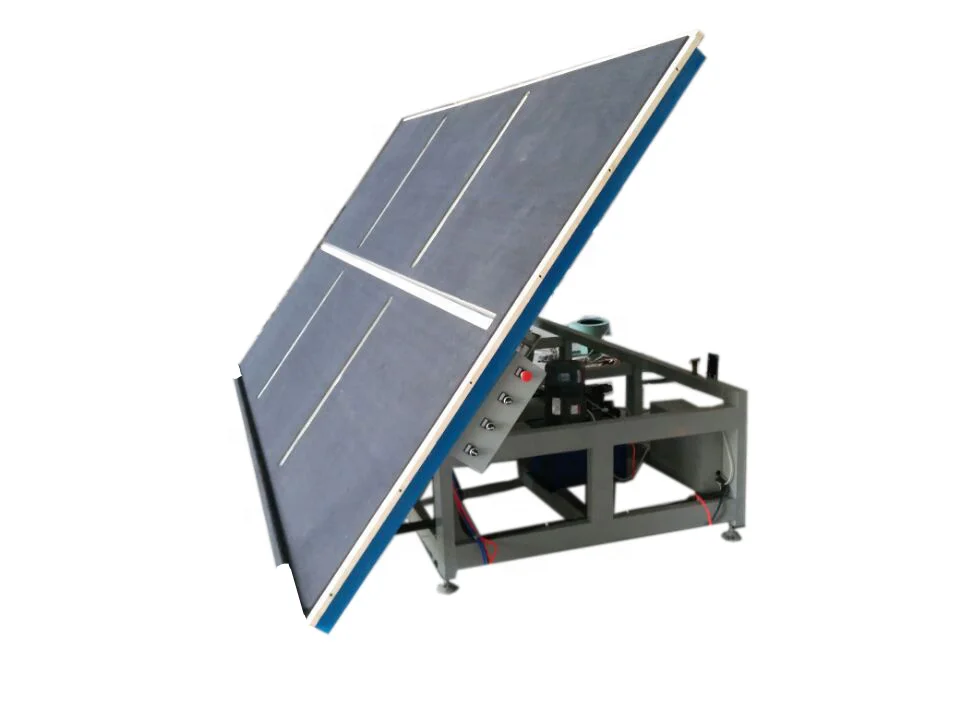

With hydraulically operated tilting table for stable and smooth ascending and descending motion.



Have a automatic loading bar for catching the glass to ensure safety during loading of glass.It is automatically lifting and falling which is controlled by the control switch with the tilting

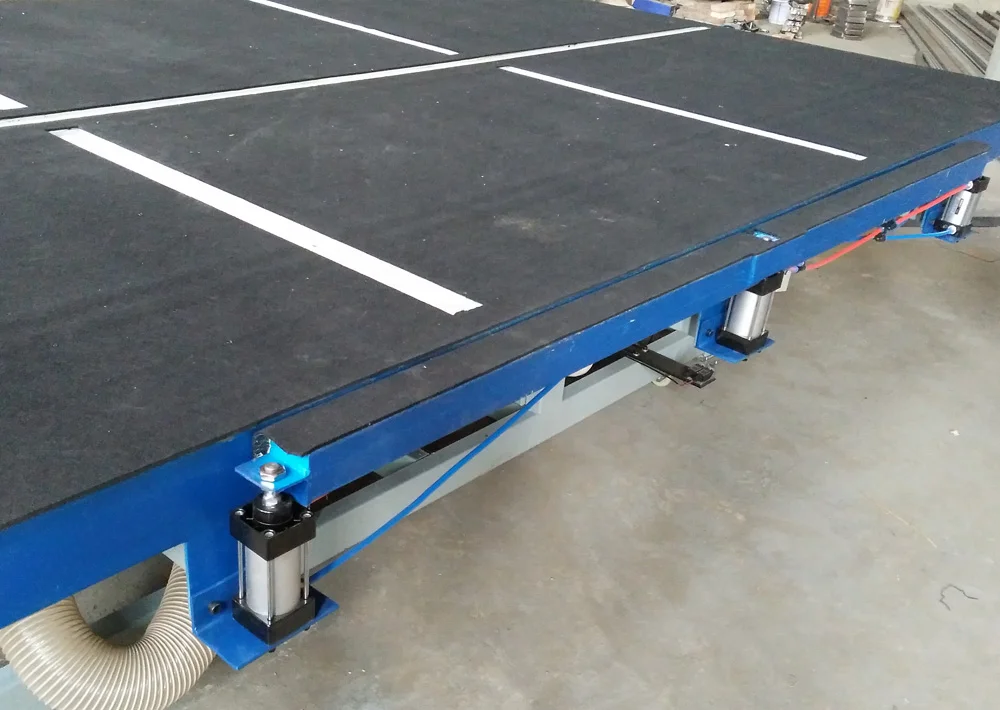

The pneumatically controlled X and Y  glass breaking bars can be activated by individual foot pedal swith to control each work position and section for large size cutting.



Table components: Strong metal Frame, strong metal table ,air float system, air supply system ,breaking system, tilt system



Technical parameter:

1.input power: 380V,50HZ/ 220V,60HZ

2.3 PCS breaking bars

3.Blower air float

4.Power: 1.5 KW

5.Table size: 2200*3600mm

6.Weight: 800 KGS
