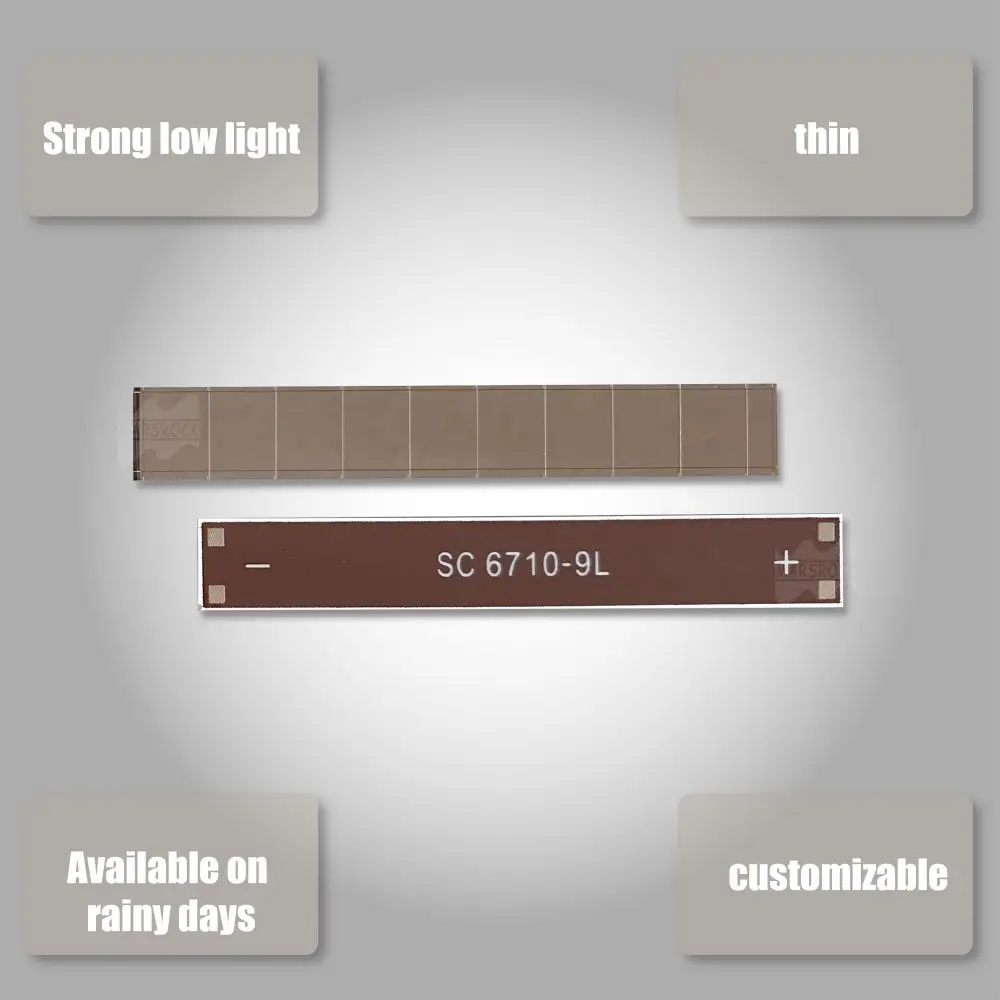

Solar Energy Products 67*10mm 5uA 3.3V Amorphous Solar Panel Energy Saving Equipment High Quality Thin Film Solar Panel
- Category: >>>
- Supplier: Xiamen Mars Rock Science Technology Co. Ltd.Xiamen Ltd.
Share on (1601271212758):
Product Overview
Description
Product Description
Product Parameter
MODEL | 5μA3.3V |
Voltage | 3.3V |
Current | 5μA |
Front Glass | Electric transparent TCO glass |

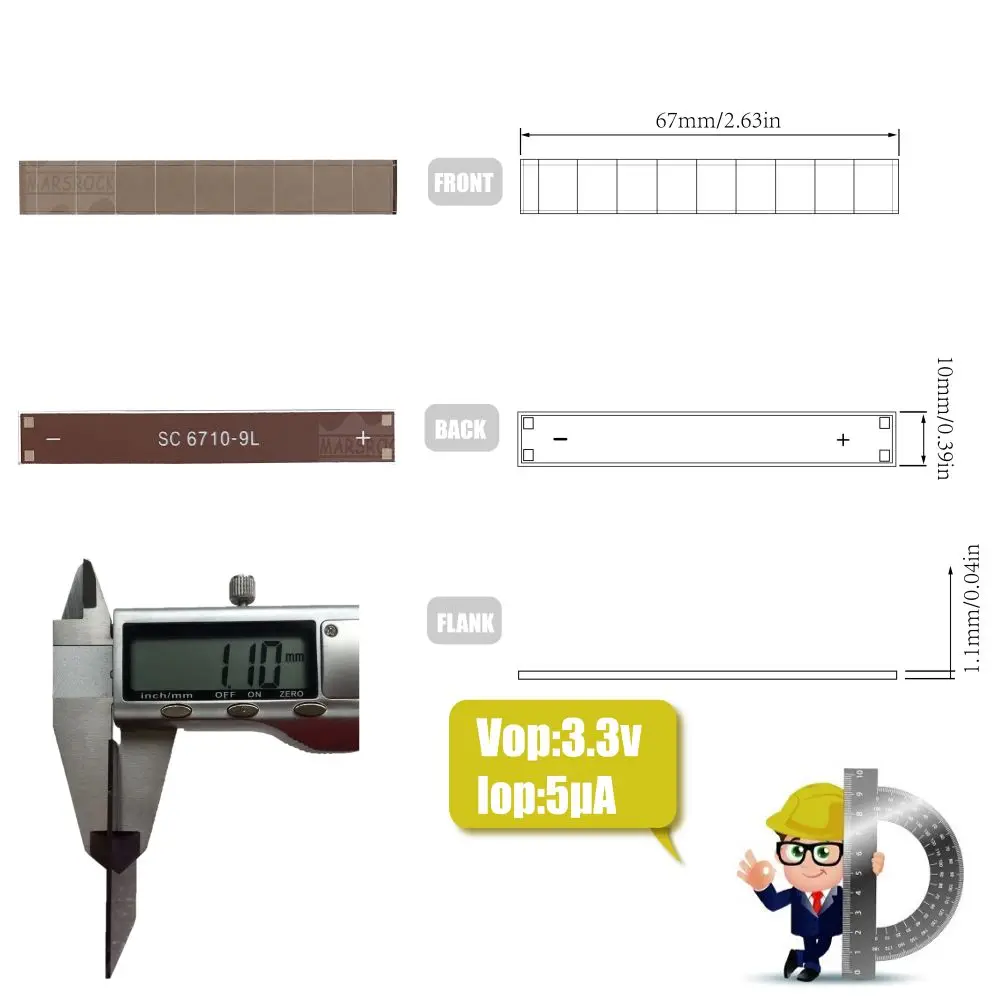

Produt size | 67*10*1.1MM |
Shape | Rectangular |
Place of Origin | China-Fujian |
Application | toys tent lamp calculator and so on |
Frame | No |
Weight | 0.05kg/pcs |
Color | Brown |
MODEL | Length（mm±0.5） | Widths（mm±0.5） | Battery Quantity | Voltage（V） | Current（μA） | |||||
1107-6 | 11 | 6 | 6 | 2.2 | 1 | |||||
1107-8 | 11 | 7 | 8 | 3 | 0.8 | |||||
1111-6 | 11 | 11 | 6 | 2.2 | 1 | |||||
2510-4 | 24.5 | 9.5 | 4 | 1.5 | 5 | |||||
2520-6 | 25 | 20 | 6 | 2.2 | 5 | |||||
2724-10 | 27 | 24 | 10 | 3.7 | 5 | |||||
3004-8 | 30 | 4 | 8 | 3 | 1 | |||||
3012-10 | 30 | 12 | 10 | 3.7 | 3 | |||||
3211-4 | 32 | 11 | 4 | 1.5 | 7 | |||||
3324-4 | 33 | 24 | 4 | 1.5 | 14 | |||||
3722-9L | 37 | 22 | 9 | 3.3 | 7 | |||||
4108-4 | 41 | 8 | 4 | 1.5 | 6 | |||||
4114-4L | 41 | 14 | 4 | 1.5 | 10 | |||||
4142-6 | 41 | 42 | 6 | 2.2 | 22 | |||||
4508-5 | 45 | 8 | 5 | 1.8 | 5 | |||||
5020-9 | 50 | 20 | 9 | 3.3 | 10 | |||||
5514-8 | 54.5 | 13.6 | 8 | 3 | 8 | |||||
5520-8 | 55 | 20 | 8 | 3 | 12 | |||||
5530-13 | 55 | 30 | 13 | 4.8 | 12 | |||||
5649-9 | 56 | 49 | 9 | 3.3 | 20 | |||||
6637-8 | 66 | 37 | 8 | 3 | 22 | |||||
6710-9 | 67 | 10 | 9 | 3.3 | 5 | |||||
6733-9 | 66.6 | 32.6 | 9 | 3.3 | 17 | |||||
6747-9 | 67 | 47 | 9 | / | / | |||||
8041-8 | 80 | 41 | 8 | 3 | 25 | |||||
8686-12 | 86 | 86 | 12 | 4.5 | 50 | |||||
9319-6 | 93 | 19 | 6 | 2.2 | 23 | |||||
1107-8 | 11 | 7 | 8 | 3 | 0.8 | |||||
10530-11 | 105 | 30 | 11 | 4.125 | 18.61363636 | |||||
10814-10 | 108 | 14 | 10 | 3.7 | 10 | |||||
12550-12 | 125 | 50 | 12 | 4.5 | 25 | |||||
6710-9 | 67 | 10 | 9 | 3.3 | 5 | |||||
The data in this table is only part of the reference information, specific details can be inquired by phone or e-mail, welcome to call for us! | ||||||||||
Packing & Delivery
Packaging Details: Strong cardboard boxes with enough foam
Delivery Detail: Samples can be delivered out within 15 days after payment
Company Profile
XIAMEN MARS ROCK SCIENCE TECHNOLOGY CO., LTD specializes in the development, production, marketing, construction and after-service of the photovoltaic solar product. Now as one of the most professional solar products manufacturer, base on self-produce and self-market management. Our yearly output has grown to over USD120, 000,000, of which 80 percent are from exports. Considering the regional production advantage, we set Shenzhen Fleda Solar Produce Co., Ltd as our solar factory in Shenzhen. And Owing to competitive challenges and ascendant seaport condition, we set Xiamen Mars Rock Science Technology Co., Ltd. as our head office, which trades solar products with clients from Europe, North America, Africa and Asia.
For the past years, we have dedicated ourselves to the environment-friendly solar products, our products include: monocrystalline/polycrystalline solar cells, monocrystalline/polycrystalline epoxy solar panels, Laminated PET/TPT sealed solar modules,various toughened glass laminating solar modules, and noncrystalline silicon solar panels. The products are widely applied to the charge of digital-electronic products, out-of-doors illumination, and project power generation etc. Besides, to meet the demands of both domestic and aboard markets, we have manufactured many kinds of solar landscape illumination device, solar traffic lamps, solar charger, solar POLY arts and crafts, and solar power supply system. Furthermore, Since Our powerful production capacity we provide OEM service and correlative plan for the customers as well. We can also make necessary modification or innovation by customer design.
Based on the solid capability of research and development and the skilled professionals in each area, we have gained high reputation from our customers. The advanced producing equipment and detecting imported from abroad provide a daily capacity of appr 50,000 kw, and keep 20% increase yearly. We have established a long-term business relationship with Europe, South and North America, Mid-East, South-East and some Africa countries. Every year we ship thousands of orders, no order is big or small; with our just-in-time manufacturing we make every order to your specifications. Every single piece of product from MARS ROCK SOLAR is designed to deliver the perfection, innovation and reputation.
The ultimate relationship between MARS ROCK and its customers is "to grow together, to win together". To be the first choice of customers, once you choose MARS ROCK as your business partner, we can guarantee our quality and competitive prices. We are expecting to make the profit and share the glorious tomorrow with you by our eximious quality and first-grade services. Sincerely hope to receive your inquiries and enter into long-term relationships.
For the past years, we have dedicated ourselves to the environment-friendly solar products, our products include: monocrystalline/polycrystalline solar cells, monocrystalline/polycrystalline epoxy solar panels, Laminated PET/TPT sealed solar modules,various toughened glass laminating solar modules, and noncrystalline silicon solar panels. The products are widely applied to the charge of digital-electronic products, out-of-doors illumination, and project power generation etc. Besides, to meet the demands of both domestic and aboard markets, we have manufactured many kinds of solar landscape illumination device, solar traffic lamps, solar charger, solar POLY arts and crafts, and solar power supply system. Furthermore, Since Our powerful production capacity we provide OEM service and correlative plan for the customers as well. We can also make necessary modification or innovation by customer design.
Based on the solid capability of research and development and the skilled professionals in each area, we have gained high reputation from our customers. The advanced producing equipment and detecting imported from abroad provide a daily capacity of appr 50,000 kw, and keep 20% increase yearly. We have established a long-term business relationship with Europe, South and North America, Mid-East, South-East and some Africa countries. Every year we ship thousands of orders, no order is big or small; with our just-in-time manufacturing we make every order to your specifications. Every single piece of product from MARS ROCK SOLAR is designed to deliver the perfection, innovation and reputation.
The ultimate relationship between MARS ROCK and its customers is "to grow together, to win together". To be the first choice of customers, once you choose MARS ROCK as your business partner, we can guarantee our quality and competitive prices. We are expecting to make the profit and share the glorious tomorrow with you by our eximious quality and first-grade services. Sincerely hope to receive your inquiries and enter into long-term relationships.
Product Overview
1.Amorphous Silicon(A-Si)
It is the non-crystalline form of silicon. The cell structure has a single sequence of p-i-n layers. When exposed to sun, their power output is significantly decreased. A-Si type thin film solar cells are commonly found in calculators. A-Si type thin film is manufactured in 6 steps. First the glass substrate is coated with a TCO (transparent conductive oxide) layer as front contact, followed by P1 laser scribing. Then a layer of a-Si is deposited followed by P2 laser scribing. Then a metal conductive layer is placed as back contact with the relative P3 laser scribing.
2.Product Advantages
A)Superior performance under week light condition.
B)Lower temperature coefficient, better performance under high temperature condition.
C)10%-15% higher actual annual power generation per nominal watt power.
B)Lower temperature coefficient, better performance under high temperature condition.
C)10%-15% higher actual annual power generation per nominal watt power.

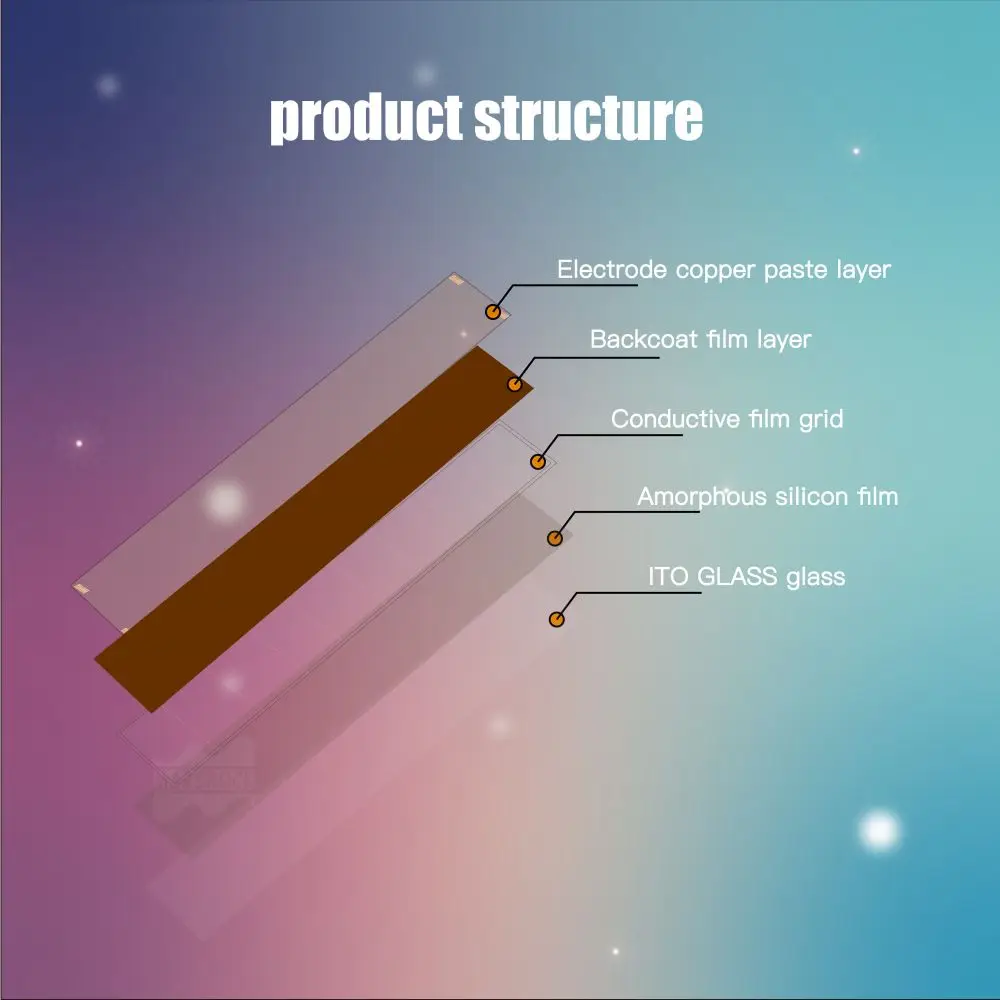

3.Technical Characteristic
A)Using the straight line internal integrative structure can simplify the craft.
B)The amorphous silicon deposition uniformization technology enhances the uniformity of the amorphous silicon film.
C)Using the composite construction TCO conductive film, increase the visible light transmissibility of short-wave band.
D)Using special ingredient allocated proportion of the amorphous silicon film enhance the battery electricity performance.
F)Using the special transparent conductive film design, prevented and has avoided the short circuit and the leakage.
B)The amorphous silicon deposition uniformization technology enhances the uniformity of the amorphous silicon film.
C)Using the composite construction TCO conductive film, increase the visible light transmissibility of short-wave band.
D)Using special ingredient allocated proportion of the amorphous silicon film enhance the battery electricity performance.
F)Using the special transparent conductive film design, prevented and has avoided the short circuit and the leakage.
4.Application
Applied to calculator, LCD portable electronic toy, charger and other low power electronic products, like electronic watch, portable radiogram, LCD handheld games, charger, portable radios, etc.
Feature&Technical
Feature
1. Amorphous silicon solar cell is a semiconductor device which directly converses the solar energy into electricity.
2. Compared to silicon and polycrystalline silicon solar cells, amorphous silicon solar cell, with its advanced technology and characteristics, it leads to a lower-cost and advantages of mass production. With this advantage it has been industry-wide applied.
3. Amorphous silicon solar cell is new high-tech energy, new material and new device.
4. Its application covers agriculture, the network industry, forestry, water conservancy, fishery, transport, weather, earthquakes, mining, oil industry, telecommunications, public facilities supplies, infra-structure, defense, education, and instrumentation industries.
5. Due to the shortage and the growing tension in international energy price, solar energy becomes a new environmental friendly energy. Governments of all over the world also cast more and more focus on this trend and encourage the development and application of this new energy.
6. MSRSolar company's amorphous silicon solar cells, with its stable performance/reasonable price and good after-sales service, dedicated services for domestic and foreign customers.
2. Compared to silicon and polycrystalline silicon solar cells, amorphous silicon solar cell, with its advanced technology and characteristics, it leads to a lower-cost and advantages of mass production. With this advantage it has been industry-wide applied.
3. Amorphous silicon solar cell is new high-tech energy, new material and new device.
4. Its application covers agriculture, the network industry, forestry, water conservancy, fishery, transport, weather, earthquakes, mining, oil industry, telecommunications, public facilities supplies, infra-structure, defense, education, and instrumentation industries.
5. Due to the shortage and the growing tension in international energy price, solar energy becomes a new environmental friendly energy. Governments of all over the world also cast more and more focus on this trend and encourage the development and application of this new energy.
6. MSRSolar company's amorphous silicon solar cells, with its stable performance/reasonable price and good after-sales service, dedicated services for domestic and foreign customers.
Technical
According to the requirement of the customers and the detailed situation, like the load parameters of load resistance, working voltage, current, we can design and determine the area of the battery unit and the unit number of series connection.
A) Amorphous Glass Solar Panel can absorb various light sources like scattered light, reflected light and direct light, etc. well.
B) Amorphous Glass Solar Panel can make sure that the photoelectric conversion has a long time, because they have a wide range demand for the sunlight angle on the solar panel. Even in the consecutive days of rain, the outdoor A-Si solar cells can output the currency stably.
C) Amorphous Glass Solar Panel have no semiconductor effect, and it will not reduce the power generation efficiency when the solar cells have been in the sunlight for a long time. Compared with crystalline silicon, the A-Si has higher utilization ratio and are more suitable for various areas including the tropical regions
A) Amorphous Glass Solar Panel can absorb various light sources like scattered light, reflected light and direct light, etc. well.
B) Amorphous Glass Solar Panel can make sure that the photoelectric conversion has a long time, because they have a wide range demand for the sunlight angle on the solar panel. Even in the consecutive days of rain, the outdoor A-Si solar cells can output the currency stably.
C) Amorphous Glass Solar Panel have no semiconductor effect, and it will not reduce the power generation efficiency when the solar cells have been in the sunlight for a long time. Compared with crystalline silicon, the A-Si has higher utilization ratio and are more suitable for various areas including the tropical regions
FAQ
1. who are we?
We are based in Fujian, China, start from 2006,sell to South America(20.00%),Eastern Europe(20.00%),Western Europe(10.00%),Africa(10.00%),Mid East(10.00%),North America(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Southeast Asia(5.00%),Northern Europe(3.00%),Central America(1.00%),South Asia(0.50%),Southern Europe(0.50%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Cell,Solar Panel,Solar Flexible panel,Grid Tie Inverter,Off Grid Inverter
4. why should you buy from us not from other suppliers?
XIAMEN MARS ROCK SCIENCE TECHNOLOGY CO., LTD specializes in the development, production, marketing, construction and after-service of the photovoltaic solar product. Now as one of the most professional solar products manufacturer.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Fujian, China, start from 2006,sell to South America(20.00%),Eastern Europe(20.00%),Western Europe(10.00%),Africa(10.00%),Mid East(10.00%),North America(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Southeast Asia(5.00%),Northern Europe(3.00%),Central America(1.00%),South Asia(0.50%),Southern Europe(0.50%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Cell,Solar Panel,Solar Flexible panel,Grid Tie Inverter,Off Grid Inverter
4. why should you buy from us not from other suppliers?
XIAMEN MARS ROCK SCIENCE TECHNOLOGY CO., LTD specializes in the development, production, marketing, construction and after-service of the photovoltaic solar product. Now as one of the most professional solar products manufacturer.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
