Hot selling string lights 220v for wholesales

Product Overview

Description

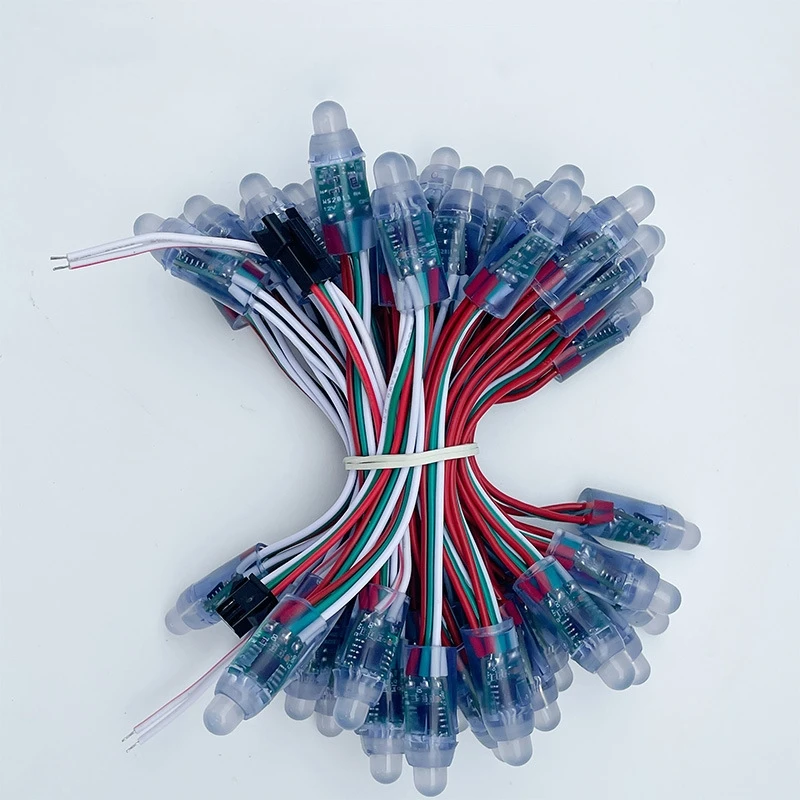

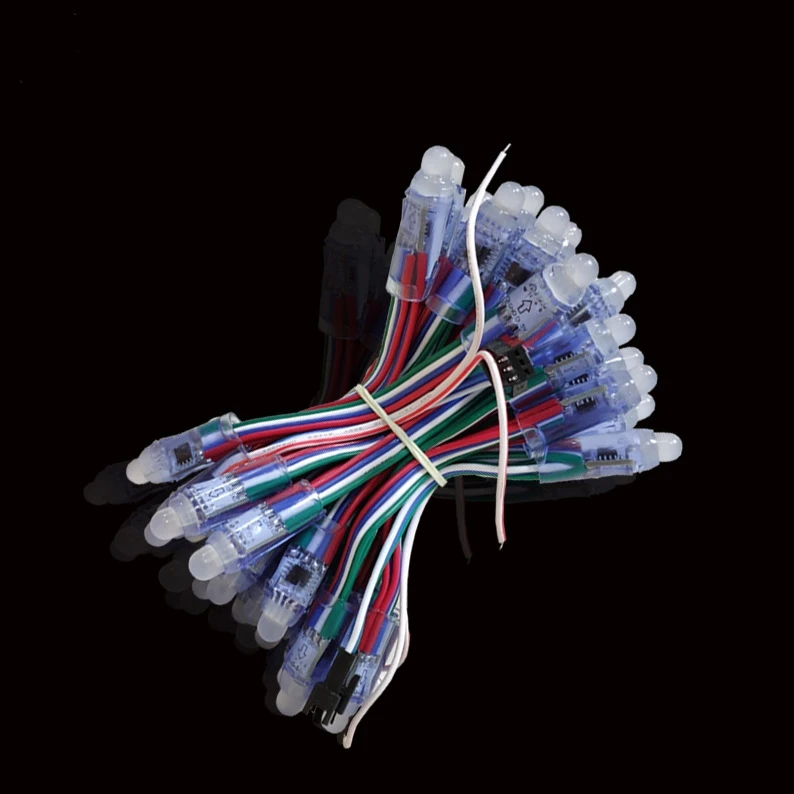

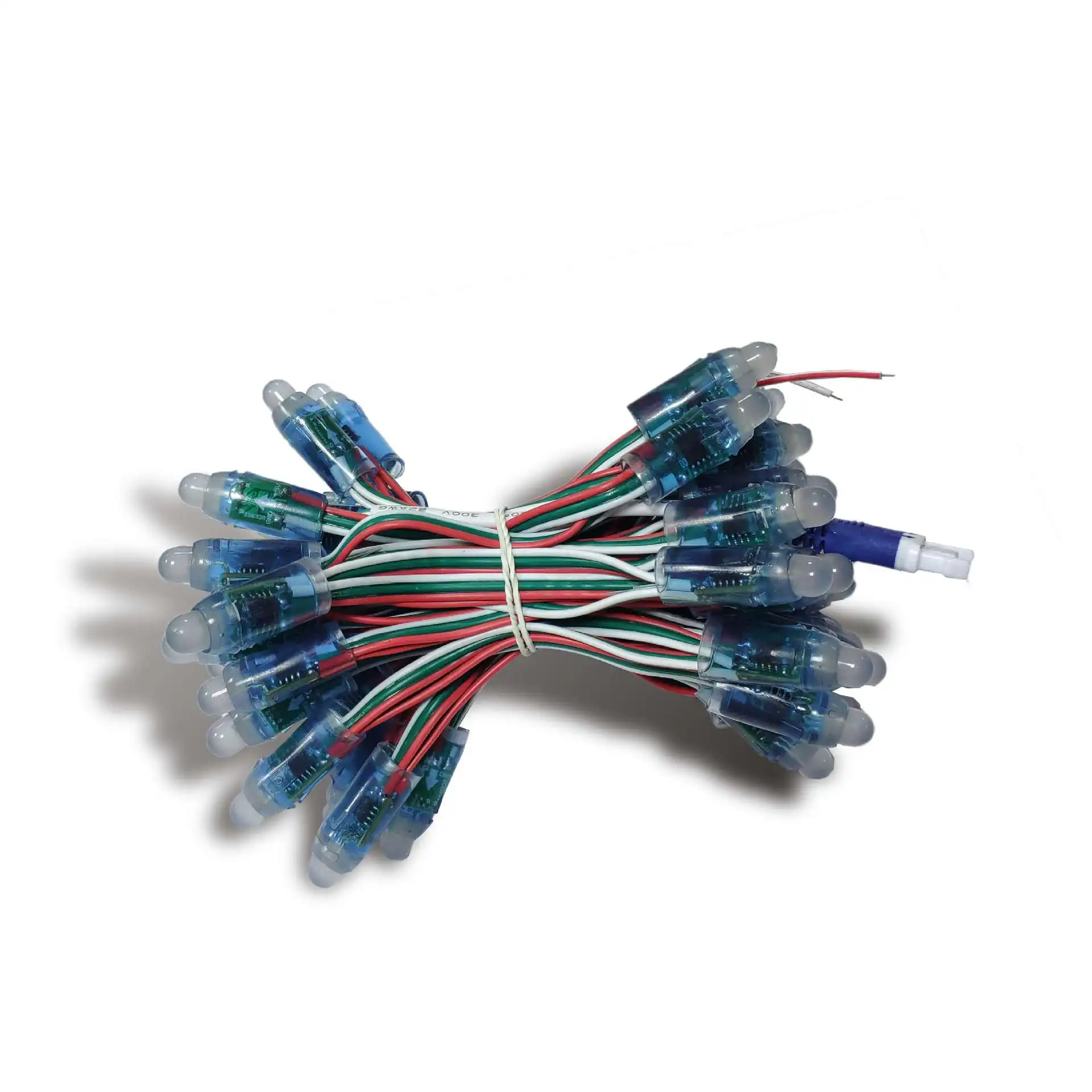

Pixel led rgb ws2811

Products Description

Model	WS2811-Bullet Pxeil String
WS2811 IC	WS2811 IC
Color	RGB Full Dream Color, 24-bit

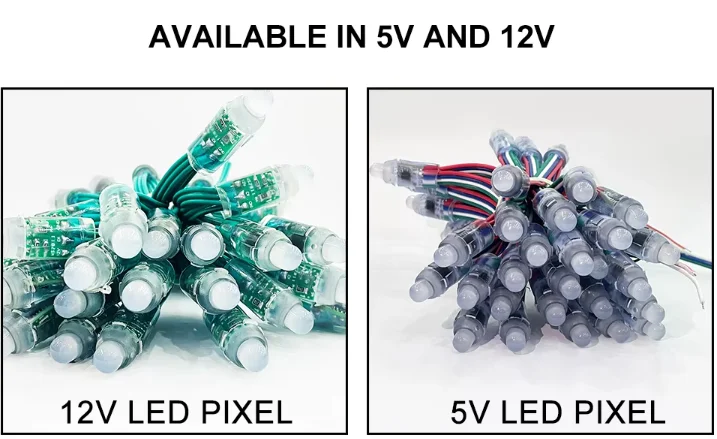

Voltage	DC5V /12V
Power	0.3W / Led
Dimension	12mm
Waterproof Grade	IP68
Led Quantity	50pcs leds per string
Length	Aboout 3.5m per string
Wire Color	Green Wire
working temperature	-20-60℃

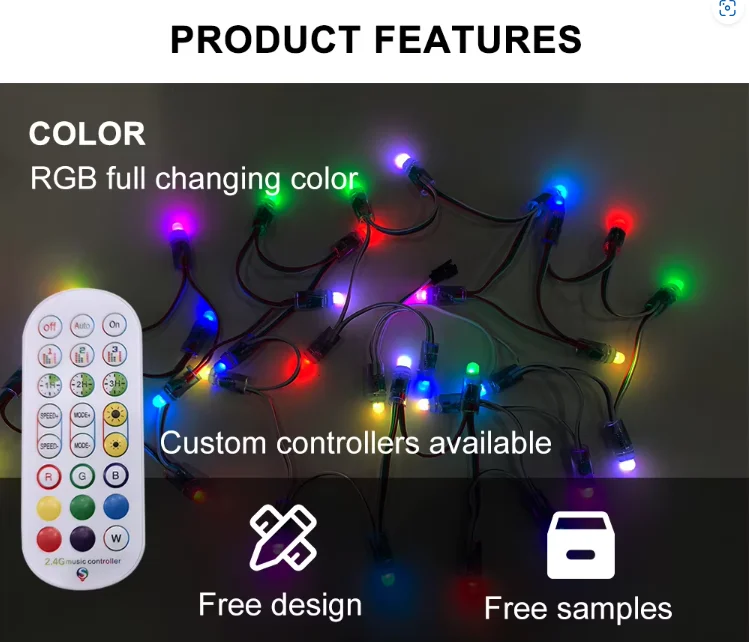

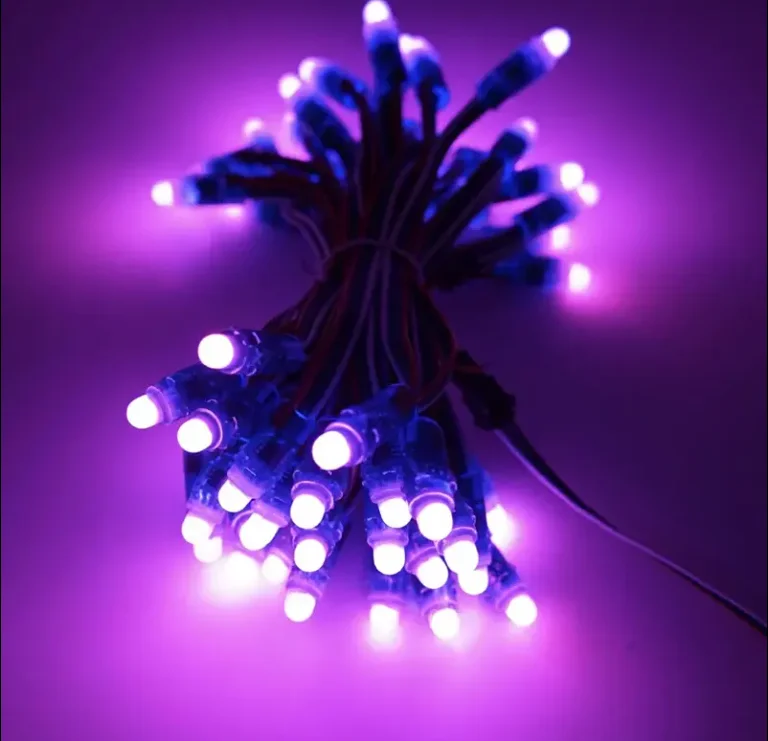

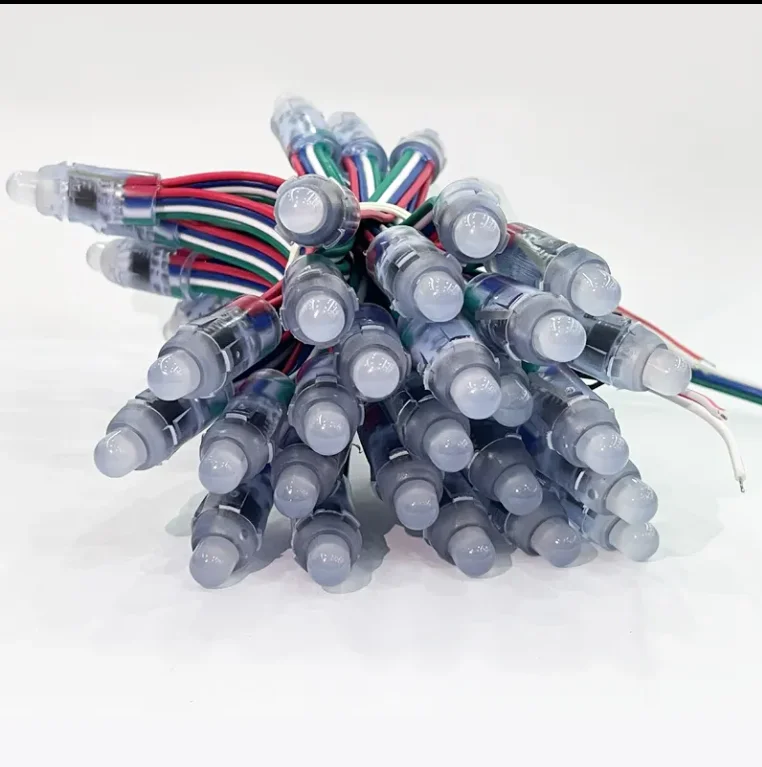

Full color Pixels are digitally-controllable lights you can set to any color, or animate.

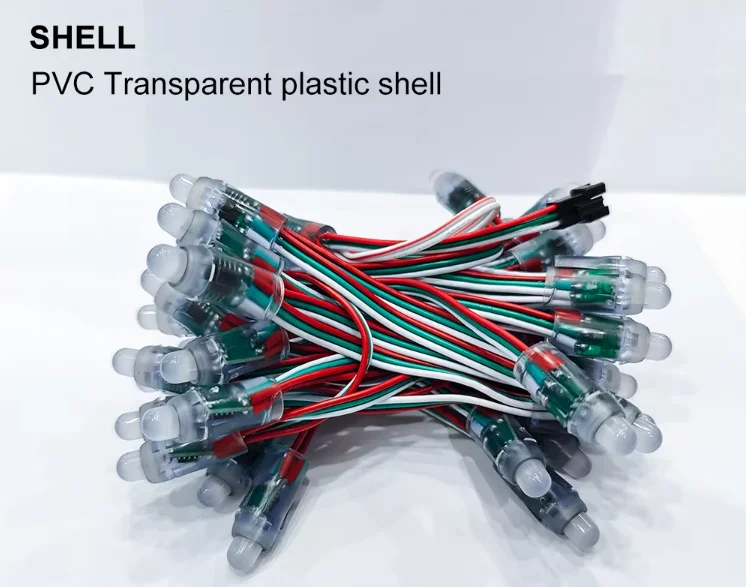

Each RGB LED and controller chip is molded into a 'dot' of silicone.

The dots are waterproof and rugged.

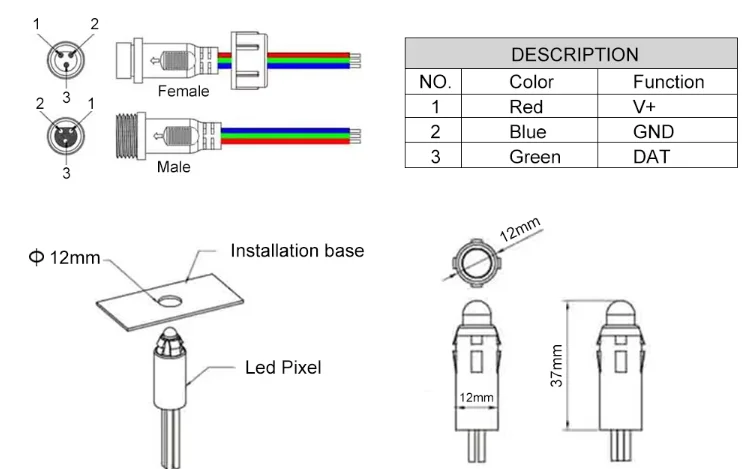

There are four flanges molded in so that you can 'push' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick.

They are typically used to make outdoor signs. Compared to our other 20mm LED dots.

These are diffused 8mm LEDs so they are not as bright but they color mix a little nicer.

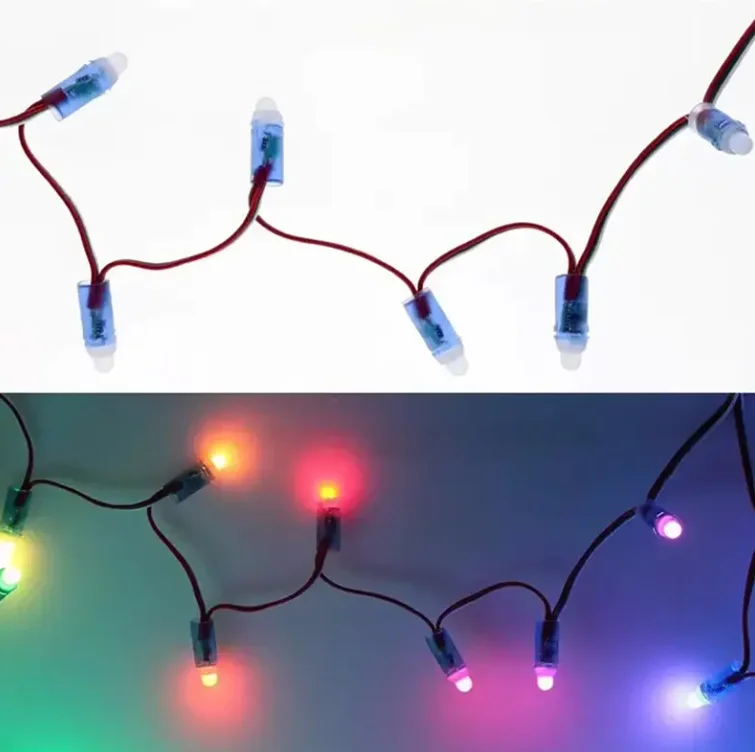

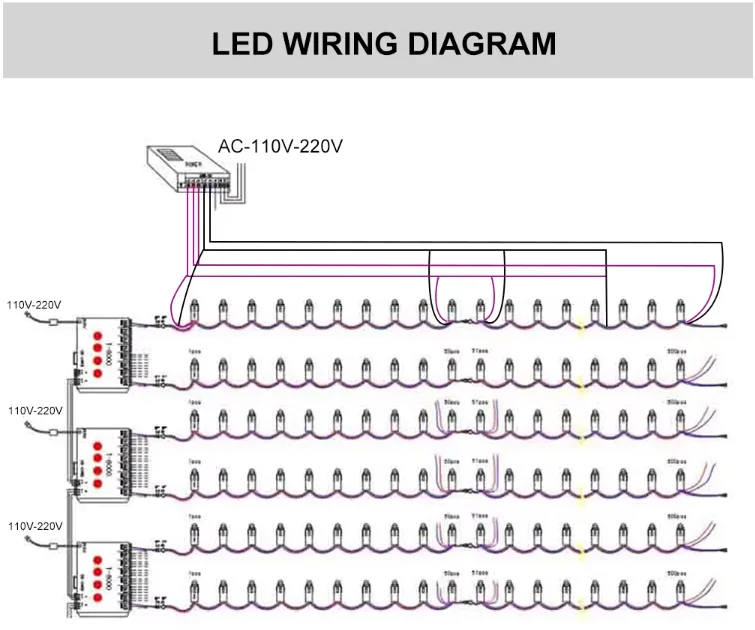

The pixels are connected by a 3-conductor cable. Red is +5V(or +12V), white is Ground, green is Data and Data is shifted down from

one pixel to the next so that you can easily cut the strand or attach more onto the end.

Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15-bit color for 32,768 different shades).

The pixels must be clocked by a microcontroller.

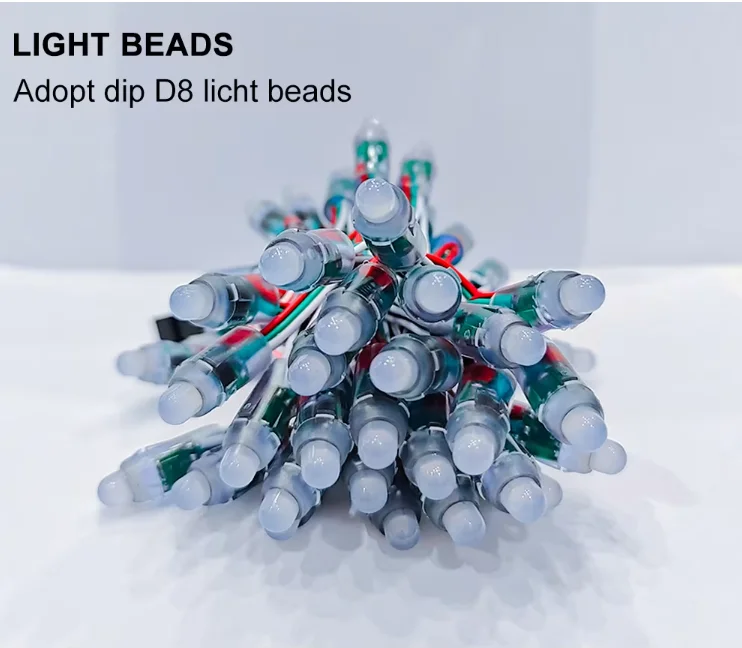

The pixels use 8mm diffused RGB LEDs.

with brightness of about 300 mcd per individual r/g/b LED.
