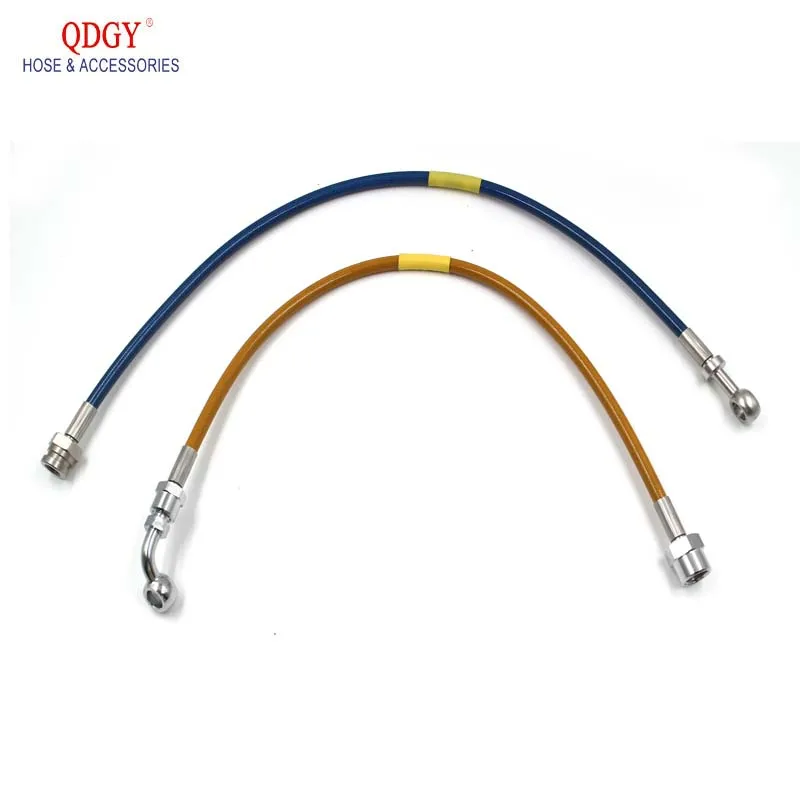

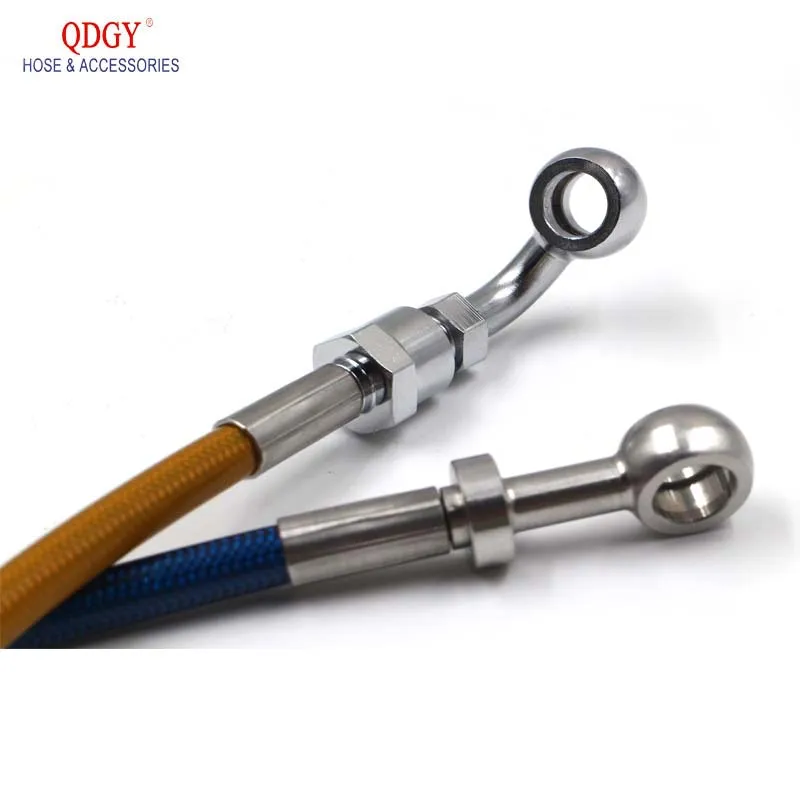

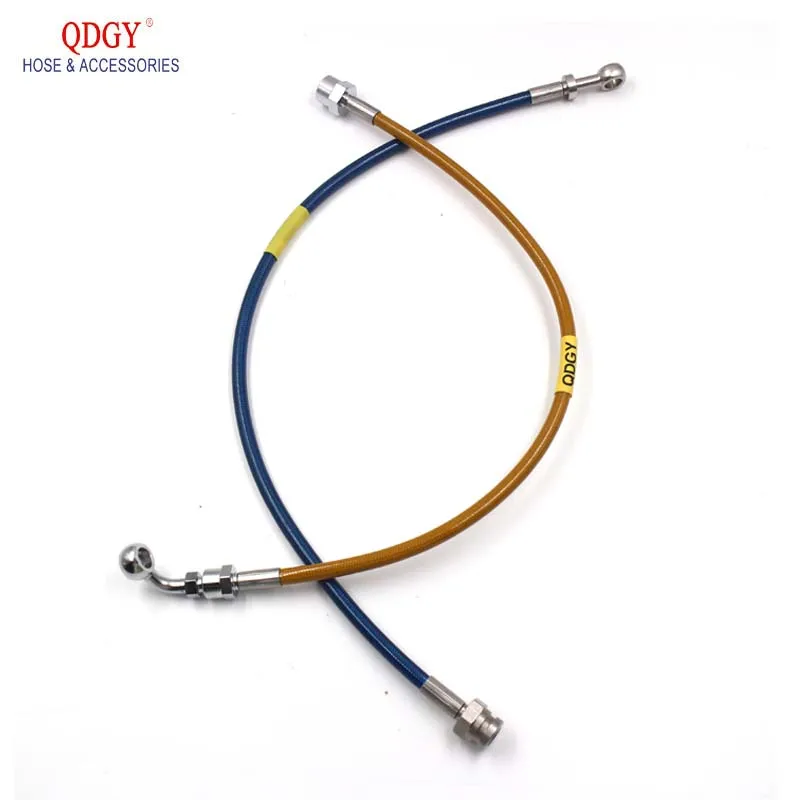

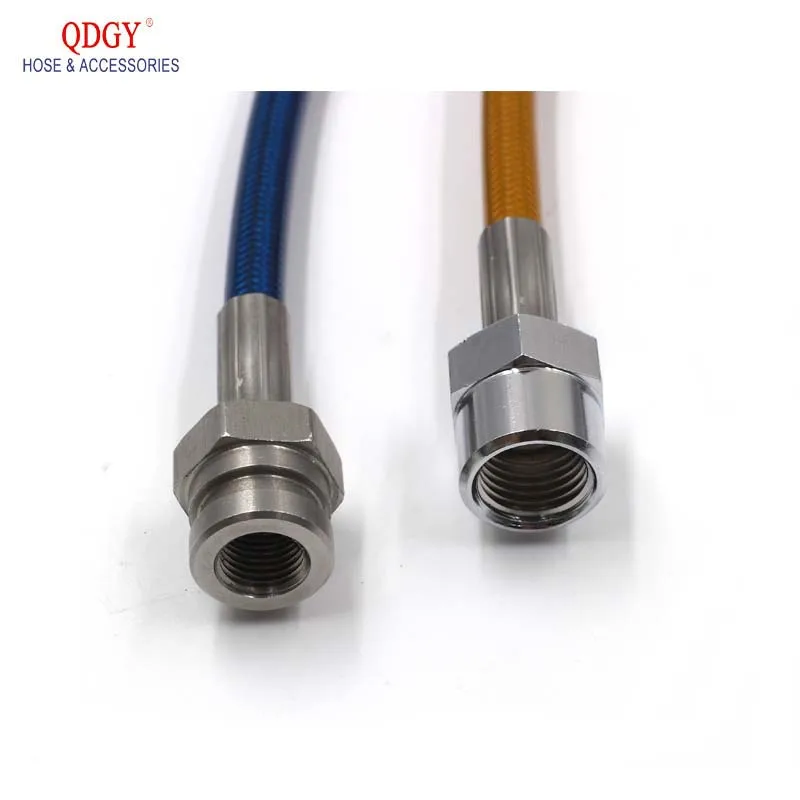

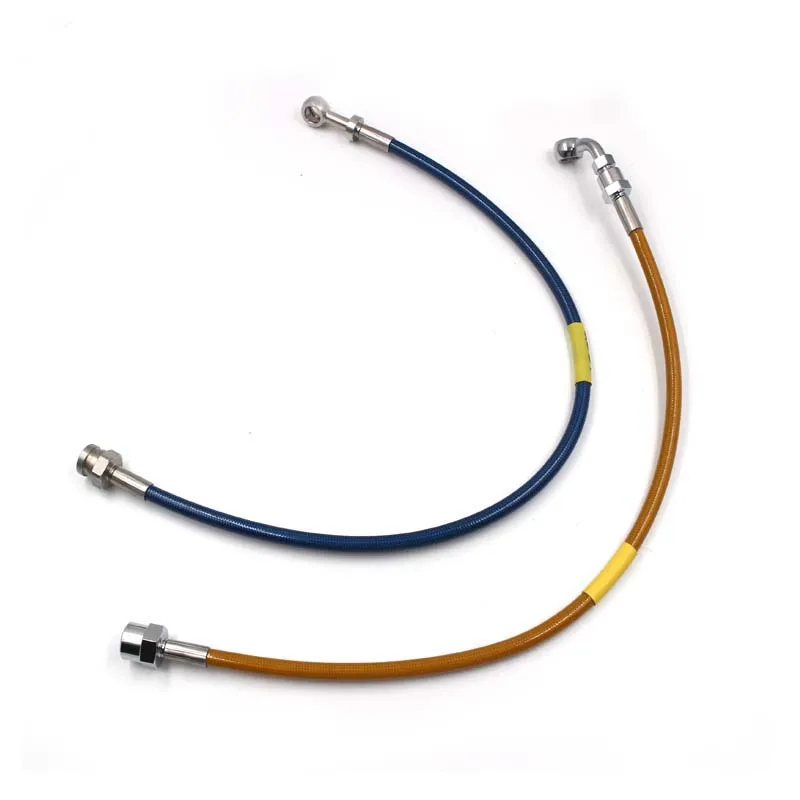

Factory Price Hydraulically Reinforced Stainless Steel Braided Motorcycle Brake Line Wire
- Category: >>>
- Supplier: Qingdao Guoye Brake Hose Manufacturing Co. Ltd.
Share on (1601271258675):
Product Overview
Description
Product Description
Material:Teflon/Nylon,Stainless steel 304
Diameter:1/8 inch & 3/16 inch
End fitting: Steel with White Zinc,chrome plated,etc
Standard: SAE J1401 standard
Certificate: DOT, TS16949, ISO9001 certificate
Application: Any brand automobile, motorcycle hydraulic brake system
Application:
For use in braking system of the vehicle.
1.These Hoses are teflon lined and are compatible with all brake fluids and feature a braided stainless outer covering to resist abrasion and corrosion. These lines are designed to withstand high pressure and are very flexible and can be used in the tightest of situations. These hoses can be used for many other applications such as gauge, turbo and vacuum lines
2.Production under ISO 9001:2008 and CE control. High quality product and customer's
3.satisfaction is our pursuit. Good faith cooperation. Bright future.
4.A reinforcement 304/316 stainless steel wire cover adds strength and durability to withstand high working pressures and harsh environments.Burst pressure reaches to 12,000 psi
QDGY factory is the professional manufacturer of rubber brake hose, stainless steel braided teflon brake hose, all kinds of fittings, brake hose assembly, bundy tube, and all kinds of accessories.
1. SAE J1401 brake hose:
3.2x10.5mm rubber brake hose
4.8x12.5mm DOT approved brake hose
2. Teflon brake hose:
3.2x7.5mm -3AN teflon braid brake hose
3.2x6.5mm stainless steel braid brake line
4.8x8.0mm -4AN teflon brake line
3. All size of fittings
4. Steel tube:
3/16" steel pipe
1/4" bundy pipe
3/8" bundy tube
5/16" steel tube..single wall and double wall bundy tube
OE No. rubber brake hose assembly, Teflon brake line kits, bundy tube assembly
Accessory:Rubber accessory,steel accessory,plasitc accessory.
Diameter:1/8 inch & 3/16 inch
End fitting: Steel with White Zinc,chrome plated,etc
Standard: SAE J1401 standard
Certificate: DOT, TS16949, ISO9001 certificate
Application: Any brand automobile, motorcycle hydraulic brake system
Application:
For use in braking system of the vehicle.
1.These Hoses are teflon lined and are compatible with all brake fluids and feature a braided stainless outer covering to resist abrasion and corrosion. These lines are designed to withstand high pressure and are very flexible and can be used in the tightest of situations. These hoses can be used for many other applications such as gauge, turbo and vacuum lines
2.Production under ISO 9001:2008 and CE control. High quality product and customer's
3.satisfaction is our pursuit. Good faith cooperation. Bright future.
4.A reinforcement 304/316 stainless steel wire cover adds strength and durability to withstand high working pressures and harsh environments.Burst pressure reaches to 12,000 psi
QDGY factory is the professional manufacturer of rubber brake hose, stainless steel braided teflon brake hose, all kinds of fittings, brake hose assembly, bundy tube, and all kinds of accessories.
1. SAE J1401 brake hose:
3.2x10.5mm rubber brake hose
4.8x12.5mm DOT approved brake hose
2. Teflon brake hose:
3.2x7.5mm -3AN teflon braid brake hose
3.2x6.5mm stainless steel braid brake line
4.8x8.0mm -4AN teflon brake line
3. All size of fittings
4. Steel tube:
3/16" steel pipe
1/4" bundy pipe
3/8" bundy tube
5/16" steel tube..single wall and double wall bundy tube
OE No. rubber brake hose assembly, Teflon brake line kits, bundy tube assembly
Accessory:Rubber accessory,steel accessory,plasitc accessory.
Production Name | ||||||
Test Items | Test conditions | Standard | Test result | |||
ID | Normal | 3.2mm | 3.15~3.45mm | |||
OD | Normal | 10.5mm | 10.30~10.70mm | |||
Expansion | 1000psi | 0.33cc/ft max. | 0.14~0.16cc/ft | |||
1500psi | 0.42cc/ft max. 0.20~0.22cc/ft | |||||
2900psi | 0.61cc/ft max. 0.41~0.43cc/ft | |||||
Burst | 4000psi×2min;pressure rated 25,000±10,000psi/min | >7000psi No seepage | > 10500psi | |||
Whip | 235~250psi | >35h | >70h | |||
Tensile | tensile speed:218±3mm/min | >1446N | 2400N | |||
Cold Bend | -45°C ~-48°C× 72h, 3-5s,bending180° | No cracking | No Cracking | |||
Ozone | Women, Girls | No cracking | No cracking | |||
Impulse | 146°C 1±0.1min at 1600psi+70 | >7000psi No crack | >7500psi | |||
Salt Spray | 5%NaCl, 24h,water cleanout in 35°C | No red rust | No red rust | |||
It is a kind of Stianless steel braided hose composed of nylon and 304 stainless steel. It can be divided into two categories for sale. One is with outer layer, the specification of this product is 3.2mm*7.5mm ,which the extra layer can be made as any color you want. And the other is without outer layer , the specification is 3.2mm*6.5mm. They can work well under temperature from -40℃ to 80℃. The burst pressure it can stand is more than 55Mpa. As for the tensile power it can hold more than 1900N. For the flex test, it is also qualified. In low expansion test, we found our product expand no more than 1.08cm3/ft under 6.9Mpa.And under 10.3Mpa, the expansion is no more than 1.38cm3/ft
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

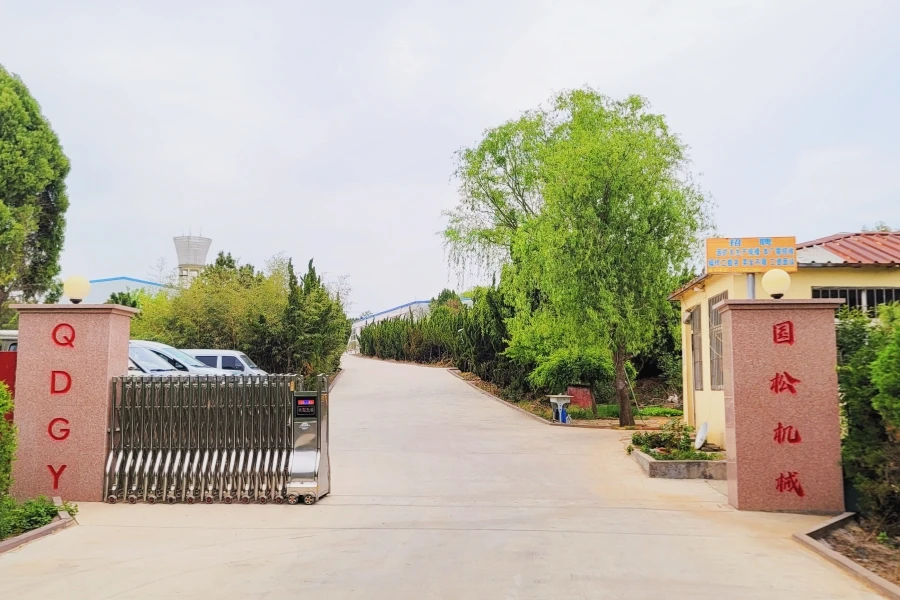

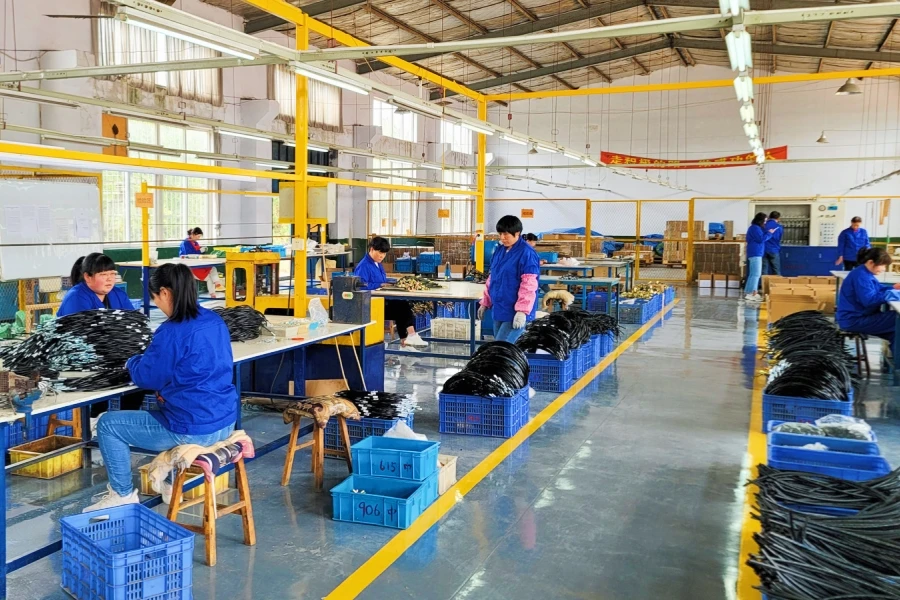

Company Profile
QINGDAO GUOYE BRAKE HOSE MANUFACTURING CO.,TD
QINGDAO GUOYE BRAKE HOSE MANUFACTURING CO.,TD. was founded in 20088. Our company has been expanded to the leading brake hose manufacturer in China. We have more than 300 staff members. Our building covers 6,000 square meters. We have Marketing Department, a Hose Factory and a Fitting Factory.Our main products are QDGY brand rubber brake hoses (3.2mmx10.5mm) which are produced according to American standards SAEJ1401 and also passed the quality test of China National Auto Testing. We get DOT certification.
Our company has ISO9001:2000 and TS16949:2009 quality management system certifications. To provide our customers with the best products at the most reasonable price, we are ready to do innovation. We have imported modern production lines from Japan and adopted American and Italian techniques and skills. Our senior scientific and technological experts, advanced R&D Lab and testing equipment make our products perfect.
Our QDGY brake hoses, hose assembly and fittings are manufactured with a variety of superior materials to meet various requirements of Automobile and Motorcycle Industries, especially in aftermarket. They are used in ISUZU, SUZUKI, YAMAHA, KAWA-SAKI, HONDA, MITSUBISHI, NISSAN, TOYOTA, ALTO, FLAT, FORD, CHRYSLER, CHEROKEE, AUDI, PEUGEOT, BMW, VW, IVECO, CHEVROLET, CITROEN and VOLVO cars. 90% of our products are exported to Europe, the USA and Southeast Asia. We have won a high reputation among clients.
Our mission is continuously improving the quality of our products and sales service to make QDGY brand become one of the most famous brands in the world. You're welcome to visit our homepage to learn about our company and our products. For any further information, our staff members will reply you immediately. You are welcome to contact us now and get more benefits.
Exhibition

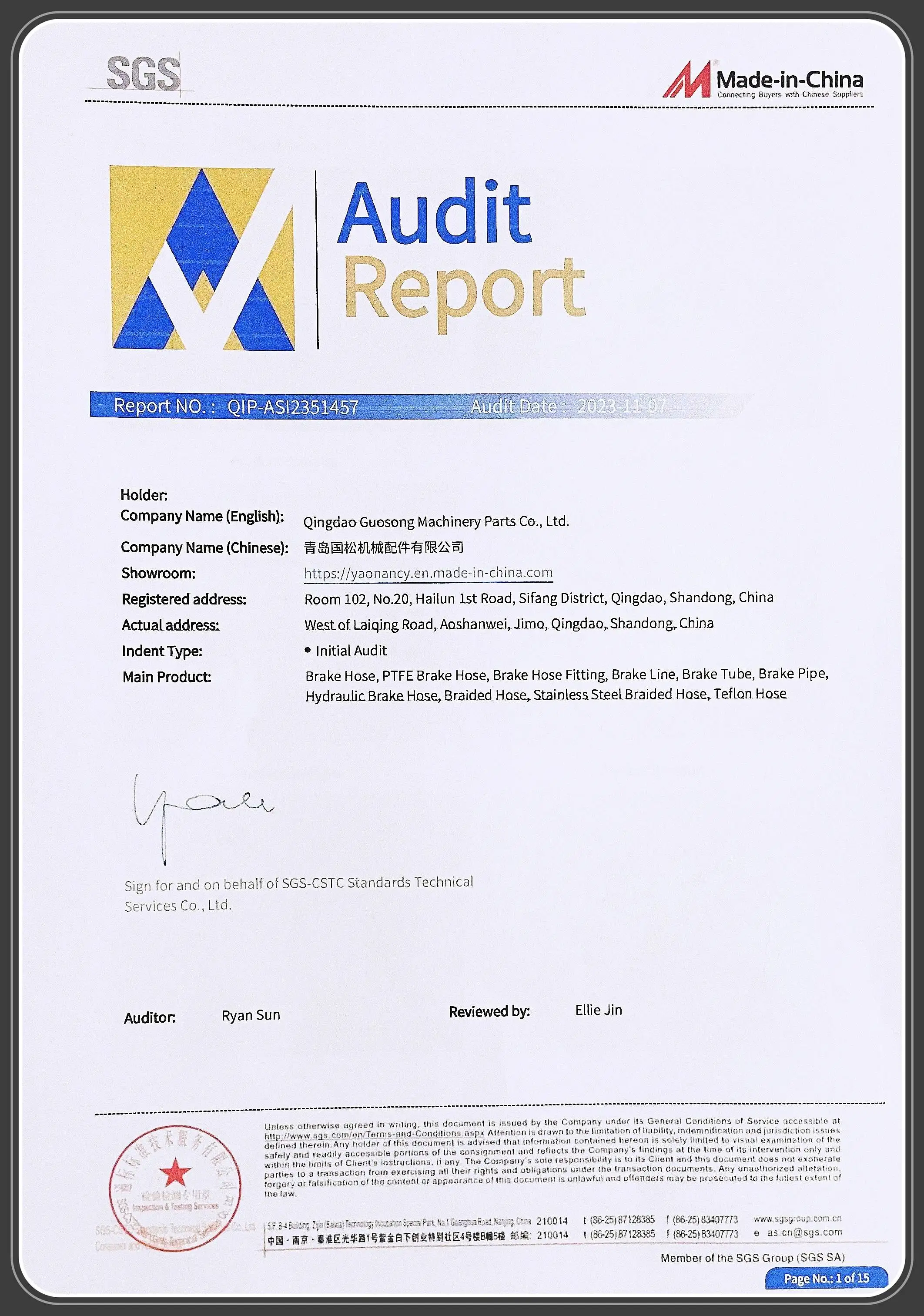

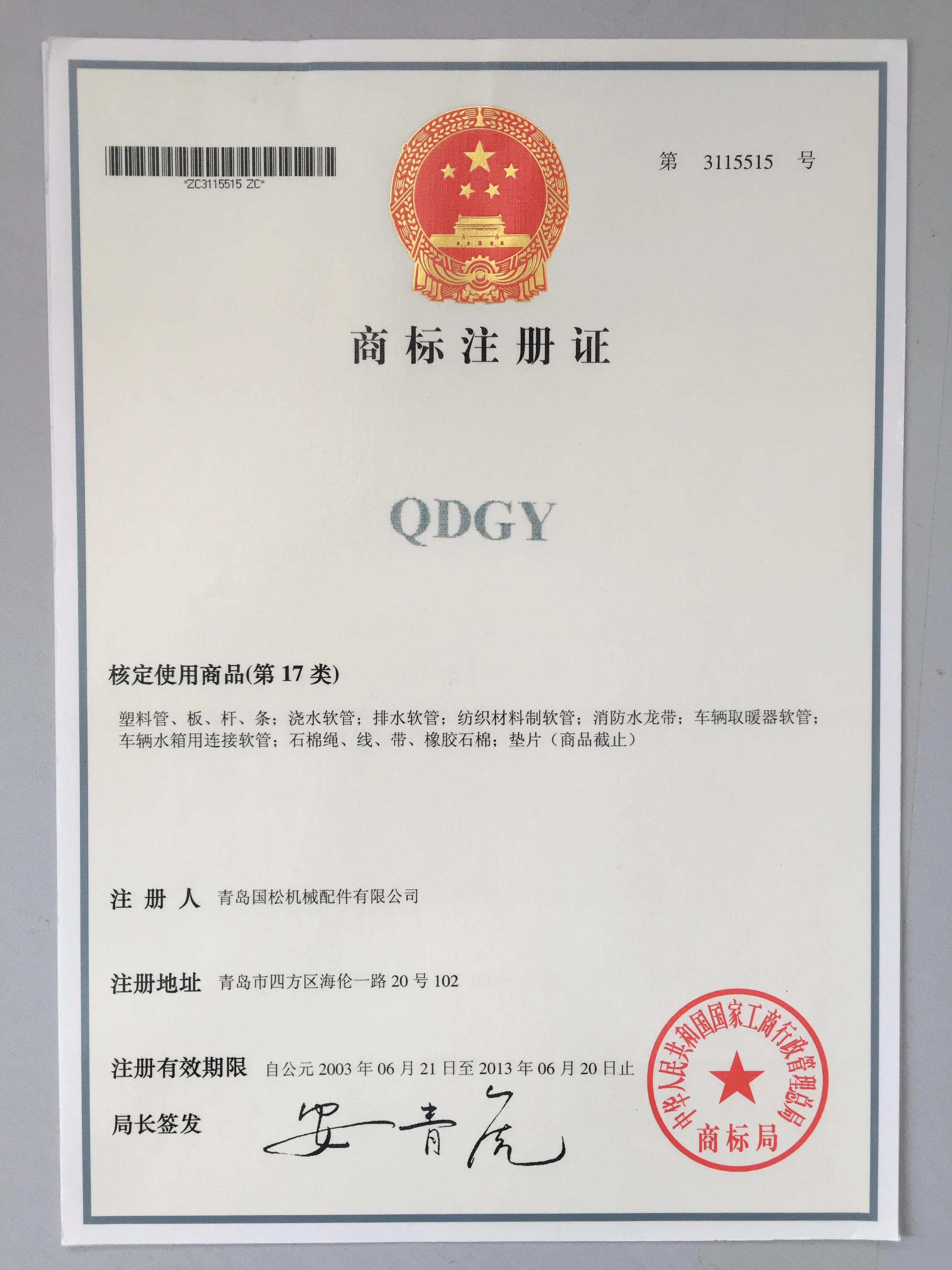

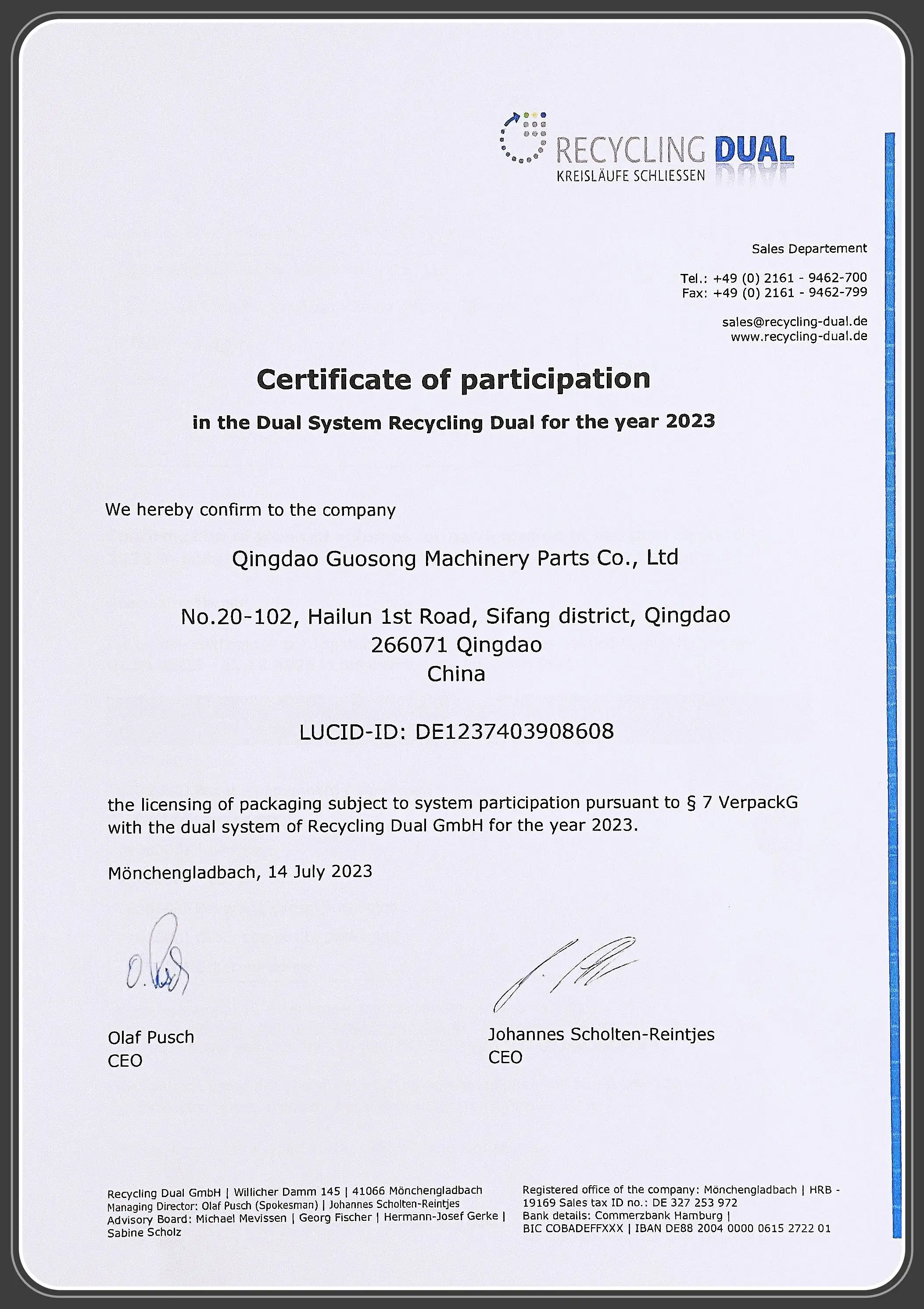

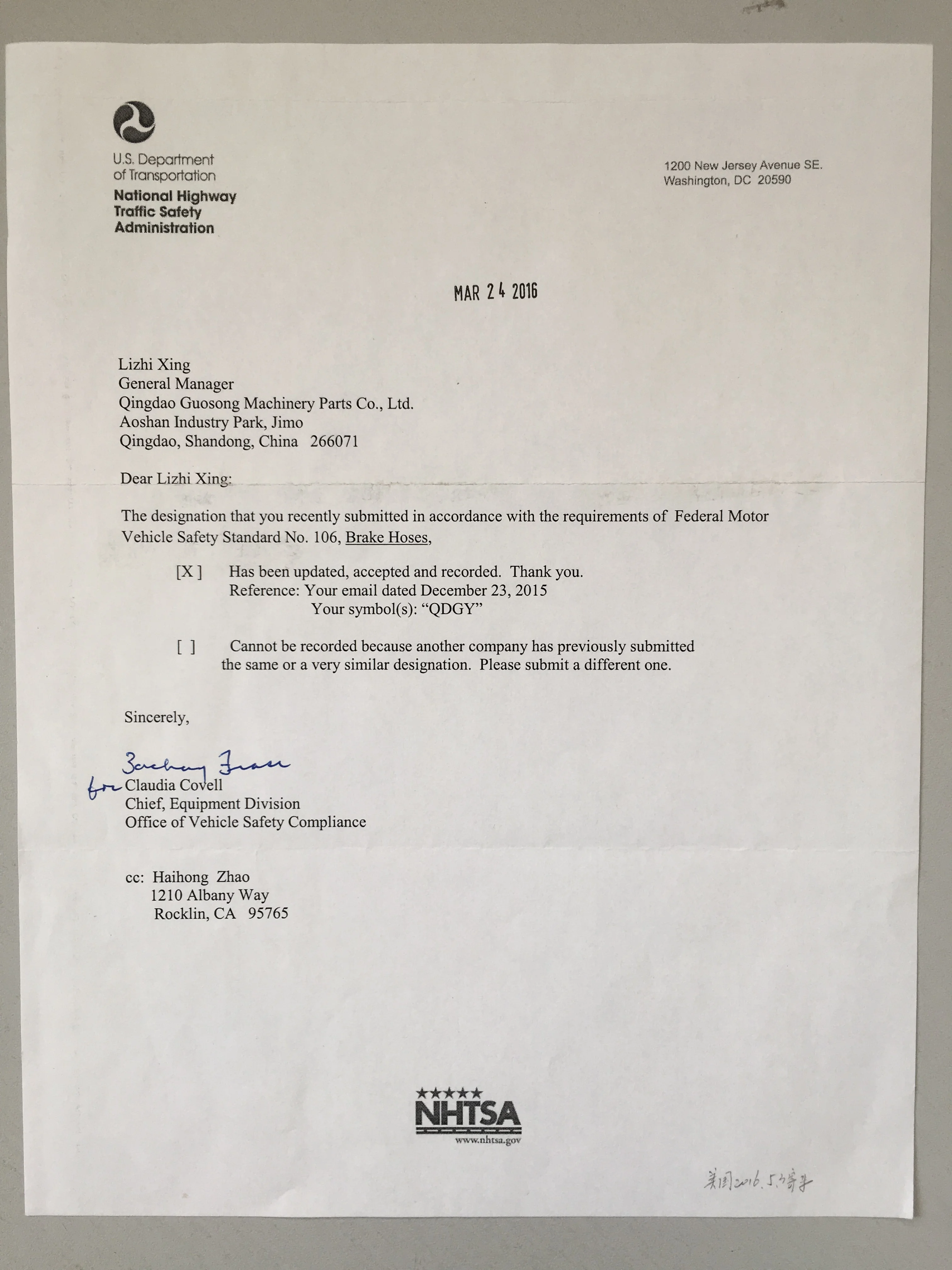

Certifications
FAQ
1. who are we? We are based in Shandong, China, start from 2008,sell to North America(15.00%),South Asia(13.00%),Northern Europe(12.00%),Eastern Europe(12.00%),Oceania(10.00%),Central America(10.00%),Domestic Market(9.00%),Western Europe(6.00%),Africa(5.00%),Eastern Asia(2.00%),South America(2.00%),Mid East(2.00%),Southern Europe(1.00%),Southeast Asia(1.00%). There are total about 101-200 people in our office. |
2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; |
3.what can you buy from us? brake hose,brake line,brake hose fitting,Stainless steel braided Teflon hose,brake tube |
4. why should you buy from us not from other suppliers? QDGY have more than 20 years production and sale experience for OEM QDGY products are exported more than 60 countries QDGY get ISO9001,IATF16949,DOT certificate Products quality and quickly delivery is first QDGY has 20 years design experience |
5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,DAF,DES； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,PayPal,Western Union; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian |
