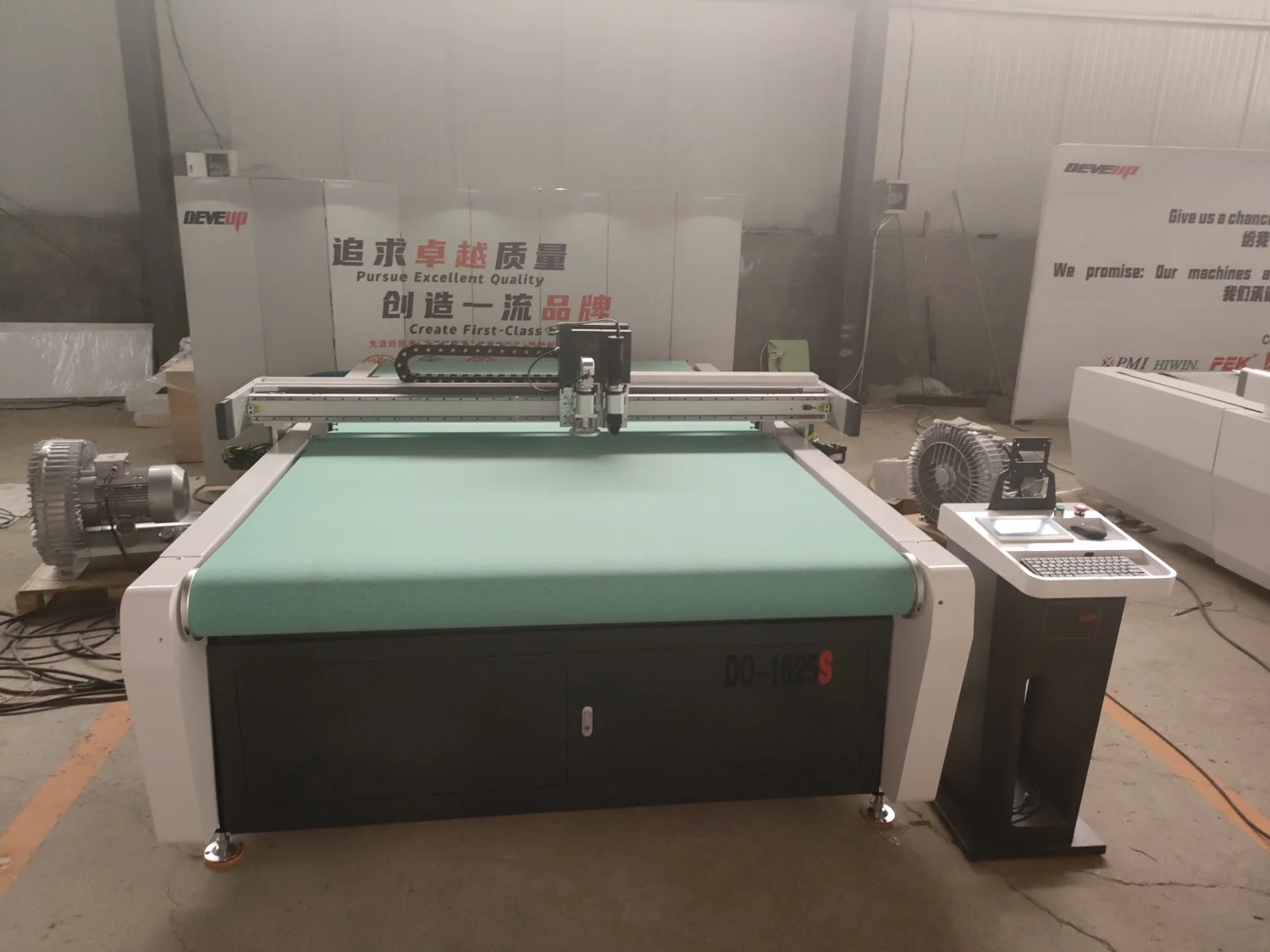

Factory Selling CNC Cutting Machine Digital Cutter For Cardboard Corrugated Box Kraft Paper PVC Board
- Category: >>>
- Supplier: Jinan Deveup Intelligent Equipment Co. Ltd.
Share on (1601271274445):
Product Overview
Description
Product Description
CNC Digital Knife Cutting Machine For Carton Corrugated Box Kraft Paper Cardboard Honeycomb Board......
Are you still make the mold to cut the corrugated carton box or shapes on honeycomb paper paper? Does it take a long time and big cost to open a mold? Have you ever lost some orders because to make customers wait a long time for a sample? Then Deveup carton cardboard box digital cutting machine can help you to solve this problem.
What is carton/cardboard box digital knife cutting and making machine? The cardboard cutting machine uses the high frequency oscillation knife to cut off the cardboard. Corrugated carton box making machine is easy to learn even you are the first time to use the machine. You can just download the CAD design to the machine, after machine reading the design, it will cut automaticlly.
This greatly saves the time of opening the mold, and can make samples for customers faster, thus helping you to get more orders quickly.
Deveup oscillating knife cutting technology adopts intelligent modular cutting technology, equipped with fast cutting tools, creasing tools, and beveling tools, which completely changes the shortcomings of traditional carton processing methods. The carton cardboard corrugated paper box making machine has the characteristics of better cutting quality, intelligence and flexibility, and lower production costs. It can be widely used for cutting cartons, cardboard, color boxes, corrugated paper, grayboard paper, honeycomb paper etc., and can replace traditional cartons, color boxes, paper display racks, and other manual development designs and proofing work, shortening the lead time.
Applicable to cardboard, gray cardboard, KT board, Chevron board, honeycomb board, car sticker, light sheet, PP adhesive, inkjet cloth, flag cloth, various corrugated cardboard, EPE foam, EVA, PVC board, acrylic board . .
Advantages:
It adopts computer control, supports input of electronic pattern, one-key cutting, simple operation, and can be configured with automatic board feeding system, replacing 3-6 workers.
1. The oscillating knife cutting machine is suitable for cutting a variety of packaging materials: it can cut different materials (corrugated paper, honeycomb board, cardboard, plastic board gray board color, composite paper, gasket, leather, cloth, etc.).
2. A variety of cutting functions: it can press out perfect folding lines on corrugated paper, cardboard, plastic board, and other materials, and can also be used for folding after half-cutting corrugated paper and cardboard, dotted line cutting, and other functions.
3. Can be equipped with a variety of cutting tools - cutting, creasing, beveling, and marking tools, which can complete line drawing, drawing, text annotation, indentation, half-knife cutting, and full-knife cutting at one time.
4. The processing method is more flexible and intelligent. It can be used for corrugated cardboard cutting, carton proofing, color box proofing, plastic box proofing, POP paper display rack paper shelf proofing, small batch production, shortening carton development, and delivery time; to meet the small batch, multi-style order production goals.
What is carton/cardboard box digital knife cutting and making machine? The cardboard cutting machine uses the high frequency oscillation knife to cut off the cardboard. Corrugated carton box making machine is easy to learn even you are the first time to use the machine. You can just download the CAD design to the machine, after machine reading the design, it will cut automaticlly.
This greatly saves the time of opening the mold, and can make samples for customers faster, thus helping you to get more orders quickly.
Deveup oscillating knife cutting technology adopts intelligent modular cutting technology, equipped with fast cutting tools, creasing tools, and beveling tools, which completely changes the shortcomings of traditional carton processing methods. The carton cardboard corrugated paper box making machine has the characteristics of better cutting quality, intelligence and flexibility, and lower production costs. It can be widely used for cutting cartons, cardboard, color boxes, corrugated paper, grayboard paper, honeycomb paper etc., and can replace traditional cartons, color boxes, paper display racks, and other manual development designs and proofing work, shortening the lead time.
Applicable to cardboard, gray cardboard, KT board, Chevron board, honeycomb board, car sticker, light sheet, PP adhesive, inkjet cloth, flag cloth, various corrugated cardboard, EPE foam, EVA, PVC board, acrylic board . .
Advantages:
It adopts computer control, supports input of electronic pattern, one-key cutting, simple operation, and can be configured with automatic board feeding system, replacing 3-6 workers.
1. The oscillating knife cutting machine is suitable for cutting a variety of packaging materials: it can cut different materials (corrugated paper, honeycomb board, cardboard, plastic board gray board color, composite paper, gasket, leather, cloth, etc.).
2. A variety of cutting functions: it can press out perfect folding lines on corrugated paper, cardboard, plastic board, and other materials, and can also be used for folding after half-cutting corrugated paper and cardboard, dotted line cutting, and other functions.
3. Can be equipped with a variety of cutting tools - cutting, creasing, beveling, and marking tools, which can complete line drawing, drawing, text annotation, indentation, half-knife cutting, and full-knife cutting at one time.
4. The processing method is more flexible and intelligent. It can be used for corrugated cardboard cutting, carton proofing, color box proofing, plastic box proofing, POP paper display rack paper shelf proofing, small batch production, shortening carton development, and delivery time; to meet the small batch, multi-style order production goals.
Specification
Parameters/Model | DO1216 DO1625 DO1330 DO1830 DO2030 |
Cutting Size | 1200x1600mm 1600x2500mm 1300x3000mm 1800x3000mm 2000x3000mm |
Cutting Thickness | ≤45mm (Other thickness can be customized according to the material) |
Cutting Speed | ≤1700mm/s(The actual speed depends on the material and cutting graphics) |
Applicable materials | Cardboard, gray cardboard, KT board, Chevron board, honeycomb board, car sticker, light sheet, PP adhesive, inkjet cloth, flag cloth, various corrugated cardboard, EPE foam, EVA, PVC board, acrylic board, etc. |
Cutting precision | ± 0.1mm |
Repeat accuracy | ≤3mm Diameter |
Positioning way | Laser positioning also optional CCD camera positioning |
Safety device | Physical anti-collision mechanism + infrared induction anti-collision to ensure production safety |
Material fixed way | Vacuum adsorption |
Transport interface | Ethernet front-end ports/usb |
Compatible software | AI software, AutoCAD, CorelDRAW, and all of the box type design software can output directly, without conversion, and with automatic optimization |
Support File Format | DWG, AI, PLT, DXF |
Operation Panel | Multilingual languages LCD touch panel |
Transmission system | High precision linear guide, meshing transmission gear and rack structure, Japanese Panasonic high performance servo drive motors + precision reducer |
Power supply voltage | AC 220 v to 380 v ± 10%, 50 - 60hz |
Pump power | 7.5kw/9kw/11kw |
Work environment | Temperature: - 10 ºC to 40 ºC, humidity: 20% ~ 80% RH |
Dimension(L*W*H) | 3.5x2.2x1.35m |
Weight | 1400KG |

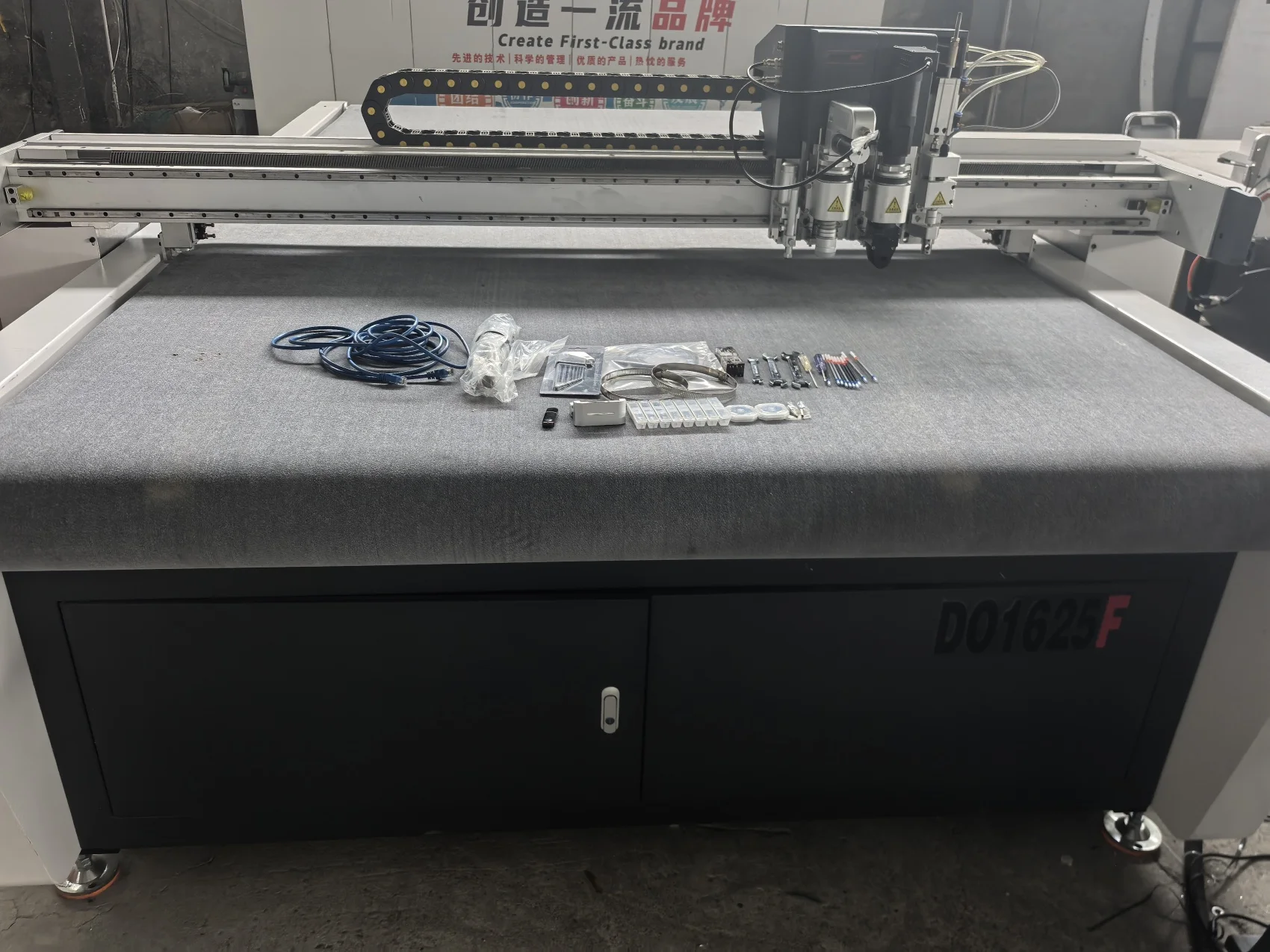

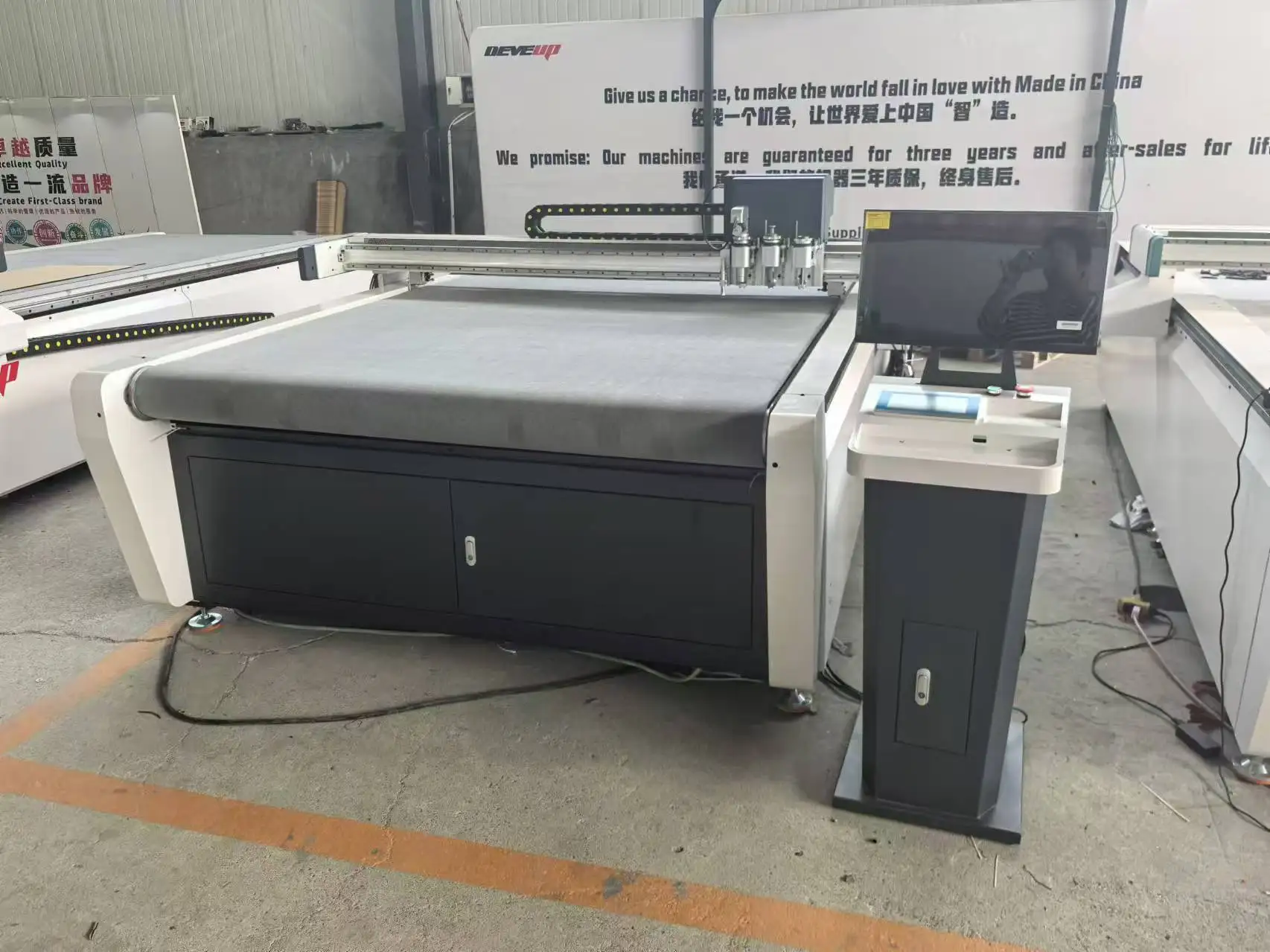

Machine Details

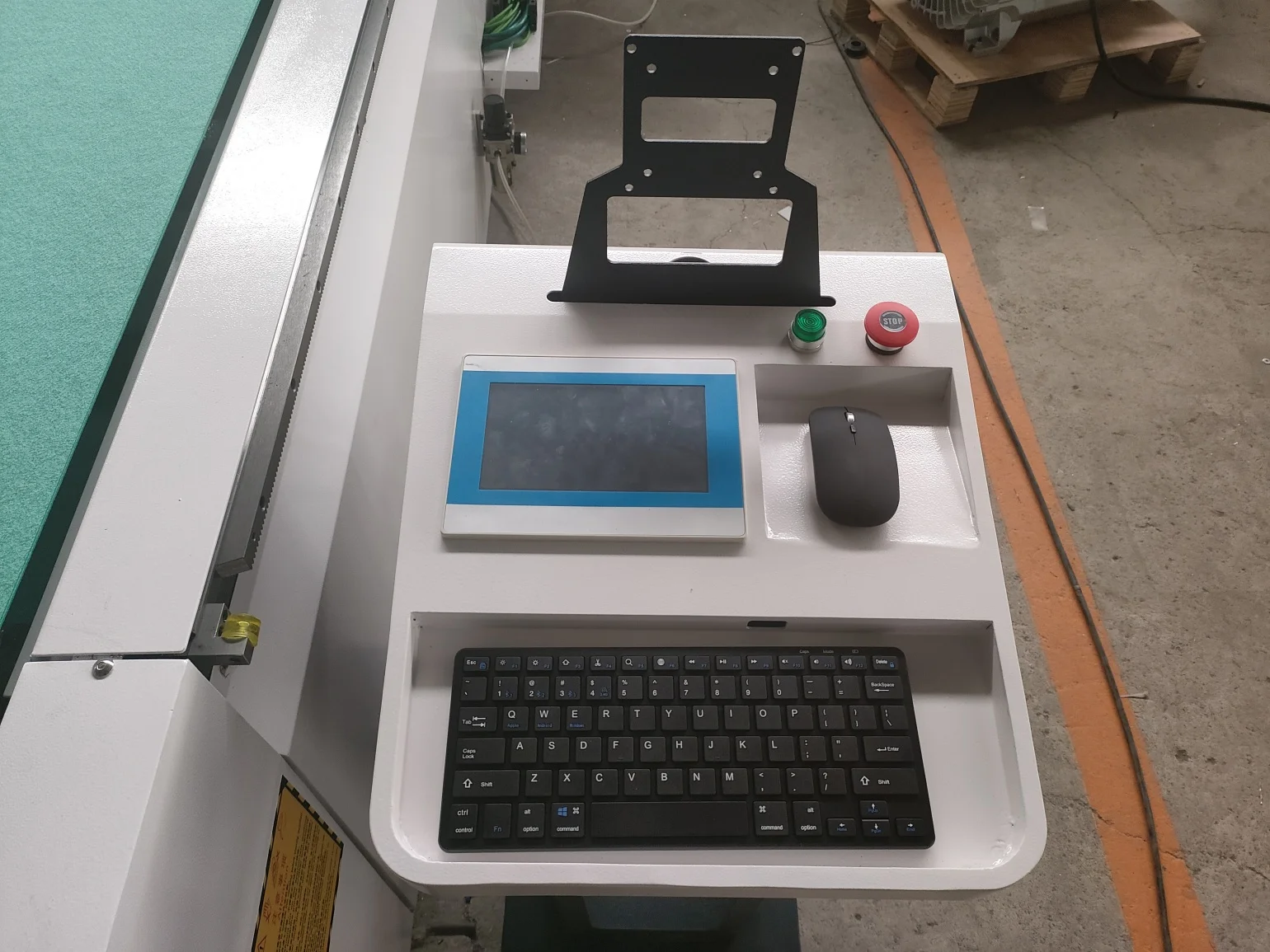

Colorful LCD touch operation panel supports world multilingual kinds of languages, with more intuitive operation interface, which can directly input processing data, set processing speed and knife depth, support screen automatic protection, and protect
processing data,feature-rich and user-friendly operation.
processing data,feature-rich and user-friendly operation.
A variety of tool combinations, equipped with intelligent tools interchange system, can cut different materials to achieve different tasks, and multiple tool heads can work individually or in concert. Powerful function, fast running speed, high
processing accuracy, truly multi-purpose machine.
processing accuracy, truly multi-purpose machine.
We use CNC gantry machining center for planing and milling machine shelf. Our bed has the characteristics of heavy weight, good load-bearing capacity, higher precision, and high hardness, which ensures the accuracy and stability of the oscillating knife cutting machine at high speed. We guarantee that the machine will not be deformed in 10 years.
The beam adopts the extrusion process of aviation aluminum alloy die, which ensures the stability and high precision of machine operation at high speed, especially suitable for some industries that require high precision, such as sealing gaskets
Imported famous brand helical gear rack, quenching and hardening treatment. High precision, strong load-bearing capacity, smooth
running at high speed and less noise.
running at high speed and less noise.
Imported PMI 20mm high precision linear guide, high positioning accuracy, high repeatability. Low friction resistance, high rigidity four-way load design, high speed and long time operation to maintain high precision
Safety protection device. Highly sensitive collision avoidance system and red light brake system. When the machine is cutting at high speed, it can effectively protect safety of the operator.
The worktable is a high precision and strength aluminum honeycomb vacuum absorption worktable. Cooperate with high power vacuum pump to fix the material.
Imported Holland 4mm felt with built-in fiber tensile layer to protect the vacuum table and blades while the machine is working. Cutting-resistant, soft, won't scratch the product, non-slip, prevent the material from shifting during the cutting process.

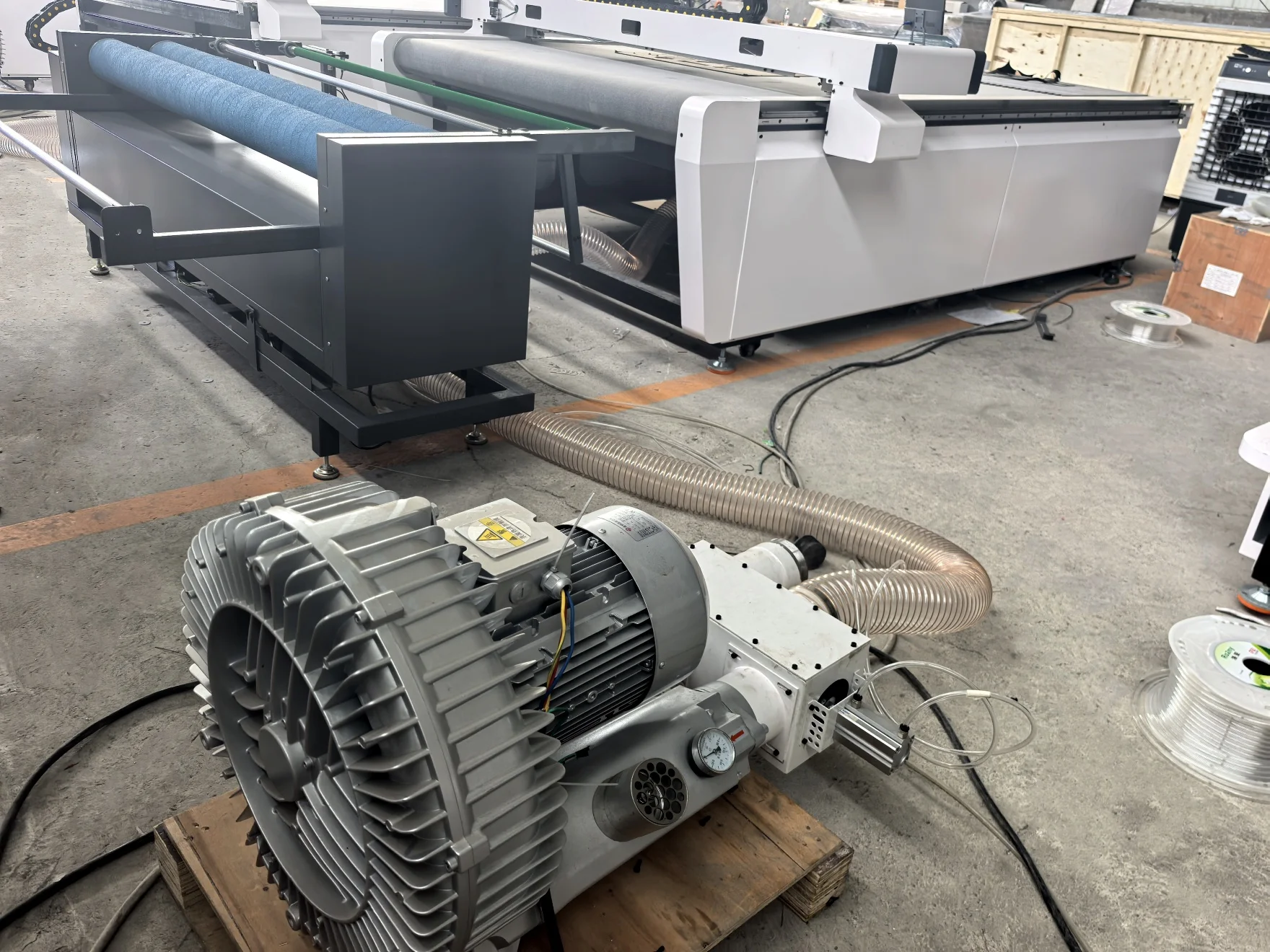

High power vacuum pump to fix material. The vacuum pump runs automatically when the machine is working.
Use top quality Japan Panasonic Or Taiwan Delta servo motors and drivers(X-axis double servo motor driving + precision reducer drive). Strong power, long life, and high precision.
Cutting software is feature-rich, supports multi-language, friendly operation, and has automatic optimization nesting function, which can help customers save raw materials to the greatest extent.

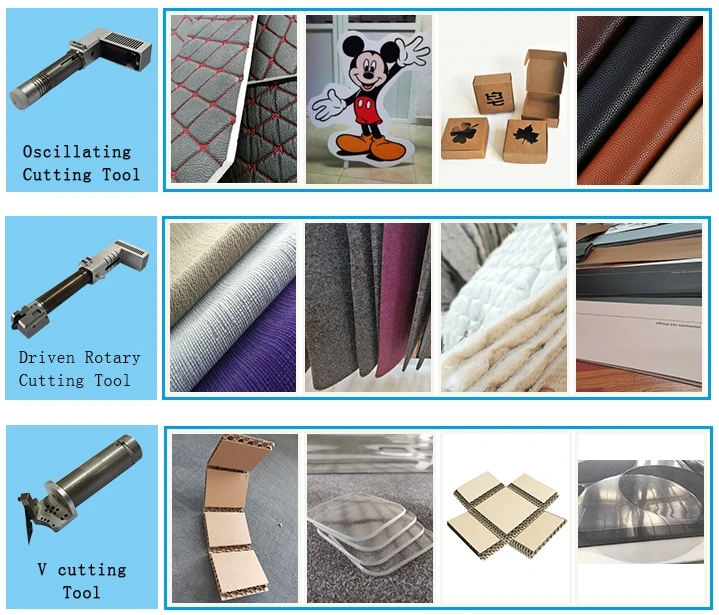

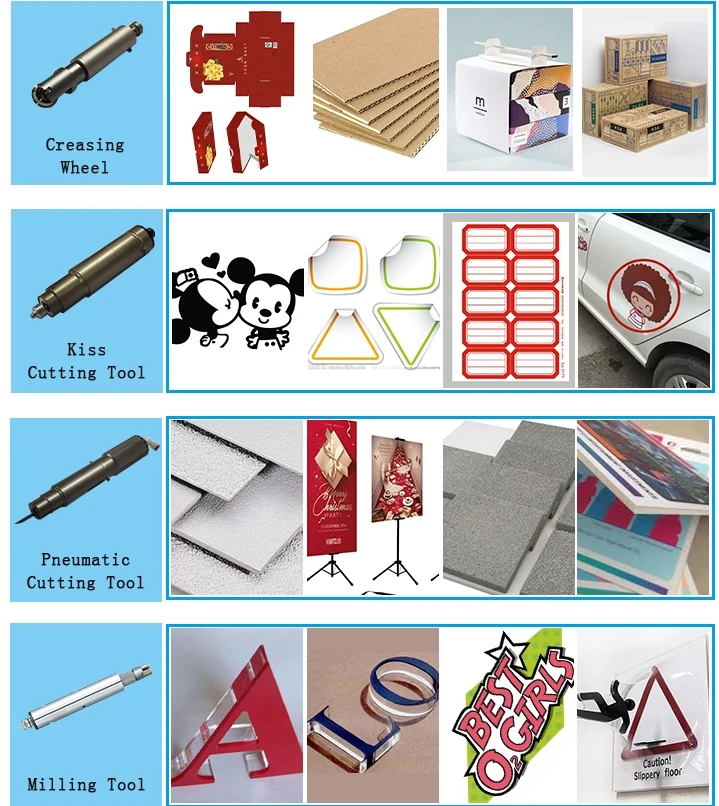

Tools Introduction

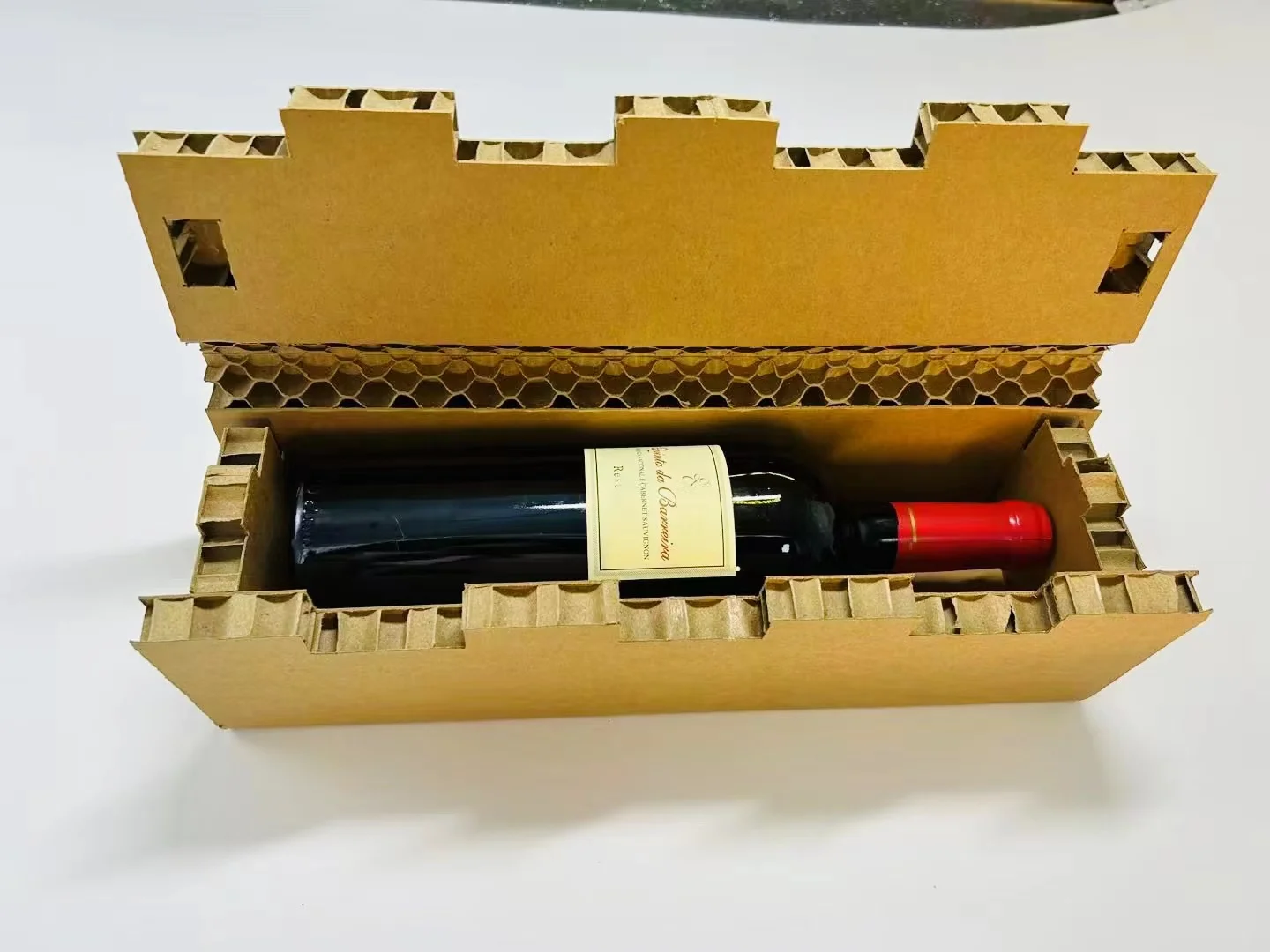

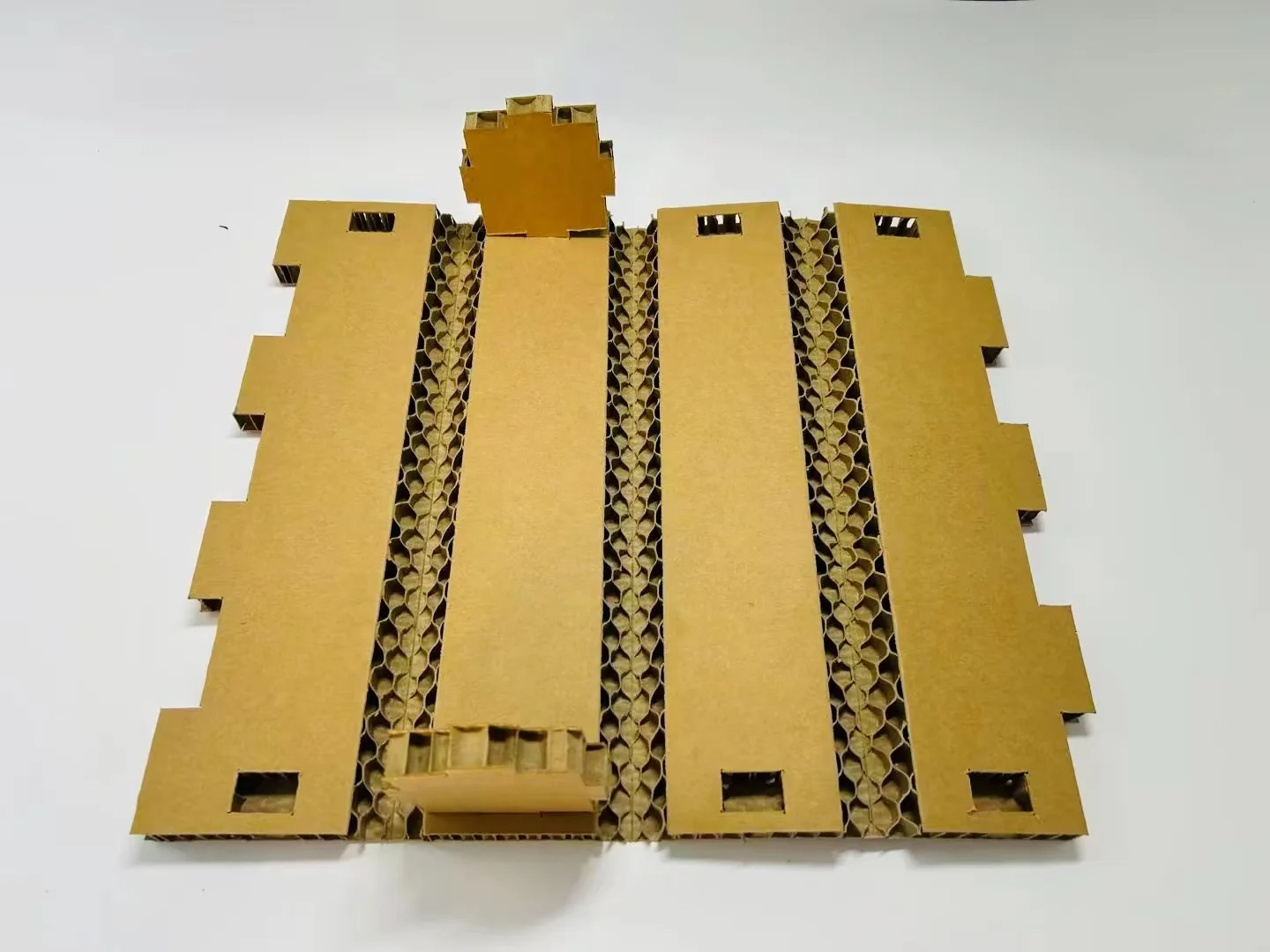

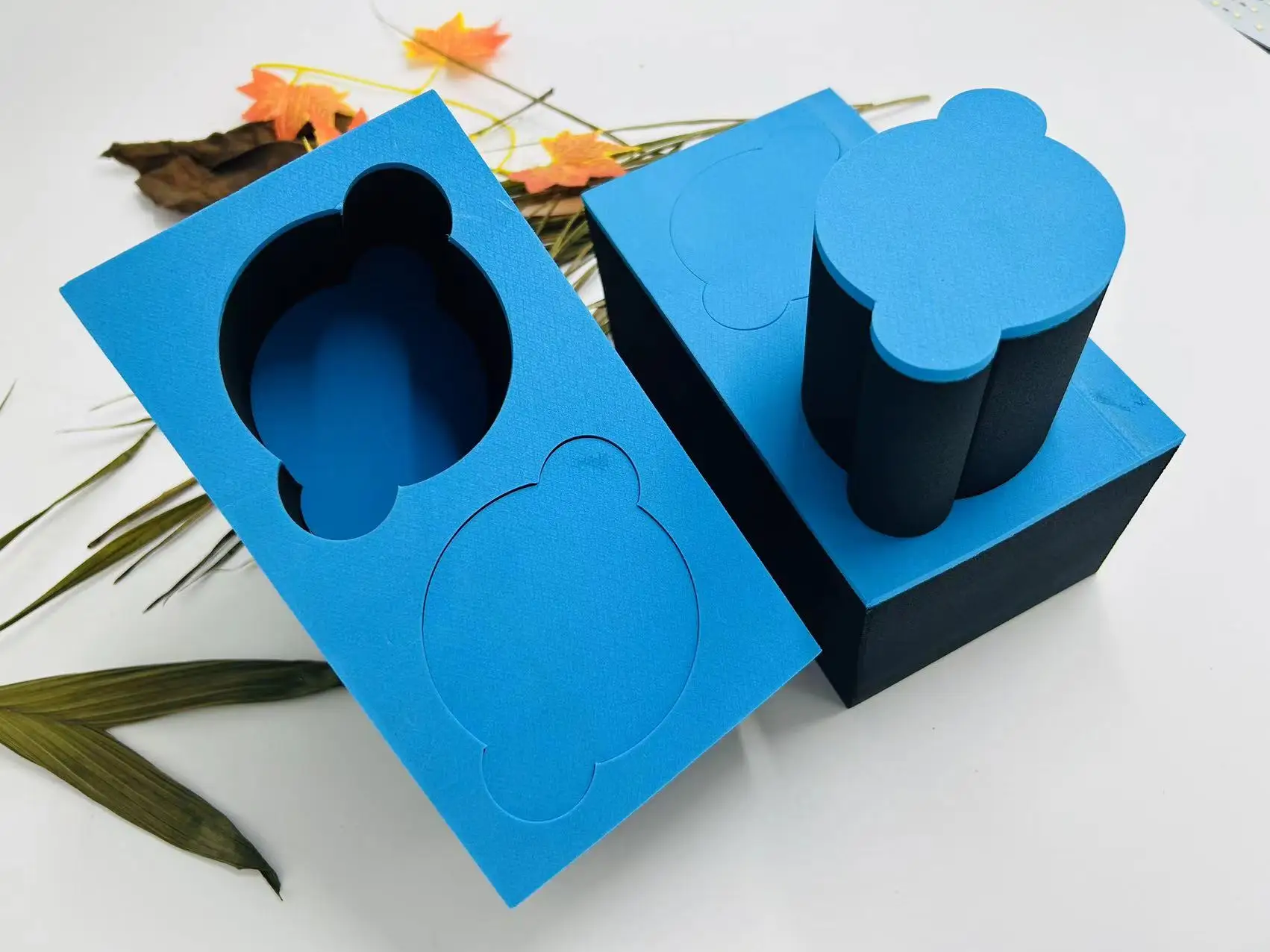

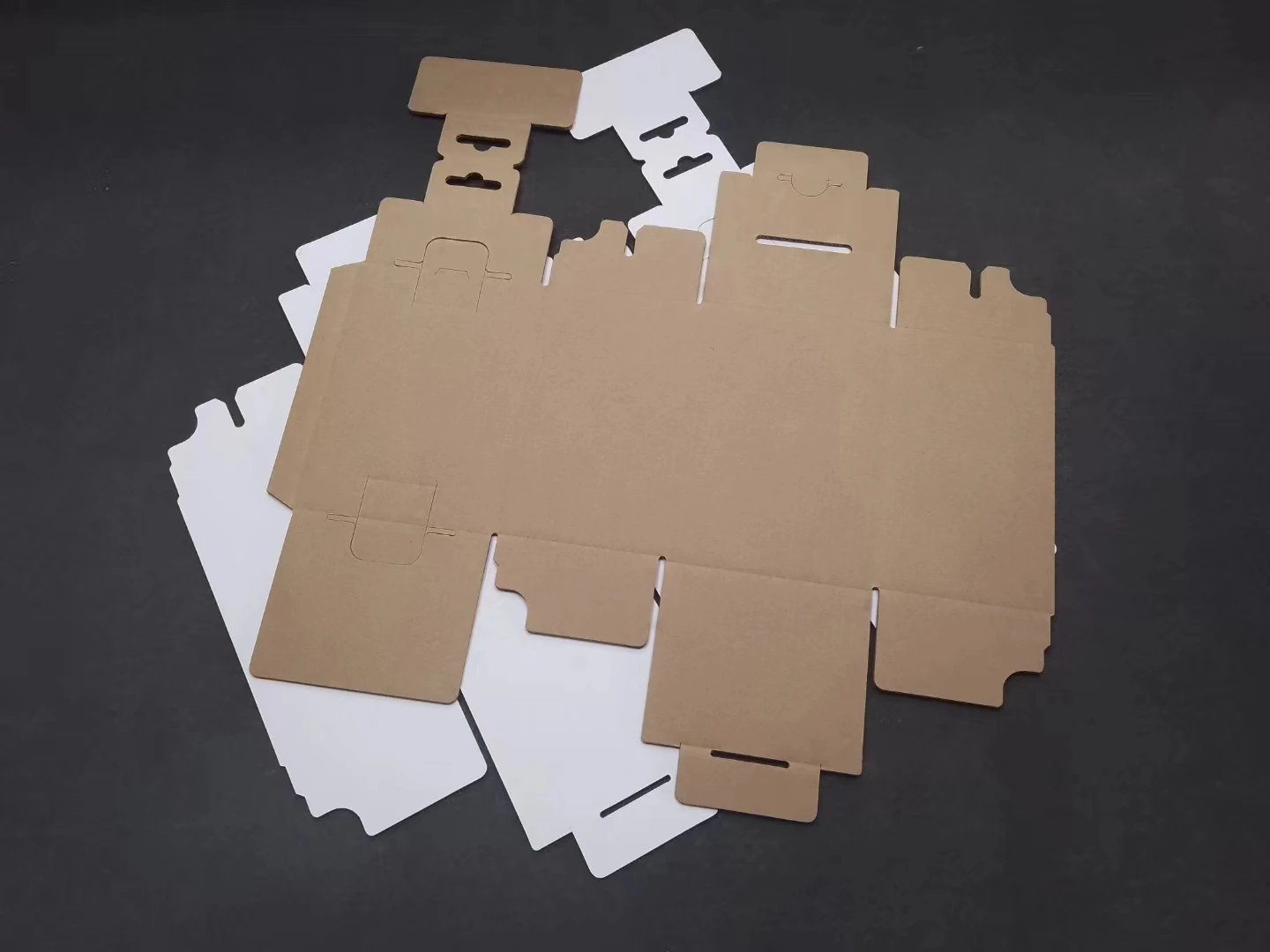

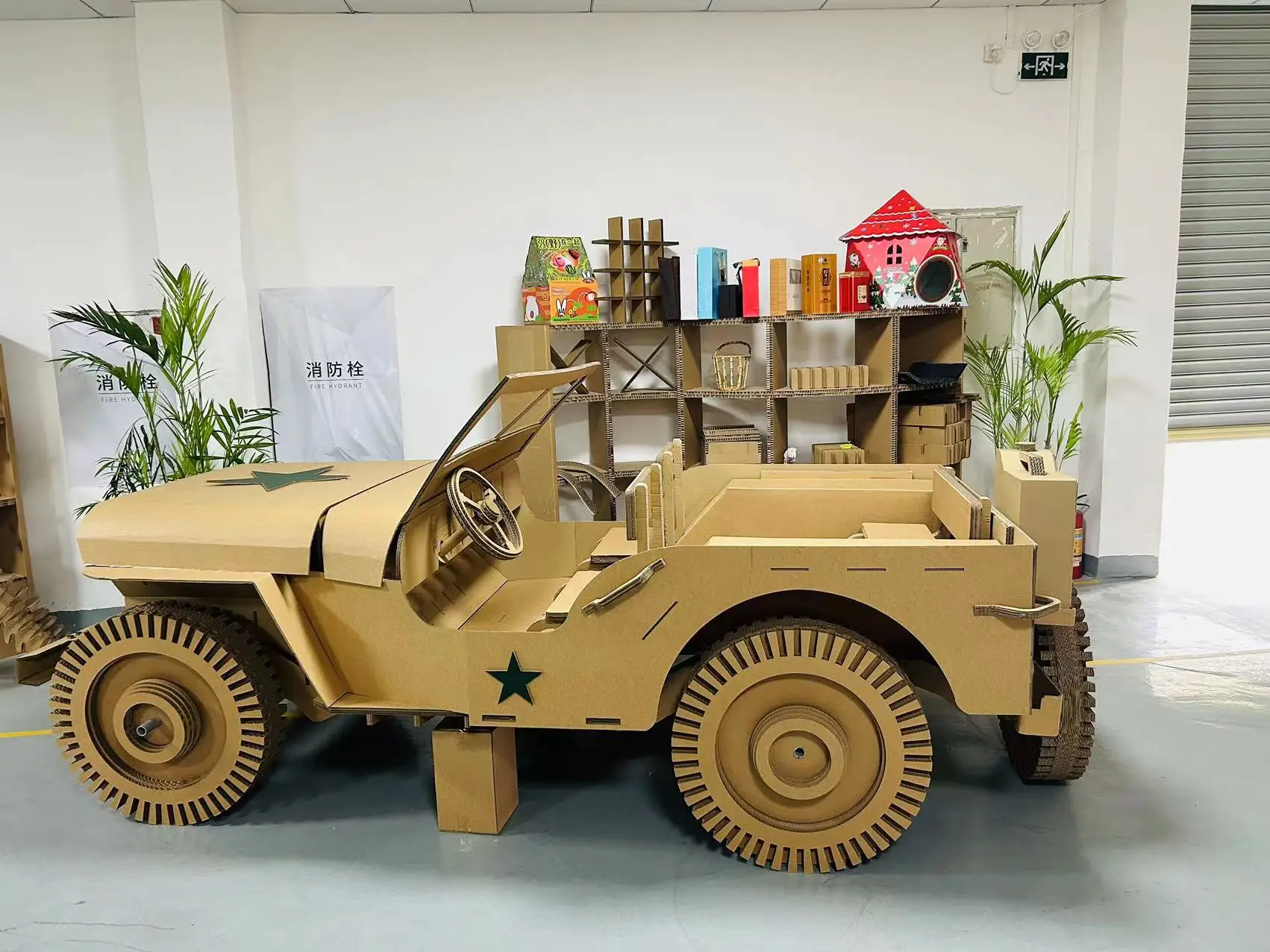

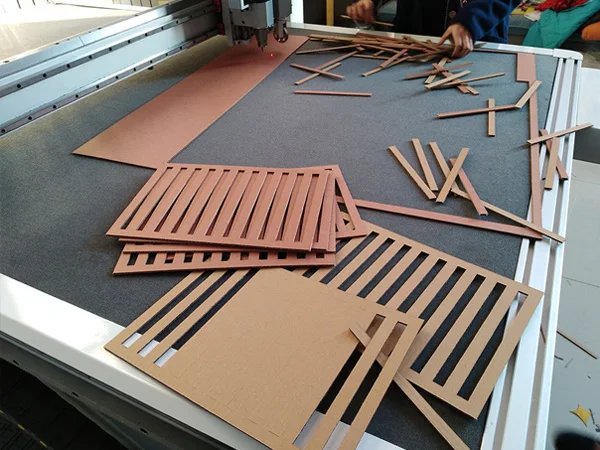

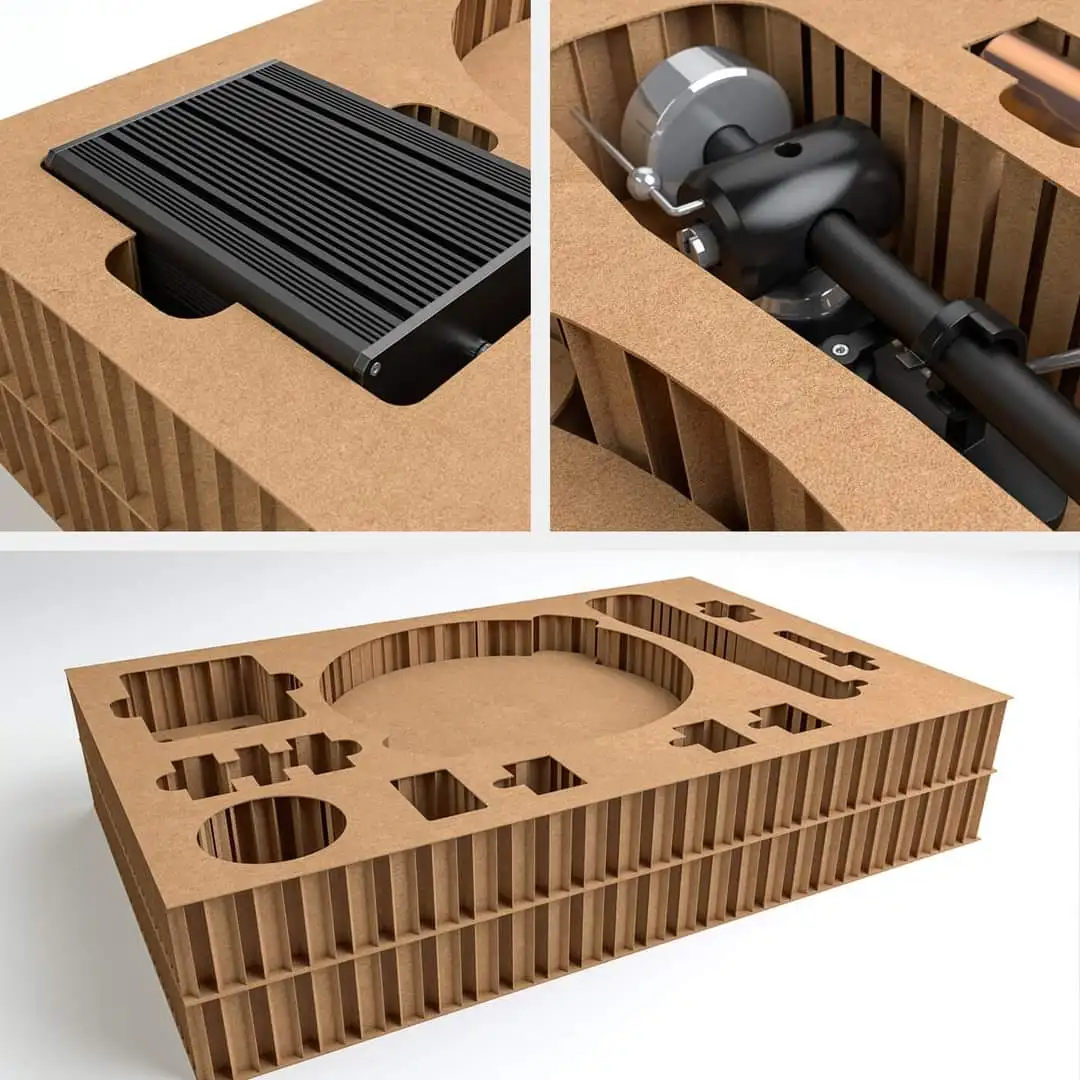

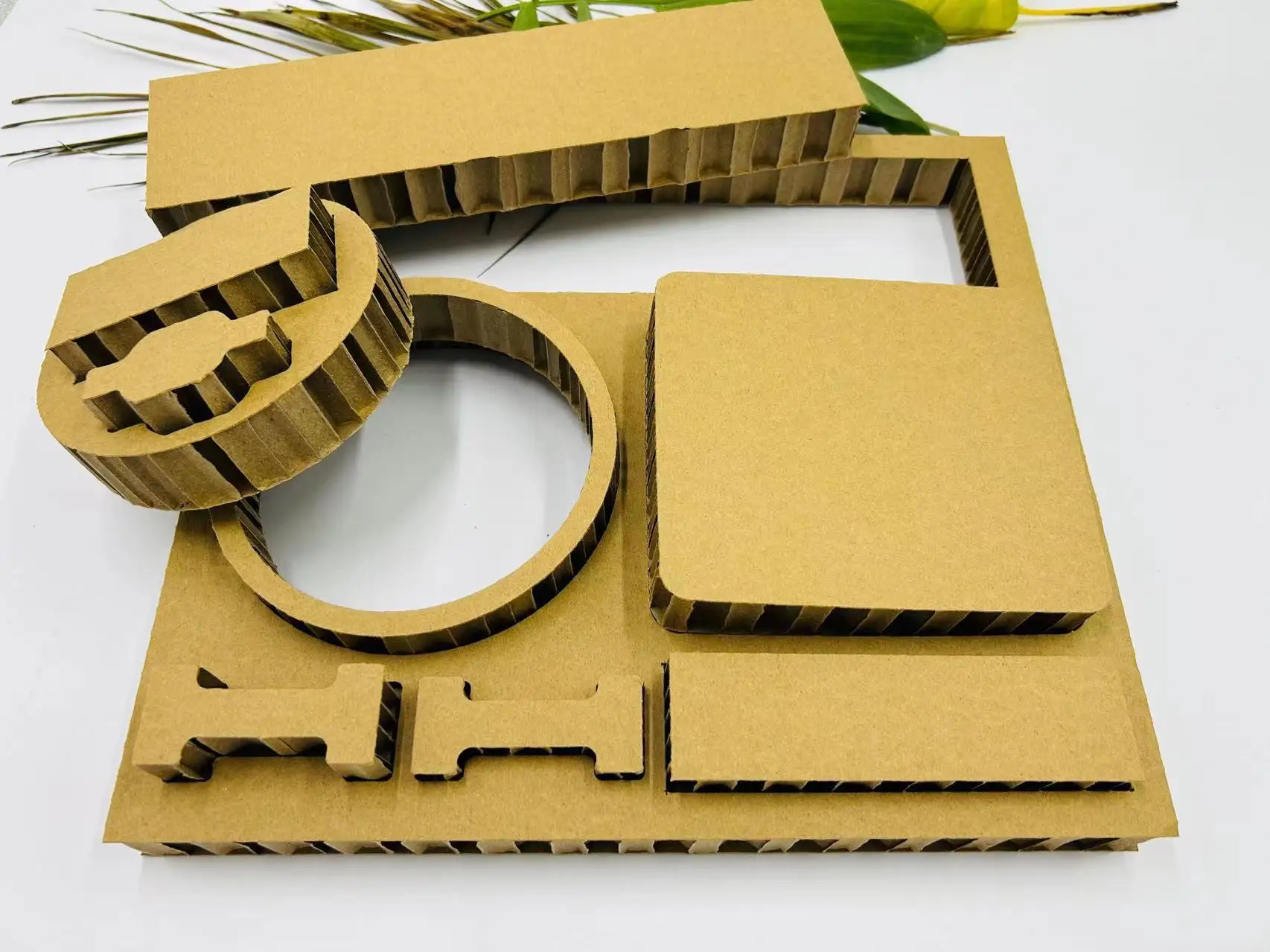

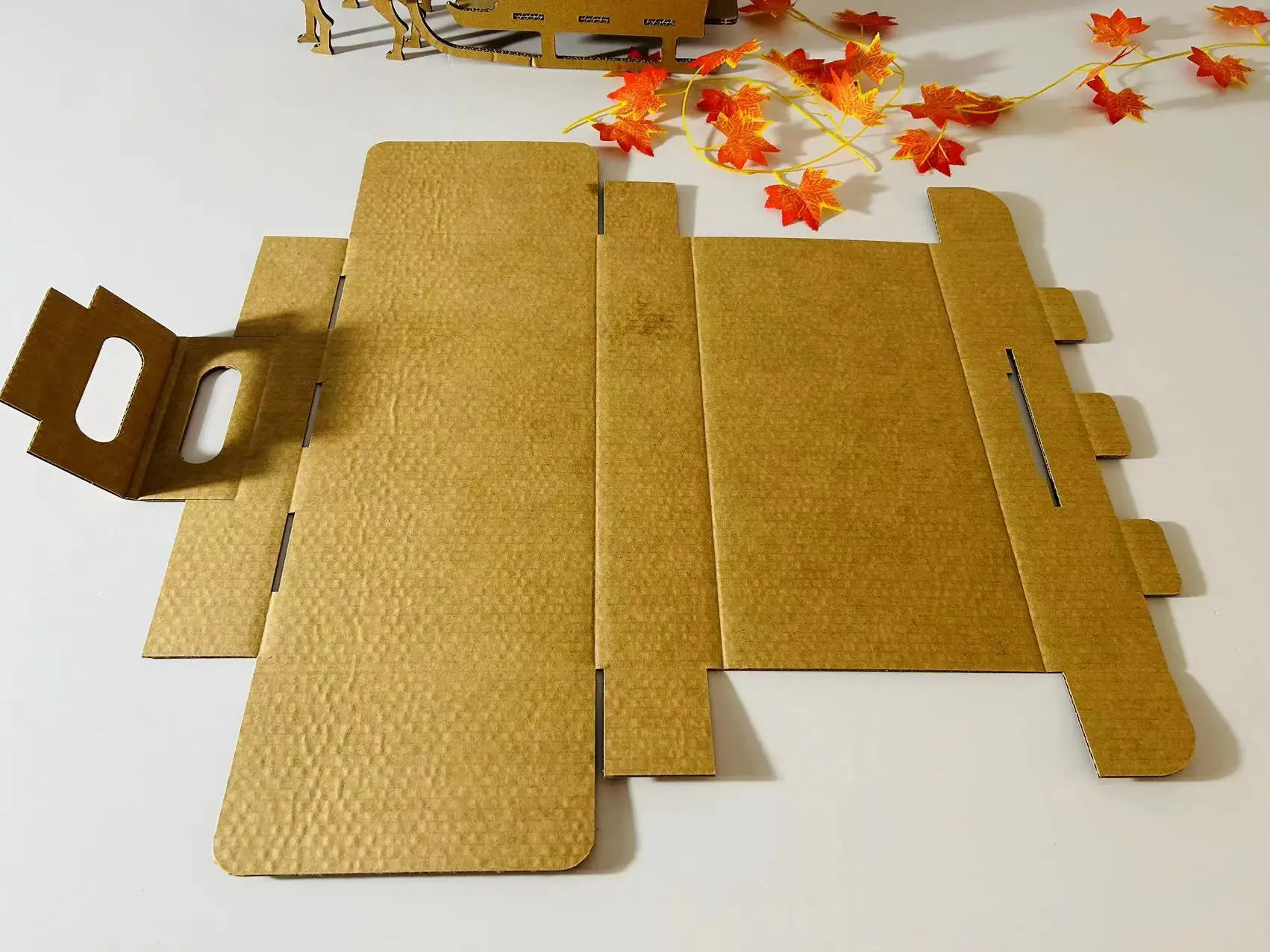

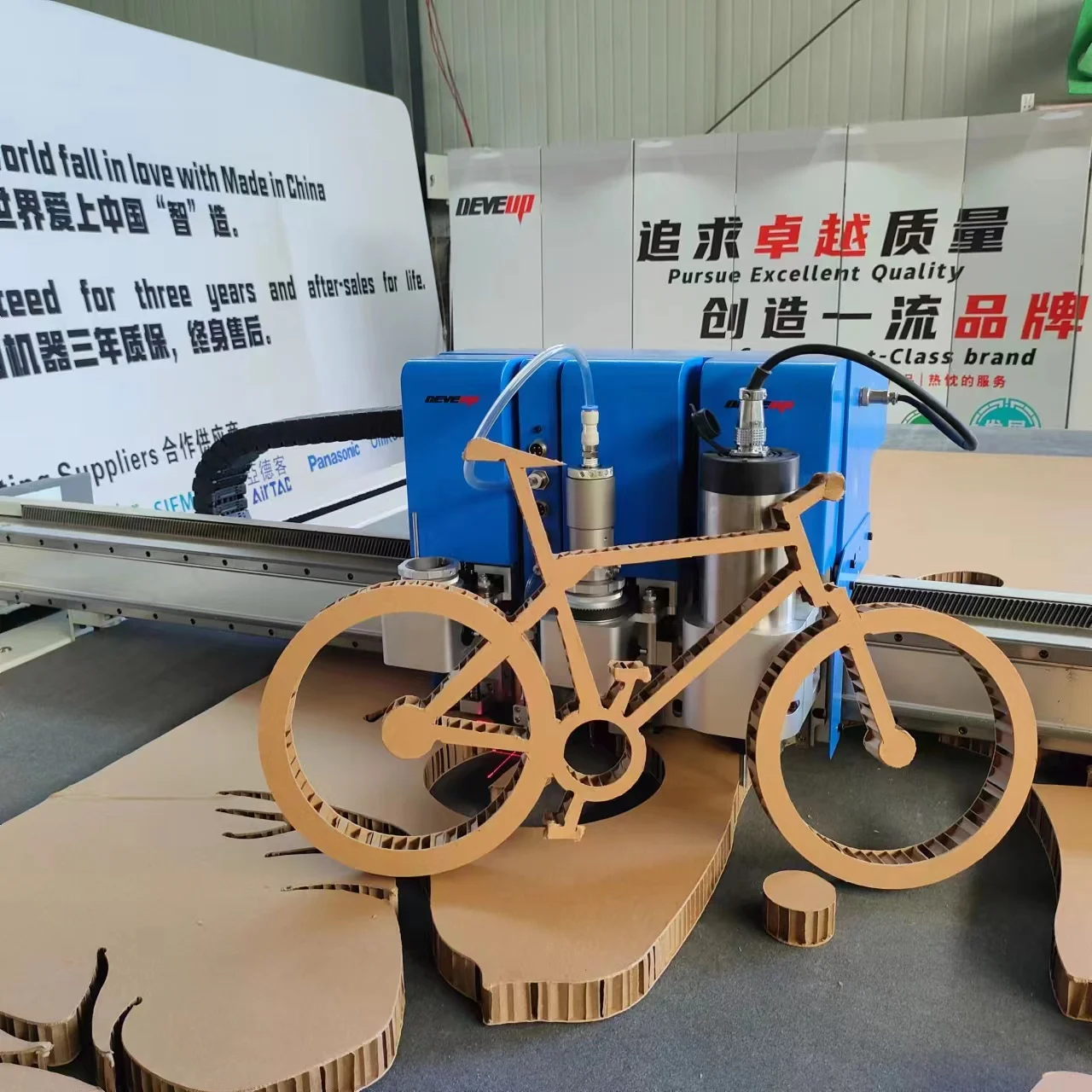

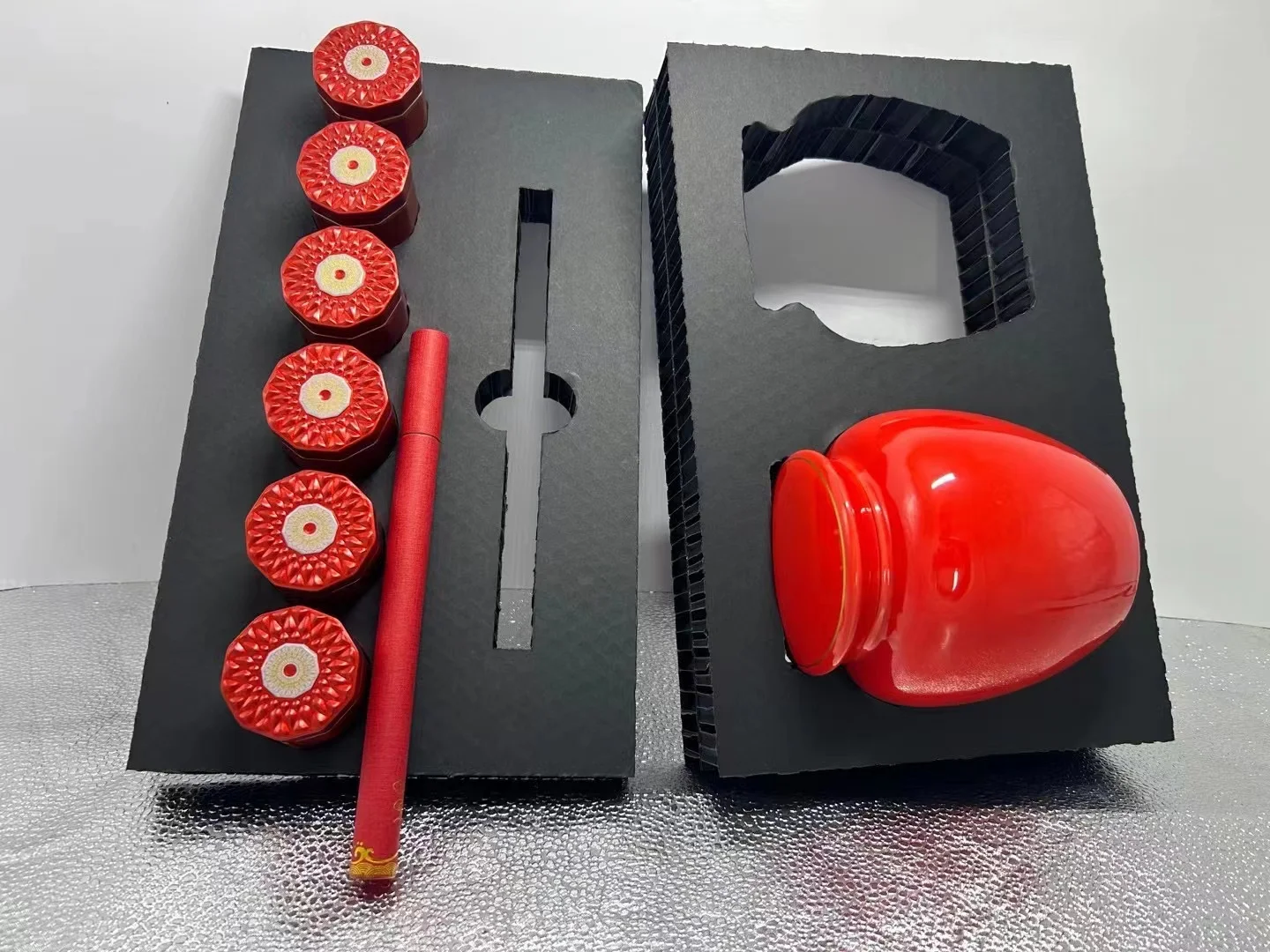

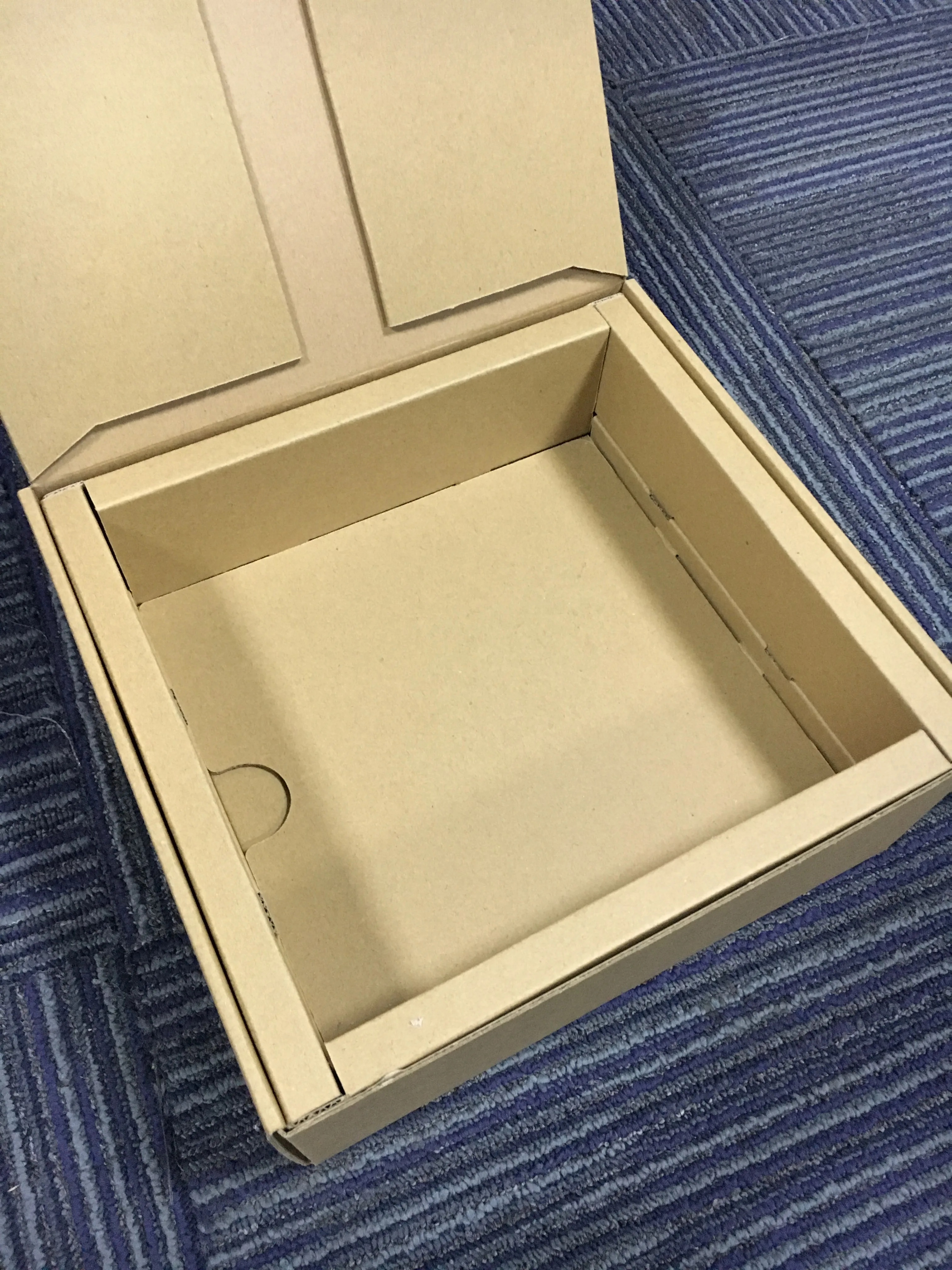

Cutting Samples
Tips
What are the applications of Deveup Knife Cutting Machine in cardboard box industry?
Deveup cnc oscillating knife cutting machine can cut honeycomb cardboard, corrugated cardboard, gray paper board, cardboard, PVC hollow board and other cardboard, can make packaging cartons, cardboard crafts, packaging liner, color boxes, photo frames and other products.
Deveup cnc oscillating knife cutting machine is installed with oscillating cutting knife, bevel(V-cut tool/Grooving/slotting tool) knife, pressure wheel, CCD automatic edge-seeking camera and other supporting tools, when cutting cartons, the pressure wheel can be pressed folding marks, easy to fold into cartons.
When cutting thicker cardboard, the beveling knife can open V-groove to facilitate cardboard folding. The vibrating knife is used to cut the outer contour.
Carton vibrating knife cutting machine is a CNC cutting machine, only need to import the CAD drawings into the machine software can automatically cut, according to the CAD drawings in the color of the automatic selection of the working knife head, do not need too much human intervention.
Packaging cartons are sampled before production to avoid problems in mass production. Vibrating knife cardboard cutting machine does not need to make a knife mold, according to CAD drawings automatically cut, saving the time and cost of opening the mold. It is also very easy to modify the design drawings. Nowadays, there are more and more customized products, and if all of them adopt the way of opening the knife mold, it will waste a lot of time and cost.
Deveup cnc vibrating knife cutting machine is very suitable for customized processing, small batch production, sampling and other work, so that factories can easily respond to a variety of orders. The oscillating knife cutting machine utilizes sturdy and sharp tungsten steel blade cutting, blade high frequency up and down vibration, control system to control the movement of the cutter head, to achieve a variety of shapes of processing, cutting speed, high precision, cutting effect is good.
Deveup cnc oscillating knife cutting machine can cut honeycomb cardboard, corrugated cardboard, gray paper board, cardboard, PVC hollow board and other cardboard, can make packaging cartons, cardboard crafts, packaging liner, color boxes, photo frames and other products.
Deveup cnc oscillating knife cutting machine is installed with oscillating cutting knife, bevel(V-cut tool/Grooving/slotting tool) knife, pressure wheel, CCD automatic edge-seeking camera and other supporting tools, when cutting cartons, the pressure wheel can be pressed folding marks, easy to fold into cartons.
When cutting thicker cardboard, the beveling knife can open V-groove to facilitate cardboard folding. The vibrating knife is used to cut the outer contour.
Carton vibrating knife cutting machine is a CNC cutting machine, only need to import the CAD drawings into the machine software can automatically cut, according to the CAD drawings in the color of the automatic selection of the working knife head, do not need too much human intervention.
Packaging cartons are sampled before production to avoid problems in mass production. Vibrating knife cardboard cutting machine does not need to make a knife mold, according to CAD drawings automatically cut, saving the time and cost of opening the mold. It is also very easy to modify the design drawings. Nowadays, there are more and more customized products, and if all of them adopt the way of opening the knife mold, it will waste a lot of time and cost.
Deveup cnc vibrating knife cutting machine is very suitable for customized processing, small batch production, sampling and other work, so that factories can easily respond to a variety of orders. The oscillating knife cutting machine utilizes sturdy and sharp tungsten steel blade cutting, blade high frequency up and down vibration, control system to control the movement of the cutter head, to achieve a variety of shapes of processing, cutting speed, high precision, cutting effect is good.

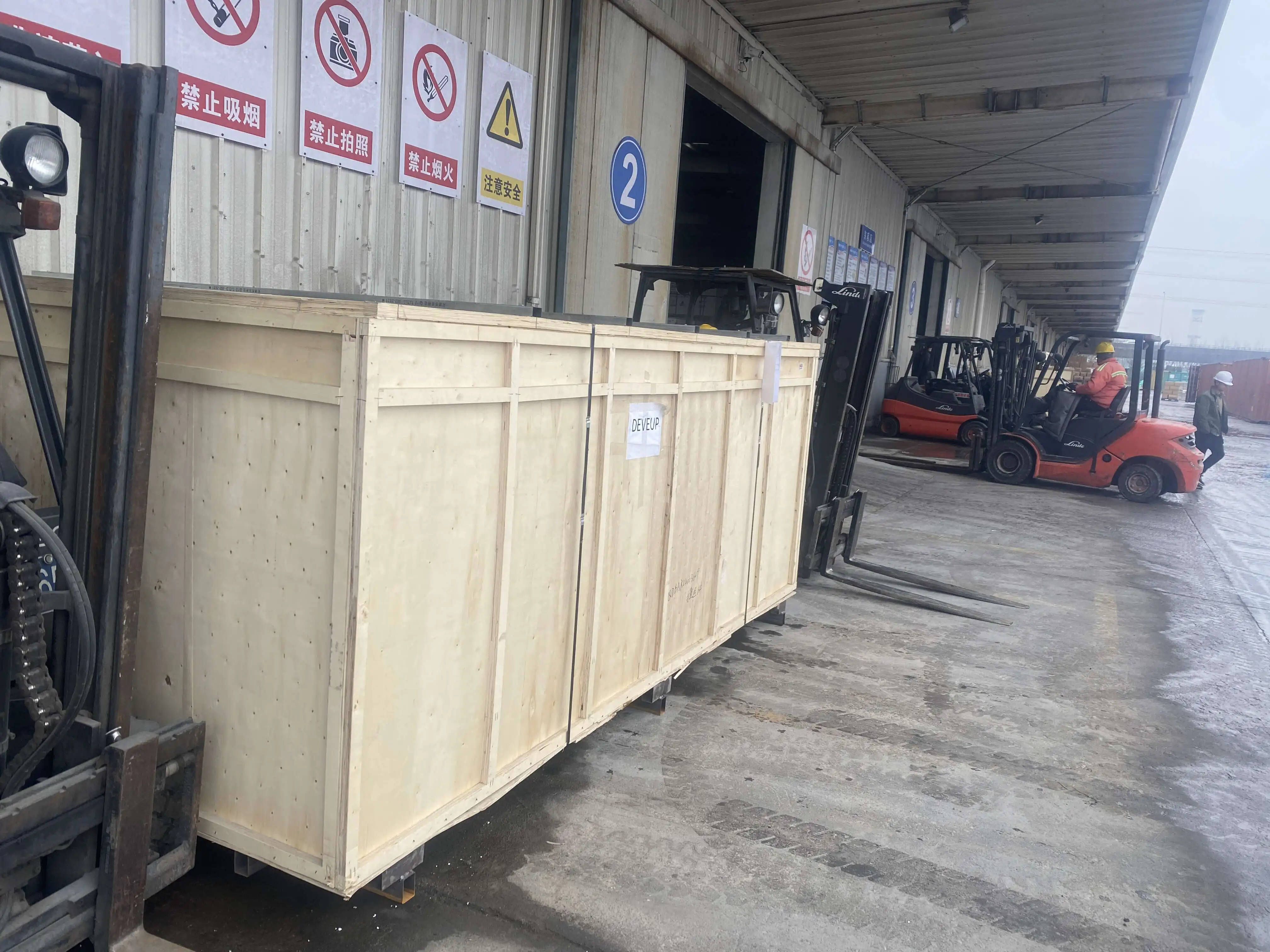

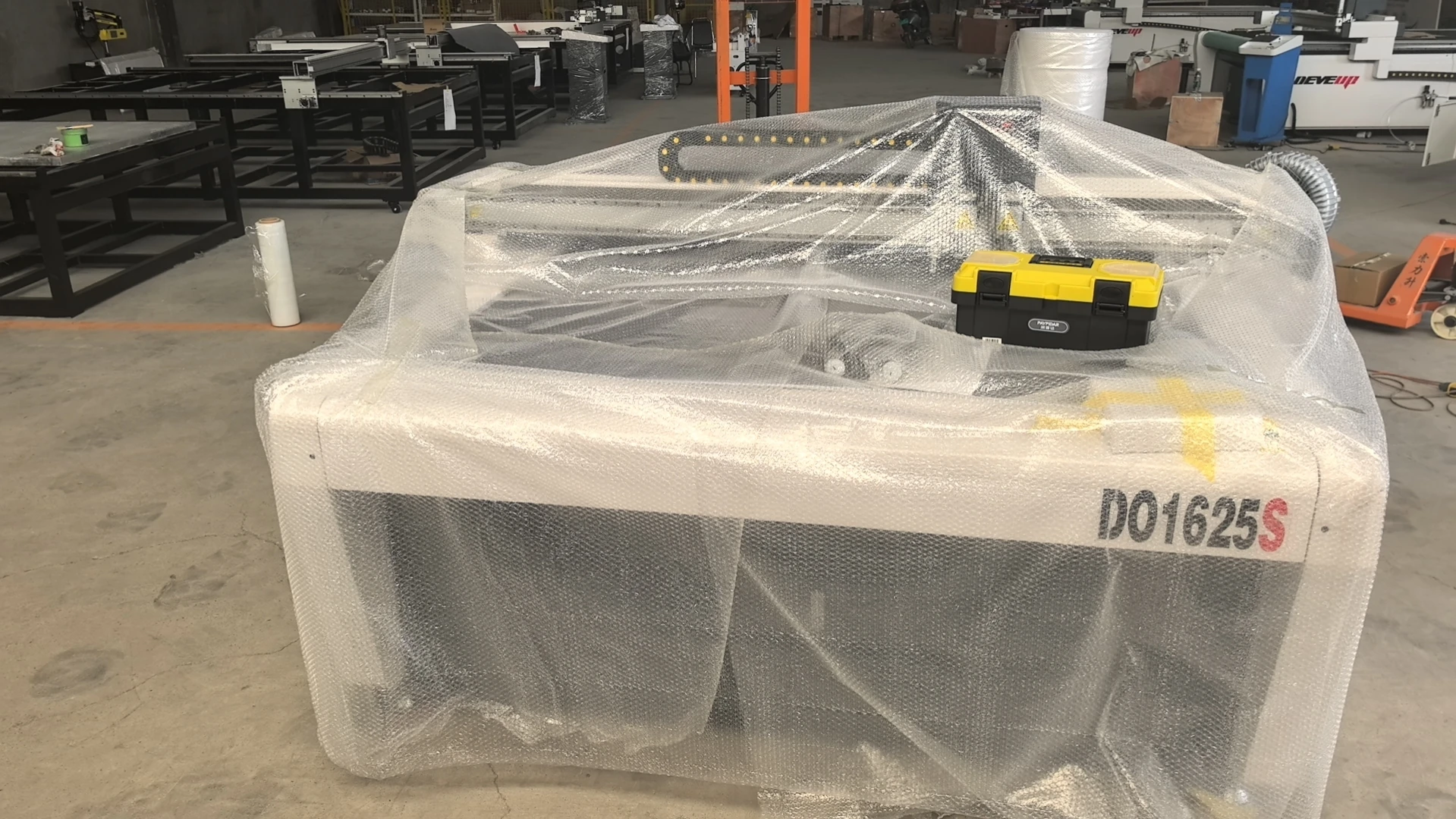

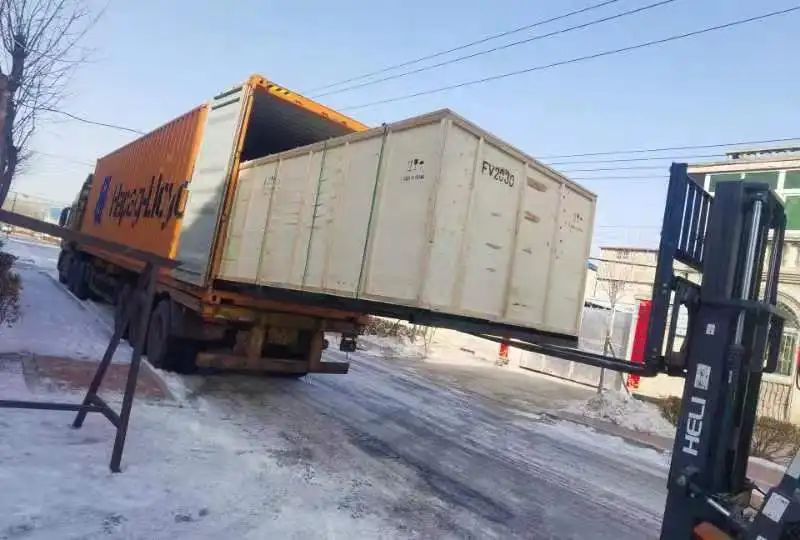

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Q: Are you a factory or Trading company?
A: We are a professional oscillating knife cutting machine production factory, we produce high-end quality CNC cutting machines.
2. Q: Can you customize the machine according to my needs?
A: Yes, we accept the customized machine, our company has an experienced professional design team, we can give you our professional suggestions according to your requirements and design a cost-effective machine for your needs.
3. Q: What is the difference between this knife cutting product and your laser cutting machine?
A: a. This knife cutting machine cut with vibrating blades, no laser, no pollution, and create a good working environment for
workers.
b. Blade cutting can ensure the edge of material cutting smooth without burning.
4. Q: What's the warranty policy?
A:Standard warranty is 36 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period. Problems caused by wrong operate will also well-solved.
5. Q: Can I still get support after warranty?
A: Of course, We offers life-time technology support, you can always counting on our service.
6. Q: This is the first time I buy machine from China, what can you do for me?
A: We supply DDU service for the new buyers. This service means we will deliver machine directly to your factory.
A: We are a professional oscillating knife cutting machine production factory, we produce high-end quality CNC cutting machines.
2. Q: Can you customize the machine according to my needs?
A: Yes, we accept the customized machine, our company has an experienced professional design team, we can give you our professional suggestions according to your requirements and design a cost-effective machine for your needs.
3. Q: What is the difference between this knife cutting product and your laser cutting machine?
A: a. This knife cutting machine cut with vibrating blades, no laser, no pollution, and create a good working environment for
workers.
b. Blade cutting can ensure the edge of material cutting smooth without burning.
4. Q: What's the warranty policy?
A:Standard warranty is 36 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period. Problems caused by wrong operate will also well-solved.
5. Q: Can I still get support after warranty?
A: Of course, We offers life-time technology support, you can always counting on our service.
6. Q: This is the first time I buy machine from China, what can you do for me?
A: We supply DDU service for the new buyers. This service means we will deliver machine directly to your factory.
