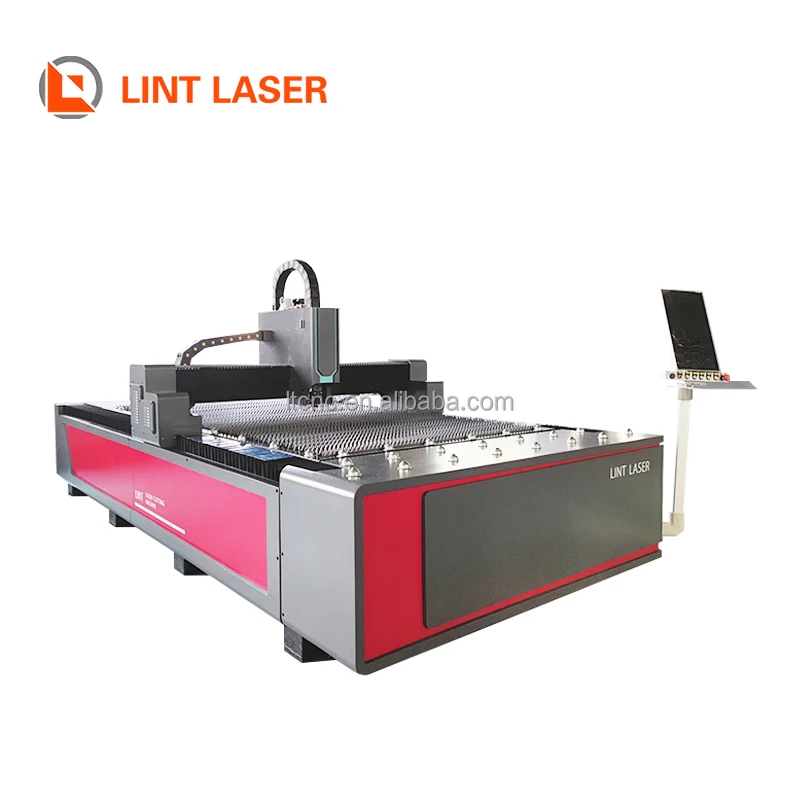

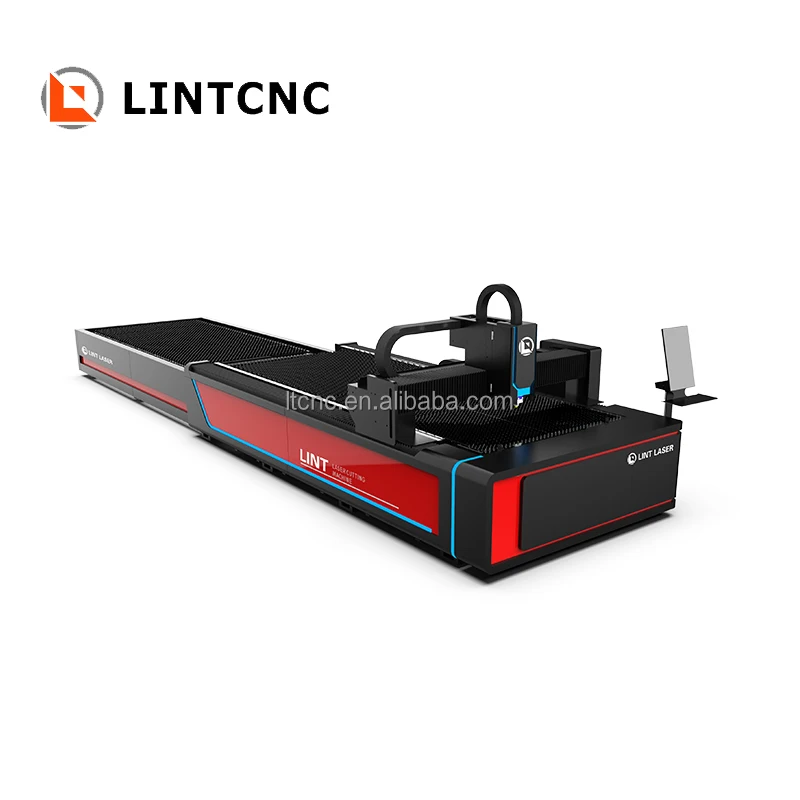

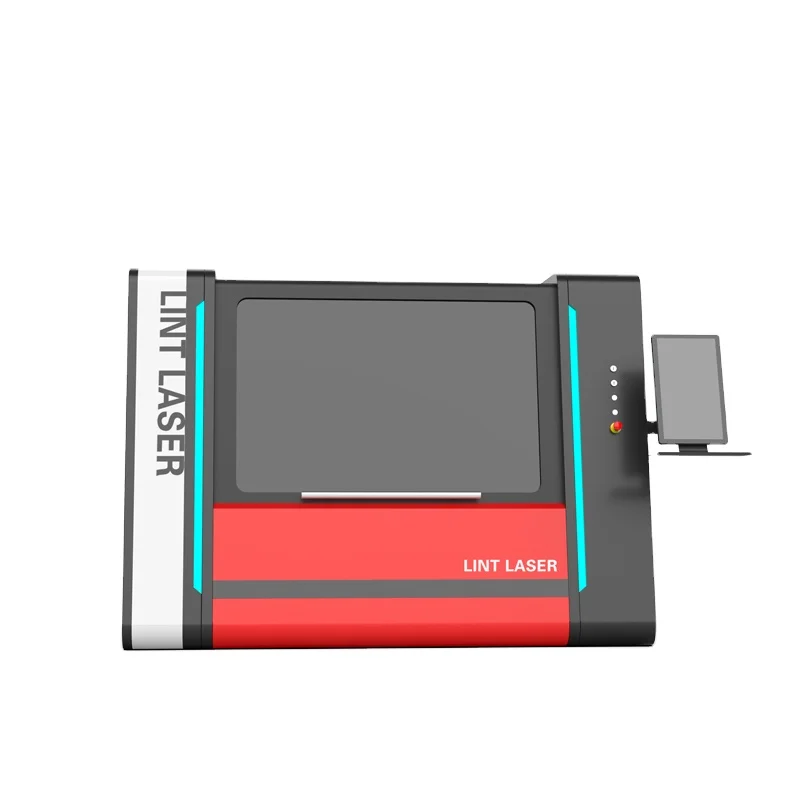

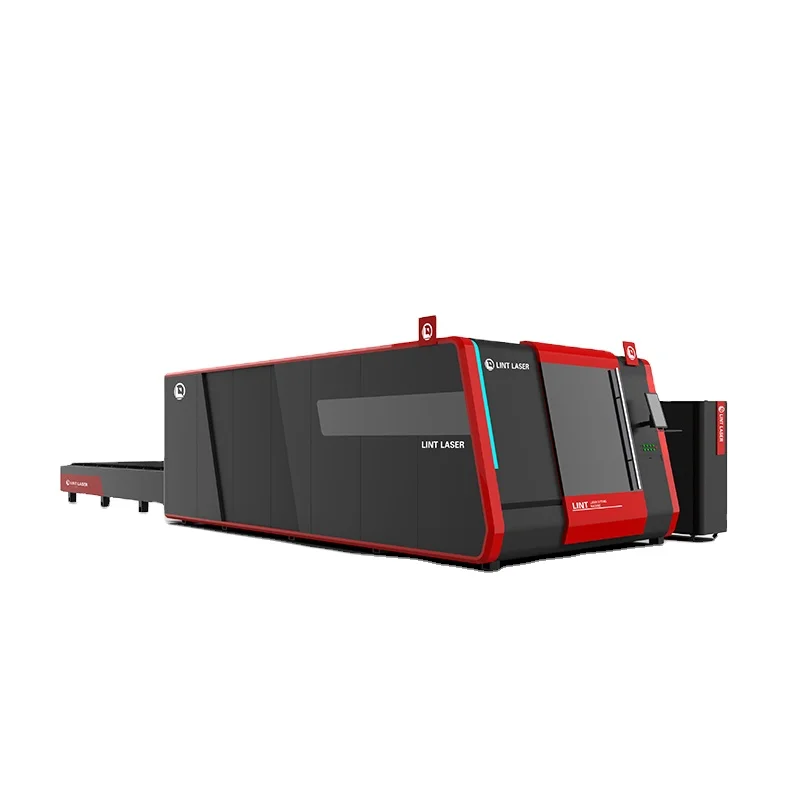

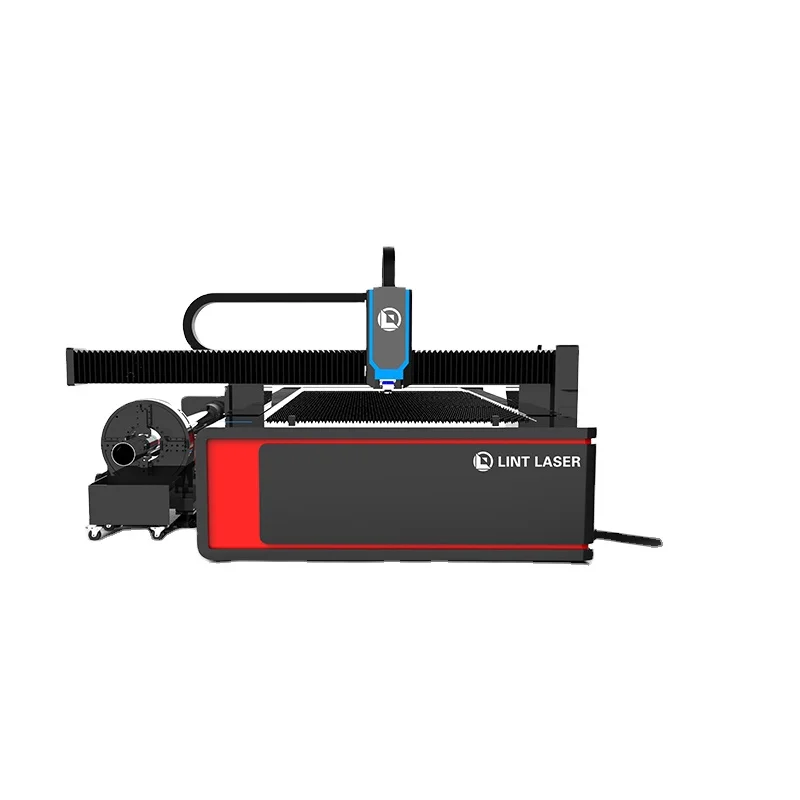

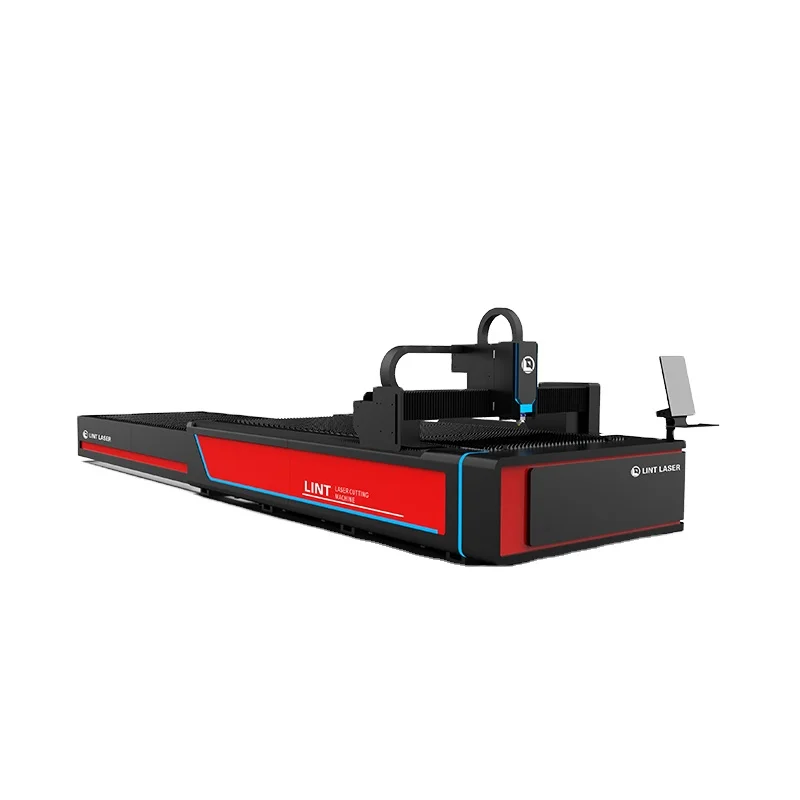

High accuracy 3000W 2000W 1000W Raycus Fiber Laser Cutting Machines FOR Cut Sheet Metal with rotary and exchange platform
- Category: >>>
- Supplier: Lintcnc Tech Co. Ltd.
Share on (1601271291119):
Product Overview
Description
Product Description
Specification
Model | LINT-3015FE Fiber laser cutting machine |
Effective working area | 3000*1500mm working area |
Laser source | 1000/1500/2000/3000W Raycus/ MAX fiber laser source |
Laser cutting head | Raytools or WSX laser head |
Bed structure | High rigidity welded steel framework |
Working Table | Blade table |
Guide rail | Taiwan Hiwin linear square guide rail 25mm |
Transmission | X,Y with helical gear rack ,Z with TBI ball screw |
Motor & driver | FUJI servo motor & driver, X,Y axis 750w, Z axis 400w |
Control system | FSCUT 1000S/2000C control system |
Software | CypOne laser cutting software with BMC 1603 control card |
Chiller | S&A, Dual Temperature Control or Hanli brand chiller |
Reducer | Japan imported SHIMPO reducer |
Lubrication system | Electric automatic lubrication system |
Pressure valves | High-pressure(N2,air):2.5MPa(Shuoda) |
Electronic Proportional Valve | SMC from Japan |
Electronic Components | SCHNERDER, Omron |
Max. idling speed | 80m/min |
Positioning Accuracy | ±0.03mm |
Re-Positioning Accuracy | ±0.02mm |
Instruction format | G code *.u00 *.mmg *.plt |
Working voltage | AC380V, 3 phase,50-60hz(for more than 1000w) AC220V, single phase, 50-60hz(for 1000w) |
Others | Tool box, English Manual, Exhaust fan, cutting nozzle, protection mirrors etc |

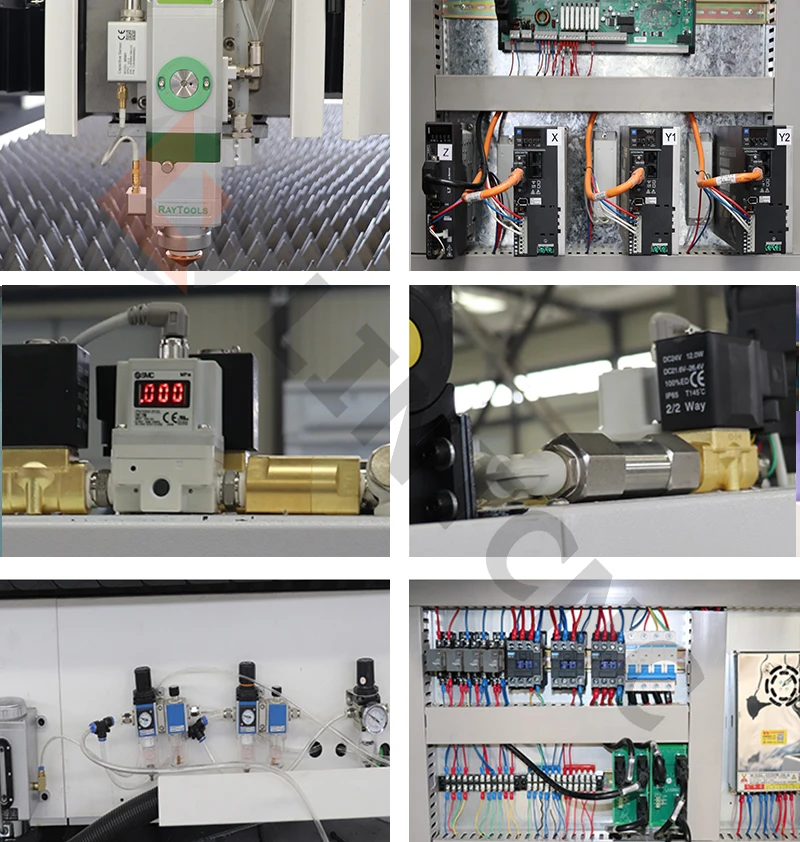

Machine details

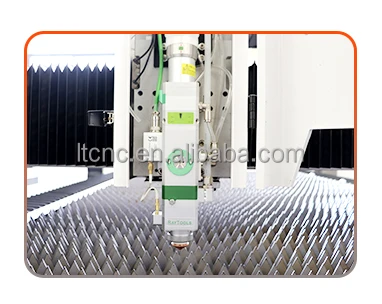

01 RAYTOOLS LASER HEAD
SWISS Brand cutting head with Auto focus system. Modularization, easy to maintain multi Protective lens, optical water cooling protection

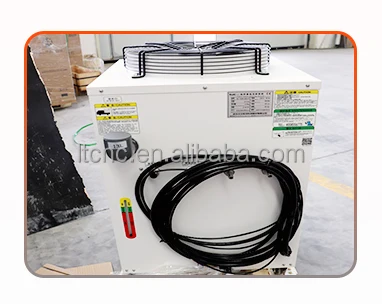

02.Water chiller
Dual temperature fiber chiller is used to cool both the fiber laser and the connector. User can manually set water temperature control working mode according to actual needs

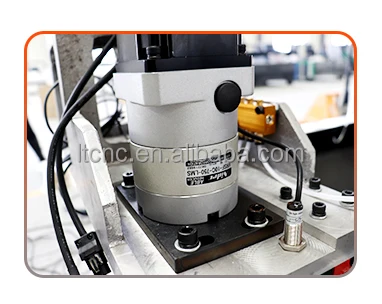

03.Reducer
Japan Brand high performance, wide application, high rigidity. High efficiency. Low noise and low backlash.

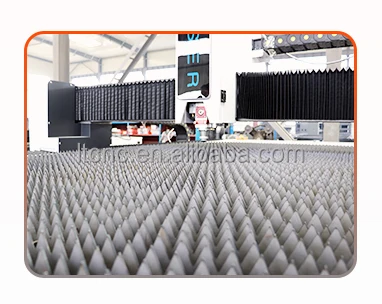

04.Sawtooth platform
Sawtooth platform use strength steel, it can keep longer service lifetime in fiber laser cutting progress with Taiwan Brand Hiwin guide rail, YYC gear pinion rack

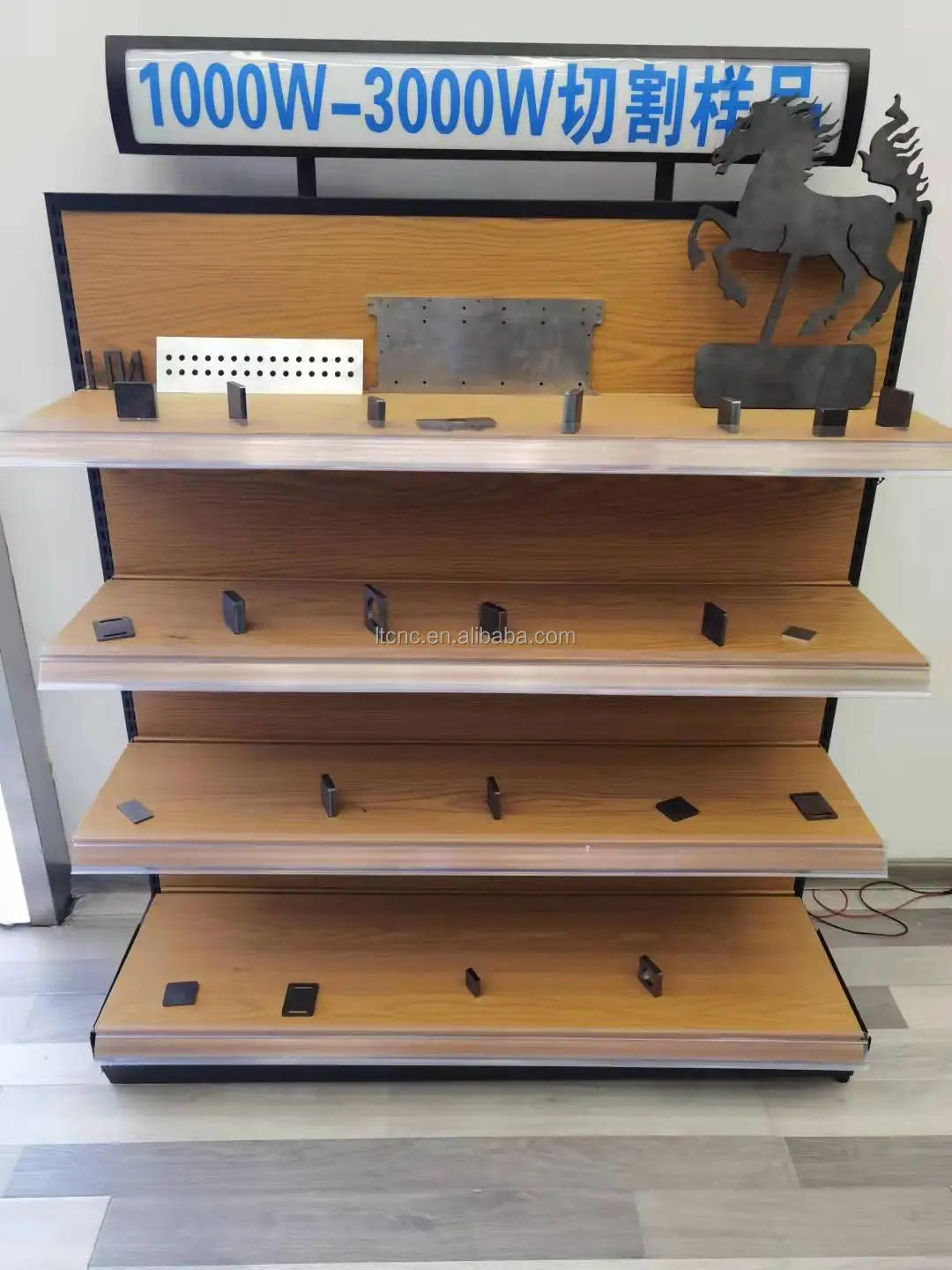

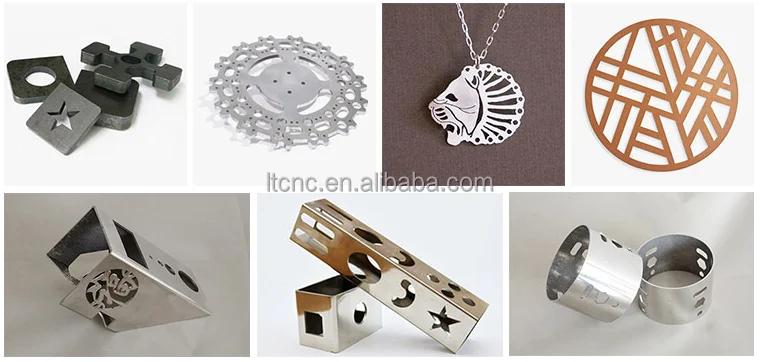

Application
Related Products
Packing & Delivery
Company Profile
Shandong Lintianzhiyuan CNC Equipment Co., Ltd. is famous in CNC and laser equipment, located in Jinan, Shandong. Our company integrates the R&D, production, sale and maintenance services. We depend on high-tech and high-quality products to build the world brand.Our main products: large-scale (automatic tool change) CNC woodworking engraving machine, CNC advertising engraving machine, CNC marble engraving machine, CNC plasma cutting machine, CNC glass engraving machine, CNC jade engraving machine, CNC metal mold machine, laser cutting machine, laser cutting bed, laser seal engraving machine and computer cutting plotter product.
All our stone CNC router, wood CNC router, laser engraver, plasma cutting machine, cutting plotter, advertising CNC router has received certification by CE and ISO9001. On top of 10,000-square-meter land consisting of modern plant, garden-style factory, the company owns more than 100 manufacturing workers and technicians, sales outlets cross-20 provinces and municipalities, and a host of existing agencies over16 countries and regions, with the products exported to 70 countries and regions like the United States, Germany, Britain, Canada, Australia, Russia, Southeast Asia, and etc.
All our stone CNC router, wood CNC router, laser engraver, plasma cutting machine, cutting plotter, advertising CNC router has received certification by CE and ISO9001. On top of 10,000-square-meter land consisting of modern plant, garden-style factory, the company owns more than 100 manufacturing workers and technicians, sales outlets cross-20 provinces and municipalities, and a host of existing agencies over16 countries and regions, with the products exported to 70 countries and regions like the United States, Germany, Britain, Canada, Australia, Russia, Southeast Asia, and etc.
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send
our engineer to your site for training or you can send the operator to our factory for training.
Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach
40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.
Q4: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the
parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts,
just let us know, we will give you solutions.
Q5: About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the
accuracy of the machine can keep its original accuracy for 4-5 years. The weight of the machine can reach 4.5t-5.0t. It also can
let the machine have higher accuracy and higher stability.
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send
our engineer to your site for training or you can send the operator to our factory for training.
Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach
40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.
Q4: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the
parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts,
just let us know, we will give you solutions.
Q5: About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the
accuracy of the machine can keep its original accuracy for 4-5 years. The weight of the machine can reach 4.5t-5.0t. It also can
let the machine have higher accuracy and higher stability.
