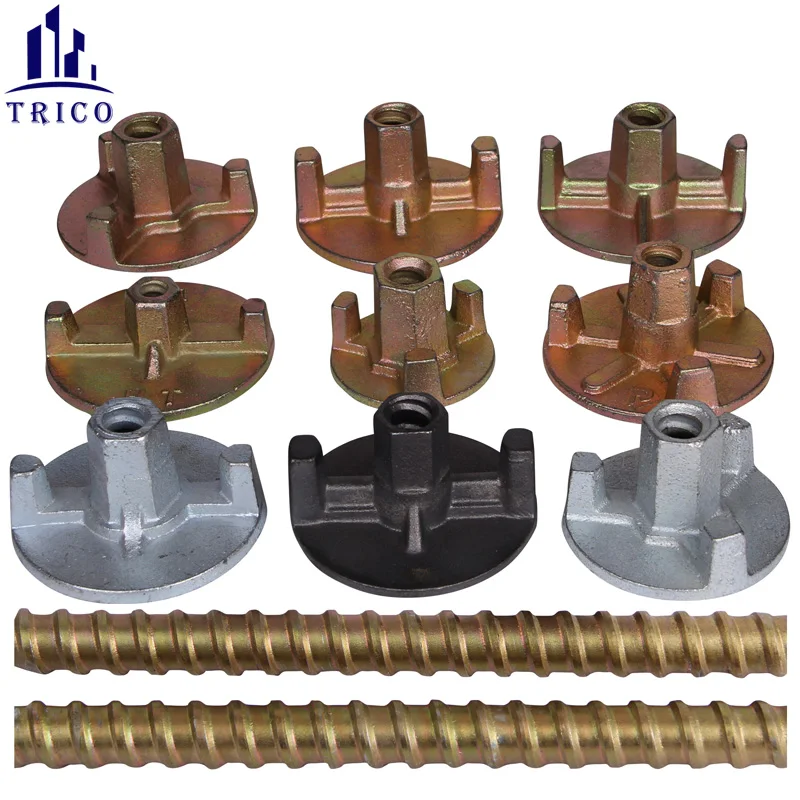

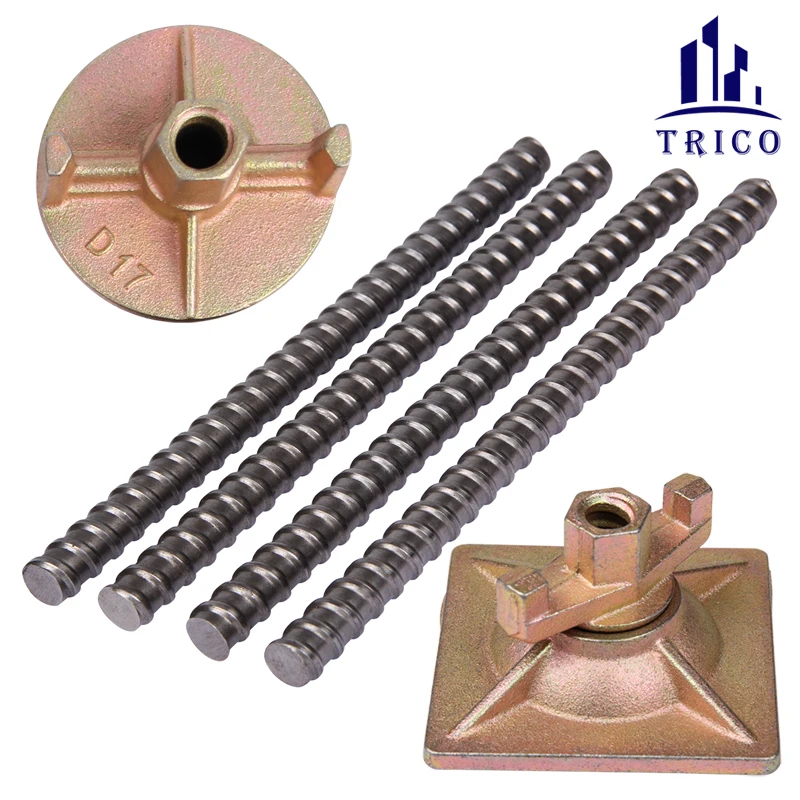

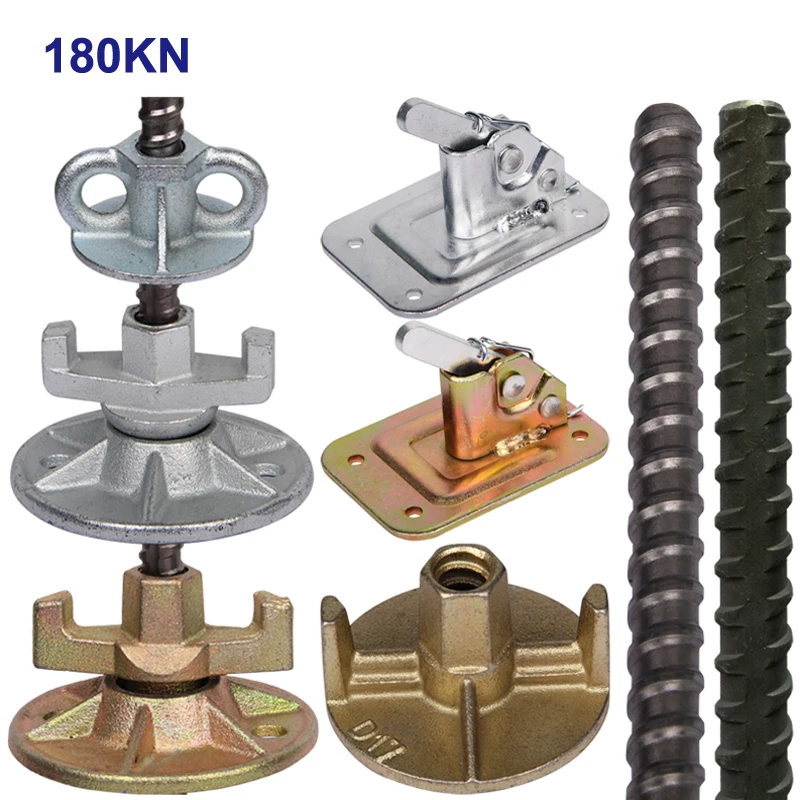

D12mm D15mm #45 Steel Tie Rod for Construction Concrete Formwork System

Share on (1601271340322):


Price:

Quantity:


Product Overview

Description



Product Introduction

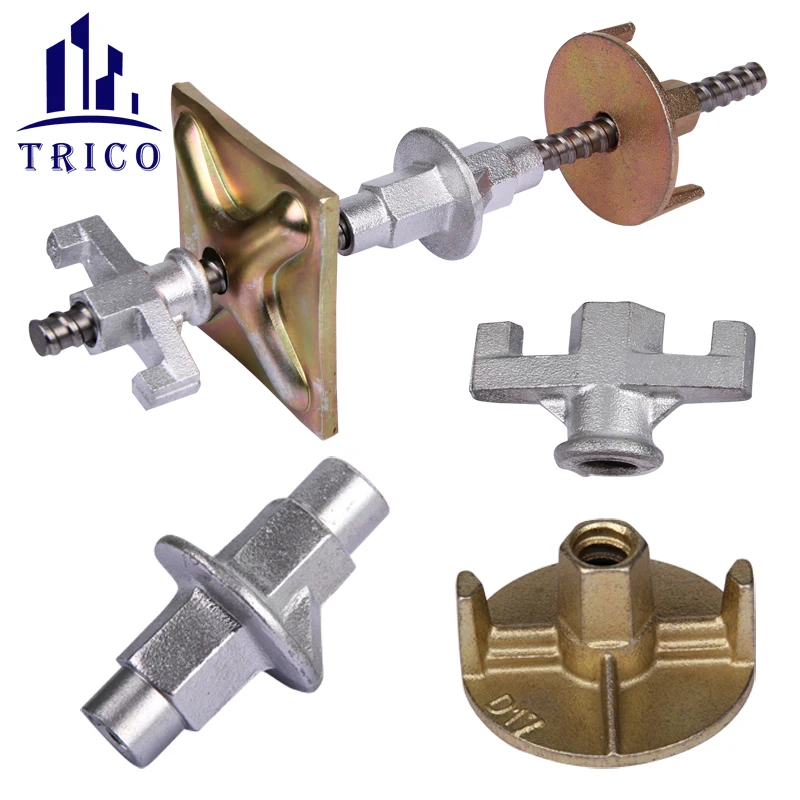

 Concrete Formwork Tie Rod System is used with various formwork accessories in concrete construction. This system includes Steel Tie Rod, Formwork Wing NutsConcrete Anchor NutsHex Nuts, Connection Nuts, Washer Plates, Formwork Wedge Clamps, Formwork Spring Clamps, Water Stopper/Water Barrier Nut, Combi Plate Nut, Plastic Cones, Plastic Tubes, etc.



Specification
























































































































































Formwork Steel Tie Rod/Tie Bar/Threaded Bar
PictureDiameterLengthMaterialBreaking LoadPackaging
tie-nut (1).jpgD12*4.23mm

1m


3m


5.8m


Others Support


Q23530KN

Bundle


Others Support

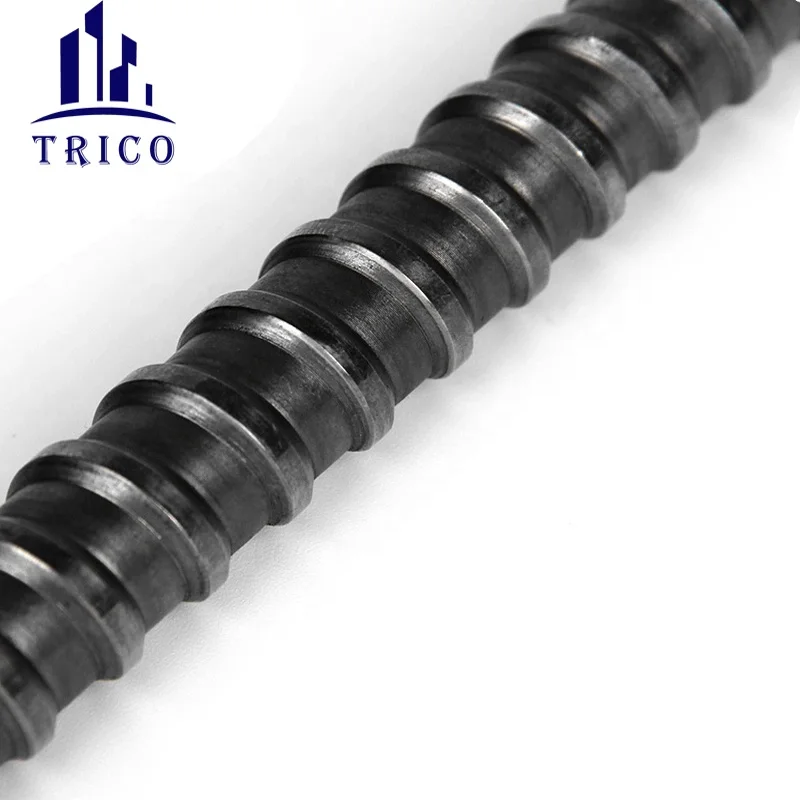

tie rod 2.jpg

D17*6.35mm


D17*10mm


D20*10mm



1m


3m


5.8m


Others Support


Q235 110KN

Bundle


Others Support


Steel #45 140KN

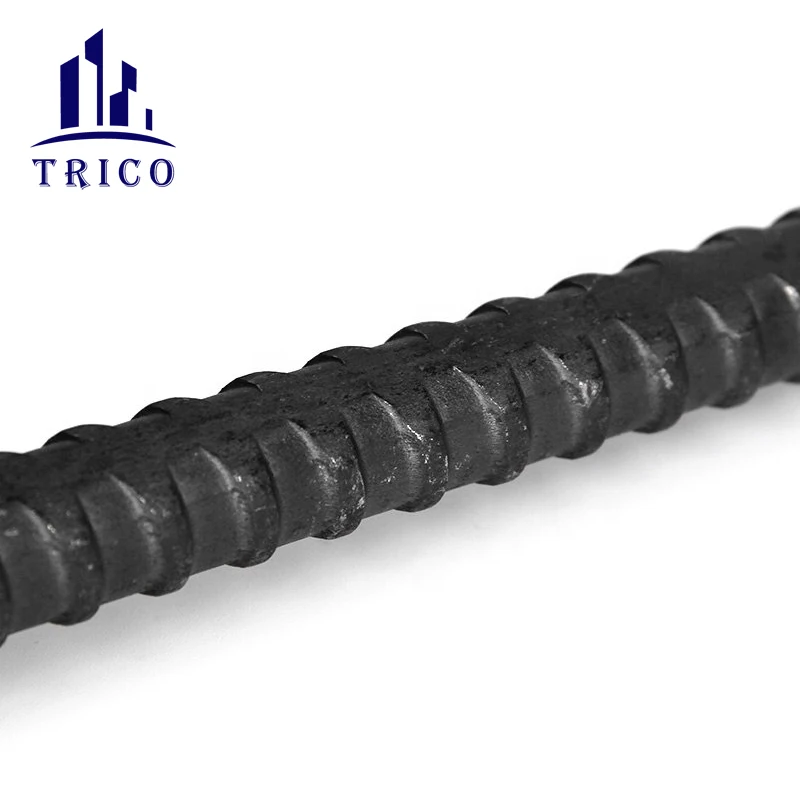

Tie rod (3) D17*10mm

1m


3m


5.8m


Others Support


 PSB830

 180KN


195KN



Bundle


Others Support


Surface Treatment

   Black or Galvanized Support



Formwork Tie Nut/Wing Nut/Anchor Nut


 PictureSize Weight Material Breaking Load Packaging

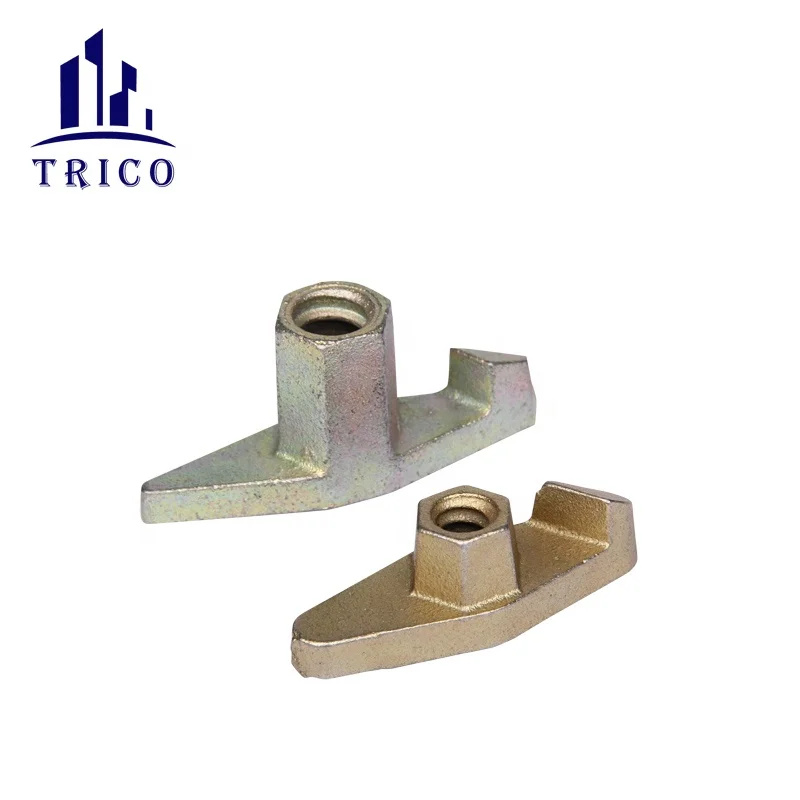

wing nut (1).jpg  D12*4.23mm

0.18kg


0.2kg


Ductile Iron 30KN

Bag


Carton


Wooden Box

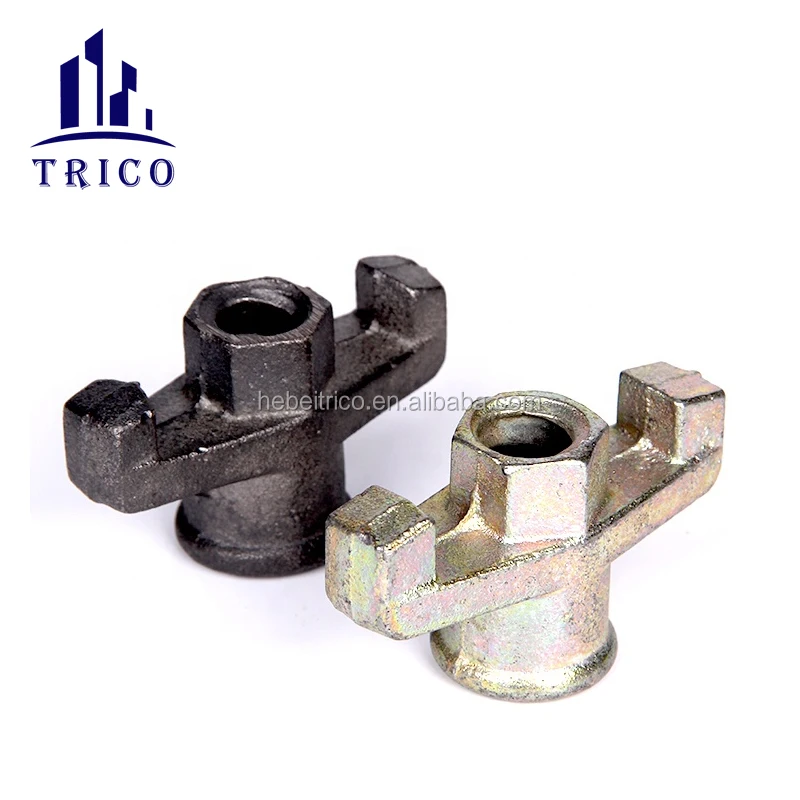

17mm wing nut D12*4.23mm 0.125kg Ductile Iron 30KN

 Bag


Carton


Wooden Box


D17*10mm

0.3kg


0.35kg


Ductile Iron180KN
D20*10mm0.62kgDuctile iron180KN

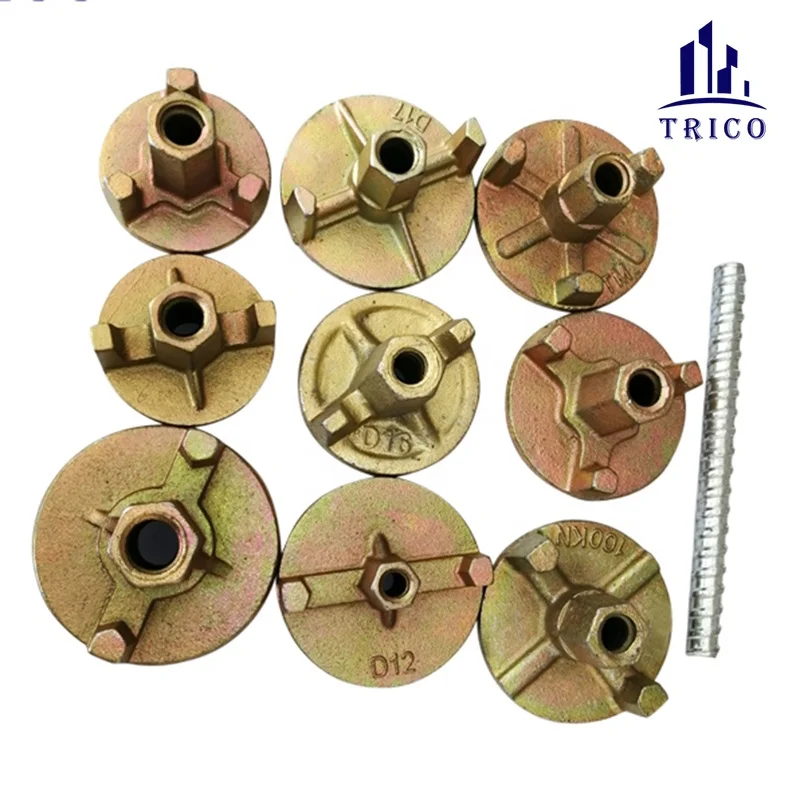

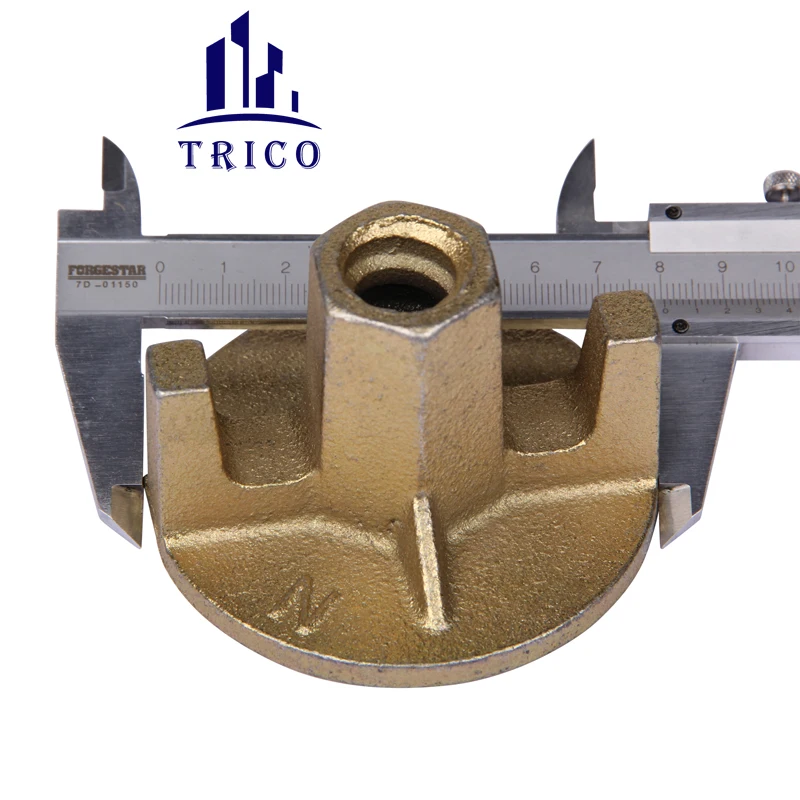

hebei-trico-tie nut .jpgD12*4.23mm0.44kgDuctile Iron30KN

Bag


Carton


Wooden Box


D17*10mm

0.35kg


0.50kg


0.53kg


0.60kg


180KN
D20*10mm

0.8kg


1.2kg

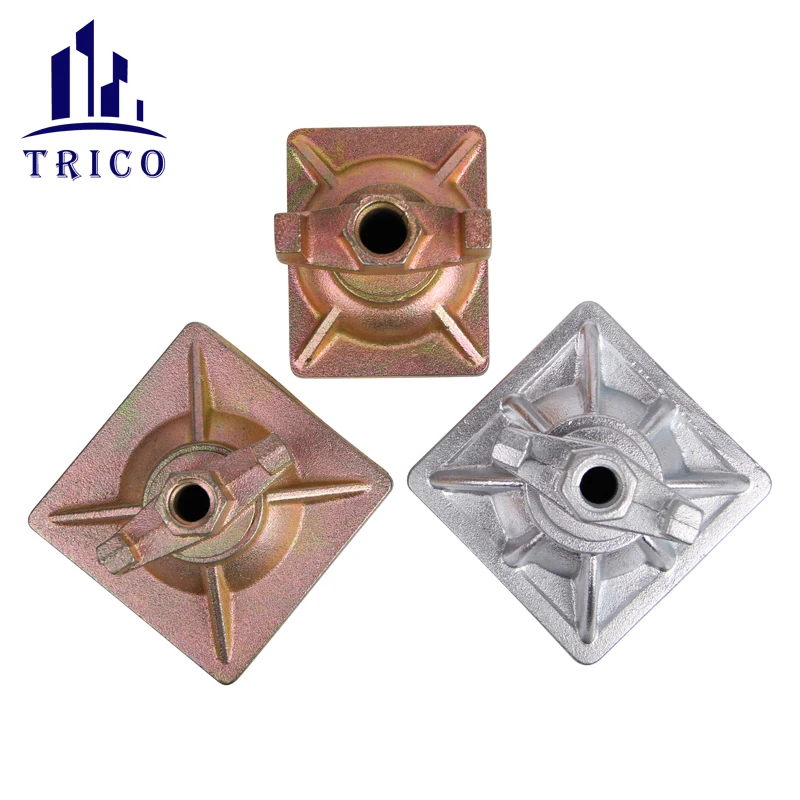

IMG_3656.jpgD17*10mm

1.1kg


1.3kg


Ductile IronOver 180KN

Bag


Carton


Wooden Box

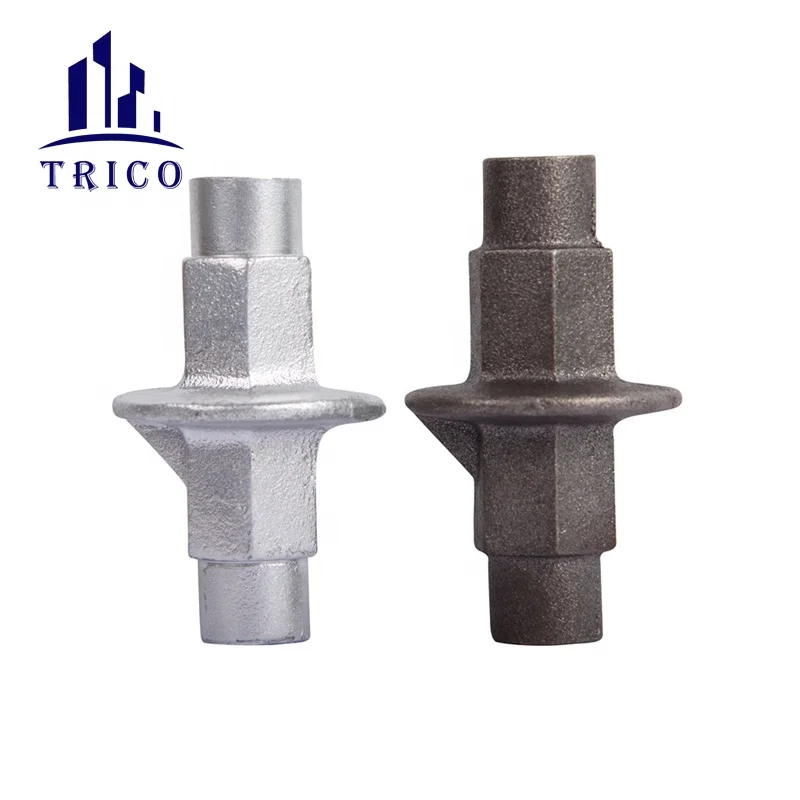

Water Stopper / Water Barrier Nut
water stops both.jpgD17*10mm

0.44kg


0.5kg


Ductile Iron180KN

Bag


Carton


Wooden Box


D20*10mm

0.9kg


1.2kg


Hex Nut / Hex Coupler/Connection Nut

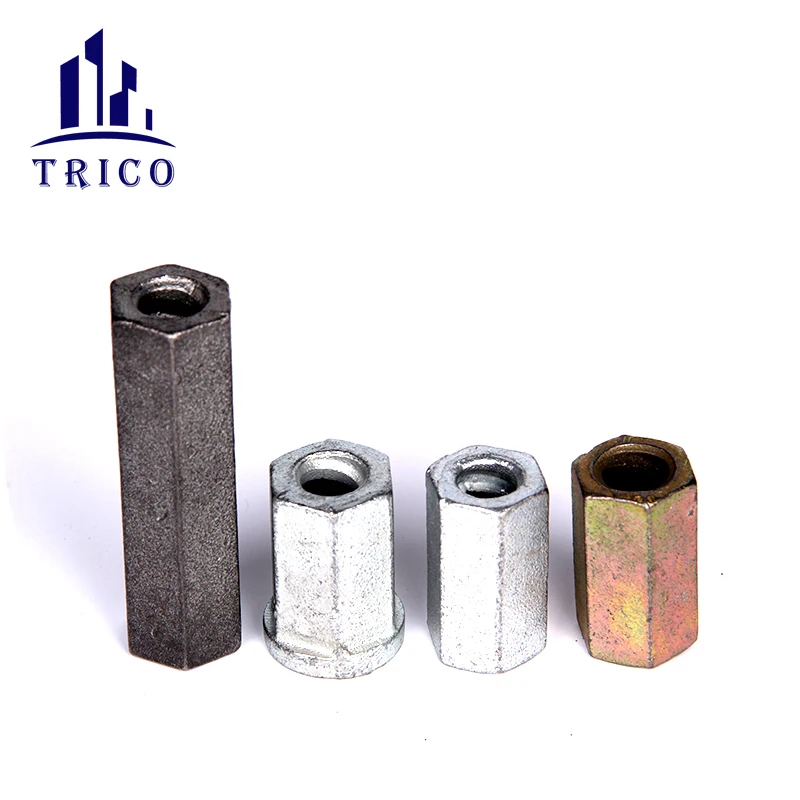

hex nut (3)D17*10mm

L50--0.18kg


L100--0.38kg


L105--0.43kg


Ductile Iron 180KN

Bag


Carton


Wooden Box

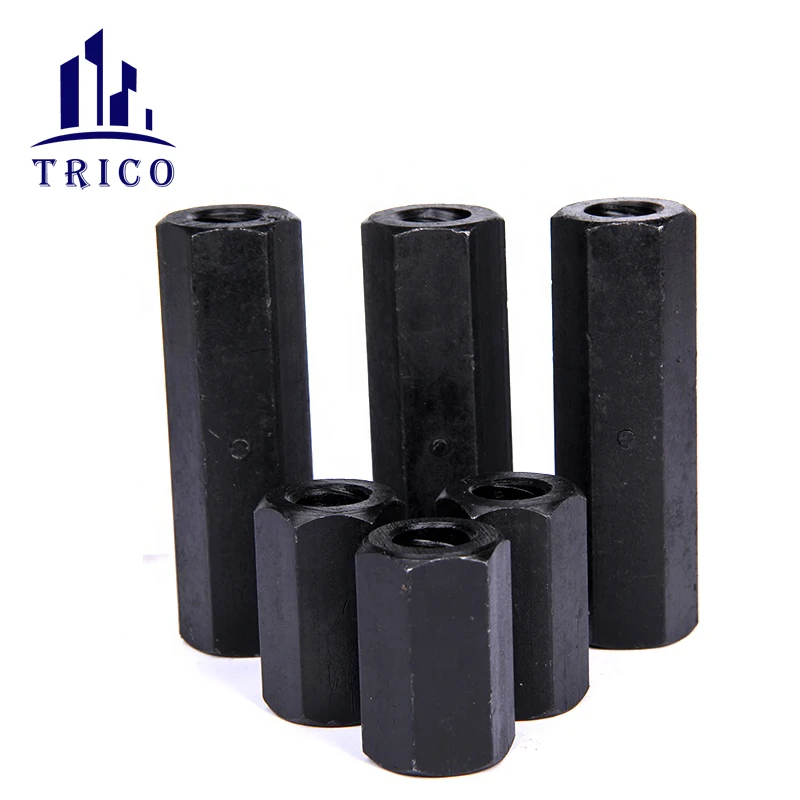

hex nut (4)

D17*10mm


D20*10mm



30mm


50mm


100mm


105mm


110mm


Carbon Steel 180KN

Bag


Carton


Wooden Box


Steel Cone, Washer Plate and Related Accessories Supplying








Product Showcase


Cold Rolled Tie Rod/Tie Bar D15

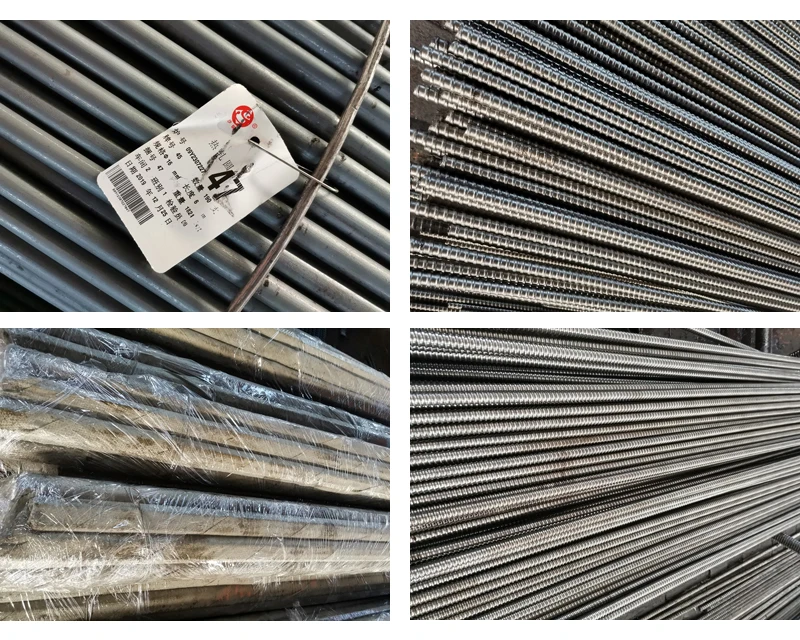

Tie Rod

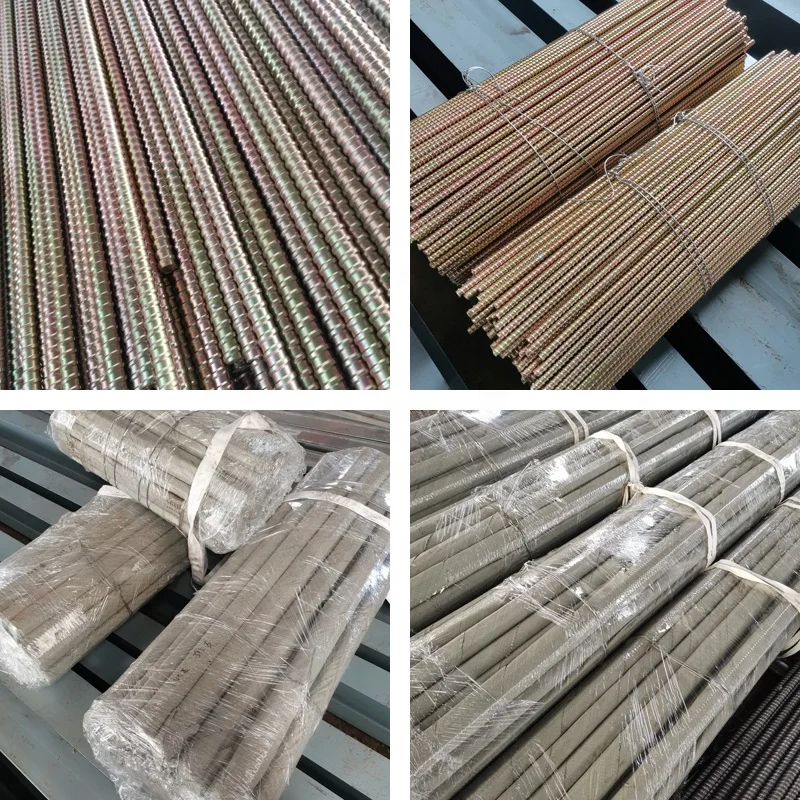

Tie rod in gal


Hot Rolled Tie Rod D15

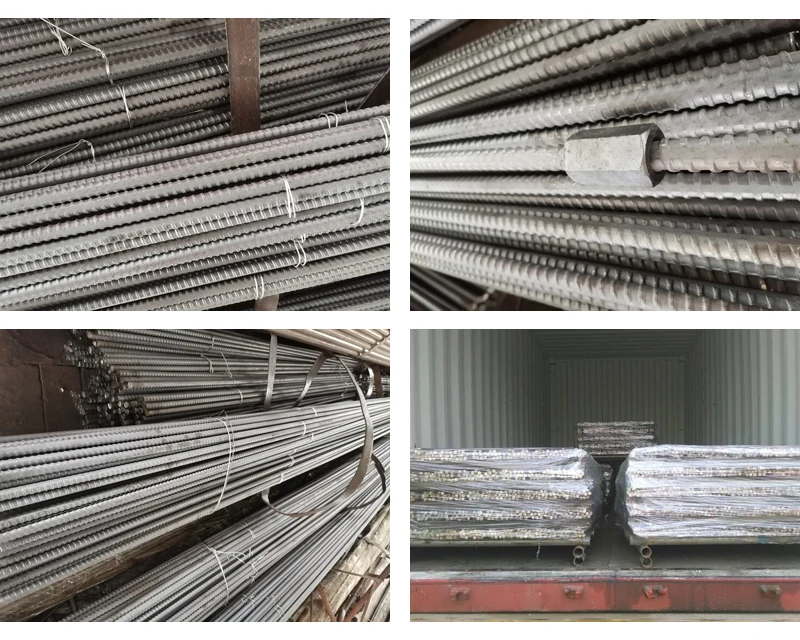

hot rolled tie rods


Formwork Wing Nuts

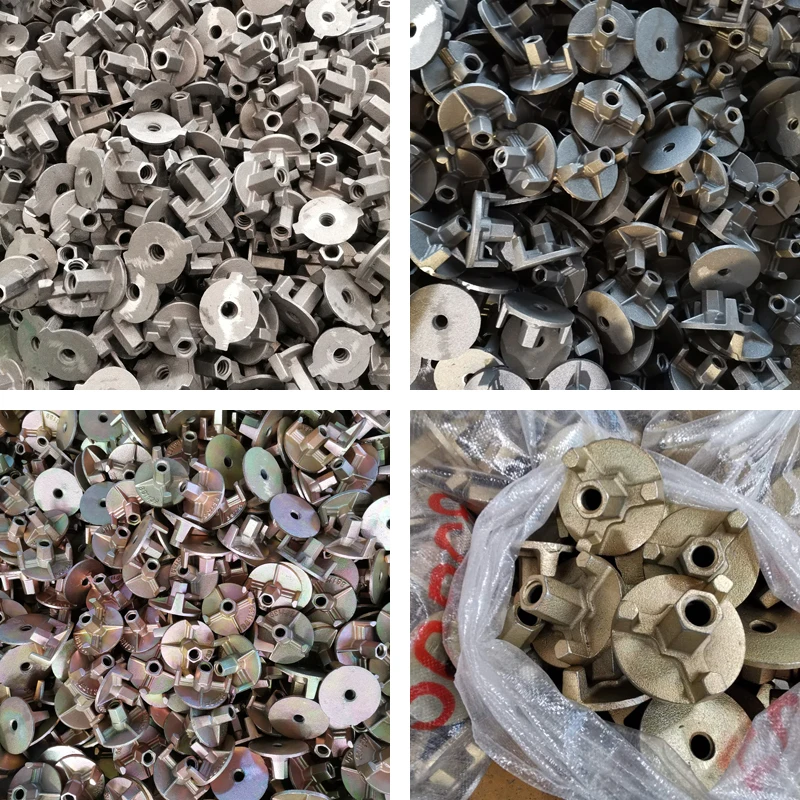

Tie Nuts.jpg


A lot of Formwork Wing Nut and Tie Nut Available

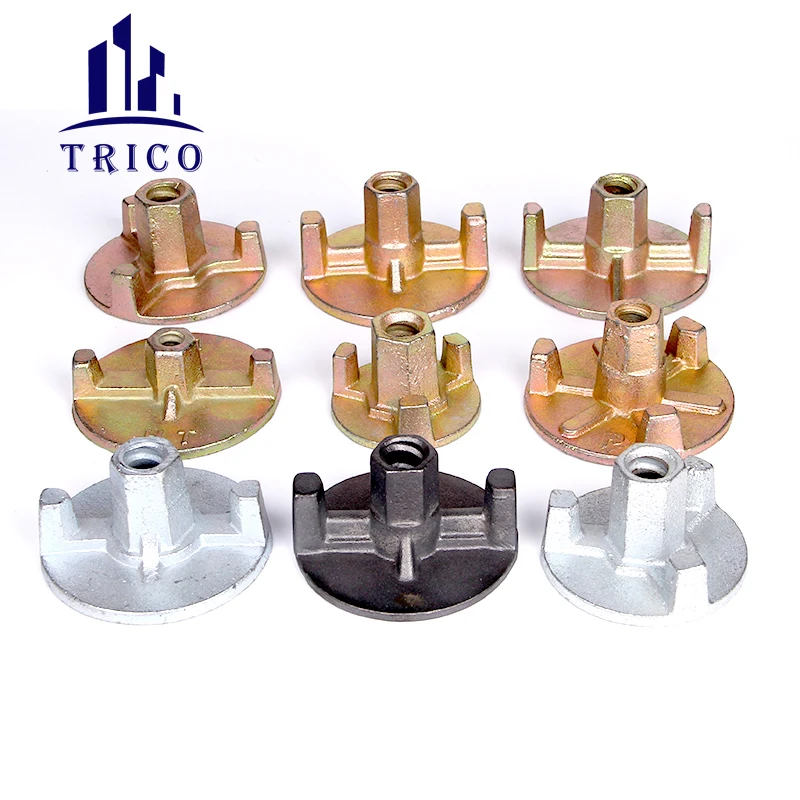

Various Tie Nuts.jpg

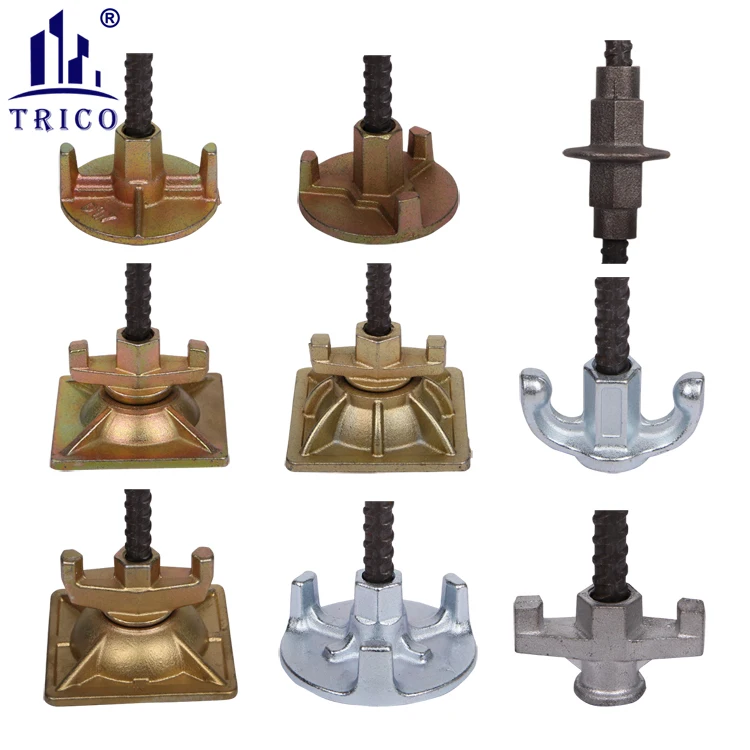

Tie nuts





Packaging & Shipping

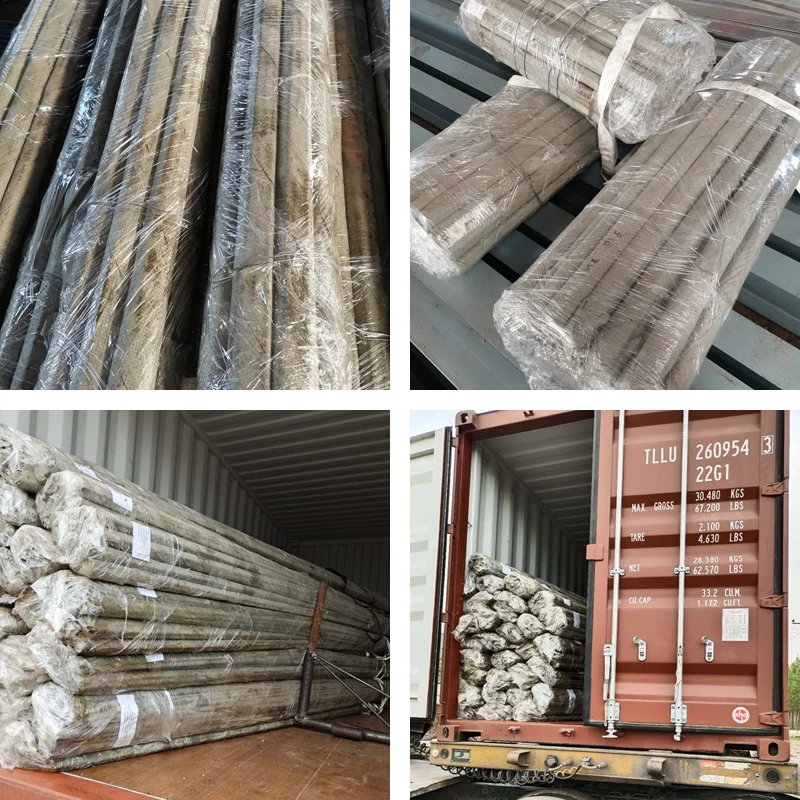

Tie rod packing.jpg










More Products


Hollow Plastic Building Formwork Board is a kind of energy-saving and green environmental protection product, pp plastic combined with macromolecule nano-technology. It can replace the wood plywood totally, good performance than WPC formwrok and PVC formwork. It can reuse over 60 times. New Design Round Hole makes Plastic Formwork stronger now.


.jpg


Formwork Clamp is a high-strength concrete forming system designed for fast-paced gangform operations. It has the strength required for the large contact areas and fast pour rates common in large gangform applications.


We have carbon steel spring clamp and spring clamp tensioner, ductile cast iron wedge clamp and weged clamp tensioner. Formwork Clamps fit for 6-10mm or 8-12mm steel rebar.


.jpg





Why Choose Us


Free sample---Good free samples are available here.


Competitive price---Direct supplier makes the price very competitive.


Stable quality---Nearly 20 years supplying experience base on our Produce Ability--Autonomous producing, processing with customer's sample or design and Operation Principle -- sincerity, coordination and value promotion.


Prompt delivery--- High technology and experienced workers, guaranteeing the fast production, so the delivery is also prompt.


Great after-sale service---No worries about all after-sale problems because we will find the best way to solve it.


Good reputation--- Keep steady and long-term cooperation with customers in Europe, Australia, Middle East, SEA and etc.


Welcome your inquiry !





Company Information


TRICO was founded in 2002. As an expert in the field of formwork and scaffolding, TRICO is committed to providing better products and services to customers in the global construction industry.


TRICO has a wide range of product lines, including the production and supply of full system of building formwork, scaffolding and related components, and has realized the "1+N" one-stop service mode. The products sell well in more than 90 countries and regions, winning the recognition and trust of business partners around the world.


TRICO's R&D team is experimenting and optimizing products every day. The endless improvement and perfection is the gene of TRICO culture. TRICO's mission is to promote the quality improvement, cost reduction and environmental protection and efficiency enhancement of global buildings.


Let's work together to make it easier to build houses anywhere in the world!














Contact information


Hebei Trico Trade Co., Ltd


Address: Room 1005, No.368 North Youyi Street, Shijiazhuang, Hebei, China


Attn: Vivian Duan


Tel: 86-311-85029502


Fax: 86-311-85029500


Mp: +86 18033811162(WhatsApp)
