Other Beverage Wine Machines Copper Distillation Machine
$31,000.00-35,000.00
500 liter alcohol distill machine distillation equipment
- Category: >>>
- Supplier: Yantai Di Bo Shi Brewing Machine Co. Ltd.
Share on (1601271352200):
Product Overview
Description
Products Description

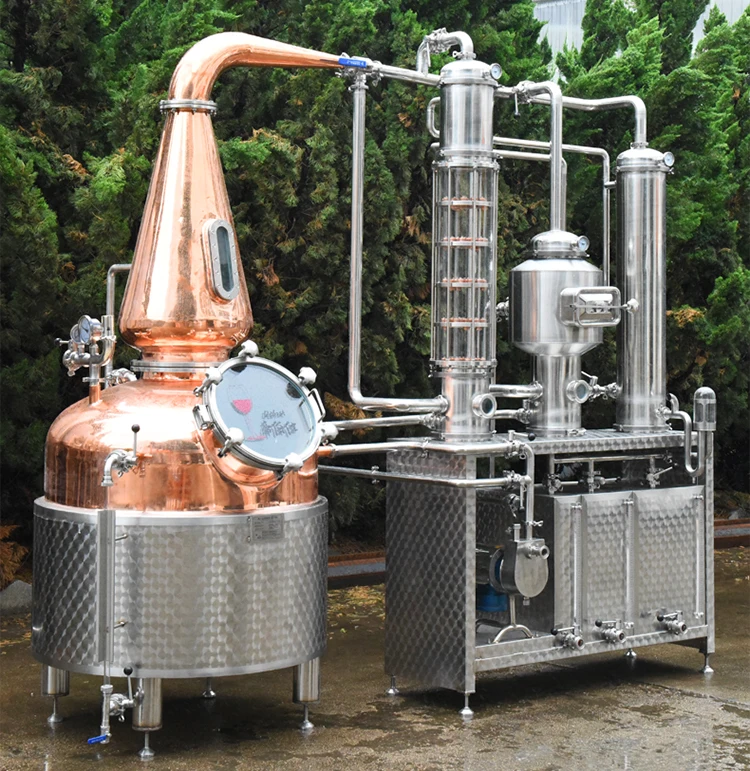

500 liter alcohol distill machine distillation equipment

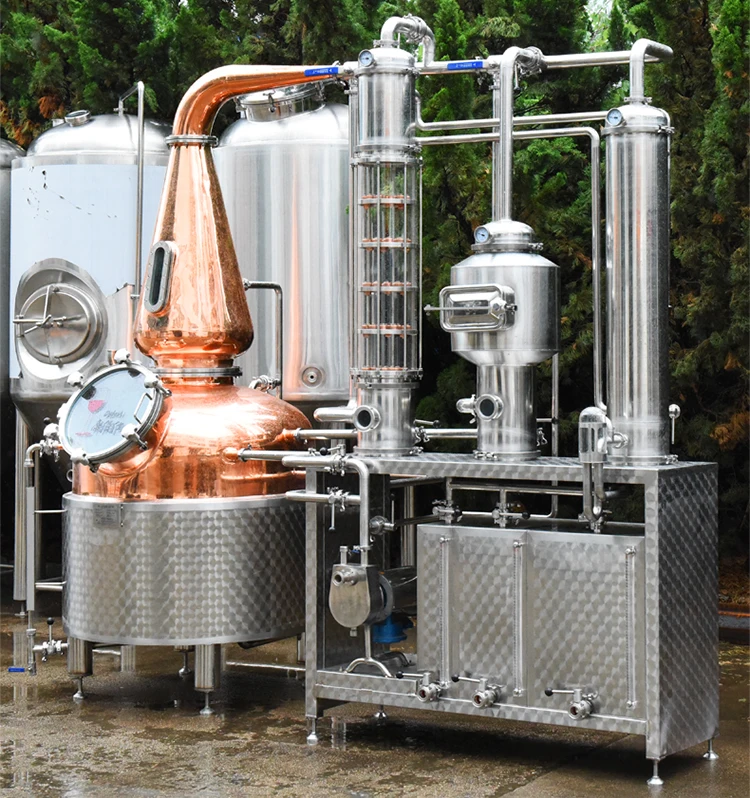

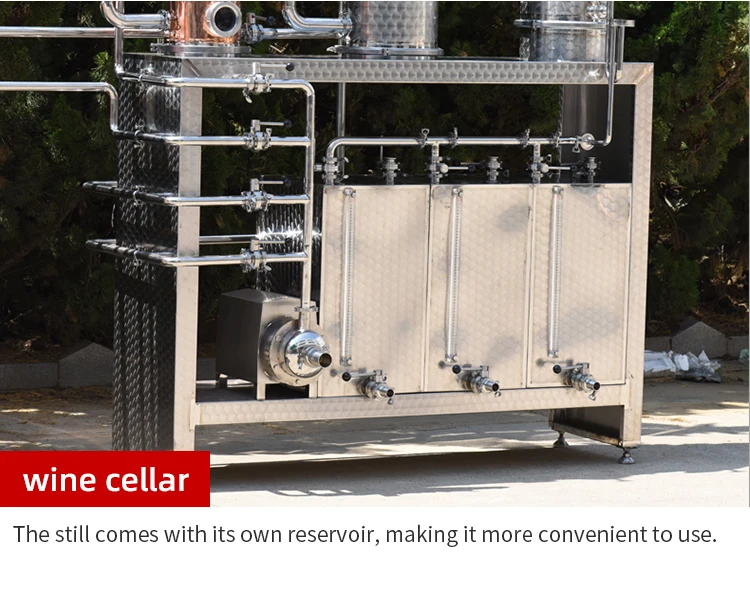

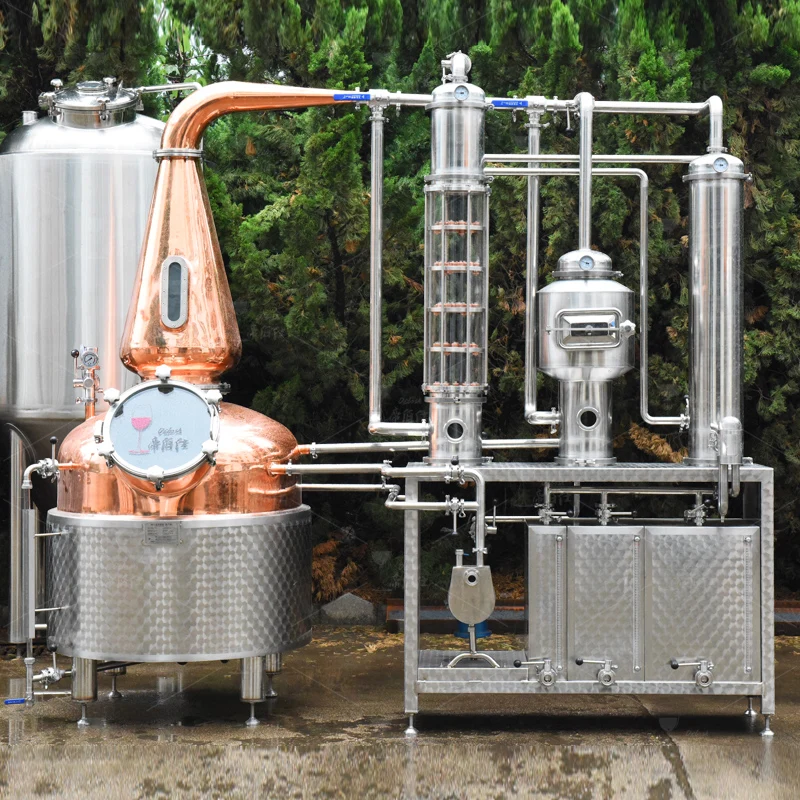

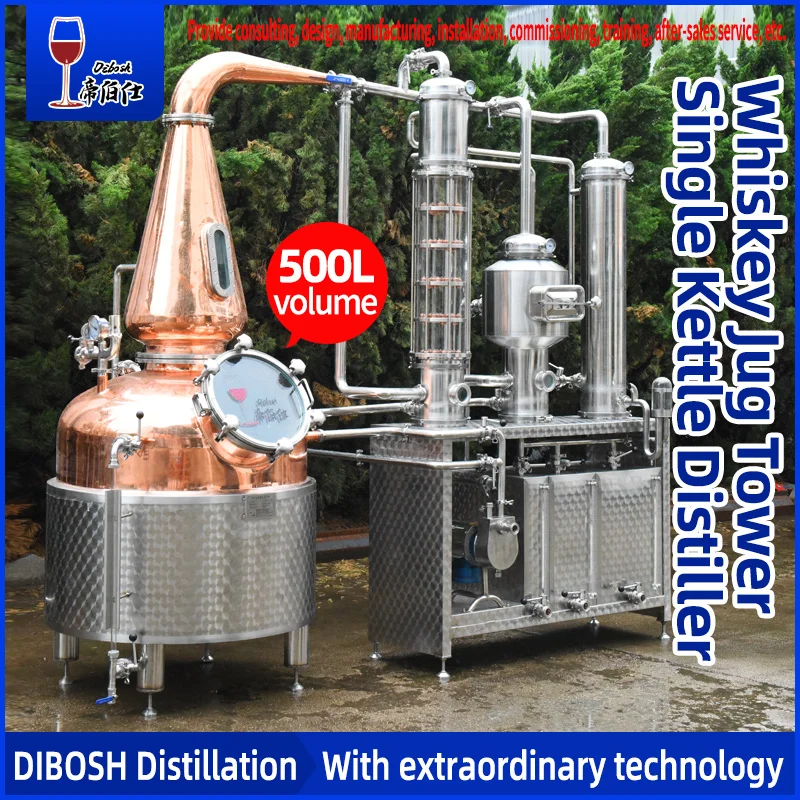

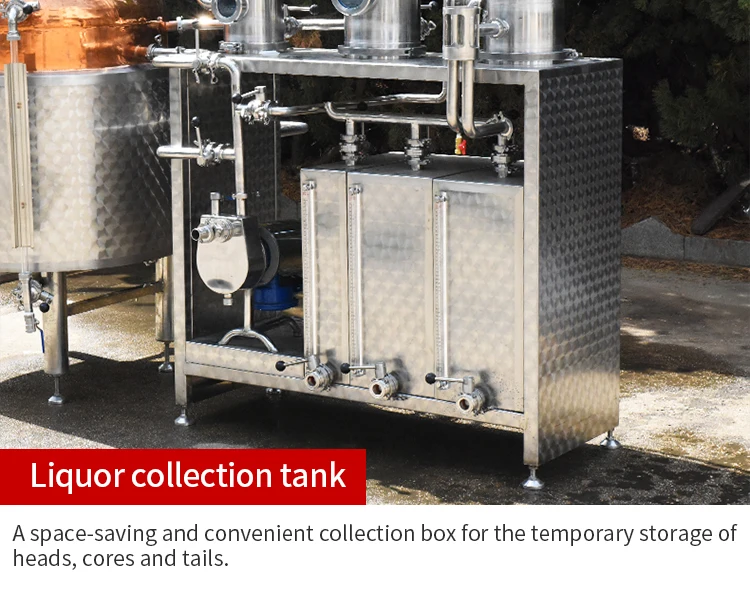

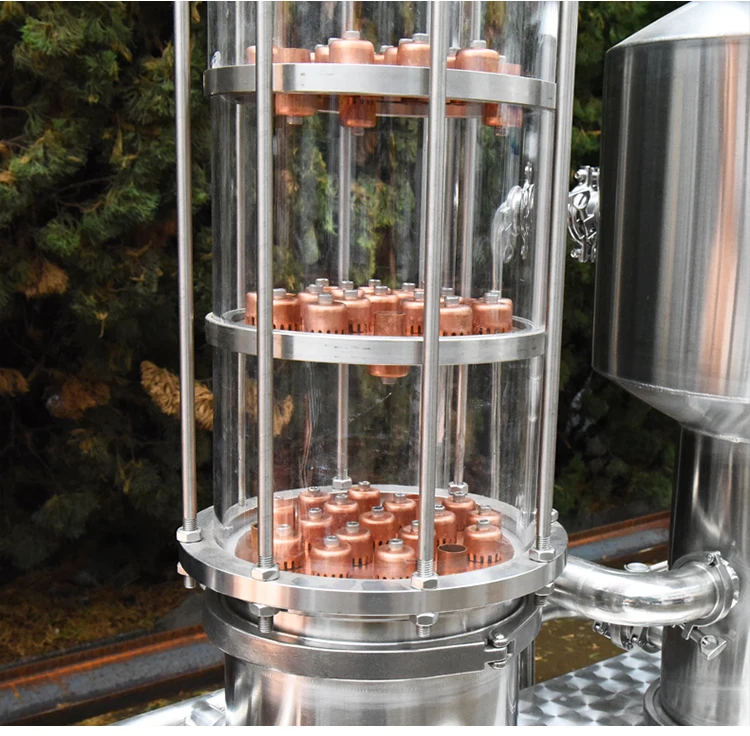

This equipment consists of a heating kettle, a distillation tower, a cascade tower, a cooling tower and a tank to receive the
spirit below.
The heating kettle has a usable volume of 500 liters and consists of two floors, the interior is made of copper and the exterior is insulated with stainless steel.
There is a slag outlet at the bottom. This still distills both solid and liquid materials.

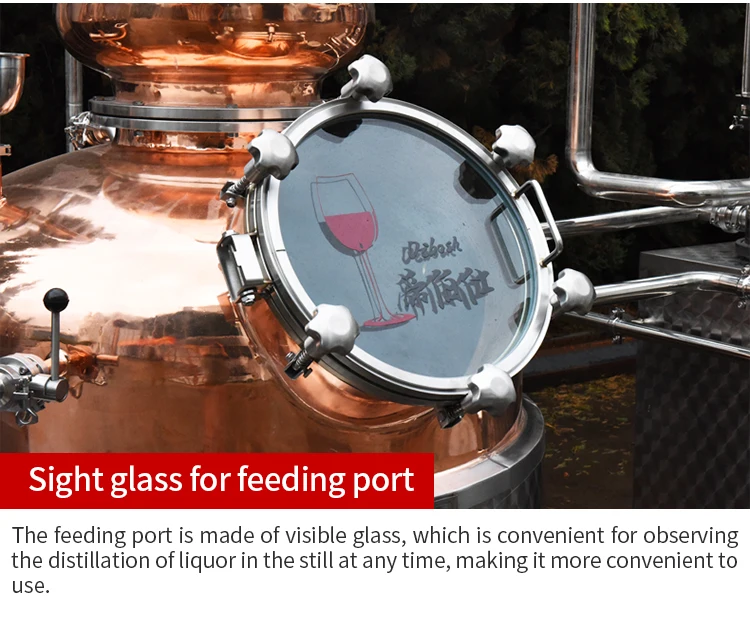

The equipment contains a sight glass port, a small sight glass port can see the amount of alcohol in the heating kettle, the large sight glass can see the heating kettle internal heating.
This equipment consists of a heating kettle, a distillation tower, a cascade tower, a cooling tower and a tank to receive the
spirit below.
The heating kettle has a usable volume of 500 liters and consists of two floors, the interior is made of copper and the exterior is insulated with stainless steel.
There is a slag outlet at the bottom. This still distills both solid and liquid materials.
The equipment contains a sight glass port, a small sight glass port can see the amount of alcohol in the heating kettle, the large sight glass can see the heating kettle internal heating.
Feature:
1.Use pure copper material in specific parts to make full use of its catalysis and purification characteristics of wine.
2.Pure copper catalyzes wine vapor to eliminate sulfide and synthesize aromatic molecules to make wine more mellow.
3.Food contact parts are made of food-grade 304 stainless steel, which meets the requirements of the world's highest food hygiene standards.
2.Pure copper catalyzes wine vapor to eliminate sulfide and synthesize aromatic molecules to make wine more mellow.
3.Food contact parts are made of food-grade 304 stainless steel, which meets the requirements of the world's highest food hygiene standards.
Specification
Item | Parameters |
Product name | 500 Liter Liquor Alcohol Spirits Distiller |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Condition | New |
Place of Origin | China |
Brand Name | Dibosh |
Model Number | WSK-500L |
Voltage | 220V, 380V (Customized per customer request) |
Weight | About 300KG |
Processing Types | Whiskey alcohol |
Warranty | 1 Year |
Product name | 500 Liter single pot whiskey distillery equipment |
Usage | Whisky mainly, also Brandy Rum |
Material | SUS304/red Copper |
Heating area | 1.2 ㎡ |
Cooling area | 1.2 ㎡ |
Output wine | 25-25 L/h |
Steam consumption | 45 kg/h |
Cooling water consumption | 0.4 t/h |
Machine Size | 3.0mx1.2mx2.5m |

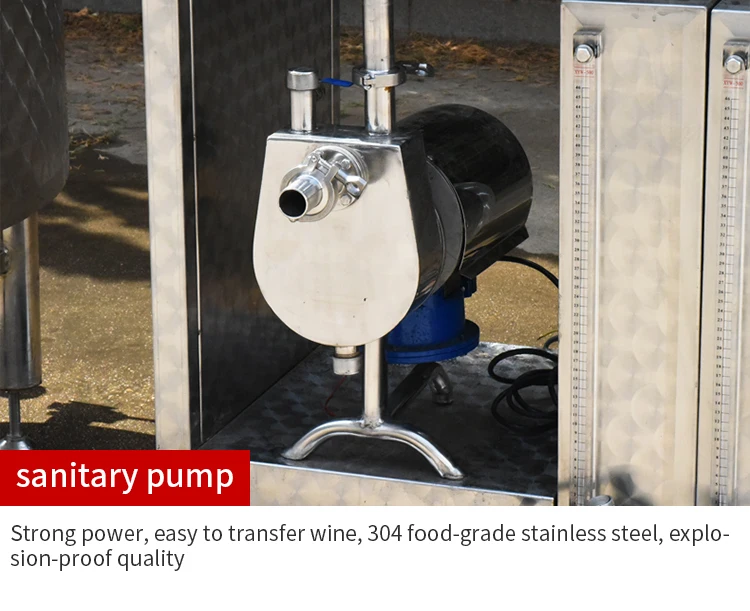

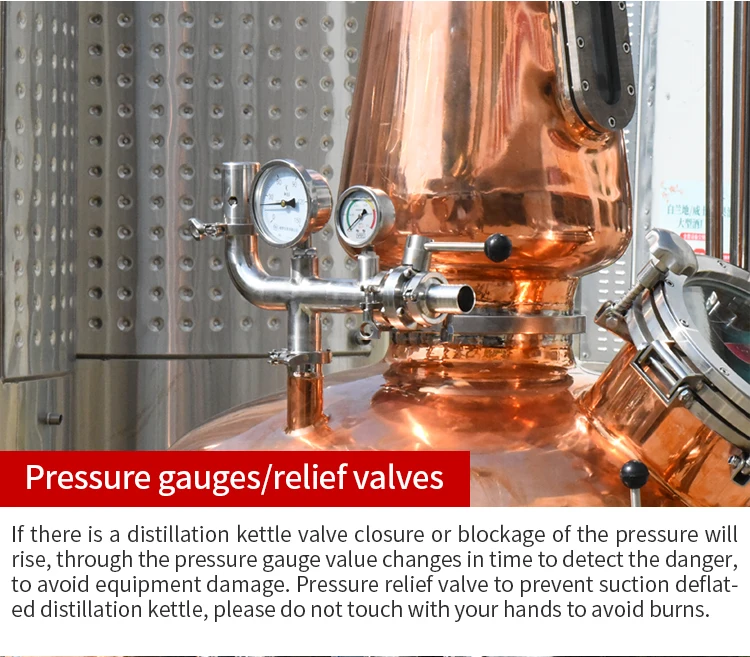

Details Images
