Canal-forming Machine canal Lining Machine with U-shaped Groove
$6,099.00-6,699.00
High Efficiency Three Track Slipform Paver New Intelligent ConcreteSlipform Paver
- Category: >>>
- Supplier: Jiangsu Siming Engineering Machinery Co. Ltd.Jiangsu Ltd.
Share on (1601271398002):
Product Overview
Description
Application conditions:
SMC-5500 product presentation;
Application conditions:
1. Highway and municipal road construction fields: curb, central isolation belt, anti-cillision wall, slope protection, drainage
ditch, cement pavement, etc.
2. Railway construction fields: retaining wall, drainage ditch, etc.
3. Agriculture and water conservancy construction fields: anti-seepage channels, slope protection and pavement hardening, etc.
Application conditions:
1. Highway and municipal road construction fields: curb, central isolation belt, anti-cillision wall, slope protection, drainage
ditch, cement pavement, etc.
2. Railway construction fields: retaining wall, drainage ditch, etc.
3. Agriculture and water conservancy construction fields: anti-seepage channels, slope protection and pavement hardening, etc.
Paving width | 0-2500 mm |
Paving height | 0-1800mm |
Flatness | ±3 mm/3m |
Paving Speed | 0-8m/min |
Driving speed | 0-33 m/min |
Vibrator brand | WYCO |
Vibrator interface | 8 |
Vibrator frequency | 0-167 Hz |
Frul tank | 230L(standard)+120L(optional) |
Water tank | 500L |
Engine | Shangchai SC4H160G4 |
Rate power | 118Kw/2200rpm |
Emission standard | Phase Ⅳ |

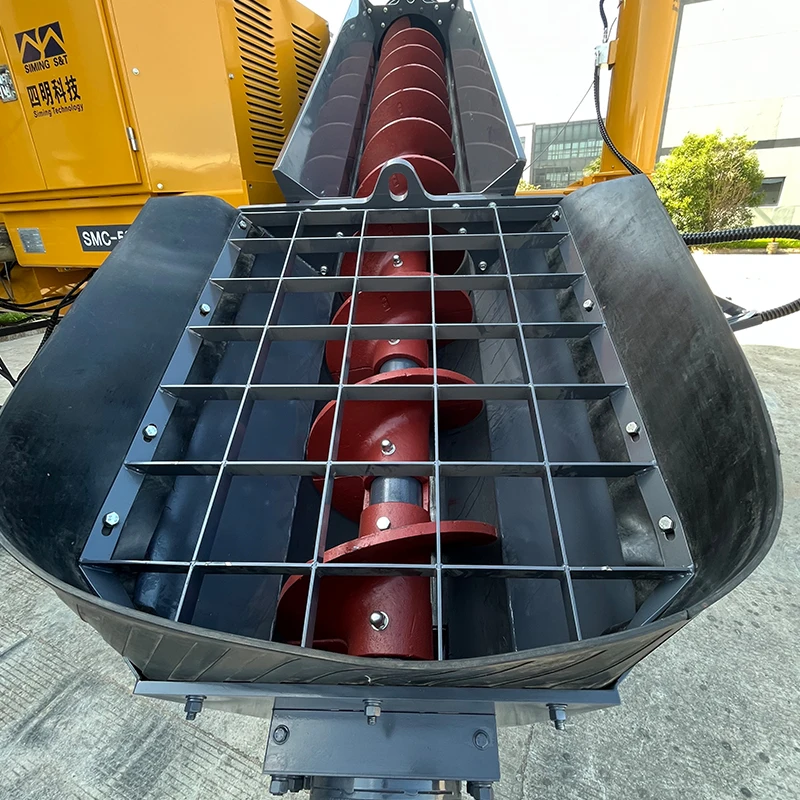

Feed system | Spiral/belt |
Weight | 15 t |
Transport size(L*W*H) | 7000*2250*2860 mm |
Functional features:
1. Wide operating vision, good operating experience
The components on the operating platform are integrated into the humanized design concept,the layout logic is clear,the operator
only needs a glance to determine the position of the functional devices,and the control response is rapid.
2. Efficient engine energy saving system
Eco energy saving mode automatically matches the optimal working state according to the working condition of the machine, saving
energy and reducing exhaust emissions.
3. High efficiency vibration compaction system
Using WYCo square shell vibrator,high compacting efficiency,stable and reliable performance.The load with high stable output flow
of Hedforth is equipped with compensation type manual speed regulating valve,and the frequency regulation of vibrator rod is
smooth,stable and reliable.Standard equipped with 8 vibration oil road, according to the need to expand 2 vibration oil road,to
meet the larger section of the structure of the paving requirements.
1. Wide operating vision, good operating experience
The components on the operating platform are integrated into the humanized design concept,the layout logic is clear,the operator
only needs a glance to determine the position of the functional devices,and the control response is rapid.
2. Efficient engine energy saving system
Eco energy saving mode automatically matches the optimal working state according to the working condition of the machine, saving
energy and reducing exhaust emissions.
3. High efficiency vibration compaction system
Using WYCo square shell vibrator,high compacting efficiency,stable and reliable performance.The load with high stable output flow
of Hedforth is equipped with compensation type manual speed regulating valve,and the frequency regulation of vibrator rod is
smooth,stable and reliable.Standard equipped with 8 vibration oil road, according to the need to expand 2 vibration oil road,to
meet the larger section of the structure of the paving requirements.
4. High quality servo valve control column lifting
Choose international brand servo valve to drive the column lifing,lifing cylinder quick response,smooth action, excellent flatness
control.
5. Flexible crawler post position
The crawler column is arranged in the first two and the second one. The two front crawler columns can be rotated with swing
arms,or can be mechanically widened to achieve bias, and the rear crawler columns can be freely biased, improving the flexibility
of the mold position.
6. Excellent performance steering modes
lt has a variety of steering modes,such as forward steering,crab steering,cooperative steering and spot steering, which improves
the maneuverability of the machine.
7. Track slewing device with large angle
The track steering is driven by the large-angle rotary device,and the steering Angle is up to ±130° The positioning before
construction is more efficient and the transition is more agile.
8. Low speed and smooth walking system
Adopt high speed ratio reducer and high quality international brand hydraulic motor,driving force is strong,low speed paving
walking smoothly,to meet the requirements of large section structure low speed paving.
9. Convenient transportation concept
The unit is compact and the roof can be electricaly folded for more economical truck transport.
lt has a variety of steering modes,such as forward steering,crab steering,cooperative steering and spot steering, which improves
the maneuverability of the machine.
7. Track slewing device with large angle
The track steering is driven by the large-angle rotary device,and the steering Angle is up to ±130° The positioning before
construction is more efficient and the transition is more agile.
8. Low speed and smooth walking system
Adopt high speed ratio reducer and high quality international brand hydraulic motor,driving force is strong,low speed paving
walking smoothly,to meet the requirements of large section structure low speed paving.
9. Convenient transportation concept
The unit is compact and the roof can be electricaly folded for more economical truck transport.
1.Q: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2.Q: What certificates are available in Machinery?
A: For the certificate, we have ISO certificate,
3.Q: What about the delivery time?
A: 7-30 days after receiving the deposit.
4.Q: What about the warranty time?
A:: 12 months after shipment .
5. Q: What about the Minimum Order Quantity?
A:: The MOQ is 1 pcs
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2.Q: What certificates are available in Machinery?
A: For the certificate, we have ISO certificate,
3.Q: What about the delivery time?
A: 7-30 days after receiving the deposit.
4.Q: What about the warranty time?
A:: 12 months after shipment .
5. Q: What about the Minimum Order Quantity?
A:: The MOQ is 1 pcs
