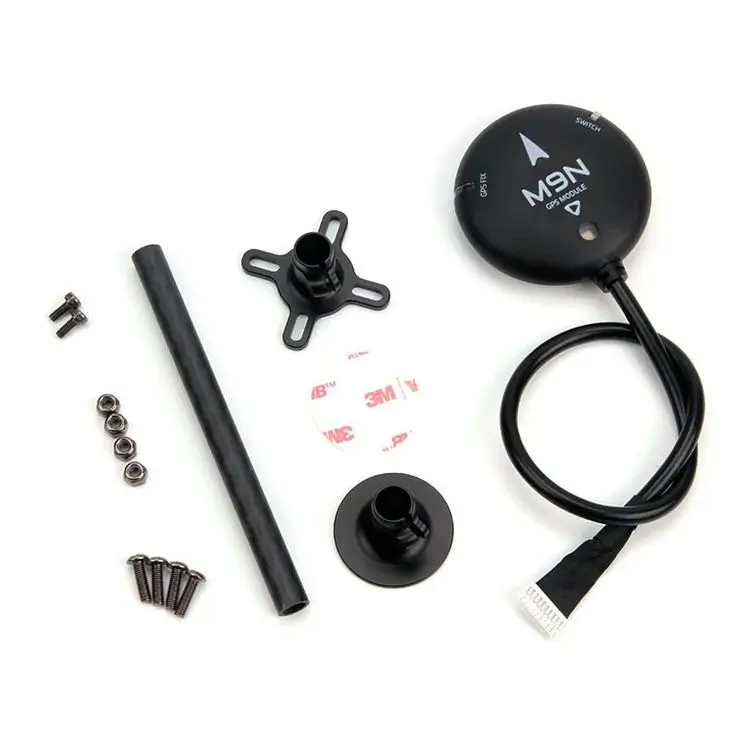

Fast Navigation Update Rate Ublox M9N GNSS Receiver Secondary Tri color LED Onboard Buzzer Holybro M9N GPS with IST8310 Compass
- Category: >>>
- Supplier: Shenzhen Limi Supply Chain Co. Ltd.
Share on (1601271429018):
Product Overview
Description
Overview
The M9N GPS uses multi-constellation GNSS powered by u-blox M9N, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.
It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 (38400 previously).
The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.
It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 (38400 previously).
The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.
Product Description
Specification
Features
* Ublox M9N GNSS Reciever
* Accurate Positioning
* Fast Navigation Update Rate
* IST8310 Compass
* High-gain 25*25*4mm antenna
* Internal Buzzer, Safety switch
* Ultra Bright UI RGB LED
* Accurate Positioning
* Fast Navigation Update Rate
* IST8310 Compass
* High-gain 25*25*4mm antenna
* Internal Buzzer, Safety switch
* Ultra Bright UI RGB LED
Holybro M10 GPS | Holybro M9N GPS | |
GNSS Receiver | Ublox M10 | Ublox M9N |
Up to 4 GNSS | Up to 4 GNSS | |
BeiDou | BeiDou | |
Galileo | Galileo | |
GLONASS | GLONASS | |
GPS | GPS | |
QZSS | QZSS | |
GPS L1 | GPS L1 | |
Galileo E1 | Galileo E1 | |
GLONASS L1 | GLONASS L1 | |
BeiDou B1 | BeiDou B1 | |
SBAS L1 | SBAS L1 | |
QZSS L1 | QZSS L1 | |
Compass | IST8310 | IST8310 |
Output Protocol | UBX (U-blox) | UBX (U-blox) |
NMEA | NMEA | |
Accuracy | 2.0m CEP | 1.5m CEP |
Nav. Update Rate | Up to 25 Hz (single GNSS), | Up to 25 Hz (4 concerrent GNSS) |
Up to 10 Hz (4 concurrent GNSS) | ||
GNSS Augmentation System | EGNOS, GAGAN, MSAS and WAAS | EGNOS, GAGAN, MSAS and WAAS |
QZSS: L1S | QZSS: L1S | |
Default Baud Rate | 115200 | 115200 |
Input Voltage | 4.7-5.2V | 4.7-5.2V |
Port Type | JST-GH-10P | JST-GH-10P |
Antenna | 25 x 25 x 4 mm ceramic patch antenna | 25 x 25 x 4 mm ceramic patch antenna |
Power consumption | Less than 200mA @ 5V | Less than 200mA @ 5V |
Operating Temperature | -40~80C | -40~80C |
Dimension | φ50 x14.4 mm | φ50 x14.4 mm |
Weight | 32g | 32g |
Cable Length | 26cm (42cm cable purchase separately) | 26cm (42cm cable purchase separately) |
Other | Tri-color LED | Tri-color LED |
Onboard Buzzer | Onboard Buzzer | |
Safety Switch | Safety Switch | |
LNA MAX2659ELT+ RF Amplifier | LNA MAX2659ELT+ RF Amplifier | |
Rechargeable Farah capacitance | Rechargeable Farah capacitance | |
Low noise 3.3V regulator | Low noise 3.3V regulator |
