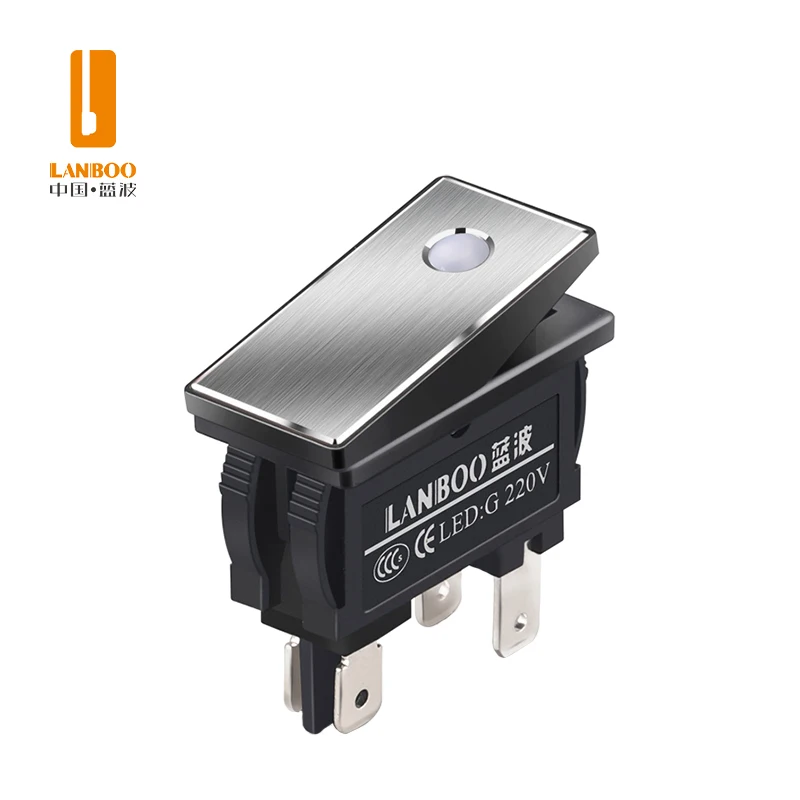

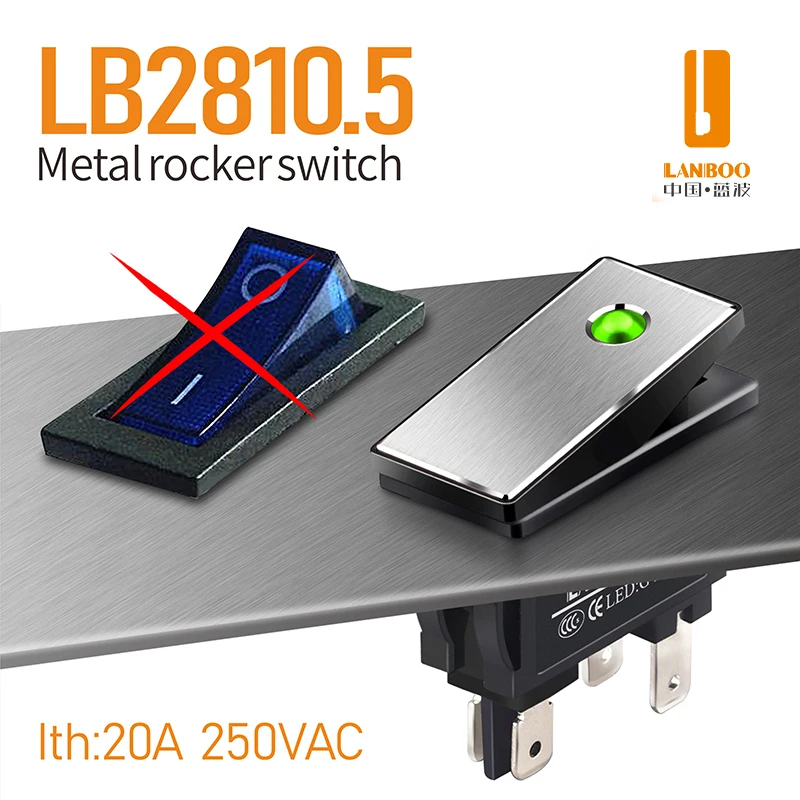

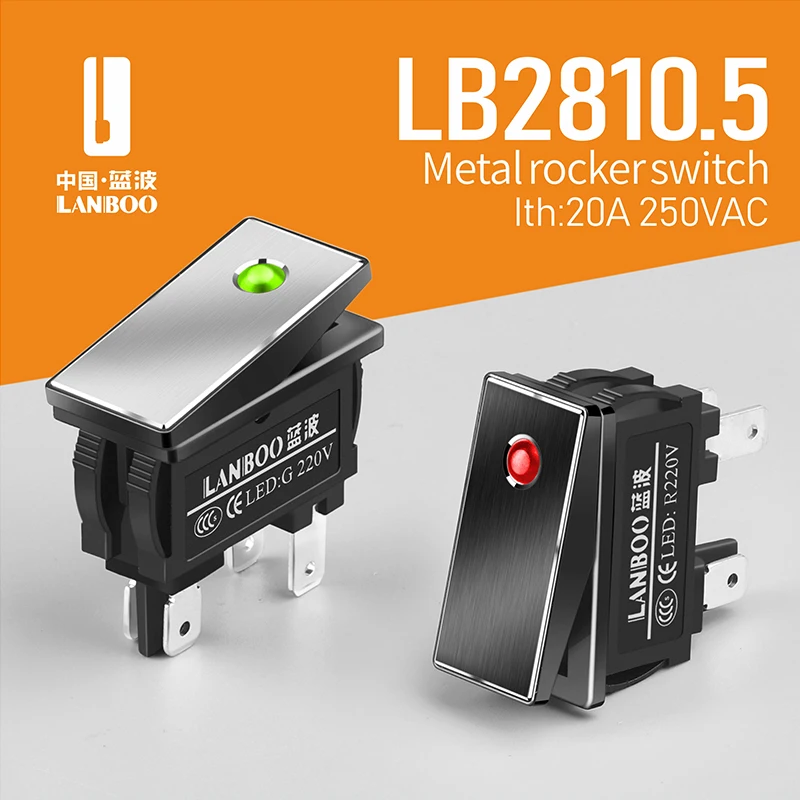

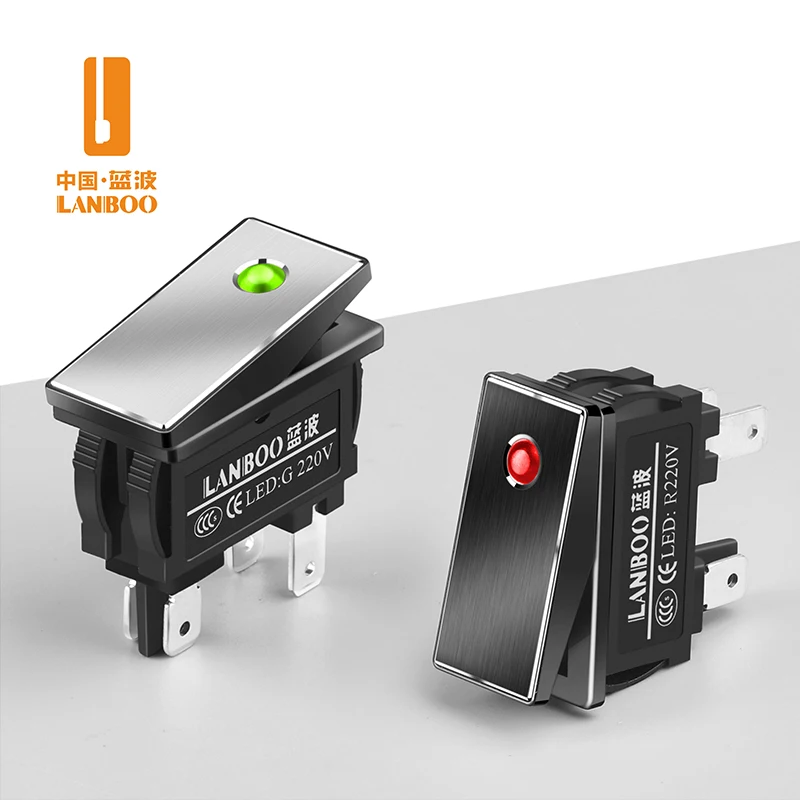

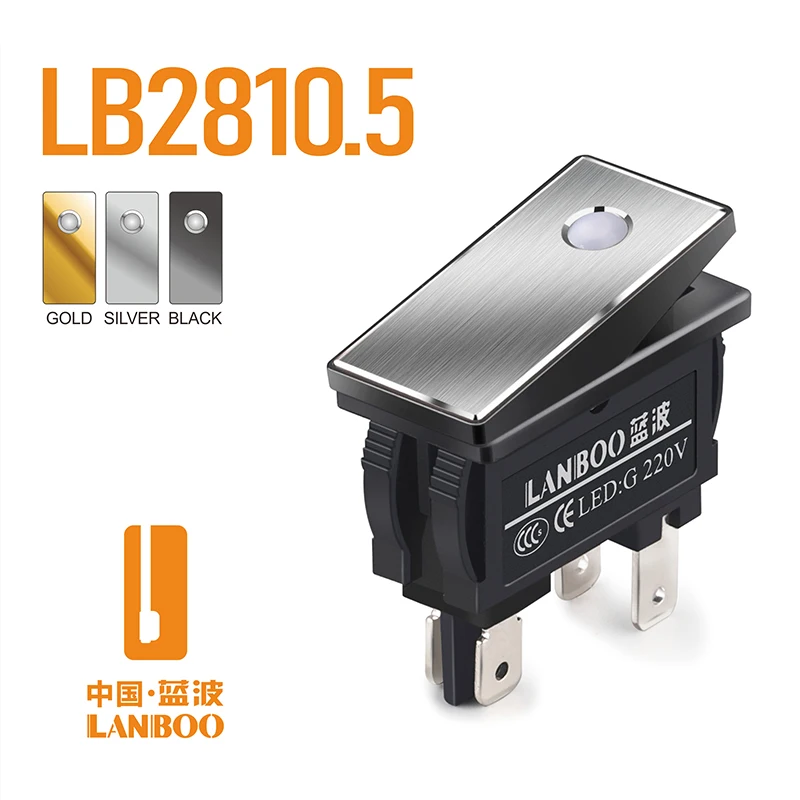

LANBOO 28x10.5mm 20A metal boat type switch with LED light large current warped plate boat type switch KCD3
LANBOO 28x10.5mm 20A metal boat type switch with LED light large current warped plate boat type switch KCD3
LANBOO 28x10.5mm 20A metal boat type switch with LED light large current warped plate boat type switch KCD3
LANBOO 28x10.5mm 20A metal boat type switch with LED light large current warped plate boat type switch KCD3
LANBOO 28x10.5mm 20A metal boat type switch with LED light large current warped plate boat type switch KCD3
LANBOO 28x10.5mm 20A metal boat type switch with LED light large current warped plate boat type switch KCD3
LANBOO 28x10.5mm 20A metal boat type switch with LED light large current warped plate boat type switch KCD3

LANBOO 28x10.5mm 20A metal boat type switch with LED light large current warped plate boat type switch KCD3

Share on (1601271429905):


Price:$0.92 - $0.96

Quantity:


Product Overview

Description



Product Paramenters


Model NO.
LB2810.5 rocker switch
Mounting diameter
28X10.5mm
Mounting thickness
≤3.5mm
Contact resistance
≤50MΩ
Dielectric Strength
3000VAC,50HZ,1min
Rated load
Resistive Load AC-15:110V/250V:16A,DC-13:12V/24V/36V:16A
Inductive Load:AC-15:110V/220V:4A,DC-13:110V:4A
Electrical Life
Impedance load
AC250V/16A, DC36V/16A: 20,000 times;
AC250V/8A, DC36V/8A: 40,000 times;
AC250V/3A, DC36V/3A: 100,000 times
Mechanical life
20,000 times
Work
IK08
LED rated load
DC3-8V,9-24V,25-48V
Illuminated LED color
Red,Green,Blue,Yellow,White
