China 2024 High quality Ceramic anilox rollers for flexographic printing from China ceramic anilox sleeves
- Category: >>>
- Supplier: Jctprint Machinery Co. Ltd.
Share on (1601271471583):
Product Overview
Description
A variety of anilox rollers for your choice

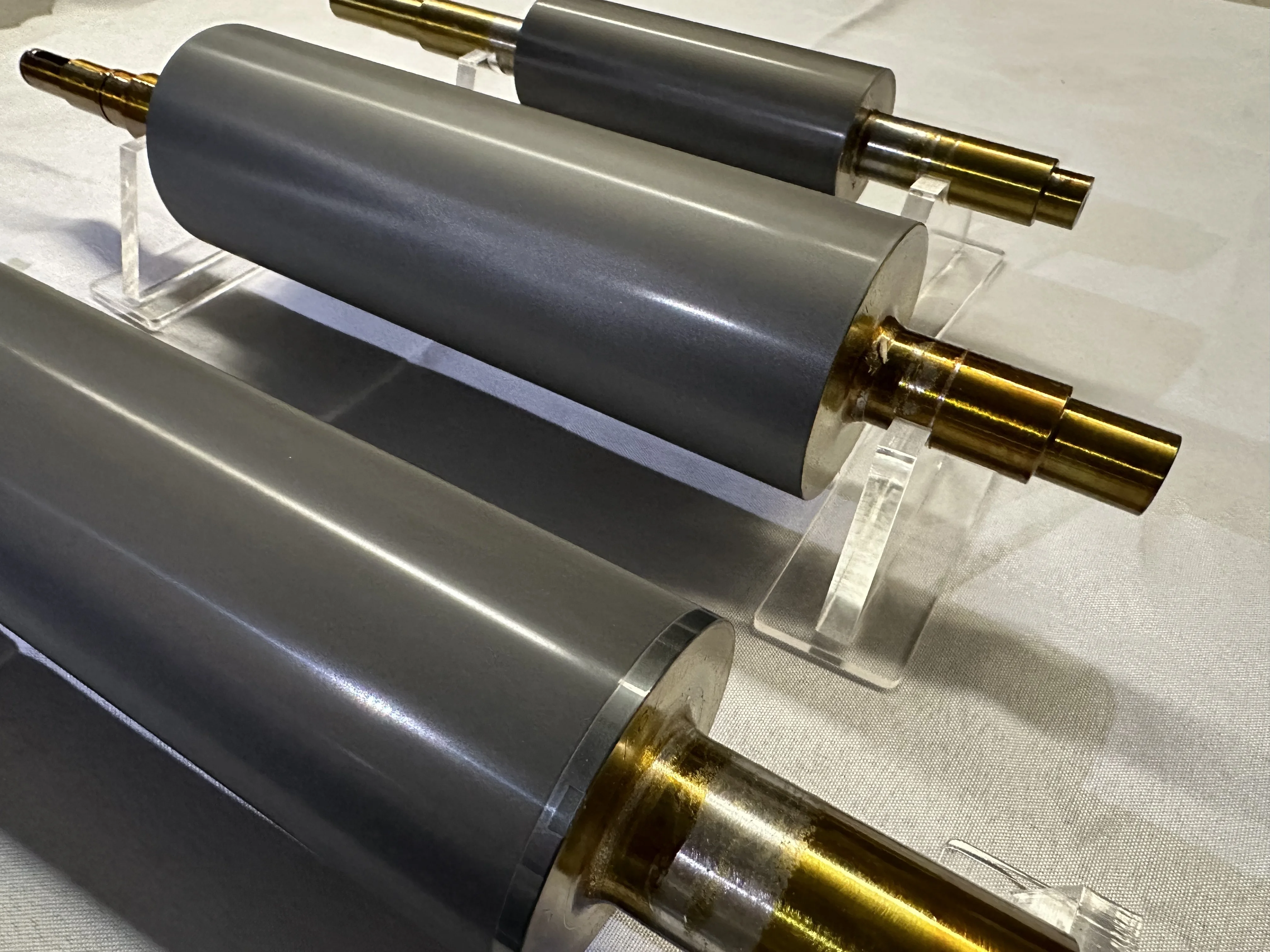

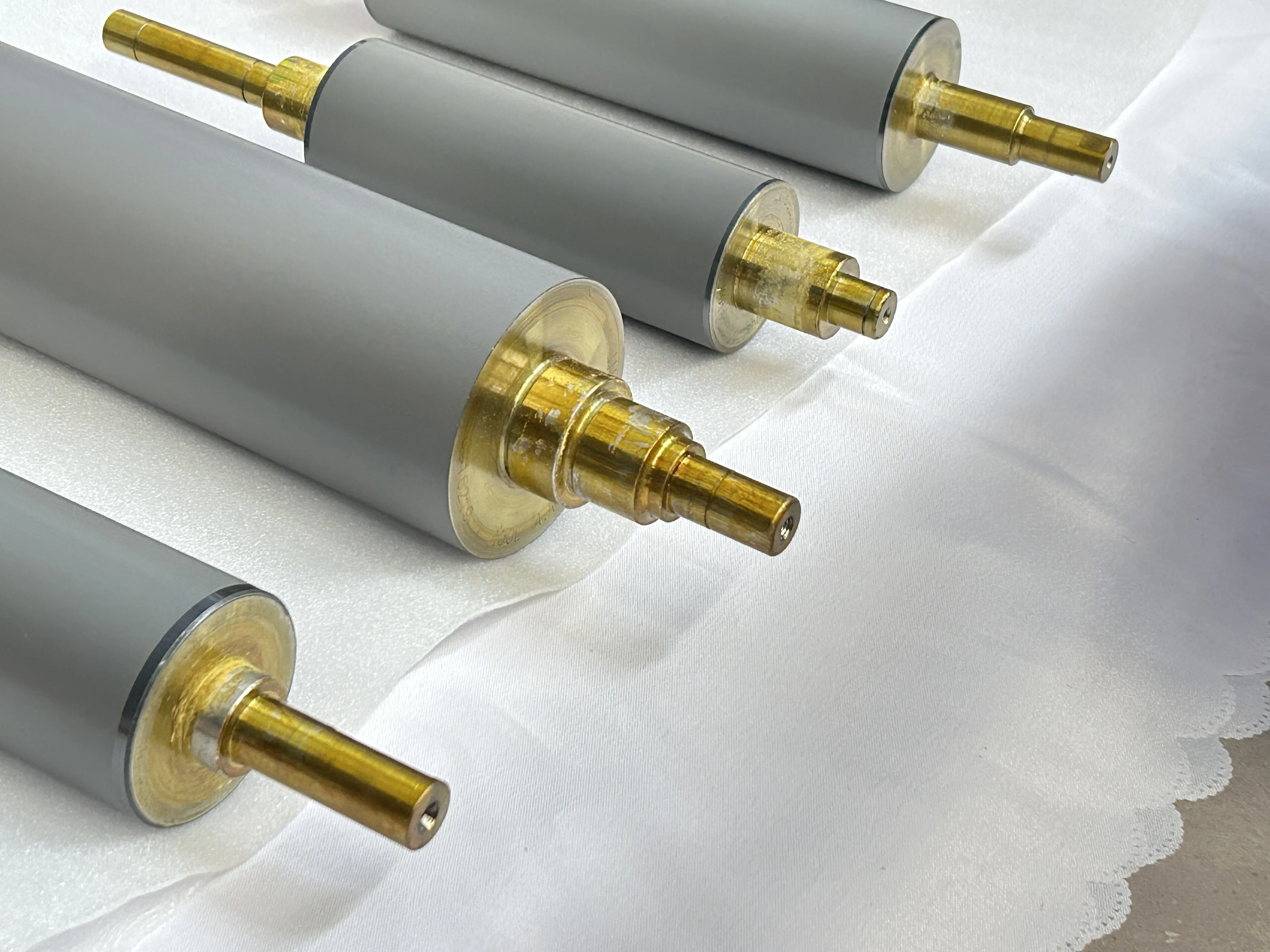

Ceramic anilox roller
Size range：10cm-1200cm
LPI Range：30-2000lpi
Material：Cr2O3
Delivery time：15-25 days
LPI Range：30-2000lpi
Material：Cr2O3
Delivery time：15-25 days
Sleeve type anilox roller
Size range：10cm-1200cm
LPI Range：30-2000lpi
Material：Cr2O3
Delivery time：20-30 days
LPI Range：30-2000lpi
Material：Cr2O3
Delivery time：20-30 days
Metal Anilox Roller
Size range：10cm-1200cm
LPI Range：80-300lpi
Material：45# Steel
Delivery time：15-25 days
LPI Range：80-300lpi
Material：45# Steel
Delivery time：15-25 days
Shaft type anilox roller
Size range：10cm-1200cm
LPI Range：30-2000lpi
Material：Cr2O3
Delivery time：15-25 days
LPI Range：30-2000lpi
Material：Cr2O3
Delivery time：15-25 days

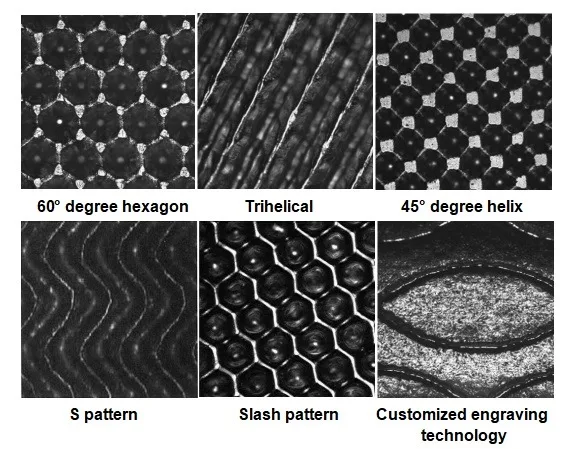

Anilox roller cells
45 degrees
For paper and coating printing.Make the printed product have a higher visual and tactile effect, bringing texture and appeal.
Triple Helix
Used to extend the range of standard engraving or as a technical alternative.
6 angle 60 degrees
Hexagonal 60° is the most common anilox cell engraving shape.
The inkjet detection accuracy of JCTPRINT's 60° engraving process is 98%.
JCC
JCC is jctprint's innovative engraving technology with universal high quality performance in all market environments.
Specification
Type | Anliox roller |
Screen count range | 30-2000 LPI |
Maximum width | Sleeve：4800mm Shaft： 5250mm |
Diameter range | 25-600 mm |
Cell Angle | 1-89° |
Cell shape | Hexagon、Quadrilateral、Diagonal Line,etc. Customizable. |
MOQ | 1PC |
Our Advantages
1.Base roller process
Material ：
#45 seamless steel tube or No5 series aluminum
General performance requiremen：45# steel tube
General performance requiremen：45# steel tube
Thickness ：
15mm-25mm We can also make the special thickness according to customers requirement.
15mm-25mm We can also make the special thickness according to customers requirement.
strict inspection procedure of base roller
Incoming inspection including drawing, surface roughness,straightness, dynamic balance, cylindricity and so on.
2.Ceramic spraying
Using Swiss Oerlikon plasma spraying system.
The chrome oxide ceramics using are using also from this supplier.
The evenness of 80% ceramic powder can be controlled between 15u-35u.
The hardness of it can reach 1200HV.
3. Antiseptic treatment
Using the nanoscopic sealant to coat on the surface of the ceramic.
This kind of sealant can reach the tiny cell so it can realize a good production against the corrosion.
4.Precise delivery on the inks
We make trial engraving before the real engraving.
Using the scanner to scan each layer to test the volume of the cell.
According to the realationship between the LPI and BCM , to make sure whether the LPI is ok.
5. Quality Control
We have the quality control system during the whole production from the very beginning to the end and our principle is to make sure each roller is qualified.With the product that we will send to the customer we will issue the certification for our customers as following.

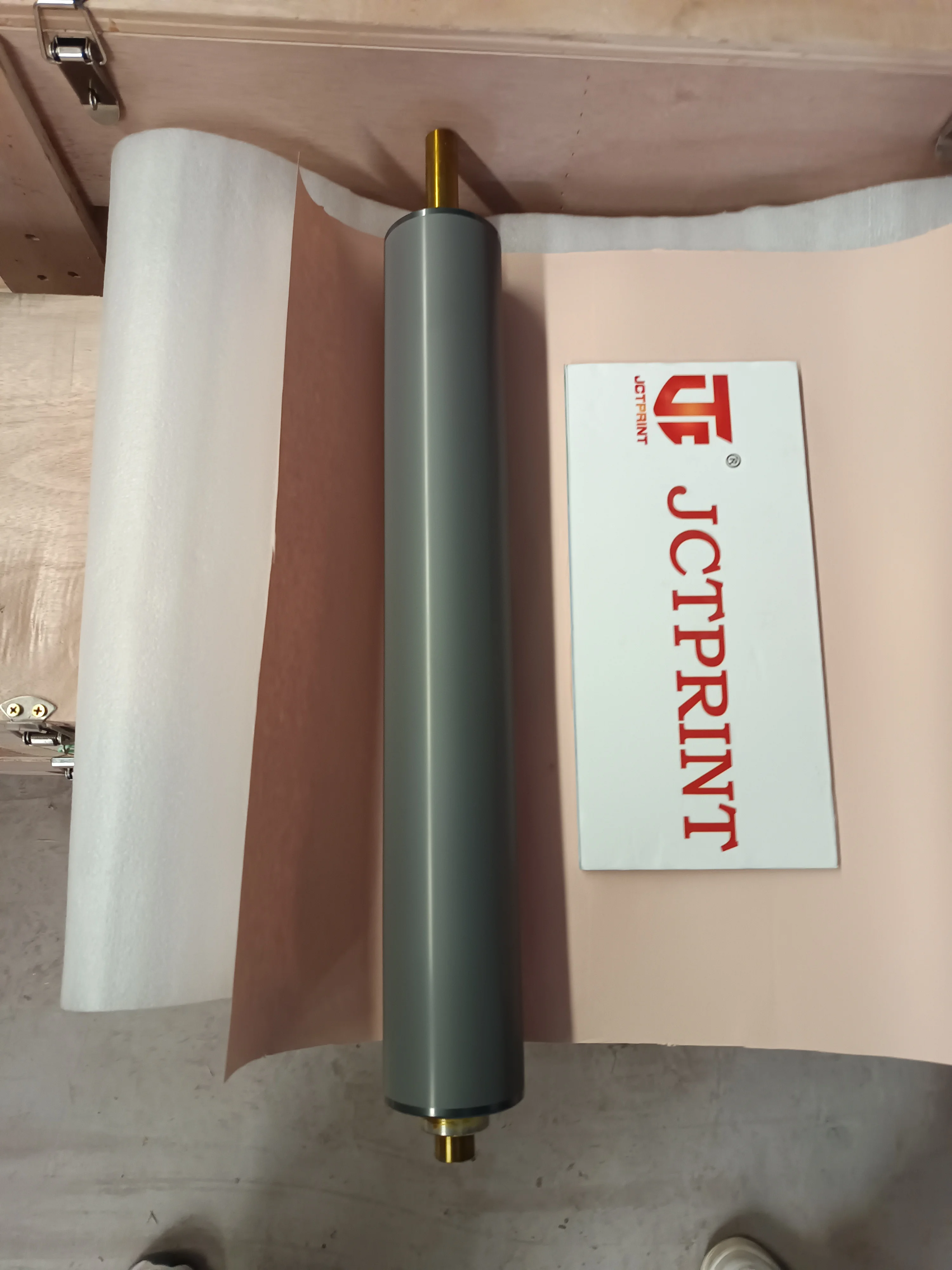

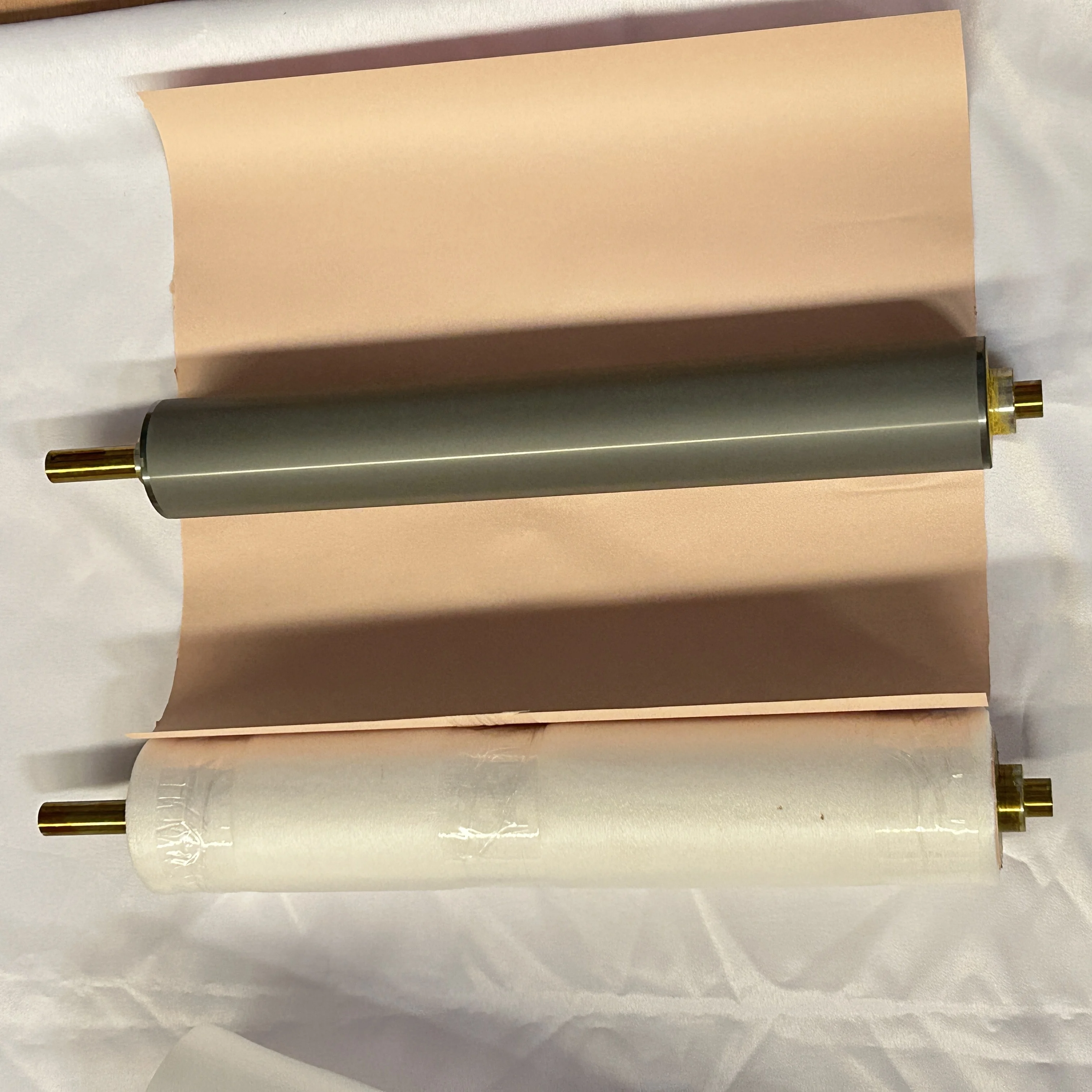

Product packaging

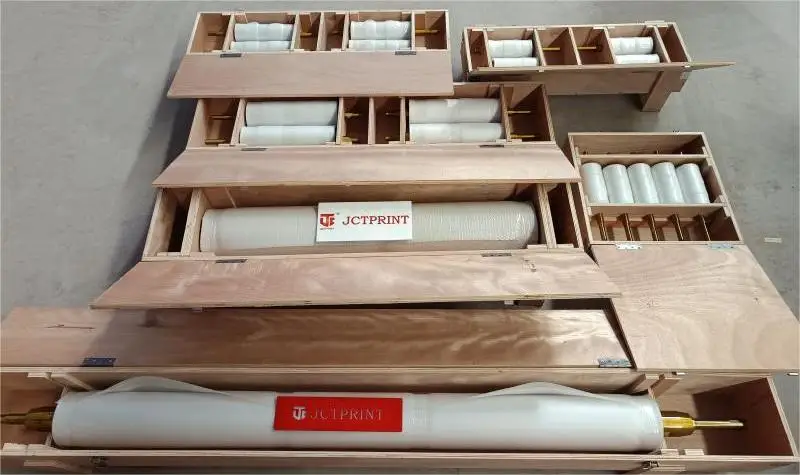

Wooden cases for export
Company Profile
Jctprint, China's largest anilox roller manufacturer
full range of anilox rollers
Jctprint, customized full range of anilox rollers, whether it is a roller for corrugated boxes or a roller for labels, we can produce.
Jctprint, fast development
JCTPRINT was founded in 2000.It has gradually occupied the international market by providing high-quality anilox rollers to printing plants, equipment manufacturers and sales partners around the world.
Why more and more people trust Jctprint？
6 production branches
Customers more than 100 countries
.
Over 20 years of industry experience
Fast delivery 30 days
Invests 60% of funds in research, development and innovation
The most accurate rollers in the industry, with full process testing, and the quality far exceeds 99% of roller suppliers.
