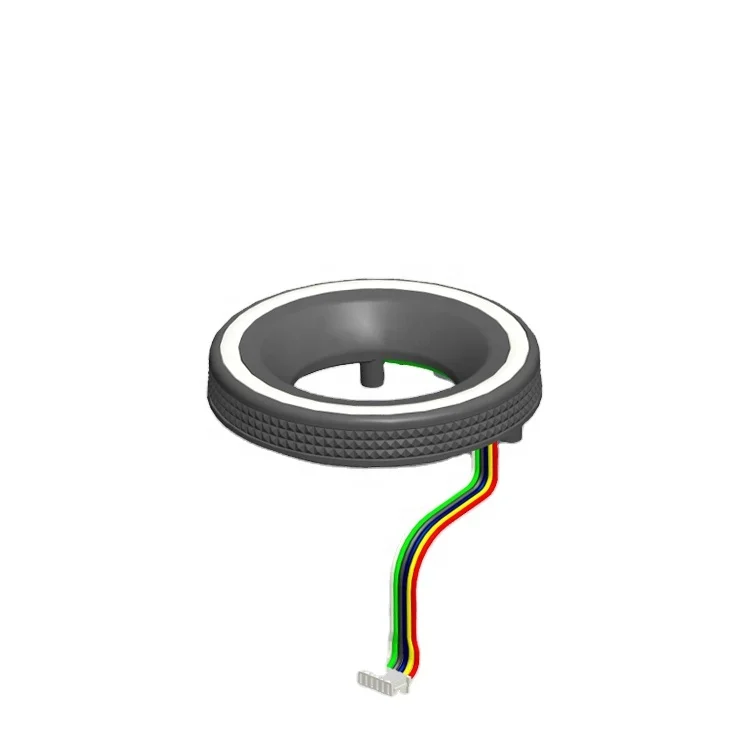

Soundwell EG56 Optical Incremental Encoder Manufacturer Linear Encoder
- Category: >>>
- Supplier: Soundwell Electronic Products Guangdong Co. Ltd.
Share on (1601271522455):
Product Overview
Description
For customized products, please refer to the actual quotation.
Optical Encoder Model | EG56 series |
Number of detent | 30 |
Pulses | 15/360° |
Rotational life | 50,000 cycles Min |
Switch life | 50,000 cycles Min |
Working temperature | -40℃~85℃ |
EG56 Optical Encoder Main Specifications
Rated power | DC 5V | ||||||
Number of detent | 30 | ||||||
Pulses | 15/360° | ||||||
Rotational torque | 100-300gf.cm | ||||||
Working temperature | -40℃~85℃ | ||||||
Rotational life | 50,000 cycles Min | ||||||
Switch life | 50,000 cycles Min | ||||||
Applications | Automotive electronics, home appliances, smart home devices and other electronic products; | ||||||
Product Features | Optical sensing with stable output and long life; Smooth rotation; Push-on switch integrated; Customization acceptable to add screen in the center ring to serve as an integrated module for cost saving and easier assembly. | ||||||
EG56 Optical Encoder Specifications
One、MECHANICAL CHARACTERISTIC
1. Rotational torque: 100-300gf.cm
2. Number of detent: 30 (Step angle: 12°±3°)
3. Shaft wobble: 0.3mm Max
4. Shaft play: 3°Max
Two、ELECTRICAL CHARACTERISTIC
1. Resolution:15 pulses/360°
2. Phase difference: ≥6ms
3. Power rating: DC 5V
4. Insulation resistance: 10MΩ 60s±5s at DC 50V
5. Dielectric voltage: AC 50 V 60s±5s
Three、ENDURANCE CHARACTERISTIC
1. Rotational life : 50,000 cycles Min
2. Push switch life: 50,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
