Product Overview
Description
Product Description
88038CUH CR9S9KBS8F00 NetEngine9000 Base SW,VRP8,V800R022

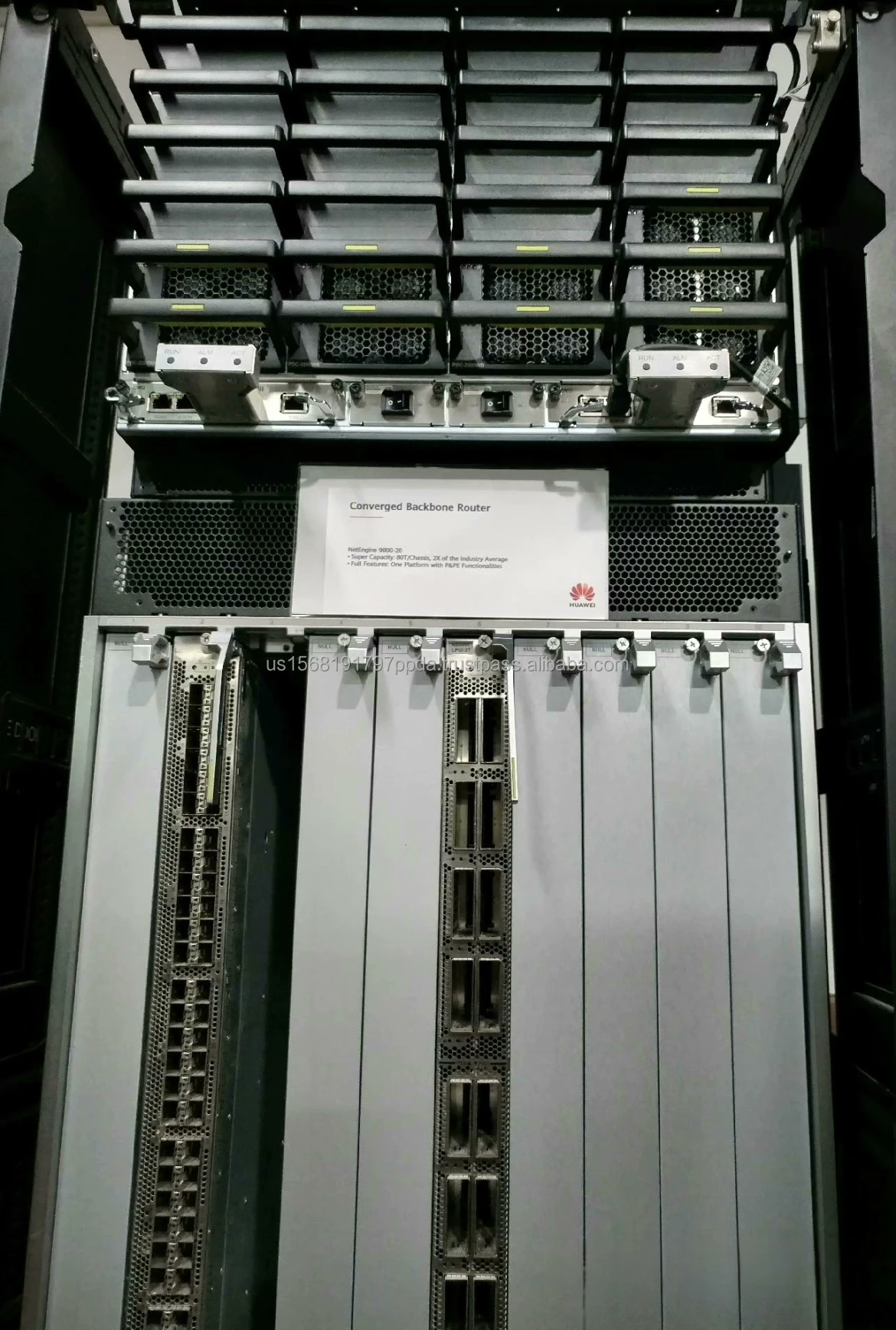

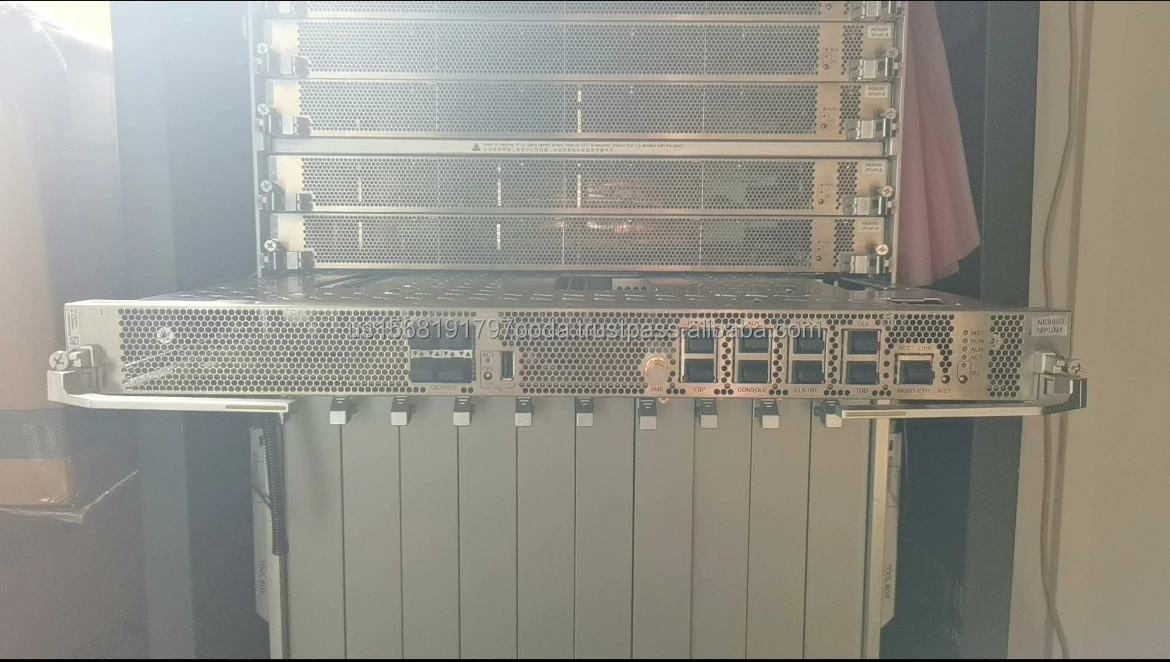

The NetEngine9000 (NE9000 for short) is a large-capacity and high-performance router designed by to provide carrier-class reliability. It uses the powerful VRP as the operating system, which features strong switching capabilities, dense
ports, and high reliability. It is mainly used as a super-core node on carriers' backbone networks, a core node on metropolitan area networks (MANs), an egress node of large-scale Internet data centers (IDCs), or a core node on large-scale enterprise networks. In addition, the NE9000 can be flexibly deployed at the edge or core of IP/MPLS networks to simplify the network structure and provide an extensive range of services and reliable service quality, driving IP/MPLS transport networks to develop greater broadband capacities and to become more secure, intelligent, and service-oriented.
ports, and high reliability. It is mainly used as a super-core node on carriers' backbone networks, a core node on metropolitan area networks (MANs), an egress node of large-scale Internet data centers (IDCs), or a core node on large-scale enterprise networks. In addition, the NE9000 can be flexibly deployed at the edge or core of IP/MPLS networks to simplify the network structure and provide an extensive range of services and reliable service quality, driving IP/MPLS transport networks to develop greater broadband capacities and to become more secure, intelligent, and service-oriented.
Main Equipment
Multi-Service Router 5G X-Haul
Multi-Service Router 5G X-Haul
NE9000 Series Router : NE9000-20,NE9000-8
NE8000 Series Router: NetEngine 8000 M14 NetEngine 8000 M8 NetEngine 8000 F8 NetEngine 8000 M6 NetEngine 8000 M4 NetEngine 8000 M1A NetEngine 8000 M1C NetEngine 8000 F1A-8H20Q NetEngine 8000 F2A-8K36H NetEngine 8000 X4 NetEngine 8000 X8 NetEngine 8000 X16 NetEngine 8000 M1D ,NetEngine 8000 M1D-B NE
A800 Series Router: NetEngine A821 E NetEngine A813 E NetEngine A822 E
NE40E Series Router: NE40E-X3A NE40E-X8A NE40E-X16A
ME60 Series Router: ME60-X8A ME60-X16A
ATN Series: ATN 950D ATN 905-S
PTN Series :OptiX PTN 970C
Card
NE40E Series: LPUF-243,LPUI-243-CM ,LPUF-120 ,LPUF-53,LPUF-485,LPUF-483 ,LPUI-483-CM,LPUF-480 ,LPUI-480 ,LPUF-245,LPUI-245-CM ,LPUF-240,LPUI-240 ,LPUF-1T ,LPUF-120
NE40E Series: LPUF-243,LPUI-243-CM ,LPUF-120 ,LPUF-53,LPUF-485,LPUF-483 ,LPUI-483-CM,LPUF-480 ,LPUI-480 ,LPUF-245,LPUI-245-CM ,LPUF-240,LPUI-240 ,LPUF-1T ,LPUF-120
NE8000 Series: Interface Card，LPUI-4T，LPUI-2T，LPUF-1T， ME60 Series：BSUF-485/MSUF-485 ，
BSUF-480/MSUF-480 ，BSUF-245/MSUF-245，BSUF-240/MSUF-240，BSUF-100/MSUF-100 ，BSUF-51/MSUF-51， NE9000 Series ：LPUI-4T，LPUI-2T，
BSUF-480/MSUF-480 ，BSUF-245/MSUF-245，BSUF-240/MSUF-240，BSUF-100/MSUF-100 ，BSUF-51/MSUF-51， NE9000 Series ：LPUI-4T，LPUI-2T，
Part Number | Model | Description |
Basic Configuration | ||
02353VWH-001 | CR9P9KBASD8B | NE9000-20 Basic Configuration(Include NE9000-20 48V DC Chassis,2*MPUQ2,8*SFU4T-G,4*32G Memory,2*32G SSD Card,9*DC Power Module, without Software Charge and Document) |
02353VWK-001 | CR9P9KBASA8B | NE9000-20 Basic Configuration(Include NE9000-20 Integrated AC/HVDC Chassis,2*MPUQ2,8*SFU4T-G,4*32G Memory,2*32G SSD Card,7*Dual-input AC/HVDC Power Module, without Software Charge and Document) |
02353RRH | CR9PBKP20D03 | NE9000-20 Chassis and Cabinet Integrated DC Chassis B(Including the Main Chassis and Power Distribution Frame) |
02353RRJ | CR9PBKPKAD03 | NE9000-20 Chassis and Cabinet Integrated AC/HVDC Chassis(Including the Main Chassis and Power Distribution Frame) |
02353VWS | CR9PBKP20D04 | NE9000-20 Chassis and Cabinet Integrated DC Chassis C(Including the Main Chassis and Power Distribution Frame) |
02353VWV | CR9PBKPKAD04 | NE9000-20 Chassis and Cabinet Integrated AC/HVDC Chassis B(Including the Main Chassis and Power Distribution Frame) |
02353VWM-001 | CR9P9KBASD8C | NE9000-8 Basic Configuration(Include NE9000-8 48V DC Chassis,2*MPUR2,8*SFU4T-H,4*32G Memory,2*32G SSD Card,6*DC Power Module, without Software Charge and Document) |
02353VWP-001 | CR9P9KBASA8C | NE9000-8 Basic Configuration(Include NE9000-8 Integrated AC/HVDC Chassis,2*MPUR2,8*SFU4T-H,4*32G Memory,2*32G SSD Card,5*Dual-input AC/HVDC Power Module, without Software Charge and Document) |
02352SNE | CR9PBKP8DC00 | NE9000-8 Integrated DC Chassis Components B |
02352RNN | CR9PBKP8AD00 | NE9000-8 Integrated AC/HVDC Chassis Components |
02314AVT | CR9P9KHALN8P | NetEngine9000 8-Port 400GE-QSFP-DD + 8-Port 100GE-QSFP28 LPUI-4T-CM Bundle(Including LPUI-4T-CM, 8*400G Port Enable RTU for LPUI-4T-CM, 8*400G & 8*100G L3VPN License, 8*100G RTU Enabled by default) |
03050GQE | CR9DE8KE8N8Z | 8-Port 400GE-QSFP-DD + 8-Port 100GE-QSFP28 Integrated Line Process Unit CM(LPUI-4T-CM, 8*100G RTU Enabled by default) |
02314AVR | CR9P9KHALN8L | NetEngine9000 40-Port 100GE/50GE-QSFP28 LPUI-4T-CM Bundle(Including LPUI-4T-CM, 40*100G Port Enable RTU for LPUI-4T-CM, 40*100G L3VPN License) |
03050GQC | CR9D00EKNB8V | 40-Port 100GE/50GE-QSFP28 Integrated Line Process Unit CM(LPUI-4T-CM) |
88038QNE | CR9S9KBS8G00 | NetEngine9000 Base SW,VRP8,V800R023 |
88034BKU | CR9S9KEF0000 | NetEngine9000 Software Release Entitlement from Rn to R(n+1) |
88037BJK | CR9S9KIFIT81 | NetEngine9000 iFIT Poor-QoE Demarcation Package |
88037BJL | CR9S9KIFIT82 | NetEngine9000 iFIT Enhanced Package |
88036MLW | CR9P00LICS6Q | NetEngine9000 8-Port 400GE-QSFP-DD + 8-Port 100GE-QSFP28 LPUI-4T-CM Enable RTU Setup Bundle(Including 2*400G Port Enable RTU) |
88036MLU | CR9P00LICS4S | NetEngine9000 40-Port 100GE/50GE-QSFP28 LPUI-4T-CM Enable RTU Setup Bundle(Including 10*100G Port Enable RTU for LPUI-4T-CM) |
88036MLV | CR9P00LICS4T | NetEngine9000 40-Port 100GE/50GE-QSFP28 LPUI-4T-L Enable RTU Setup Bundle(Including 10*100G Port Enable RTU for LPUI-4T-L) |
88036VCE | CR9P0MNLIC85 | NetEngine9000 20-Port 100GE/50GE-QSFP28 LPUI-2T-CM Enable RTU Setup Bundle(Including 5*100G Port Enable RTU for LPUI-2T-CM) |
88034NHT | CR9P00LICS4P | NetEngine9000 40-Port 100G Integrated Line Processing Unit CM Enable RTU Setup Bundle(Including 10*Solar5.0 100G Port Enable RTU) |
88034NHN | CR9P00LICS4L | NetEngine9000 40-Port 100G Integrated Line Processing Unit L Enable RTU Setup Bundle(Including 10*Solar5.0 100G Port Enable RTU for LPU L) |
Parameters | NetEngine9000-20 | NetEngine9000-8 |
Switching Capacity | 209 Tbit/s | 84 Tbit/s |
Forwarding Performance | 36,160 Mpps | 14,464 Mpps |
MPUs | 2 | 2 |
SFUs | 8 | 8 |
Slots | 20 | 8 |
Port Types | 400 GE, 100 GE, 40 GE, and 10 GE | 400 GE, 100 GE, 40 GE, and 10 GE |
Typical Power Consumption | 0.4 W/G | 0.4 W/G |
Dimensions (H x W x D) | 2200 mm x 600 mm x 1000 mm (49.5 U) The NetEngine9000 features a single-cabinet design that offers cabinet-free installation | 1016 mm x 442 mm x 945 mm (23 U) The NetEngine9000 features a single-cabinet design that offers cabinet-free installation |
Powerful Forwarding Capability
Designed with a hardware-based forwarding engine, the NetEngine9000 series supports full-duplex forwarding of IPv4, IPv6,
and MPLS packets at line rates on all interfaces.
The NetEngine9000 series supports multicast traffic forwarding at line rates. The hardware supports two-level multicast
traffic replication: replication from switch fabric units (SFUs) to interface boards and replication from an interface board's
forwarding engine to interfaces on the interface board.
An interface board can buffer packets, ensuring that no packet is lost in the case of a traffic burst.
Designed with a hardware-based forwarding engine, the NetEngine9000 series supports full-duplex forwarding of IPv4, IPv6,
and MPLS packets at line rates on all interfaces.
The NetEngine9000 series supports multicast traffic forwarding at line rates. The hardware supports two-level multicast
traffic replication: replication from switch fabric units (SFUs) to interface boards and replication from an interface board's
forwarding engine to interfaces on the interface board.
An interface board can buffer packets, ensuring that no packet is lost in the case of a traffic burst.
Well-Designed QoS Mechanism
The NetEngine9000 series provides the following QoS functions:
* Rule-based traffic classification: Traffic can be classified based on rules such as Layer 2, Layer 3, and MPLS rules.
* Differentiated services: Differentiated services are provided for traffic with different differentiated services code point
(DSCP) values, EXP values, 802.1p priorities, or IP precedence.
* Traffic marking: The DSCP values, EXP values, 802.1p priorities, or IP precedence of specific traffic can be changed based on a
pre-defined policy to upgrade or degrade the priorities of data flows.
* Traffic policing: All traffic or specific traffic on a specified interface can be monitored for traffic limiting.
* Congestion avoidance: Tail drop or weighted random early detection (WRED) can be used to drop certain packets in a queue to
prevent a queue overflow.
* Congestion management: Priority queuing (PQ) and weighted fair queuing (WFQ) are provided to ensure fair queue scheduling and
preferential processing of services with a higher priority, meeting the scheduling requirements of various service
combinations.
These QoS functions ensure different delays, jitter, bandwidth, and packet loss rates for different services, such as Voice over
Internet Protocol (VoIP) and IPTV services, carried over an IP network.
The NetEngine9000 series provides the following QoS functions:
* Rule-based traffic classification: Traffic can be classified based on rules such as Layer 2, Layer 3, and MPLS rules.
* Differentiated services: Differentiated services are provided for traffic with different differentiated services code point
(DSCP) values, EXP values, 802.1p priorities, or IP precedence.
* Traffic marking: The DSCP values, EXP values, 802.1p priorities, or IP precedence of specific traffic can be changed based on a
pre-defined policy to upgrade or degrade the priorities of data flows.
* Traffic policing: All traffic or specific traffic on a specified interface can be monitored for traffic limiting.
* Congestion avoidance: Tail drop or weighted random early detection (WRED) can be used to drop certain packets in a queue to
prevent a queue overflow.
* Congestion management: Priority queuing (PQ) and weighted fair queuing (WFQ) are provided to ensure fair queue scheduling and
preferential processing of services with a higher priority, meeting the scheduling requirements of various service
combinations.
These QoS functions ensure different delays, jitter, bandwidth, and packet loss rates for different services, such as Voice over
Internet Protocol (VoIP) and IPTV services, carried over an IP network.
Robust Security Design
The NetEngine9000 series provides multiple security features to protect the data of Internet service providers (ISPs) and
users. These features can protect services against denial of service (DoS) attacks, unauthorized access, and traffic overload on
the control plane. The NetEngine9000 series uses a distributed structure that separates the data plane from the control
plane, providing industry-leading security performance.
The device provides the following security features:
* Three user authentication modes (local authentication, RADIUS authentication, and HWTACACS authentication) for user identity
authentication, and proper authorization
* Hardware-based packet filtering and sampling, which ensures high performance and high scalability.
* Simple authentication and message digest algorithm 5 (MD5) authentication for Open Shortest Path First (OSPF), Intermediate
System to Intermediate System (IS-IS), Routing Information Protocol (RIP), and BGP packets
The NetEngine9000 series provides multiple security features to protect the data of Internet service providers (ISPs) and
users. These features can protect services against denial of service (DoS) attacks, unauthorized access, and traffic overload on
the control plane. The NetEngine9000 series uses a distributed structure that separates the data plane from the control
plane, providing industry-leading security performance.
The device provides the following security features:
* Three user authentication modes (local authentication, RADIUS authentication, and HWTACACS authentication) for user identity
authentication, and proper authorization
* Hardware-based packet filtering and sampling, which ensures high performance and high scalability.
* Simple authentication and message digest algorithm 5 (MD5) authentication for Open Shortest Path First (OSPF), Intermediate
System to Intermediate System (IS-IS), Routing Information Protocol (RIP), and BGP packets
Our Advantages
Base on big projects, I can provide more than 90% discount of GPL(Global Price List), even 99% off.
Specification
Model | NE9000-20 |
Condition | Brand new |
Manufacture period | 6-7 weeks |
Warranty | 1 year |
Packing & Delivery
All items are order from HW, brand new in boxes, with 1 year warranty.
