Hot sale corrugated cardboard production line high speed 3 5 7 ply corrugated board production line
- Category: >>>
- Supplier: Cangzhou Xiaoyuan Carton Machinery Trading Co. Ltd.Cangzhou Ltd.
Share on (1601271674877):
Product Overview
Description

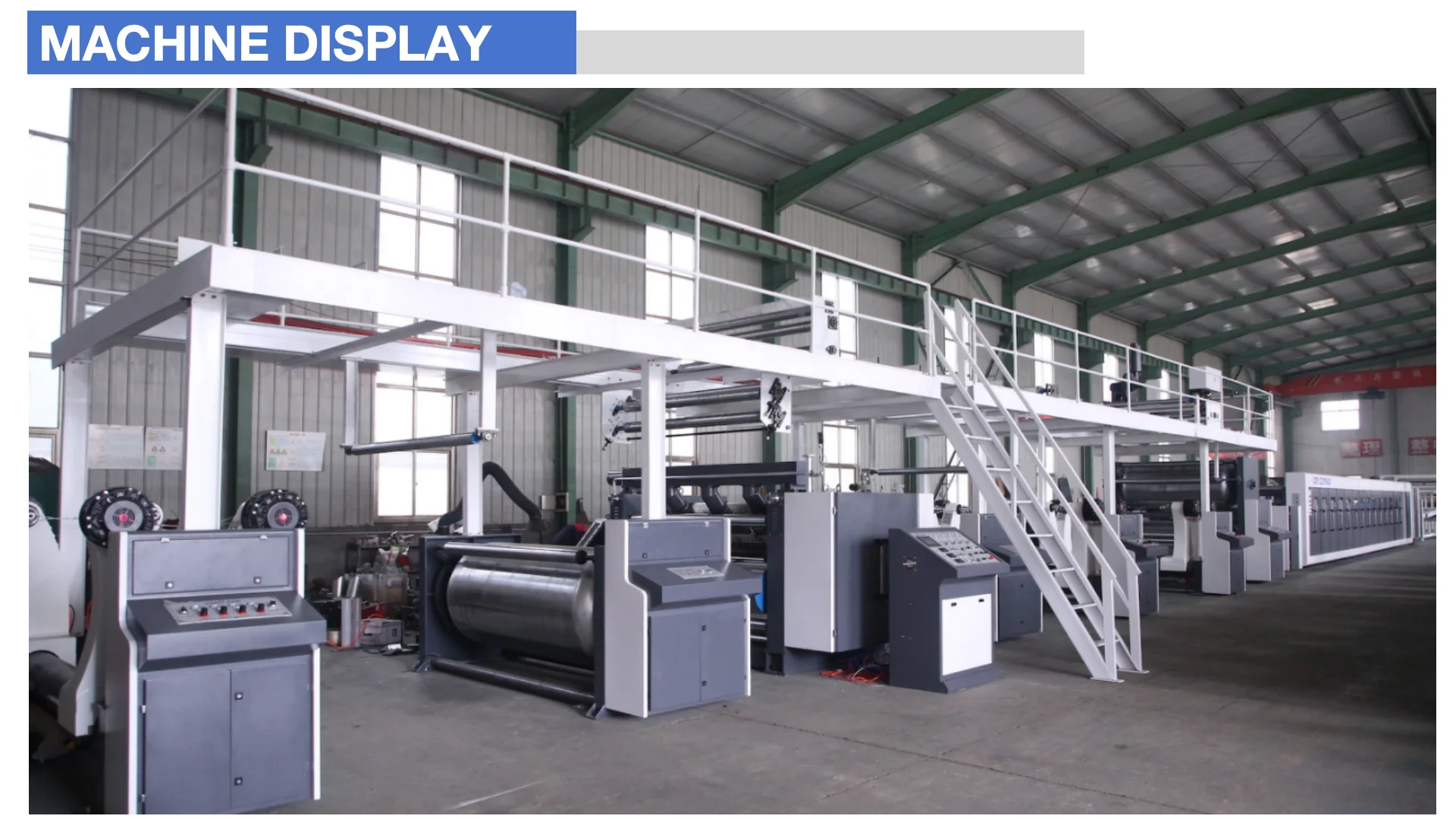

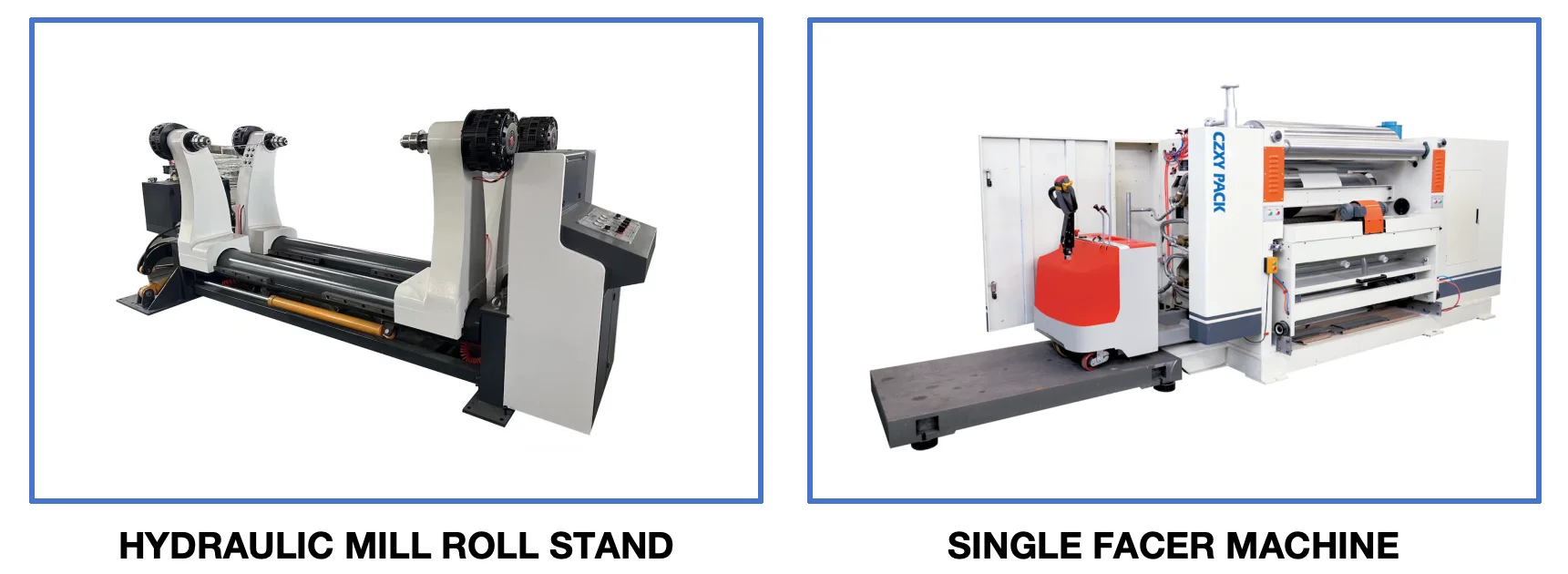

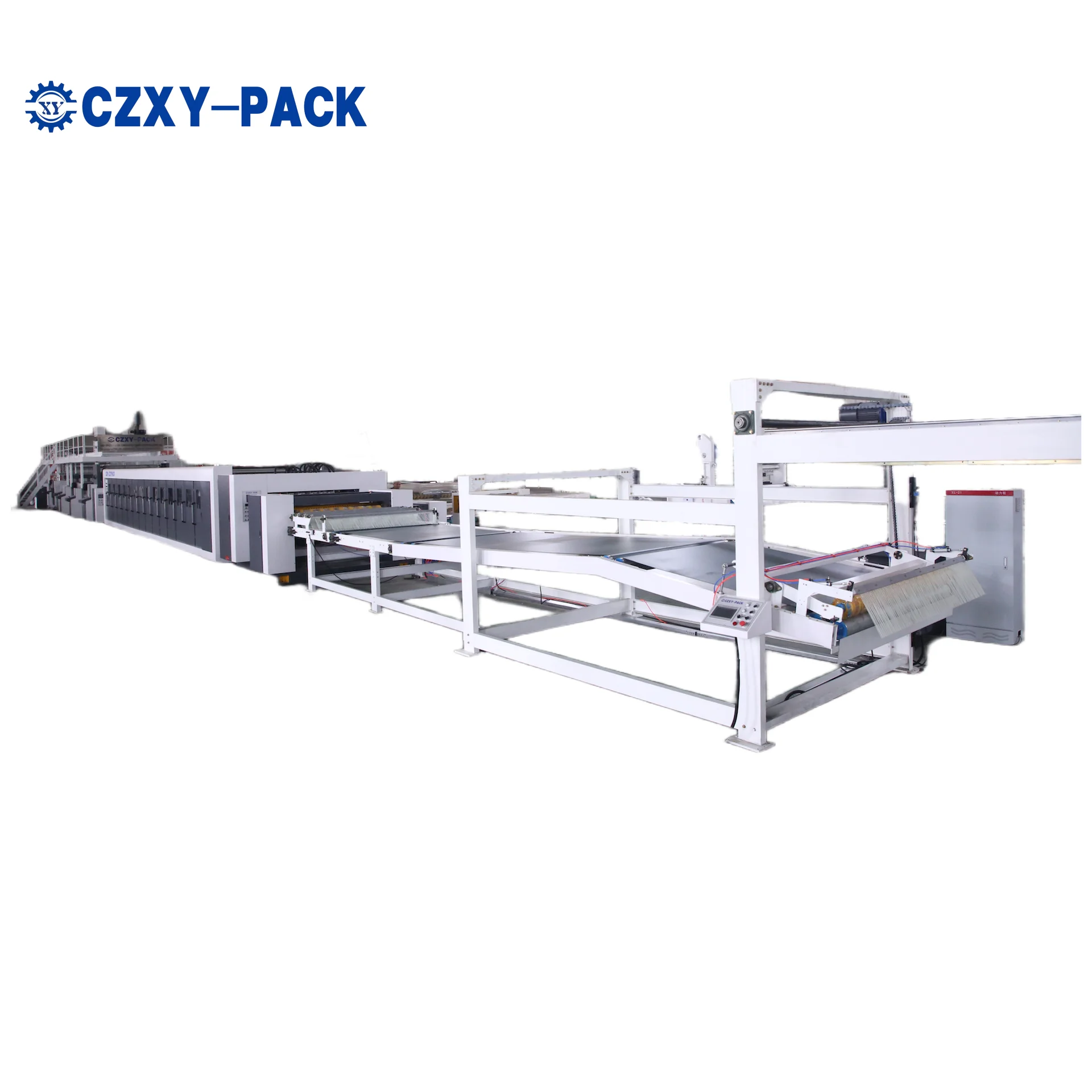

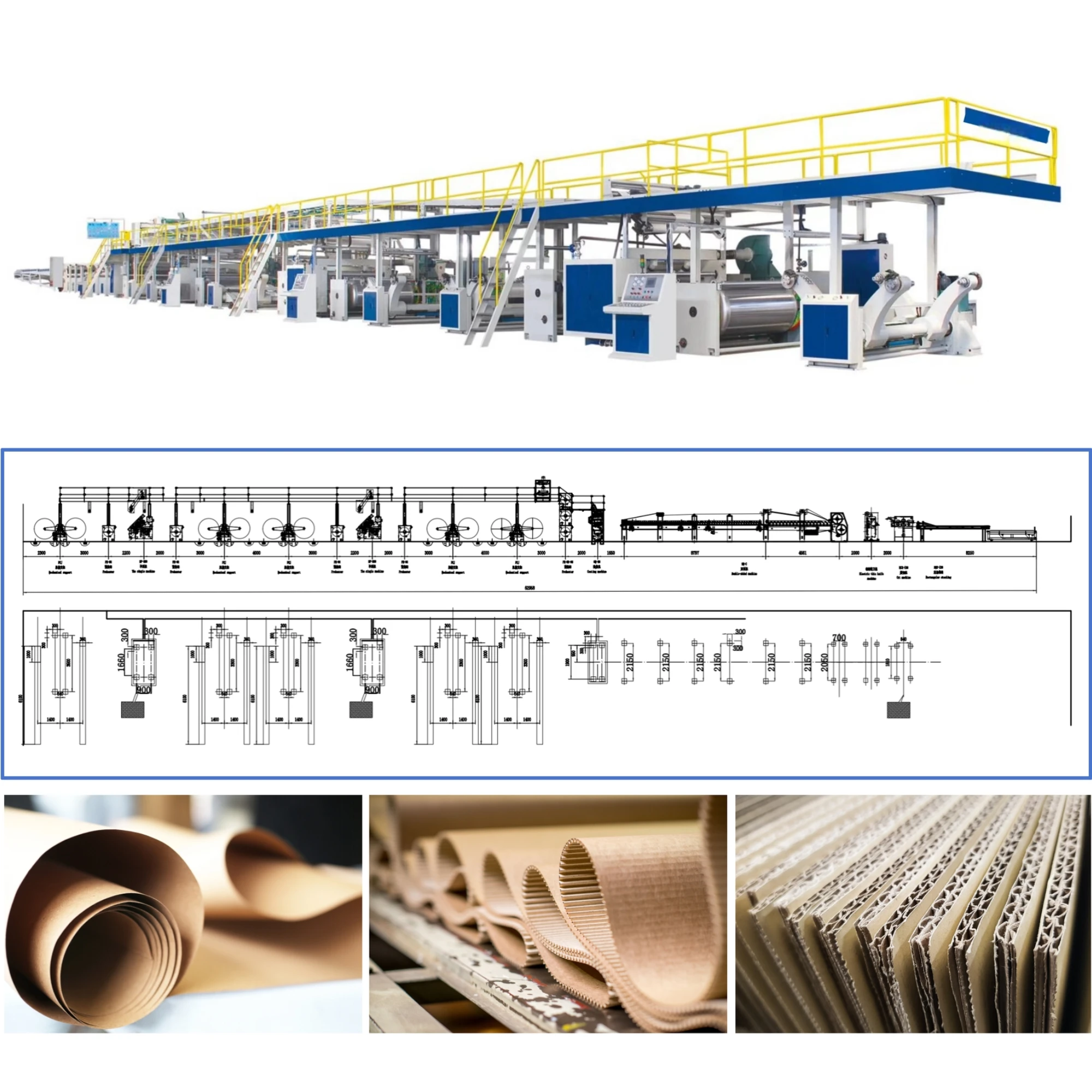

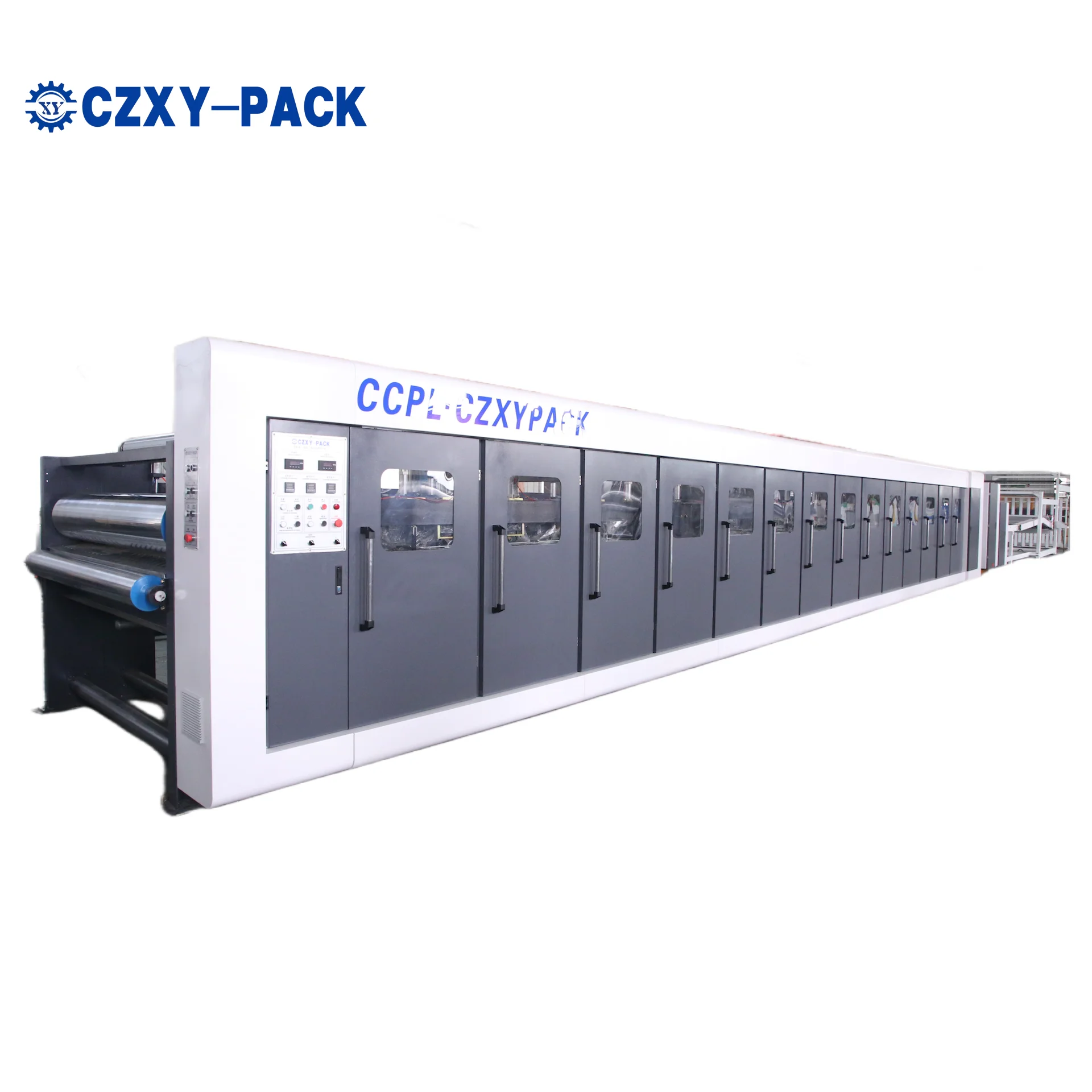

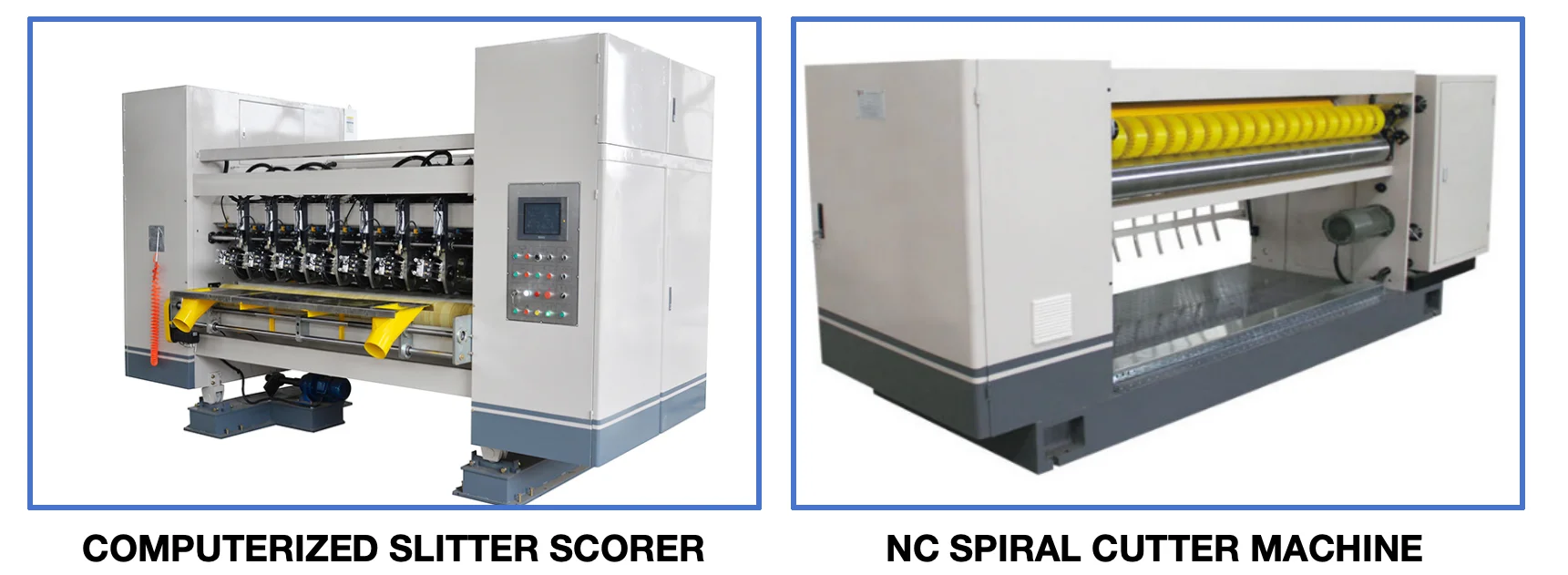

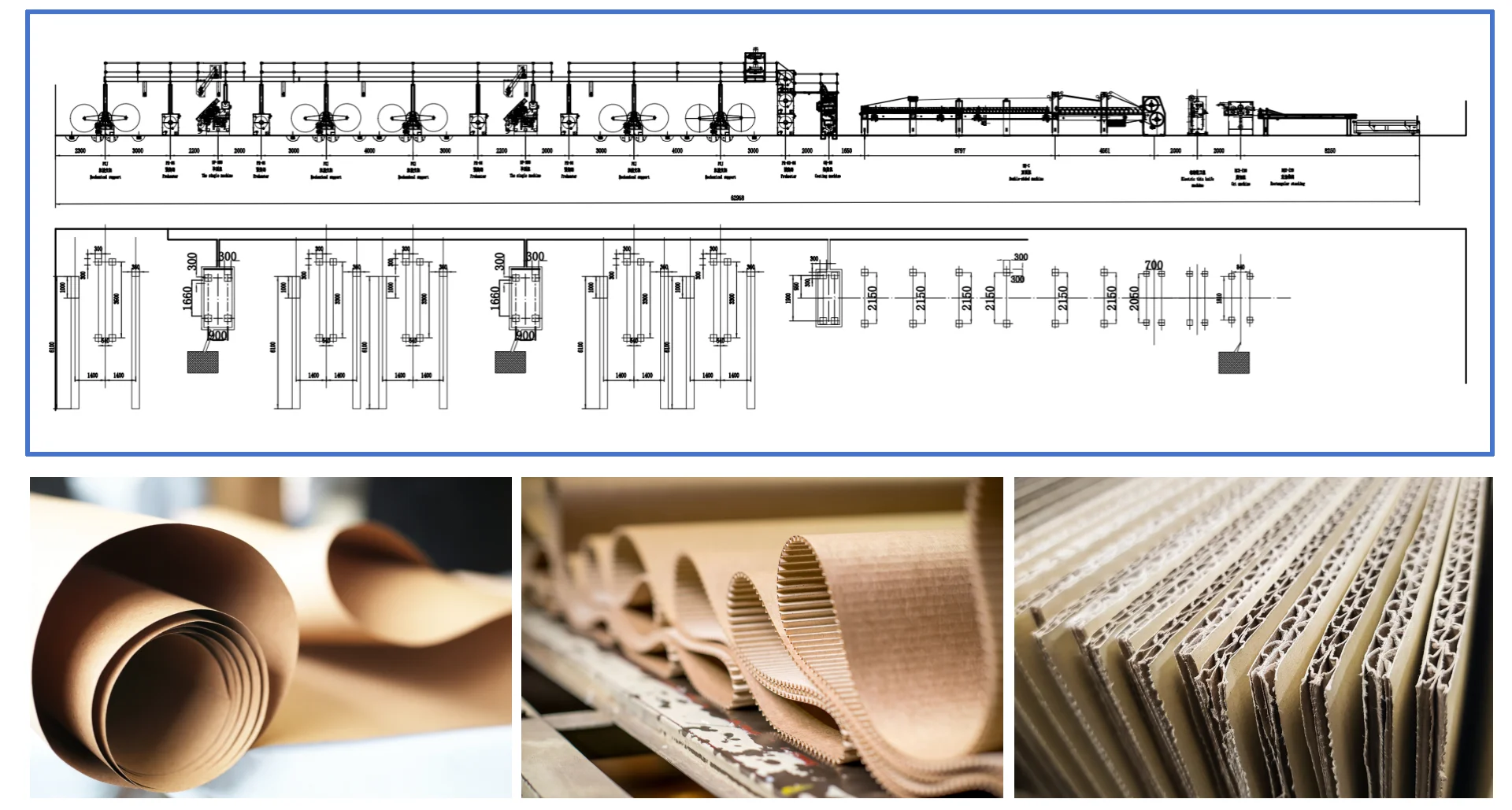

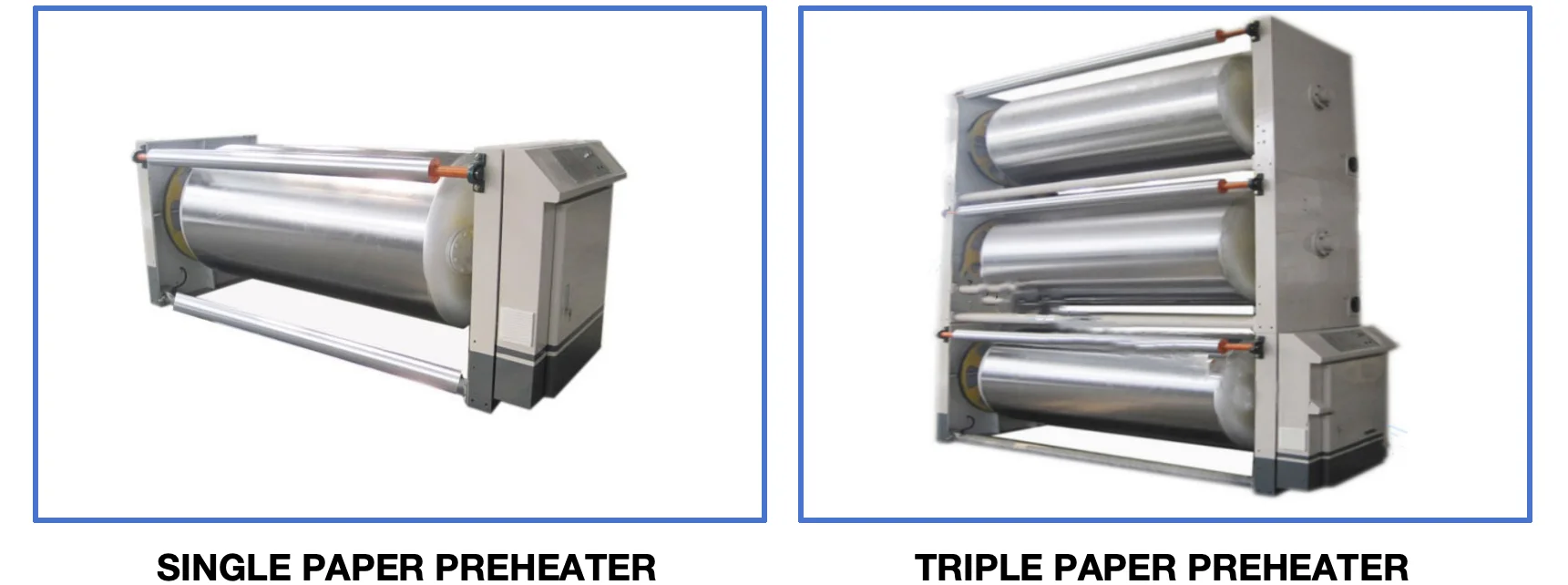

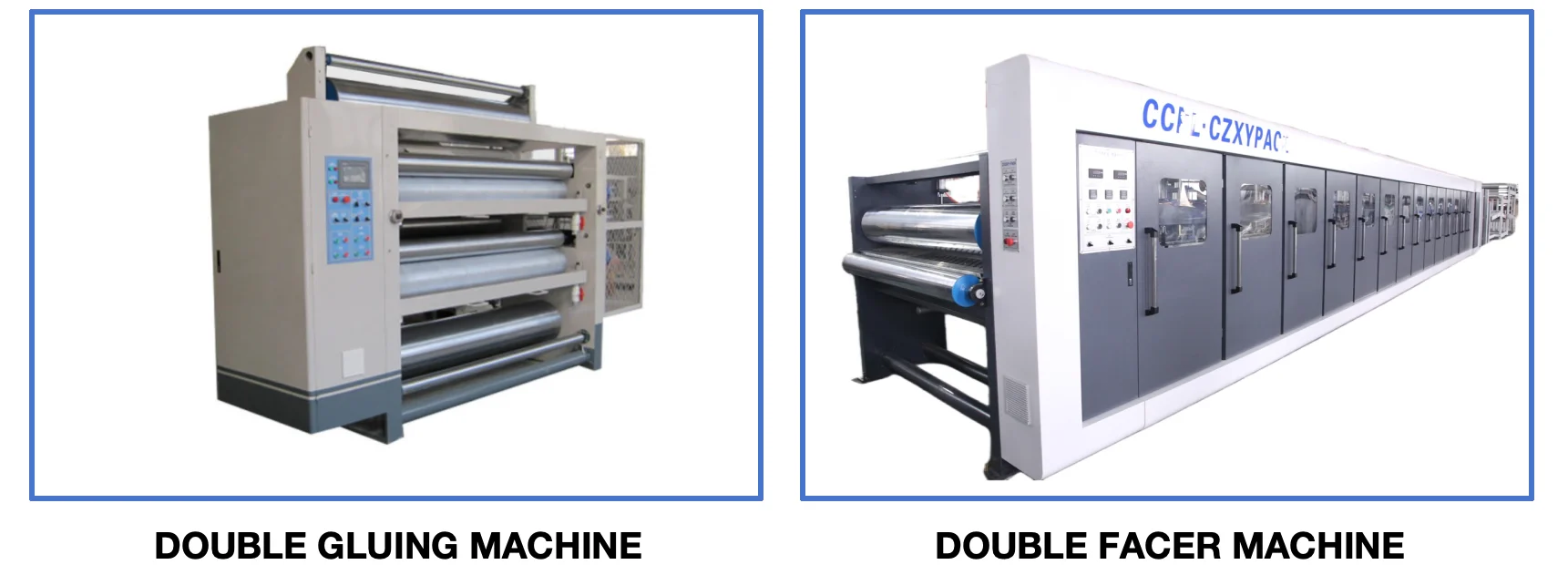

Corugated cardboard production line is the professional equipment for producing corrugated cardboard. The production line consists of the mill roll stand, pre-heater, single facer machine, conveyor bridge, gluing machine, double facer machine, slitter scorer, NC cutter, and stacker, heating System, air compression system and glue making system and so on.
We produced 3,5,7 ply corrugated production line with different fitting. On the basis of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, The paper with1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.
We produced 3,5,7 ply corrugated production line with different fitting. On the basis of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, The paper with1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.
NO. | Parameters | 100-1800 | 150-1800 | 200-1800 |
1 | Overall size L*W*H（m） | 56*4.5*4.2 | 67*4.5*4.2 | 82*4.5*4.5 |
2 | Factory size L*W*H（m） | 60*11*5 | 72*11*5 | 88*11*6 |
3 | Total power | 100kw | 180kw | 250kw |
4 | Steam requirement | 4t/h boiler | 4t/h boiler | 4t/h boiler |
5 | Paper width（mm） | 1800 | 1800 | 1800 |
6 | Mechanical speed | 80m/min | 120m/min | 180m/min |
7 | Economical speed | 60m/min | 90m/min | 150m/min |
8 | Transverse cutting accuracy | +-1mm | +-1mm | +-1mm |
9 | Transverse cutting range | 500-9999mm | 500-9999mm | 500-9999mm |
10 | Slitting range | 145-1800mm | 160-1800mm | 160-1800mm |
11 | Slitting accuracy | +-1mm | +-1mm | +-1mm |
