10.1 inch 1280x800 LVDS interface ips tft lcd with wide temperature TFT panel
- Category: >>>
- Supplier: Shenzhen Startek Electronic Technology Co. Ltd.
Share on (1601271701149):
Product Overview
Description
Company Profile
Shenzhen Startek Electronic Technology Co.Ltd
Startek was founded in 2011 and primarily manufactures LCD Modules and PCT Sensors.The business comprises development, production and sales, and has approximately 90 million RMB investment, of which 50 million RMB is
made up of inventory and raw materials. The company is located inside Hengshou Sci-tech Park, Guangming New
District in Shenzhen, the plant area totals 8000 square meters of 100-class clean room and 300 square meters of 10
-class clean chamber. The company currently suppliers 1200 existing customers,with afurther 13,000 prospective customers working towards mass production status.
Construction of a New Production Base in Huizhou City
The New production base of STARTEK in Huizhou is located in Building 21, Erix Science and Technology Industrial Park, Zhongkai High-tech Zone, Huizhou City. The project has 11 floors in total, with 1200 square meters per floor and 13200 square meters in total.
The completion of the new base will not only further expand the production scale, further dominate the product advantages, achieve scale efficiency, but also greatly improve the LCD display industrial level, improve customer satisfaction.
The completion of the new base will not only further expand the production scale, further dominate the product advantages, achieve scale efficiency, but also greatly improve the LCD display industrial level, improve customer satisfaction.
Products Description

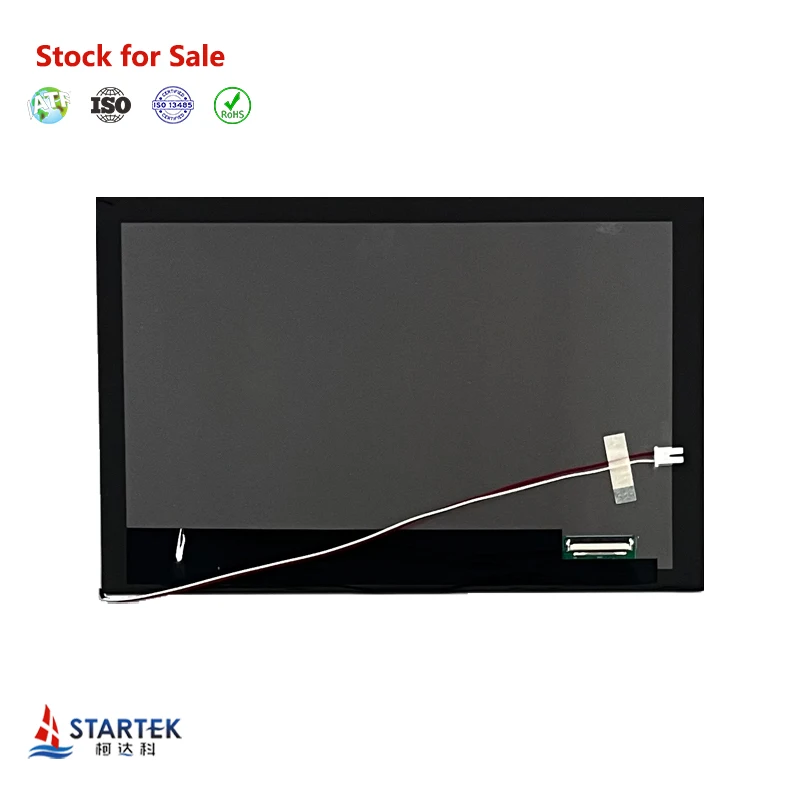

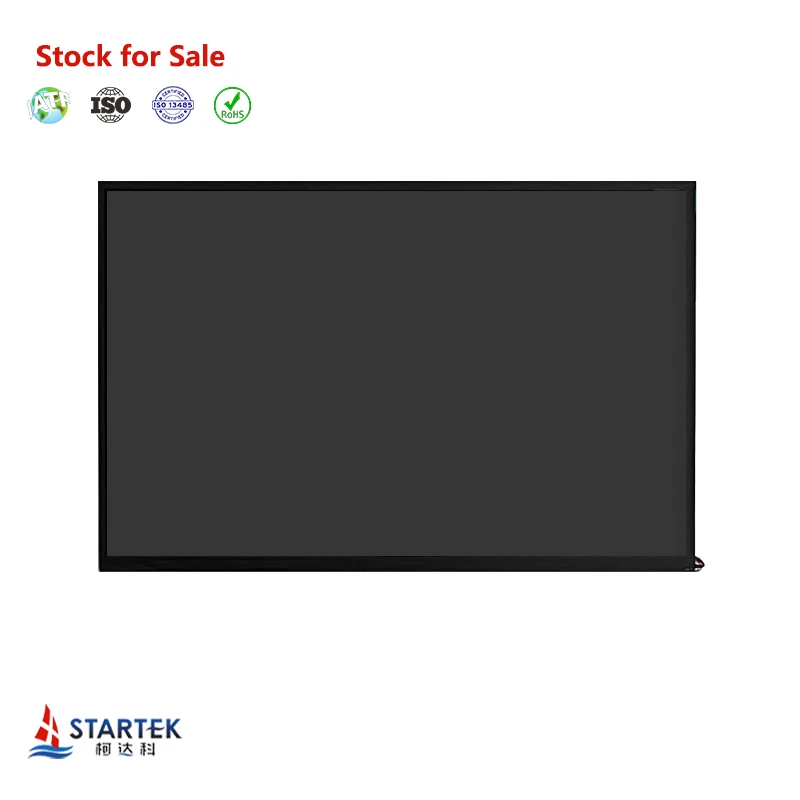

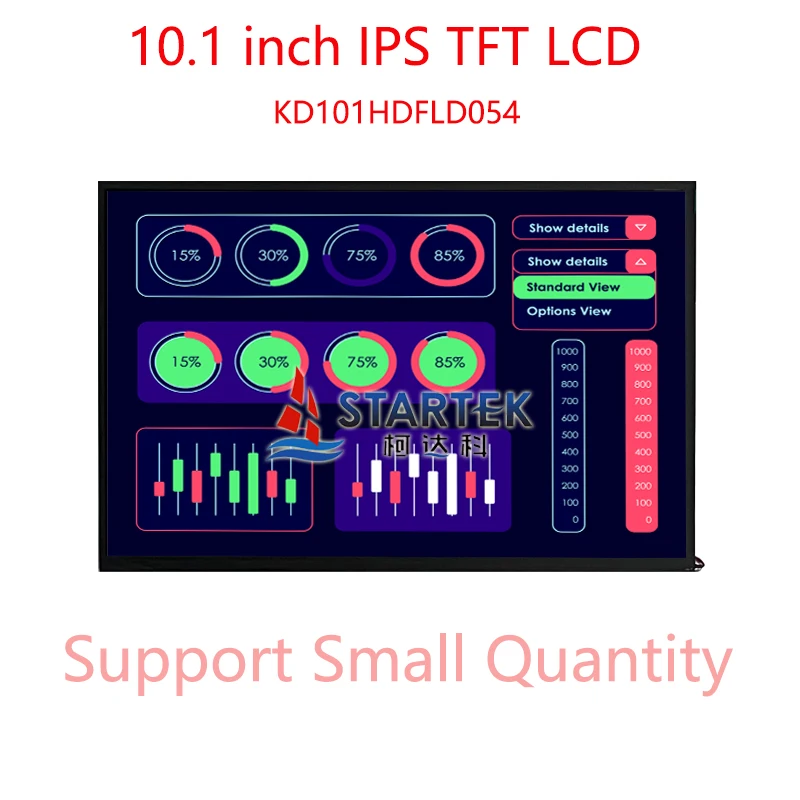

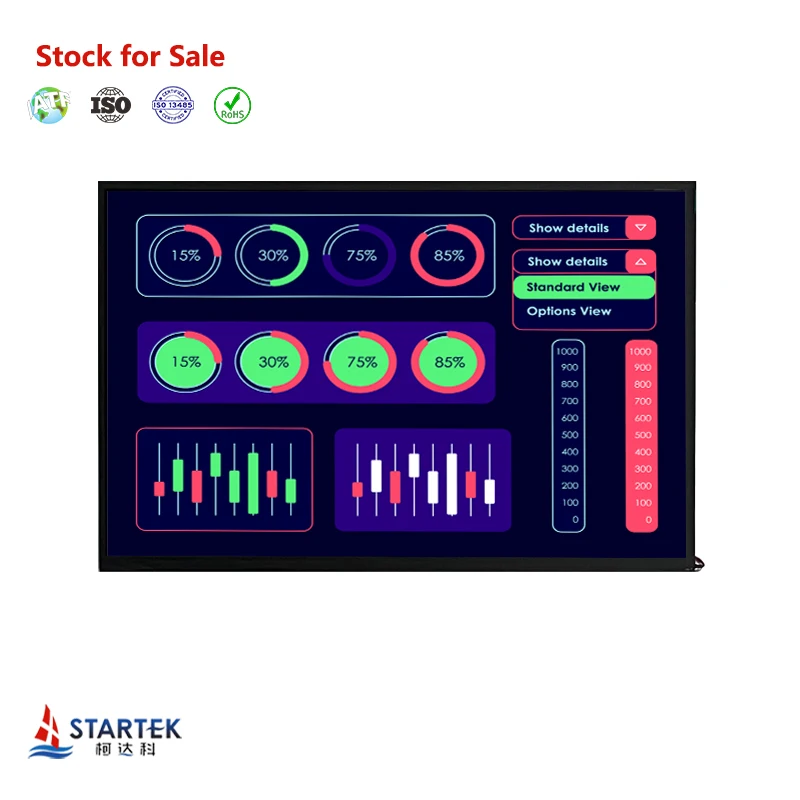

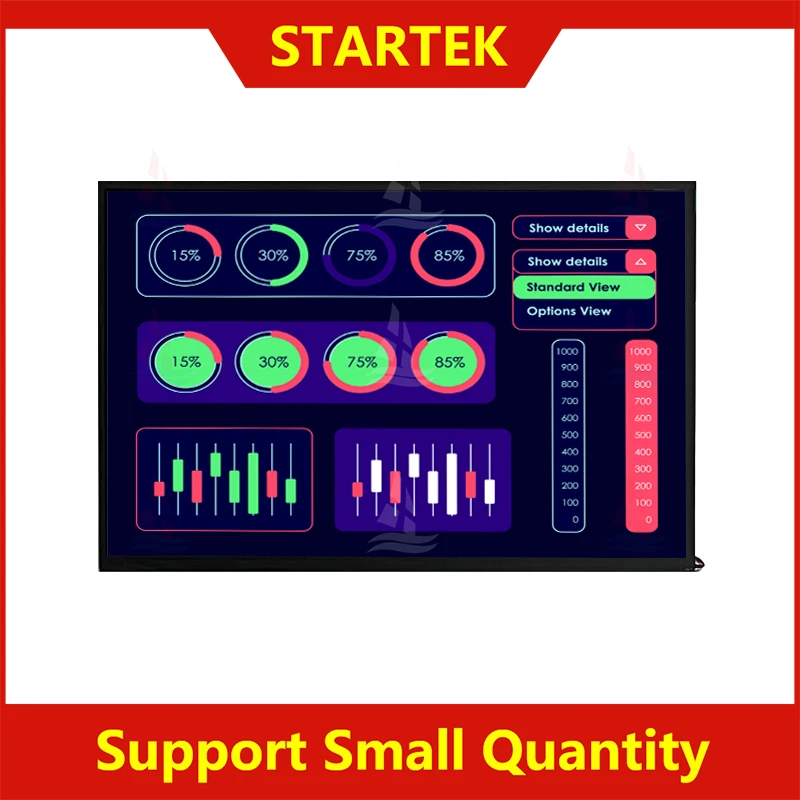

1. Productname: 1 inch 1280x800 IPS wide temperature TFT LCD module with LVDS interface
2. Part No.: KD101HDFLD054
3. : 10.1 inch
4. Compatible part No.: --
5. With touch panel or not: No
6. Touch type: No
7. Display type: IPS
8. Display colors: 7M
9. Resolution (pixels): 1280x800
10. Pixel pitch: 1695(H)*0.1695(V)
11. Viewing direction: Free V.A
12. Driver IC: EK79202D
13. Display mode: Transmissive / Normally black
14. Overall size: 60*149.10*4.38mm
15. Viewing area: --
16. Active area: 96*135.60mm
17. Luminance: 1000cd/m²
18. Contrast: 1000∶1
19. Interface type: 8 BIT LVDS
20. Pin NO.: 40
21. Pin pitch: --
22. Connecting type: plugging type
23. Input voltage: 3.3V
24. Backlight type and color: LED backlight white
25. Backlight: 36 LEDs 4 Series & 9 Parallel
VF =12.2V, IF=540mA
26. LED life time: 50000h
27. Operating temperature range: -30℃～+85℃
28. Storage temperature range: -40℃～+85℃
29. Compliant: RoHS
Certification of registration: ISO9001, ISO13485, ISO14001, IATF16949
2. Part No.: KD101HDFLD054
3. : 10.1 inch
4. Compatible part No.: --
5. With touch panel or not: No
6. Touch type: No
7. Display type: IPS
8. Display colors: 7M
9. Resolution (pixels): 1280x800
10. Pixel pitch: 1695(H)*0.1695(V)
11. Viewing direction: Free V.A
12. Driver IC: EK79202D
13. Display mode: Transmissive / Normally black
14. Overall size: 60*149.10*4.38mm
15. Viewing area: --
16. Active area: 96*135.60mm
17. Luminance: 1000cd/m²
18. Contrast: 1000∶1
19. Interface type: 8 BIT LVDS
20. Pin NO.: 40
21. Pin pitch: --
22. Connecting type: plugging type
23. Input voltage: 3.3V
24. Backlight type and color: LED backlight white
25. Backlight: 36 LEDs 4 Series & 9 Parallel
VF =12.2V, IF=540mA
26. LED life time: 50000h
27. Operating temperature range: -30℃～+85℃
28. Storage temperature range: -40℃～+85℃
29. Compliant: RoHS
Certification of registration: ISO9001, ISO13485, ISO14001, IATF16949
Lead Time
Samples (1-30 PCS ) | Immediately |
31-100 PCS | 1 Week |
101- 500 PCS | 1-2 Weeks |
501-1000 PCS | 2-4 Weeks |
1001-5000 PCS+ | 4-6 Weeks |
Details Images
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to North America(25.00%),Eastern Europe(22.00%),Domestic Market(20.00%),Western Europe(17.00%),Southern Europe(16.00%),Eastern Asia(8.00%),South America(6.00%),Mid East(6.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
LCD Module,LCD Display,Capacitive Touch Panel,Drive Board,IPS LCD
4. why should you buy from us not from other suppliers?
As a high-tech company, Shenzhen Startek Electronics Technology Co.,Ltd mainly provides clients with the service of designing liquid crystal display panel (LCD) and liquid crystal display module(LCM), and is committed to the customized service, R&D, sales,
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP；
Accepted Payment Currency:USD,EUR,JPY,HKD;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2011,sell to North America(25.00%),Eastern Europe(22.00%),Domestic Market(20.00%),Western Europe(17.00%),Southern Europe(16.00%),Eastern Asia(8.00%),South America(6.00%),Mid East(6.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
LCD Module,LCD Display,Capacitive Touch Panel,Drive Board,IPS LCD
4. why should you buy from us not from other suppliers?
As a high-tech company, Shenzhen Startek Electronics Technology Co.,Ltd mainly provides clients with the service of designing liquid crystal display panel (LCD) and liquid crystal display module(LCM), and is committed to the customized service, R&D, sales,
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP；
Accepted Payment Currency:USD,EUR,JPY,HKD;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal;
Language Spoken:English,Chinese
