Web tension control load cell force sensor transducer for paper film foil printing aerospace textiles automotive packaging

Product Overview

Description

Model	YGX-CZH
Type	Roller web tension load cell
Material	Stainless steel
MOQ	1pc
Packing	Carton
Lead time	5-30 days
OEM ODM	Welcome
Quality guarantee	12months
Place of Origin	Shenzhen,China
Payment	T/T,  Alipay , Western Union, Credit card etc.
Transportation	By DHL,UPS,Fedex,EMS,Air transportation,By Sea etc.



250N 500N 1000N Web tension control load cell force sensor transducer for paper film foil printing aerospace textiles automotive packaging



Features & Applications:

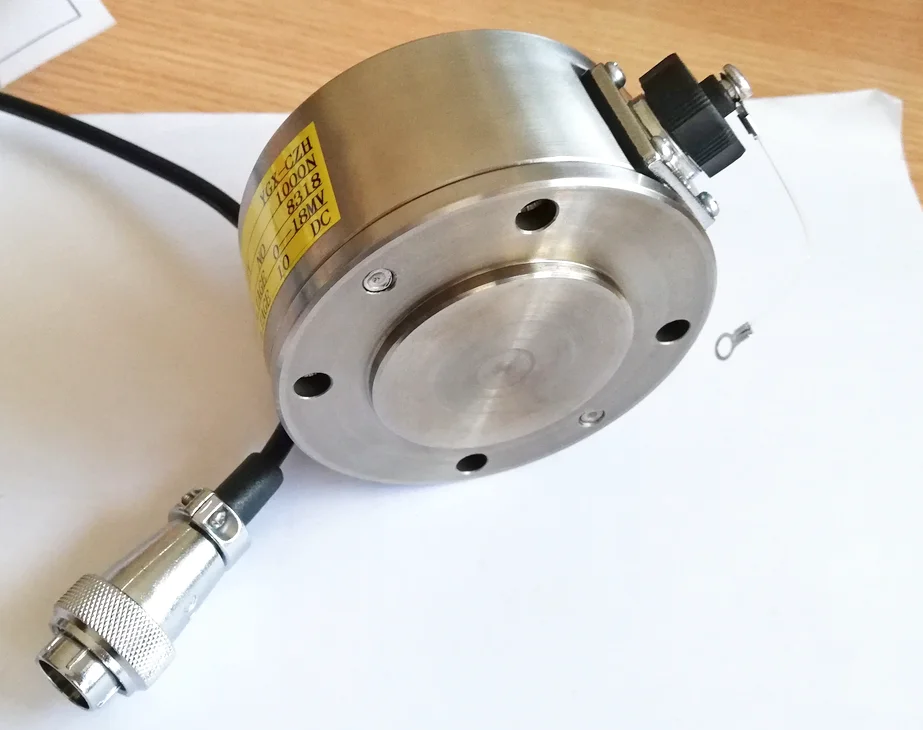

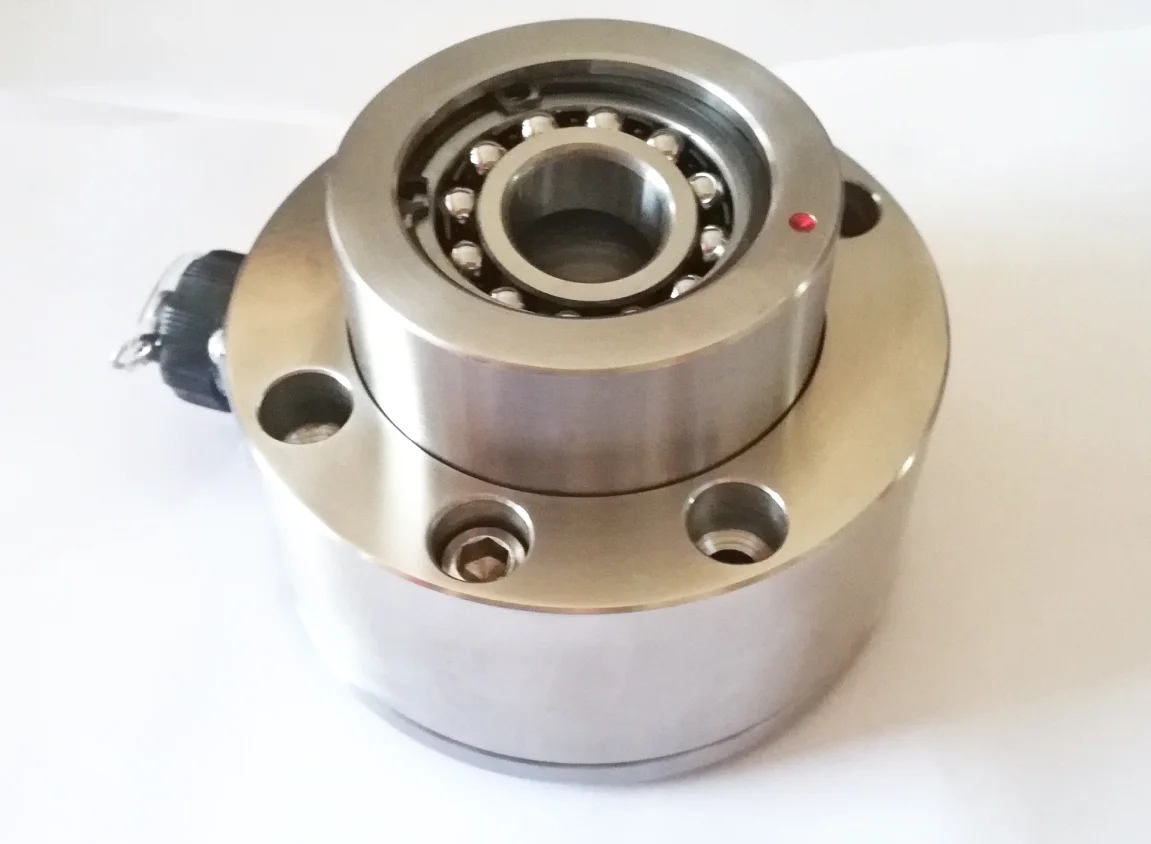

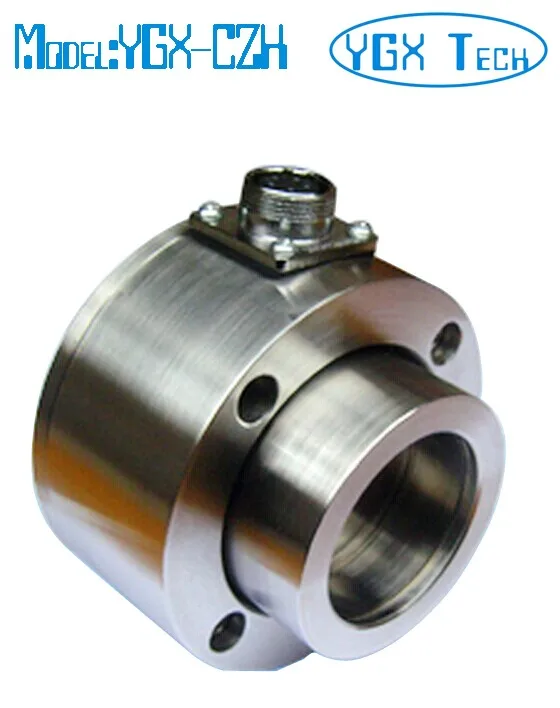

YGX-CZH Tension sensor design in movable shaft structure, in the production process of ontinuous material, it is easy to replace the tension measuring roll. It can be mounted on the side of equipment with bolt, it can also be installed in the top of the device through the mounting bracket matching. Electrical connector surface sensor has a red dot indicating the positive direction of sensor axis. Even wrap angle of the material is smaller, it also can ensure the accurate measurement of tension when the dead-weight of tension measuring roll is big.



Technical features:

10 times overload capacity, zero point stability, no need to re-calibrate the sensor.

20:1 force measurement range, within the force measuring range, the accuracy can be 0.5%

The rated range 250, 500, 1000N, suitable for application widely

Sensor is made of stainless steel, corrosion resistance, high reliability



Capacity:    250N 500N 1000N



Specification

Rated Output	1.5  ± 2.0%  mV / V
Non-linearity	≤ 0.02~0.05 % F.S.
Hysteresis	≤ 0.02~0.05 % F.S.
Creep(30min)	≤ 0.03 % F.S
Repeatability	≤ 0.02~0.05 % F.S.
Temperature Effect On Output	≤ ± 0.03% F.S. / 10ºC
Temperature Effect On Zero	≤  ± 0.03 % F.S. / 10ºC
Input Impedance	380 ± 2Ω
Output impedance	350 ± 2Ω
Insulation	≥ 5000MΩ/50VDC
Recommended Excitation	12V
Maximum excitation	10~15 V
Operation Temperature Range	- 20 ~ 70 ºC
Safe Overload	1000 % F.S.
Standard signal output throug amplifier	(0-5)v,(0-10)v,(4-20)mA optional
Material	Stainless steel
Cable Color Code	Input: Red(+)         Green(-);    Output: Yellow(+)   White(-);

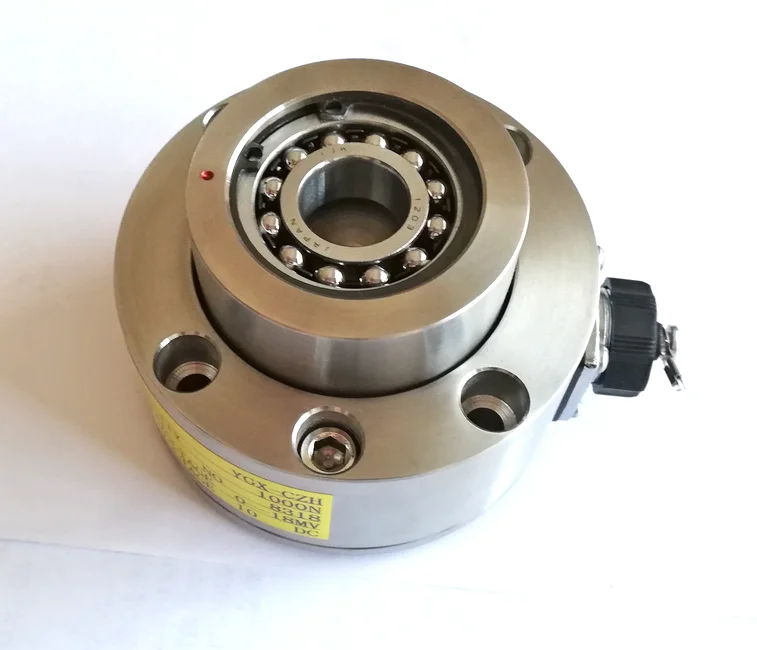

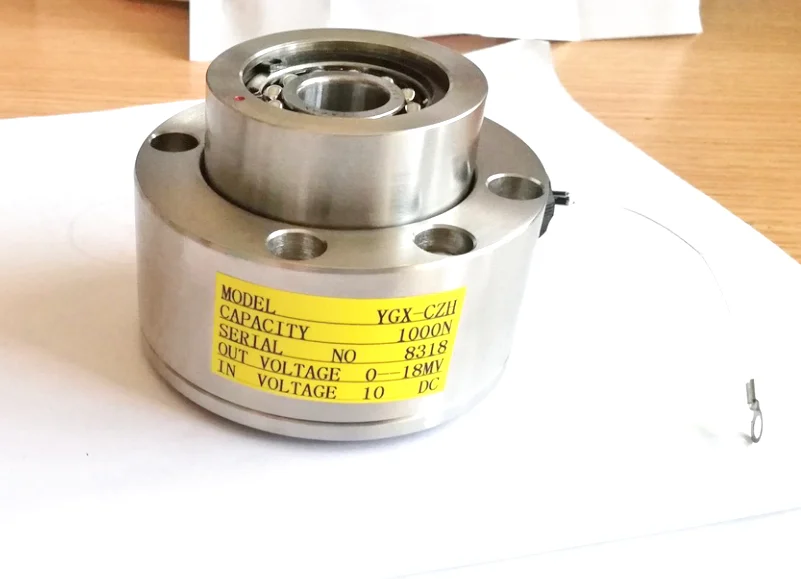

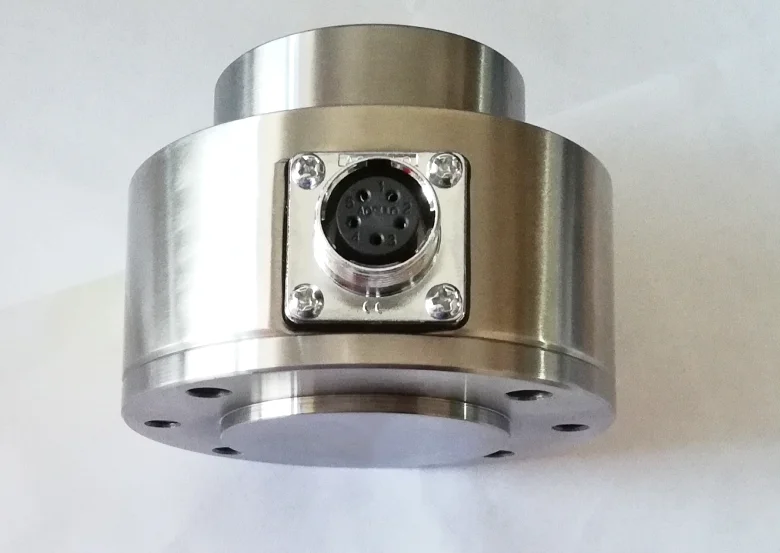

YGX-CZH    Product picture

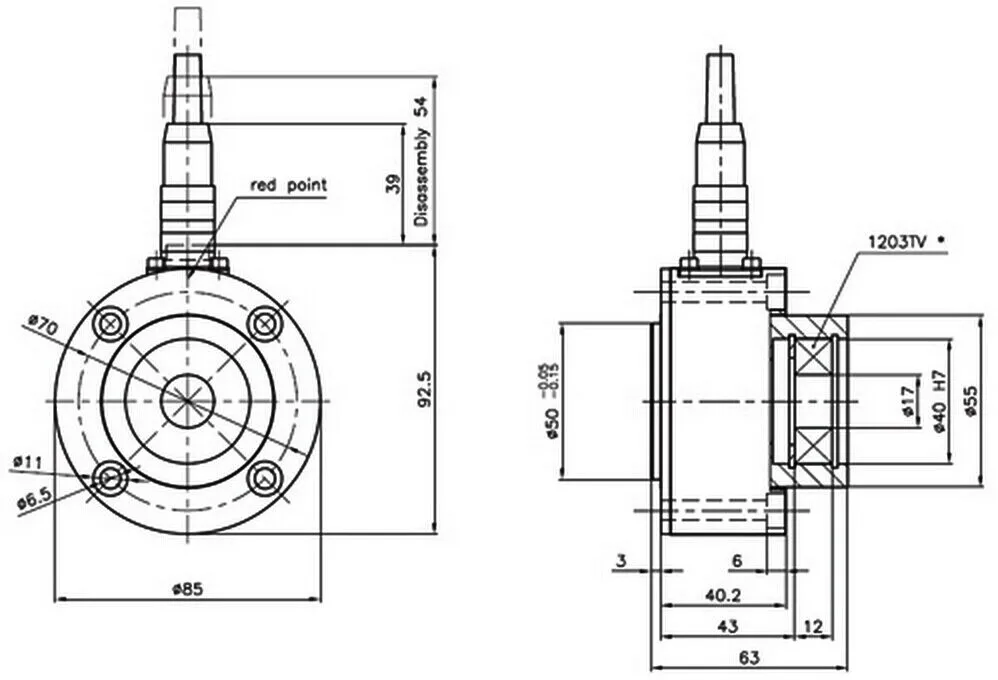

Dimensions:







 Custom made is available.

We can produce the products according your requirements.
