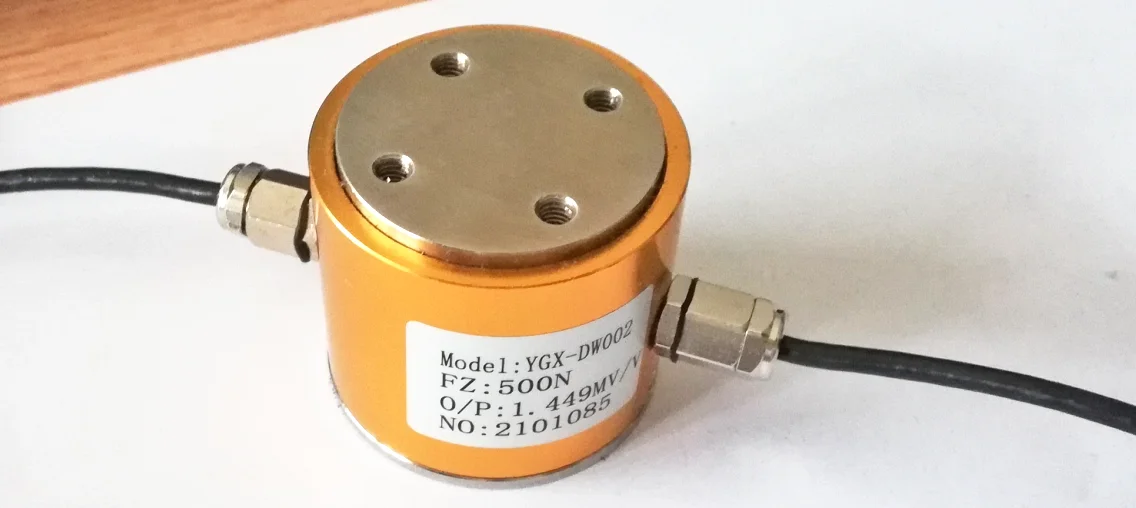

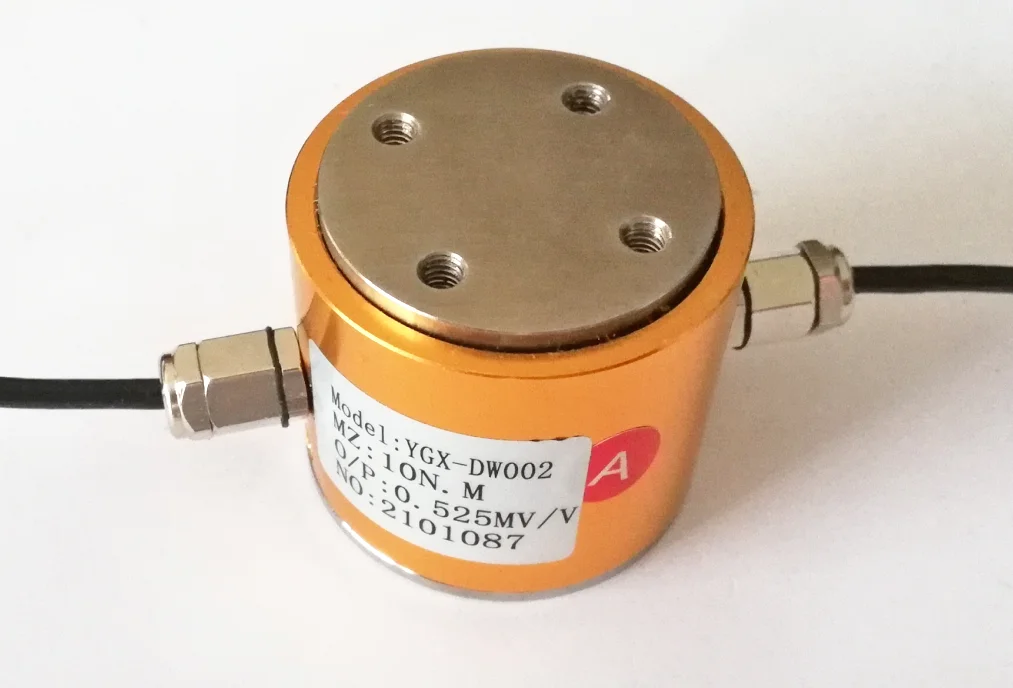

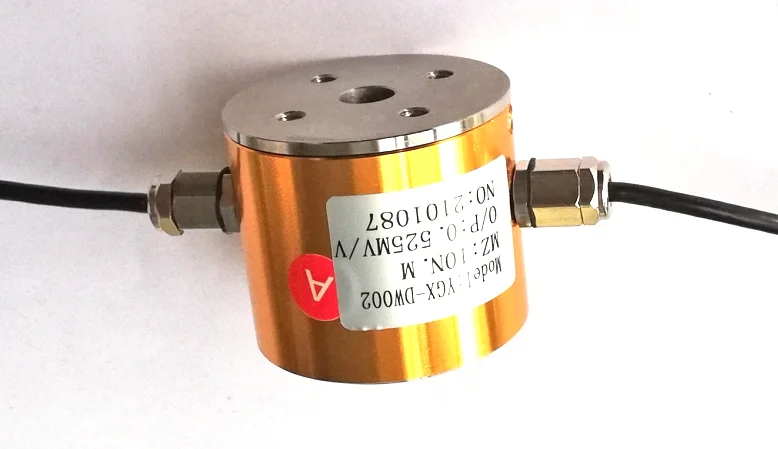

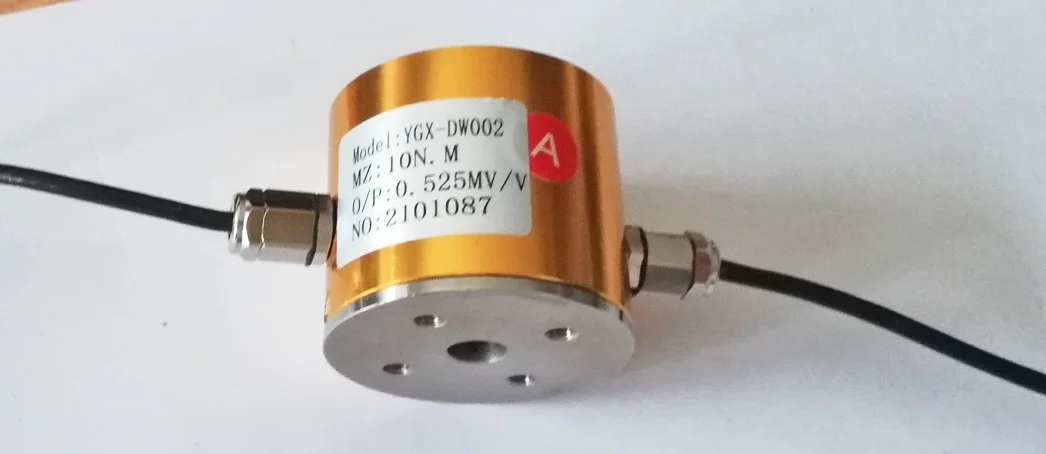

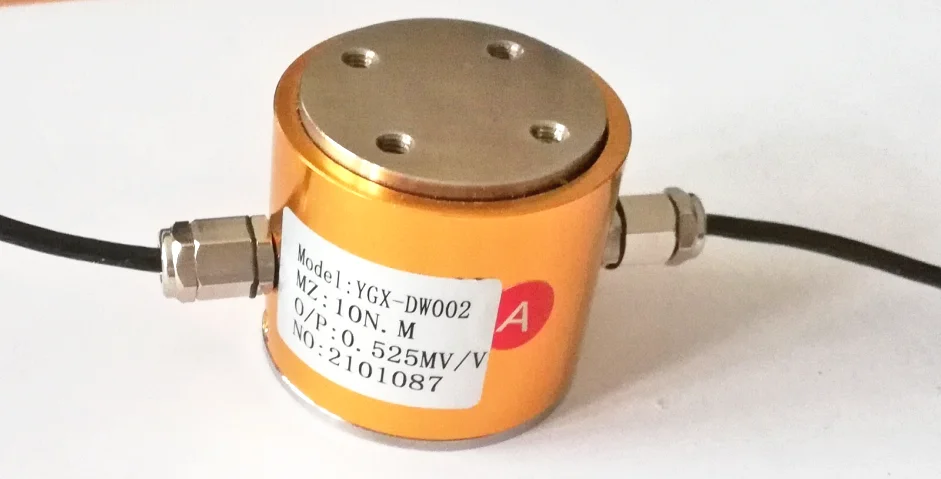

Two dimensional force and torque load cell sensor transducer for both measuring force and torque simultaneously

Product Overview

Description

Model	YGX-DW002
Type	2 axis force torque sensor
Material	Alloy steel / Stainless steel
MOQ	1pc
Packing	Carton
Lead time	5-30 days
OEM ODM	Welcome
Quality guarantee	12months
Place of Origin	Shenzhen,China
Payment	T/T,  Alipay , Western Union, Credit card etc.
Transportation	By DHL,UPS,Fedex,EMS,Air transportation,By Sea etc.



5Nm 500N Two dimensional force and torque load cell sensor transducer for both measuring force and torque simultaneously





Features & Applications:

Two-dimensional force sensor

Force torque and pressure.

Stainless steel or aluminum alloy material.

Wire mesh braided shielded wire 3 meters long



Capacity : 5Nm ;500N (other ranges can be customized)



Specification

	Torque	Force
Capacity	5Nm	500N
Rated output	0.8-1.2mV/V
Excitation	3-15V
Zero balance	±2% of R.O.
Non-linearity	±0.03% of R.O.	±0.03% of R.O.
Hysteresis	±0.03% of R.O.	±0.03% of R.O.
Repeatability	±0.02% of R.O.	±0.02% of R.O.
Creep(10min)	±0.05% of R.O.
Safe overload	150%F·S
Ultimate overload	200%F·S
Operation temperature range	-10℃~+60℃
Temperature effect on zero	±0.01% of R.O./ ℃
Temperature effect on output	±0.01% of R.O./ ℃
Operation temperature range	-20℃~+80℃
Input impedance	350Ω
Output impedance	350Ω
Insulation	≥5000MΩ(50VDC)
Protection Class	IP65
Cable	Shielded cable 3 meters long

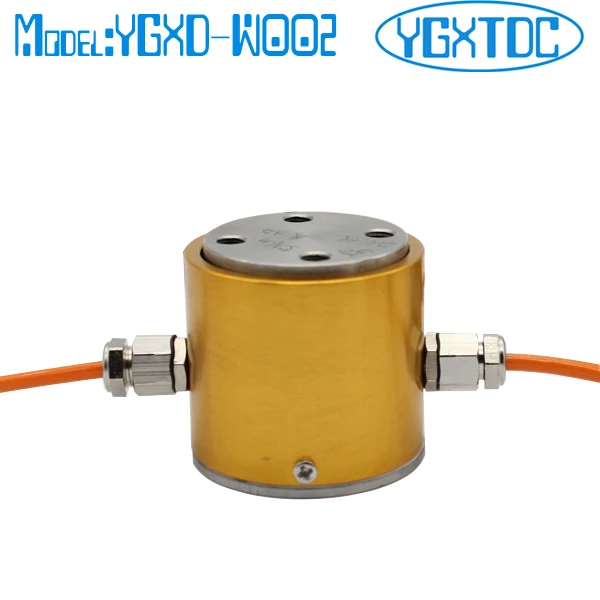

YGX-DW002 Product picture









Dimensions







Custom made is available.

We can produce the products according your requirements.



















































FAQ:



1. What is the MOQ?

 If we don’t have it in stock, the MOQ is 5 pcs

If we have it in stock, we can ship you even 1 pc as sample.



2. What is lead time?

If we have it in stock, we can ship it to you within about 3-5 working days.

If we don’t have it in stock, the lead time will be 10-30 days.



3. What is the payment terms?

T/T, Western Union, L/C, Alipay  is acceptable.

Alipay  is same like paypal, after you place the order and make the payment on alibaba.com, alibaba company will notify us to make the shipment, your money won’t be released until you get the goods.

If we don’t make the shipment, you still can take back your money.



4. What is the express delivery?

DHL, Fedex, TNT ,EMS, UPS etc.

 We will choose the safe and cheapest way for you to reduce your cost.

Economic shipping way: by sea, by air transport

If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.



5. What is the quality guarantee?

Quality guarantee:  12 months.

If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.



6. Is there any after-sale service?

 After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade manager,telephone and QQ etc.
