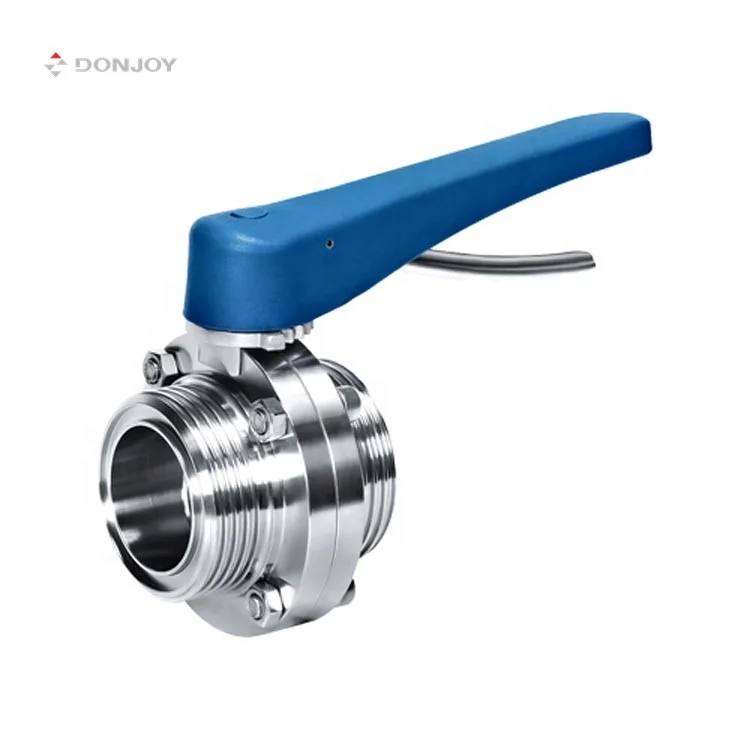

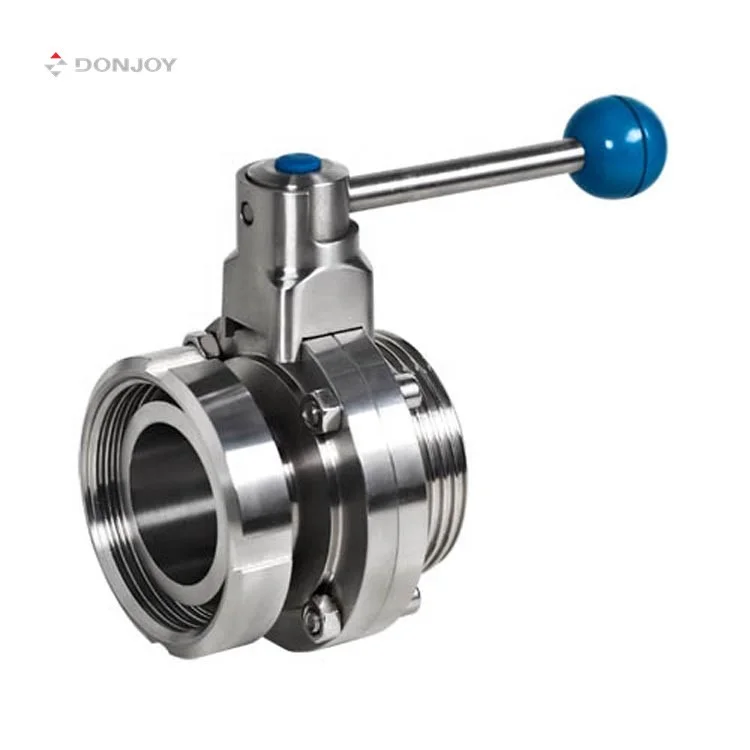

Donjoy high performance dairy pharmacy hygienic 6 inch tri clover stainless steel 304 316L butterfly valve

Product Overview

Description

Donjoy high performance dairy pharmacy hygienic 6 inch tri clover stainless steel 304 316L butterfly valve

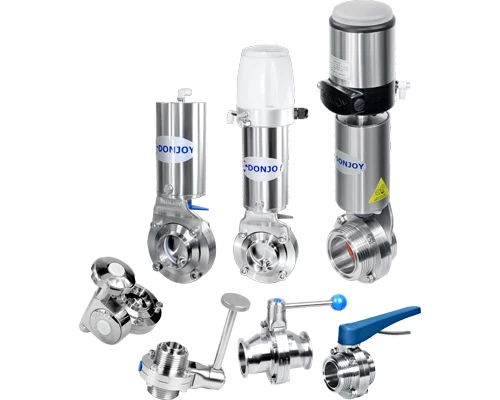

Various Types:

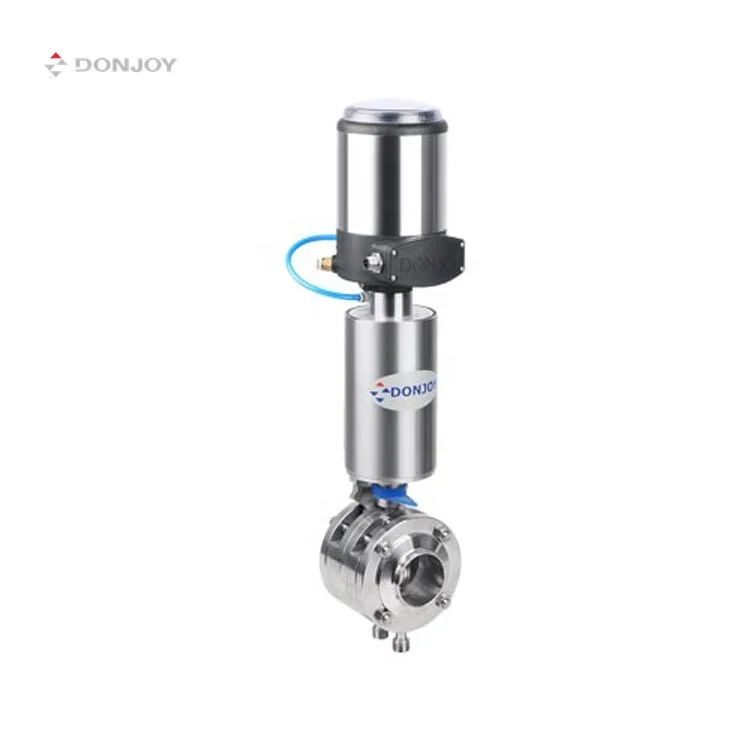

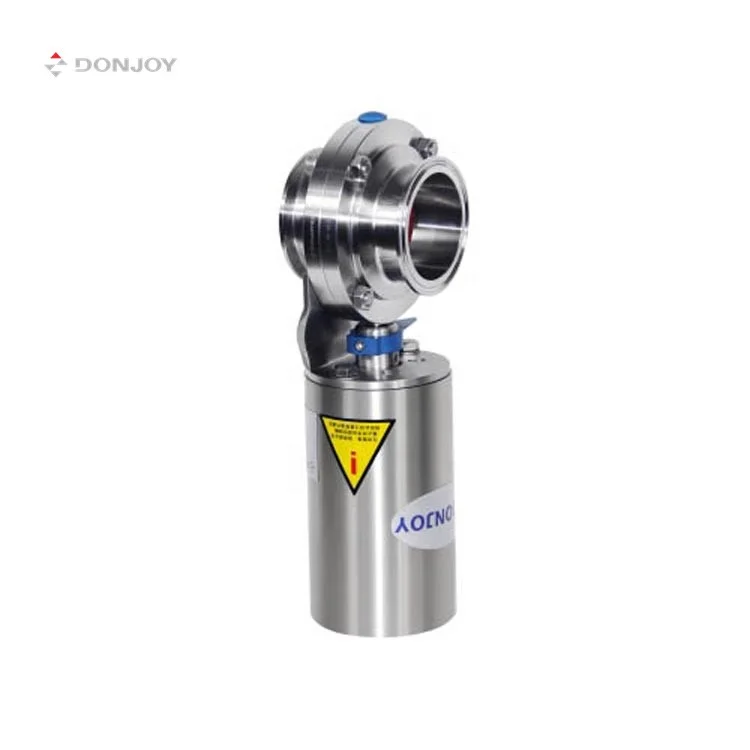

2 way manual & pneumatic & electric butterfly valve
3 way manual & pneumatic & electric butterfly valve
3PC manual & pneumatic & electric butterfly valve
Double seat mixproof butterfly valve (Type A & B)
Matched with remote control: C-TOP, IL-TOP, F-TOP, position sensor

Packaging Details:
Bubble pack for each valve.
Outside packing is by carton or plywood case.

Delivery details:
Usually within 20 days after receiving T/T down payment.

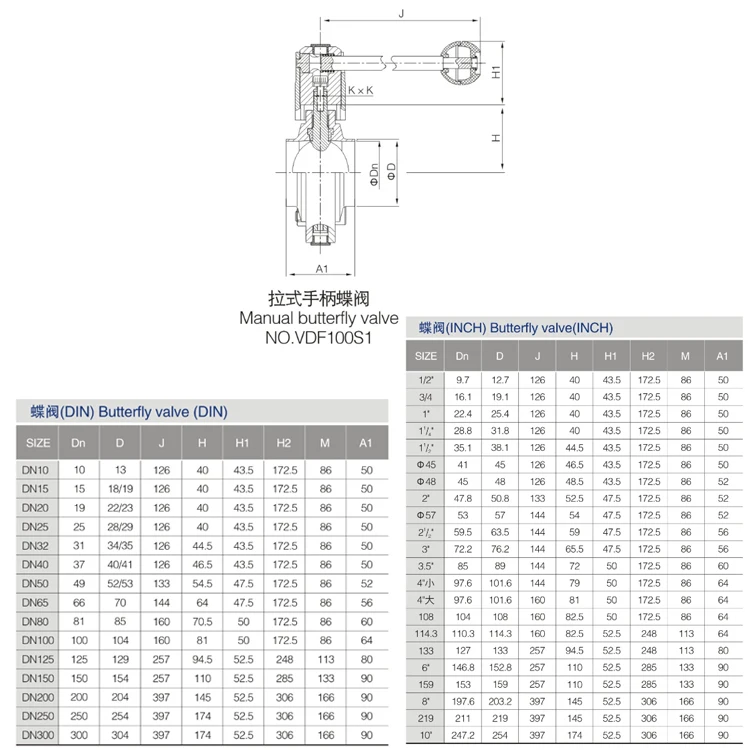

size	1/2''-12'', DN10-DN300
Material	304/1.4301, 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
Pressure	vacuum to 10bar (1.0Mpa)
Temperature	EPDM -20°C to +130°C, depending on the sealing material
Sealing material	EPDM,Silicon FKM, FFKM, HNBR, FVBQ, NBR
Connection standard	DIN, SMS, ISO, IDF, RJT, BS4825, ASME BPE, 3A, DIN 11864 DIN11853
Connection method	thread, clamp, welding, electric
Operation mode	manual, turbo, pnuematic, electic
Surface	Ra≤0.8μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

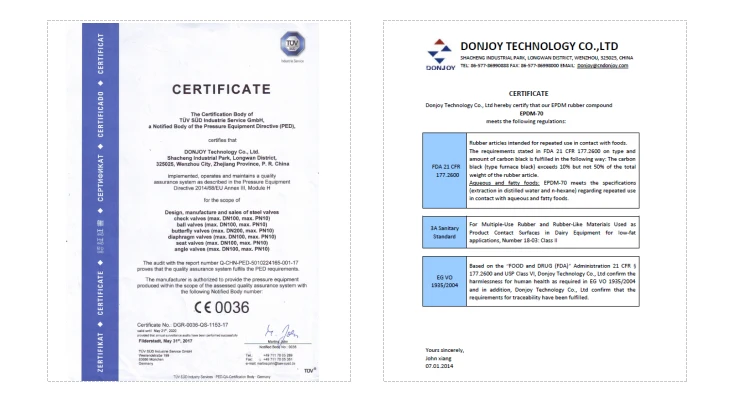

Certification	3A-68-00; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC
