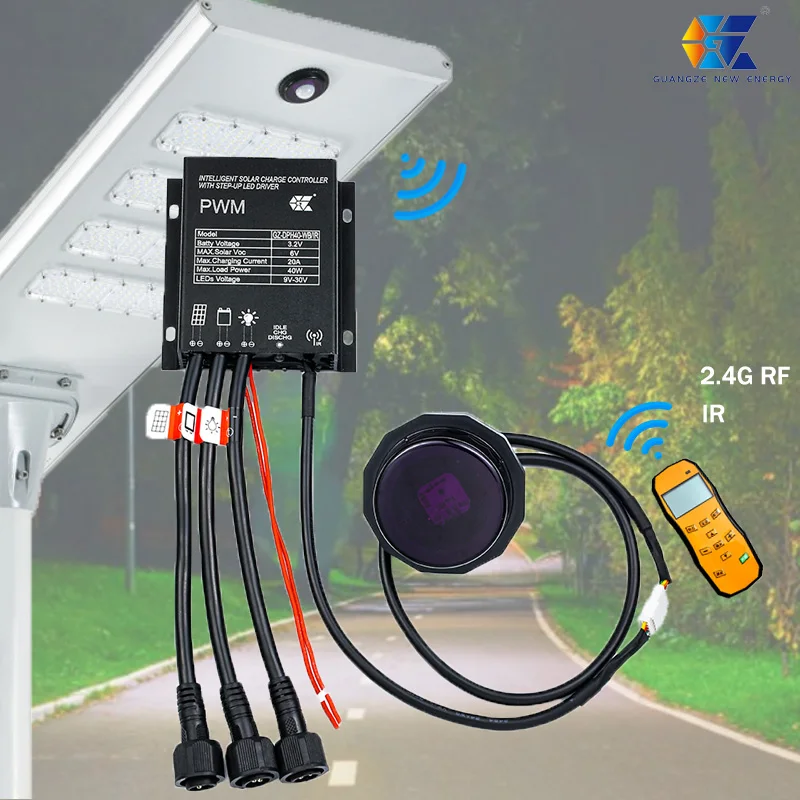

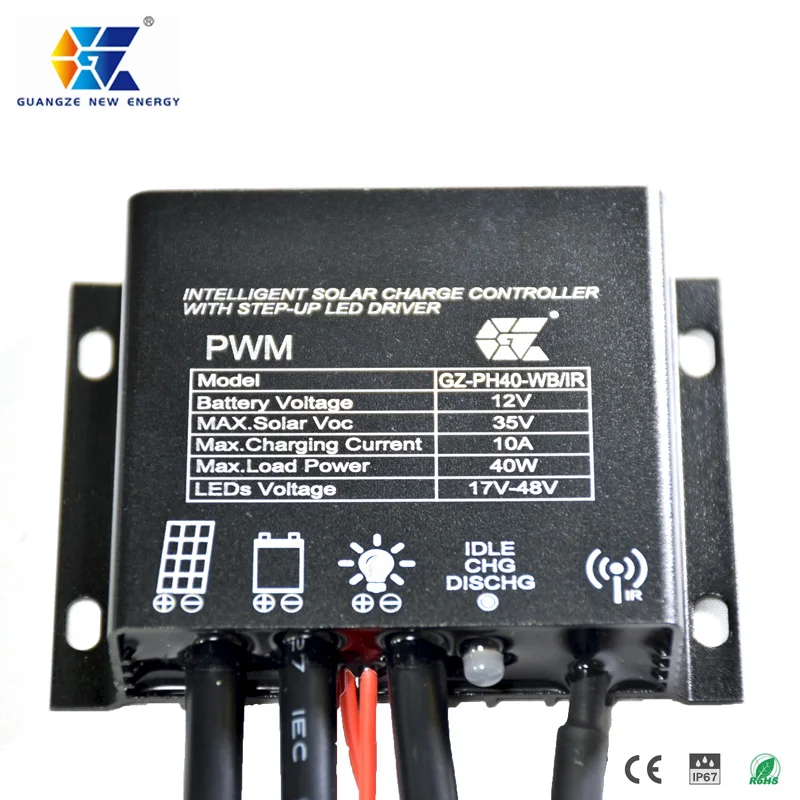

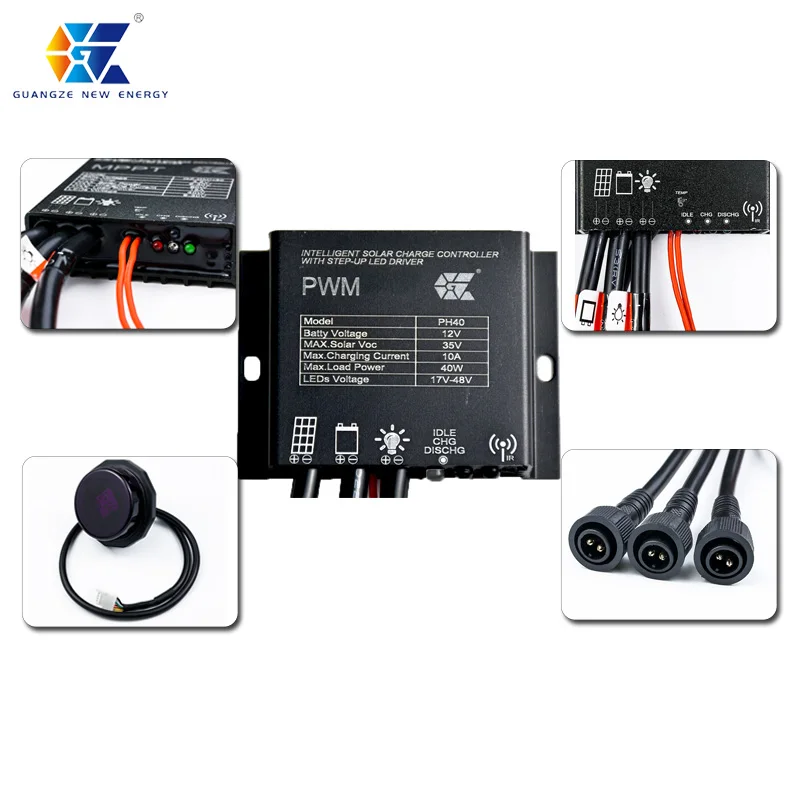

12/24v 10a Regulator Solar Street Light PWM Solar Light Ip67 Charging Controller for Lead Acid Battery with Microwave Sensor
- Category: >>>
- Supplier: Shenzhen Gloss Energy Technology Co. Ltd.
Share on (1601271789141):
Product Overview
Description
Specification
Parameter Name | Parameter Value | |||||||
Model | SPH30 | SPH40 | SPH80 | SPH100 | ||||
System Voltage | 12V-24V | |||||||
Battery Parameters | ||||||||
Maximum Charging Current | 8A | 10A | 15A | 20A | ||||
Charging Voltage Range | 12Vsystem PV18V-32V 24Vsystem PV32V-48V | |||||||
Battery Type | Lithium iron phosphate (4 strings) | Ternary lithium (3 strings) | ||||||
Constant Charging Voltage | 14.55V | 12.55V | ||||||
Float Charge Voltage | 14.00V | 12.15V | ||||||
Withdrawal of Under Voltage Protection | 12.00V | 9.90V | ||||||
Battery Under Voltage Protection | 10.00V | 9V | ||||||
PV Parameters | ||||||||
Maximum PV Access Voltage | ≤48V | |||||||
Out PV Voltage | ≥Light-up voltage*150% | |||||||
Lighted PV Voltage | ≤4V | |||||||
LED Parameters | ||||||||
Load Current | 50mA-1000mA | 50mA-1300mA | 50-2600mA | 50-3300mA | ||||
Drive LED Voltage Range | 18V-48V | |||||||
Maximum Power to Drive LED | 30W | 40W | 80W | 100W | ||||
Drive Current Error | ≤3% | |||||||
Dimming can be Divided into Time Periods | 5 | |||||||
LED Dimming Range | 0～100% | |||||||
Other Parameters | ||||||||
Maximum Efficiency of Driving Lights | 96% | |||||||
Hibernation Power Consumption | ≤1mA | |||||||
Communication Method | R-IR remote control W-2.4G wireless remote control | |||||||
Storage/working Temperature | -35～60℃ | |||||||
Storage/working Humidity | 0～100%RH | |||||||
Elevation | 3000m | |||||||
Protection Level | IP67 | |||||||
Weight | 140g | 140g | 230g | 260g | ||||
Size | 54*82*20 | 86*82*20 | 99*82*20 | |||||
Product Description
Product Features
1. This series of controller, suitable for single string lithium iron phosphate ternary lithium, 2 strings of lithium titan ateand
other batteries.
2. Compatible with 3.2V/3.7V/4.6V battery, soft open design, open design, low static power consumption≦1mA.
other batteries.
2. Compatible with 3.2V/3.7V/4.6V battery, soft open design, open design, low static power consumption≦1mA.
3. High efficiency boost constant current driver, current accuracy ±3%.

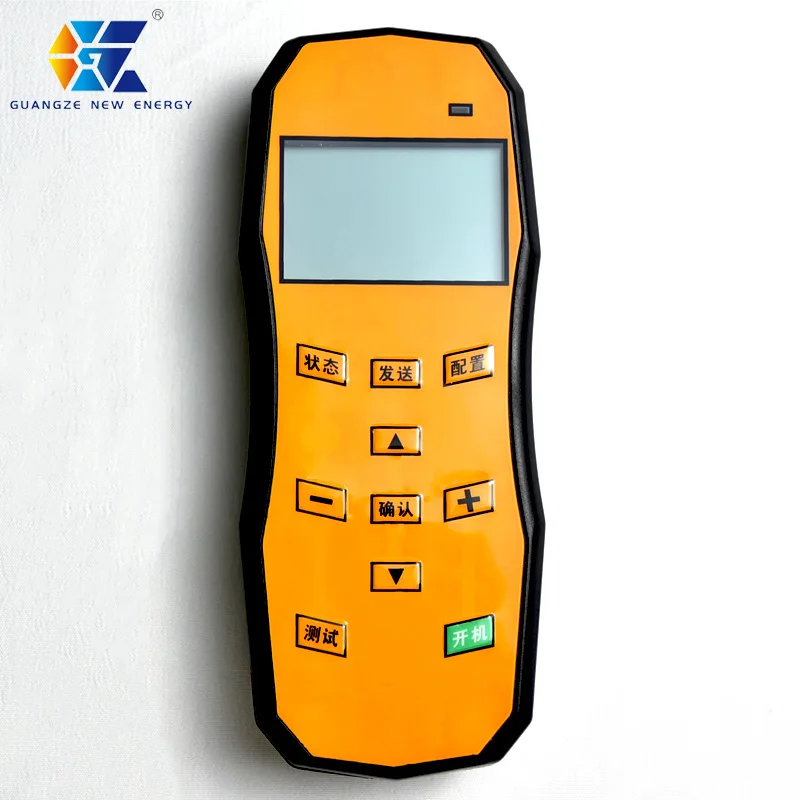

4. Infrared programmer flexible settings to meet a variety of customer drive light conditions.
5. Five time dimming and morning bright function, each time period can be set 0-9.9 hours, the power can be set 0%-100%.
6. Battery energy intelligent management, according to the battery power automatically adjust the load power to extend
the lighting time.
the lighting time.
7. Two-way encryption protocol for communication data.
8. Constant current control to ensure smooth and stable output current, reduce LED light decay and extend LED life.
9. Solar panel anti-reverse connection and anti-reverse charging protection, battery anti-reverse connection protection, LED light output short circuit and open circuit protection, overheating protection, lightning protection and other function.
10. Metal shell without key design, full waterproof grouting, protection level of IP67, adapt to a variety of harsh environments.

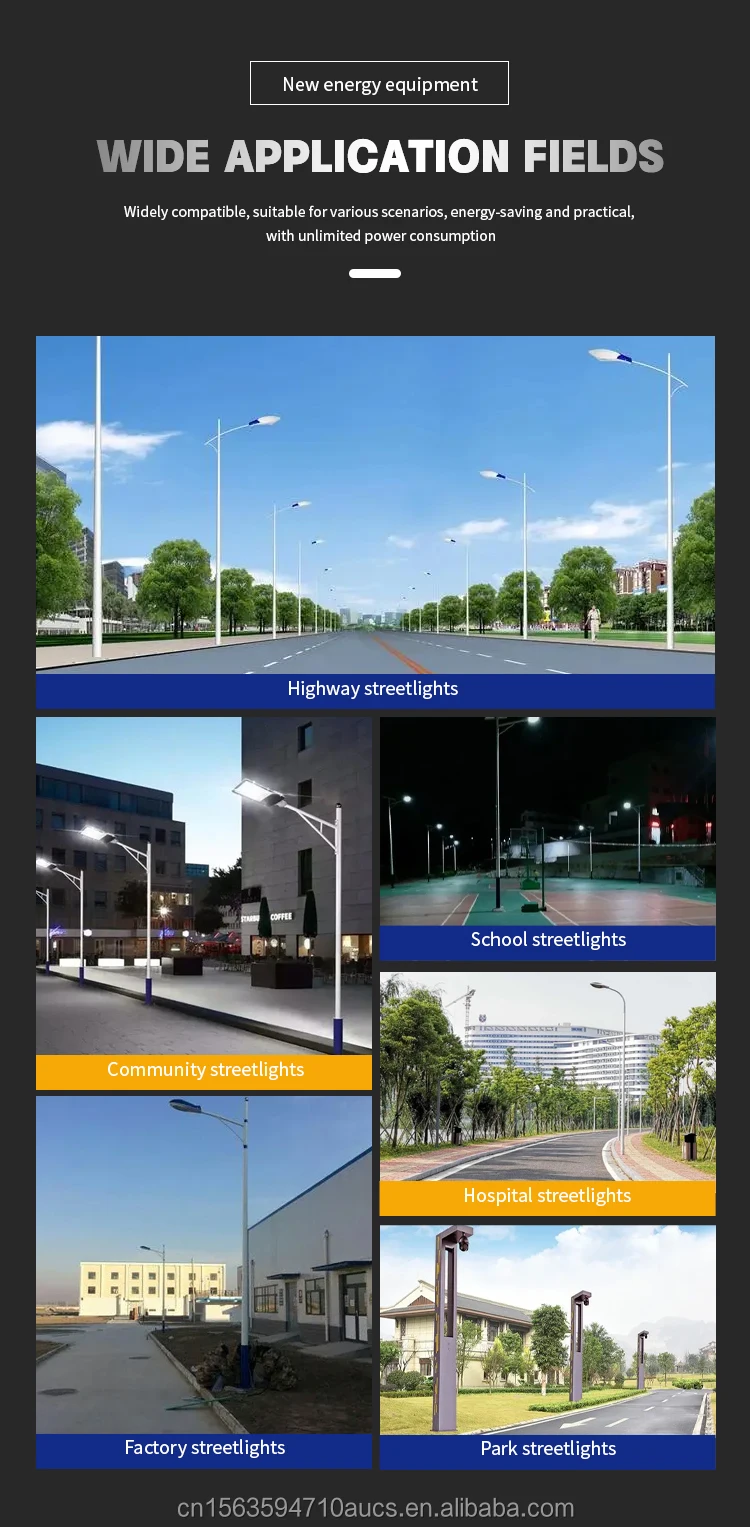

Application
Packing & Delivery

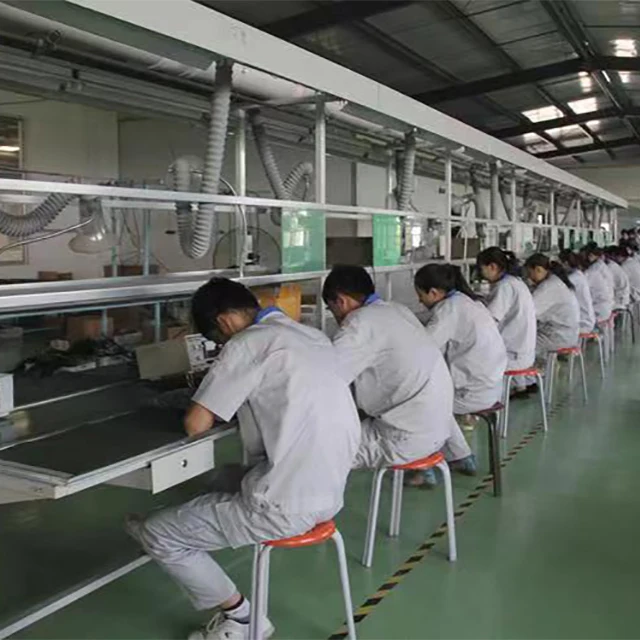

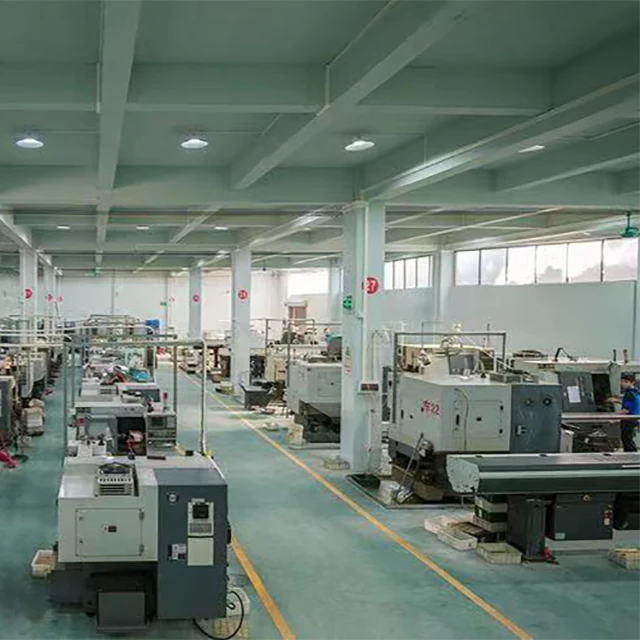

Company Profile
Gloss Solar is a new PV factory founded in 2012 , We have focused on the development and application of solar energy technology for more than 10 years.
With a strong R&D center and production line, we are specialized in producing and supplying DC to AC power inverter including modified sine wave power inverter, pure sine wave inverter, and inverter with built-in charger, DC to DC converter, solar charge controller includes PWM and MPPT solar controllers, solar wall mounted inverter, solar panels, solar connectors etc. all for solar off-grid power solution!
We are the original manufacturer！ welcome to visit our factory!
FAQ
Q1: Are u a factory or trading company?
A1: We are the manufacturer of solar street light system with independent research and development capability. Our main products are solar street light charge controller, secondary products are photovoltaic panels, inverters, solar charger controller and street light kits etc.
Q2: Can you make the overall scheme of solar street light system?
A2: Our professional advantage is to design the most suitable system solutions for different customer needs.
Q3: What about the lead time?
A3: Sample: 2-3 work days.
Order: 5-7 work days.
OEM or Mass order: 15-20 work days.
Q4: How about your after-sales service?
A4: Our products provide a 3-year warranty period. Once you find quality problem during warranty period, please provide us pictures or videos to confirm, and then we will provide solution within 48 hours
A1: We are the manufacturer of solar street light system with independent research and development capability. Our main products are solar street light charge controller, secondary products are photovoltaic panels, inverters, solar charger controller and street light kits etc.
Q2: Can you make the overall scheme of solar street light system?
A2: Our professional advantage is to design the most suitable system solutions for different customer needs.
Q3: What about the lead time?
A3: Sample: 2-3 work days.
Order: 5-7 work days.
OEM or Mass order: 15-20 work days.
Q4: How about your after-sales service?
A4: Our products provide a 3-year warranty period. Once you find quality problem during warranty period, please provide us pictures or videos to confirm, and then we will provide solution within 48 hours
