Stainless Steel Drying Tower Spray Dryer Lab Scale Spray Dryer Instant Coffee Spray Dryer
- Category: >>>
- Supplier: Hangzhou Reyes Machinery Co. Ltd.
Share on (1601271805035):
Product Overview
Description
Product Description

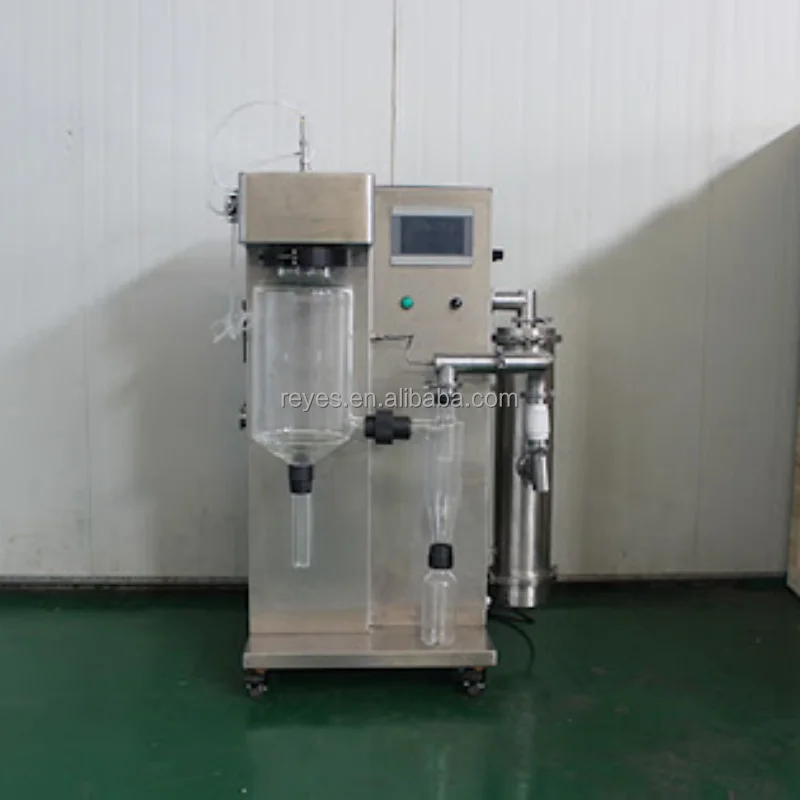

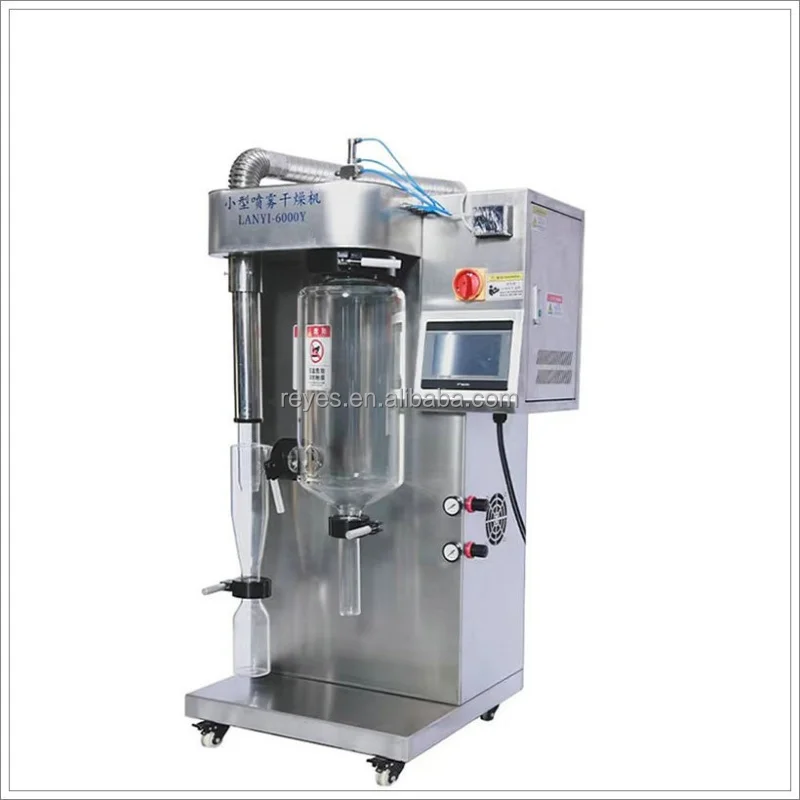

Reyes-6000Y stainless steel small spray dryer is suitable for the production of trace particle powder in laboratories of universities, research institutes and food, pharmaceutical and chemical enterprises. It is suitable for drying heat-sensitive materials such as biological products, biological pesticides, enzyme preparations, etc. Because the sprayed materials are only exposed to high temperatures when they are sprayed into mist-sized particles, they are only heated for a moment, which can keep the active ingredients of these active materials intact after drying.
Specification
| Name | Reyes-6000Y |
| Inlet air temperature control | 30℃~300℃ |
| Outlet air temperature control | 30℃~140℃ |
| Condition | New |
| Evaporated water volume | 1500ml/h ~ 2000ml/h |
| Key Selling Points | Automatic |
| Warranty | 1 Year |
| Weight (KG) | 135 |
| Feeding volume | 50ml-2000ml/h |
| Nozzle diameter | 0.5mm/0.7mm/0.75mm/1.0mm/1.5mm/2.0mm optional, standard 1.0mm, and can be customized according to |
| Feeding method | peristaltic pump adjustment |
| Voltage | AC220V |
| Power | 5kW |
| Dimension(L*W*H) | 1300mm (height) × 650mm (length) × 500mm (width) |
| Material | SUS304 |
Selling Point

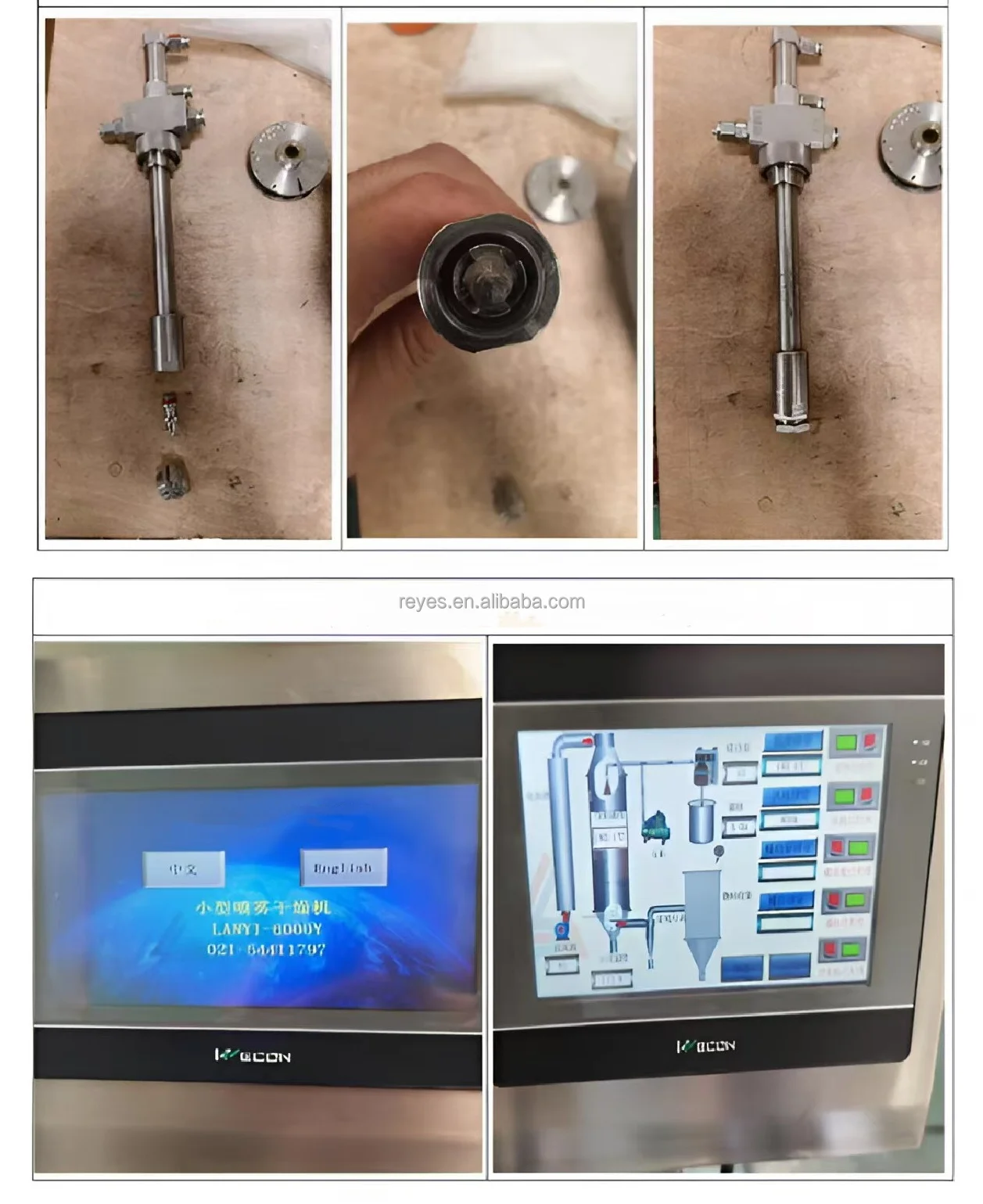

Adopt 316 stainless steel pneumatic two-fluid nozzle, good atomization effect.
Color LCD touch screen parameter display: inlet temperature/outlet temperature/peristaltic pump speed/air volume/needle frequency.
Equipped with nozzle cleaner (needle), when the nozzle is blocked, it will automatically clear, and the frequency of needle can be set manually.
Shutdown protection function: when shutting down, just press the stop button, the machine will stop running immediately except the fan, and the equipment will not cause the heating part to burn out due to misoperation (forced shutdown of the fan).

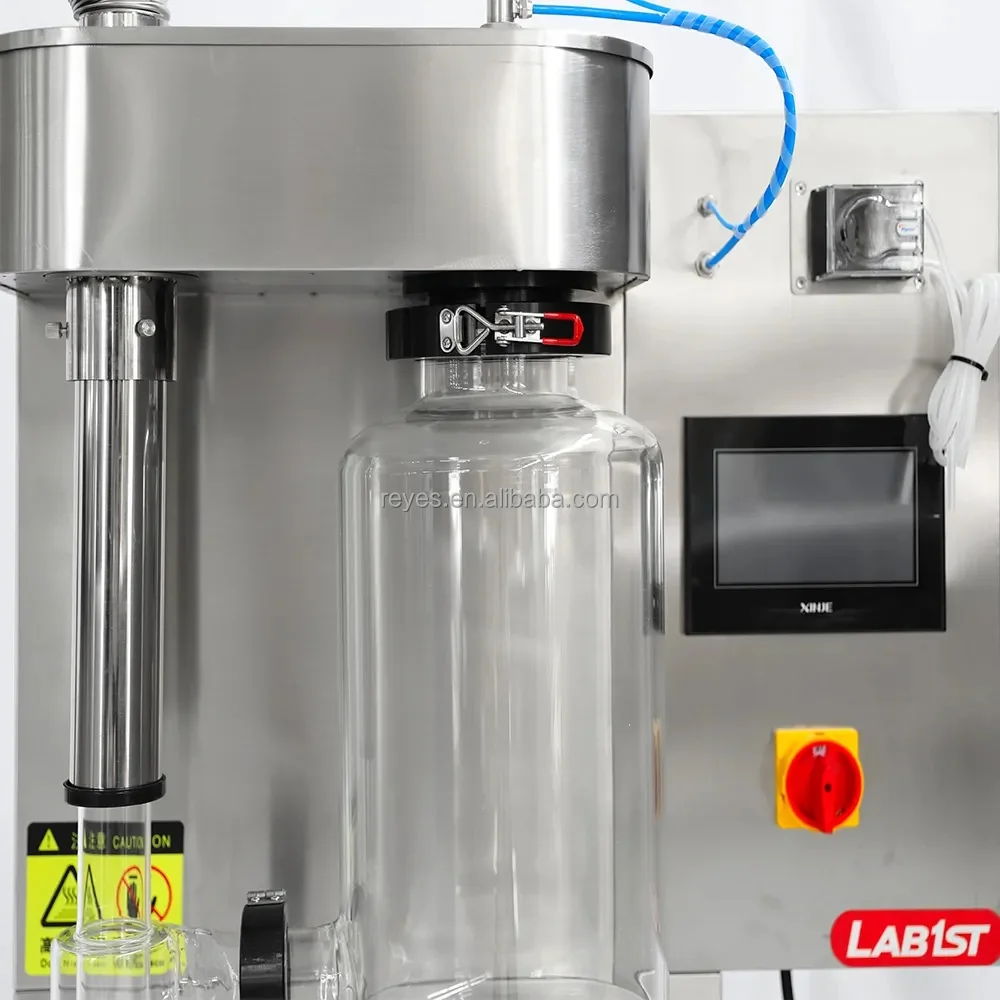

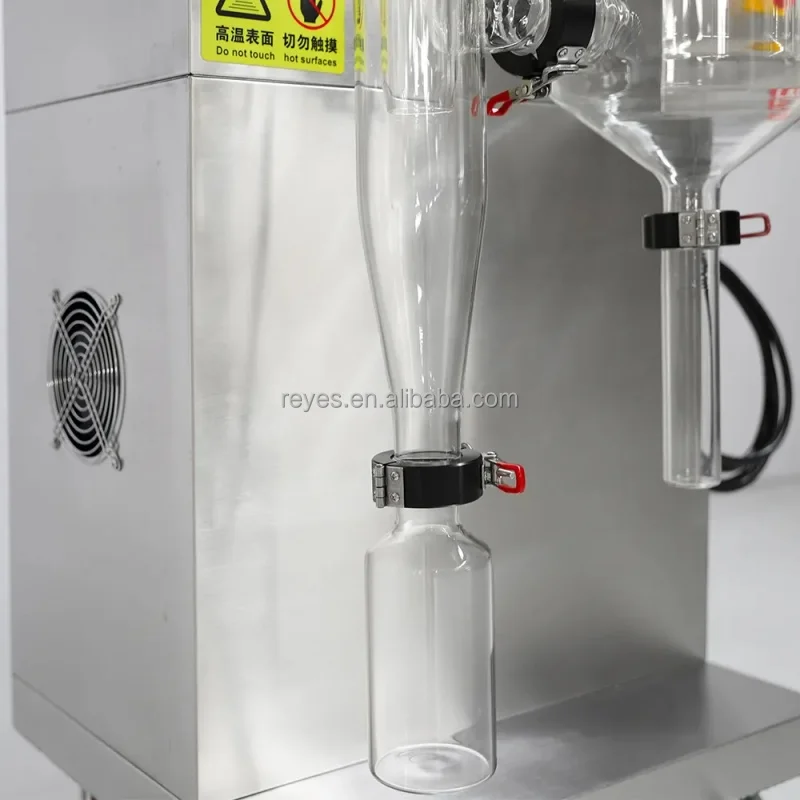

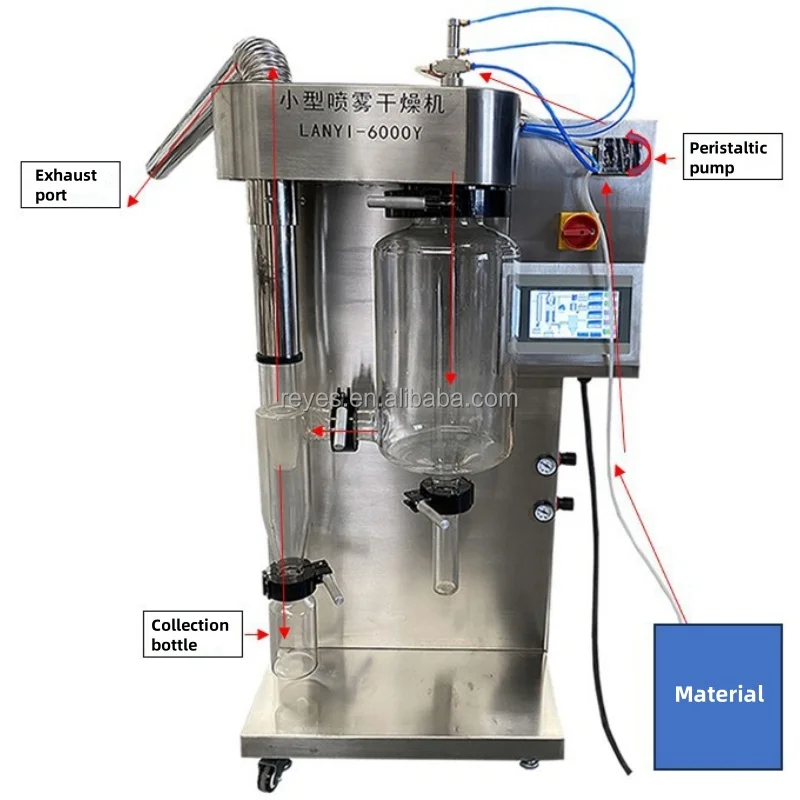

The spray, drying and collection system is made of transparent high borosilicate heat-resistant glass material, so that the drying process can be carried out in a pollution-free environment.
Built-in oil-free air compressor, the particle size of the powder spray is normally distributed, with good fluidity and low noise.
The whole machine is made of 304 stainless steel material, with a compact design and no auxiliary equipment required.
The design of drying temperature control adopts real-time control PID constant temperature control technology to make the temperature control uniform in the whole temperature zone.
In order to keep the sample pure, an air inlet filter is equipped.
The feed volume can be adjusted by the feed peristaltic pump, and the feed volume is adjustable.
The particle size of the finished dry powder after drying is relatively uniform.
The tower wall purge device is equipped, and the material recovery rate is high.
Color LCD touch screen parameter display: inlet temperature/outlet temperature/peristaltic pump speed/air volume/needle frequency.
Equipped with nozzle cleaner (needle), when the nozzle is blocked, it will automatically clear, and the frequency of needle can be set manually.
Shutdown protection function: when shutting down, just press the stop button, the machine will stop running immediately except the fan, and the equipment will not cause the heating part to burn out due to misoperation (forced shutdown of the fan).
The spray, drying and collection system is made of transparent high borosilicate heat-resistant glass material, so that the drying process can be carried out in a pollution-free environment.
Built-in oil-free air compressor, the particle size of the powder spray is normally distributed, with good fluidity and low noise.
The whole machine is made of 304 stainless steel material, with a compact design and no auxiliary equipment required.
The design of drying temperature control adopts real-time control PID constant temperature control technology to make the temperature control uniform in the whole temperature zone.
In order to keep the sample pure, an air inlet filter is equipped.
The feed volume can be adjusted by the feed peristaltic pump, and the feed volume is adjustable.
The particle size of the finished dry powder after drying is relatively uniform.
The tower wall purge device is equipped, and the material recovery rate is high.
