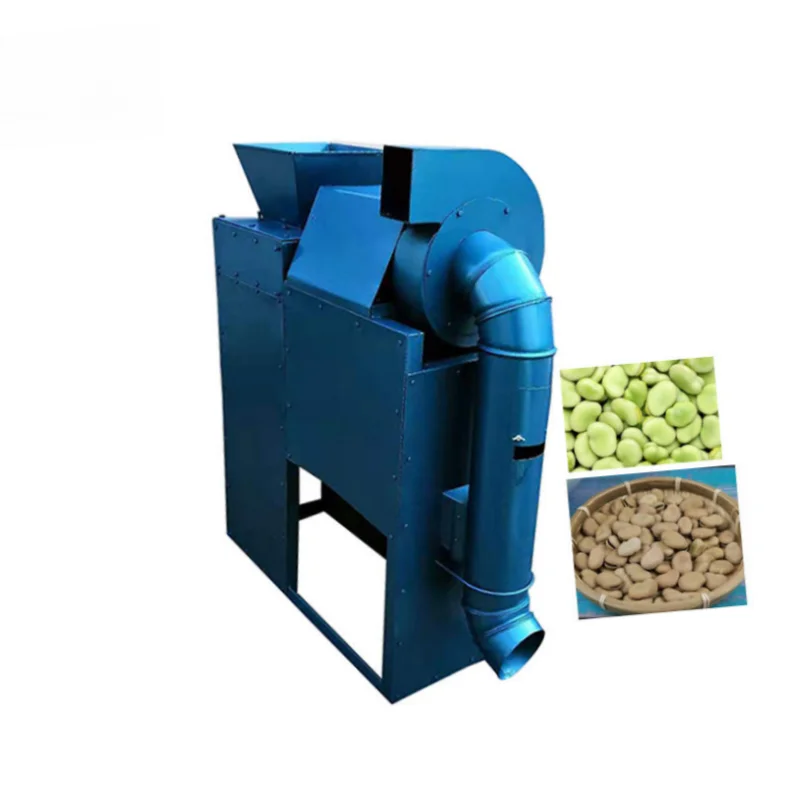

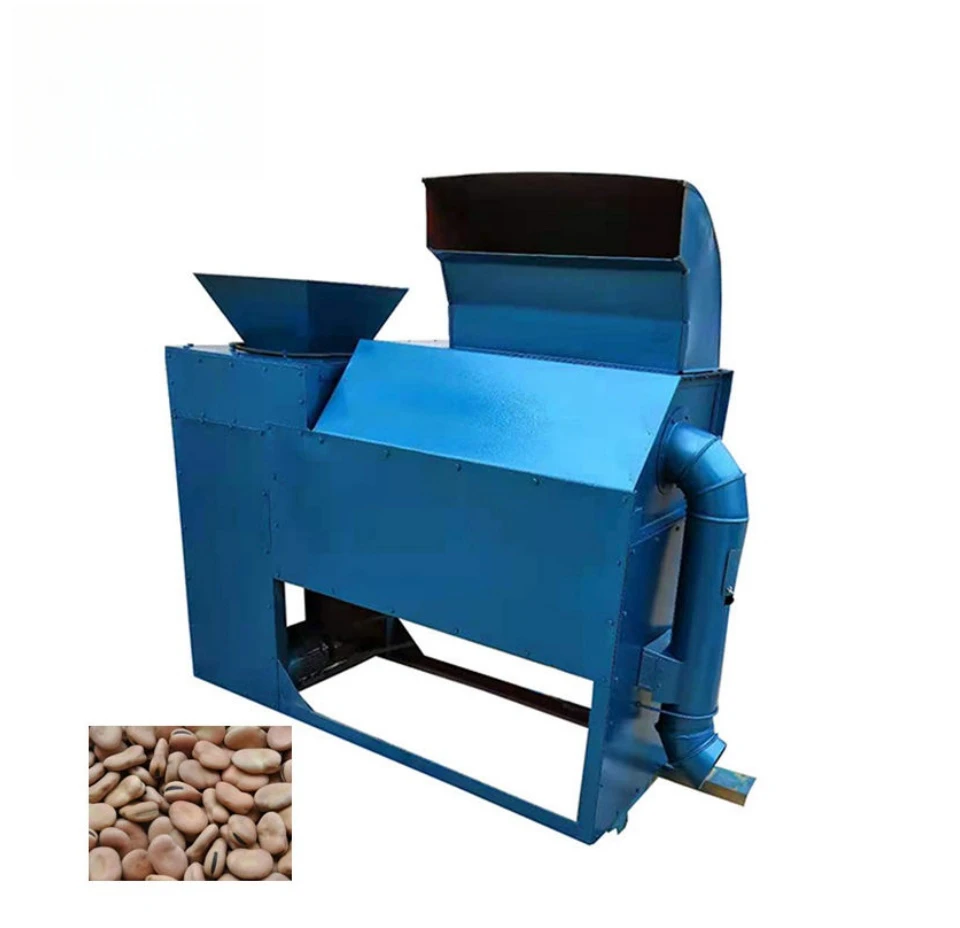

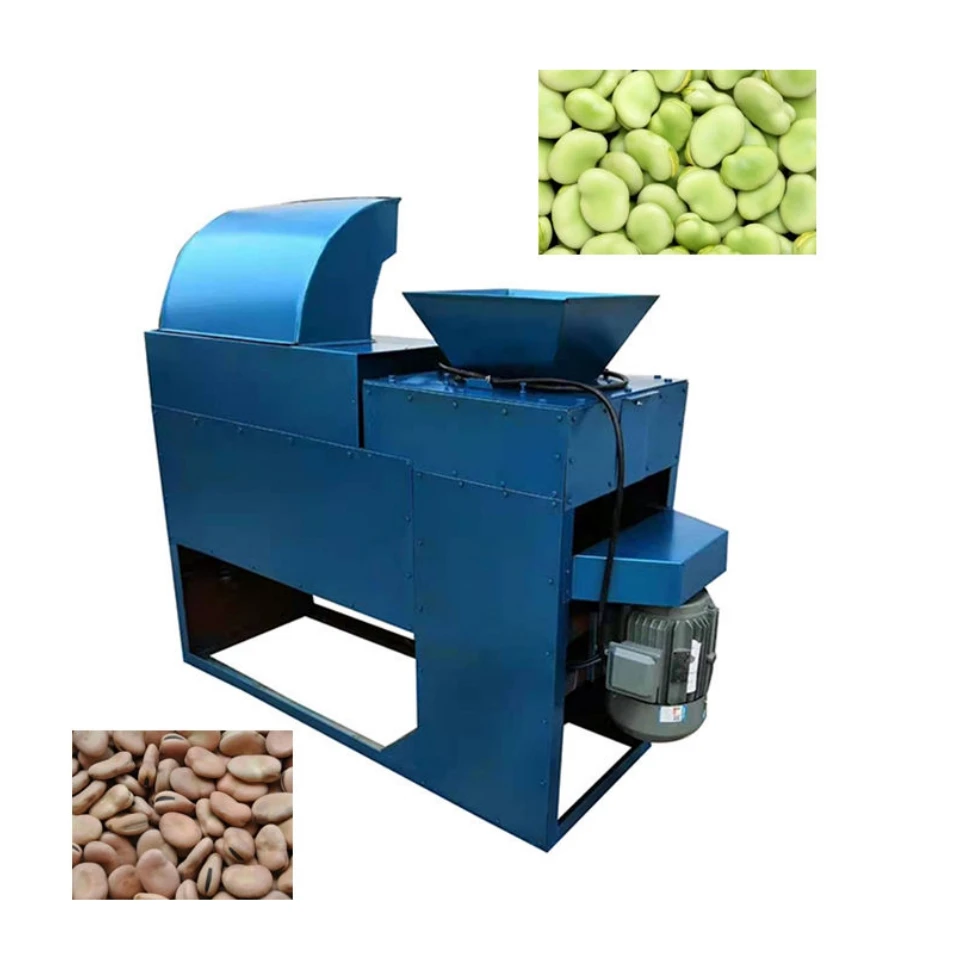

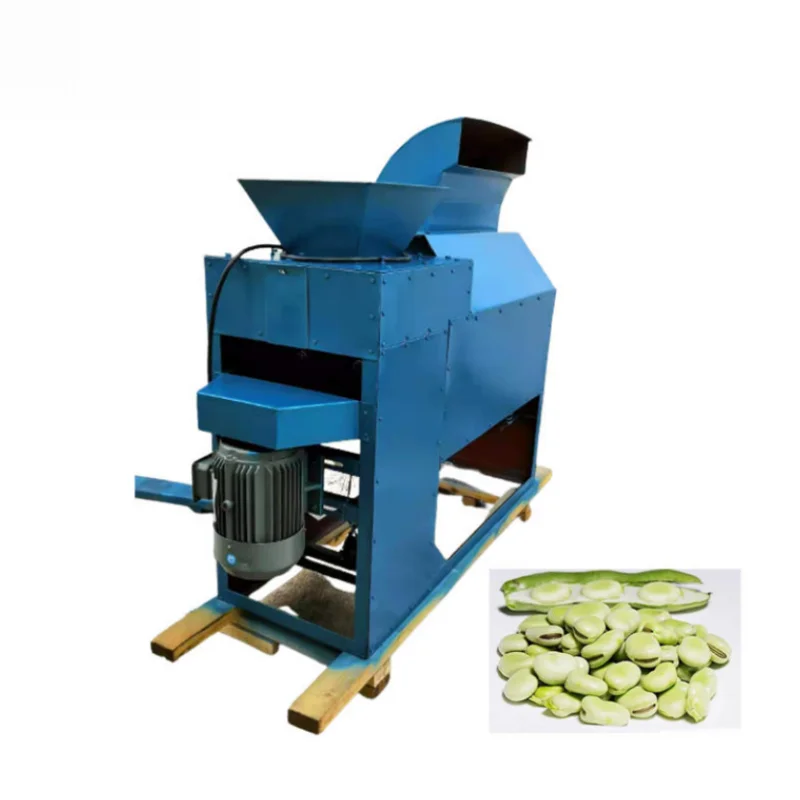

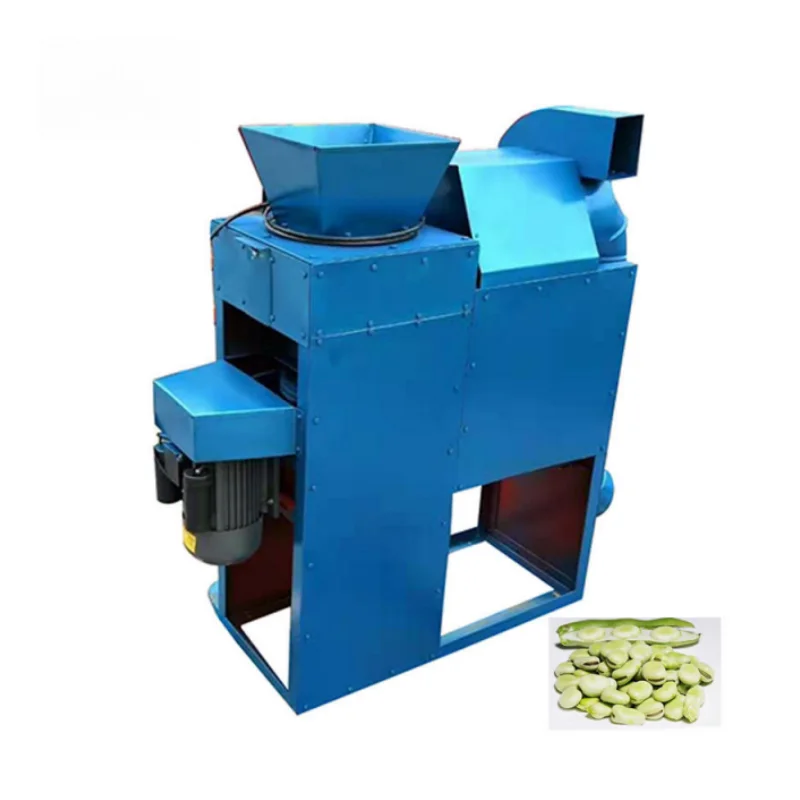

Bean Machine Pea Automatic Food Broad Dry Soybean .
- Category: >>>
- Supplier: Shenzhen Shuxiao Machinery Equipment Co. Ltd.
Share on (1601271814760):
Product Overview
Description
| Product Features | |
| Dimension(L*W*H) | 1400*500 * 1300mm |
| Provide after-sales service | Online support |
| Warranty of core components | Two years |
| Key Selling Points | High productivity |
| Voltage | 220V/380V |
| Machinery Test Report | Can provide |
| Post-Warranty Service | Video Technical support Online support |
| Condition | New |
| Place of Origin | Guangdong China |
| Warranty | 1 year |
| Kilowatts | 2-10KW |
| Product Name | barker |
| Showroom Location | None |
| Weight | 150 KG |
| Certification | CE FCC ROHS ISO9001 |
| Brand Name | Three stones |
| Video outgoing-inspection | Can provide |
| Applicable Industries | Hotels |
| Marketing Type | Hot selling product |
| Core Components | Engine |
| Advantage | Simple operation, high efficiency |
| Minimum order quantity | 1 |
| Application | Bean peeling |
| Power | 2-10KW |
| Final product | Skinless bean |
| Product Features | |
| Core component warranty period | 2 years |
| Minimum order quantity | 1 |
| Kilowatts | 2-10KW |
| Applicable industry | Hotels, production workshops, food and beverage processing plants, farms, restaurants, household, retail, food stores, restaurants, other |
| Origin | Guangdong, China |
| Certification | CE FCC ROHS ISO9001 |
| Dimensions (length x width x height) | 1400*500 * 1300mm |
| Keywords | Ten years of experience in mechanical production |
| Provide after-sales service | Online Support |
| Brand | Three stones |
| Video factory inspection | available |
| Power (horsepower) | 2-10KW |
| Core Components | Engines, Bearings, Gearboxes, Pressure Vessels, Pumps |
| Advantage | Simple operation and high efficiency |
| Weight | 150 KG |
| Product Name | peeling machine |
| Old and new degree | New |
| Voltage | 220V/380V |
| Post-Warranty Service | Video Technical Support Online Support |
| Final product | Peanless Beans |
| Types of Marketing | Hot Products |
| Warranty period | 1 year |
| Core selling points | High productivity |
| Showroom location (in which overseas countries have sample rooms) | None |
| Application | Peeling beans |

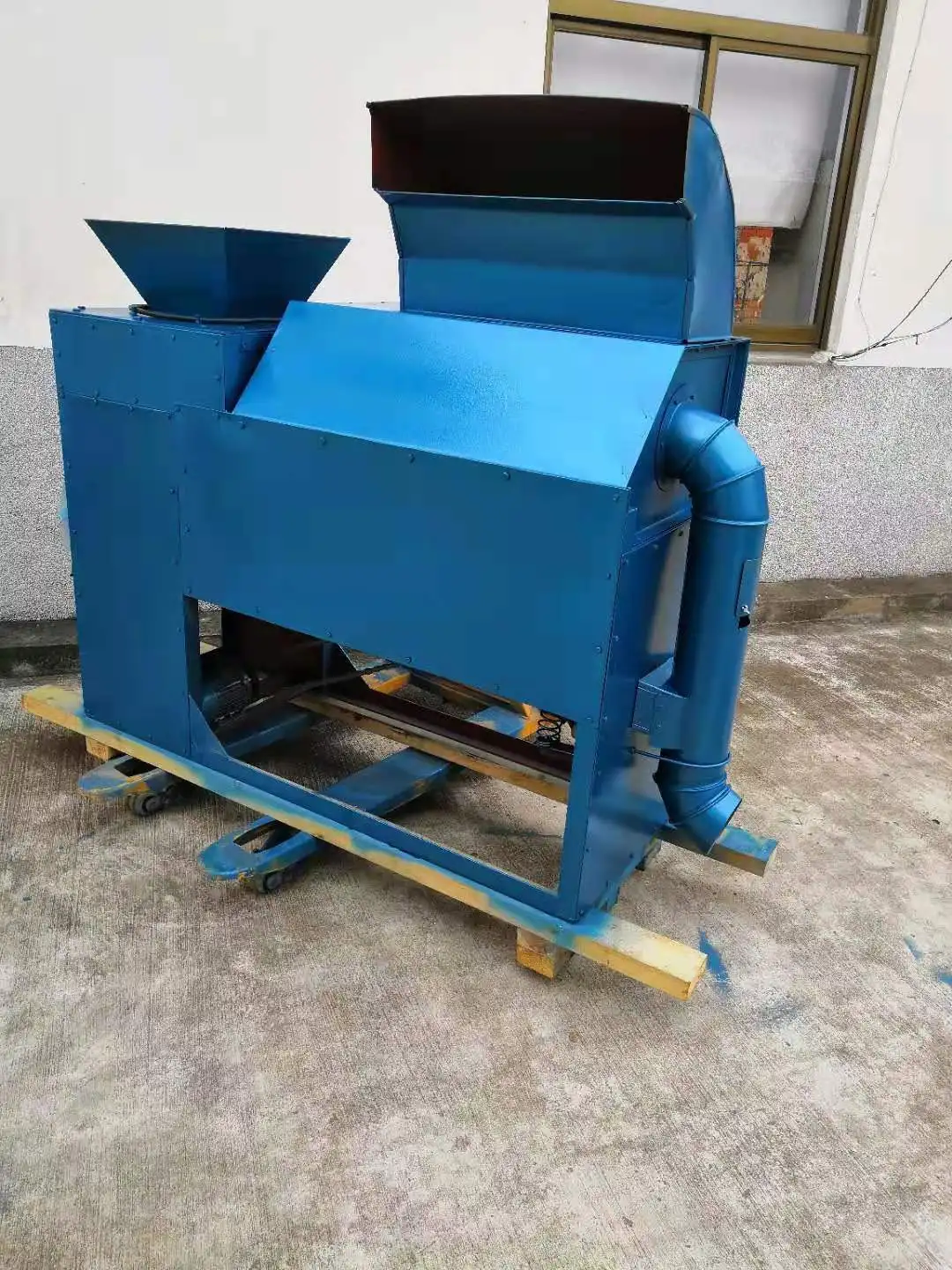

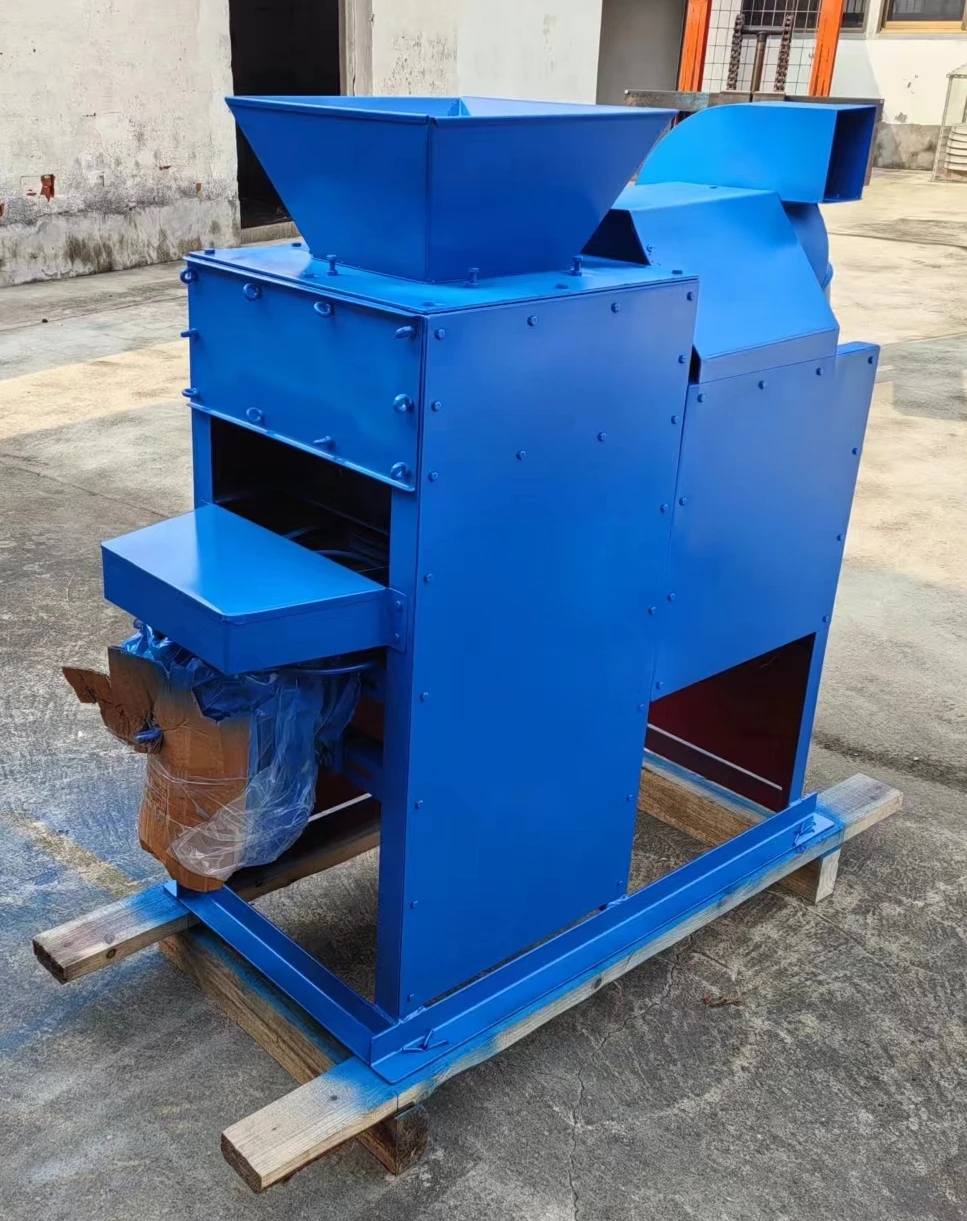

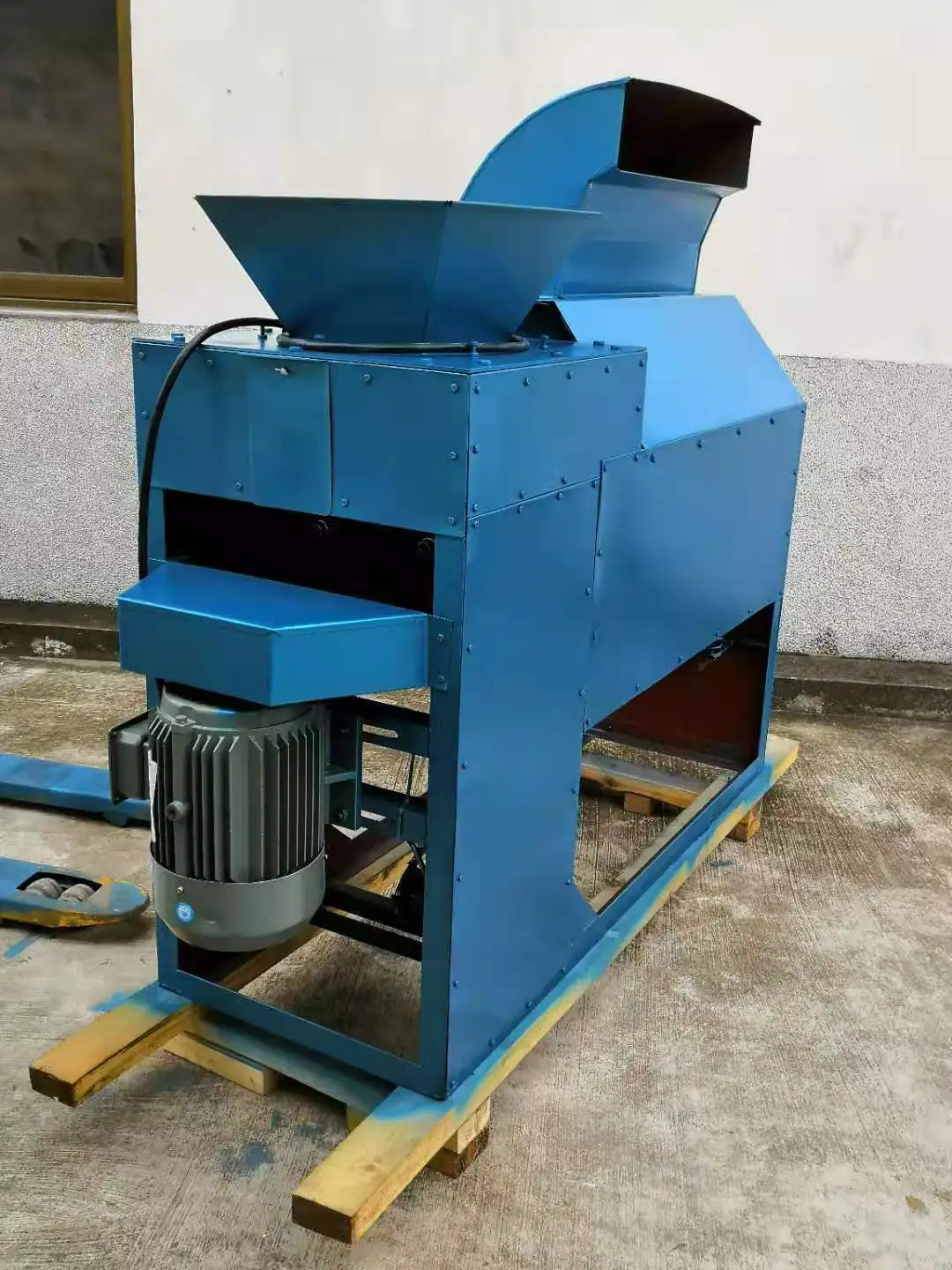

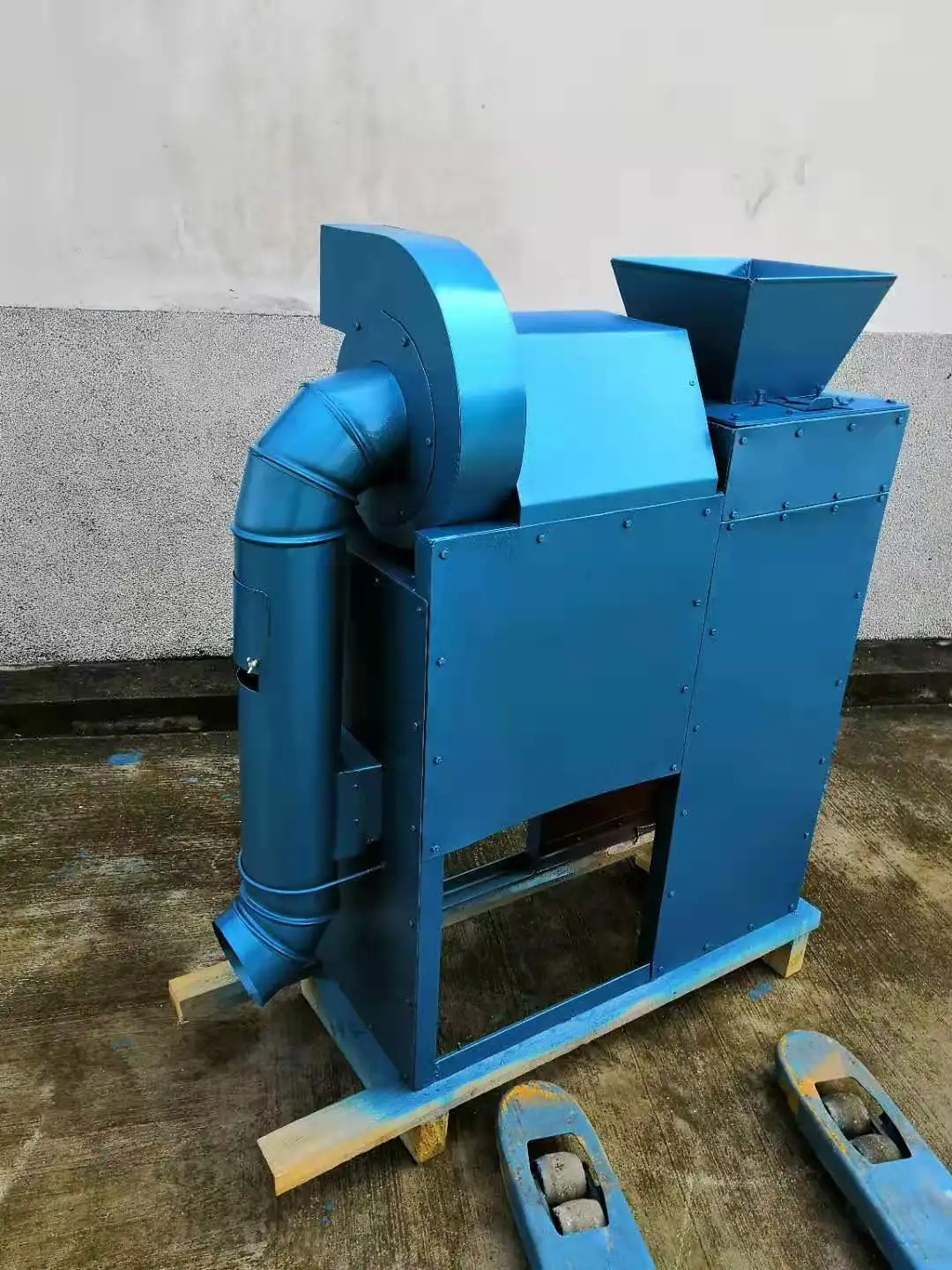

Introduction to soybean peeling machine

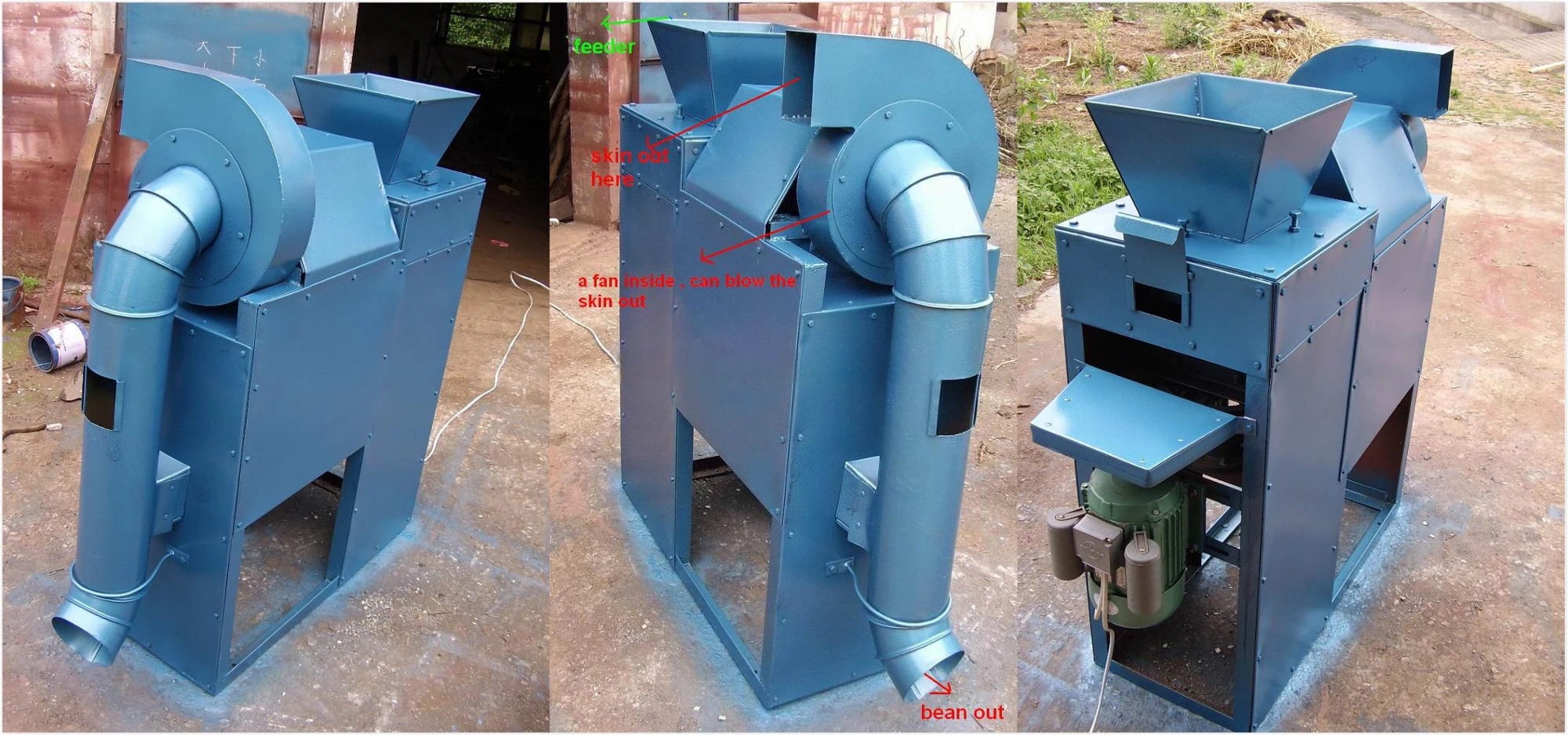

Application of broad bean, soybean, pea peeling machine: mainly used for peeling horse beans, soybeans, peas, lentils, etc. Characteristics broad bean, soybean, pea peeling machine: the present invention has the advantages of compact structure, high efficiency, and ideal peeling effect. At the same time, the peeler uses a combination of air flowers to separate shells and seeds to reduce the crushing rate, improve the quality of peeling, while avoiding dust pollution and improving the working environment. Working principle broad bean, soybean, pea peeling machine: there is a set of sand molds installed inside the machine, one is fixed, the other is moving, the beans pass through the mold moving at high speed, and the hard shell will be carried away under strong friction, The complex material then enters the vibrating screen for separation, the air fan will suck up the shells, and then the transparent peeled seeds (half) flow out from the other side of the peeler.
Manual and maintenance fava bean, soybean, pea peeling machine
Step 1.Before running the peeler, please check for impurities in the machine, the correct rotation direction should be clockwise (please refer to the rotation arrow). Once the machine is running normally, it can be fed; When the machine is stopped, it should be allowed to completely peel off the material, so that the next no-load start is easy. Step 2. Adjust the distance between the molds: First turn on the strobe marked with the rotating arrow, a small door will appear under the mold, pick up the pin (U-shaped) on the base of the mold, fix the base, turn the pulley by hand, clockwise direction will cause the distance to be large, clockwise counting will cause the distance to be smaller, usually the distance will change, 1mm once you turn the pulley for a cycle. Please put the U-pin back into the key and bolt it quickly. Step 3. Separation of shell and seed: There is an air strobe on the feed pipe to control the air volume to achieve satisfactory separation. Step 4.Please make sure to install the grounding wire outside the machine to avoid leakage and accidents. Step 5.Please maintain the machine regularly, once every three months.
Precautions for broad beans, soybeans, and pea peeling machines
1. Hard impurities, such as stones will damage the mold, so make sure to use a sieve to remove the hard impurities before peeling. 2. During the working process of the machine, the hard impurities will accelerate the wear of the mold, and the surface will become uneven, which will lead to an increase in the peeling fracture rate and a decrease in the capacity. If this happens, use a diamond grinding wheel to machine the mold and make sure that the surface of the mold is smooth. 3. Please note that the distance and gap between the upper and lower molds are similar.
Installation and adjustment distance of the mold 1. Disassemble the feeder, upper die cover and grinding base; 2. Install the mold; 3. Open the sheets next to it; 4. Sign a symbol on the upper mold, turn the lower mold, observe the rotation of the lower mold, make sure it is parallel to the symbol on the upper mold, which means that the distance between the upper mold and the lower die is similar. If it is not parallel to the upper symbol, add a thin sheet to the grinding base and it will make the lower die parallel to the upper die. 5. At the same time, you can also adjust the 6 10mm bolts on the upper cover to make sure the distance is similar.
Analysis of the problems existing in the peeling machine of broad beans, soybeans and peas
issue | cause | method |
Low peel ratio | High moisture content | Reduces moisture by 13% |
The distance between the molds is too large | Adjust the distance | |
High crushing ratio | Overfeeding | Control the amount of material to be fed |
The distance is too small | Increase the distance | |
The surface of the mold is uneven | Treat the surface | |
Low moisture content | Add some moisture | |
Shells are included in the kernel | Blocked outlets | Drain the material |
Blockage on the air fan | ||
Include the kernel in the shell | The air volume is too large | Open the damper |
model | TK-300 | TK-400 | TK-500B | TK-500C |
capacity | 200-300 kg/h | 500-1000 kg/h | 1000-1500 kg/h | 1500-2500 kg/h |
Grinding stone diameter | 300 mm | 400 mm | 500 mm | 500 mm |
impetus | 2.05 kW | 3.75 kW | 7.37 kW | 9.37 kW |
Peel rate | 95%-98% | 95%-98% | 95%-98% | 95%-98% |
size | 1400*500*1300mm | 1500*600*1320mm | 2000*600*1680mm | 2000*600*1680mm |
weight | 150 kg | 225 kg | 380 kg | 420 kg |
