China Factory High Torque Brushless Dc Motor 1Kw 48V Dc Servo Motor 1500Rpm Bldc Motor With Encoder Tracked Robot Agv
- Category: >>>
- Supplier: Jinan Keya Electron Science And Technology Co. Ltd.
Share on (1601271908951):
Product Overview
Description
high torque brushless dc motor 1kw 48v dc servo motor 1500rpm bldc motor with encoder for EOD robot,tracked robot,AGV
Model:KY110AS0410-15
Product overview
1.Product Features:
1)Protection grade:IP65, insulation grade:F
2)Winding overhang structure optimization, to minimize the copper loss and iron loss minimization, small volume, light weight, low temperature rise, high efficiency
3)Super high coercivity, the maximum magnetic energy product NdFe35 permanent magnetic materials, strong resistance to demagnetization, motor performance is stable.
4)Low noise, low vibration, low moment of inertia.
5)High torque, fast dynamic response, wide speed range, strong overload capacity (four times)
6)High Torque to inertia ratio&up to 25000Nm/kgm²
7)Fast dynamic response *time constant <20ms
8)Wide speed adjusting&feedback up to 1000:1
9)Steady speed precision up to 0.5%
10)High overload,2Mn/30s,3.5N.m/10s
11)Small volume and light
12)Silent,the lowest noise is only 45dB(A)
13)Protected with IP65,Class F insulation
2.Industry class:
| a.The altitude should be over 1000 meters above sea level |
| b.Environment temperature:+5℃~+40℃ |
| c.The month average tallest relative humidity is 90%,at the same the month average lowest temperature is less than 25 |
3.Product Parameter:
| Model | KY110AS0410-15 | Volt | 48v |
| Power | 1500w | Rated Torque | 6.3Nm |
Rated Speed | 1500rpm | Rated Current | 28A |
Peak Torque | 22Nm | Line Resistance | 0.11Ω |
Rotor Constant | 0.05mH | Torque constant | 0.225Nm/A |
Back EMF Constant | 15.6 v/kr/min | Rotor Inertia | 740Kg.m2×10-6 |
Mechanical Time Constant | 2.1ms | Electrical Time Constant | 1.8ms |
Encoder | 2500ppr | Weight | 7.8kg |
4.Related Products:
| Model | Volt | Power | Rated speed | Rated Current | Rated Torque | Peak Torque | Weight |
| Unit | V | W | r/min | A | N.m | N.m | kg |
| KY60AS0201-30 | 24 | 100 | 3000 | 5.4 | 0.318 | 0.95 | 1.5 |
| KY60AS0202-30 | 24 | 200 | 3000 | 10.4 | 0.63 | 1.89 | 1.5 |
| KY80AS0202-15 | 24/48 | 200 | 1500 | 9.4/4.7 | 1.27 | 3.8 | 2.2 |
| KY80AS0204-15 | 24/48 | 400 | 1500 | 21.3/10.6 | 2.55 | 7.65 | 3.6 |
| KY80AS0204-30 | 24/48 | 400 | 3000 | 18.8/9.4 | 1.27 | 3.8 | 2.2 |
| KY110AS0405-15 | 24/48 | 500 | 1500 | 24/14 | 3.1 | 10.8 | 6 |
| KY110AS0408-15 | 24/48 | 800 | 1500 | 44/22 | 5 | 17.9 | 6.6 |
| KY110AS0410-15 | 24/48 | 1000 | 1500 | 52/28 | 6.3 | 22 | 7.8 |
| KY110AS0415-15 | 48 | 1500 | 1500 | 37.5 | 9.5 | 28 | 10 |
| KY110AS0420-25 | 48 | 2000 | 2500 | 55 | 7.6 | 26 | 10 |
KY130AS0430-15 | 48 | 3000 | 1500 | 73 | 19 | 57 | 14 |
KY130AS0410-15 | 48 | 1000 | 1500 | 28 | 6.3 | 22 | 7.8 |
| KY130AS0415-15 | 48 | 1500 | 1500 | 37.5 | 9.5 | 28 | 10 |

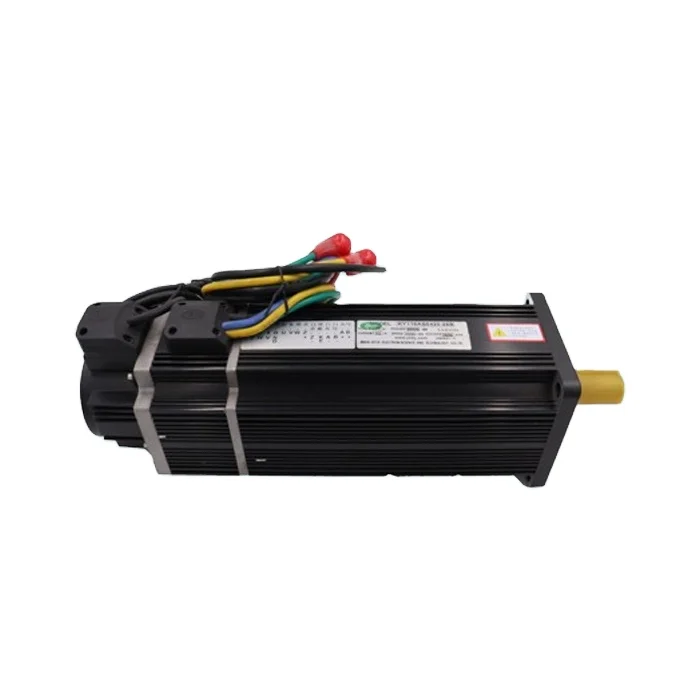

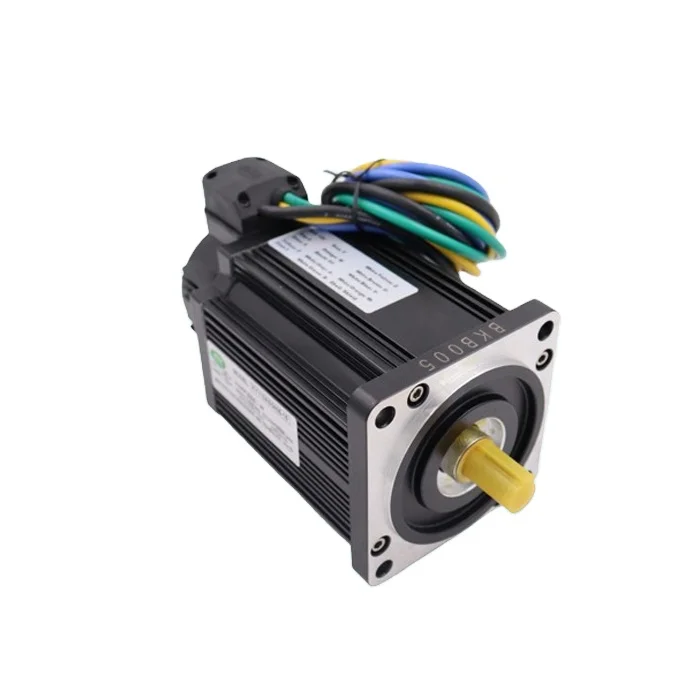

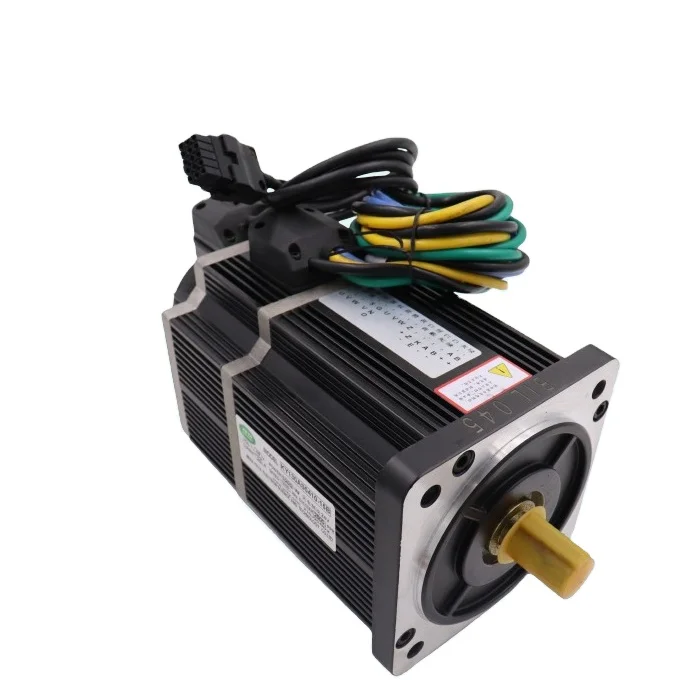

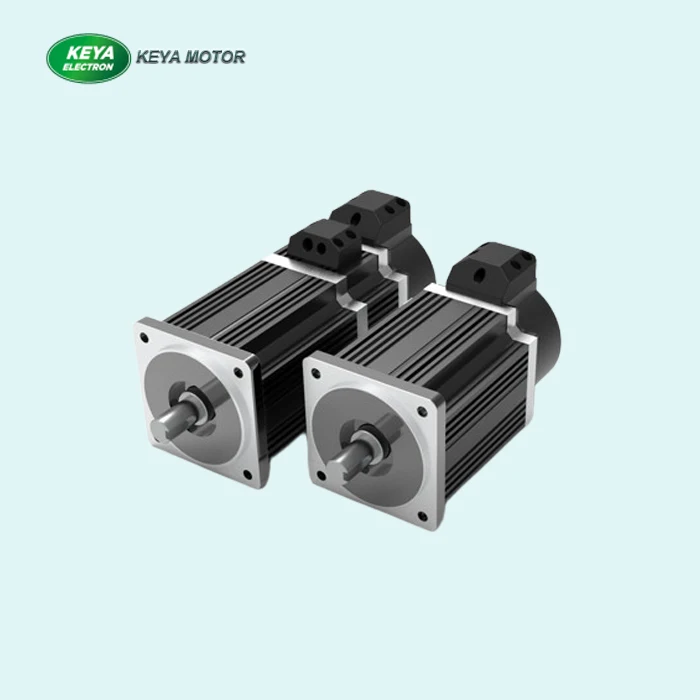

Product show
high torque brushless dc motor 1kw 48v dc servo motor 1500rpm bldc motor with encoder for EOD robot,tracked robot,AGV

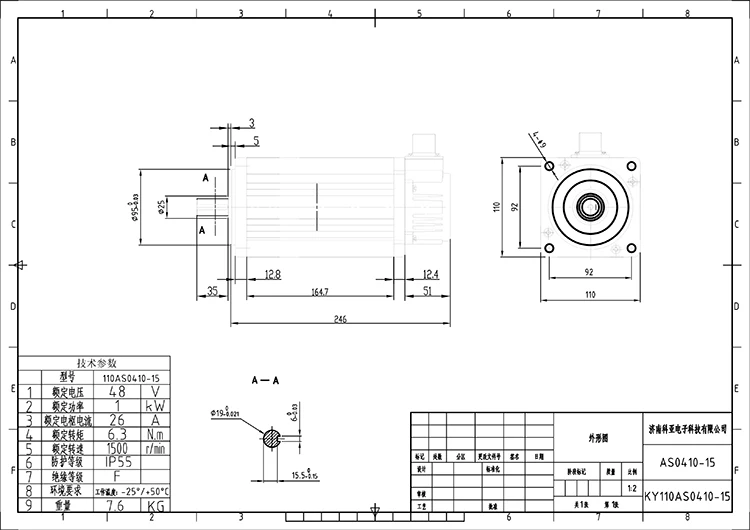

Drawing
high torque brushless dc motor 1kw
Application

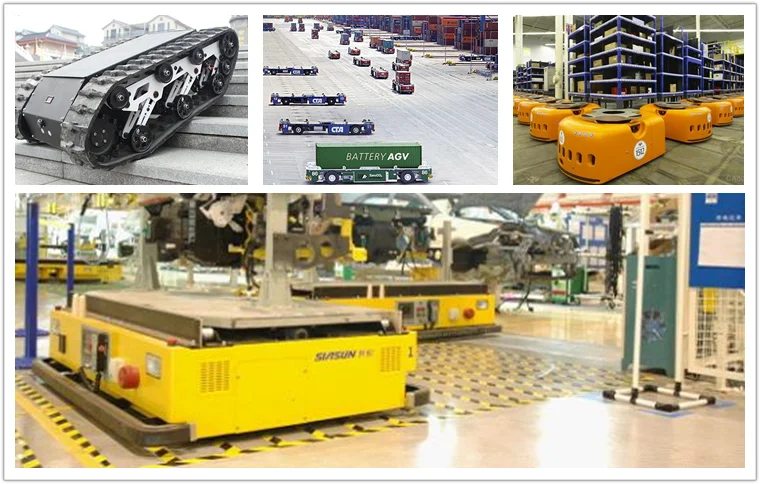

Application:Tracked robot,Electric flat car,Atomizing sprayer Etc.
48v dc servo motor
48v dc servo motor
Company introduction
high torque brushless dc motor 1kw 48v dc servo motor 1500rpm bldc motor with encoder for EOD robot,tracked robot,AGV
Packaging & Shipping
1500rpm bldc motor
high torque brushless dc motor 1kw
Our Services
We devote ourself to Research & Development, welcome Costom-made products, if you need some unusual products, let's have further communication.
Thank you for your visit. If you need brushless dc motor, servo motor and controller, please contact us as soon as possible!
