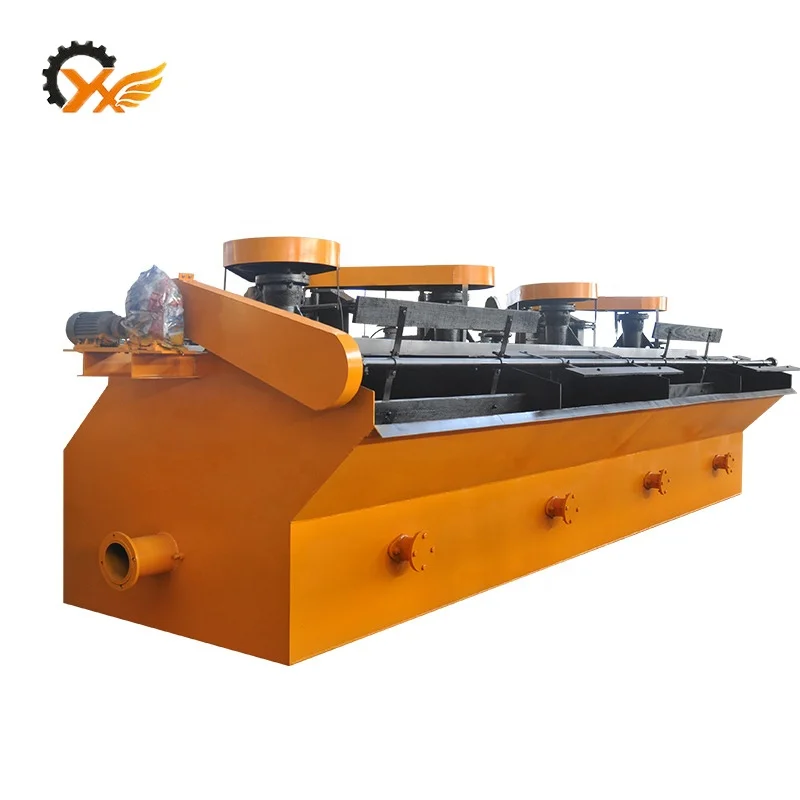

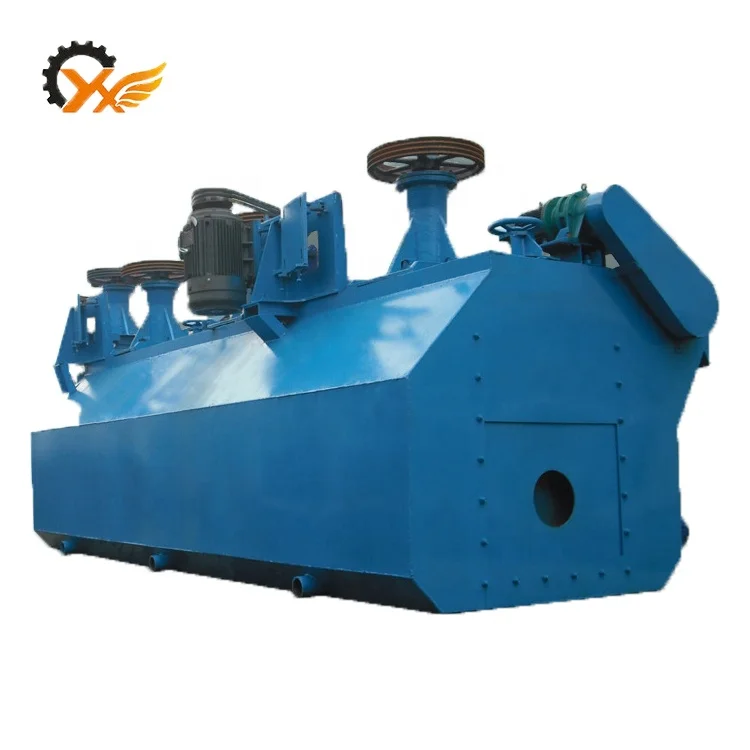

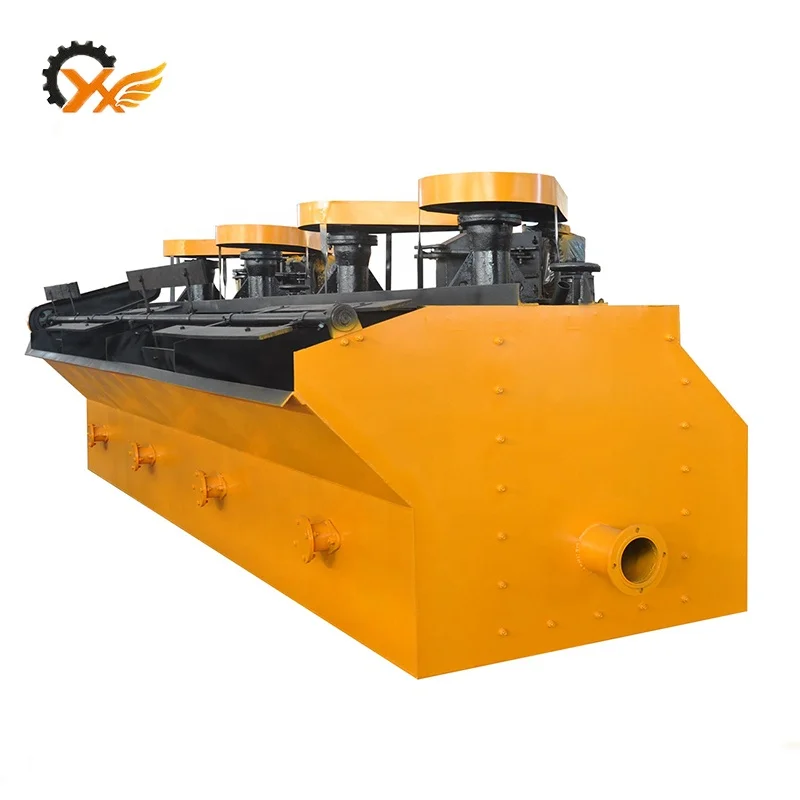

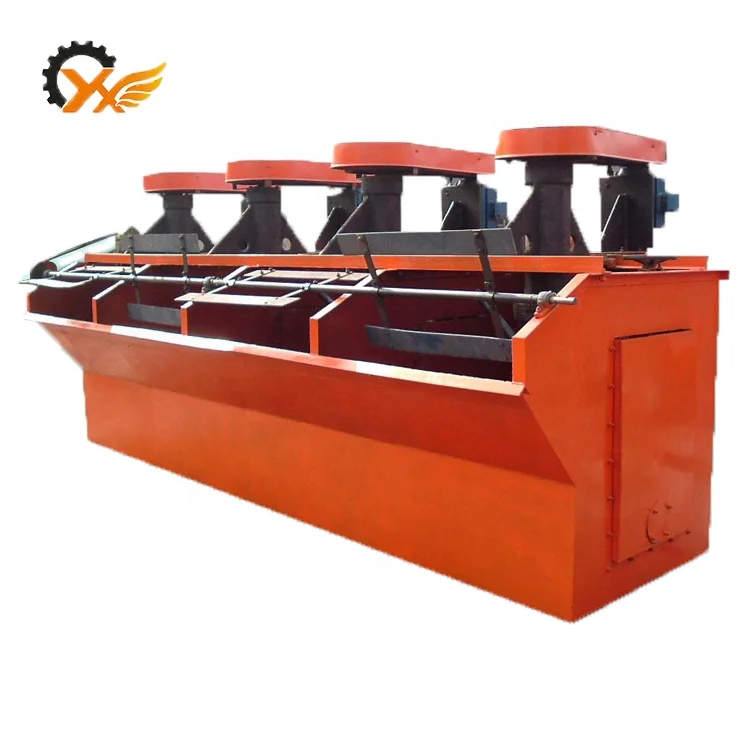

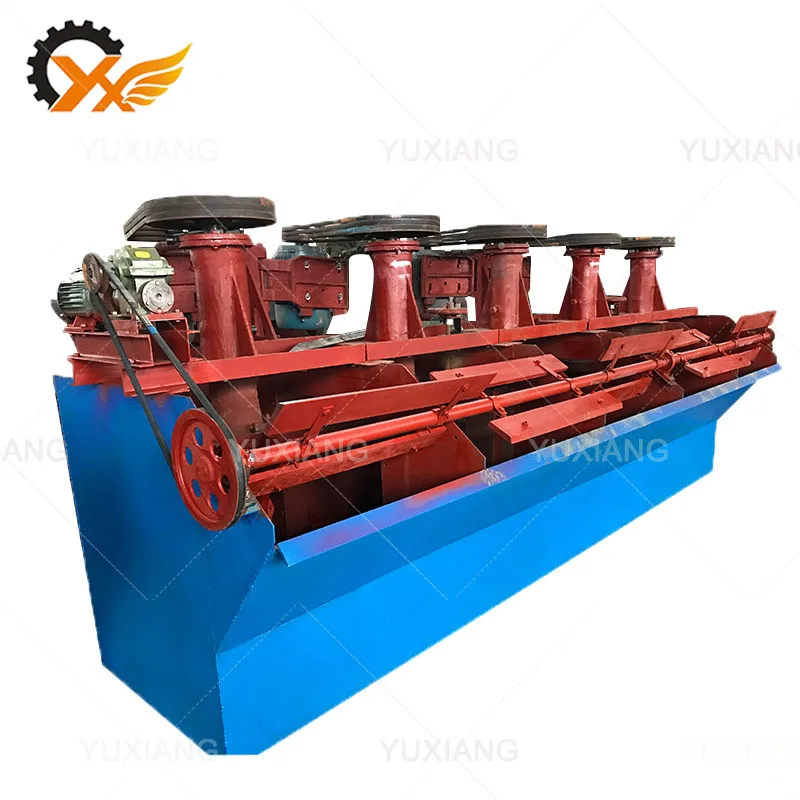

Small scale gold ore floatation machine price mini copper floatation line dressing plant equipment for sale
- Category: >>>
- Supplier: Gongyi City Yuxiang Heavy Machinery Co. Ltd.
Share on (1601272020708):
Product Overview
Description

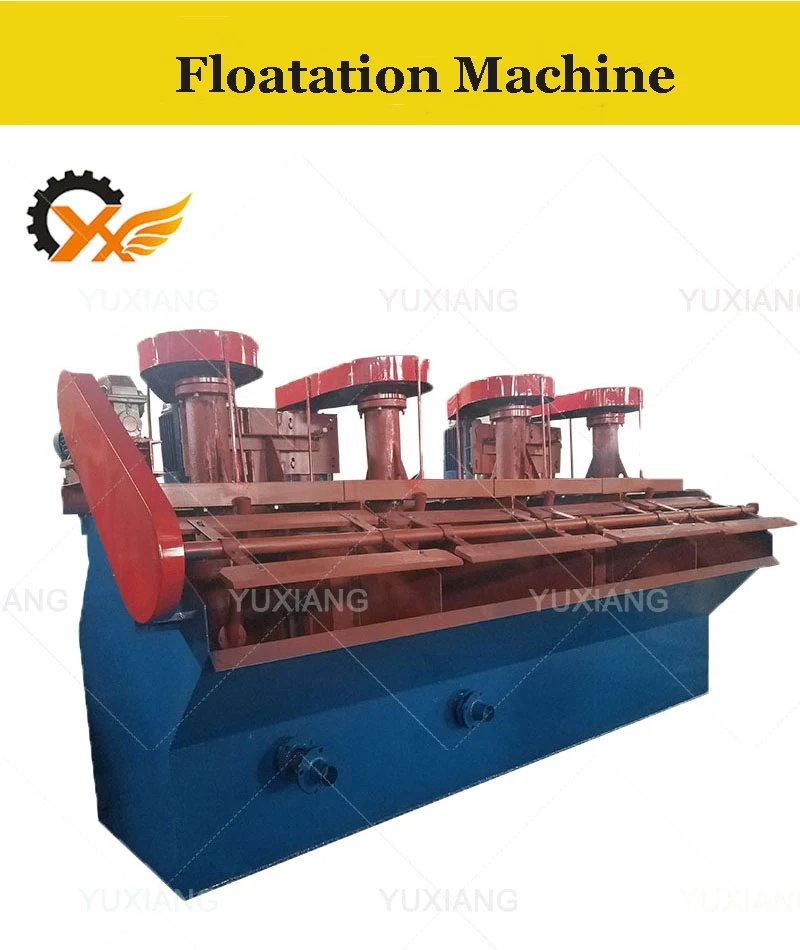

Best copper gold ore mineral separator flotation machine/ floatation cell/ flotation machine price
Floatation machine refers to the completion of the flotation process of mechanical equipment. In the floatation machine, the slurry treated by adding agents is inflated by stirring, and some of the ore particles are selectively fixed on the bubbles. The surface of the slurry is scraped to form foam products, and the rest is retained in the slurry for the purpose of separating the minerals.
The floatation machine is the latest design to use the circular tank concept and combines the benefits of circular cells with the unique features of the Minerals mechanism to create the ideal conditions to maximize flotation performance for all roughing, cleaning and scavenging duties.
1.Floatation machine uses automatic control system, easy to operate, the product is guaranteed.
2.Floatation machine adopts special wear-resistant material, light and reliable, the service life of the equipment will also be extended.
3.Large processing capacity, high sorting precision, high production efficiency, low energy consumption, low operating cost.
4.Process flow diversification, for the choice of coal quality, according to the actual situation to choose the rough or select process, the operation is more flexible.
Working of Principle
Floatation Machine is usually a continuous process by a few tanks, dozens of tank floatation machine connection, including roughing, scavenging, concentration operations. The use of floatation machine should meet the following requirements about equipment and processes, varies parts are complete and intact. Machines function normally and achieve the required aeration rate. Motor drives impeller rotating through belt and pulley. On the one hand, the machine inhaled enough air mixed with slurry, on the other hand, stirring the mixture of pulp and pharmaceutical. At the same time, refinement of the bubble, the particles adhere to the bubbles on the role of reagents and float to the slurry surface.
Floatation machine is mainly used for the separation of copper, zinc, lead, nickel, gold and other non-ferrous metals, can also be used for black metal and non-metallic coarse selection and selection.
Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 | ||
Tank Volume(m³） | 0.37 | 0.7 | 1.2 | 2.8 | 4 | ||
Impeller Dia(mm) | 300 | 350 | 450 | 550 | 650 | ||
Capacity(m3/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 | ||
Impeller Rotate Speed(m³/min) | 352 | 400 | 312 | 268 | 238 | ||
Motor | Model | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y180L-6 | |
Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | |||
Power(kw) | 1.5 | 3 | 5.5 | 11 | 15 | ||
1.1 | 1.1 | 1.1 | 1.1 | 1.5 | |||
Overall Dimension(mm) | 700*700*750 | 900*820*950 | 1100*1100* 1100 | 1700*1600* 1150 | 1850*2050* 1200 | ||
Unit Weight（kg) | 468 | 600 | 1373 | 2338 | 2660 | ||

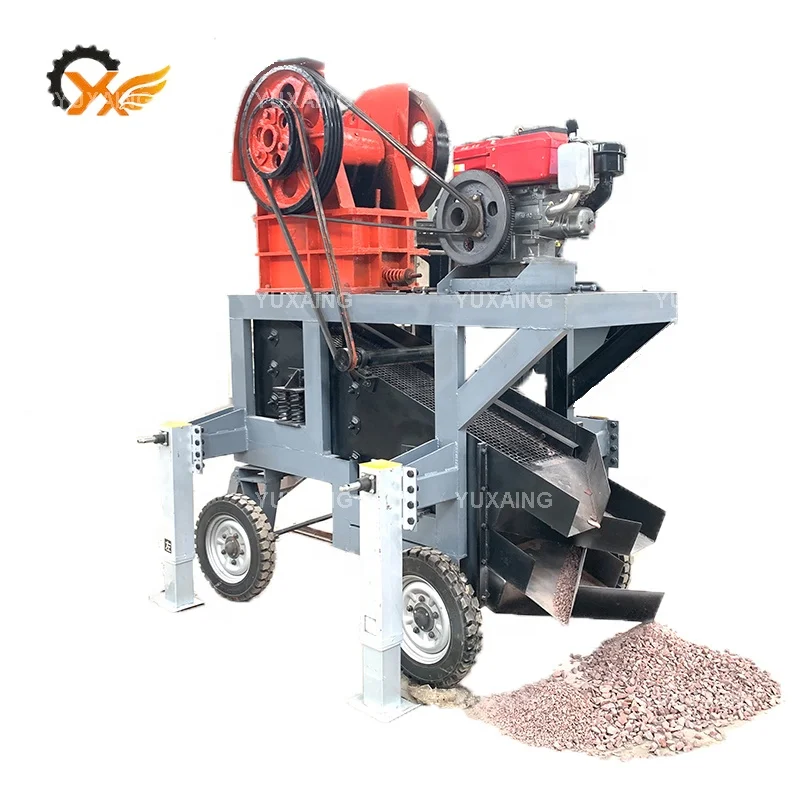

Jaw Crusher is suitable for crushing big size lumps in large quantity, is configured for primary crushing of even the hardest rock.
Weight:10.3t
Capacity:50-60 t/h
Max Feeding Size:850mm
Weight:10.3t
Capacity:50-60 t/h
Max Feeding Size:850mm

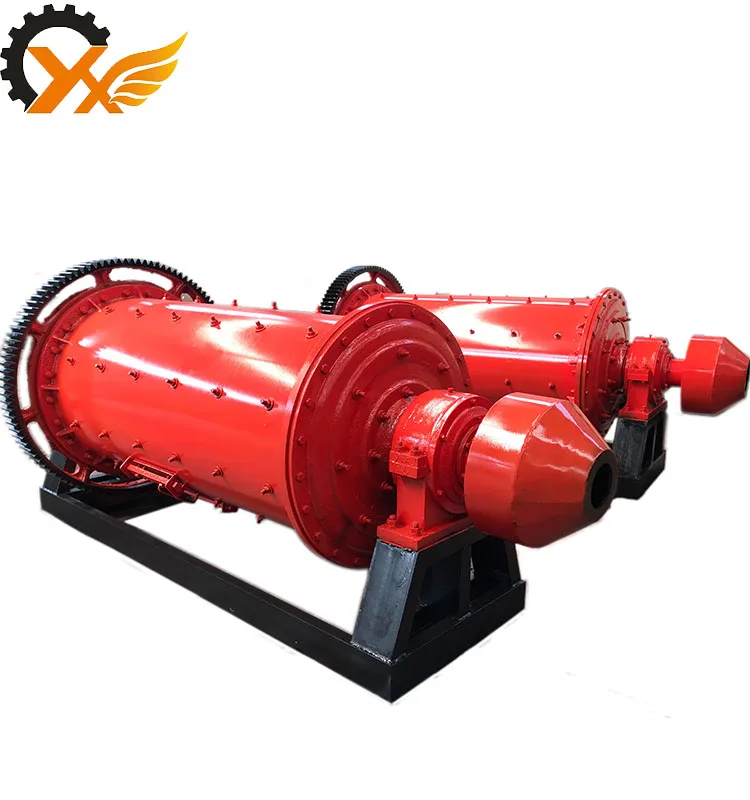

Ball mill is Yu Xiang's major product, professional technology support and all-around service can be offered to you
Weight:3.7t
Capacity:0.65-90T/H
Weight:3.7t
Capacity:0.65-90T/H

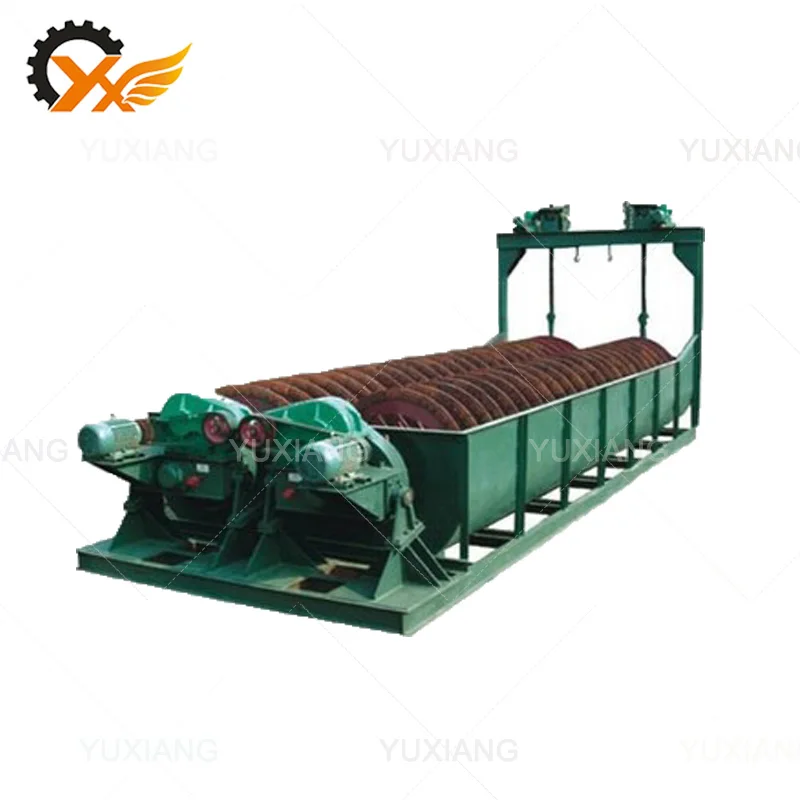

Spiral classifier is widely used in ore dressing plant and ball mill to form closed cycle and split flow ore sand.
Weight:3t
Capacity: 50T/H

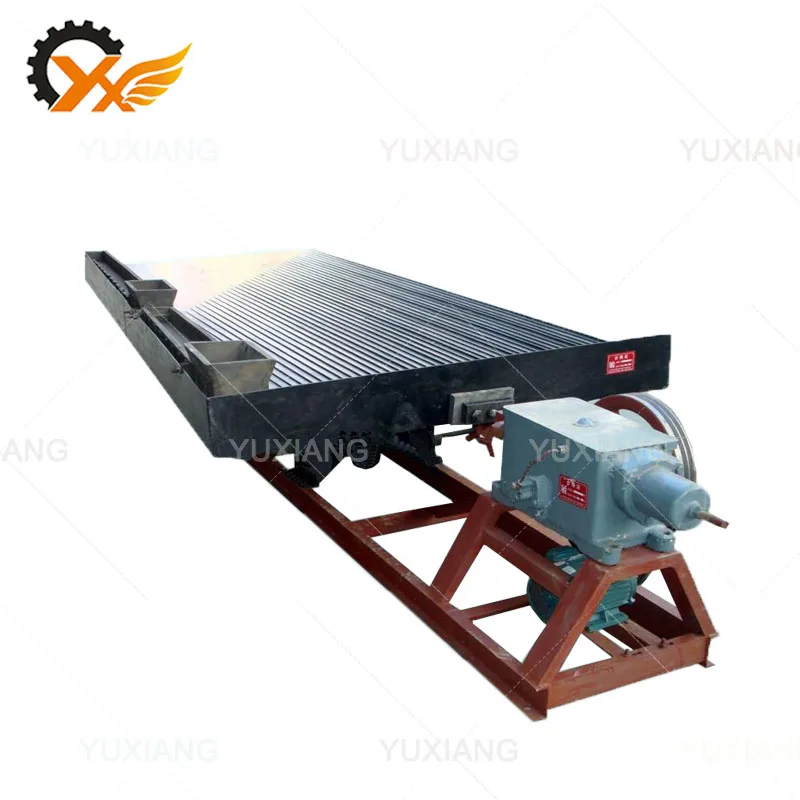

Shaking table is widely applied in recovery of tungsten, tin,colombite, gold and many other rare&precious metals.
Weight:2t
Capacity:10-20T/D
Gongyi City Yuxiang Heavy Machinery Co.,Ltd
Our company is a high-tech enterprise,which involves R&D,production,sales and service as well.In the past 20 years,our main products have Mining series equipment\\Wet pan mill\\Jaw crusher\\Gold centrifugal concentrator\\Mineral gold sand separator machine\\ Grinding machine series\\Dryer series equipment\\Carbonization furnace\\ Coal series equipment etc. We would like to recommend suitable equipment according to your requirement. Offering expressway,railway and water conservancy projects the solution of making high grade sand and matched equipment.
Q: 1.What is the quality of your products?
A:Our products have passed CE certification and are exported to many countries all over the world. You can be absolutely assured of the quality.
Q: 2. What if there is something wrong with the machine?
A: 24-hour telephone and E-mail online service. If the machine breaks down due to non-artificial factors, we offer free replacement within 12 months. If more than 12 months, the customer shall bear the freight round trip and the cost of spare parts.
Q: 3. How long is your warranty for the equipment?
A: Our warranty is one year.
Q: 4. What are your terms of payment?
A: Our usual terms of payment is T/T. After discussion and agreement between us, we can also receive other means.
Q: 5.What about after-sale service?
A:(1)Our company will send professional engineers to guide the installation and commissioning of the equipment. In addition, we will design and manufacture products that can be tailored to customers' specific requirements.
(2)The quality we guarantee is one year, except for the wearing parts.
Q: 2. What if there is something wrong with the machine?
A: 24-hour telephone and E-mail online service. If the machine breaks down due to non-artificial factors, we offer free replacement within 12 months. If more than 12 months, the customer shall bear the freight round trip and the cost of spare parts.
Q: 3. How long is your warranty for the equipment?
A: Our warranty is one year.
Q: 4. What are your terms of payment?
A: Our usual terms of payment is T/T. After discussion and agreement between us, we can also receive other means.
Q: 5.What about after-sale service?
A:(1)Our company will send professional engineers to guide the installation and commissioning of the equipment. In addition, we will design and manufacture products that can be tailored to customers' specific requirements.
(2)The quality we guarantee is one year, except for the wearing parts.
