4K HDMI 1.4B version HDMI splitter 1 in 4 Out 3.4Gbps Splitter Duplicator AV Audio Video Splitter
- Category: >>>
- Supplier: Shenzhen Ruibaili Technology Co. Ltd.
Share on (1601272074339):
Product Overview
Description
Product Overview
4K HDMI 1.4B version HDMI splitter 1 in 4 Out 3.4Gbps Splitter Duplicator AV Audio Video Splitter
PRODUCT SPECIFICATIONS
Interface Type | HDMI | ||||||
Connector | DC 5V | ||||||
Cable Wire gauge | 26awg | ||||||
USB Type | USB3.2*3（10Gbps) | ||||||
LOGO | Customized | ||||||
Max band rate | 3.4Gbps | ||||||
Color | Black or customized color | ||||||
HDMI resolution | 3840*2160/30Hz | ||||||
LED indicator | Yes | ||||||
Suitable for | All devices with HDMI interface | ||||||
Size | 178x66x20 (mm); package weight：0.12kg | ||||||
Features :
Support HDMI 1.4b version
Support 3D video format
Support high resolution up to 3840X2160/30HZ
Support highest rate of 3.4 G and TMDS clock can be up to 340 MHz
Support 8/10/12 bit deep color
Support AWG26 HDMI standard cable: input up to 10 meters,output up to 15 meters.
(when the resolution is 4K, input up to 8 meters, output up to 8 meters.)
Support one single HDMI source，accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and ect.
5V/1A power adapter
HDMI version : HDMI 1.4b
HDMI resolution : up to 3840*2160/30Hz
Support video format : 8/10/12 bit deep color
Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth: 340MHz
Max baud rate: 3.4Gbps
Input cable distance: (1080p resolution) ≤10m,(4K resolution)≤8m AWG26 HDMI standard cable
Output cable distance: (1080p resolution) ≤15m,(4K resolution)≤8m AWG26 HDMI standard cable
Max working current: 500mA
Power adapter format: input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
Operating Temperature range: (-15~55℃)
Dimension (L x W x H): 178x66x20 (mm)
Weight: 110g
Support HDMI 1.4b version
Support 3D video format
Support high resolution up to 3840X2160/30HZ
Support highest rate of 3.4 G and TMDS clock can be up to 340 MHz
Support 8/10/12 bit deep color
Support AWG26 HDMI standard cable: input up to 10 meters,output up to 15 meters.
(when the resolution is 4K, input up to 8 meters, output up to 8 meters.)
Support one single HDMI source，accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and ect.
5V/1A power adapter
HDMI version : HDMI 1.4b
HDMI resolution : up to 3840*2160/30Hz
Support video format : 8/10/12 bit deep color
Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth: 340MHz
Max baud rate: 3.4Gbps
Input cable distance: (1080p resolution) ≤10m,(4K resolution)≤8m AWG26 HDMI standard cable
Output cable distance: (1080p resolution) ≤15m,(4K resolution)≤8m AWG26 HDMI standard cable
Max working current: 500mA
Power adapter format: input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
Operating Temperature range: (-15~55℃)
Dimension (L x W x H): 178x66x20 (mm)
Weight: 110g

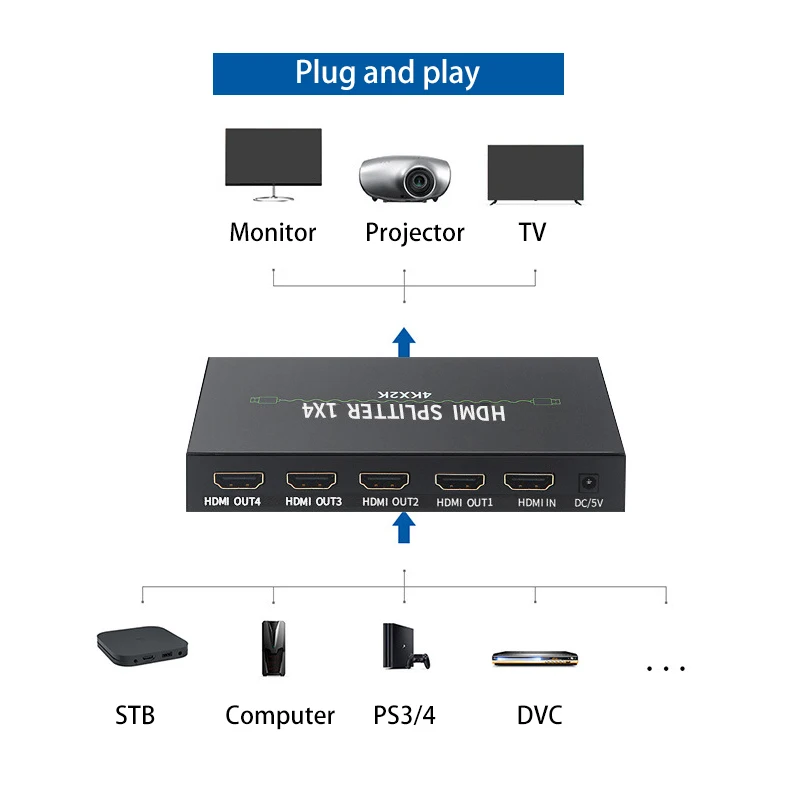

Connection and Operation:
1: connect the HD source to the splitter input with one hdmi cable
2: connect the splitter output to the displays with 4 hdmi cables
3: connect 5V/1A power adapter to the splitter
Package include :
1. 1. HDMI splitter
2. Power adapter
3. User manual
1: connect the HD source to the splitter input with one hdmi cable
2: connect the splitter output to the displays with 4 hdmi cables
3: connect 5V/1A power adapter to the splitter
Package include :
1. 1. HDMI splitter
2. Power adapter
3. User manual
