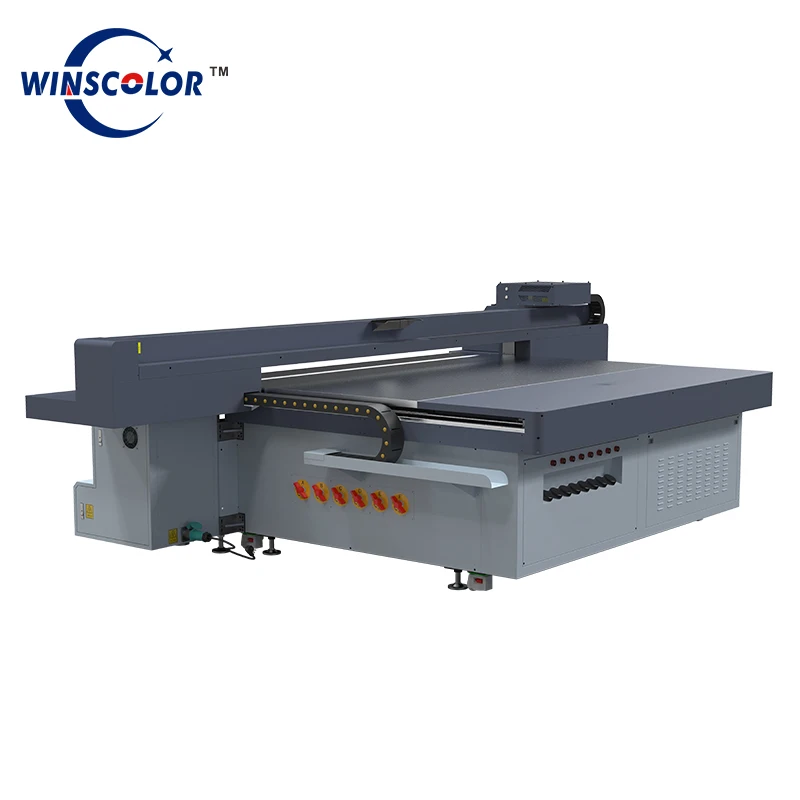

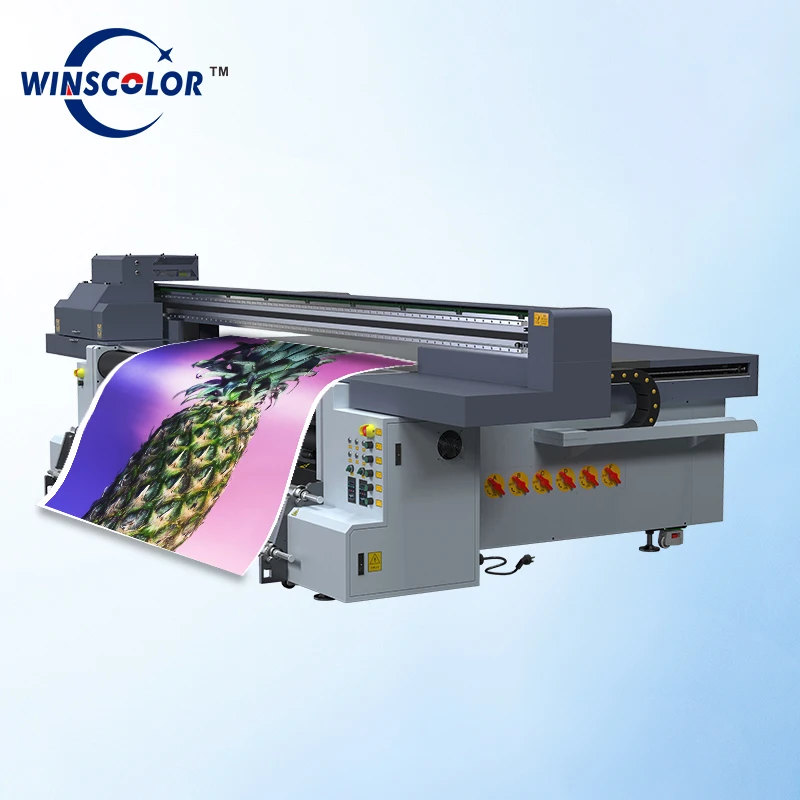

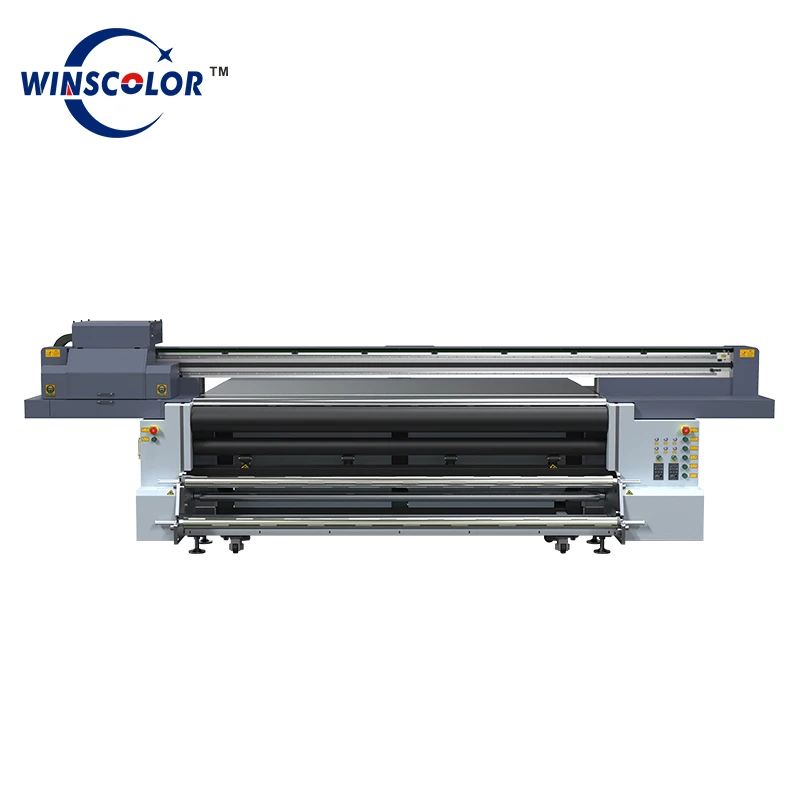

Premium UV Printer for Eye Catching Advertising on Ceramic Tiles and Wood
- Category: >>>
- Supplier: Jinan Yingcai Digital Technology Co. Ltd.
Share on (1601272096992):
Product Overview
Description
Product Description
Printhead
Ricoh GEN5/GEN6
Printhead 2-8 units
Print Effect
Color,white,varnish and
3D embossing effect optional
Printing Areas
Glass/Ceramic/Decoration/
Advertising&Sign industry

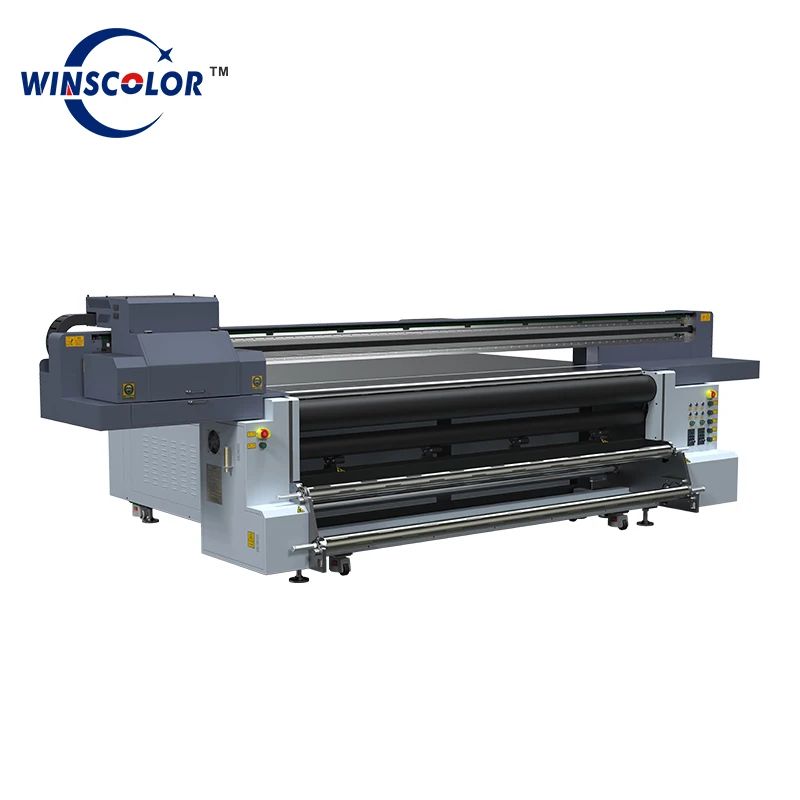

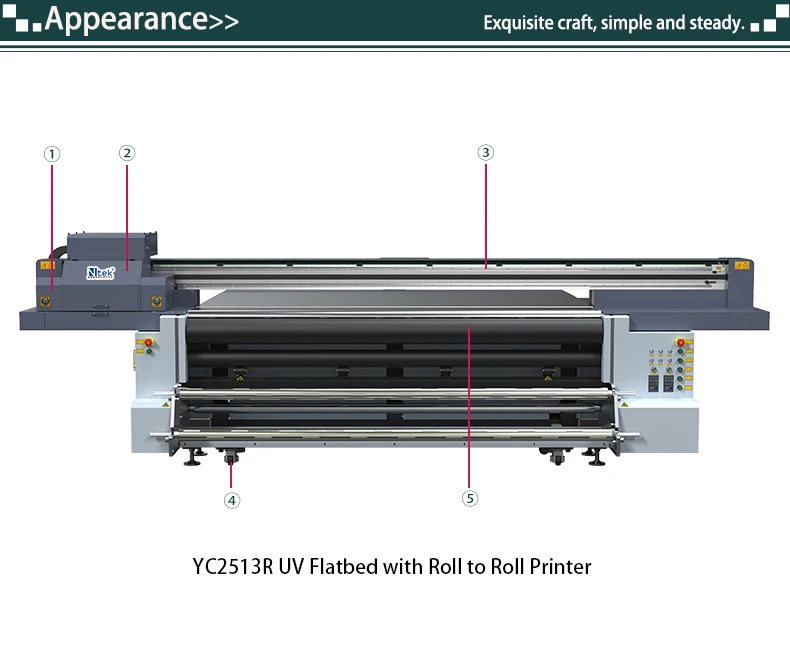

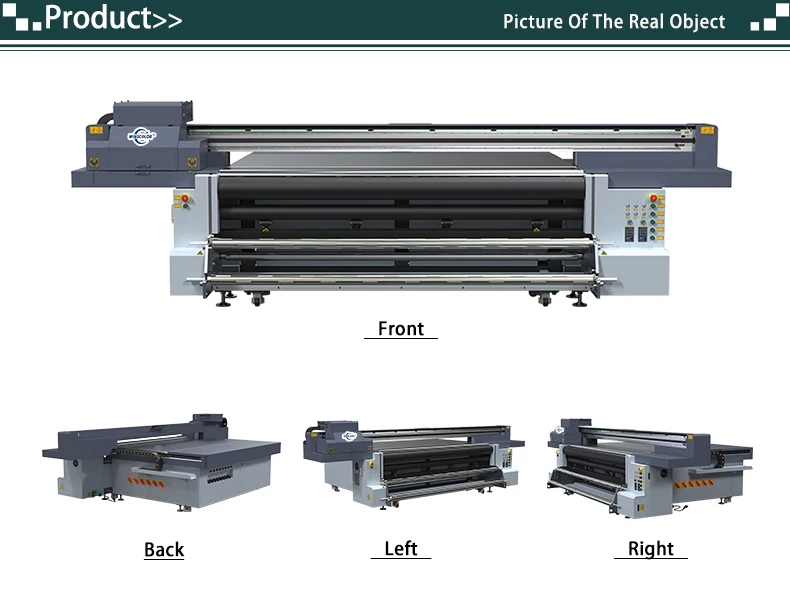

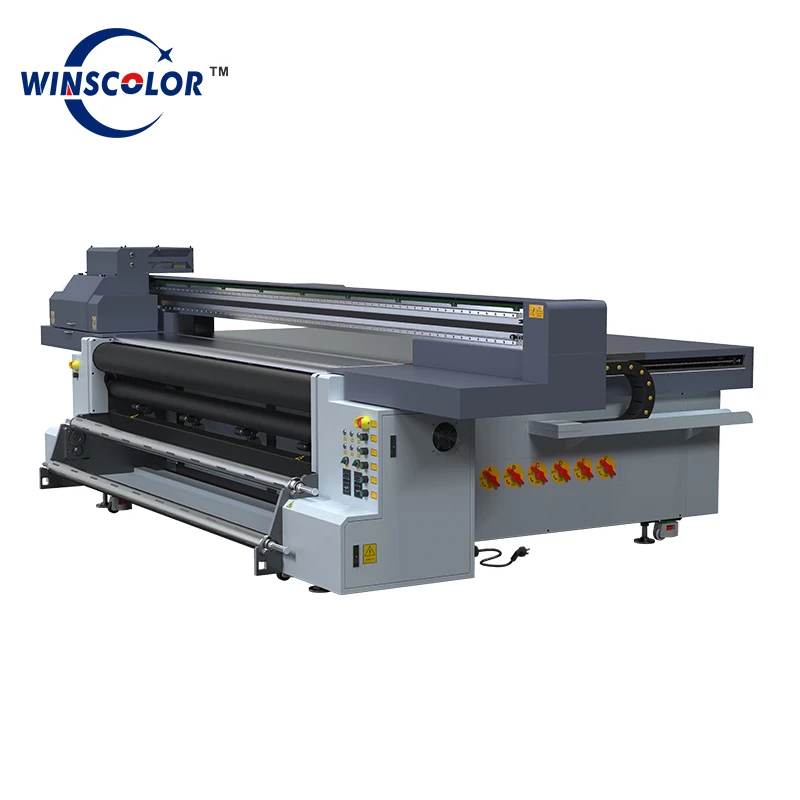

YC2513R UV Flatbed With Roll To Roll Printer
① Industrial printhead ② Anti-static ③ TAIWAN HIWIN guide rail
④ Top heavy rubber wheel ⑤ Universal wheel ⑥ Ink tank
④ Top heavy rubber wheel ⑤ Universal wheel ⑥ Ink tank
Product Paramenters
Specifications | Specification | |||||||
Type | YC2513R | |||||||
Product Type | Ricoh GEN5/GEN6 | |||||||
Printhead Number | 2-8 heads | |||||||
Ink Characteristics | UV Curing ink(voc free) | |||||||
Ink Reservoirs | Refillable on the fly while printing/2500ml per color | |||||||
LED UV Lamp | more than 30000-hours life made in Korea | |||||||
Printhead arrangement | CMYK LC LM W V Optional | |||||||
Printhead Cleaning System | Automatic Cleaning System | |||||||
Guide rail | TAIWAN HIWIN/THK Optional | |||||||
Working Table | Vacuum Sucking | |||||||
Printing Size | 2500*1300mm | |||||||
Roller Material Width | 2500mm | |||||||
Roller Material Diameter | 200mm | |||||||
Print Interface | USB2.0/USB3.0/Ethernet Interface | |||||||
Media Thickness | 0-100mm | |||||||
Print Resolution& Speed | 720X600dpi | 4PASS | 15-33sqm/h | (GEN6 40% faster than this speed) | ||||
720X900dpi | 6PASS | 10-22sqm/h | ||||||
720X1200dpi | 8PASS | 8-18sqm/h | ||||||
Life of printed image | 3 years(outdoor),10years(indoor) | |||||||
File Format | TIFF,JPEG,Postscript,EPS,PDF etc. | |||||||
RIP Software | RIP/Photoprint optional | |||||||
Power Supply | 220V/50/60HZ(+10%) | |||||||
Power | 8500W | |||||||
Operation Environment | Temperature 20 to 30 ℃,Humidity 40% to 60% | |||||||

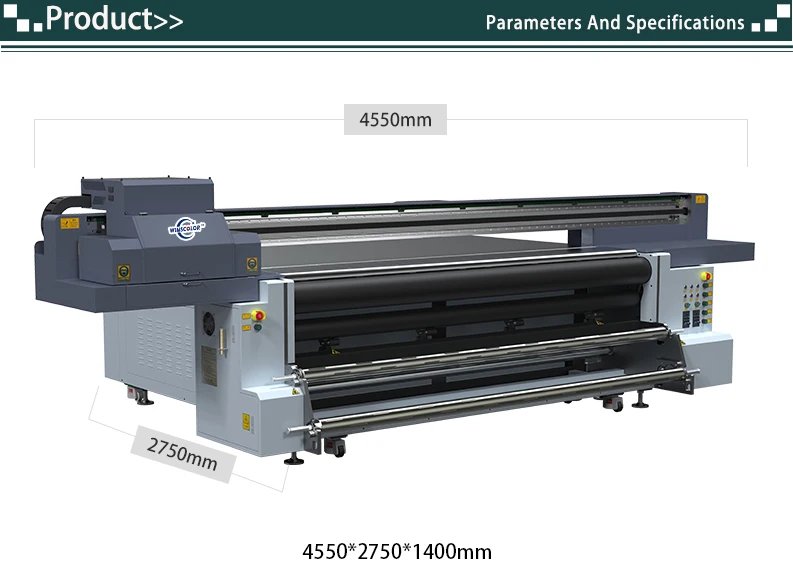

Dimensions(L*W*H) | 4.55*2.75 *1.4m | |||||||
Packing Dimension | 4660*2250*2230mm | |||||||
Weight | 2500KG | |||||||
Warranty | 12 months exclude the consumables related to ink, such as ink filter, damper etc | |||||||
Above specification subject to change without notice beforehand | ||||||||
Machine Details
Ricoh Print Head
Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolution.
It is suitable for long-time working, 24 hours running.
It is suitable for long-time working, 24 hours running.
Ricoh Print Head
Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolution. It is suitable for long-time working, 24 hours running.
High Precision Mute Linear Guide Rail
Adopting HIWIN mute double linear guide rail which is high resolution, low noise and durable, to ensure the carriage moving smoothly, inks eject more stably.
Vacuum Adsorption Platform
Hard oxidized honeycomb hole sectionalized adsorption platform, strong adsorption capacity, low motor consumption, customers can adjust the adsorption area according to the size of the printing material, the platform surface hardness is high, scratch resistance, corrosion resistance.
German IGUS Energy Chain
Utilize Germany IGUS mute drag chain on X axis, suitable for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.
Tempreture Control System
Korea UV LED Lamp
Large Capacity Ink Tank and Ink Shortage Alarm System
Registration Pin
Automatic Height Measurement
Anti-Static Device
Printing Samples
Ricoh Piezoelectric Nozzle
Adopt Ricoh piezoelectric nozzle, one nozzle 384/1280 nozzles, the accuracy can reach 1440dpi, the new variable ink drop technology, provide 7/14/21pl ink dot size, can achieve high speed or low resolution cases can also easily achieve high quality picture, to achieve no point printing effect.

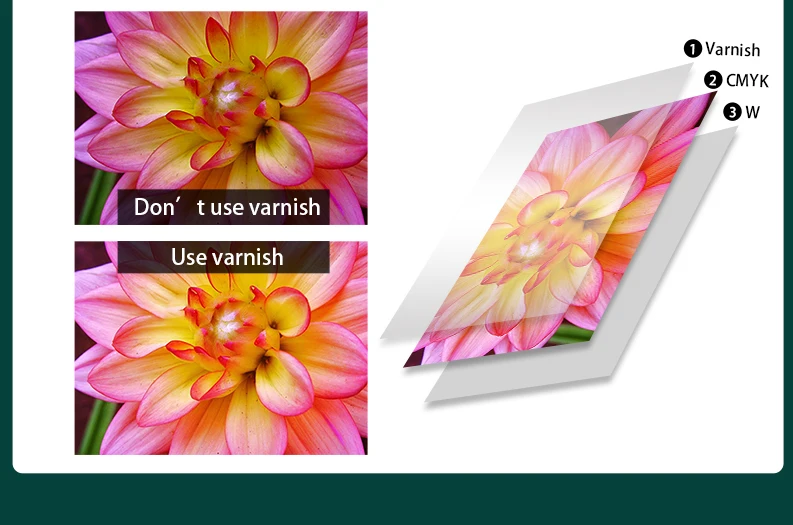

CMYK+W+V All Three Colors at Once
The use of gloss oil makes the product gloss more beautiful and has high gloss effect.
Not only makes the surface of the whole picture shiny, and gets more refined.
The printing effect can better protect the coating and make the product more durable.
The printing effect can better protect the coating and make the product more durable.
Decoration
Acrylic
Mouse Pad
Advertising Sign
Glass Photo
Ceramic
Plastic
Wood
Handcraft
PVC
leather
car sticker

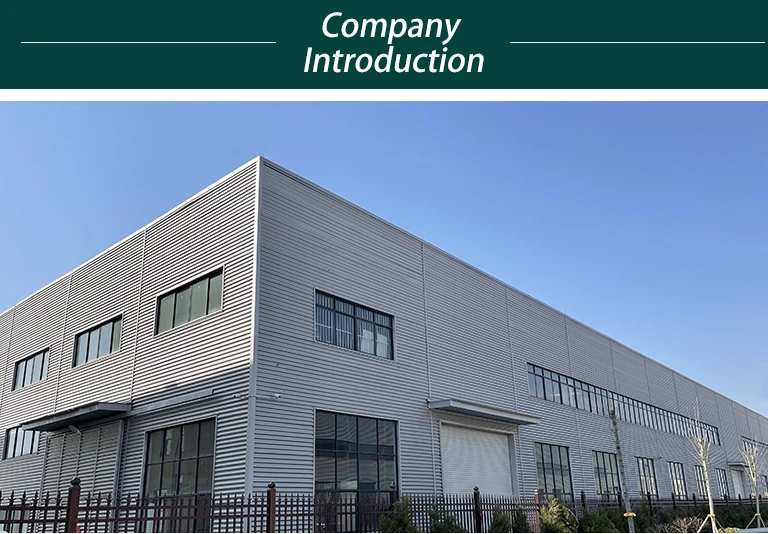

Company Profile
Jinan Yingcai Digital Technology Co., Ltd
Jinan Winscolor Digital Technology Co., Ltd. ("Winscolor" for short) was established in 2015, located in Jinan City, Shandong Province, China. The independent workshop is more than 20,000 square meters and has 6 professional production lines.
Winscolor is an exporter of UV digital printers. Now our printer series include UV flatbed printers, roll to roll printers, UV hybrid printers, and smart UV printers.Winscolor digital printers have been exported since 2015 and have been widely praised and recognized by customers. Our printers are exported to more than 150 countries in Asia, Europe, Australia, and Africa.
Winscolor UV printers have been widely used in industries such as advertising, signage, decoration, glass, and handicrafts. We strengthen technological innovation, optimize costs, and strive to create the best quality UV digital printers for customers, and provide comprehensive solutions for the different needs of various industries.
Winscolor is an exporter of UV digital printers. Now our printer series include UV flatbed printers, roll to roll printers, UV hybrid printers, and smart UV printers.Winscolor digital printers have been exported since 2015 and have been widely praised and recognized by customers. Our printers are exported to more than 150 countries in Asia, Europe, Australia, and Africa.
Winscolor UV printers have been widely used in industries such as advertising, signage, decoration, glass, and handicrafts. We strengthen technological innovation, optimize costs, and strive to create the best quality UV digital printers for customers, and provide comprehensive solutions for the different needs of various industries.
Winscolor adheres to the concept of excellence, continuously improves product quality, and becomes the most trusted brand in the UV printing equipment industry. We will continue to devote ourselves to the R&D and innovation of industrial printing and promote the healthy development of the printing industry.
After-sales Service
Ｏne Year Warranty
Important parts, warranty for one year.
Free Replacement
Within the warranty period, free replacement of damaged parts
caused by quality problems.
Intimate After-sales
At least three times a year after
sales return visit, keep track of
the machine use.
Winscolor UV Flatbed With Roll To Roll Printer-Warranty
We provide one year warranty for our uv printers including all the electronic parts including the main board, driver board,control board, motor, etc, except the consumables, such as printhead, ink pump, ink filter, and slide block etc.
Packing & Delivery
Customer Photos
FAQ
1. How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
2. What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.
3. How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.
4. How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But costomer has to be responsible for the accommodation and transportation costs of the technical staff.
5. Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers.
6. Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,driver board, control board, motor, etc, except the consumables, such as ink pump, printhead, ink filter, and slide block etc.
7. How can I install and start to use the printer?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand the machine. If you need any help, our technician can help you via Teamviewer. Whenever you have questions to the machine, you can contact our technician or me directly.
8. Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
9. How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48hours by express like TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.
10. What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
2. What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.
3. How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.
4. How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But costomer has to be responsible for the accommodation and transportation costs of the technical staff.
5. Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers.
6. Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,driver board, control board, motor, etc, except the consumables, such as ink pump, printhead, ink filter, and slide block etc.
7. How can I install and start to use the printer?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand the machine. If you need any help, our technician can help you via Teamviewer. Whenever you have questions to the machine, you can contact our technician or me directly.
8. Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
9. How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48hours by express like TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.
10. What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
