Fast Delivery Original 48V 40A Telecom Power System Emerson NetSure211 C23
- Category: >>>
- Supplier: Beijing Guoguang Xingda Technology Co. Ltd.
Share on (1601272106907):
Product Overview
Description
The NetSure™ 211 Series of compact -48V power systems is the ideal solution for power plants in the smaller access segment such as street cabinets and other outdoor solutions requiring minimal space with tough environmental conditions, such as very high or very low temperature.
The system is designed with up to 6*500W or 1000W NetSure rectifiers and a standard or advanced control unit with TCP/IP to enable remote monitoring and un-attendant operation. The distribution section supports up to 12 circuit breakers ranging from 1-30A or 10* 10-30A fuses and there is a choice of multi-function units providing battery and distribution connections.Engineered for mini power applications, NetSure 212 is available in 19" or 23" rack mount configurations only 300mm deep to fitinto ETSI 300 racks.
Features
* <300 mm deep
* Front cable connections
* Wide temperature operating range
* Advanced controller option
* Wide range of distribution circuit breakers
Benefits
* Compact system design
* Supports 300mm ETSI cabinets
* Easy access thanks to front cable connections
* Operates in tough environmental conditions
* Remote monitoring and un-attendant operation
The system is designed with up to 6*500W or 1000W NetSure rectifiers and a standard or advanced control unit with TCP/IP to enable remote monitoring and un-attendant operation. The distribution section supports up to 12 circuit breakers ranging from 1-30A or 10* 10-30A fuses and there is a choice of multi-function units providing battery and distribution connections.Engineered for mini power applications, NetSure 212 is available in 19" or 23" rack mount configurations only 300mm deep to fitinto ETSI 300 racks.
Features
* <300 mm deep
* Front cable connections
* Wide temperature operating range
* Advanced controller option
* Wide range of distribution circuit breakers
Benefits
* Compact system design
* Supports 300mm ETSI cabinets
* Easy access thanks to front cable connections
* Operates in tough environmental conditions
* Remote monitoring and un-attendant operation
Product Description

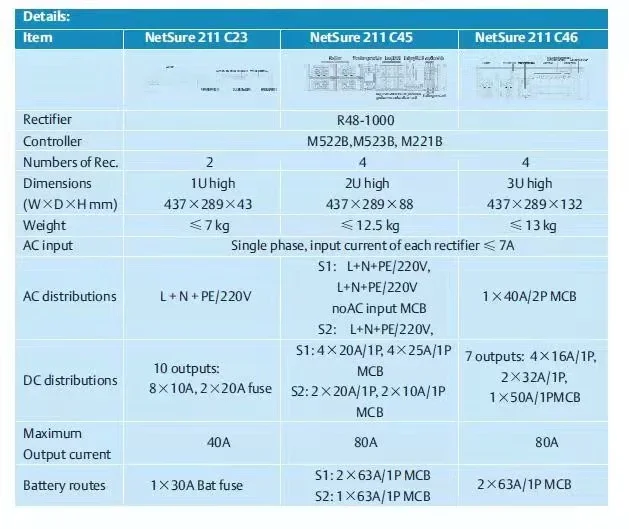

Specification

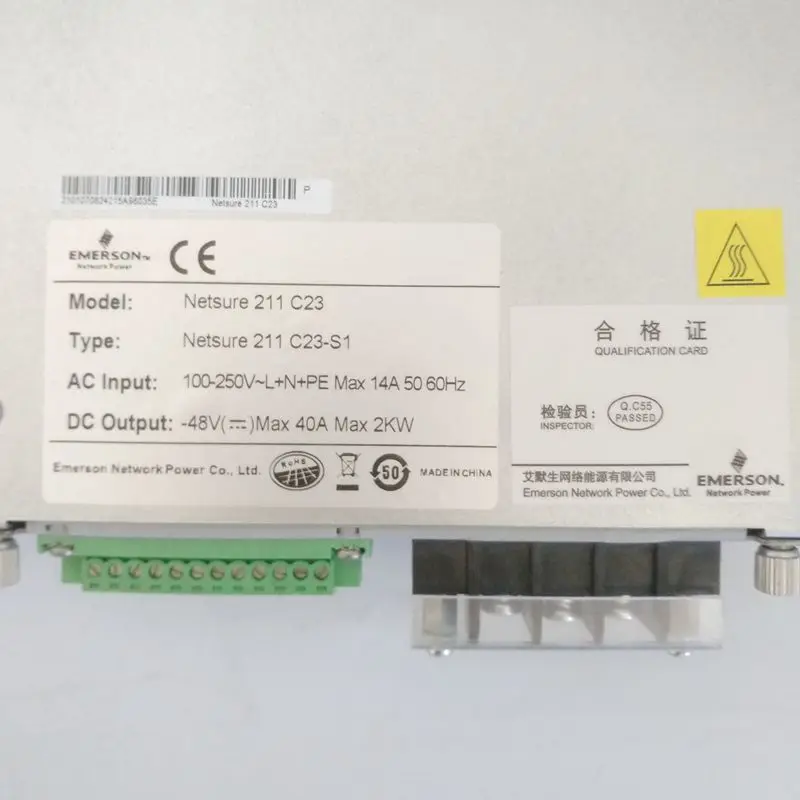

MODEL | NETSURE211 C23-S1 |
AC INPUT | 100-250V~L+N+PE MAX 14A 50 60HA |
DC OUTPUT | -48V MAX 40A MAX2KW |
Dimension | 437*289*43mm |
weight | 7kg |
