Tungsten Ore Beneficiation Equipment Mechanical Beneficiation Centrifuge for Tailings Selection Black White Tungsten Ore Machine
Jiangxi Henghong mining machinery is devoting to provide turnkey solution with worldwide clients for mineral processing plant including research, design, manufacture,installation and commissioning, personnel training, after-sale service and management of processing plant. Up to now, we have developed five major product lines: they are mining crushing machine, mining milling machine, mining classifying separator, mining flotation machine and the mining gravity separator. You have really good taste to find our Manufacturer!

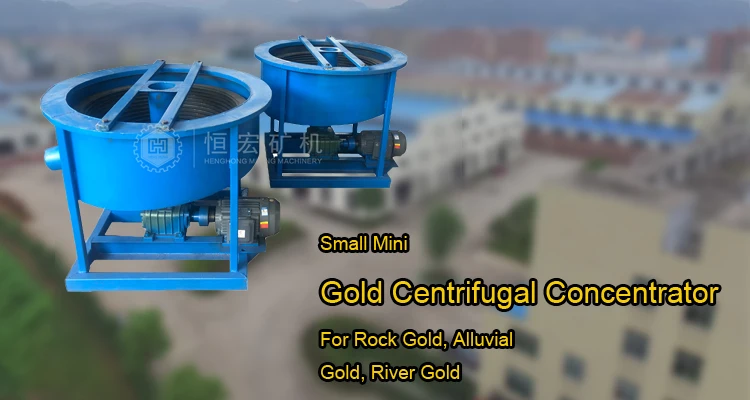

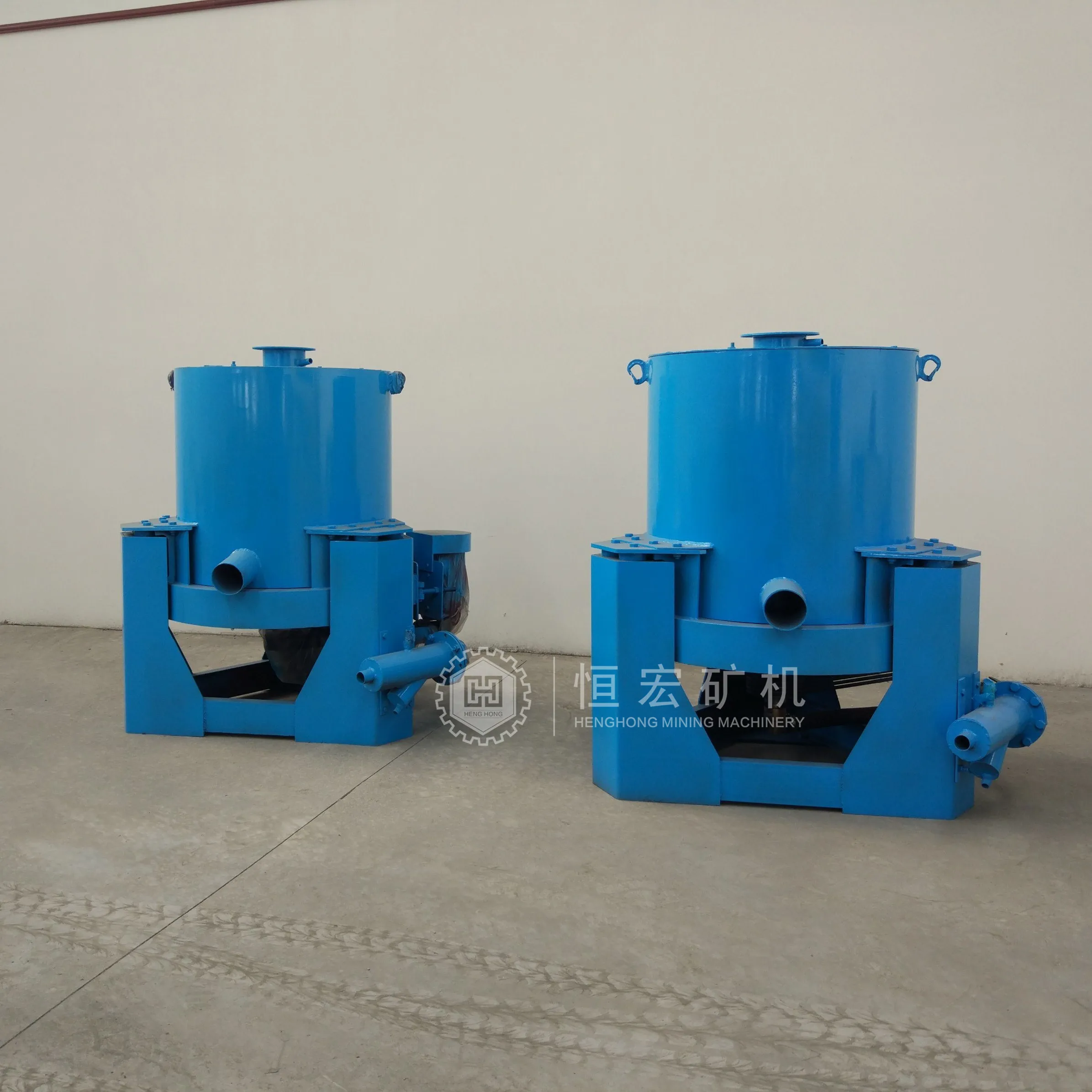

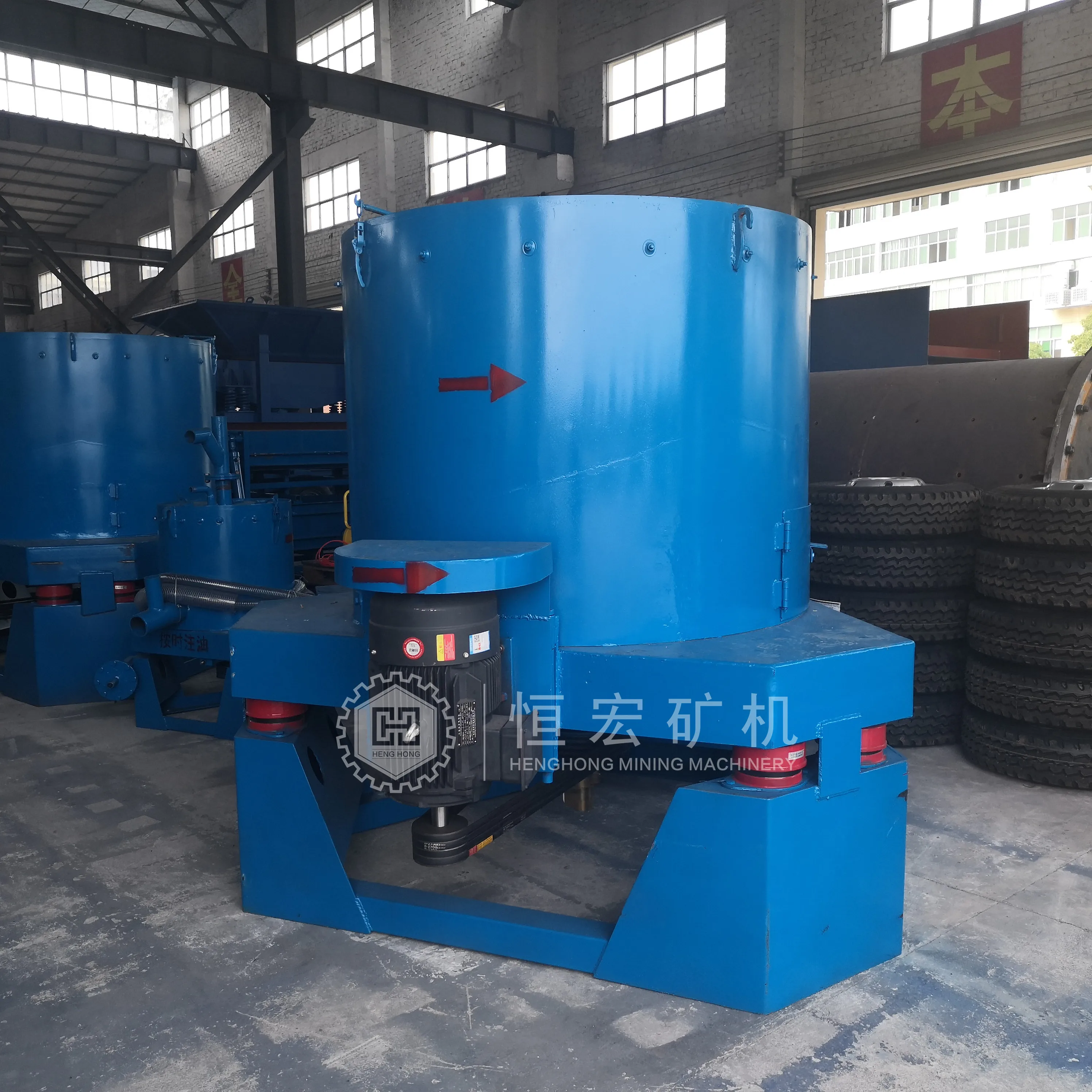

Centrifugal Concentrator STLB 60 Breif Description
Gold centrifugal concentrator also called knelson concentrator is a new type of gravity concentration equipment, used in the gold mining industry. It is used for the recovery of fine particles of free gold, meaning gold that does not require gold cyanidation for recovery.There are have Five models are available. Application shows that the recovery can be as high as 90%, especially for the case in recovering the natural gold in lode ore with 65% of the ore having a milling size of 0.074mm, the recovery for the natural gold is expected up to 98%, For that natural gold of 0.004mm in particle size, the recovery is 97%. The cleaning up cycle is 1~4 hours,and the upgrade ratio is up to 1,000 times. The equipment is patented in China.
Main Features
1.High recovery and high concentrating ratio
2.Low water and electricity requirements
2.Low water and electricity requirements
3.Durable wear parts, Environmentally friendly
4.Easy to install & Operate
Product Parameter
Model | STLB20 | STLB30 | STLB60 | STLB80 | STLB100 |
Capacity(T/h) | 1-2 | 2-3 | 10-15 | 35-40 | 40-60 |
Feeding Size(mm) | 0-3 | 0-4 | 0-6 | 0-6 | 0-6 |
Feeding Concentration (%) | 0-50% | 0-50% | 0-50% | 0-50% | 0-50% |
Back Wash Water (T/H) | 1.5-2 | 4-6 | 10-15 | 17-25 | 40-60 |
Output (kg/time) | 2-3 | 10-20 | 30-40 | 60-70 | 70-80 |
Power(kw) | 0.75 | 1.5 | 4 | 15 | 22 |
Revolution | 800 | 600 | 460 | 400 | 360 |
Pressure Water (MPa) | 0.04 | 0.1 | 0.16 | 0.18 | 0.2 |
Outline (mm) | 790x785x790 | 1180x1140x1250 | 1970x1670x1750 | 2300x1800x2200 | 2500x2000x2400 |
Weight(KG) | 300 | 500 | 1300 | 1800 | 2800 |
Working Principle
The hollow shaft of gold centrifugal concentrator can be driven by electrical motor transmission part through belt driving, making the rotation inner sleeve rotate in a high speed to produce centrifugal force. The slurry will be fed into the rotation inner sleeve through feeding pipe, and the slurry particle will be separated under the action of centrifugal force field. The heavy mineral will be remained in the cell guide of rotation inner sleeve, and the light mineral will be discharged through the tailings launder. After one shift work and stop running, the concentrate will be discharged through the concentrate discharge outlet.
Operation Tips
1. According to the instructions of motor required for the preparation and check before use.
2. Check the equipment whether the anchor is stable.
3. Check the state of V-belt tension and adjust appropriately (factory test machine has made adjustments)
4. Check the equipment without interference of moving parts, manual turning checks.
5. Check the discharge port (10) is closed.
2. Check the equipment whether the anchor is stable.
3. Check the state of V-belt tension and adjust appropriately (factory test machine has made adjustments)
4. Check the equipment without interference of moving parts, manual turning checks.
5. Check the discharge port (10) is closed.

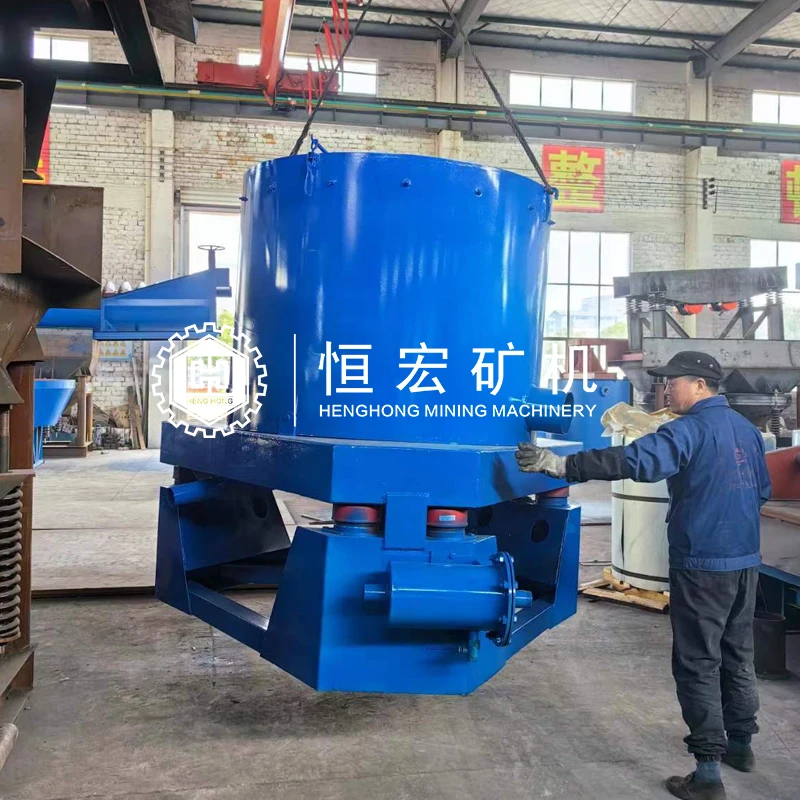

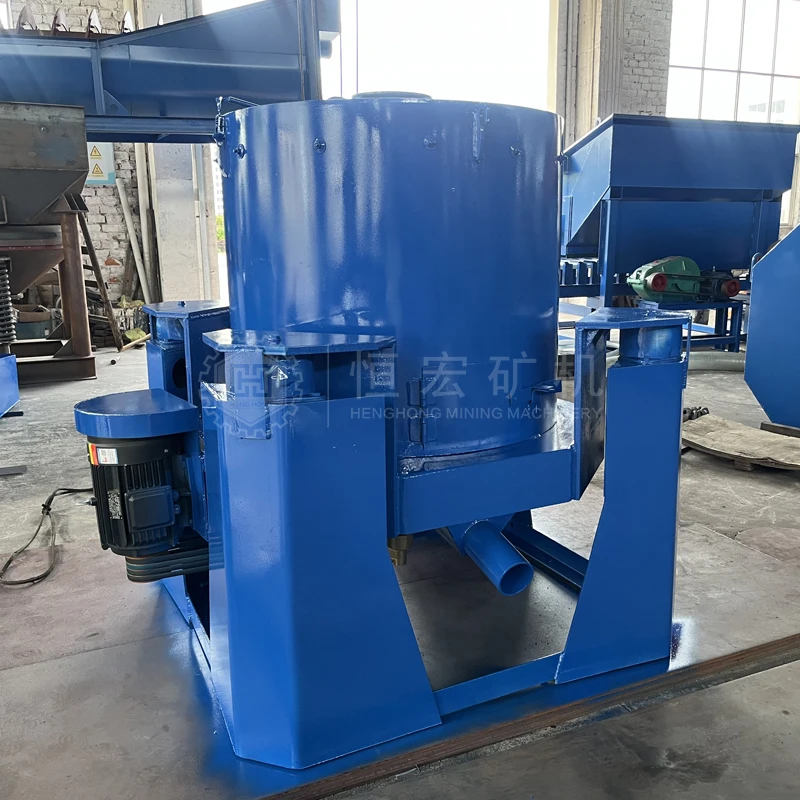

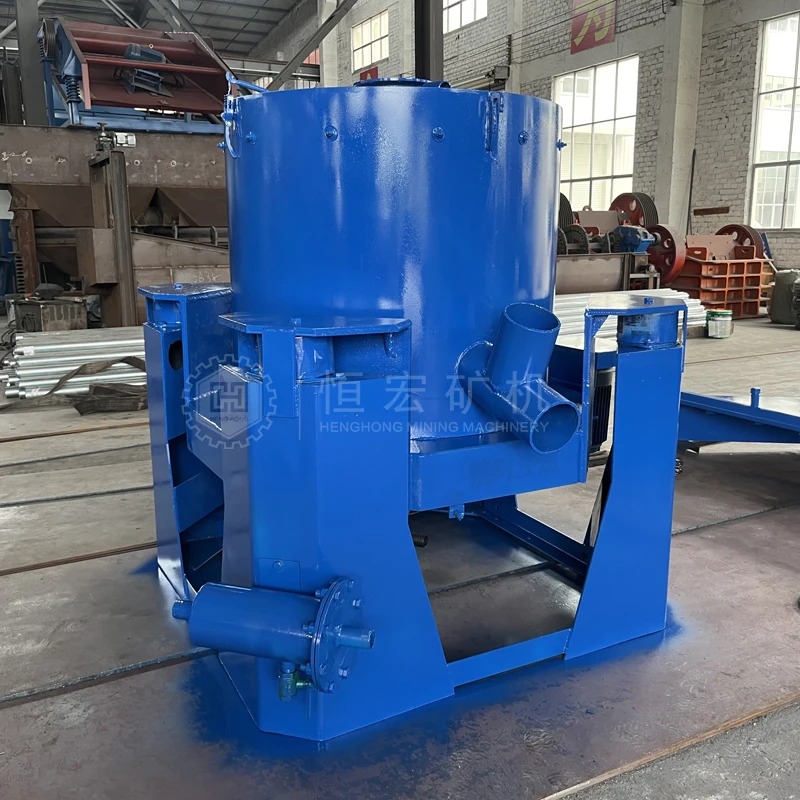

Details Image

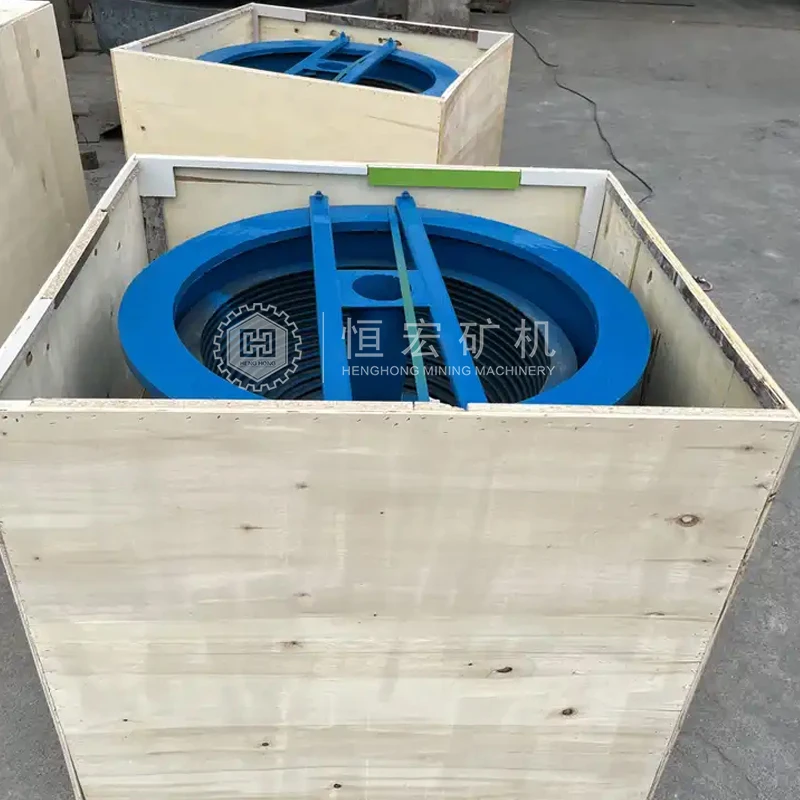

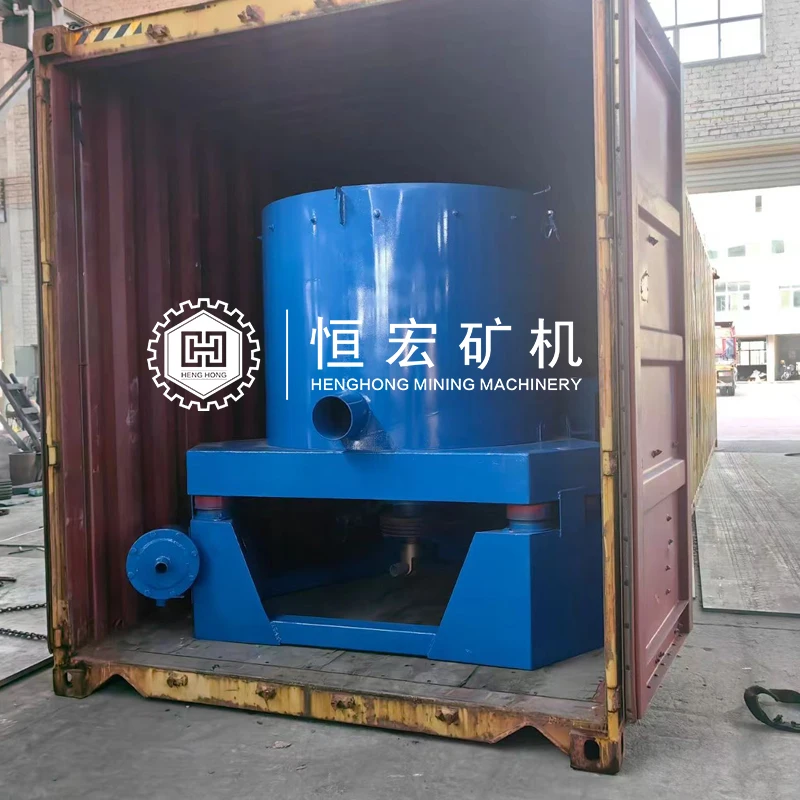

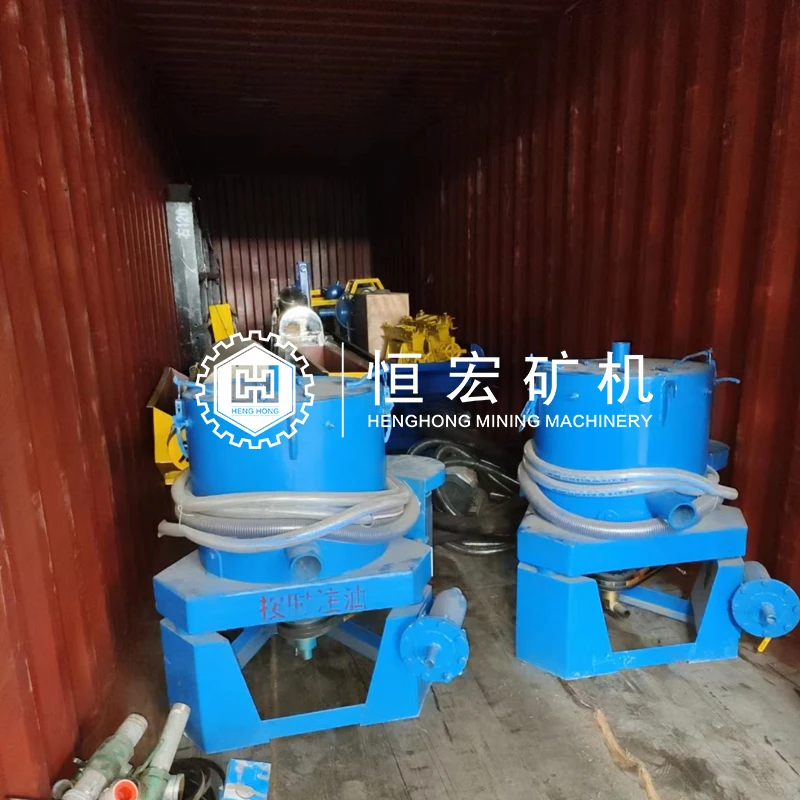

Packing & Delivery
Shipping Way：
※ By sea, for large package and quantity (LCL or FCL), container have 20GP/40GP/40HQ etc;
※ By sea, for large package and quantity (LCL or FCL), container have 20GP/40GP/40HQ etc;
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ Other ways as customer requested (such as the buyer can arrange their own cooperated forwarder to pick up the goods from our factory).
※ Other ways as customer requested (such as the buyer can arrange their own cooperated forwarder to pick up the goods from our factory).

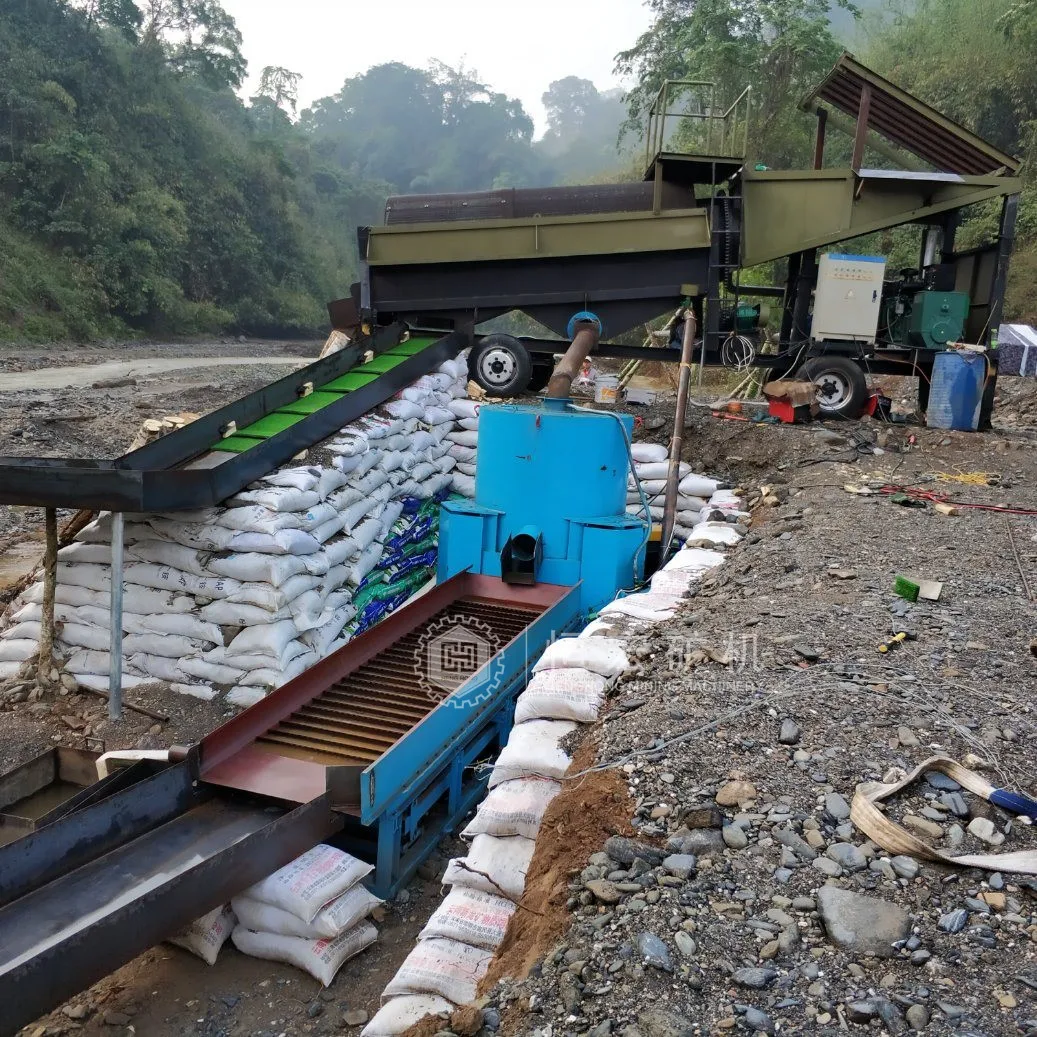

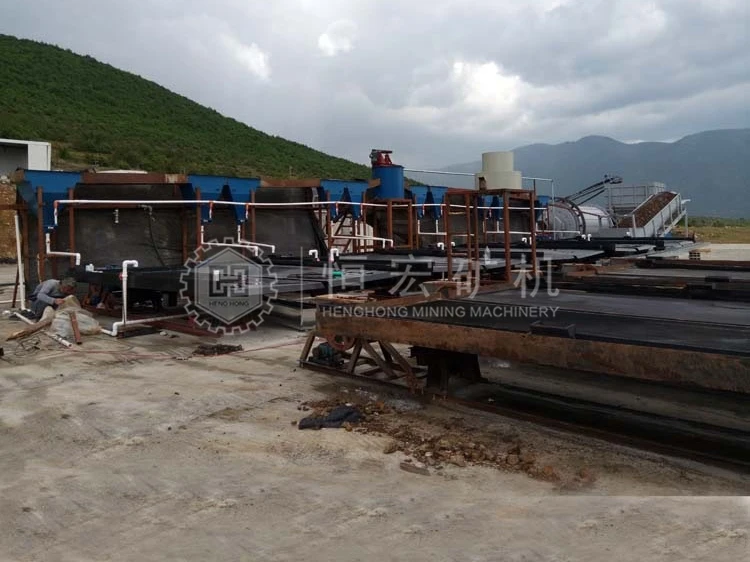

Successful Cases
Mineral Centrifugal Concentrator In Malaysia
Mineral Centrifugal Concentrator In Australia
Centrifugal Gravity Concentrator In Peru
Centrifugal Gravity Concentrator In Mali
Gold Centrifugal Concentrator In Tanzania
Gold Centrifugal Concentrator In Mexico
Knelson Concentrator In Indonesia
Knelson Concentrator In Thailand

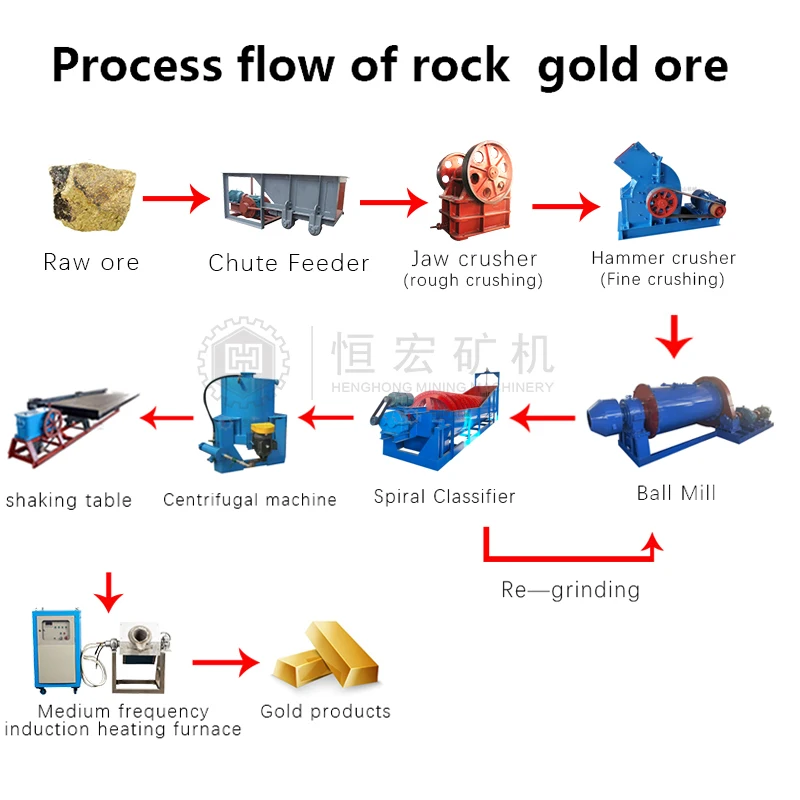

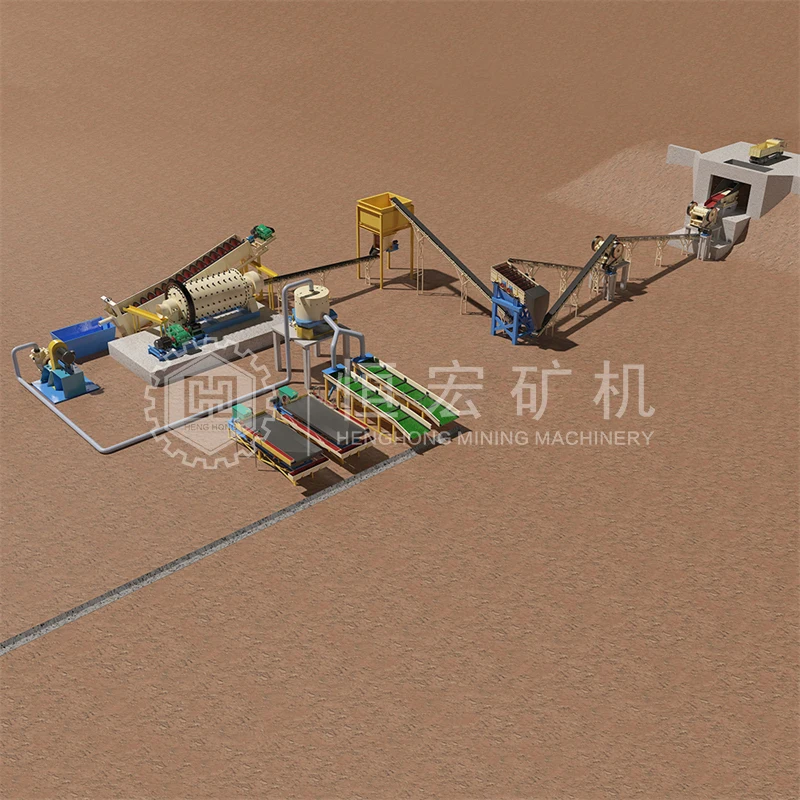

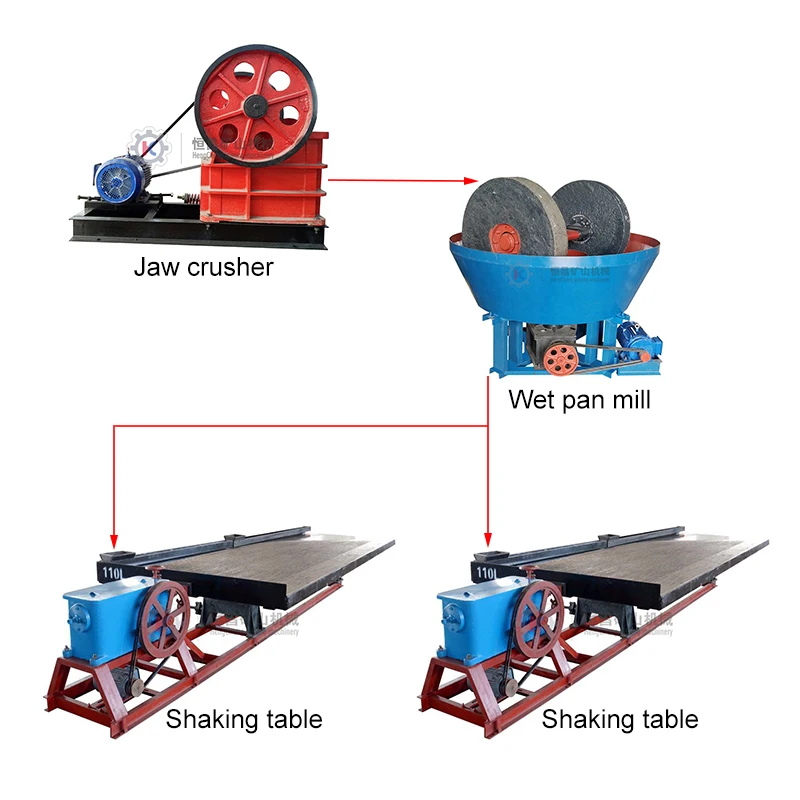

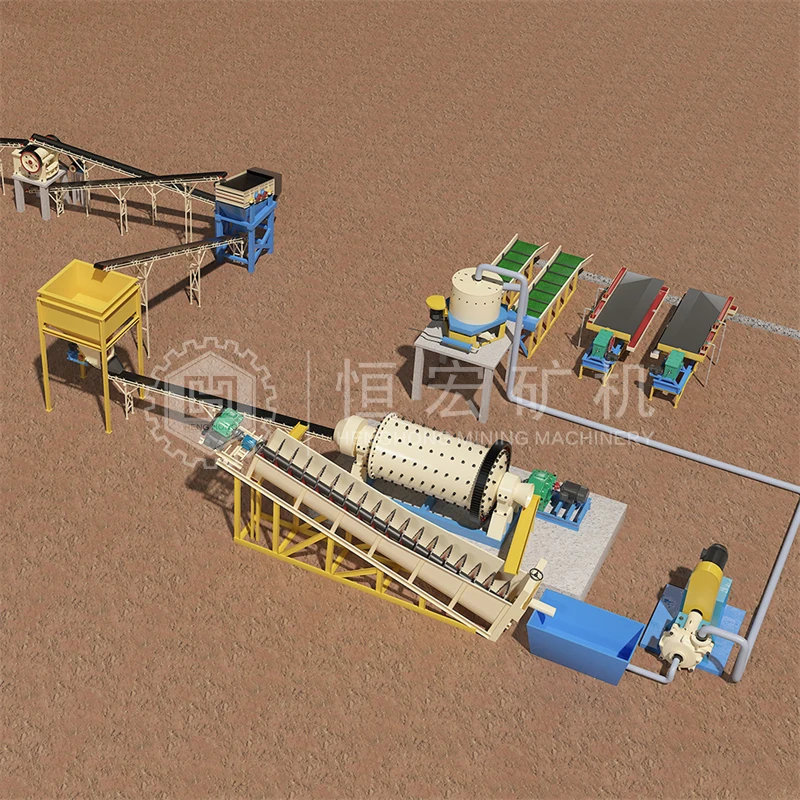

Project Flowchart
