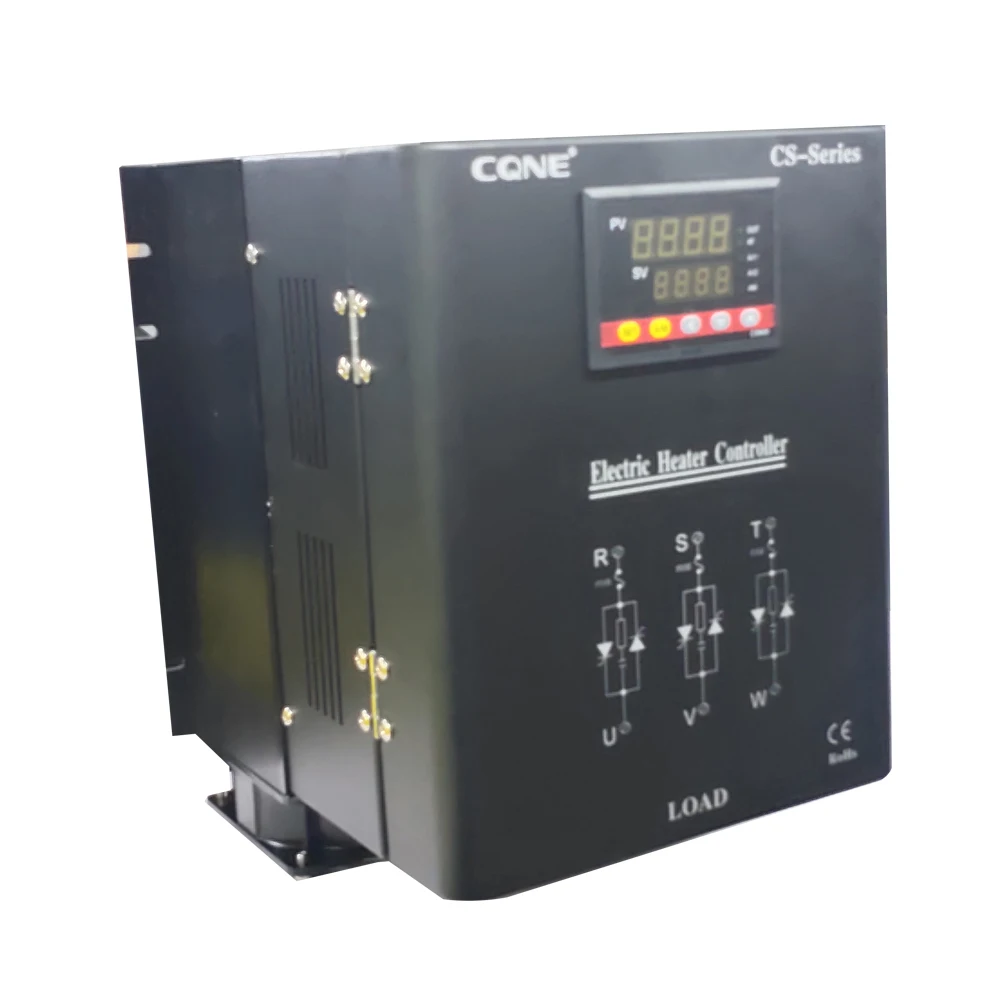

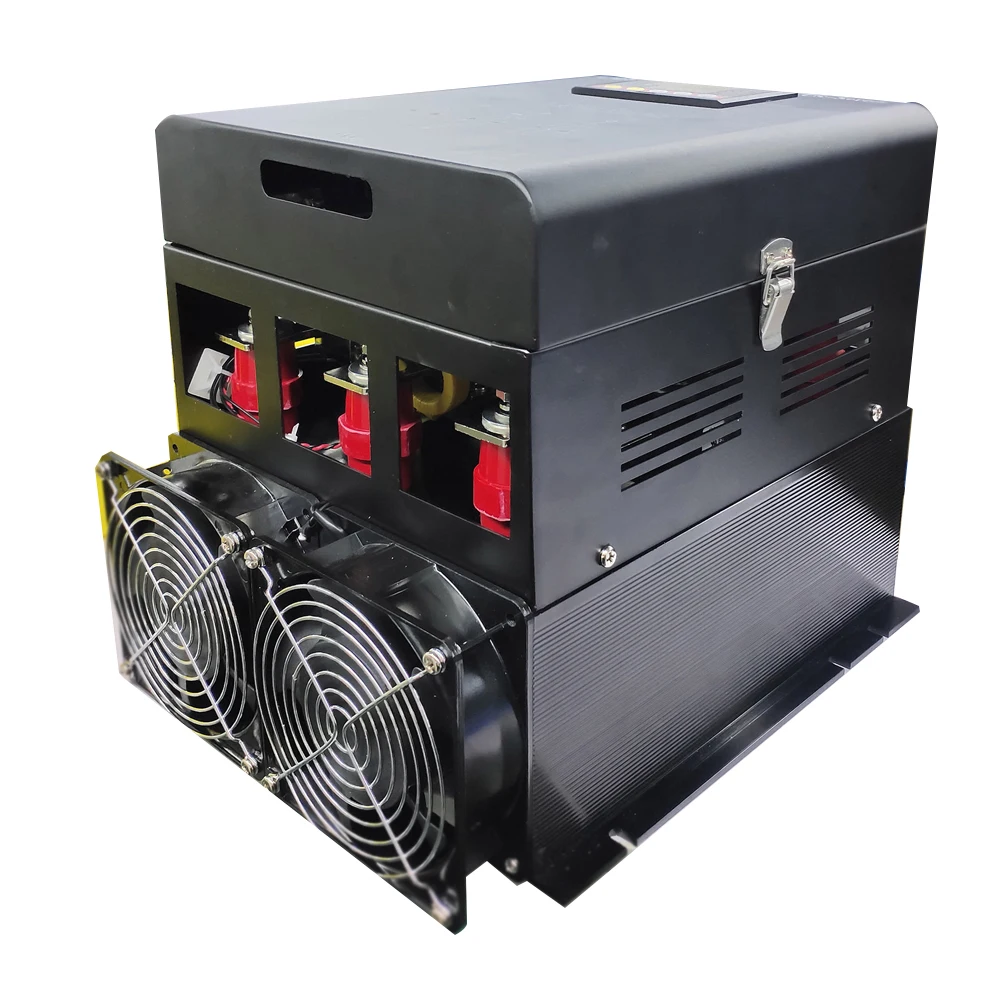

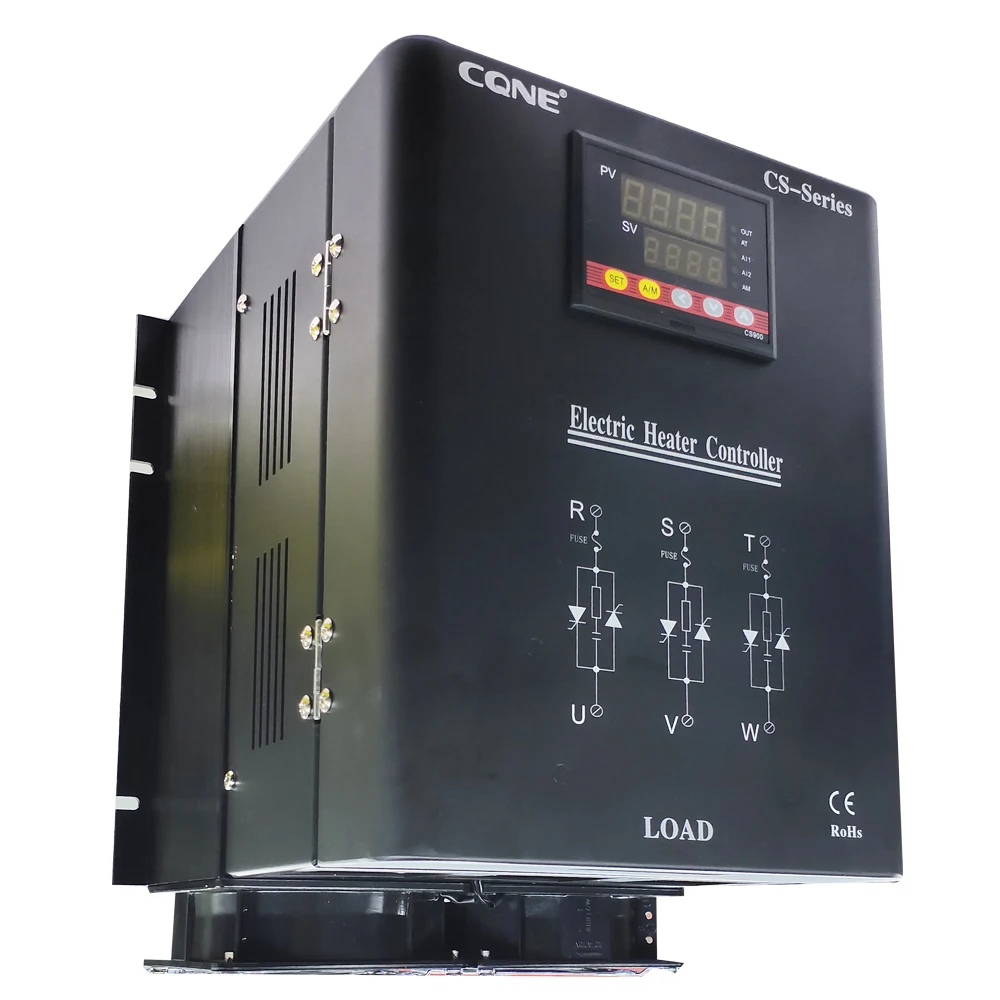

Over current protection scr thyristor power controller regulator
- Category: >>>
- Supplier: Dongguan Xingqian Electronic Technology Co. Ltd.
Share on (1601272201160):
Product Overview
Description
Product Overview
XQNE Cqne Three Phase Automatic 30A 40A 50A 60A 80A 100A 125A 150A 175A 200A 250A 300A 350A 400A 500A 600A 800A 1000A 1200A 2000A SCR Power Regulator
SCR electric heating power regulator is widely used in various industrial equipment: industrial electric furnace, polycrystalline silicon reduction furnace, annealing wire drawing machine, food processing machinery, electroplating, bottle blowing machine special controller, such as high-temperature boiler, glass tempering furnace, high-temperature ceramic furnace, electric copper furnace, powder metallurgy, vacuum electroplating, metal heat treatment, fiber dyeing heating equipment, physical and chemical instruments, electric voltage transmission equipment, transformer primary side control Light control system, plastic extruder, UV/IR infrared lamp heating, dryer, wire and cable machinery, mold heating, plastic leather, laminating machine, blister, food machinery, material forming machinery, constant temperature test, constant temperature and humidity control in dust-free room and other industrial heating control!
FEATURES AT A GLANCE
Control signal input
4-20mA, 0-10mA, 0-5V, 0-10V, 1-5V, 2-10V, PWM, manual potentiometer adjustment, panel key control and other signal inputs
4-20mA, 0-10mA, 0-5V, 0-10V, 1-5V, 2-10V, PWM, manual potentiometer adjustment, panel key control and other signal inputs
control mode
Integrated technology of voltage regulation, phase shift and zero-crossing cycle power regulation can realize closed-loop control of constant current, constant voltage, constant power, etc
Integrated technology of voltage regulation, phase shift and zero-crossing cycle power regulation can realize closed-loop control of constant current, constant voltage, constant power, etc
Appearance dimension（L*W*H):
CS6-3-3V0: 40A ( 210*140*185mm)
CS6-3-3V0: 40A-100A (250*140*185mm)
CS6-3-3V0: 125A-200A(330*140*185mm)
CS6-3-3V0: 250A-350A ((330*272*270mm)

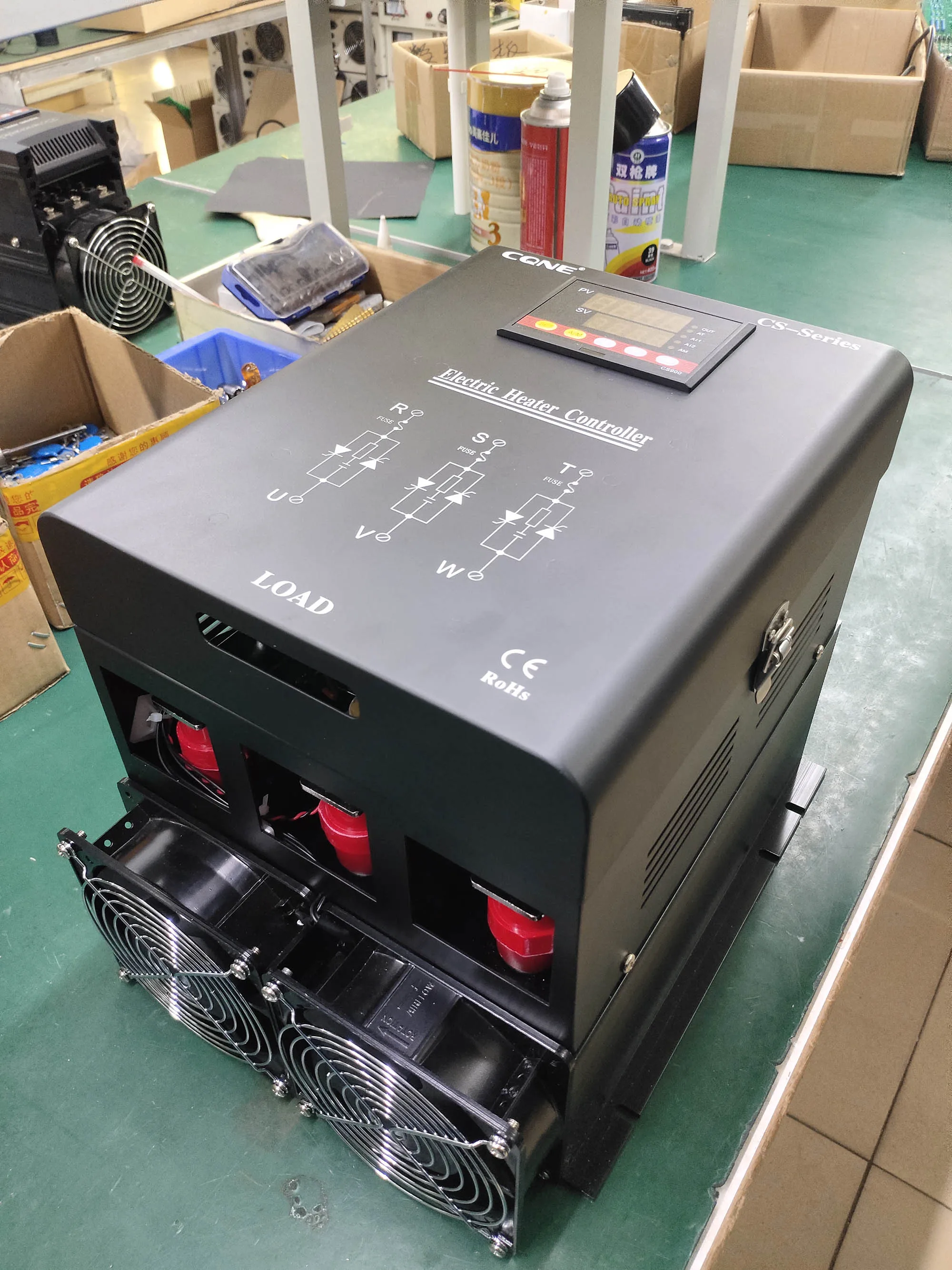

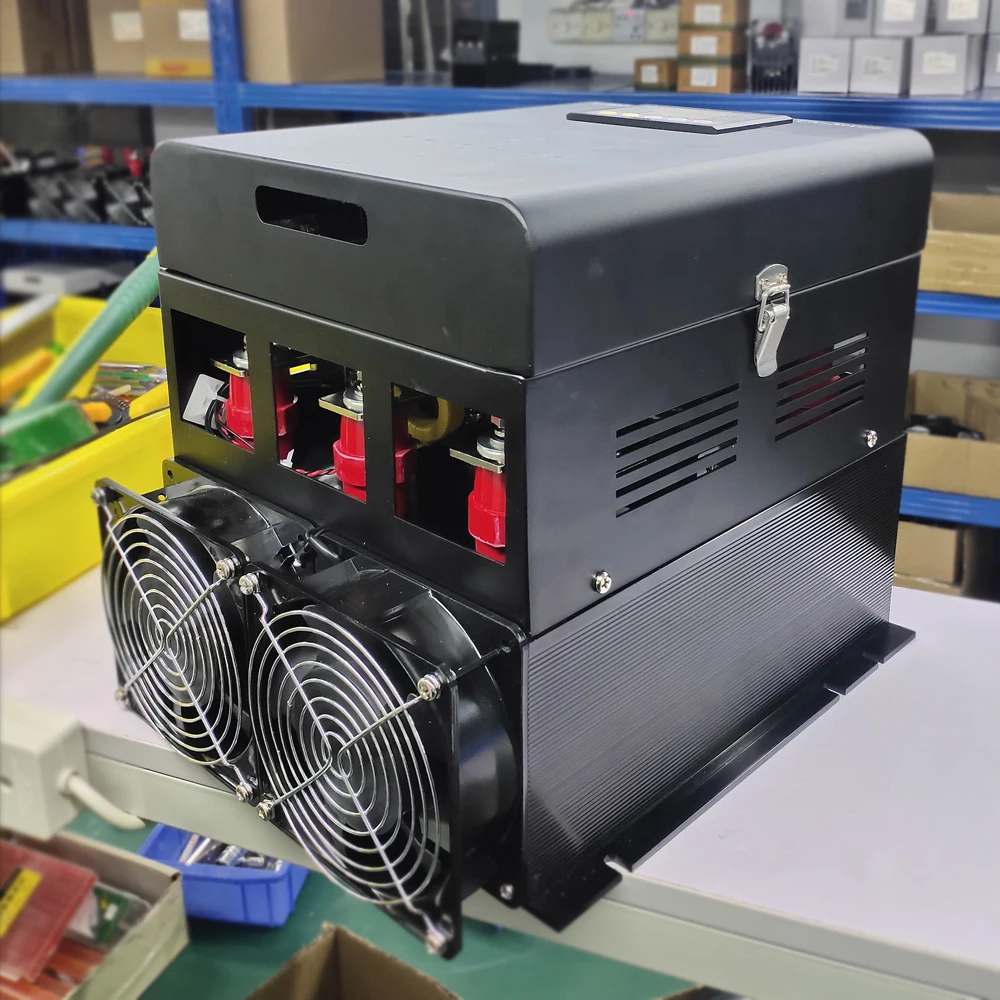

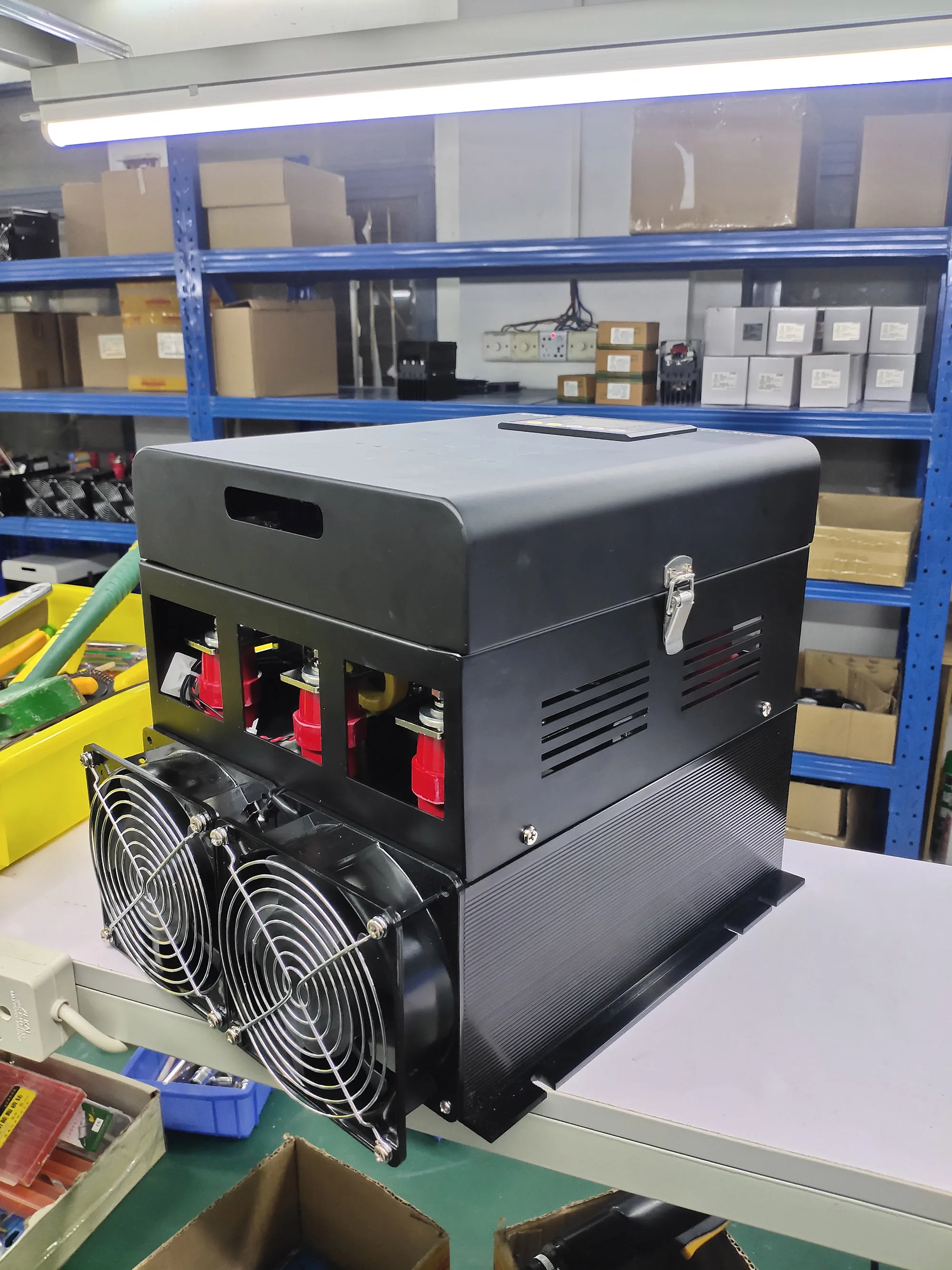

SCR power regulator
scr power controller

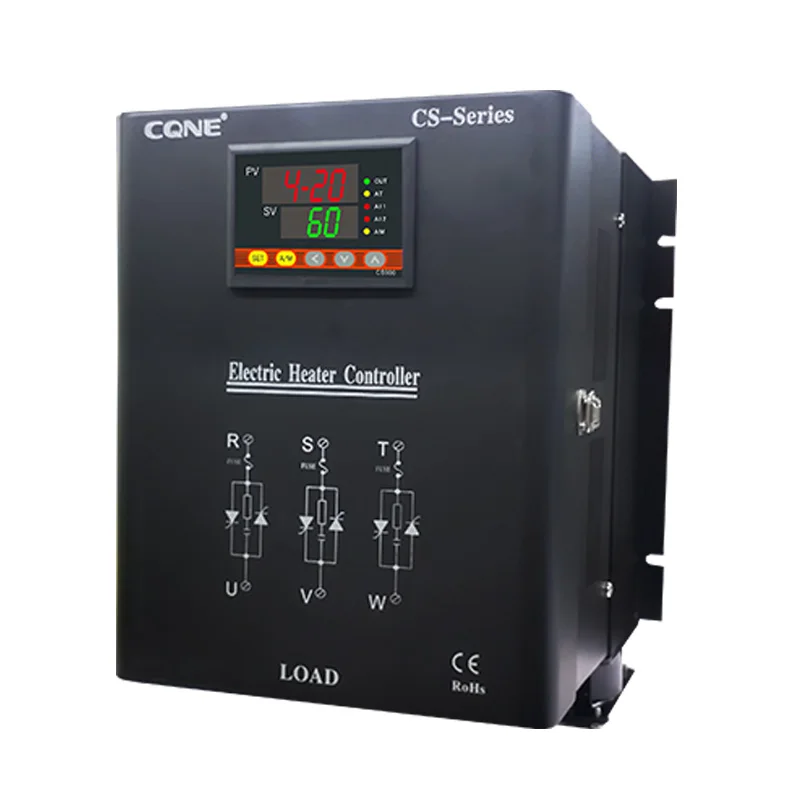

Digital display 250a-1000a power regulator
PRODUCT SPECIFICATIONS
Control signal input | 4-20mA, 0-10mA, 0-5V, 0-10V, 1-5V, 2-10V, PWM, manual potentiometer adjustment, panel key control and other signal inputs | Data | |||||
SCR control mode | Integrated technology of voltage regulation, phase shift and zero-crossing cycle power regulation can realize closed-loop control of constant current, constant voltage, constant power, etc | 37.5KW | |||||
load | Load rated voltage range: 220V, 380V, 440V, 660V, 1140V | 2.8 M3 | |||||
3 | Applicable load type: various pure resistive loads, various inductive loads, IR infrared lamp tubes and other loads | 125Ton | |||||
Load connection mode | Load connection mode: three-phase star neutral point is not connected to zero for 3S, three-phase star neutral point is connected to zero for 4S, three-phase delta connection method for 3D, and three-phase internal delta connection method for 6D | 96kN | |||||
SCR power regulatorprotection system | Fast melting protection, current transformer protection, phase loss protection, overvoltage protection, over-temperature protection, etc | 96kN | |||||
communication | R485 | 60kN | |||||
Cooling mode | 10A-30A self-cooling 50A-1200A air cooling 1000A-3000A air cooling or water cooling | 6750ml | |||||
Selection of electric heating controlled by electric regulator | 30A/40A/60A/80A/100A/125A/150A/175A/200A/250A/300A/350A/400A/500A/600A/800A/1000A/1200A/1400A/1600A/1800A/2000A | 500N.m | |||||
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
XQNE CQNE FACTORY
Dongguan Xingqian Electronic Technology Co.,Ltd located in Dongguan City, Guangdong Province, which was known as the world's factory. It is an enterprise specializing in the research and development of industrial temperature control automation components and the manufacture of electric heating accessories. We focuses on the R&D and manufacturing of SCR power regulator, power regulator, SCR voltage regulator, power controller, temperature controller, solid-state relay SSR, safety relay module, intelligent multi-channel load disconnection alarm board and other products.. Over the years, our company has always adhered to the concept of independent research and development and continuous innovation.
Our products are widely used in petroleum, chemical industry, metallurgy, environmental protection, plastic machinery, marine aviation, industrial oven, automatic coating, new energy battery, semiconductor, nuclear energy, central air conditioning system, power plants, medical equipment and other fields.
Our company has many years experience for power regulator brand sales and services, focusing on providing high-precision, high-reliability, cost-effective electrical system solutions and complete sets of services for production and manufacturing enterprises. Xingqian Electronic Technology provided for electric heating equipment enterprises with full-services such as electrical control system planning scheme, complete design, installation and commissioning, improves equipment technology for many equipment manufacturers, stands out in the market competition, achieved rapid expansion in scale, and made breakthroughs in professional technology.
Dongguan Xingqian Electronic Technology Co., Ltd. as an manufacturer specializing in temperature control products and temperature control technology solutions for 10 years. Company has always adhered to the purpose of "Quality first, the customer is supreme", explore user required and constantly develop new products. Our company products has been exported to Indonesia, Vietnam,
Our products are widely used in petroleum, chemical industry, metallurgy, environmental protection, plastic machinery, marine aviation, industrial oven, automatic coating, new energy battery, semiconductor, nuclear energy, central air conditioning system, power plants, medical equipment and other fields.
Our company has many years experience for power regulator brand sales and services, focusing on providing high-precision, high-reliability, cost-effective electrical system solutions and complete sets of services for production and manufacturing enterprises. Xingqian Electronic Technology provided for electric heating equipment enterprises with full-services such as electrical control system planning scheme, complete design, installation and commissioning, improves equipment technology for many equipment manufacturers, stands out in the market competition, achieved rapid expansion in scale, and made breakthroughs in professional technology.
Dongguan Xingqian Electronic Technology Co., Ltd. as an manufacturer specializing in temperature control products and temperature control technology solutions for 10 years. Company has always adhered to the purpose of "Quality first, the customer is supreme", explore user required and constantly develop new products. Our company products has been exported to Indonesia, Vietnam,
FAQ
Q1：Function of SCR power regulator
A1：The SCR power regulator is a disk-mounted power adjustment unit that uses the thyristor (also called thyristor electric heating controller) and its trigger control circuit to adjust the load power. More importantly, digital circuits are used to trigger thyristor to realize voltage and power regulation. The voltage regulation adopts phase-shifting control mode, and the power regulation has two modes: fixed period power regulation and variable period power regulation
