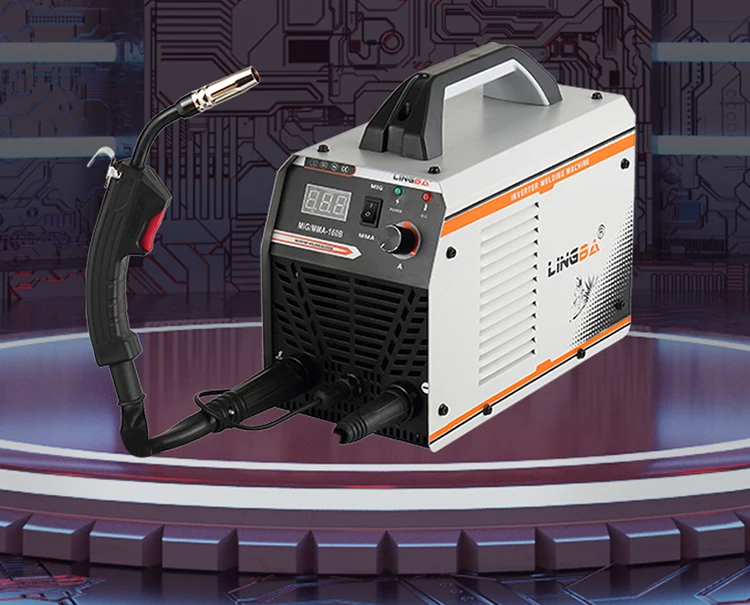

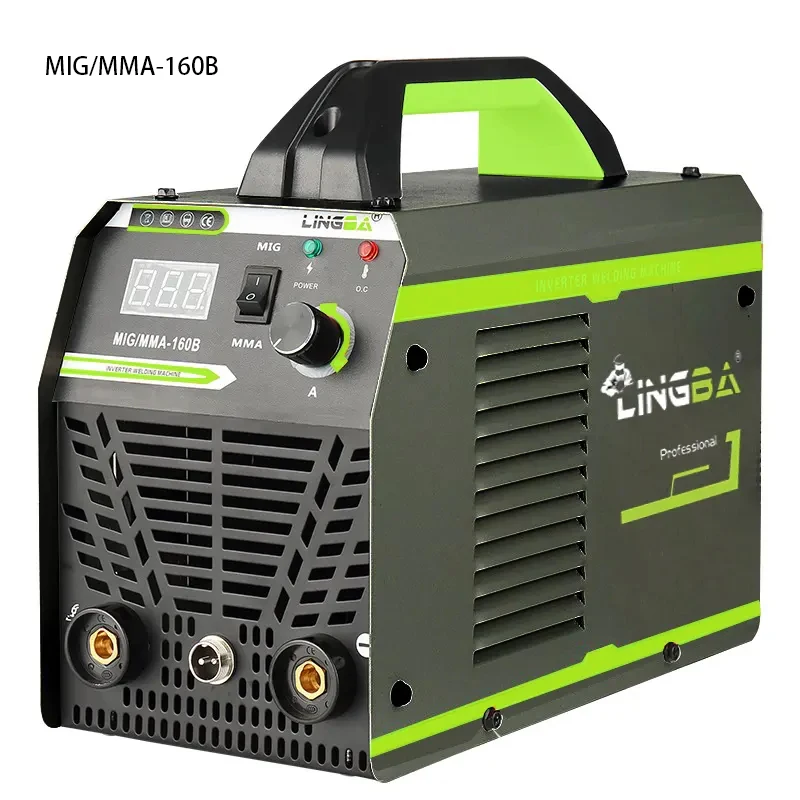

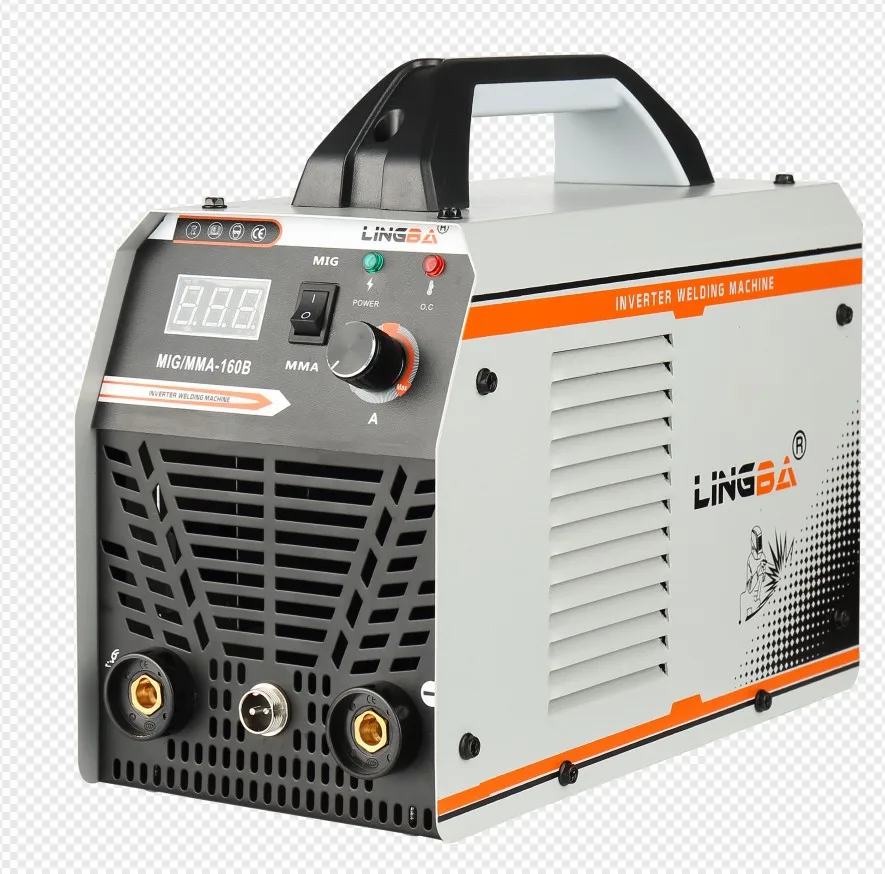

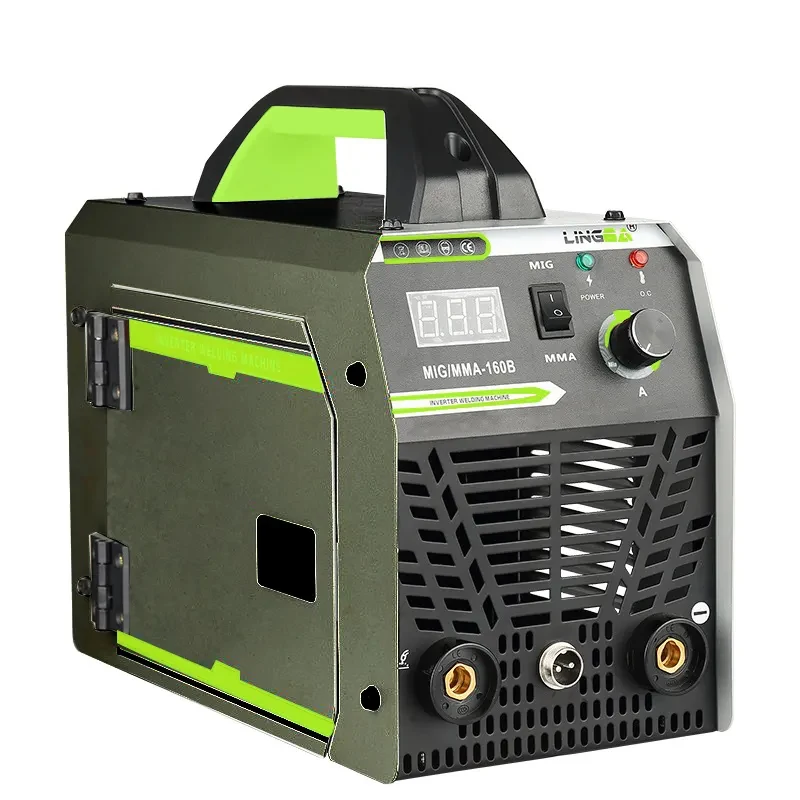

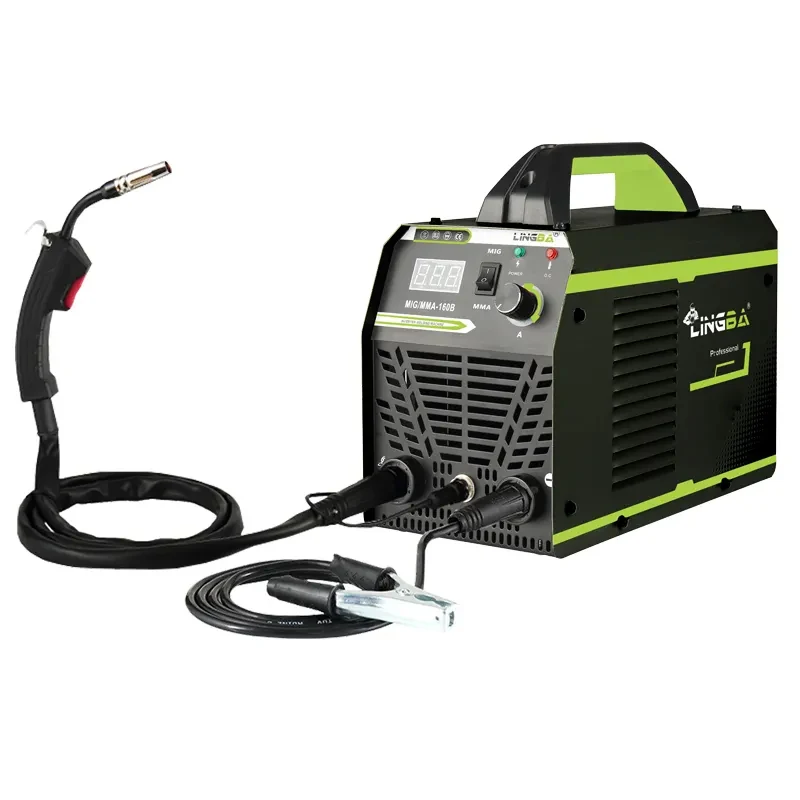

Lingba Single phase 2 in 1 Gasless MIG Welding MACHINE Wire MIG/MMA 160B
- Category: >>>
- Supplier: Zhejiang Lingba Welding Equipment Co Ltd
Share on (1601272216595):
Product Overview
Description
| Model | MIG/MMA-160B |
| Type: | 1kg IGBT Gasless+Flux wire |
| AC Input Voltage(V) | Single phase: 220V, Single phase:110V, Single phase:110V/220V |
| Rated Input Power Capacity(KVA) | 5kw |
| Input Frequency(Hz) | 50/60hz |
| Non-load Voltage(V) | 68V |
| Output current range(A) | 50-160A |
| Rated Duty Cycle(%) | 60% |
| Efficiency(%) | 85% |
| Class of Insulation | F |
| Protection class of case | IP21 |
| MIG Flux Wire diameter(mm) | 0.8~1.0mm |
| MMA Electrode | 1.6~3.2mm |
| Wire weight per Roll(kg) | 1kg or less 1kg |
| Quick joint Size(mm) | 10-25mm |
| Input power cable(m) | 1.5m |
| N.W./G.W.(kg) | 6kg~7.5kg |

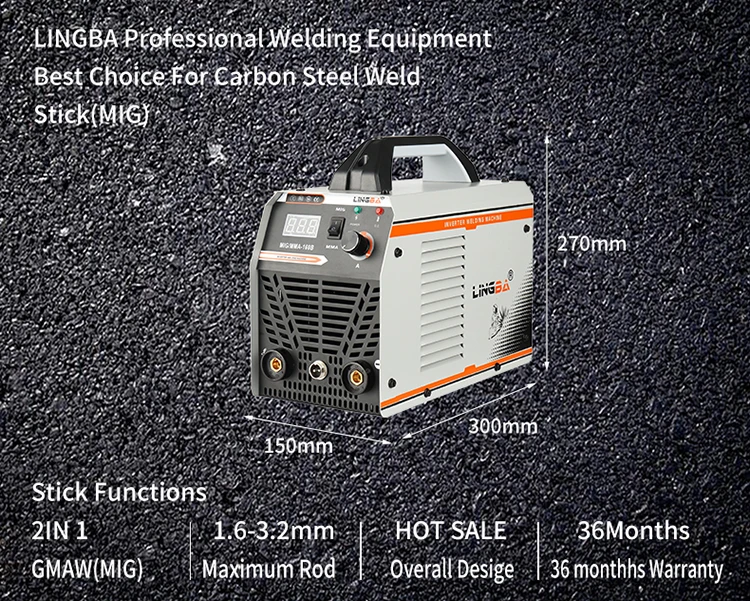

| Machine Size(LxWxH mm) | 300*150*270mm |

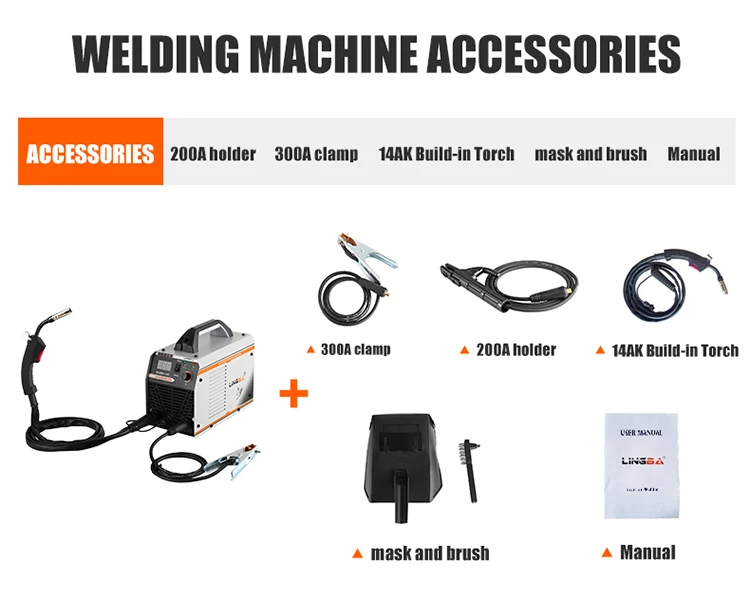

| Accessories | 1.8M 16mm2 200A holder |
| 1.2M 16mm2 300A clamp | |
| 2m 14AK Torch | |
| Brush, Mask, Manual | |
| MIG/MMA Two Function | |
| Features | High performance inner Structure |
| Gasless+Flux Mig Wire | |

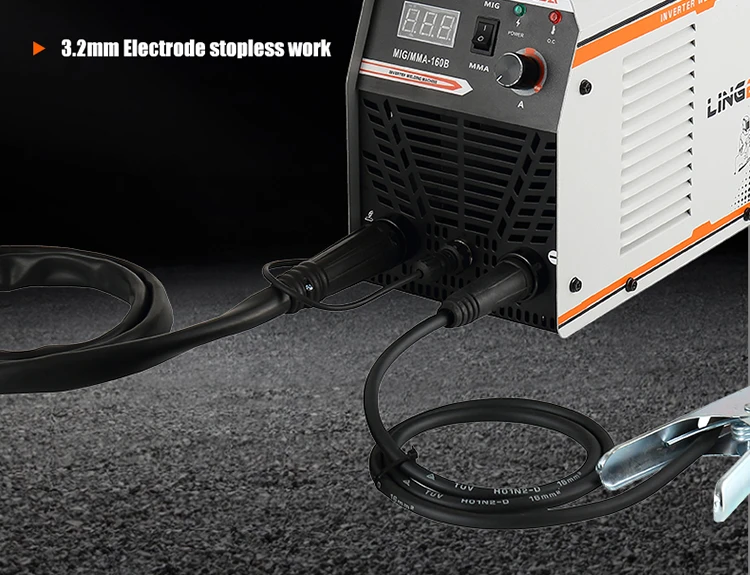

| 3.2mm Electrode stopless work |
