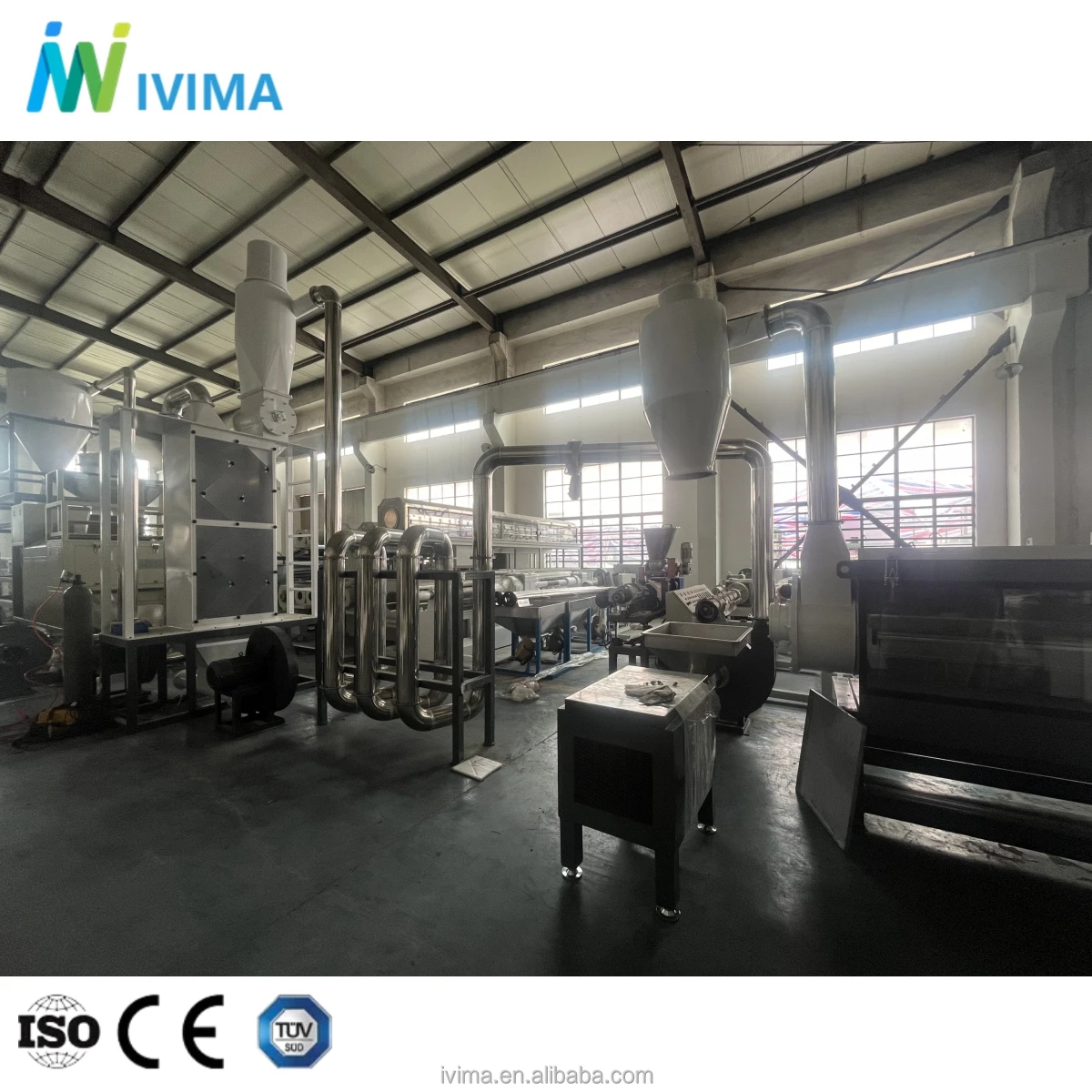

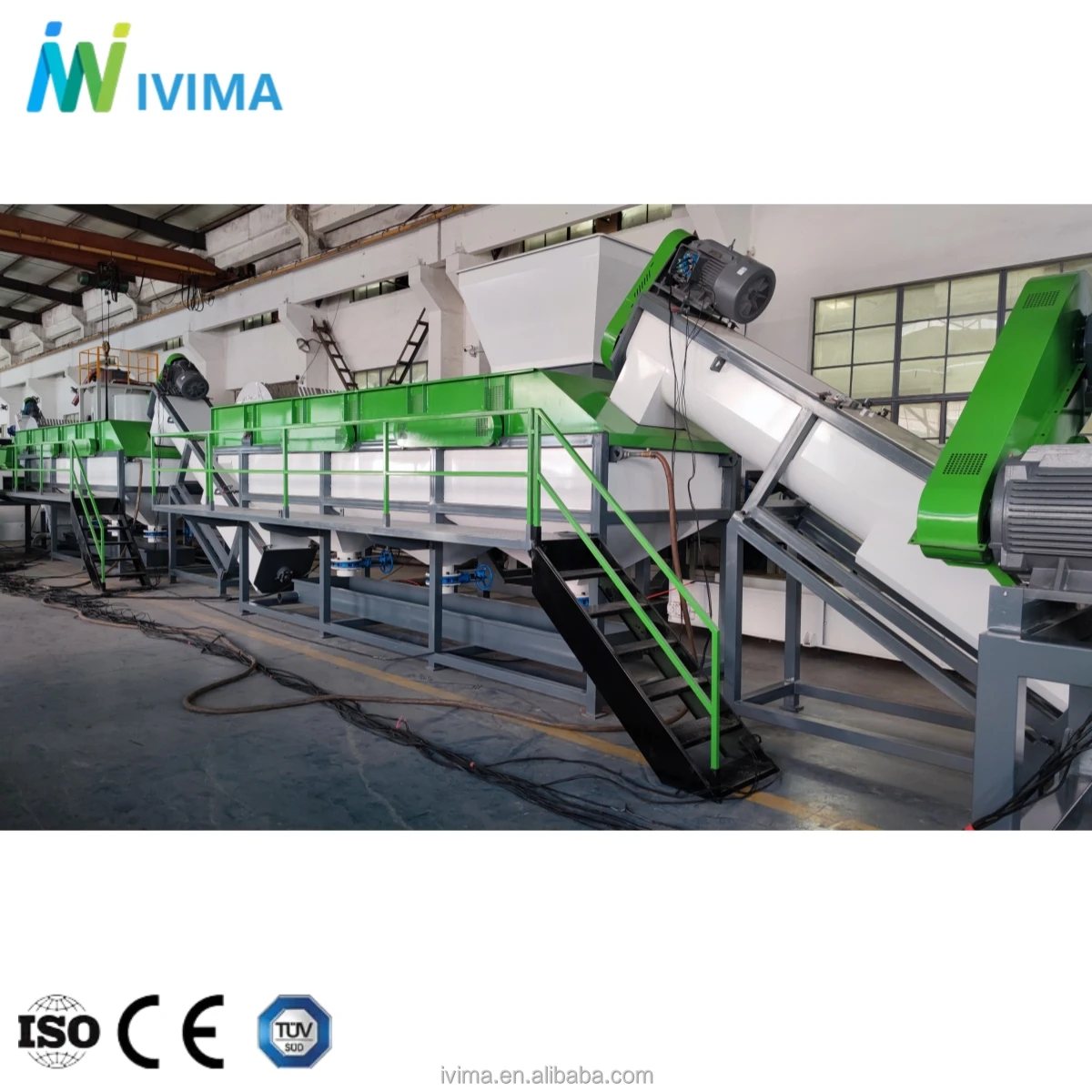

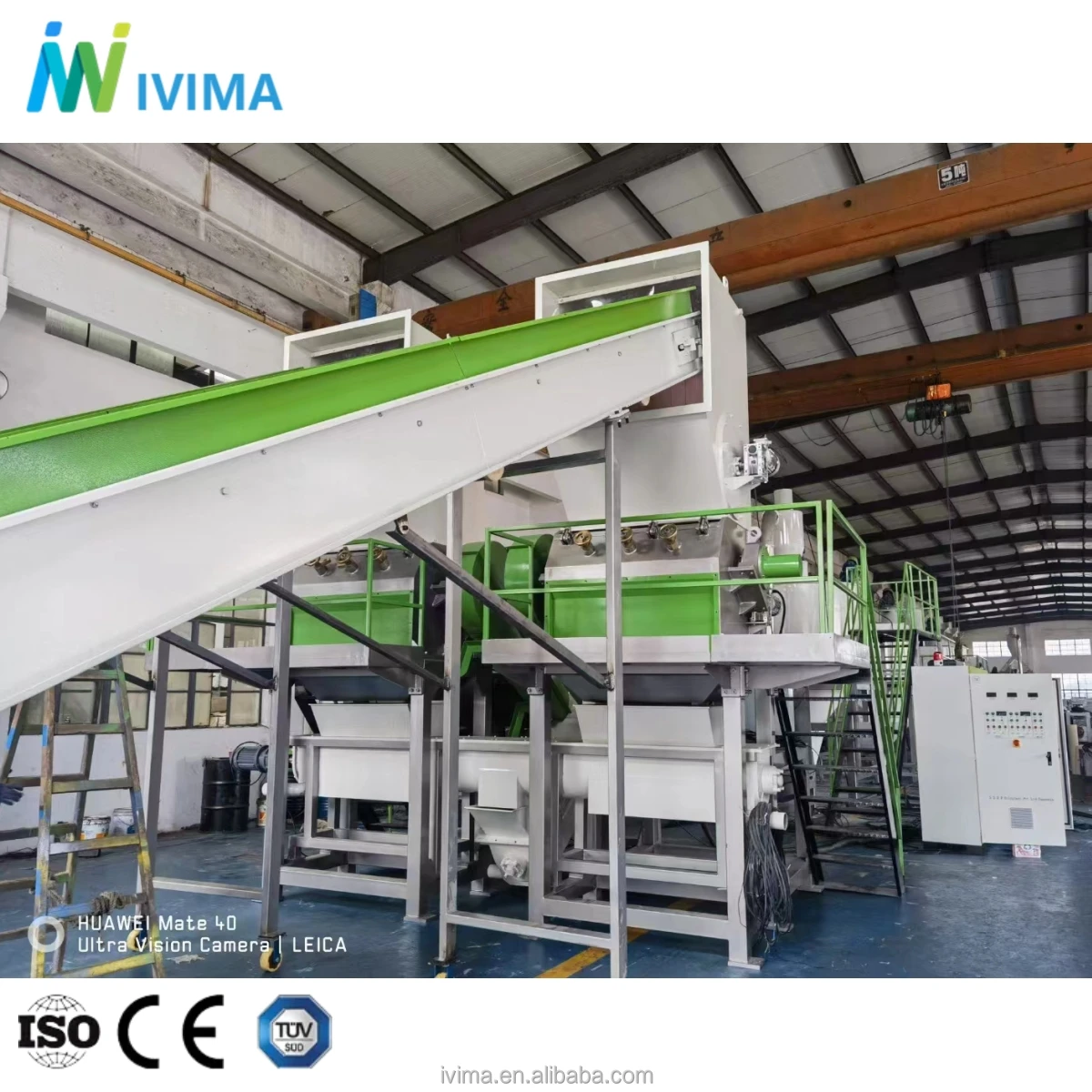

2024 Factory good price waste PET bottles washing line/plastic recycle machinery line
- Category: >>>
- Supplier: Zhangjiagang Ivima Technology Co. Ltd.
Share on (1601272225866):
Product Overview
Description
Product Overview
Product Description

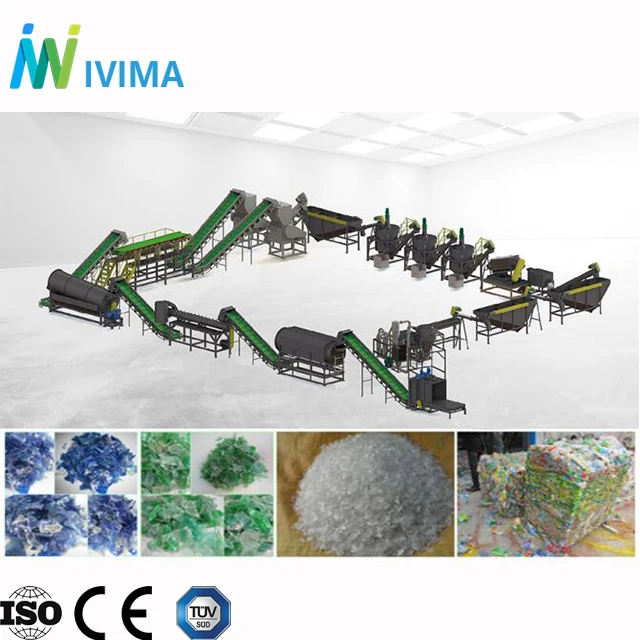

The broken PET can be used to produce recycled fibers, reducing the dependence on new fibers. The broken PET can be reprocessed into new PET products, such as plastic bottles, fibers, films, etc. This helps reduce the demand for raw materials and the environmental impact. PET fibers can also be used in the textile industry to make clothing, bedding, carpets, etc.Our company can provide a wide range of standard and customized recycling systems to meet the different requirements of a modern recycling environment. The systems are capable of processing a wide range of plastic materials with varying levels of contamination including extremely heavy
contamination such as oil based substances and agricultural waste.The output material can be applied for granulation, blow molding and injection. The whole production line is easy to operate, efficient and low energy consumption. We need your detailed requirements to make quotations accordingly.
contamination such as oil based substances and agricultural waste.The output material can be applied for granulation, blow molding and injection. The whole production line is easy to operate, efficient and low energy consumption. We need your detailed requirements to make quotations accordingly.

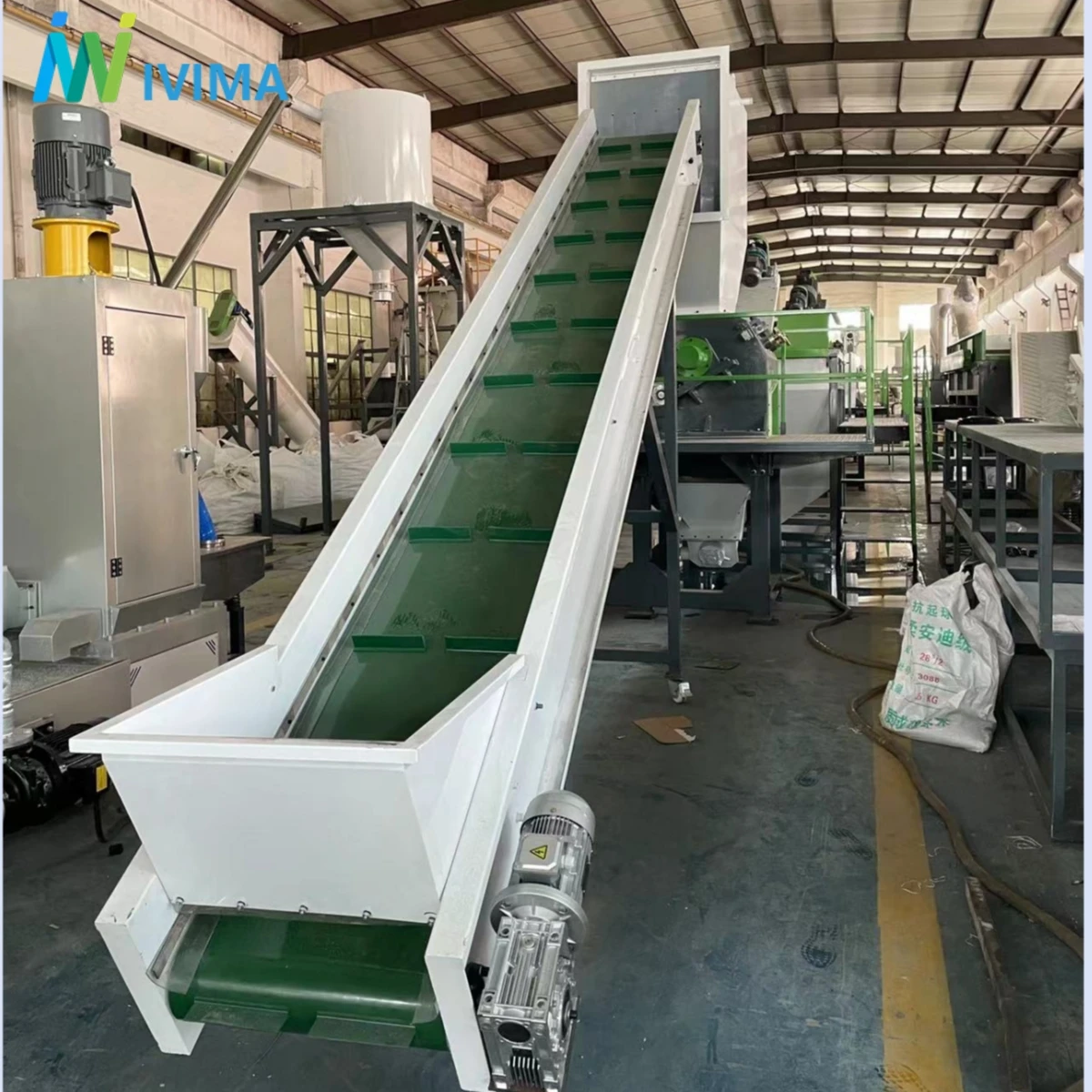

Conveyor belt
1. Install isolation stick against-slide on
the surface of belt.
2. Adjust height of conveying belt freely.
3. Small moving wheels are flexible and
convenient.
the surface of belt.
2. Adjust height of conveying belt freely.
3. Small moving wheels are flexible and
convenient.

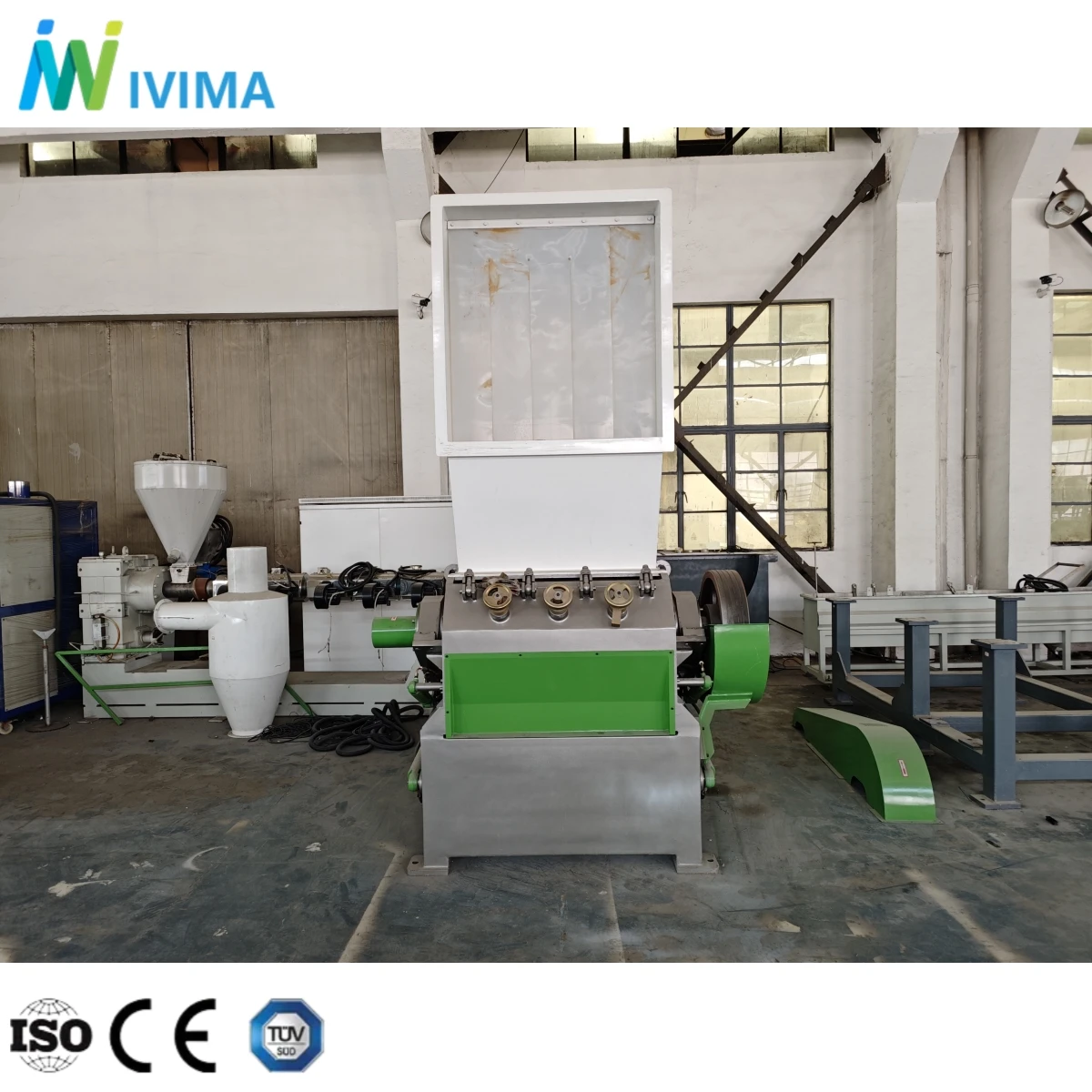

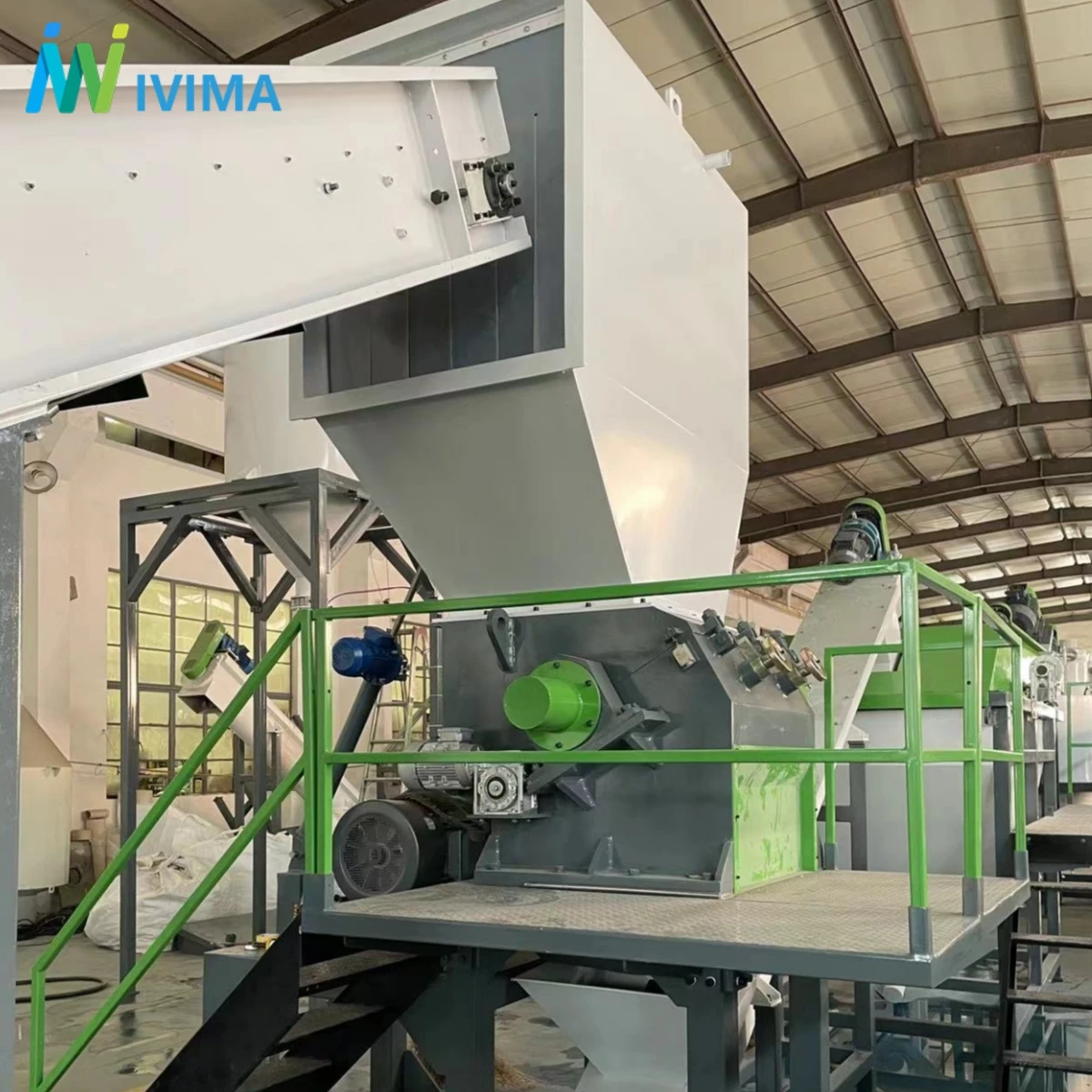

Crusher
To crush material into small sizes. With water to clean material and cool blades during crushing.

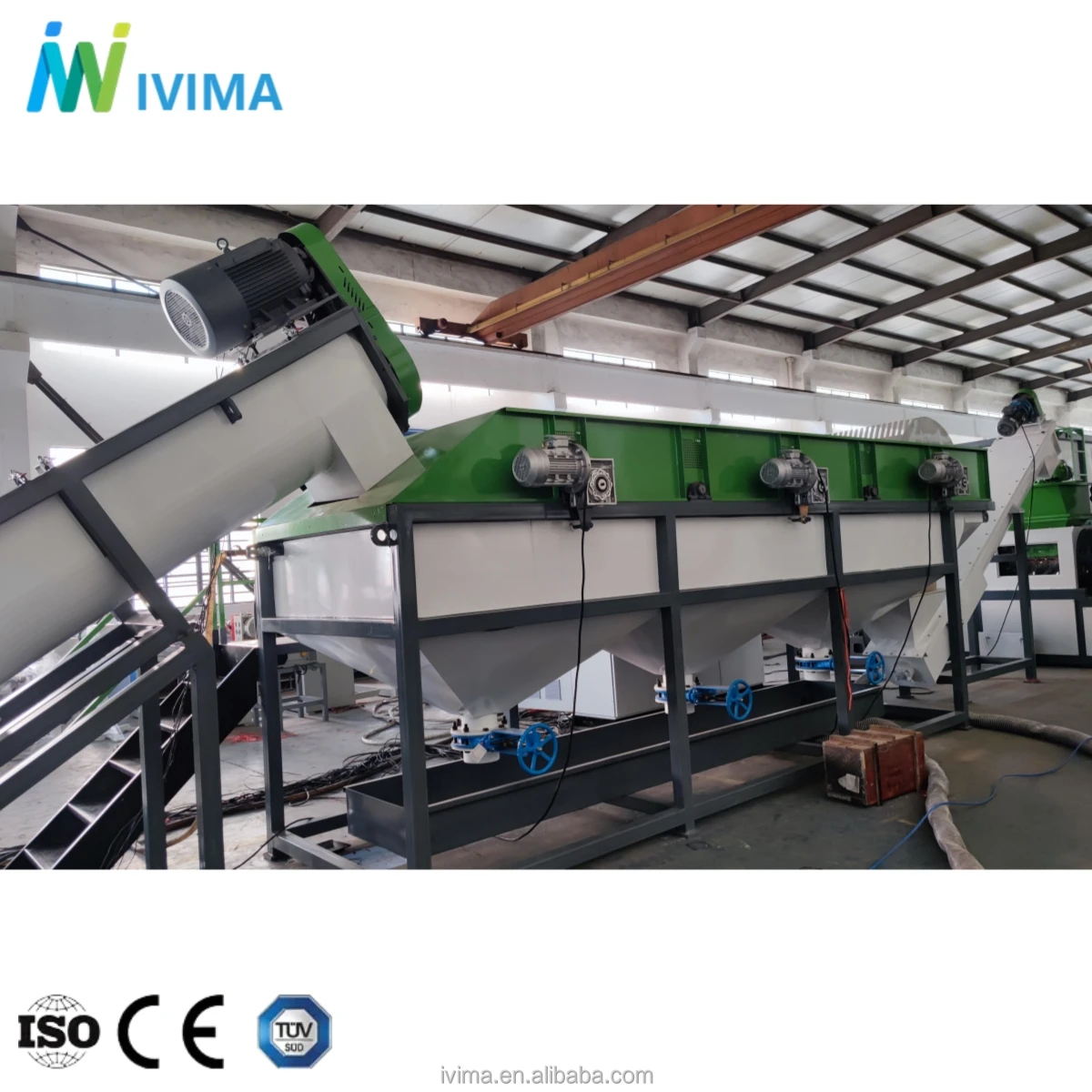

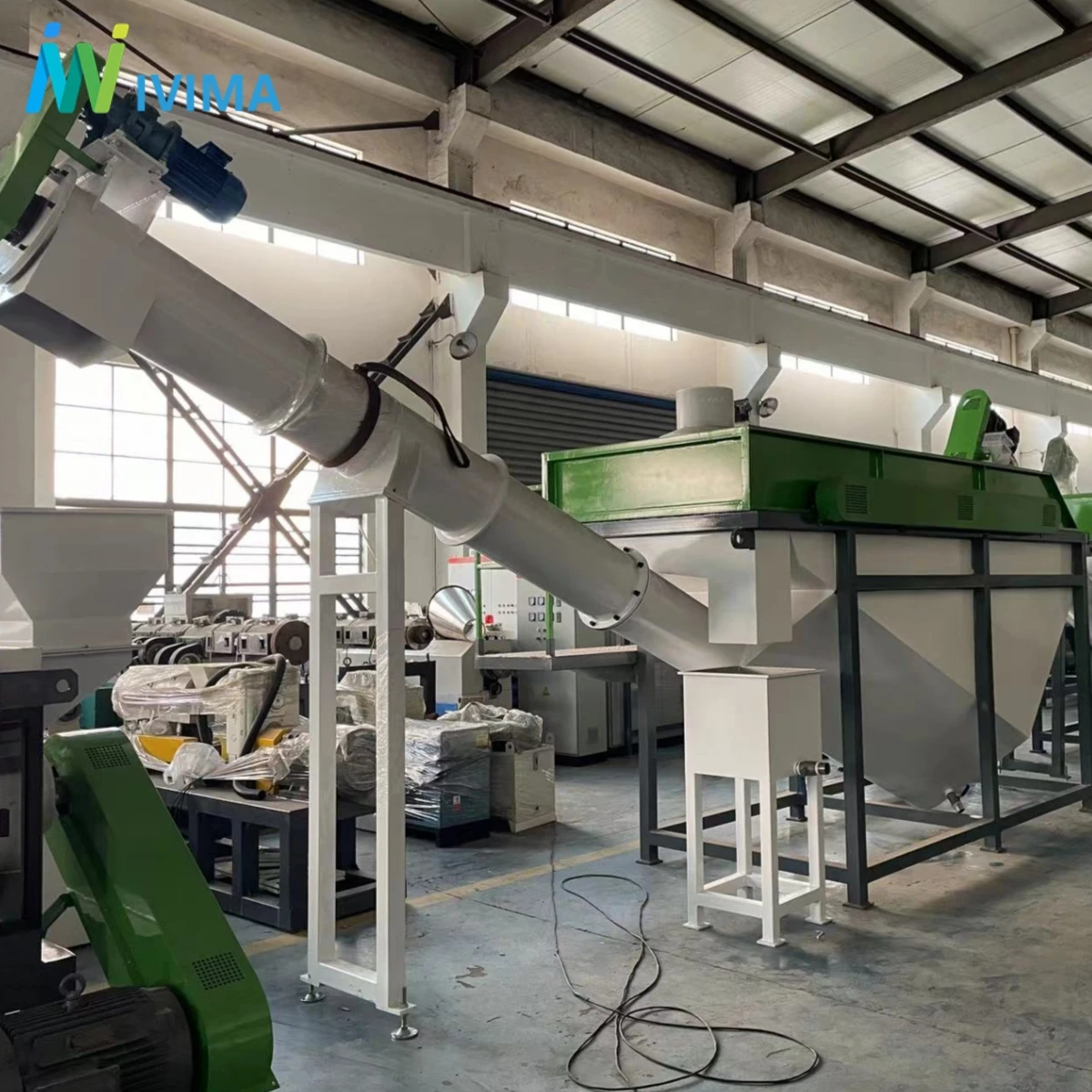

Floating washer
Make remaining label, caps and other impurity float and separate from PET flakes. With washing function for PET flakes.
High speed Friction washer
To remove remaining caustic soda and other impurities by water and high speed friction. The friction plates inside tank are made
of special wear-resistant steel for durability.
of special wear-resistant steel for durability.
Hot washer
Use hot water mixing with caustic soda or other detergent to remove oil, glue and other impurities.
With special design to discharge impurities which float on the water (such as label, bottle caps, etc). This design will improve
washing effect.
With special design to discharge impurities which float on the water (such as label, bottle caps, etc). This design will improve
washing effect.

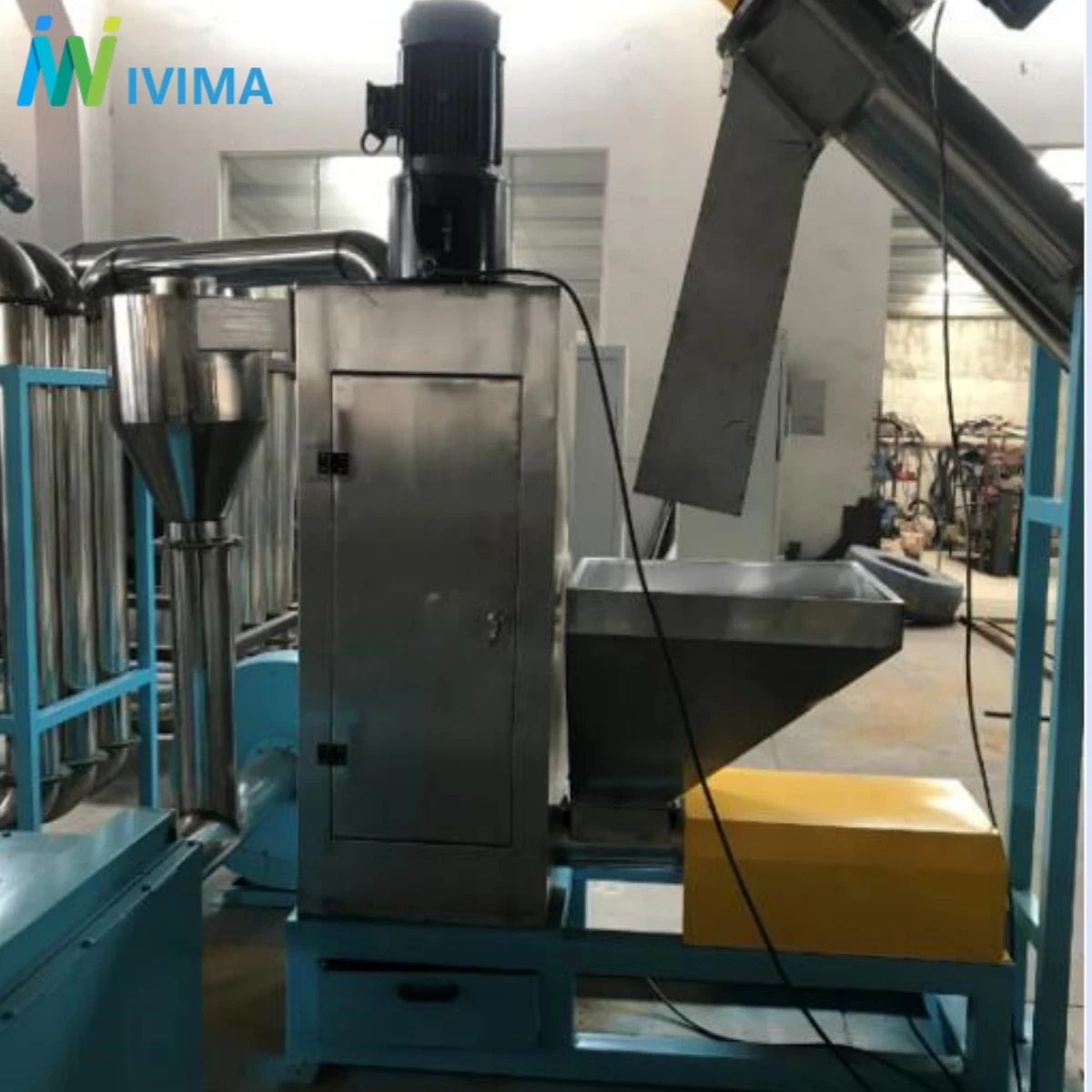

Dewatering Machine
The water droplets on the material can be separated from the material by high-speed rotation to complete the preliminary material drying.
Hot air drying system
Hot air can be generated by the motor and heating system to re-dry the material initially dried by the desiccator and blow it to the silo for collection.

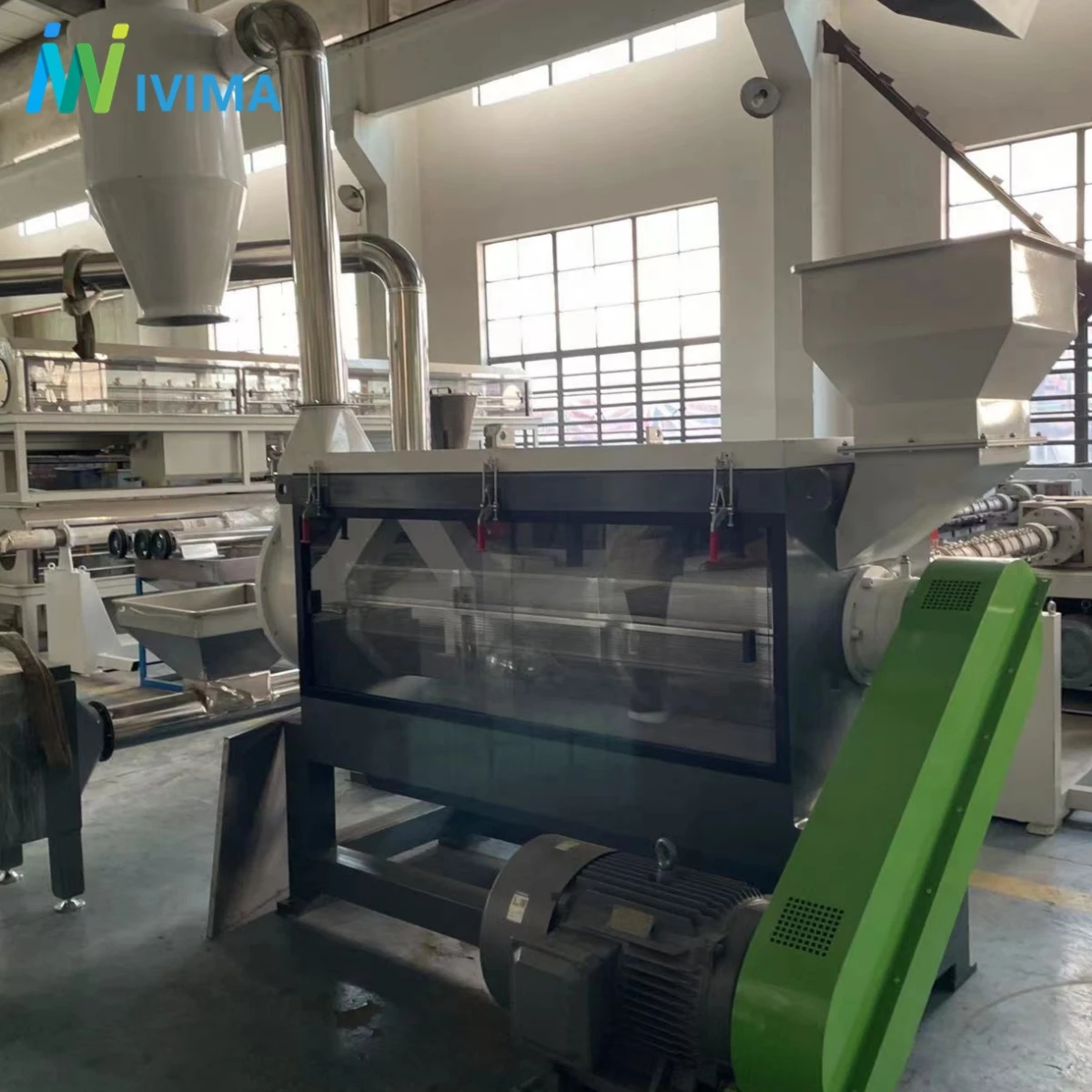

Label remover
It can be screened with dry materials, and impurities such as dust labels in the materials can be carefully cleaned to obtain clean and identical materials.

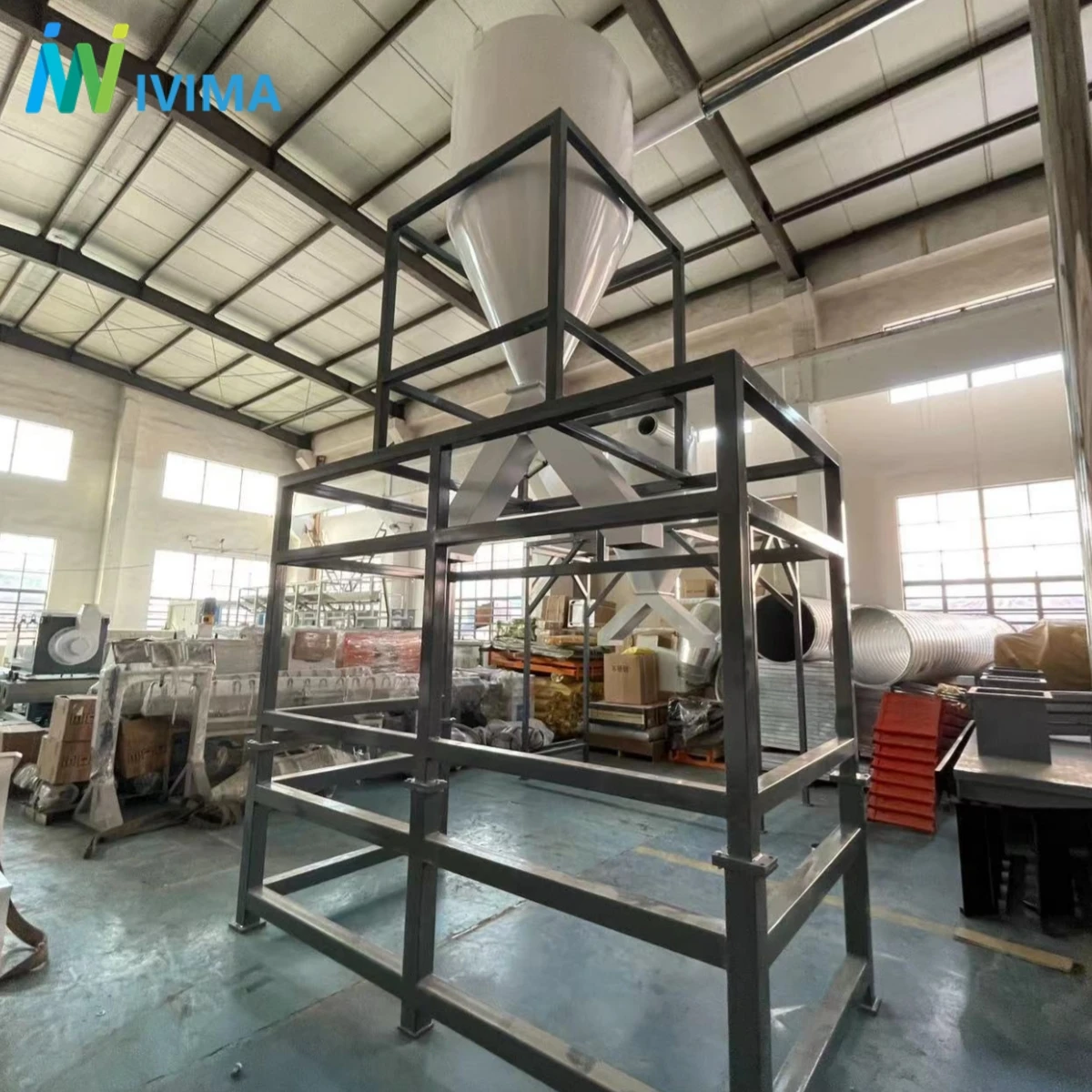

Silo
To temporarily store PET flakes.
Specification
Capacity | Workers | Water consumption | Power | workshop |
300kg/h | 3 | 5tons/h | 120KW | 30x5x7meters |
500kg/h | 3 | 5tons/h | 185KW | 32x5x7meters |
1000kg/h | 4 | 6tons/h | 270KW | 40x5x7meters |
2000kg/h | 5 | 10tons/h | 380KW | 45x5x7meters |
Product Configuration
Siemens motor optional
ABB inverter
Siemens electric part
Successful project
Project in Japan
Project in local China
Project in France
FAQ
What about the payment way?
●TT, L/C at sight or Alibaba trade assurance.
What is your guarantee time?
●Yes.Our guarantee time is 12 months.
If you will send engineer coming to our factory to install and make training for worker?
●Yes, every set of machine, we will send professional engineer to your factory and help installation and making training for you.
If you have CE,SGS,ISO certificate?
●Yes,except these,if you also need other certificates,we also can help to apply.
If we buy your machines, can you offer us wear-out spare parts?
●Yes, we provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
The voltage,if you can design according to our request?
●TT, L/C at sight or Alibaba trade assurance.
What is your guarantee time?
●Yes.Our guarantee time is 12 months.
If you will send engineer coming to our factory to install and make training for worker?
●Yes, every set of machine, we will send professional engineer to your factory and help installation and making training for you.
If you have CE,SGS,ISO certificate?
●Yes,except these,if you also need other certificates,we also can help to apply.
If we buy your machines, can you offer us wear-out spare parts?
●Yes, we provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
The voltage,if you can design according to our request?
●Yes.
If you support Alibaba trade assurance pay?
●Yes, we support.
If you support Alibaba trade assurance pay?
●Yes, we support.
