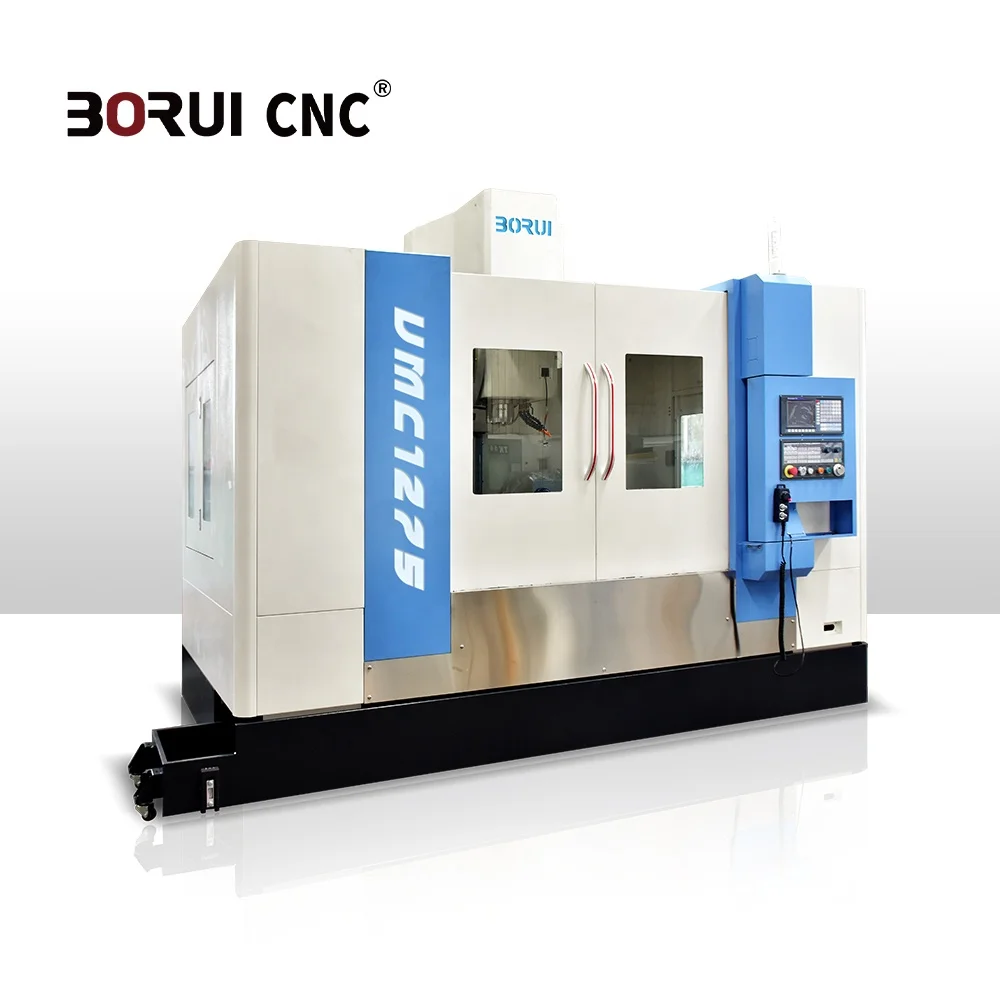

Vmc1275 Vertical Machining Center Fanuc System Vertical Machining Center 3 Axis Cnc Milling Machine
- Category: >>>
- Supplier: Tengzhou Borui CNC Machine Tool Co. Ltd.
Share on (1601272238467):
Product Overview
Description

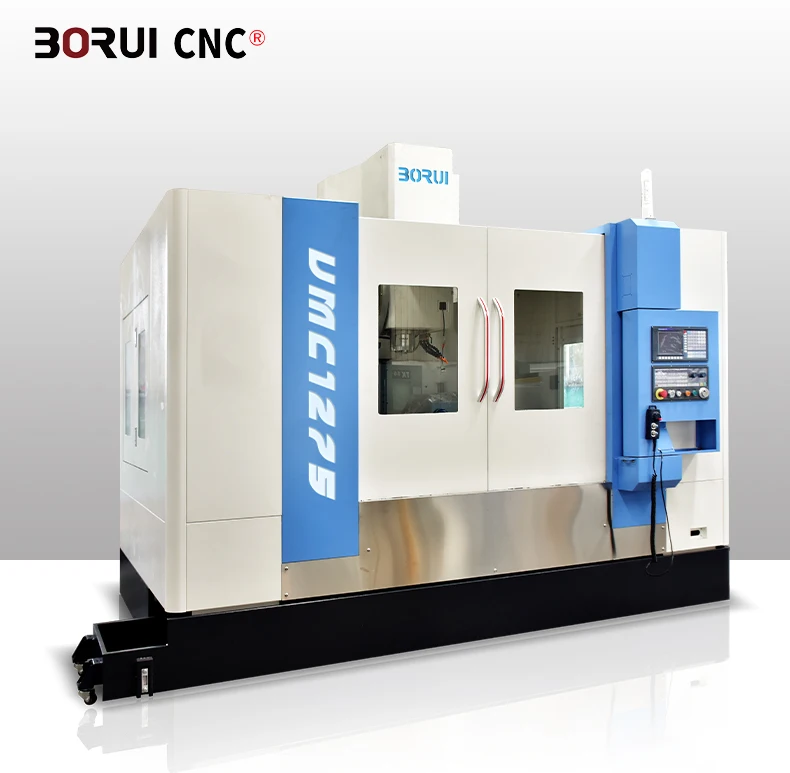

VMC1275 CNC Milling Machine Vertical Machining Center
Product Description
Product main technical parameters:
Specification | VMC1275 | |

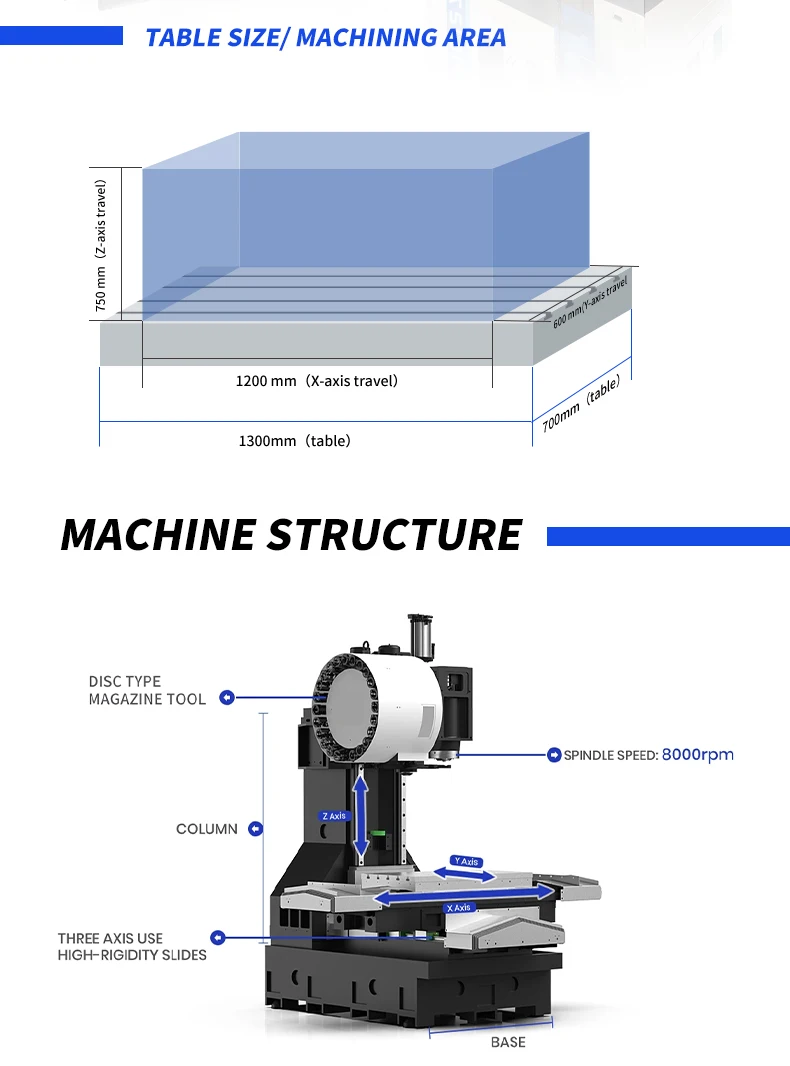

X Y Z axis travel | mm | 1200/750/600 |
The distance from spindle nose to worktable surface | mm | 120-720 |
The distance from spindle center to column surface | mm | 775 |
T-slot | mm | 18/100/7 |
Worktable size | mm | 1300*700 |
Worktable max loading | kg | 800 |
Spindle speed | rpm | 8000 |
Main motor | kW | 11/15 |

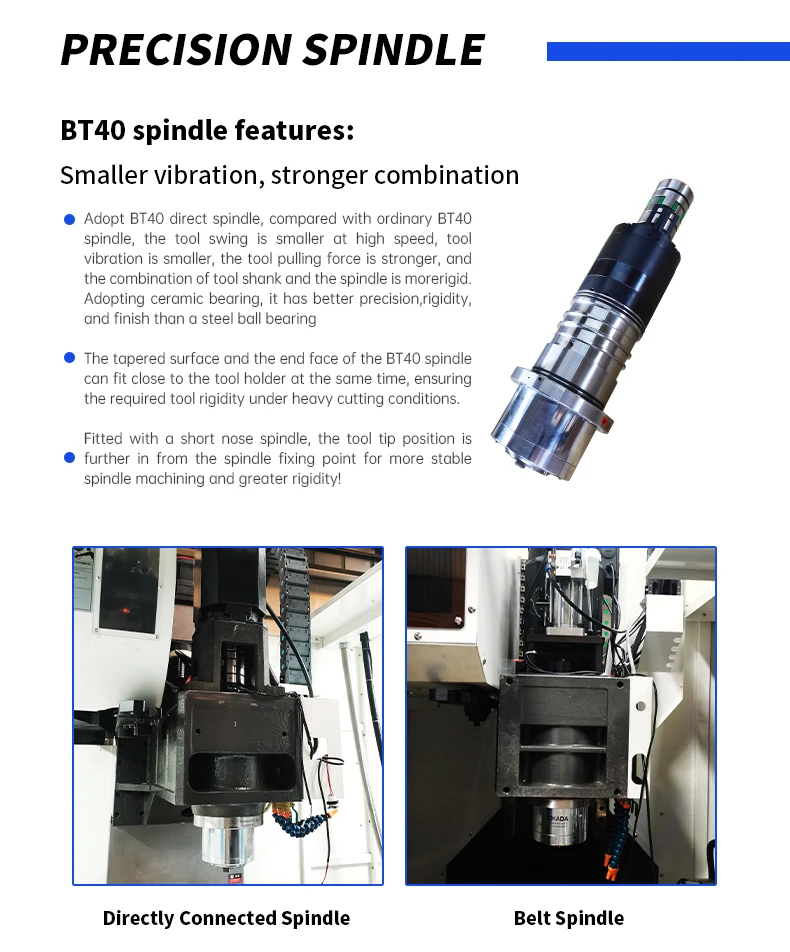

spindle taper | BT40(BT50) | |
Rapid traverse speed | m/min | 36/364/36 |
Cutting feed speed | mm/min | 1-10000 |
Positioning accuracy | mm | ±0.0075 |
Repeat Positioning accuracy | mm | ±0.005 |

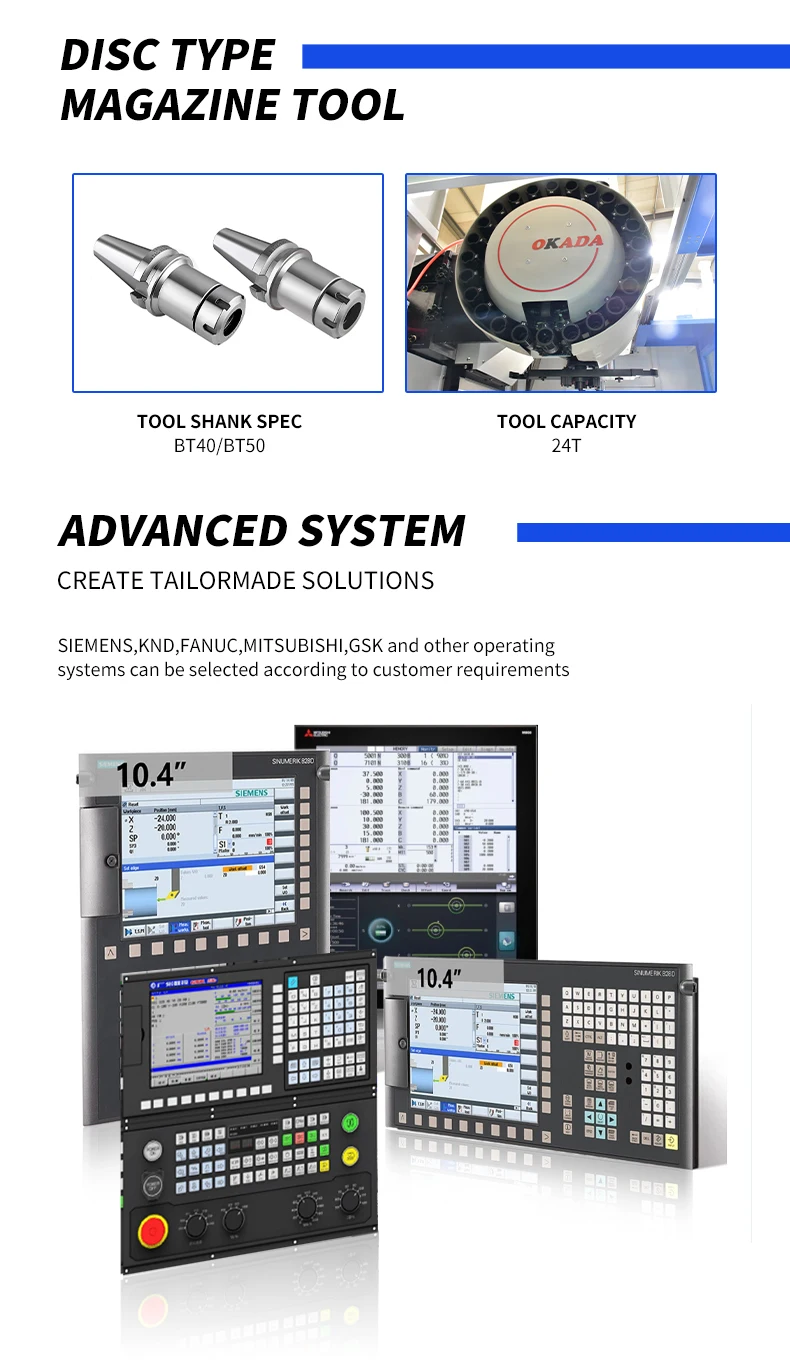

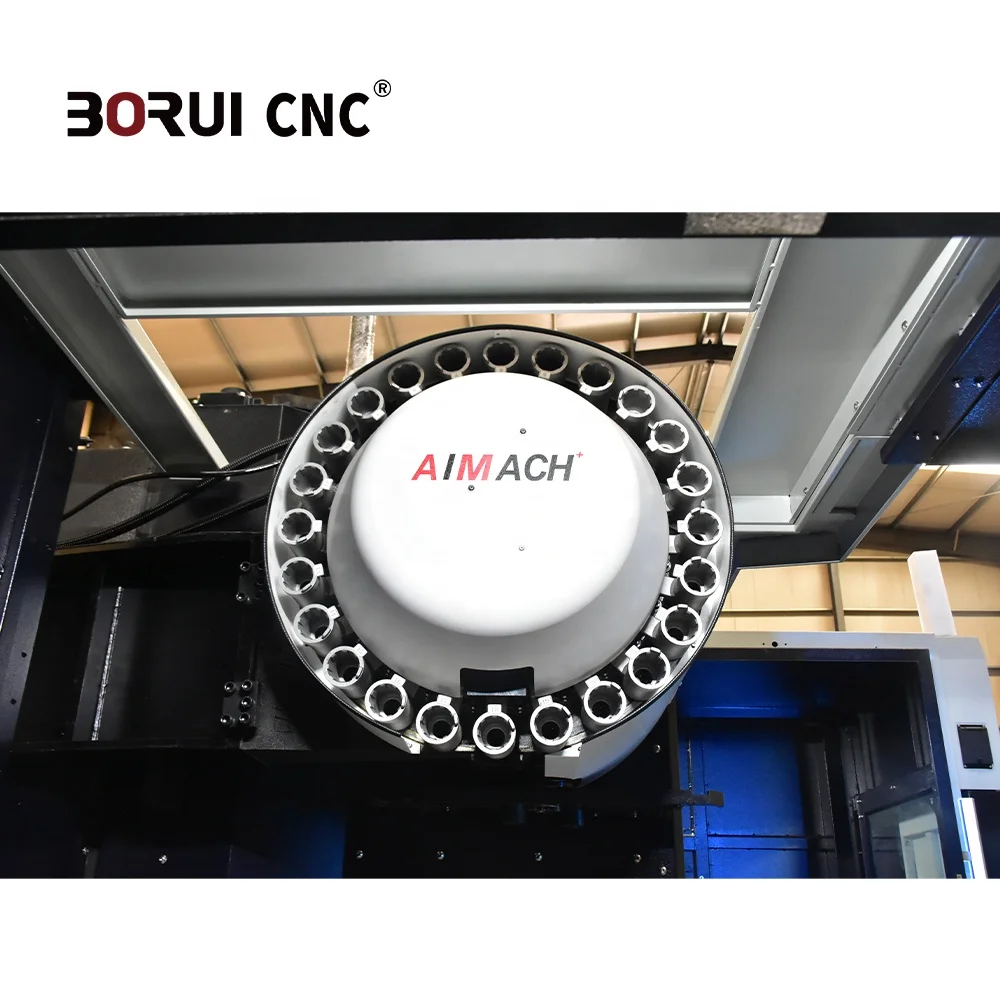

Magazine tool capacity | pcs | 24(disc type) |
Machine overall size | mm | 3870*2900*2580 |
Machine weight | kg | 6500KG |

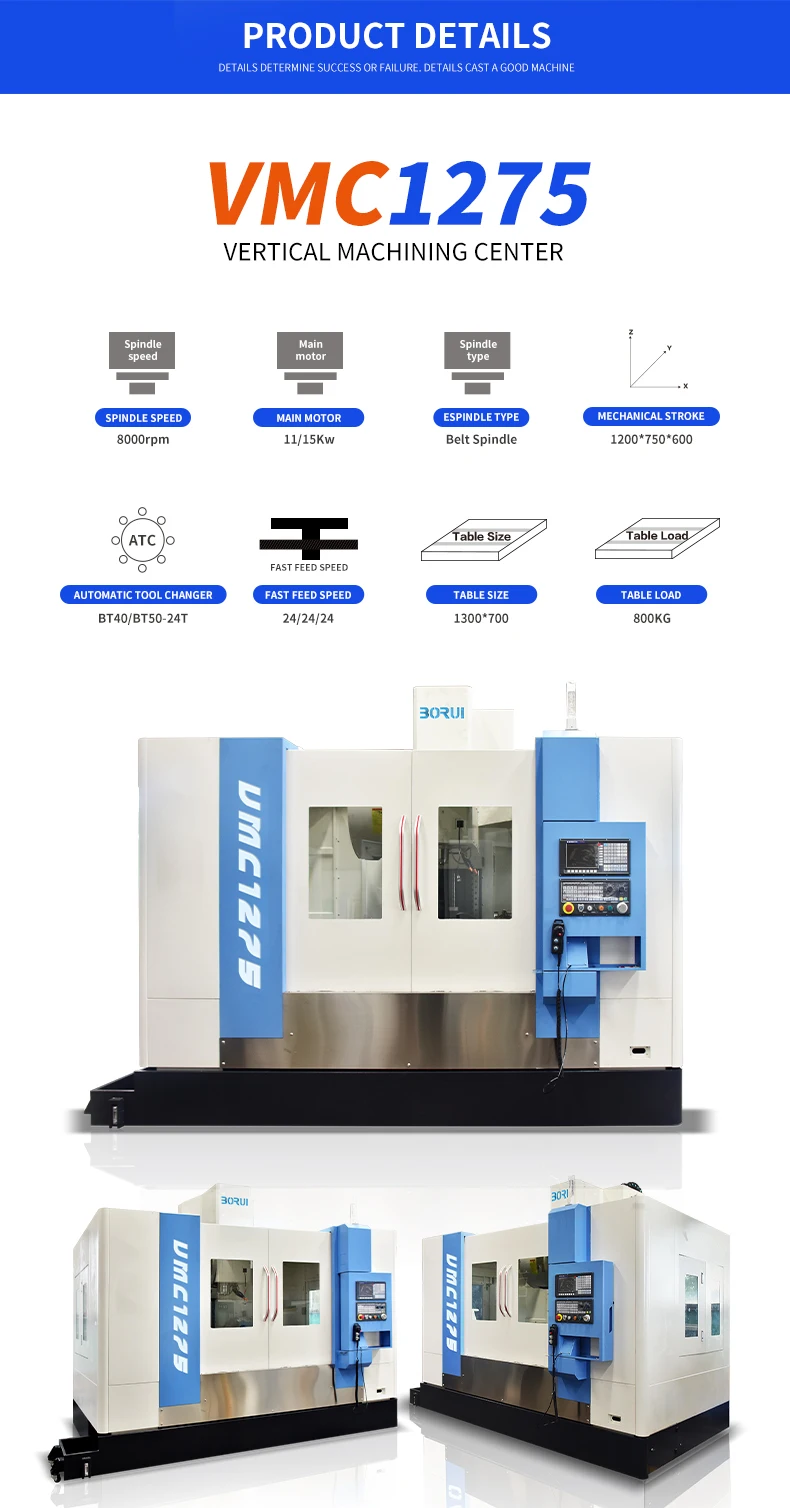

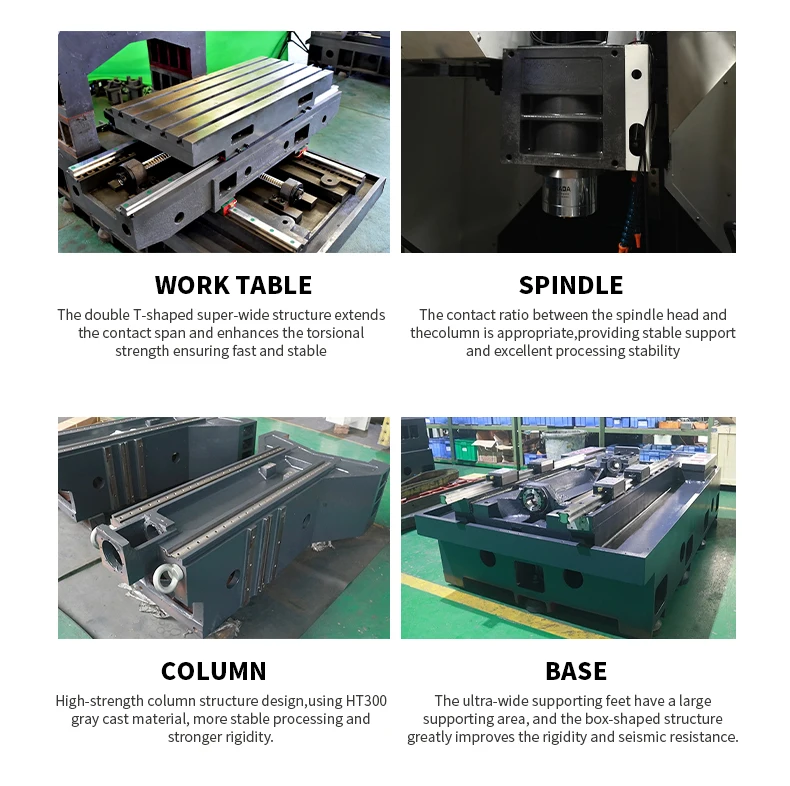

Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
