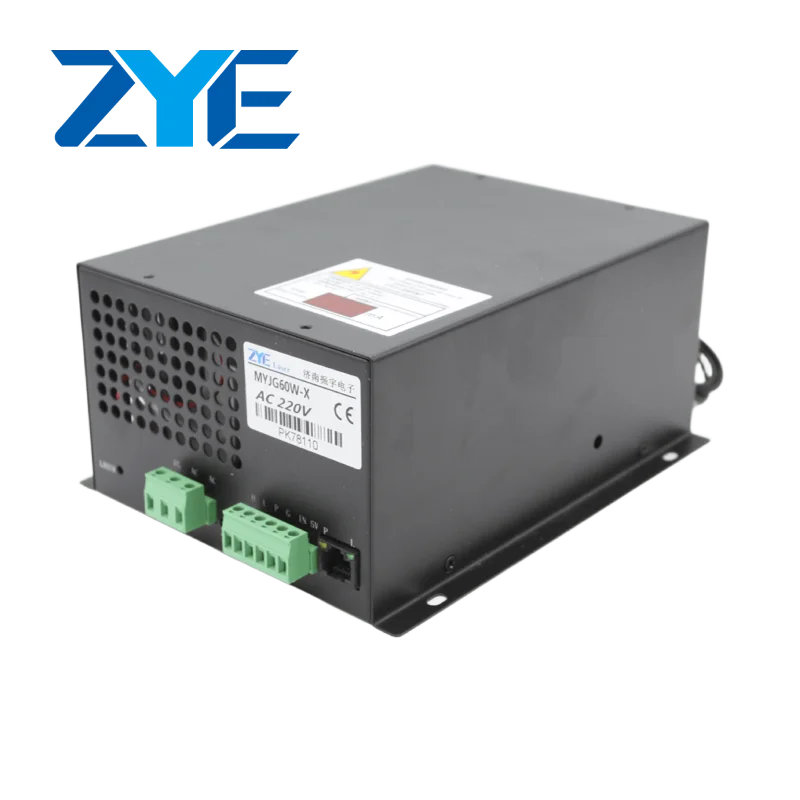

ZYE H60W X Displayed Co2 Laser Power Supply MYJG for laser tubes
- Category: >>>
- Supplier: Jinan Zhenyu Electronics Co. Ltd.
Share on (1601272247977):
Product Overview
Description
Model | MYJG60W-X | ||||||
AC Input Voltage | AC220V/AC110V | ||||||
AC Input Frequency | 47~440Hz | ||||||
Maximum Voltage Output | 24KV | ||||||
Maximum Current Output | 25mA | ||||||
Dimensions (mm) | 197*161*91 | ||||||
Weight (kg) | 2.1 | ||||||
Color | Black | ||||||
Efficiency | 91% | ||||||
Cooling | Fan Cooling | ||||||
Features
1.
ZYE MYJG Laser Power supply series utilizes a zero-current half-bridge soft-switching circuit to enhance power efficiency and response speed, ensuring seamless compatibility with a wide range of laser tubes from various manufacturers.
2.
MYJG power supplies also features simple port control with conventional terminal wiring, accommodating both high and low-level signals. Employs TTL logic for laser activation and deactivation, and includes protection switches for detecting external conditions such as water flow and ventilation.
3.
Laser power adjustment can be controlled via either a 0 to 5V analog signal or a PWM signal to precisely regulate the laser output power.
4.
The MYJG power supply features an open-circuit protection function, allowing it to operate safely in an open-circuit condition for short periods, provided proper grounding is ensured. This helps prevent damage to the power supply in the event of a laser tube rupture.
ZYE MYJG Laser Power supply series utilizes a zero-current half-bridge soft-switching circuit to enhance power efficiency and response speed, ensuring seamless compatibility with a wide range of laser tubes from various manufacturers.
2.
MYJG power supplies also features simple port control with conventional terminal wiring, accommodating both high and low-level signals. Employs TTL logic for laser activation and deactivation, and includes protection switches for detecting external conditions such as water flow and ventilation.
3.
Laser power adjustment can be controlled via either a 0 to 5V analog signal or a PWM signal to precisely regulate the laser output power.
4.
The MYJG power supply features an open-circuit protection function, allowing it to operate safely in an open-circuit condition for short periods, provided proper grounding is ensured. This helps prevent damage to the power supply in the event of a laser tube rupture.
