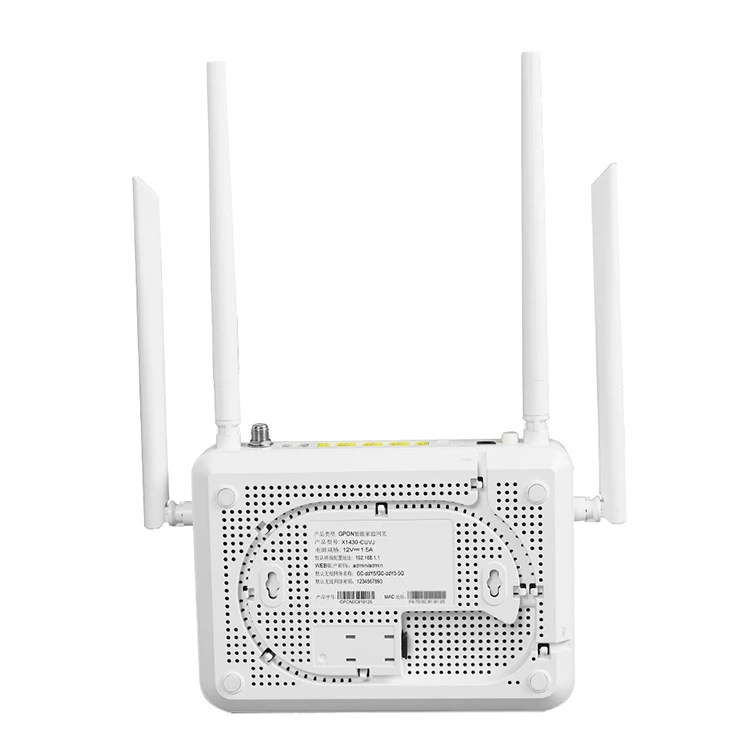

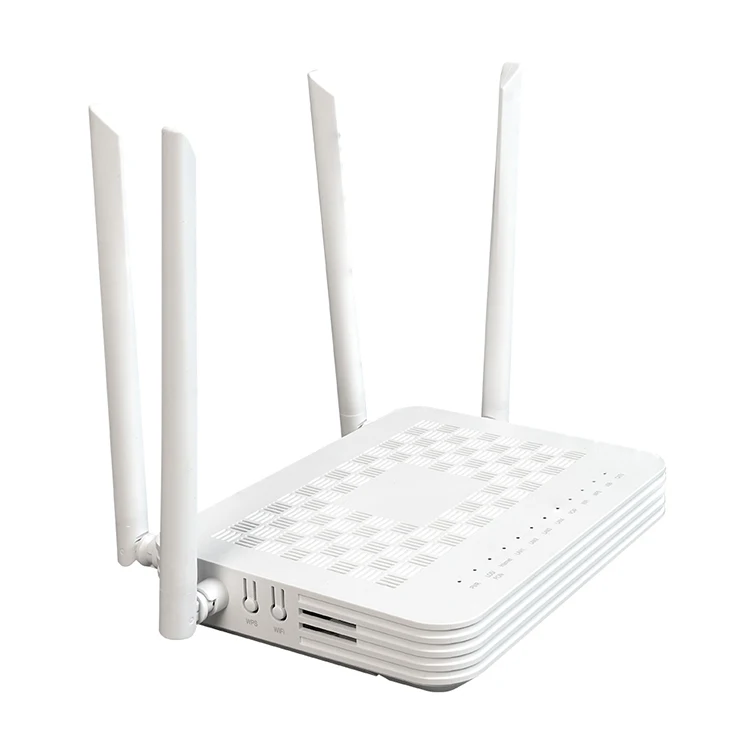

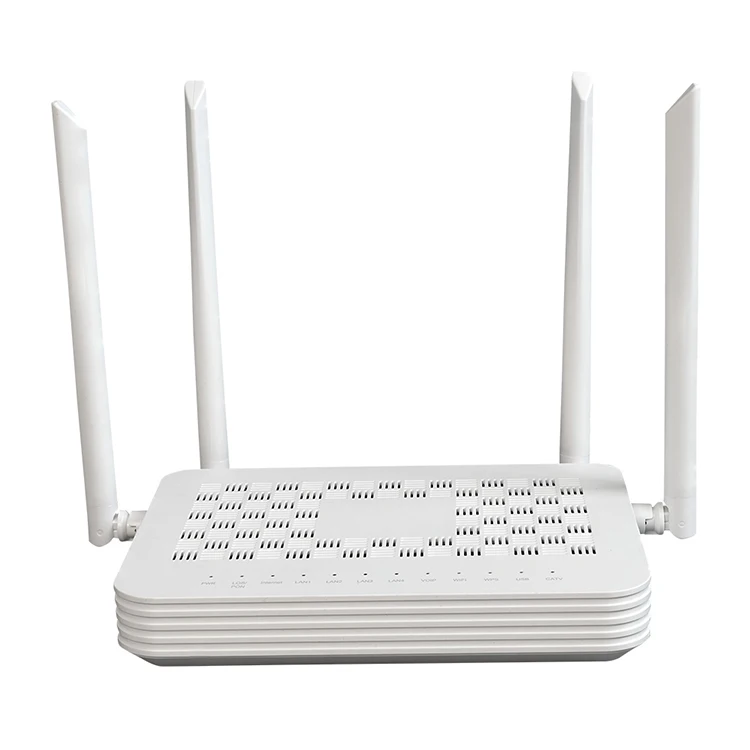

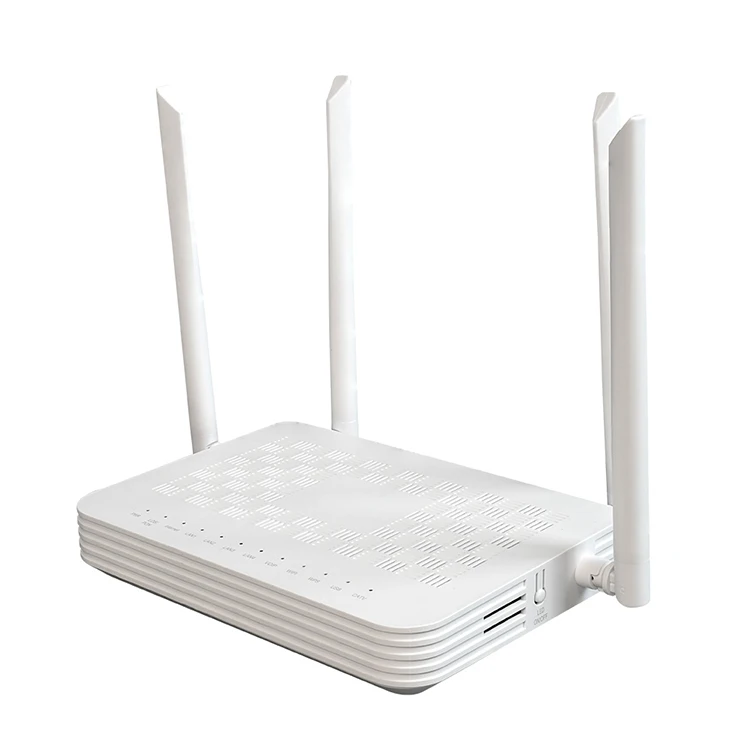

FTTH Module 4 GE Ports ONU 2.4G 5G Dualband Wifi 6 Router AX3000 VoIP USB Wifi6 Dual Band CATV ONT Modem
- Category: >>>
- Supplier: HOSECOM LIMITED
Share on (1601272249147):
Product Overview
Description

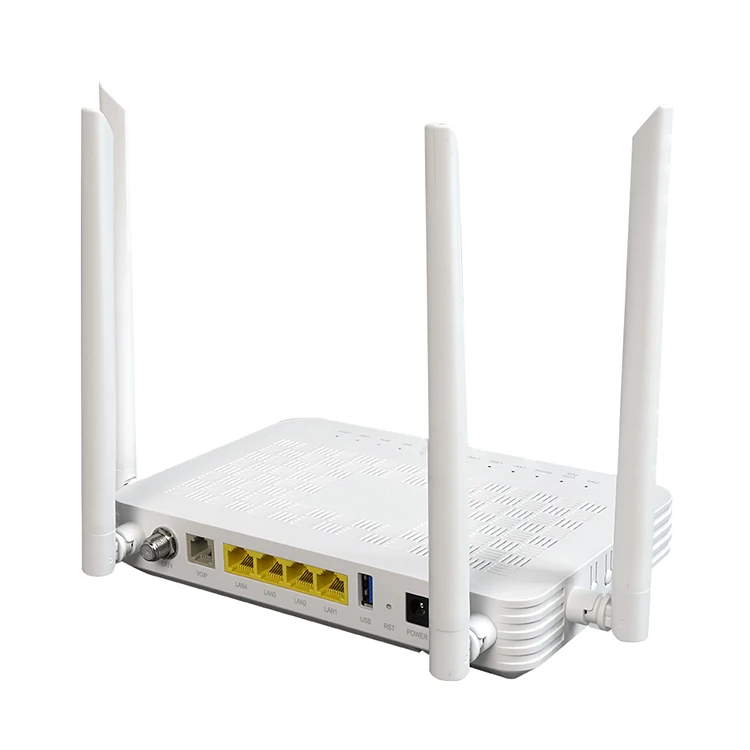

FTTH Module 4 GE Ports ONU 2.4G 5G Dualband Wifi 6 Router AX3000 VoIP USB Wifi6 Dual Band CATV ONT Modem
Wifi6 Dual Band CATV ONT Modem X1430C is a high-performance fiber-optic network terminal, which adopts XPon Dual Mode Adaptive Wifi6 solution, 4 Gigabit Ethernet interfaces, 1 POTS interface, 1 CATV interface, and 1 USB3.0 interface. X1430C has 4 antennas, provides 2.4G 5.8G dual-band Wifi, supports AX3000, and has a maximum transmission rate of 3000M per second. The X1430C has 4 antennas. Its fiber optic interface is UPC interface, APC is optional, feel free to contact us.
Product Description

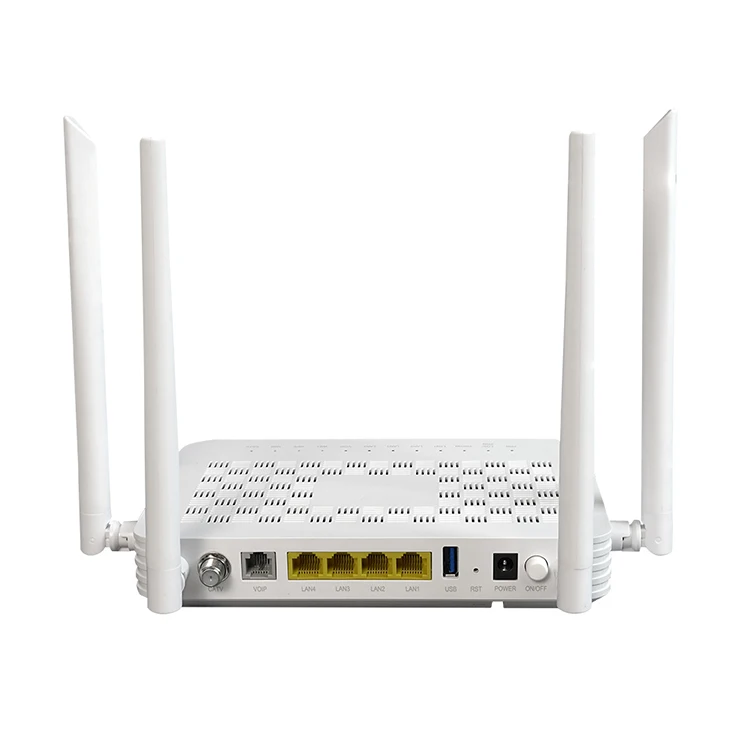

Wifi6 Dual Band CATV ONT Modem Interface
1* G/EPON interface: SC/UPC/APC interface,
4* Ethernet interface: 10 MBPS/100 MBPS, 1000 MBPS, RJ- 45, IEEE802.3-2005 standard
1* VOlP interface: in accordance with G. 711 a/u, G. 729 a/b, G. 722 standard
1*CATV: C/N:≥43dB,C/CTB:≥55B,C/CSO>55dB, MER≥32dB, BER≤1*10E-6
1* USB interface: standard USB 3.0 interface
Dual-band WIFI6 AX3000 (2 x2 MIMO (2.4G&5G))
4* Ethernet interface: 10 MBPS/100 MBPS, 1000 MBPS, RJ- 45, IEEE802.3-2005 standard
1* VOlP interface: in accordance with G. 711 a/u, G. 729 a/b, G. 722 standard
1*CATV: C/N:≥43dB,C/CTB:≥55B,C/CSO>55dB, MER≥32dB, BER≤1*10E-6
1* USB interface: standard USB 3.0 interface
Dual-band WIFI6 AX3000 (2 x2 MIMO (2.4G&5G))
Specification
Wifi6 Dual Band CATV ONT Modem Hardware Parameters | ||
Flash | 256MB NAND | |
Memory | 512MB DDR3 | |
LED | POWER+PON/LOS+NET+LAN+POTS+WiFi+CATV+WPS+USB | |
Port | 4*RJ45(GE) | |
1*RJ11(POTS) | ||
1*Reset+1*Power +1*LED button+1*WiFi button+1*WPS | ||
1*SC/UPC (or SC/APC) | ||
1*DC | ||
1*USB3.0 | ||
1*CATV | ||
Interface Parameters | ||
G/EPON Port | GPON:Class B + | |
EPON:PX20+ | ||
GPON:Upstream1.25Gbps;Downstream:2.48Gbps | ||
EPON:Upstream1.25Gbps;Downstream:1.25Gbps | ||
Ethernet Port | Ethernet port-based VLAN tags and tag removal | |
VLAN transparent and mark | ||
MAC address learning | ||
100/1000/1000Mbps Autonegotiation | ||
VoIP Port | Call waiting | |
G711A/G711U/G729/G722 | ||
SDP protocol (RFC 2327 and RFC 4566) | ||
T.30/T.38/G.711 fax mode | ||
DTMF | ||
WiFi6（AX3000） | ||
WiFi protocol | 2.4GHz supports 802.11b/g/n/ax | |
5GHz supports 802.11a/n/ac/ax | ||
Transmit power | 2.4G 100mW,5G /200mW, | |
Antenna gain | 5dBi | |
Antenna | dual-antenna MIMO (2*2) (2.4G&5G) | |
WLAN penetrate | one reinforced concrete wall or two ordinary brick walls (non-reinforced concrete), | |
WLAN access capability | 64 /SSID | |
channel | 2.4GHz（channel 1-13） | |
5GHZ（channel 36-161 ） | ||
WPS | WLAN terminal devices with WPS Push Button function establish connection within 2 minutes | |
WLAN security function | WPA-PSK、WPA2-PSK、 WPA3、WPA-PSK/WPA2-PSK AES、AES+TKIP | |
Air Speed | 574 Mbps (2.4GHz)，2402 Mbps (5GHz) | |
Multicast | WMM(Wi-Fi Multi Media) | |
CATV | ||
Remote control CATV | ON/OFF | |
optical AGC | -10 ~ +2dBm | |
Output level | 76dBuV | |
RF bandwidth | 47 - 1000 MHz | |
In band flatness | ±1.25dB | |
Output return loss | ≥ 12dB | |
CATV system parameters | C/N : ≥ 43dB , C/CTB : ≥ 55dB , C/CSO ≥ 55dB , MER ≥ 32dB , BER ≤1*10E-6 | |
Environment | ||
Operating Temperature | 0℃~45℃ | |
Storage Temperature | -20℃~70℃ | |
Operating Humidity | 5%～95%（non-condensing） | |
Power Supply | 12V/1.5A | |
customization
Wifi6 Dual Band CATV ONT Modem Customization
Hosecom attaches great importance to the personalization needs of our customers, and we understand that it is the most important means for our customers to make a big move to their personal brand.
Wifi6 Dual Band CATV ONT Modem LOGO Customization
There is no purchase quantity limit for logo customization, and a minimum of 1 product can also be customized LOGO.
Packaging customization
The minimum MOQ for packaging customization is 500pcs, because we have cooperative packaging production factories, we can provide lower MOQ order packaging customization service for small quantity customers.
Wifi6 Dual Band CATV ONT Modem Hardware customization
Program development, hardware customization. We have a team of more than 30 engineers, we can provide hardware customization service according to customer's requirements, provide customers with product hardware solutions and make it a mature product.
XPon ONT Modem CATV Software customization
Hosecom has industry veteran software engineers who have more than 12 years of software design experience and can provide our customers with product software and special function customization.

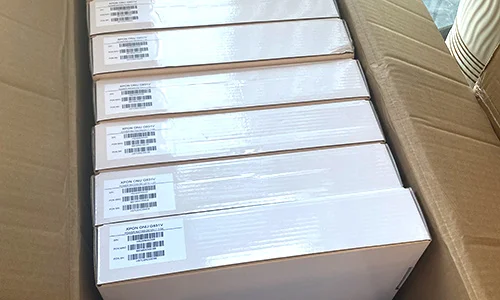

Packing&Delivery
We are committed to 100% quality inspection during the production of our products and 100% inspection before the products are shipped.
Company Profile

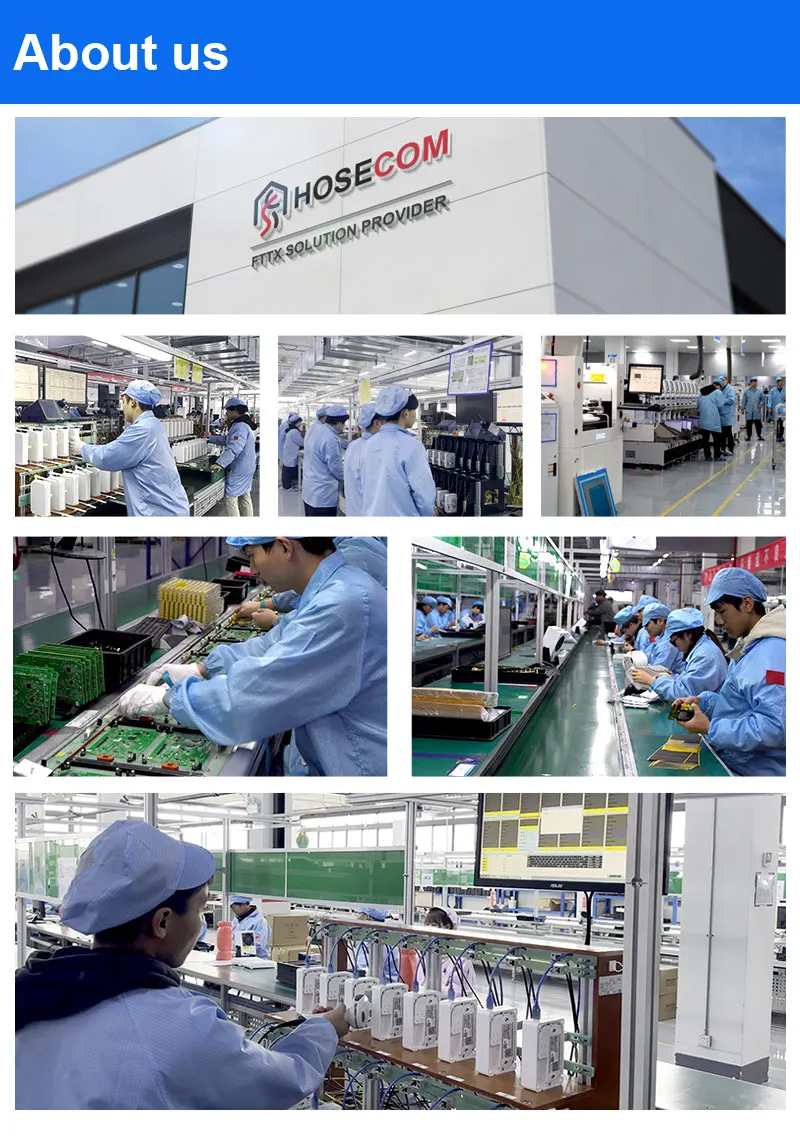

About Hosecom
HOSECOM Limited is an equipment manufacturer and supply chain service provider engaged in the research and development, production, and sales of network communication equipment. We are committed to providing a better network upgrade experience for global network communication services! To provide our customers with higher cost-effectiveness, more stable and reliable products. Personalized customization is a product solution we provide to users in different countries and regions around the world. We attach great importance to the personalized customization needs of small and medium-sized network service providers, truly achieving low minimum order quantity customization, fast customization, and fast delivery. Hosecom can provide OEM/ODM/JDM/SKD/CKD services.
Hosecom focuses on FTTX technology, with main products including OLT, ONU modems, wireless routers, network switches, and other finished products. It also provides semi-finished products, components, and even production line exports. Since 2012, Hosecom has over 12 years of industry experience, covering a wide range of domestic and global customers in China. We have established a research and development center in Shenzhen, China, with a research and development team of over 30 people. We have established factory in Chenzhou city, Hunan Province, with an engineering and technical team of over 30 people! The annual production volume of network communication products in two factories can reach 20 million units!
12+ Years
Hosecom has More than 12 years of experience in R&D and production and sales.
30+
with A R&D team of over 30 engineers can develop and deliver quickly.
20M+
Annual production of ONUs, OLTs, Wifi routers, and other network equipment can reach 20 million units.
Our Advantage
1. More than 12 years experience in FTTX solution, R&D, production and sales in one.
2. Low MOQ can be customized, experienced R&D team can quickly customize your version and ship quickly.
3. 1 years warranty, within 1 year due to quality problems damage only replacement and not refund.
4. Technical support, engineers remotely assist you to solve technical problems, Top customers enjoy technical outbound door-to-door service once a year.
5. High compatibility, all our products do not have private protocols, you can expand your network at will, no late expansion concerns.
6. Strong delivery capacity, more than 500 production staff, more than 30 engineers team can quickly develop and deliver.
7. Focus on fiber optic network upgrading field, trustworthy supplier.
2. Low MOQ can be customized, experienced R&D team can quickly customize your version and ship quickly.
3. 1 years warranty, within 1 year due to quality problems damage only replacement and not refund.
4. Technical support, engineers remotely assist you to solve technical problems, Top customers enjoy technical outbound door-to-door service once a year.
5. High compatibility, all our products do not have private protocols, you can expand your network at will, no late expansion concerns.
6. Strong delivery capacity, more than 500 production staff, more than 30 engineers team can quickly develop and deliver.
7. Focus on fiber optic network upgrading field, trustworthy supplier.
Return policy and warranty
Worry-free ordering
At Hosecom, we offer a 1 year warranty on almost all of our products, and we strive to make our customers 100% satisfied and worry-free with the products they purchase from us. If you are experiencing any shipping or product issues and are frustrated, please contact us as soon as possible and our team will assist you immediately.
Return or Exchange
If you receive the product and find it damaged and unusable, we apologize, this may be due to logistics reasons for the damage, you can choose to return the product, please contact us in time, we will give you a full refund and no need to return the product to us. Alternatively, you can choose to exchange the product, we will send you a brand new product, and no need for you to pay extra, we bear all the costs.
Unsatisfactory product
If you receive the product for testing, and the test results can not meet your requirements, please contact us, our engineers will assist you to solve the problem. Good communication is a prerequisite for solving problems, our excellent engineers can solve most of the technical problems, we can also offer refunds, which are no problem.
Cancel unshipped orders
If you have placed an order and the product is not in production, you can cancel the order, please contact us before that, our factory needs to cancel the scheduled production before the product is produced.
The product is damaged during the warranty period
If the product is damaged during the warranty period due to quality reasons and not due to human damage, we will provide a replacement product free of charge. It may be sent to you separately or with your next order.
