Product Overview
Description
Product Applications
Aviation School | Training Institution | Research Institute | Science Popularization Center | Science Museum
-----Aviation theory training
Flight simulation data package that meets FAA/CAAC certification standards, reflecting the performance and control characteristics of the aircraft
An atmospheric model that complies with ICAO standards, reflecting the changes in the atmospheric environment and its impact on flight and instrument indications
Navigation principles teaching, with GPS, VOR, ILS, and NDB navigation modes
-----Instrument landing program training
ILS
VOR, LOC
Scene settings required for low visibility operation
-----SOP Training
Training of takeoff and landing routes
Airspace Flight Training
Transition Flight Training
Flight simulation data package that meets FAA/CAAC certification standards, reflecting the performance and control characteristics of the aircraft
An atmospheric model that complies with ICAO standards, reflecting the changes in the atmospheric environment and its impact on flight and instrument indications
Navigation principles teaching, with GPS, VOR, ILS, and NDB navigation modes
-----Instrument landing program training
ILS
VOR, LOC
Scene settings required for low visibility operation
-----SOP Training
Training of takeoff and landing routes
Airspace Flight Training
Transition Flight Training
-----Failures and abnormal operating procedures
The phenomenon and disposal of circuit breaker popping out
Troubleshooting of engine, power supply, and full static pressure system faults
The use of backup instruments when part of instruments failures
IOS setting failures and circuit breaker popping
-----Aircraft and Avionics Systems Teaching
Power and fuel system models established based on real aircraft schematics
G1000 integrated avionics system usage, including PFD, MFD, audio control board
Editing, executing, and modifying of flight plans
The use of autopilot and various control modes
-----Combining iFSim.GST simulation platform for general aviation technology research
The phenomenon and disposal of circuit breaker popping out
Troubleshooting of engine, power supply, and full static pressure system faults
The use of backup instruments when part of instruments failures
IOS setting failures and circuit breaker popping
-----Aircraft and Avionics Systems Teaching
Power and fuel system models established based on real aircraft schematics
G1000 integrated avionics system usage, including PFD, MFD, audio control board
Editing, executing, and modifying of flight plans
The use of autopilot and various control modes
-----Combining iFSim.GST simulation platform for general aviation technology research
Specification
Components | Standard | Optional | ||
Flight Simulation Software | Aircraft model | Diamond DA 42NG | / | |
Engine model | AE300 E4-B | / | ||
Integrated avionics system | Garmin G1000 | / | ||
Cockpit Hardware | Overall structure | Metal sheet structure, with a black matte surface | / | |
Instrument panel | Consistent with the layout of the real aircraft | / | ||
G1000 components | PFD, MFD, audio control board simulation parts | / | ||
Spare instrument | 4 virtual instrument display screens | / | ||
Pedestal | throttle Quadrant、Parking Brake、 Fuel Control Handle | / | ||
Tiller | Elevator Trim Control Wheel | / | ||
Yoke/Rudder pedals | Plastic simulation yoke, metal rudder pedal, spring centering | / | ||
Seats | Simulated seat with adjustable backrest angle | / | ||
IOS | 9-inch Android system tablet Function: device shutdown/airport switching/time, weather settings | Other Android mobile devices | ||
Visual System | Visual software | X-Plane 11 | X-Plane 12 | |
Number of airports | 6 | Additional airports are available | ||
Visual hardware | 65 inch LCD Screen | 65 inch triple screen | ||
Sound System | Sound hardware | 2 cabin speakers | / | |
Sound software | Engine environmental sound, avionics warning sound, navigation station identification sound | / | ||
PC | Visual System Computer | CPU: i7 GPU: GeForce GTX 3060 RAM: 16G Memory: 500G SSD | GPU: GeForce GTX 4070 AM: 32G | |
G1000 IPC | CPU: i7 AM: 16G Memory: 256G SSD | |||
Instrument IPC | CPU: i7 AM: 4G Memory: 128G SSD | |||
Operational Requirements
Net weight | 300 kg |
Rated Power | 2 kw |
Nominal Voltage | 220 V |
Operation system | Windows 10 |
Facility entrance requirement | Not less than 1.1 m width and 1.0 m height |
Floor Loading | 300 kg/㎡ |
Recommended Operation Temperature | 10 ℃ - 35 ℃ |
Recommended Operation Humidity | 30 % - 80 % |

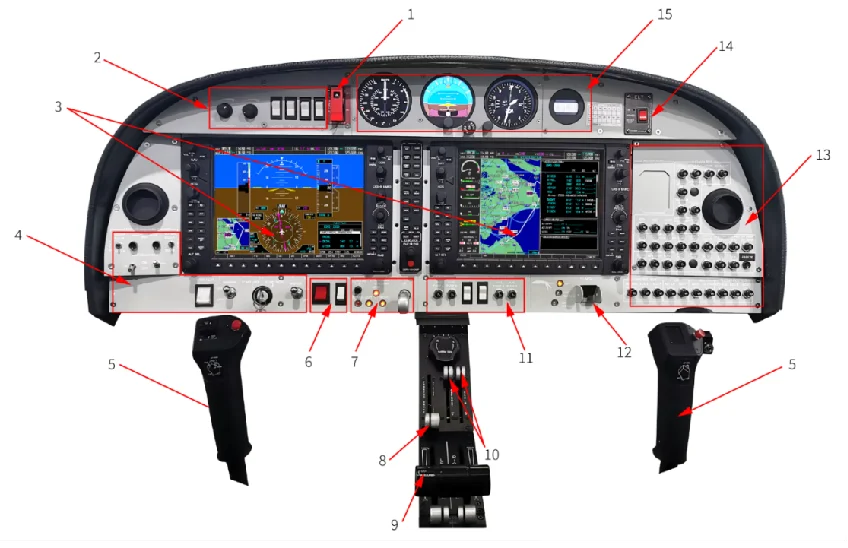

Simulator Cabin Composition
1. Emergency Switch
2. Light Switch Panel
3. G1000 Panel
4. Engine Control Panel
5. Flight Control Stick\t
6. Electric Master/Avionics Master Switch
7. Landing Gear Panel
8. Parking Brake Lever
2. Light Switch Panel
3. G1000 Panel
4. Engine Control Panel
5. Flight Control Stick\t
6. Electric Master/Avionics Master Switch
7. Landing Gear Panel
8. Parking Brake Lever
9. Power Lever
10. Cabin Heat Lever
11. Fuel Pump Panel
12. Flap Selector Switch
13. Circuit Breaker Panel
14. ELT Control Unit
15. Backup Indicator
10. Cabin Heat Lever
11. Fuel Pump Panel
12. Flap Selector Switch
13. Circuit Breaker Panel
14. ELT Control Unit
15. Backup Indicator
Options
Triple screen visual display
· Observing the scenery in front of the slant
· A large field of view angle is beneficial for visual flight teaching
· A large field of view angle is beneficial for visual flight teaching
Customized airport and navigation data
· Building a 3D model of a particular airport
· Aligning navigation data from charts
· Meet general aviation training needs
· Aligning navigation data from charts
· Meet general aviation training needs

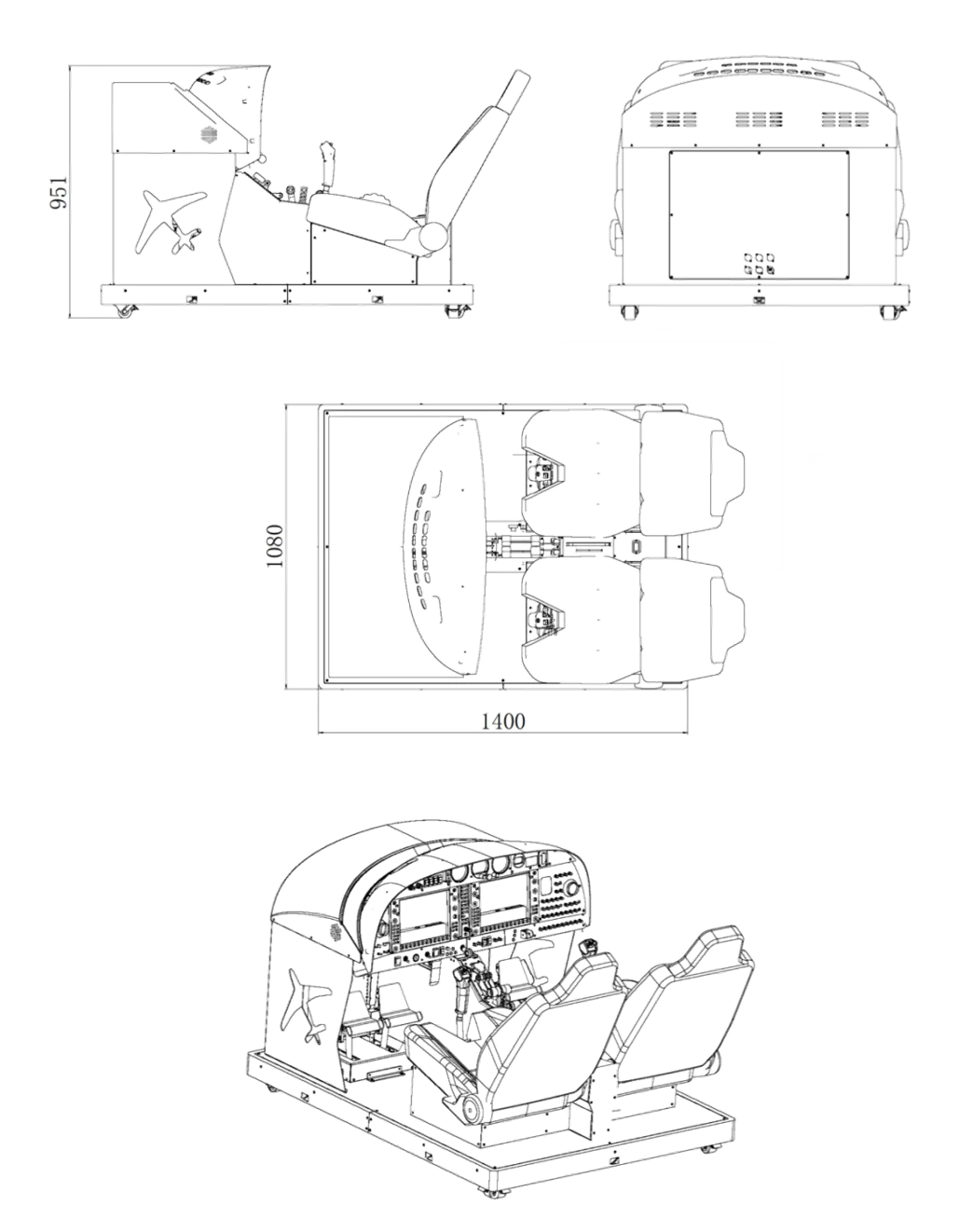

Dimensions
