Control Valve Pneumatic Control Valve Stable Quality Modulating Water Regulator Gas Flow Control Water

Share on (1601272253078):


Price:$30.00

Quantity:


Product Overview

Description



Trade Assurance




Products Description

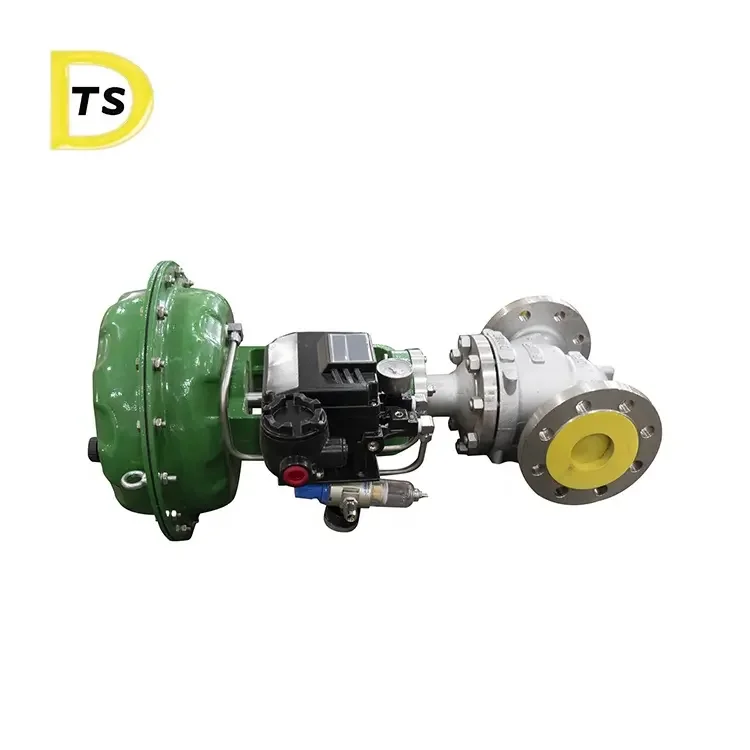

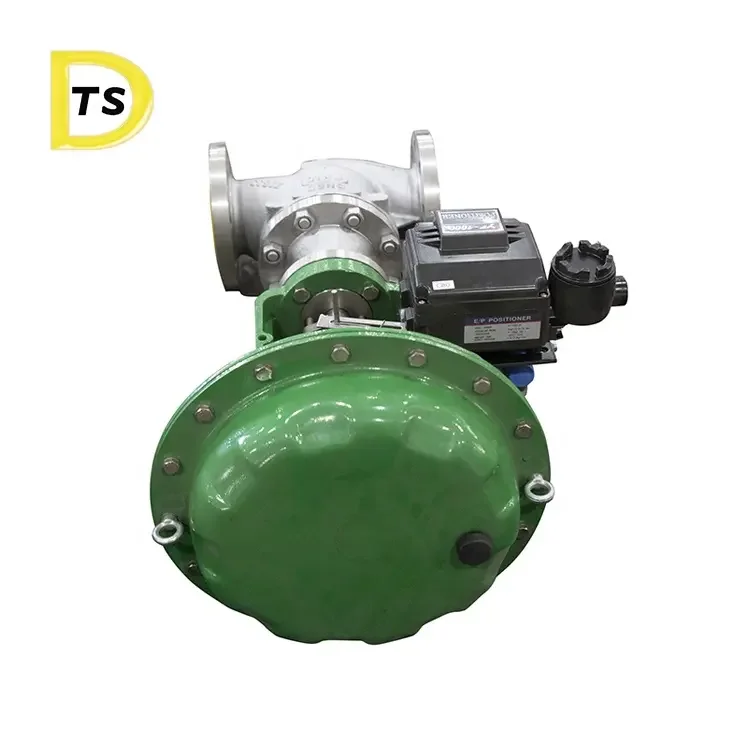

Pneumatic control valve modulating valve pneumatic diaphragm regulating valve




Design feature:
1.Conrol wtih precision ,big allowable pressure deviations, good sealing
2.Big discharge value,Multi level depression,Low noise,anti corrosion ,long life
3.Built-in balance seal ring ,frequently On/Off, remove flash cavitation
4.Integral packing box, compensation seal, dust proof and shock absorbers, smooth flow

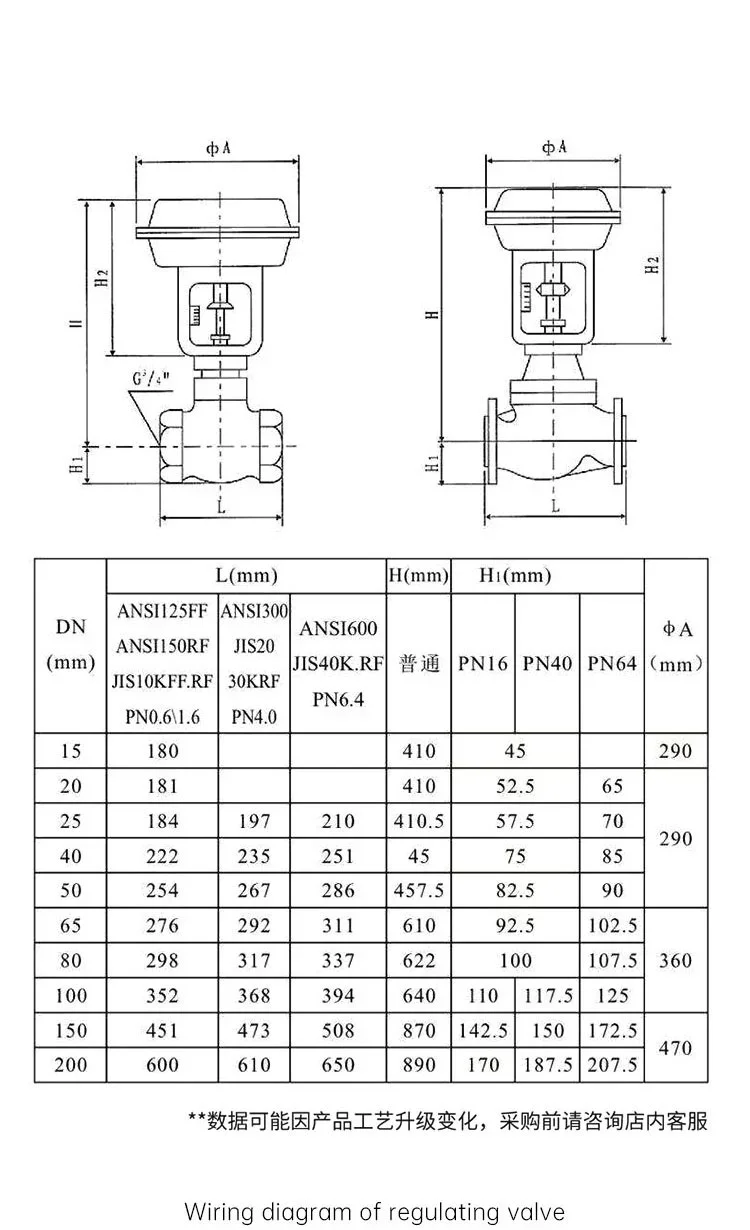

Size
DN50--300
Nominal Pressure
1.6--6.4Mpa
Body material
Carbon steel, Stainless 304,Stainless316
Seal material
PTFE,  Metal Hard sealing, Hard Alloy
Media Temper
-20-- 425℃
Valve core mode
Single seat , Sleeve
Control precision
0.3%~1%
Flow feature
Equal percentage feature, equal Linear,Quick open
Control way
Single action normally closed and open


Products Exhibition






Certifications




Company Profile


  Jilin Taishunda Technology Co., Ltd. is a dynamic team composed of experienced professional and technical personnel. We are the manufacture of valve products in China over 16 years and has own factory with total production area over 230,000 square meters. The company's main products are valves, pipe fittings, pumps, meters and so on. Our leading products conform to relevant international quality qualifications including CSA, UL, CE, and AOQC certifications. We wholeheartedly provide users with high-quality products. "Excellent quality.Customer satisfaction" is the eternal pursuit of our company. The company will be market demand-oriented, continuous innovation, and dedicated to provide overseas customers with high-quality products and perfect aftersales service. Taishunda technology, your forever Partner!

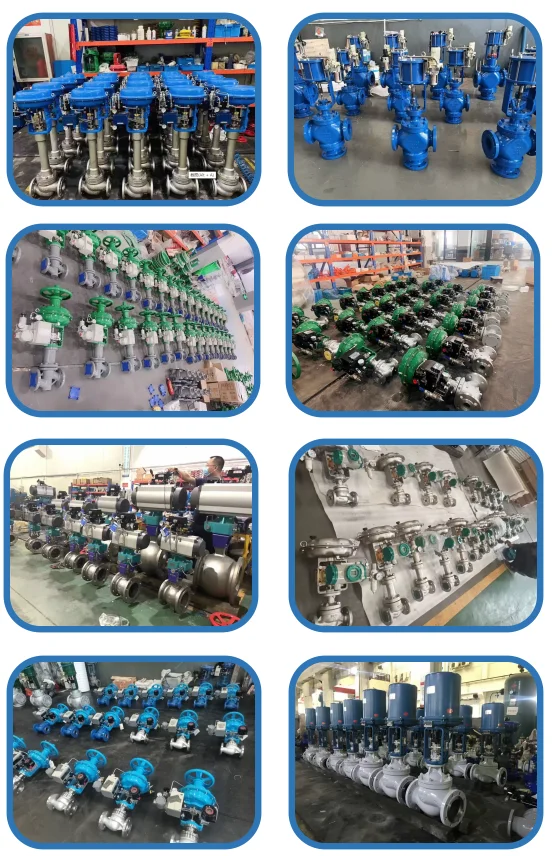

Our Factory




Our Services






FAQ


Q1. who are we?
We are a technology company with R&D, production, sales and service in one.The company's main products are valves, pipe fittings, pumps, meters and so on. Our leading products conform to relevant international quality qualifications including CSA, UL, CE, and AOQC certifications.


Q2.What are your quality control procedures?
Our company adheres to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.


Q3.Can you do OED for me?
We accept all OEM orders, just contact and give us your design, we will offer a reasonable price and make a sample for you.


Q4.Do you have any MOQ limit for product order?
Different products have different MOQ requirements, please contact the supplier for specific quantity requirements.


Q5.We are concerned about the technical support after using your product. Any technical engineers can be provided?
Yes, our engineer 24 hrs online once you contact.
