5kw 10kw 20kw Wind Turbine Generators for Rooftop Wind Energy Power Mill Competitive Price Wind Electricity Generator
- Category: >>>
- Supplier: Nantong R&x Energy Technology Co. Ltd.Nantong Ltd.
Share on (1601272255594):
Product Overview
Description
You May Like
Product Description
1500W Small Wind Turbine For Home Or Boat 24V 48V Wind Generator With CE And RoHS
1.Low start up speed; high wind energy utilization; beautiful appearance; low vibration.2.Human friendly design, easy installation, maintenance and repair.
3.Precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such advantages: high utilization of wind energy which contributes to the annual energy output.
4.The generators, adopting patented permanent magnet rotor alternator,with a special kind of stator design, efficiently decrease resistance torque.Meanwhile, it makes the wind turbines match the generators quite well and increase its reliability.
Specification
Model Number | RX-1000M |
Max Watt | 1000W |
Rated Voltage | 24V/48V |
Start Up Wind Speed | 2m/s |
Rated Wind Speed | 11m/s |
Survival Wind Speed | 45m/s |
Net Weight | 41.0 kg |
Blade Quantity | 3/5 PCS |
Blade Length | 1150mm |
Wheel Diameter | 2356mm |
Body Material | Aluminium die casting |
Blades Material | Reinforced glass fiber |
The Generator Type | Three-phase synchronous permanent magnet generator |
Protection | Electronic-magnet &automatically adjust the windward Angle |
Lubrication | Lubrication grease |
Working Temperature | -40℃-80℃ |
Support Type | Guyed Tower |

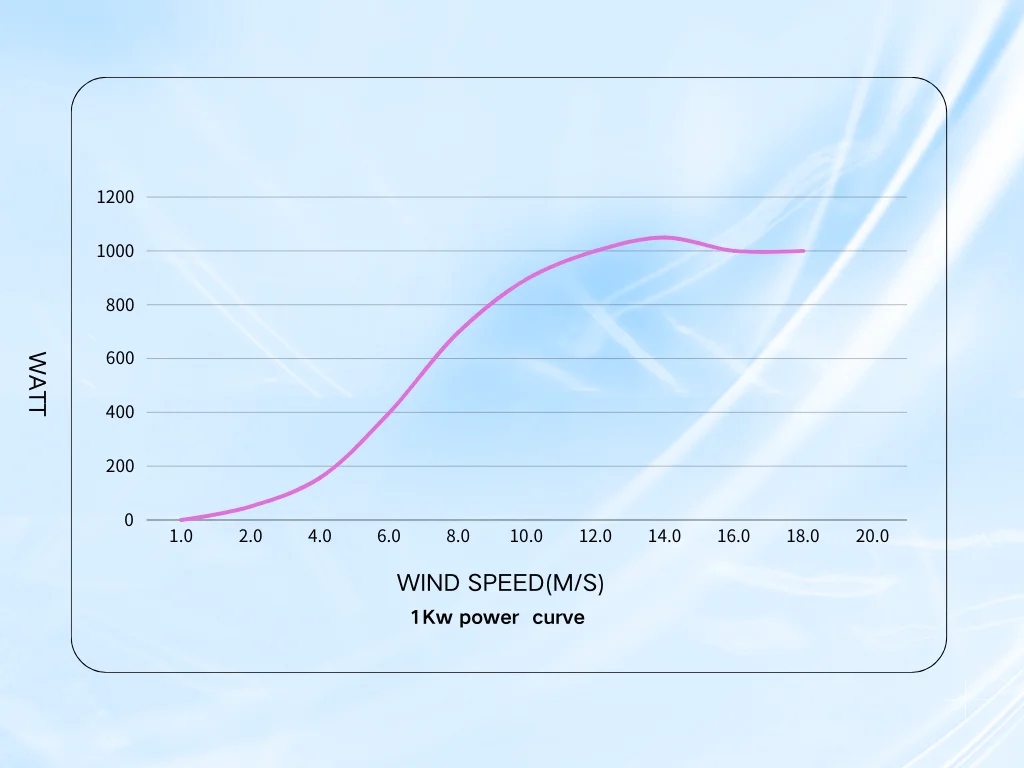

Power Curve
Drawing
Details Images
Wiring Diagram
