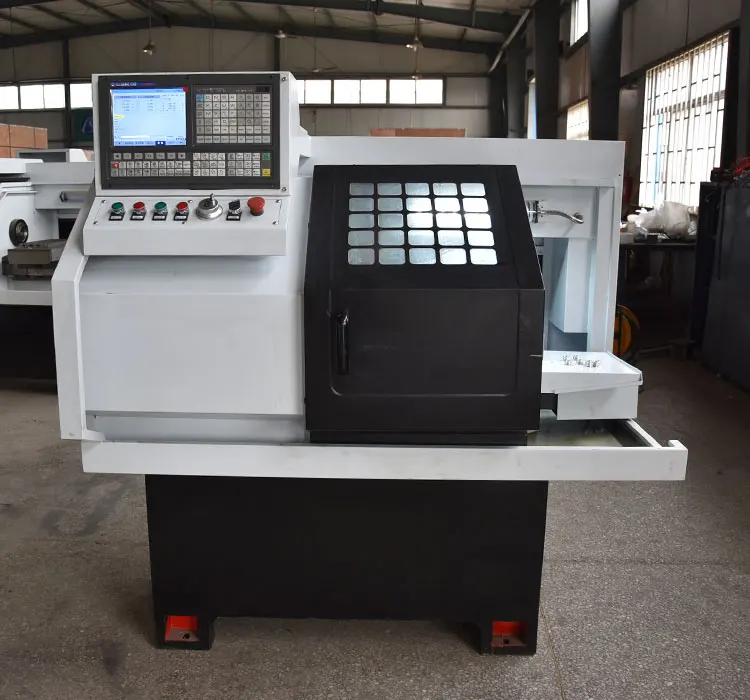

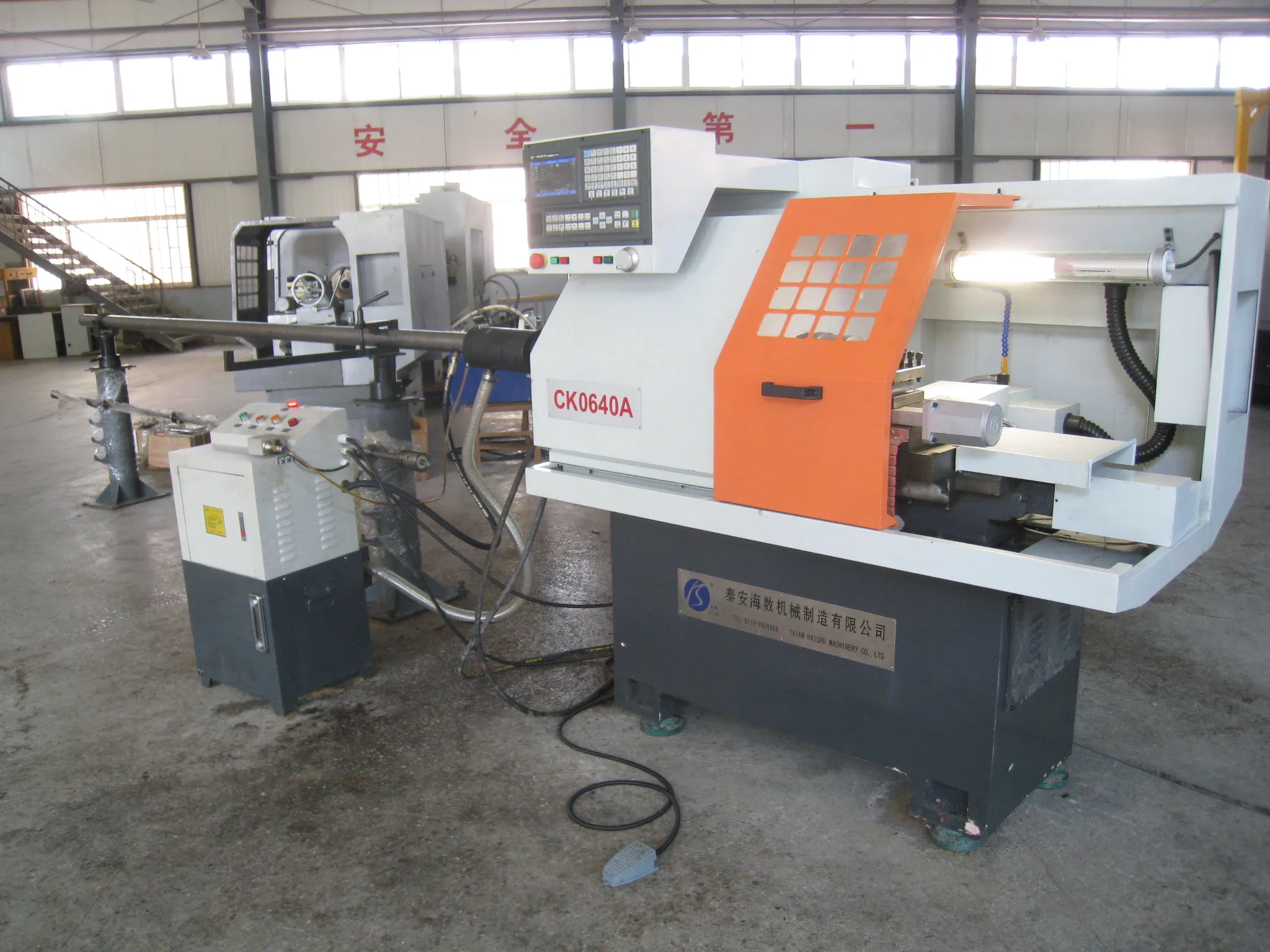

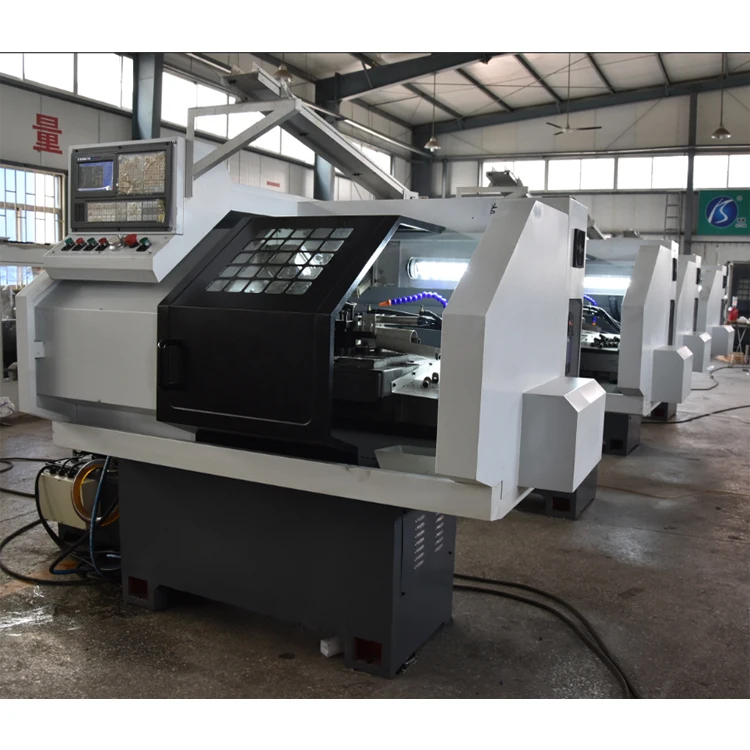

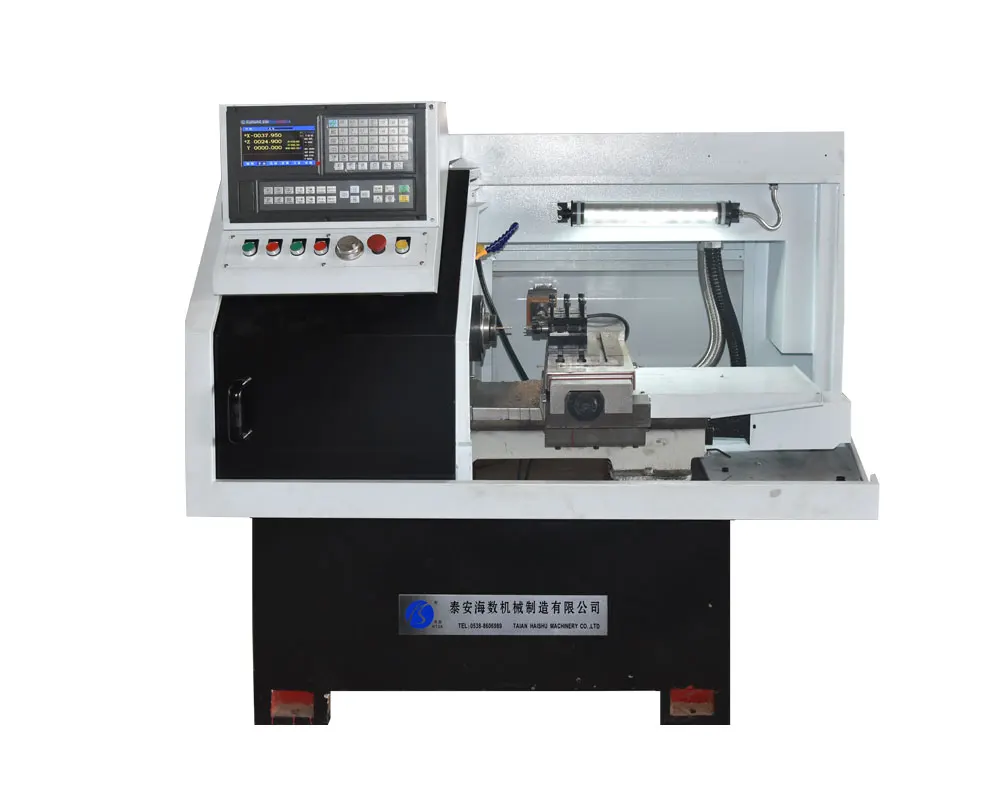

Affordable Lathe Parts Machining CK0640A Best CNC Lathe for Small Part Manufacturing
- Category: >>>
- Supplier: Taian Haishu Machinery Co. Ltd.
Share on (1601272299951):
Product Overview
Description

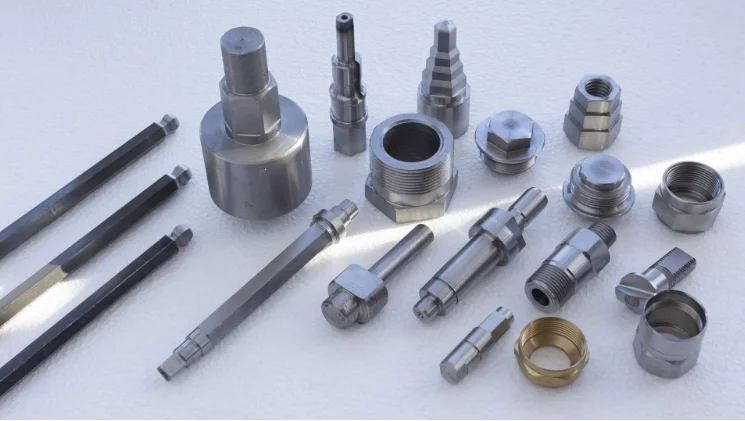

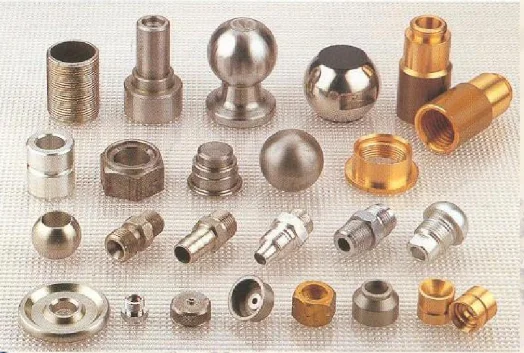

Affordable Lathe Parts Machining CK0640A Best CNC Lathe for Small Part Manufacturing can be widely used for valve/plumbing/auto parts and other metal parts to the finishing. multiple products a circular/end face/hole/cutting/any cone/sphere and various metric system of automatic thread cutting.
Item | CK0640A |
Swing over bed(mm) | Φ260 |
Max rotative diameter on carriage(mm) | Φ100 |
Max processing length(mm) | Collect200/Chuck120 |
Spindle nose | A2-5 |
Through-hole diameter of spindle(mm) | Φ48 |
Through-hole diameter of drawn pipe(mm) | Φ40 |
X/Z-axis repeat-ability(mm) | 0.012/0.013 |
X axis travel(mm) | 260 |
Y axis travel(mm) | 240 |
X-axis rapid traverse rate(m/min) | 5M |
Z-axis rapid traverse rate(m/min) | 8M |
Spindle speed range(m/min) | 150-2200 |

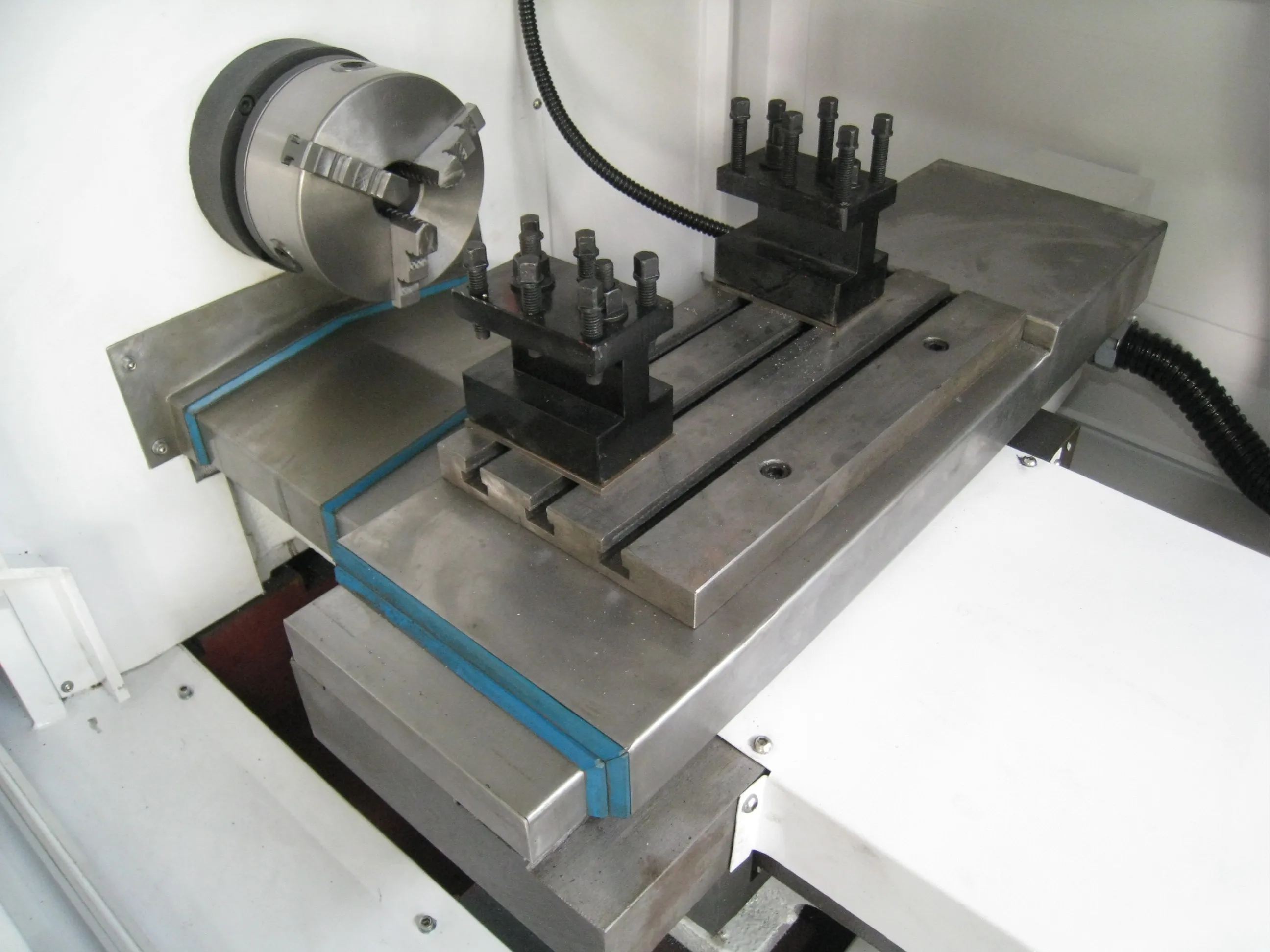

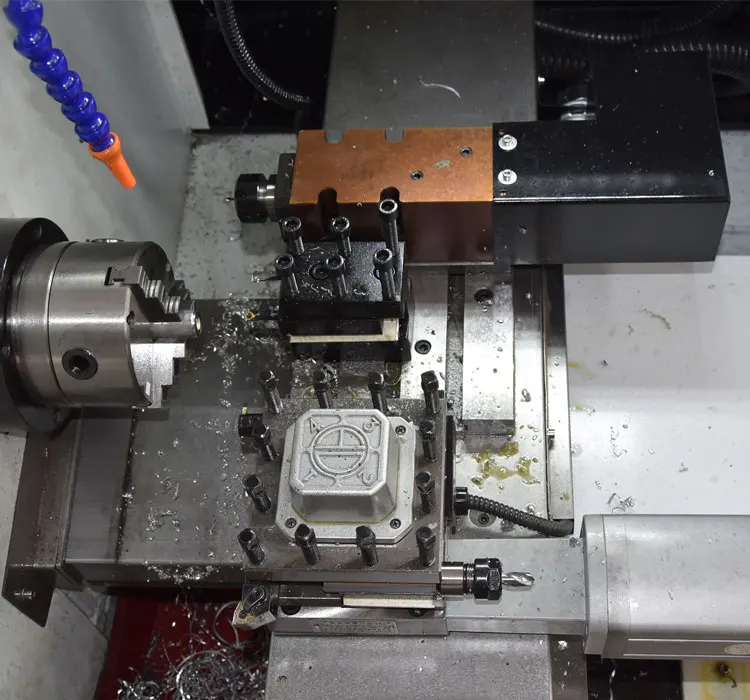

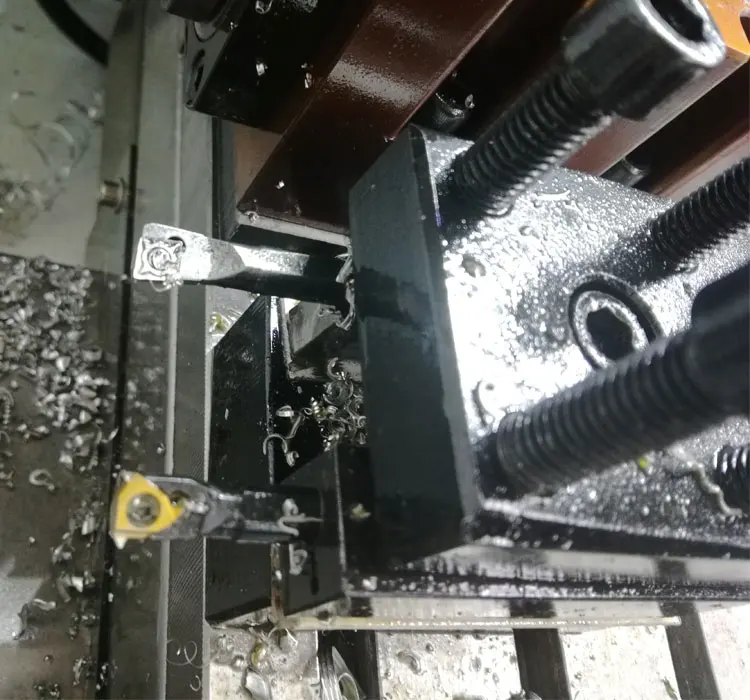

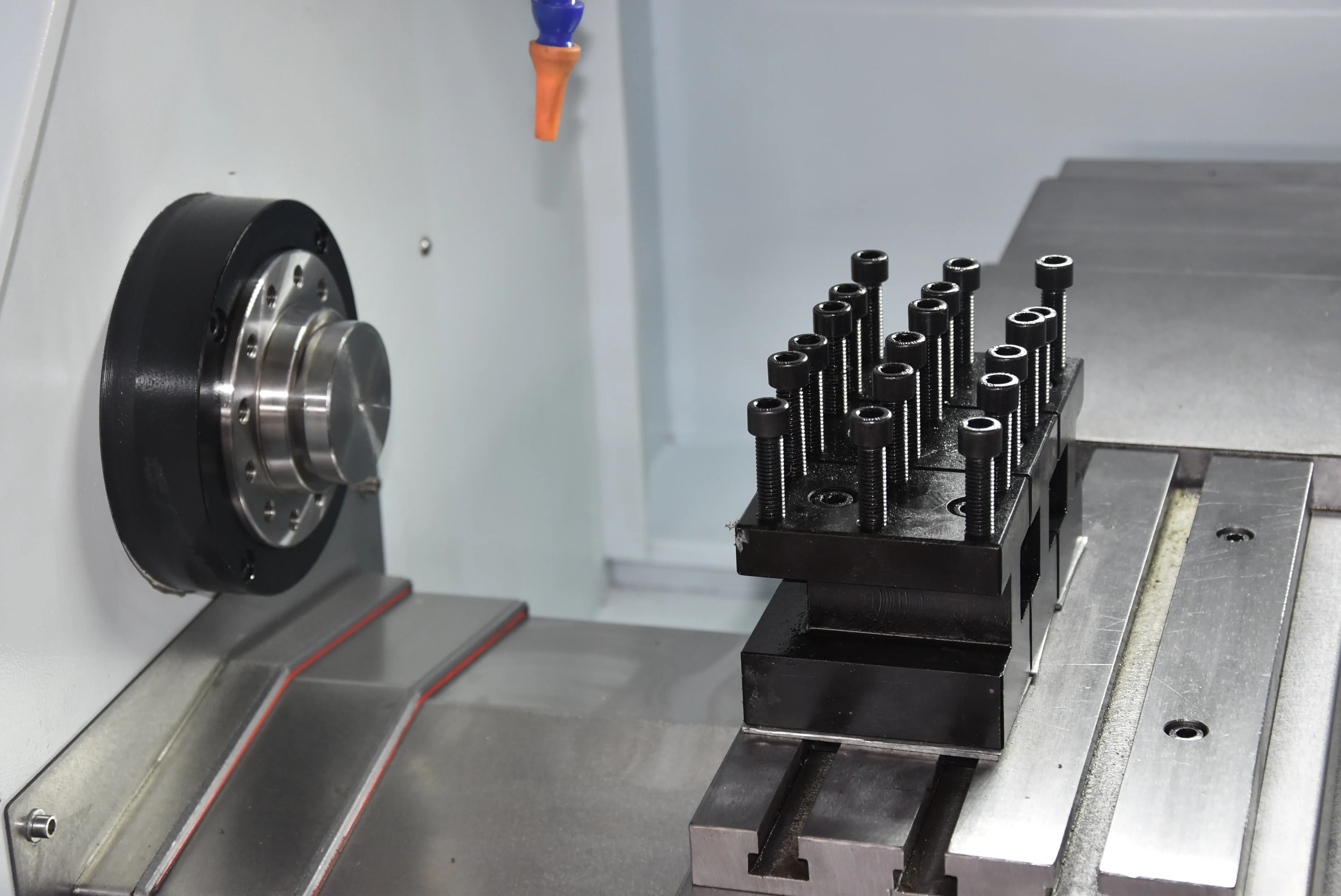

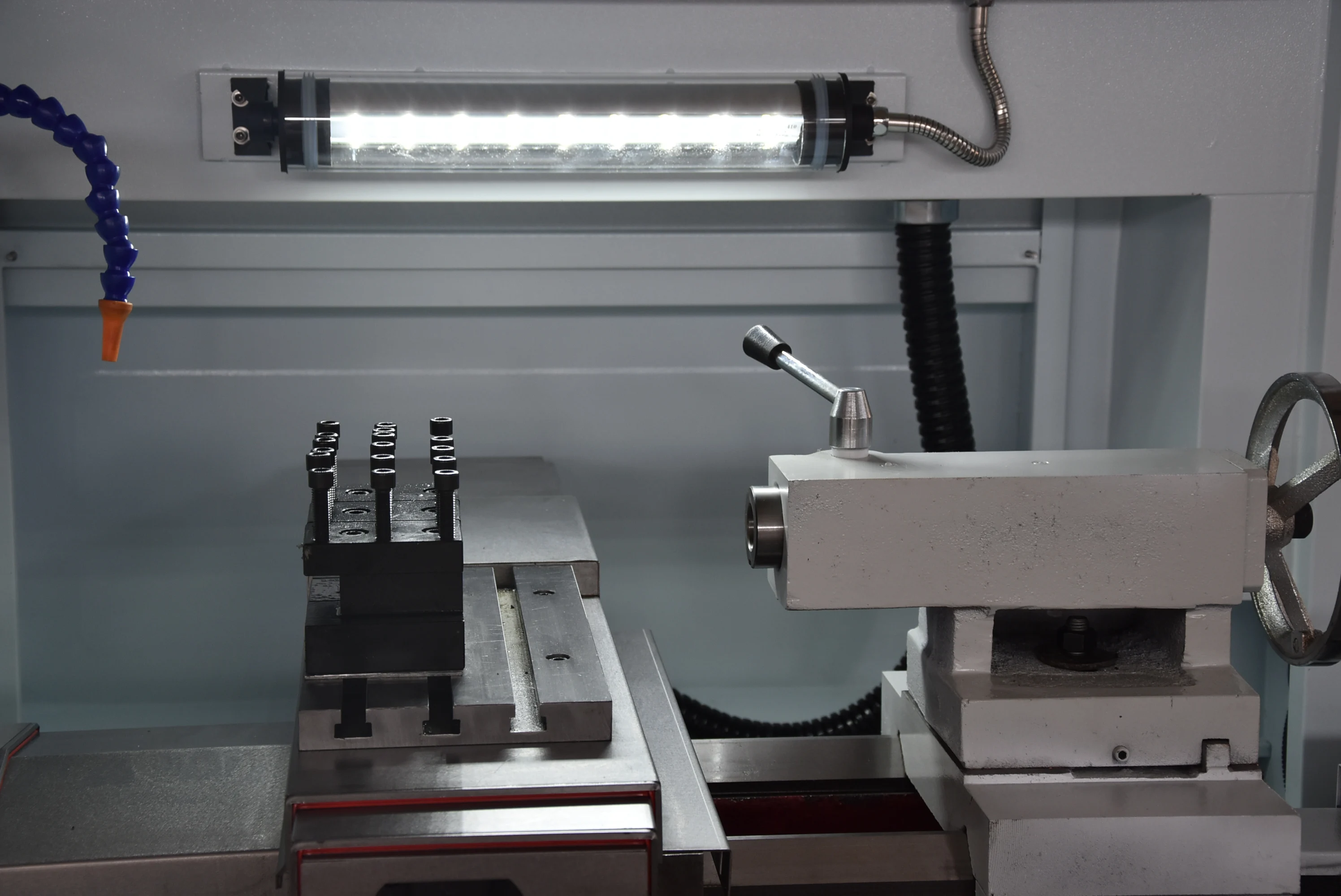

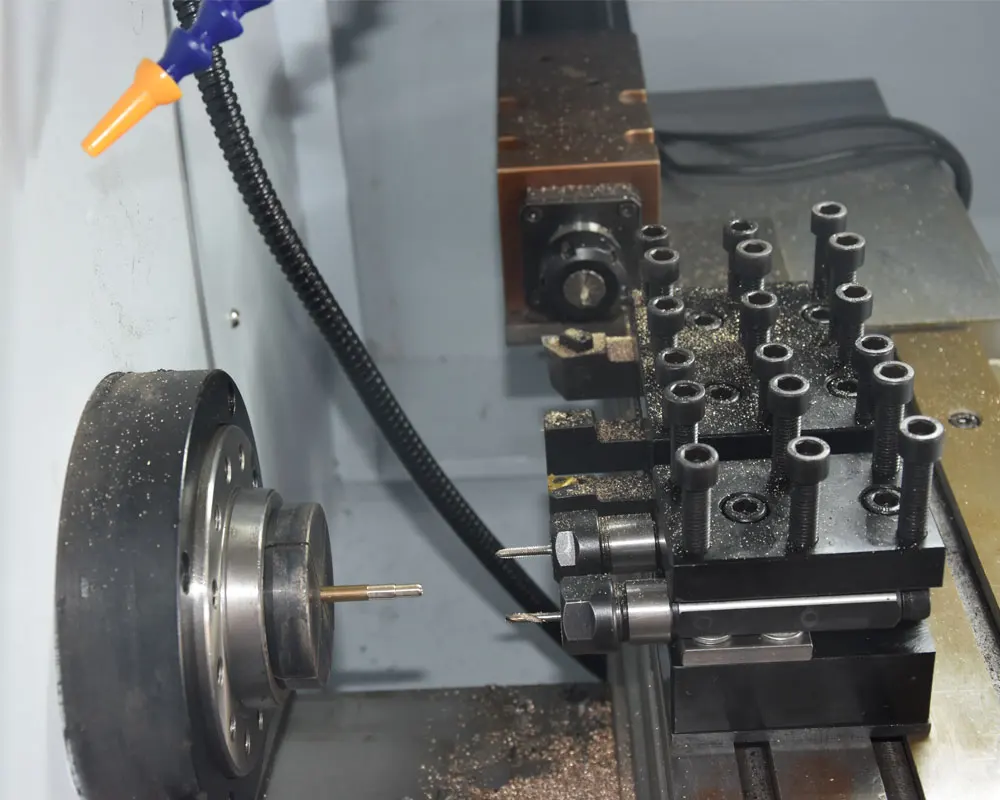

Type of tool carrier | Gang-type tool carrier |
Main motor power(KW) | 3kw |
L*W*H(mm) | 1600×1000×1550 |
weight(Kg) | 1000kg |
1 The base of the machine tool, lathe bed guide rail structure reasonable wide, berth box adopts thermal type structure design, the more effectively improve the stability of the machine and the axis of stability.
2 Before and after the spindle bearings are used high precision ball bearing, contact with diagonal work good stability, high load bearing.
3 The wear-resisting cast iron casting, guide rail and the super audio quenching and fine grinding, to ensure the long-term stability of machining precision and service life.
4 X axis and Z axis screw all use of four point one-like for structure design, ensure guide in the work more smoothly and not by lateral force influence, in processing products when dragging plate cutting big and small dragging plate more smoothly and vibrate resistance, it is more convenient to maintain better.
5 Z to guide with double swallow tail the fully closed structure design, in machine tool can work better for protection of guide rail, top end before and after sit move more stable and convenient and quick.

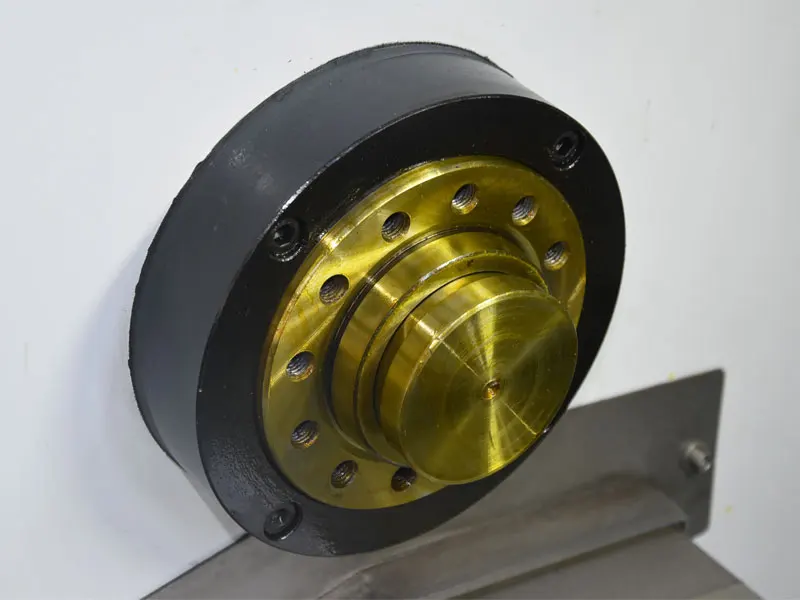

6 Spindle flange connection plate adopts the international standard design, ordinary three claws chuck and hydraulic chuck installation more convenient and quick.
2 Before and after the spindle bearings are used high precision ball bearing, contact with diagonal work good stability, high load bearing.
3 The wear-resisting cast iron casting, guide rail and the super audio quenching and fine grinding, to ensure the long-term stability of machining precision and service life.
4 X axis and Z axis screw all use of four point one-like for structure design, ensure guide in the work more smoothly and not by lateral force influence, in processing products when dragging plate cutting big and small dragging plate more smoothly and vibrate resistance, it is more convenient to maintain better.
5 Z to guide with double swallow tail the fully closed structure design, in machine tool can work better for protection of guide rail, top end before and after sit move more stable and convenient and quick.
6 Spindle flange connection plate adopts the international standard design, ordinary three claws chuck and hydraulic chuck installation more convenient and quick.
1.one year guarantee for whole machine .
2.24-hours technical support by E-mail or telephone

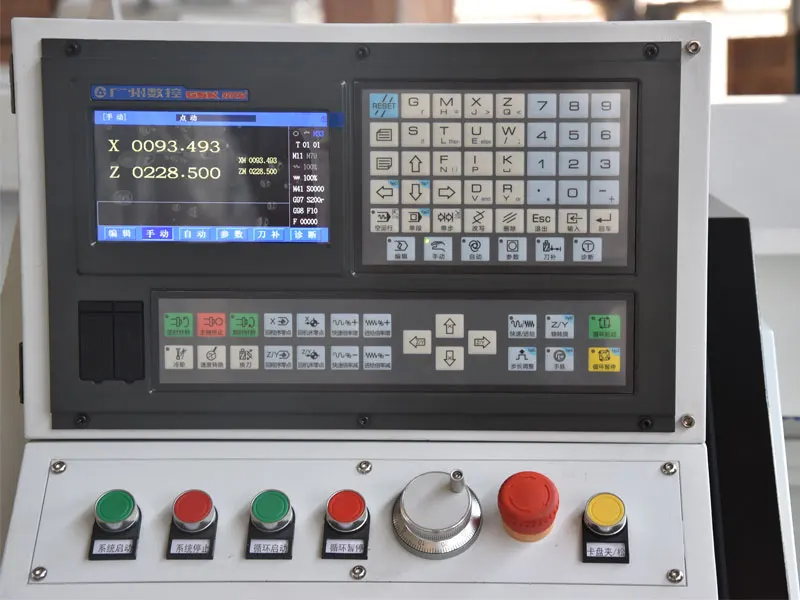

3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.

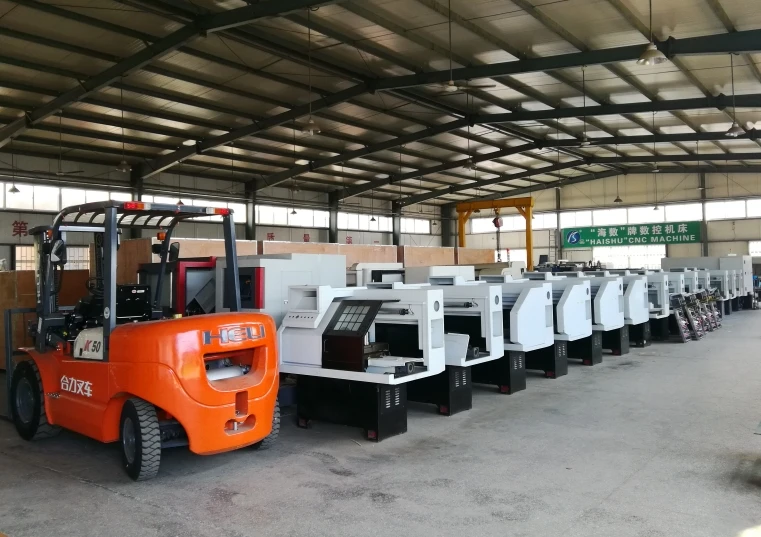

HAISHU Machinery has more than 60 talented experts and more than 12,000 square meters factory . Our innovative, high-quality products include CNC Lathes （Universal CNC lathe, Pipe threading CNC Lathe,Wheel repair CNC Lathe, etc）, CNC Milling Machines, CNC Machining Centers,and brake disc/drum repair lathes. Product innovation, quality assurance and customer satisfaction are our long term commitment to our worldwide customers since the foundation in 2001.

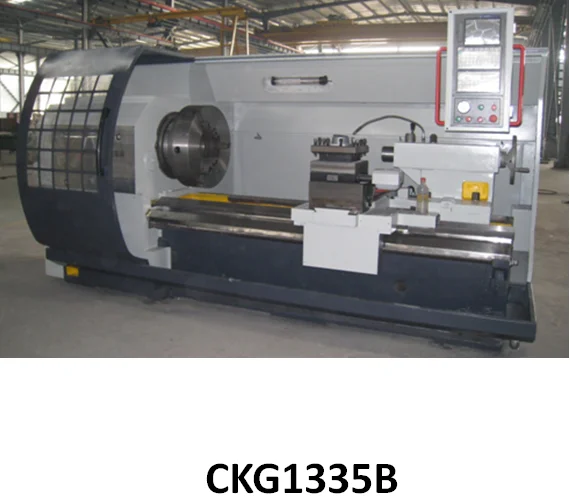

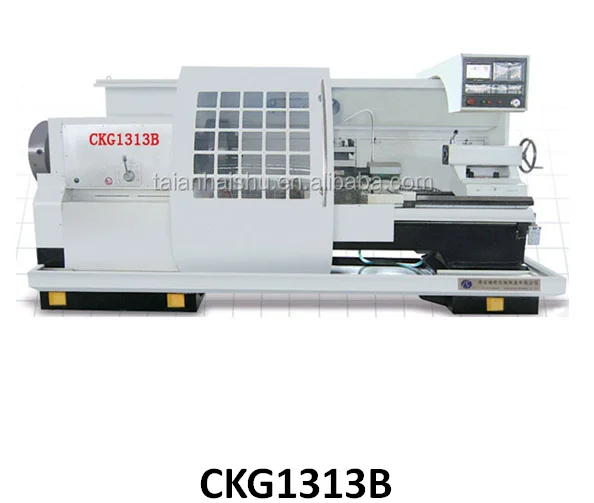

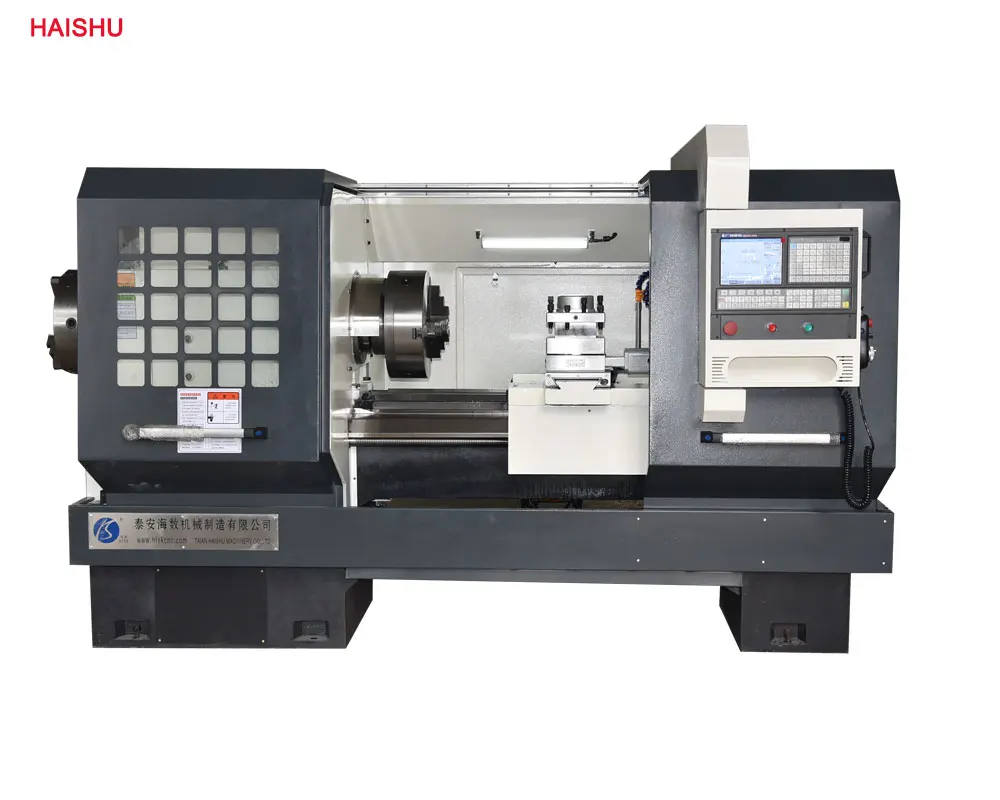

CNC Pipe Threading Lathe Machine
CNC Lathe Machine with Flat Bed

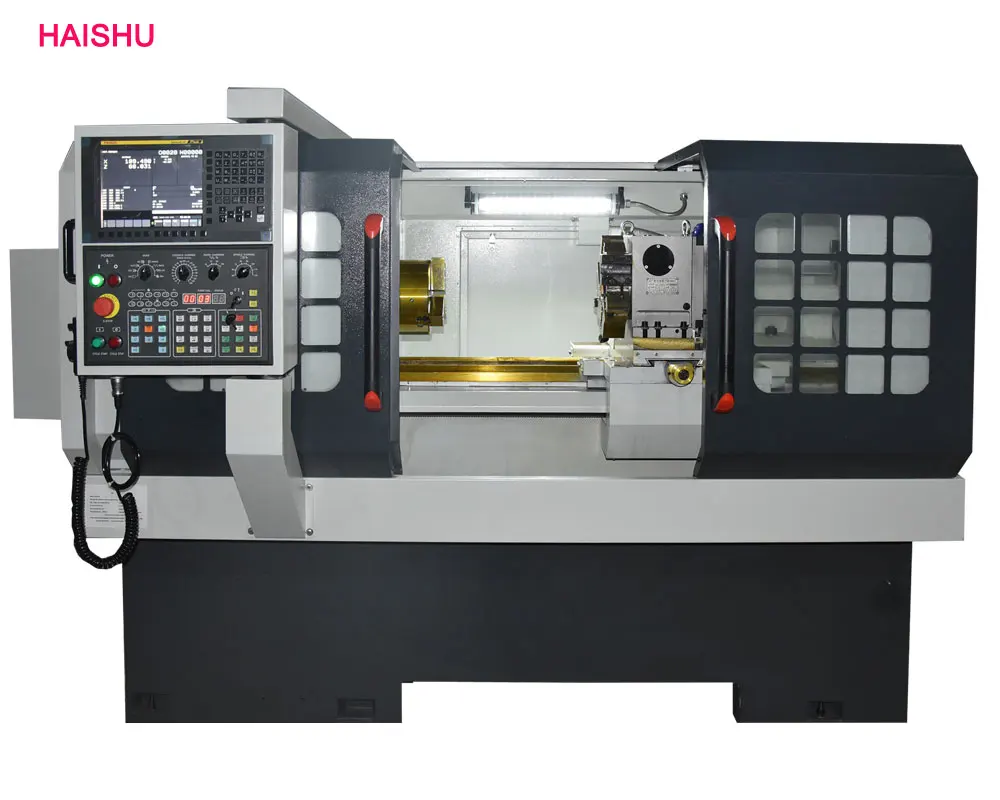

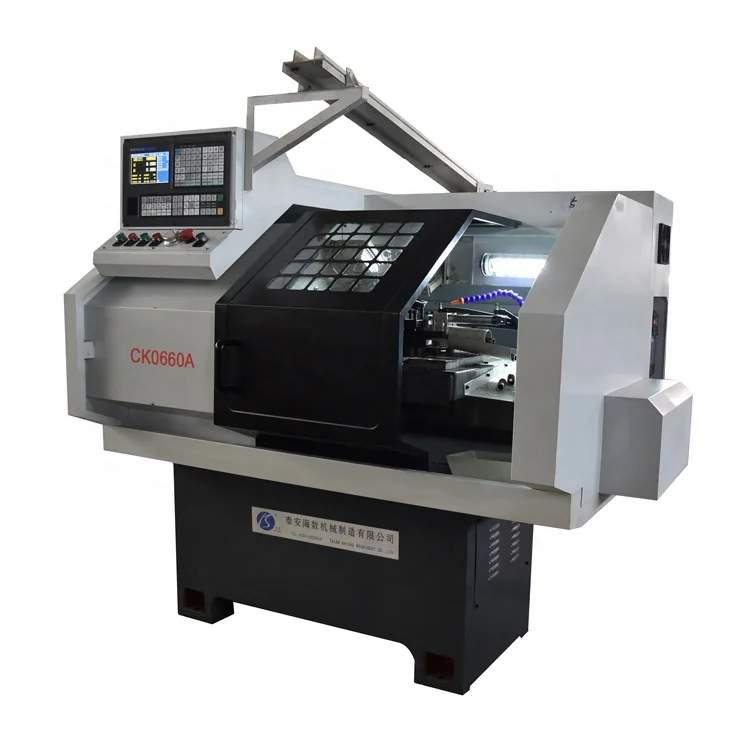

CK0640A CK0660/0680/06110A CK6136/40 CDK6150
CNC Lathe Machine with Slant Bed

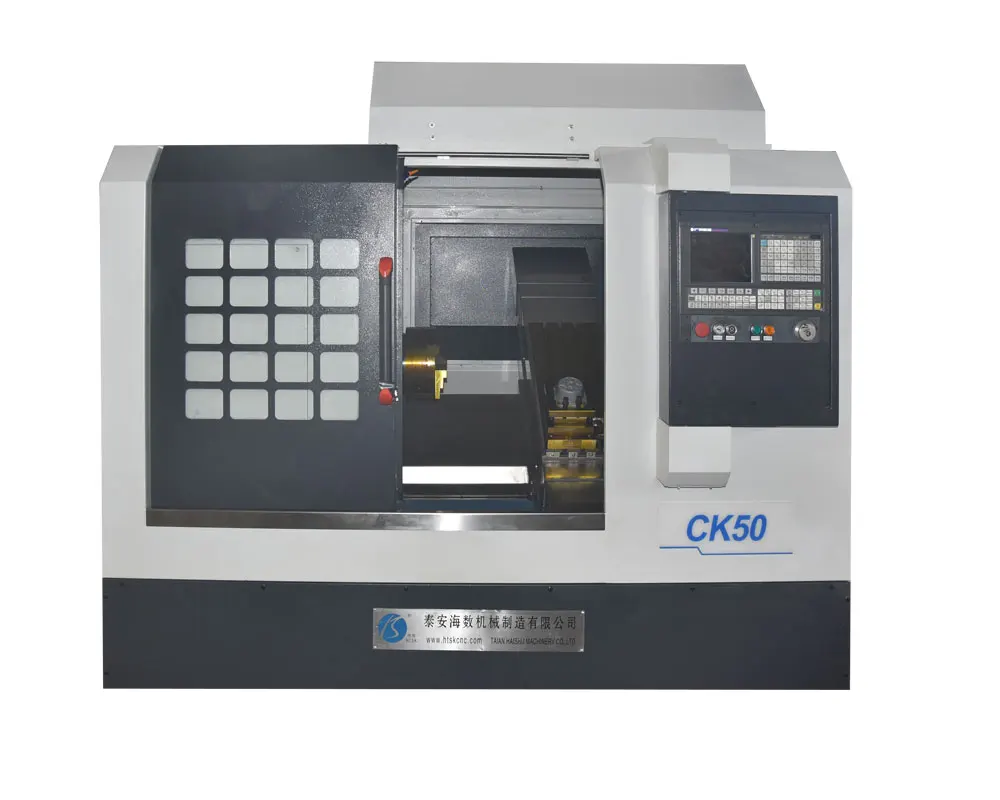

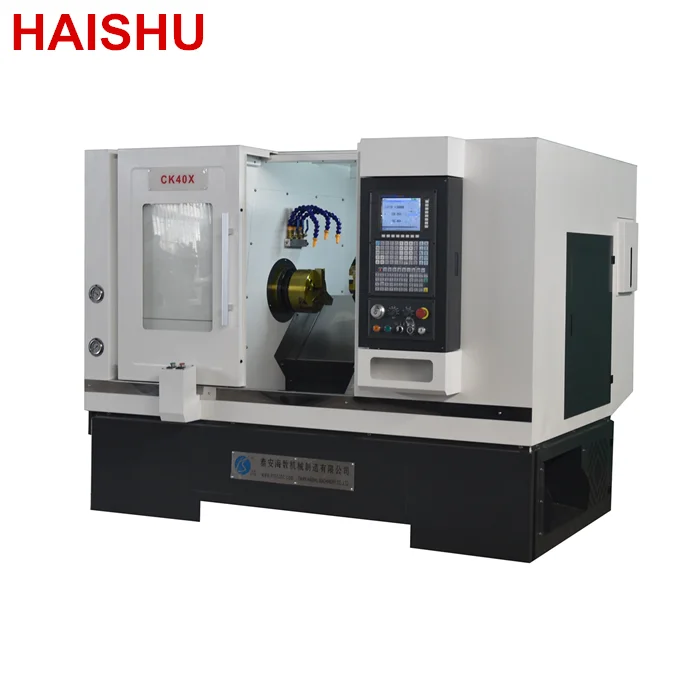

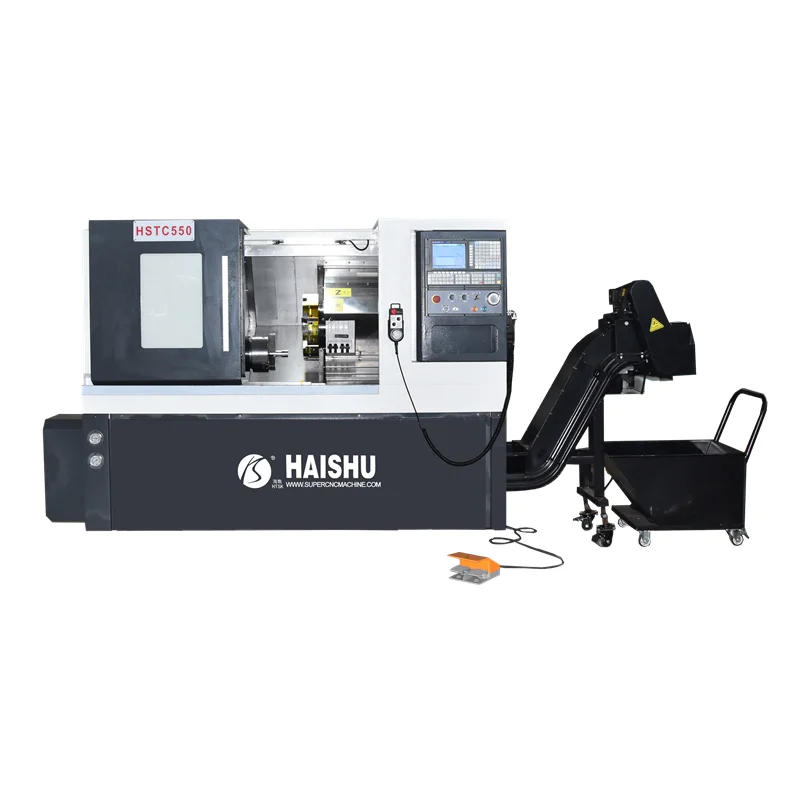

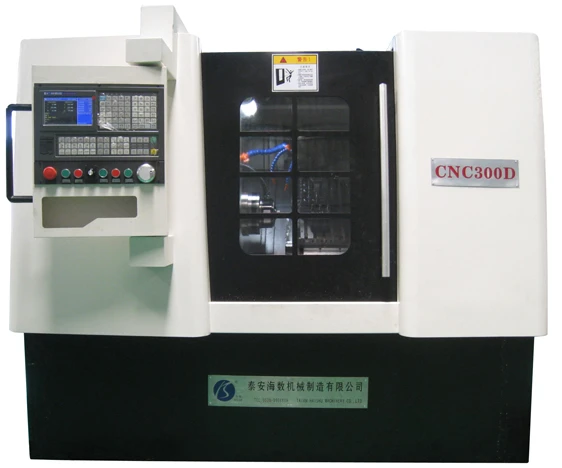

CK40X CK50 CNC300D HSTC550

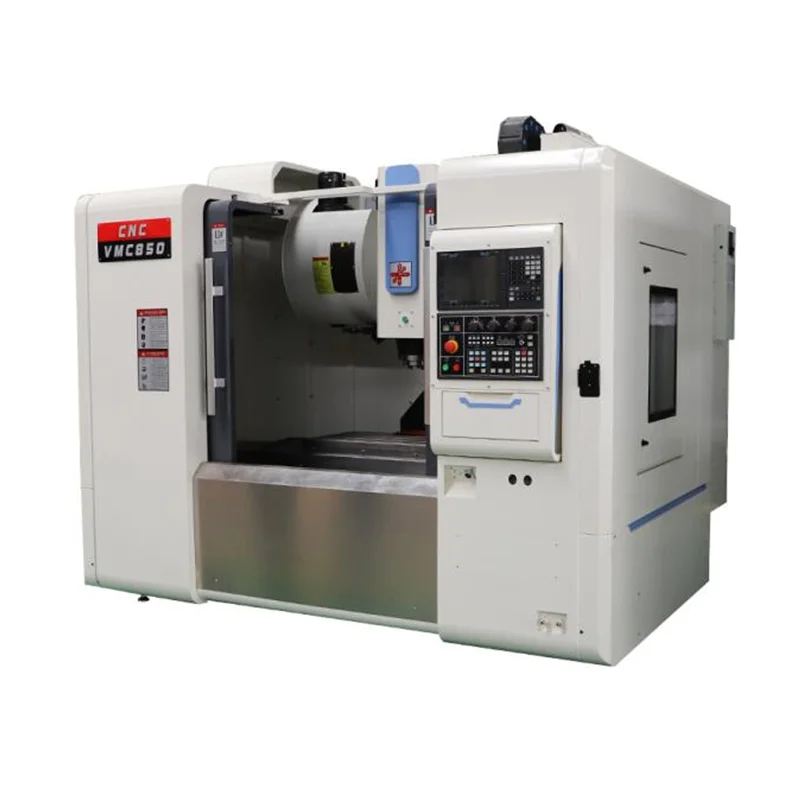

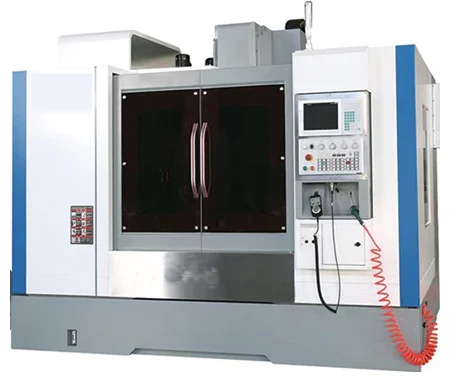

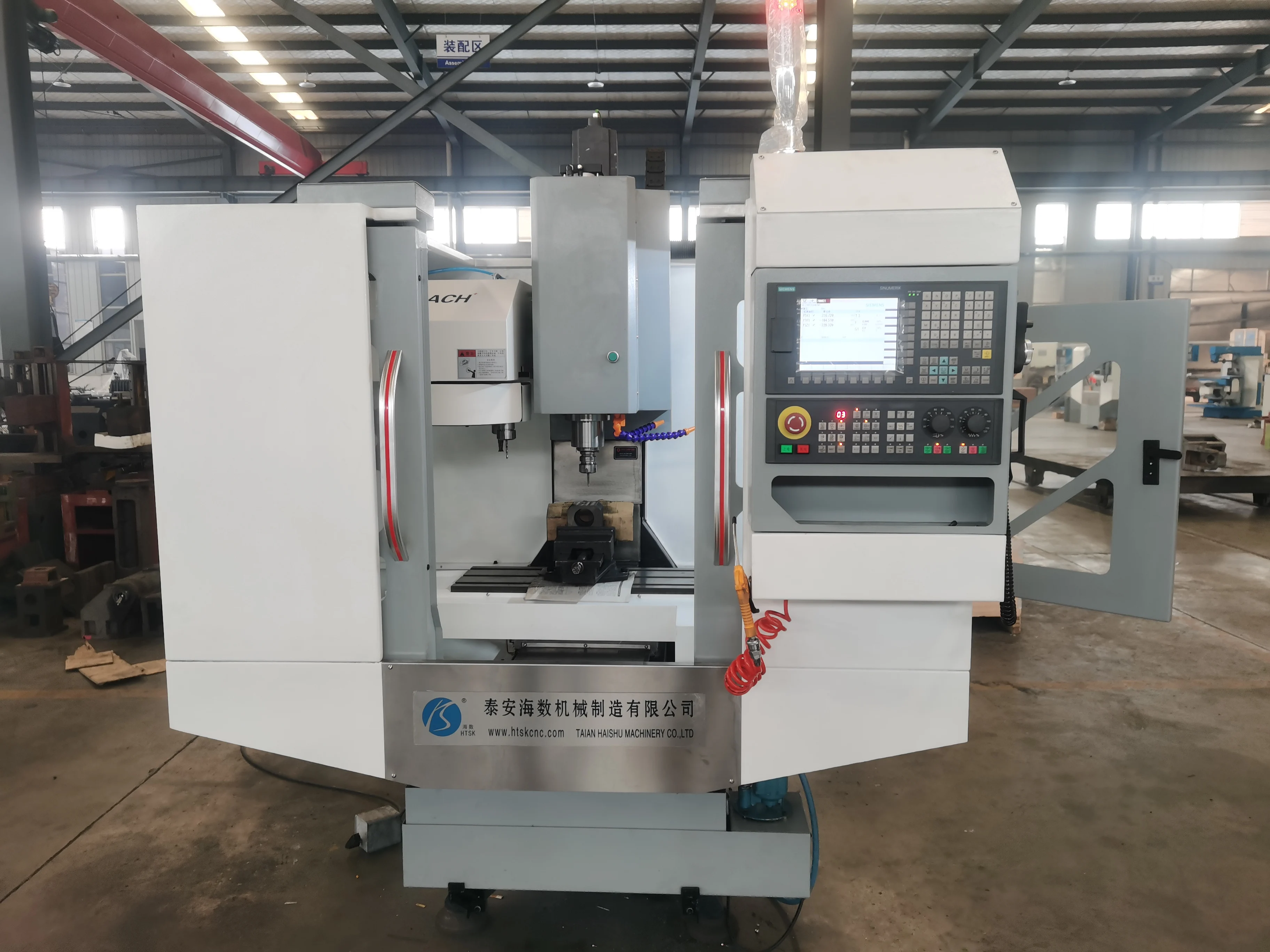

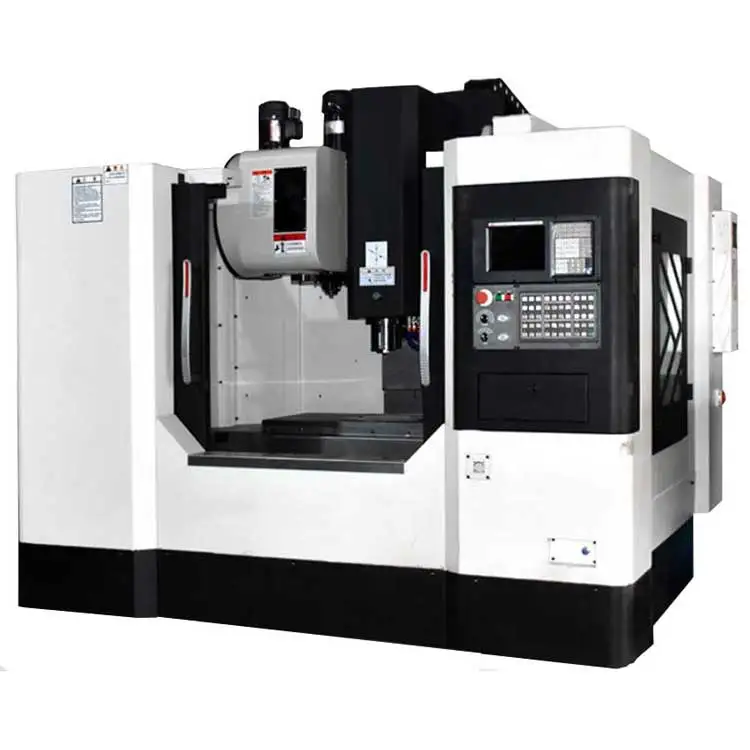

VMC220 VMC650 VMC850 VMC1060
