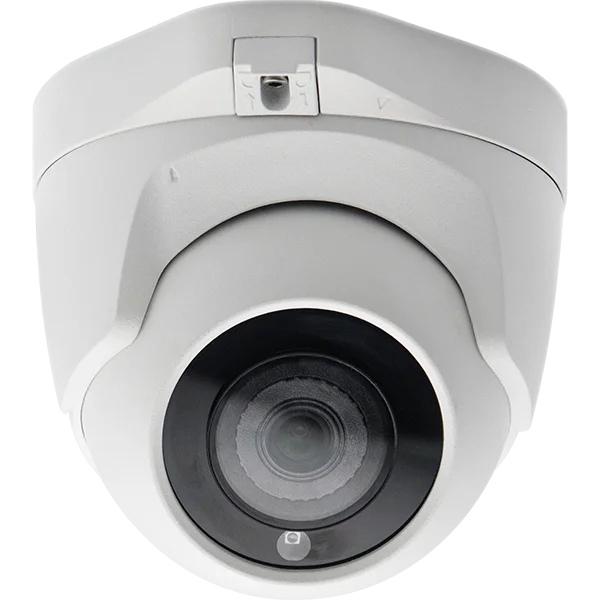

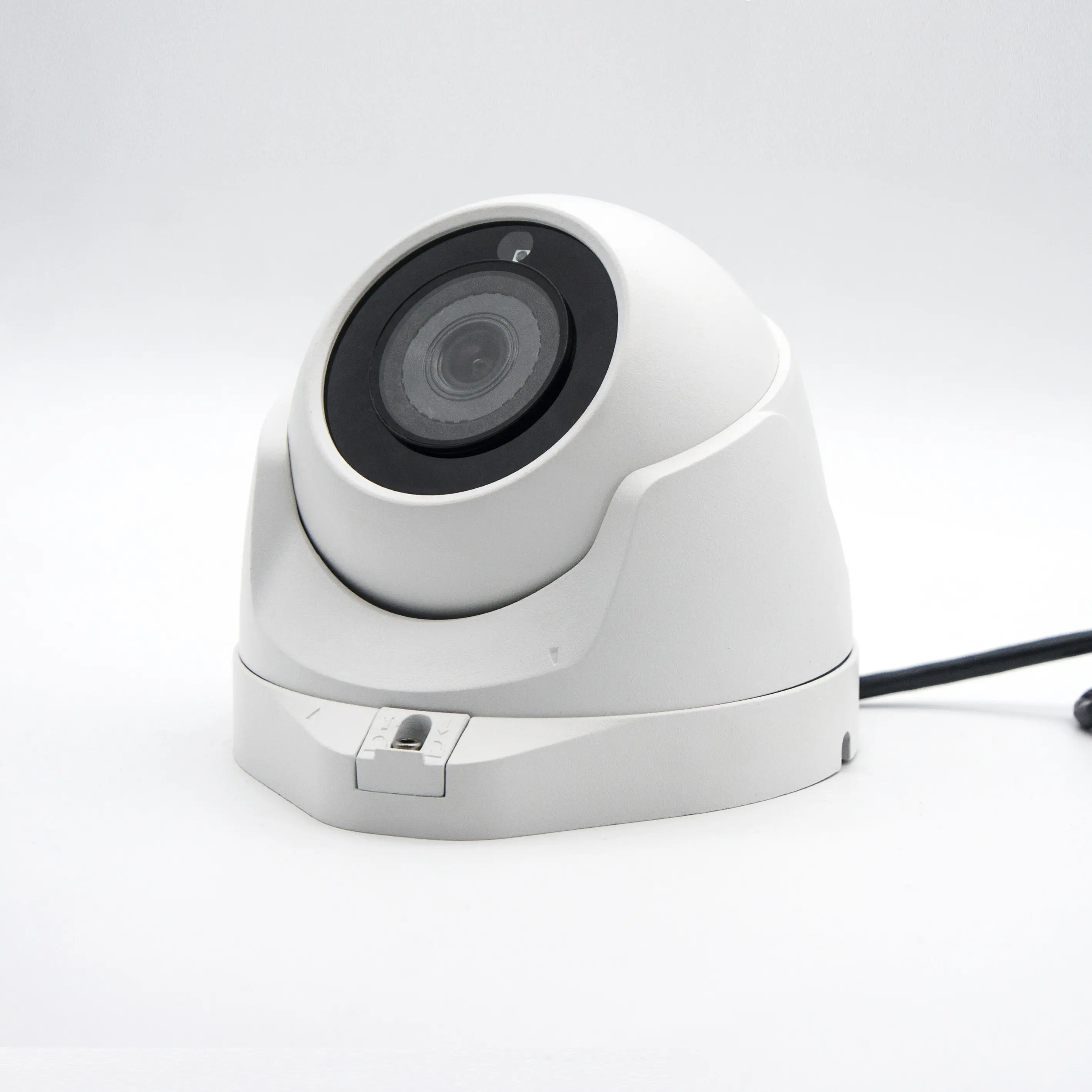

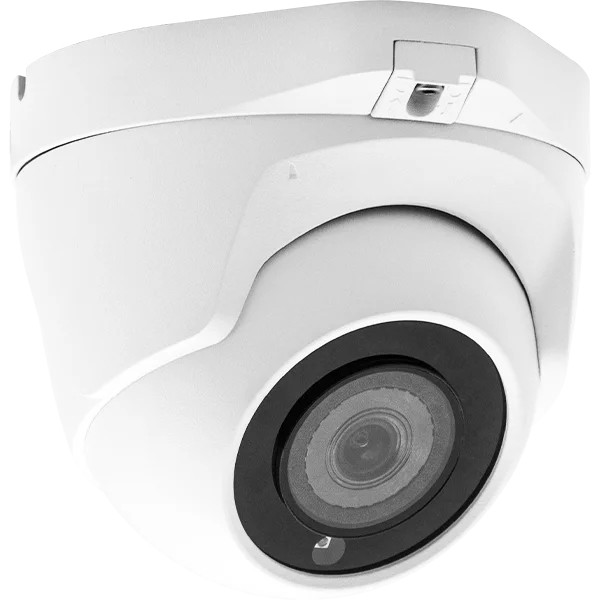

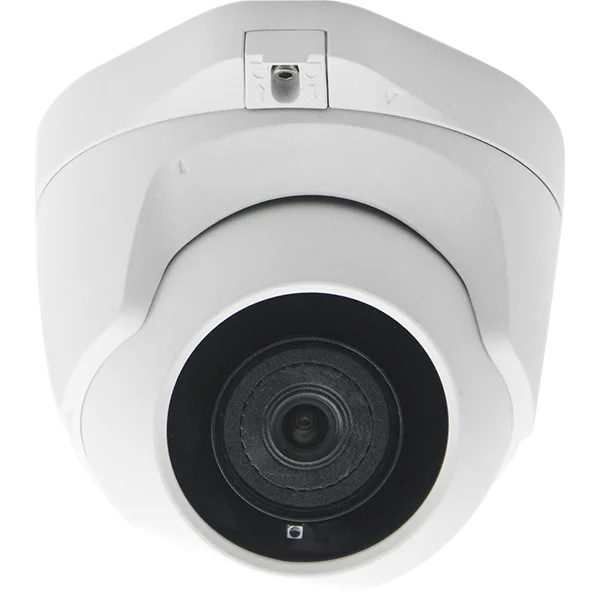

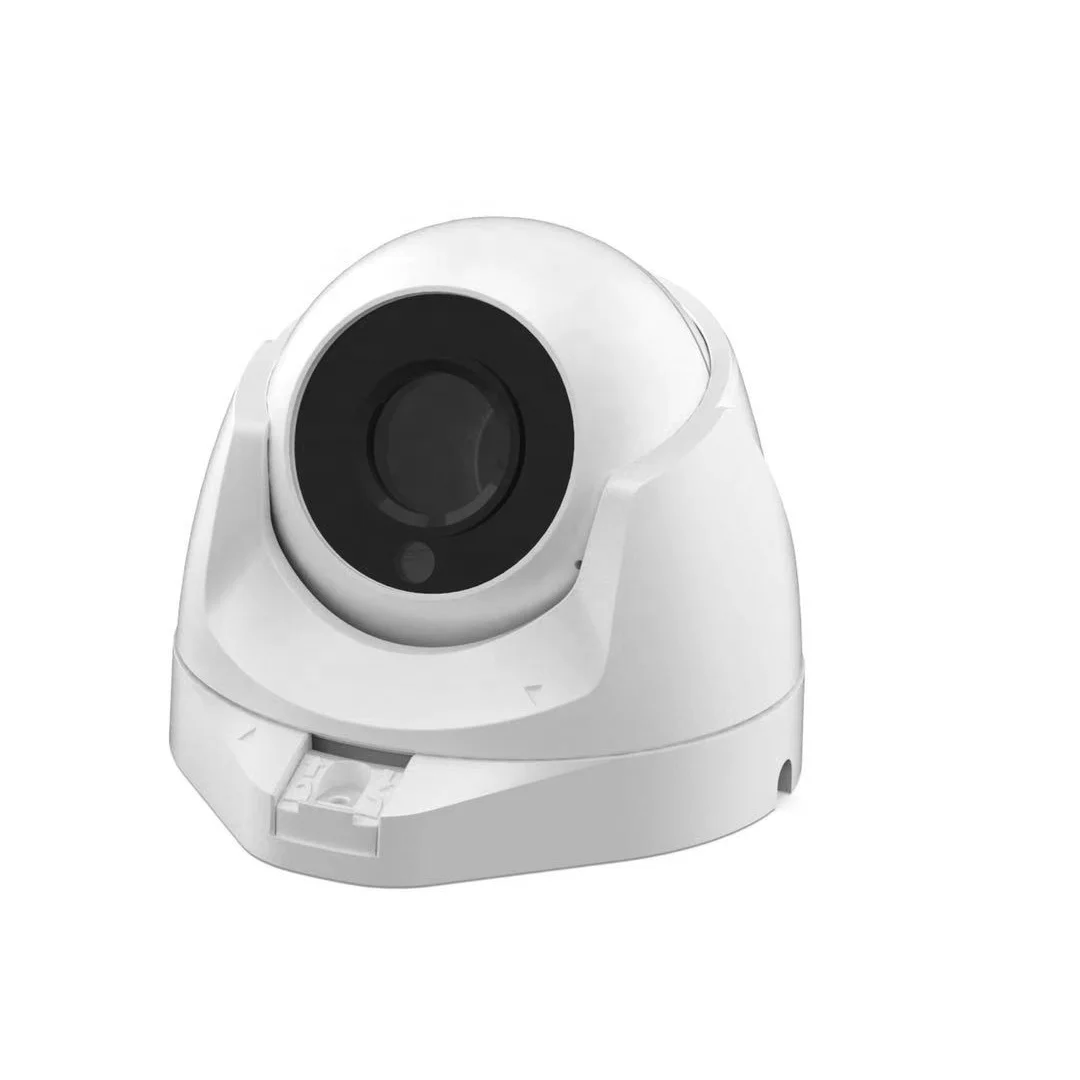

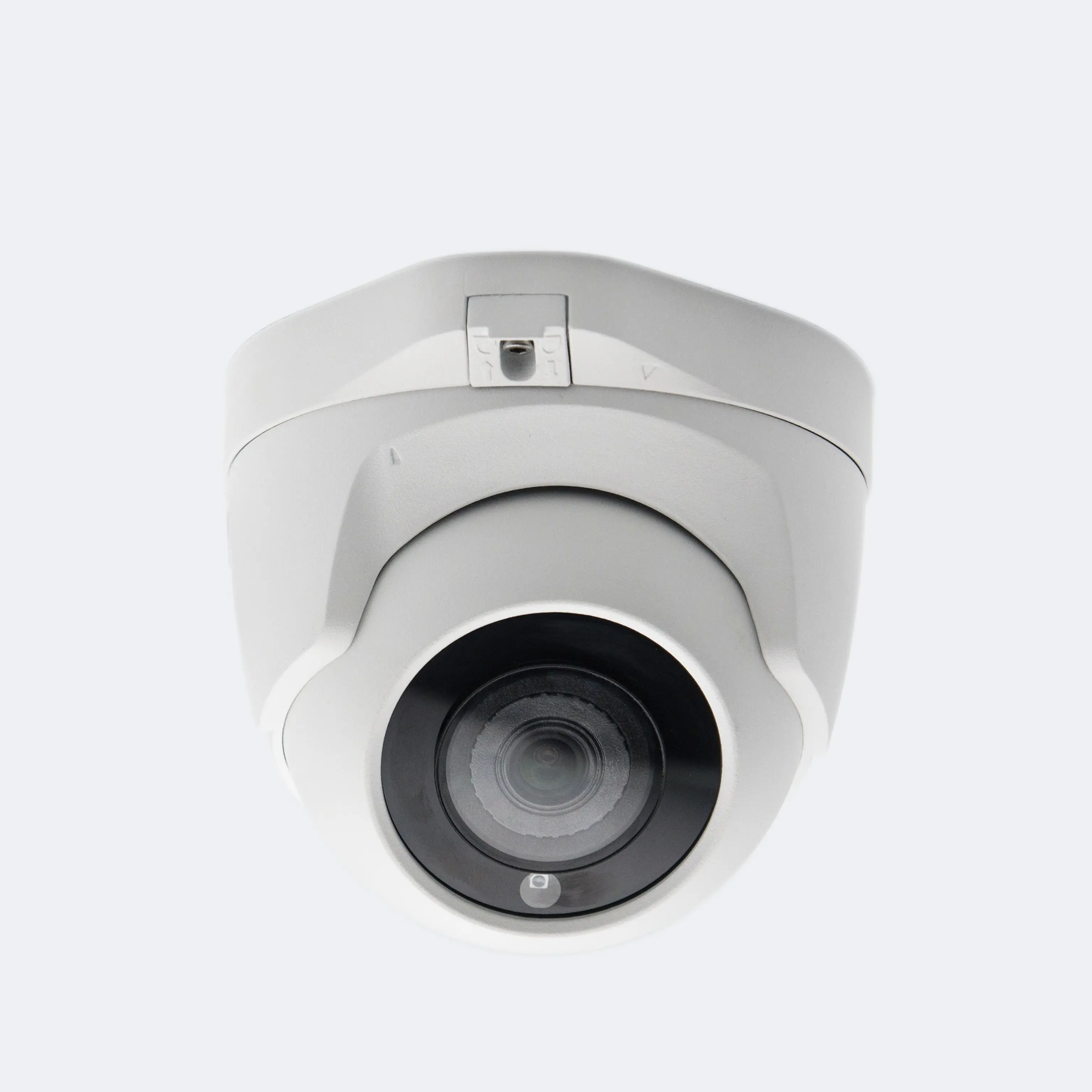

Outdoor indoor 6MP Eyeball POE IP Dome Security Ceiling Camera 3.6mm fixed lens 30M IR Night Vision Human Body detection
- Category: >>>
- Supplier: Shenzhen YCX Electronics Co. Ltd.
Share on (1601272300488):
Product Overview
Description
Product Description
Outdoor indoo 6MP POE IP Dome Security Ceiling Camera 3.6mm fixed lens 30M IR Night Vision Human Body detection
Features:
1/2.8" So-ny IMX335 CMOS sensor
6MP HD resolution 3072 x 2048 output
Ultra low illumination 0.01Lux
Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT
D-WDR, Motion Detection, Human/Vehicle Detection, Privacy Mask, Flip
RTSP and On-vif 17.06 compatible
H.265/H.264 dual-stream media server
Easy-to-use P2P Cloud service
Multi web browser, PC Client, mobile APP remote access
RJ45 100mbps network port, IEEE802.3af PoE
Lightning protection 4000V
Strong water-proof housing, IP66
18 pcs SMD IR LEDs, IR distance 20-30 meters
HD 2.8/3.6 mm fixed lens optional
6MP HD resolution 3072 x 2048 output
Ultra low illumination 0.01Lux
Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT
D-WDR, Motion Detection, Human/Vehicle Detection, Privacy Mask, Flip
RTSP and On-vif 17.06 compatible
H.265/H.264 dual-stream media server
Easy-to-use P2P Cloud service
Multi web browser, PC Client, mobile APP remote access
RJ45 100mbps network port, IEEE802.3af PoE
Lightning protection 4000V
Strong water-proof housing, IP66
18 pcs SMD IR LEDs, IR distance 20-30 meters
HD 2.8/3.6 mm fixed lens optional
Technical Parameters
Model | YC-W716FAHBB98EA | W716AHBB98EA | |
Camera | |||
Image Sensor | 1/2.8" IMX335 CMOS | 1/2.8" IMX335 CMOS Sensor | |
Effective Pixels | 3072(H)×2048(V) | ||
Electronic Shutter | AUTO/Manual: 1/10s ~ 1/10000s, shutter threshold | AUTO, 1/25s ~ 1/100000s | |
Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on | ||
Day/Night | Auto/Color/(B/W)/Timing | ||
WDR | Digital WDR / HDR | ||
White Balance | Auto/Manual | ||
BLC/HLC | Support | ||
DNR | 2D/3D DNR | ||
License Plate Mode | Yes | AGC,Motion Detection,Privacy Mask,Flip ,OSD overlay | |
Other | Multi-lines OSD, Custom Title, Privacy Mask, Flip | ||
Encode | IMX335 | ||
Embedded Solution | SSC377D | ||
Video Standard | H.264/H.265/H.265+ | Main Stream: 25fps@5MP(2592x1944)/4MP(2592x1520)/3MP, 30fps@1080P/720P Sub stream: 25fps@D1/VGA/360P/CIF, etc. | |
Video Resolution | Main Stream: 25fps@6MP(3072x2048)/5MP(2592x1944), 30fps@4MP/3MP/1080P/720P Sub stream: 30fps@D1/VGA/360P/CIF, etc. | ||
Video Bitrates | 512Kbps - 8Mbps, VBR/CBR | ||
Audio Standard | G.711-u/G.711-a/AAC | ||
Built-in Mic | Optional | ||
Smart Detection | |||
Motion Detection | Support | ||
Target Detection | Human and Vehicle Detection | ||
IR Led | |||
IR Led | 18pcs SMD IR LEDs | ||
IR Distance | 20-30 M | ||
Lens | |||
Focal length | 2.8mm/3.6mm fixed lens | ||
Language | |||
English, simplified Chinese, Chinese Traditional, Deutsch, Italian, Turkish, Polish, Korean, Japanese, Russian, Ukrainian, Persian . | |||
Network Services | |||
Protocol | HTTP/RTSP/FTP/NFSv3/SMTP/DHCP/NTP/RTMP, etc. | ||
P2P | Yes | ||

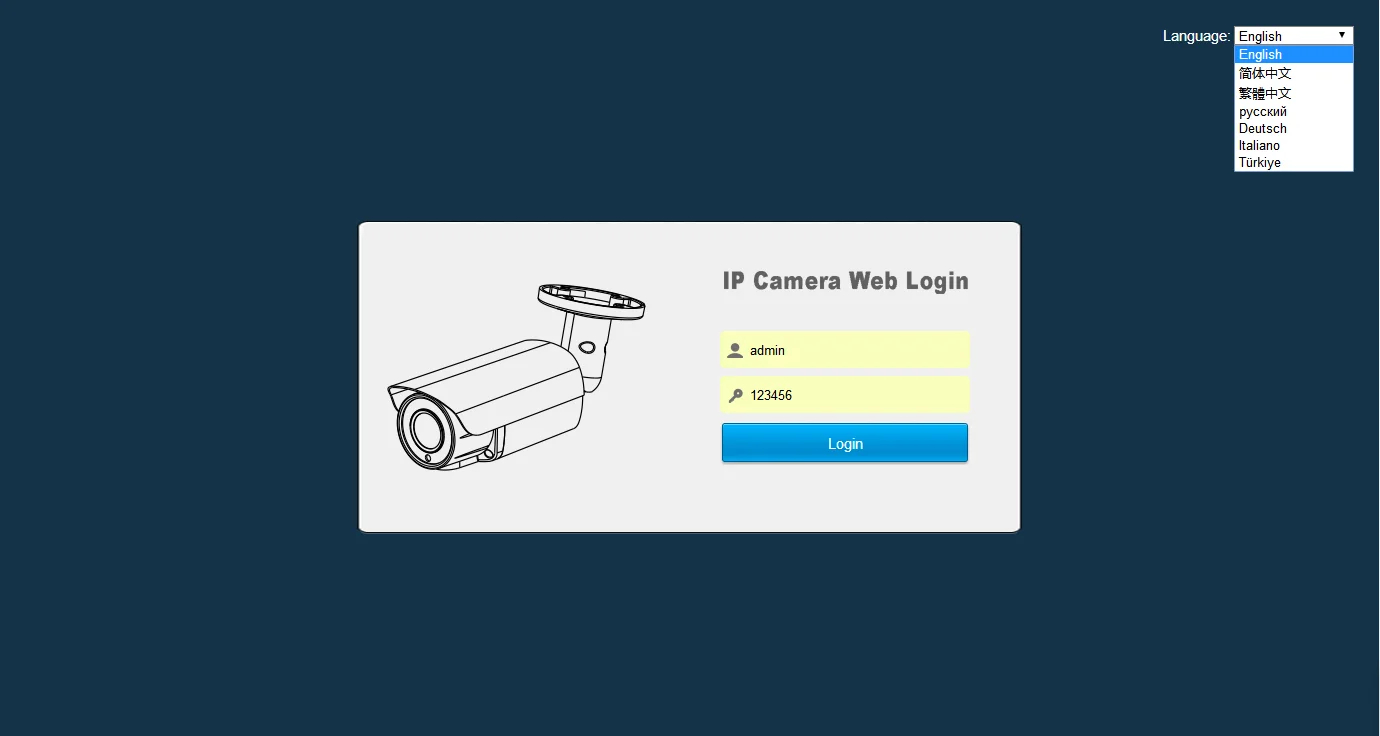

Web | IE, Firefox, Chrome, Edge, Safari, etc. | ||
Media | CMS, Android, IOS | ||
ON-VIF | 17.06 compatible | ||
General | |||
Network Port | 1-RJ45, 100Mbps | ||
Power Supply | 12 VDC ± 10% | ||
POE | 802.3af/at 48V | ||
Power Consumption | < 8 W | ||
Operating Temp. | -30℃-(+60)℃, 10%-90%RH | ||

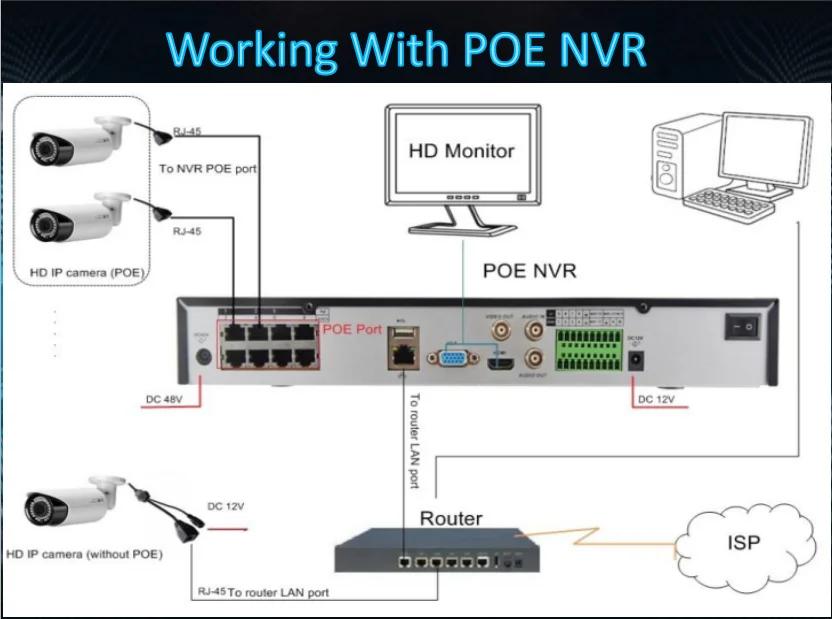

Connection Diagram
