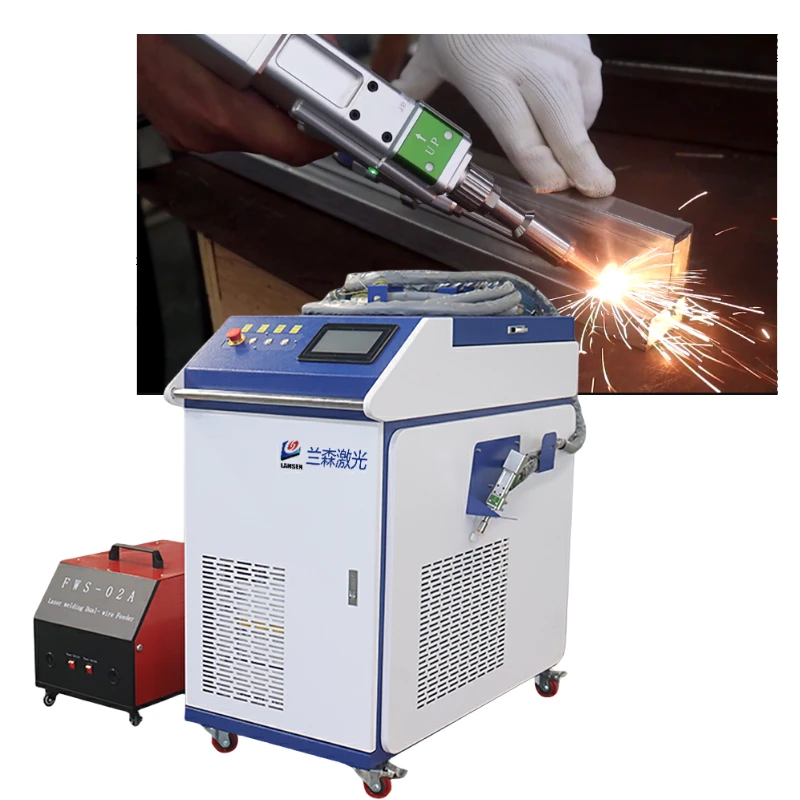

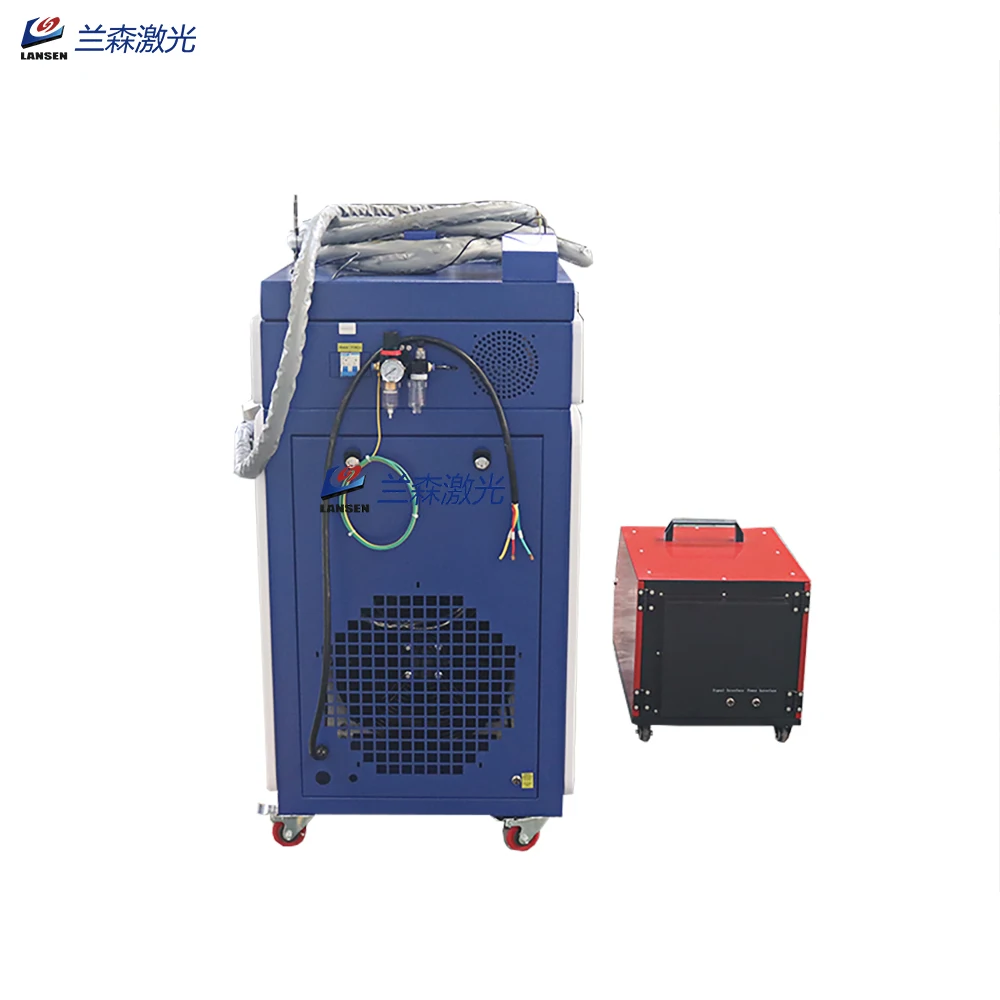

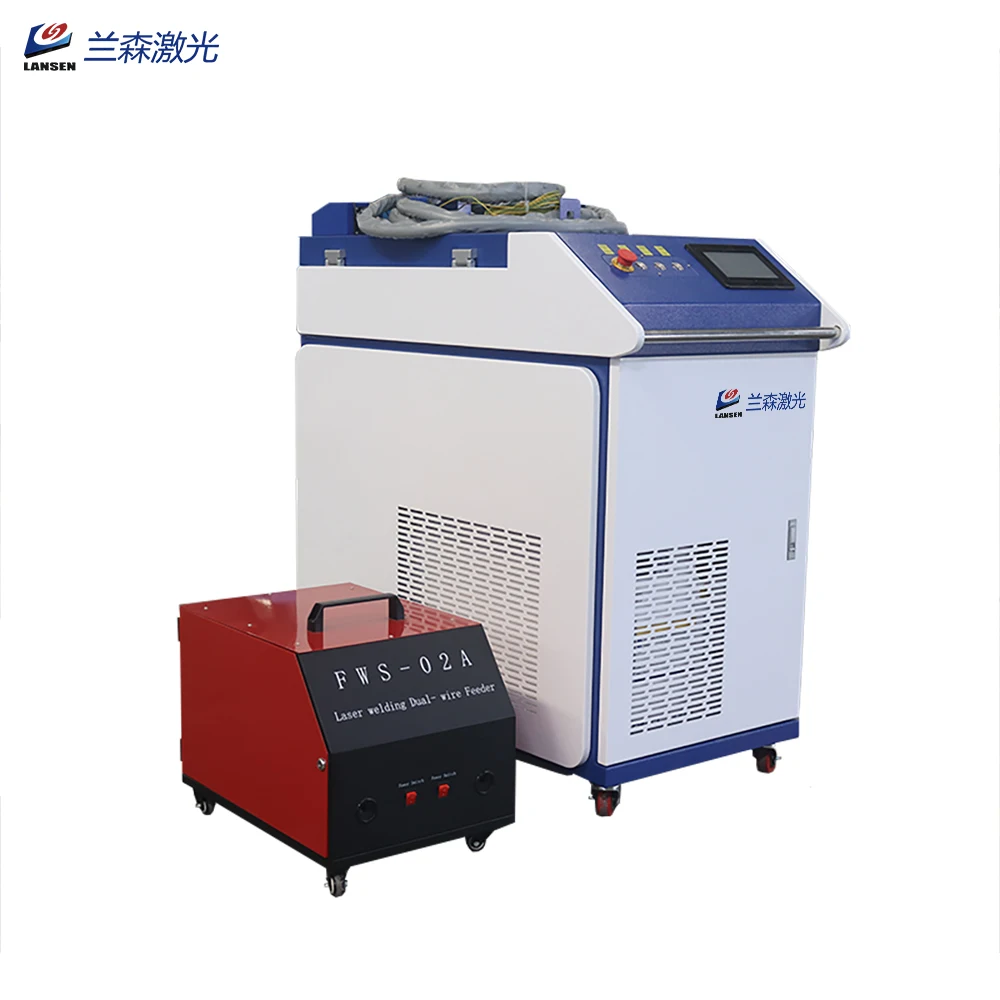

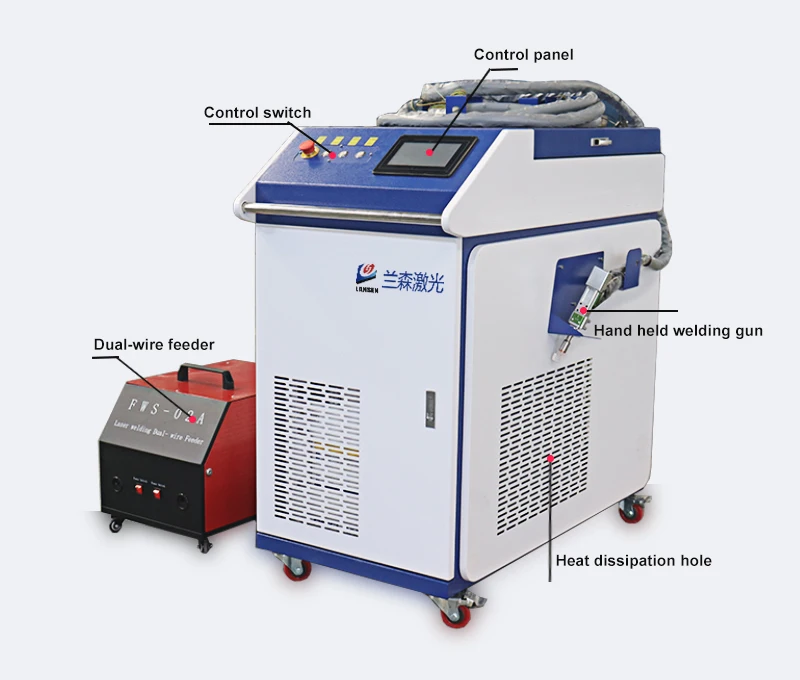

4 in 1 fiber laser welding machine

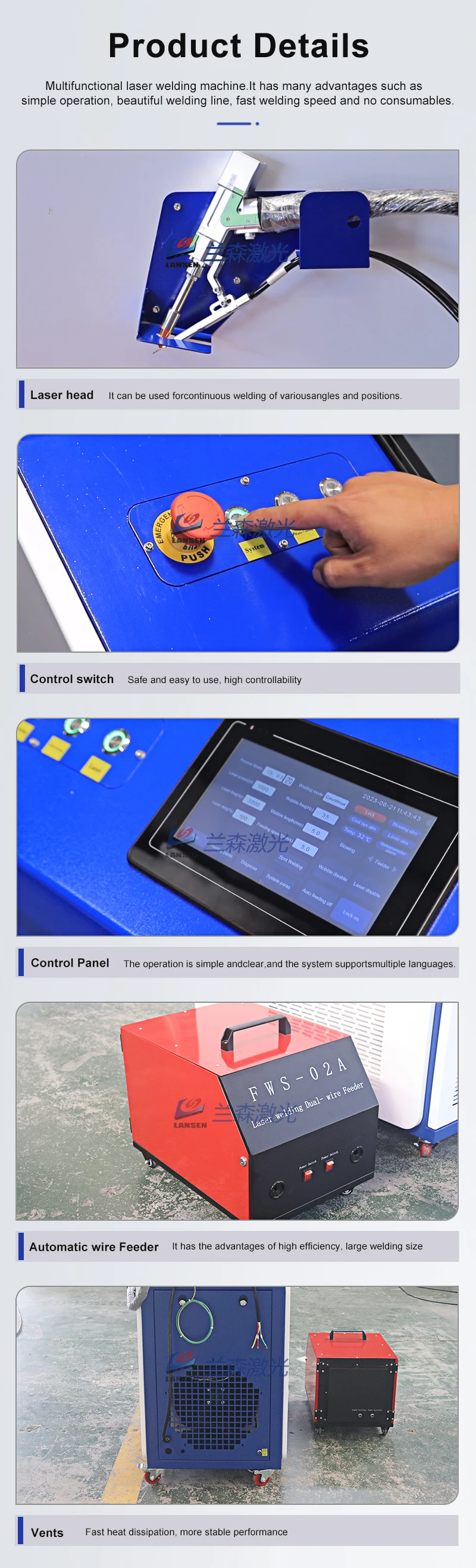

Description
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------

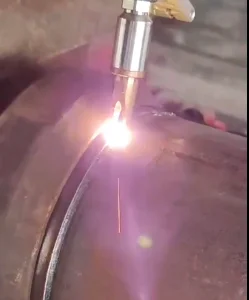

Lansen Laser Welding machine adopts Continuous Fiber Laser to locally heat the material in a small area. The energy of the laser radiation diffuses into the material through heat conduction, and the material is melted to form a specific molten pool.
It is a new type of welding method, mainly for the welding of thin-walled materials and precision parts, which can realize spot welding, butt welding, stack welding, sealing welding, etc. The welding speed is fast, no treatment is needed after welding, and the quality of the weld is high. can be precisely controlled, small focus spot, high positioning accuracy, easy to automate
With easy operation, the workers can learn the machine easily.
It is a new type of welding method, mainly for the welding of thin-walled materials and precision parts, which can realize spot welding, butt welding, stack welding, sealing welding, etc. The welding speed is fast, no treatment is needed after welding, and the quality of the weld is high. can be precisely controlled, small focus spot, high positioning accuracy, easy to automate
With easy operation, the workers can learn the machine easily.
Advantages
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
A. The machine is easy to handle and don't need the professional welder.
B. With 10 m fiber wire, Can weld long-distance and large-area parts.
C. High quality and very stable: With a long lifespan to 100000 hours and free of maintain.
D. High efficiency: more than 5 times of the TIG welding with low energy consumption.
E. Various welding processes: jam welding, seal welding, spot welding, stitch welding and overlap welding .
F. Inappreciable heat-affected zone, little deformation good-looking smoothly welding seam.
G. Little remedial work after welding, high-quality of welding line, precise control of positioning accuracy, small spot focus and automated welding
H. Low cost, no consumables, energy saving and environment protection.
I. With the auto wire feeding, IT cover more wide gap and enlarge the application.
B. With 10 m fiber wire, Can weld long-distance and large-area parts.
C. High quality and very stable: With a long lifespan to 100000 hours and free of maintain.
D. High efficiency: more than 5 times of the TIG welding with low energy consumption.
E. Various welding processes: jam welding, seal welding, spot welding, stitch welding and overlap welding .
F. Inappreciable heat-affected zone, little deformation good-looking smoothly welding seam.
G. Little remedial work after welding, high-quality of welding line, precise control of positioning accuracy, small spot focus and automated welding
H. Low cost, no consumables, energy saving and environment protection.
I. With the auto wire feeding, IT cover more wide gap and enlarge the application.

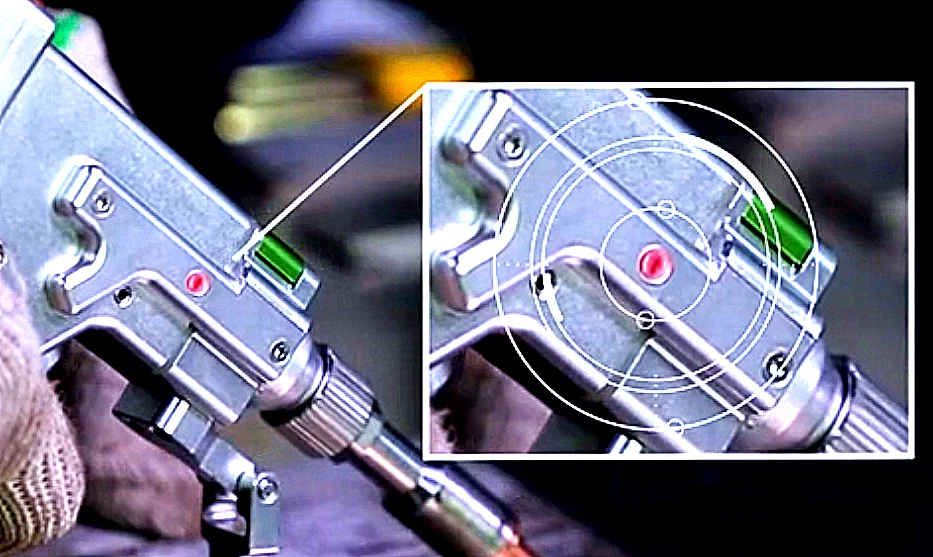

J: Over-temperature alarm helps protect the optics.
K. Double pendulum has 6 welding mode, can help get better welding result
L. Cleaning width can achieve 100mm for double pendulum machine, and 110mm for single pendulum machine
M. Welding gap cleaning has widely application to make the welding work perfect.
Application

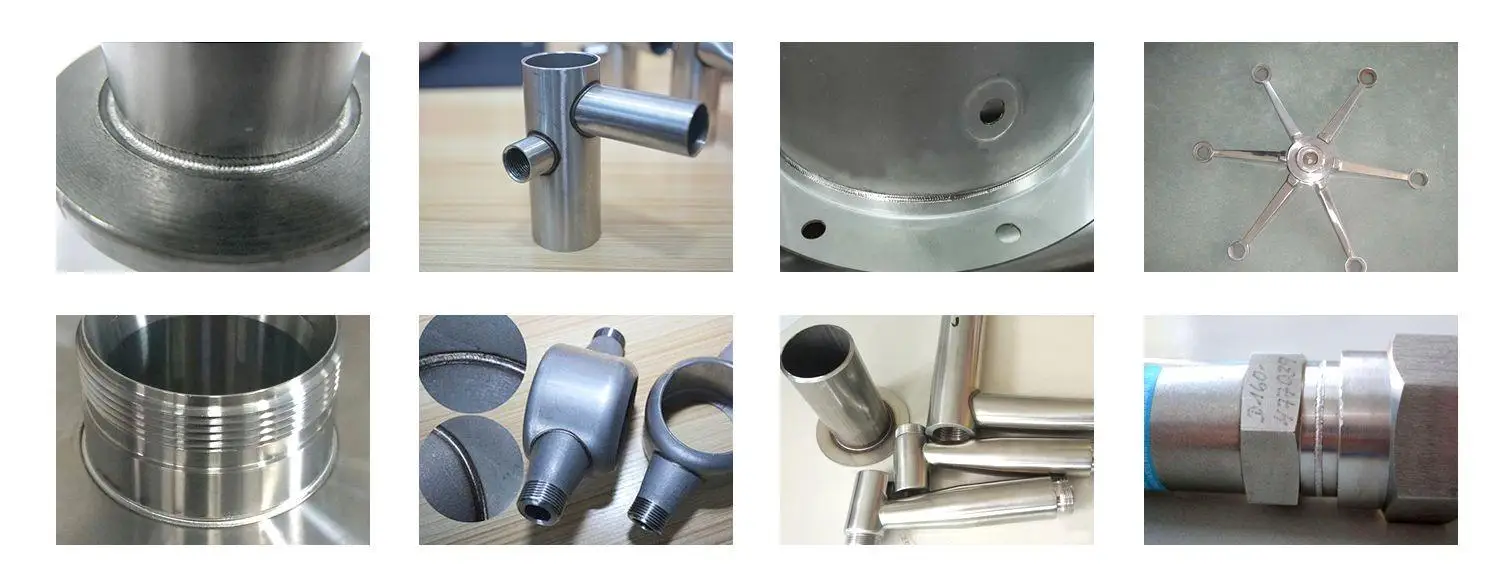

Used in kitchen and bathroom industry, home appliance industry, advertising industry, mold industry, stainless steel door and window industry, handicraft industry, home goods industry, furniture industry, auto parts industry, etc.
Please click below to see working effect ！！！！
Select the appropriate configuration according to your material
Select the appropriate configuration according to your material

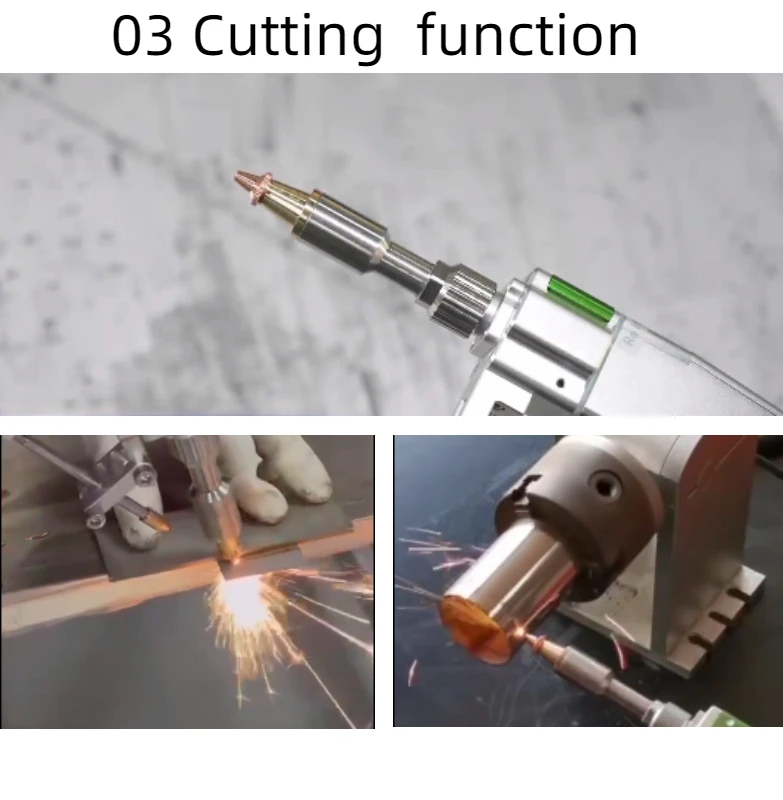

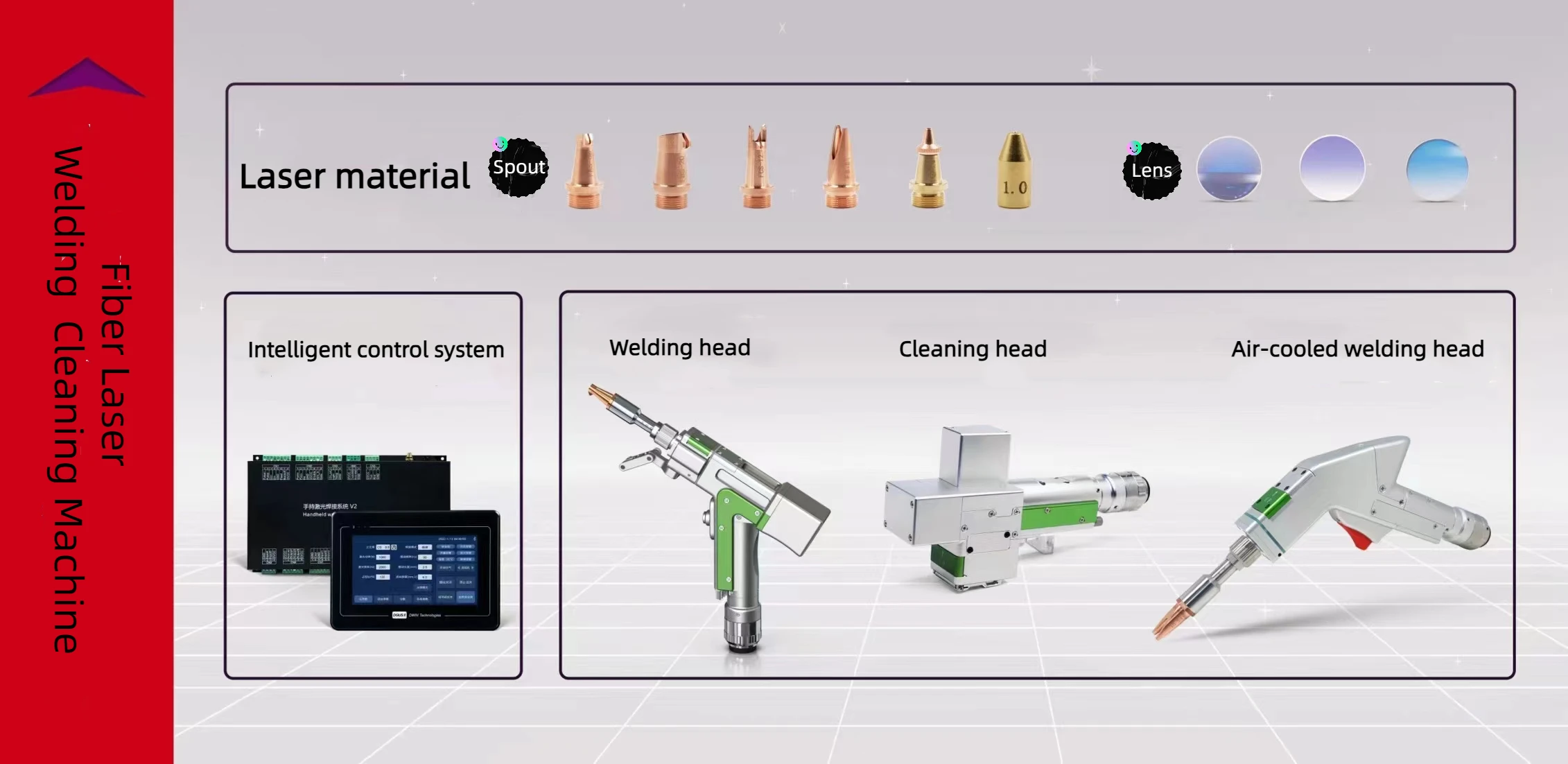

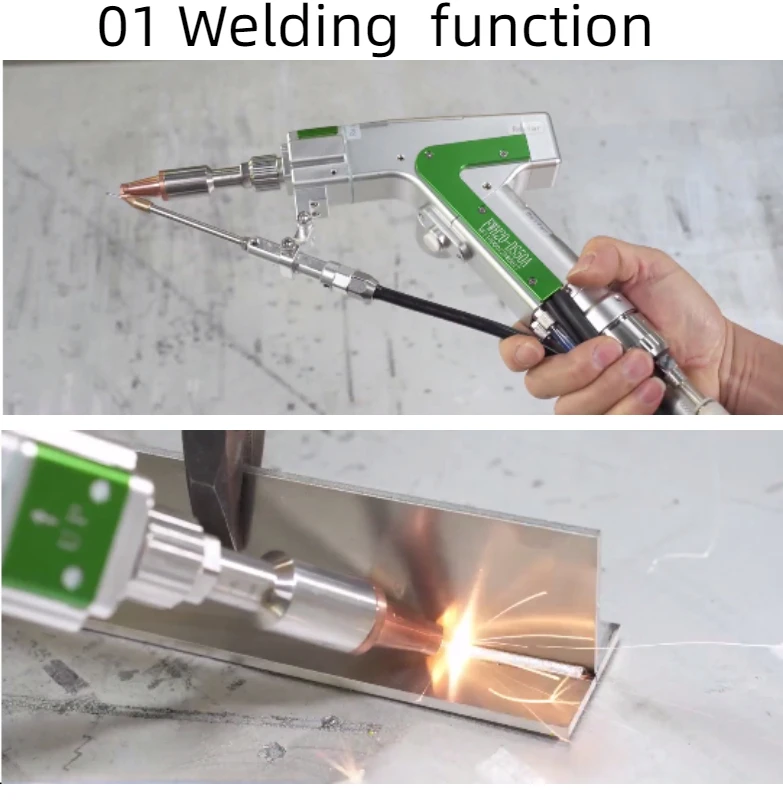

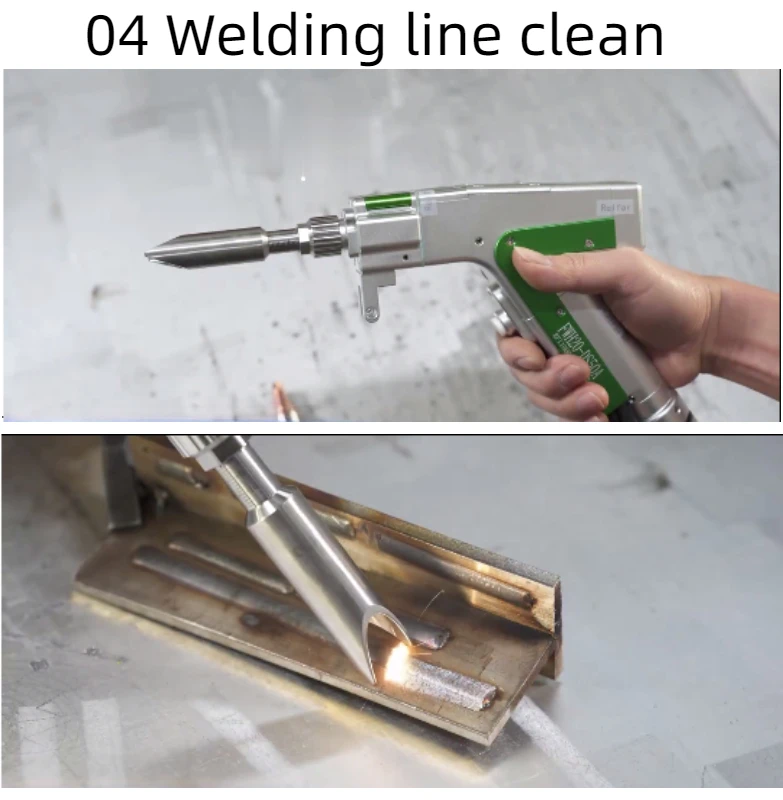

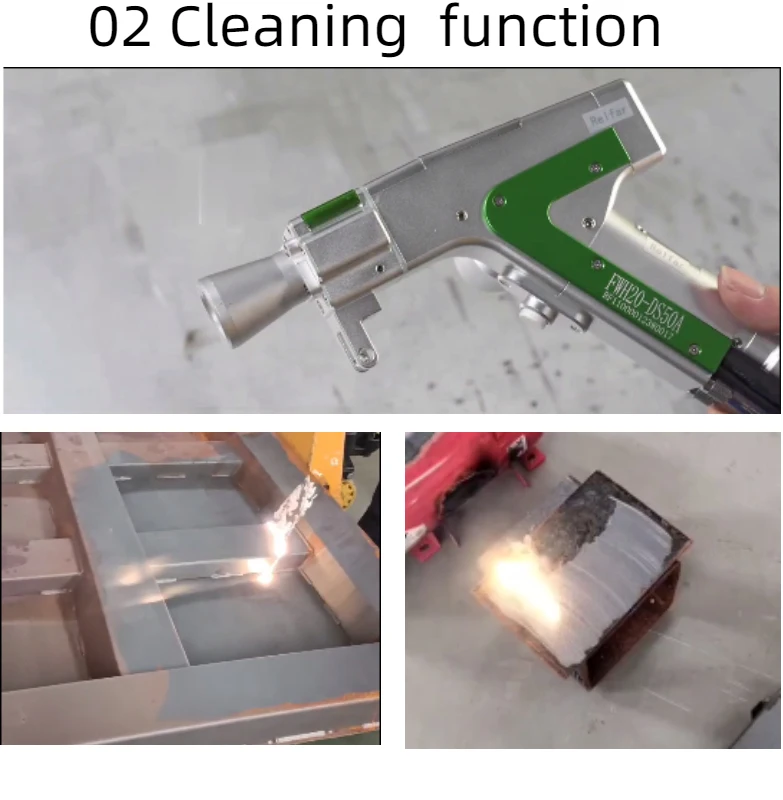

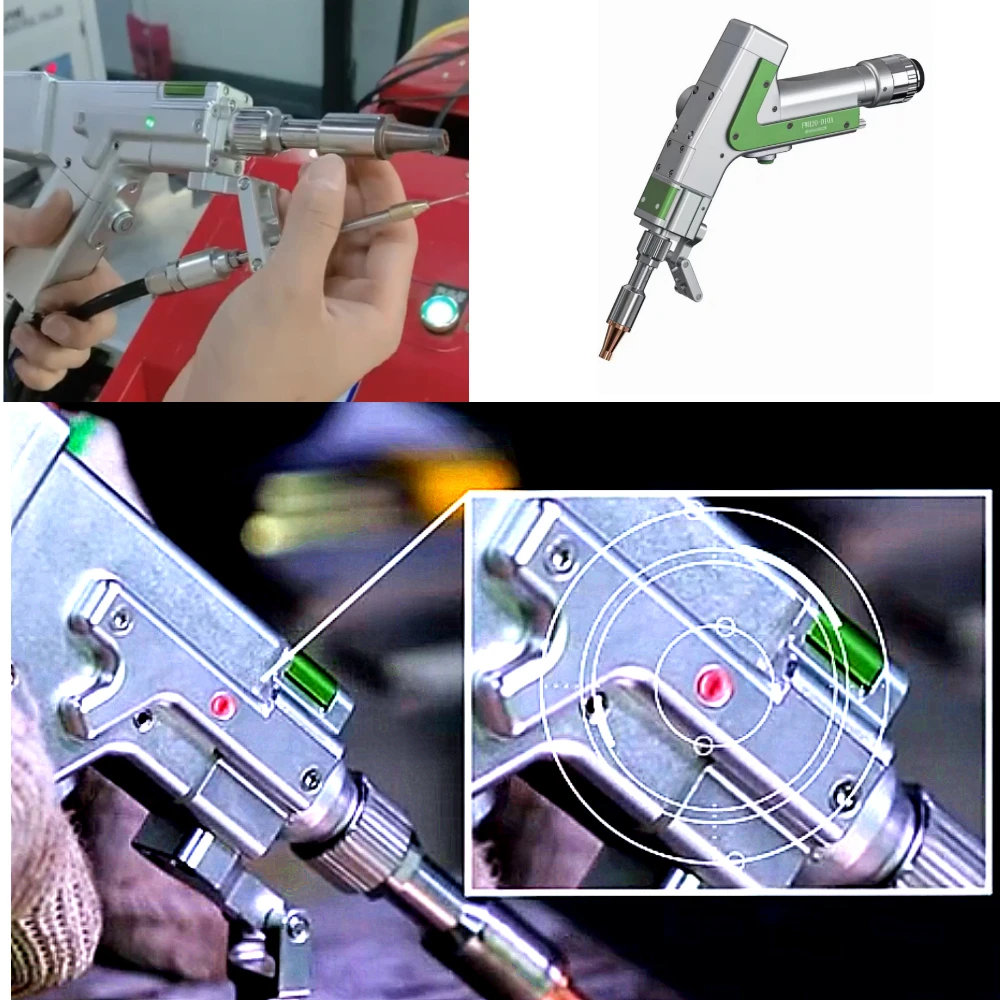

This machine adopts fiber laser to make welding/cutting/cleaning with four-in-one welding head.
4 in 1 welding head integrates the three functions in one system. The system can make switch freely according to different application scenarios, providing diversified solutions for users' different application requirements.
It's suitable for a welding base, cleaning required and simple cutting.
This multi-functions Laser machine mainly used for plastic mold of S136, SKD-11, NAK80, 8407, 718, 738, H13, P20, W302, 2344 mold steel, carbon steel, common alloy steel, stainless steel, beryllium copper, copper and extremely hard alloy material, Casting mold, forging die, stamping die, die casting molds.
4 in 1 welding head integrates the three functions in one system. The system can make switch freely according to different application scenarios, providing diversified solutions for users' different application requirements.
It's suitable for a welding base, cleaning required and simple cutting.
This multi-functions Laser machine mainly used for plastic mold of S136, SKD-11, NAK80, 8407, 718, 738, H13, P20, W302, 2344 mold steel, carbon steel, common alloy steel, stainless steel, beryllium copper, copper and extremely hard alloy material, Casting mold, forging die, stamping die, die casting molds.
you can also choose other model,and you can change color and logo
Specification
Machine model | Fiber Laser Welding Machine |
Max laser power | 1KW 1.5KW 2KW 3KW |
Laser source | Raycus,Max,JPT |
Laser wavelength | 1085nm |
Pulse width | 0.1-25ms |
Laser welding method | continuous |
Instability of energy | ＜2% |
Beam Divergence | ≤8mrad |
minimal beam diameter | 0.1mm |
Adjustable scope of laser spot | 0.1~1mm |
Welding depth | 3~4mm |
Continue working time | 16hours |
Noise | ≤30db |
Transmission system | Fiber optical transmission system (FOTS) |
Fiber optical length | 10m standard |
Power Consumption | ≤7.2KW |
Cooling system dimensions | Water cooling |
Power required | 220V/50-60Hz for 1KW 1.5KW 380V±10%/50Hz-60Hz for 2KW and 3KW |
Consumable | Xenon lamp、Filter element、Protective lens、Argon |
Working temperature | 55°F(13°C)-82°F(28°C) |
Working Humidity | 5%-75% |
Operation process
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------

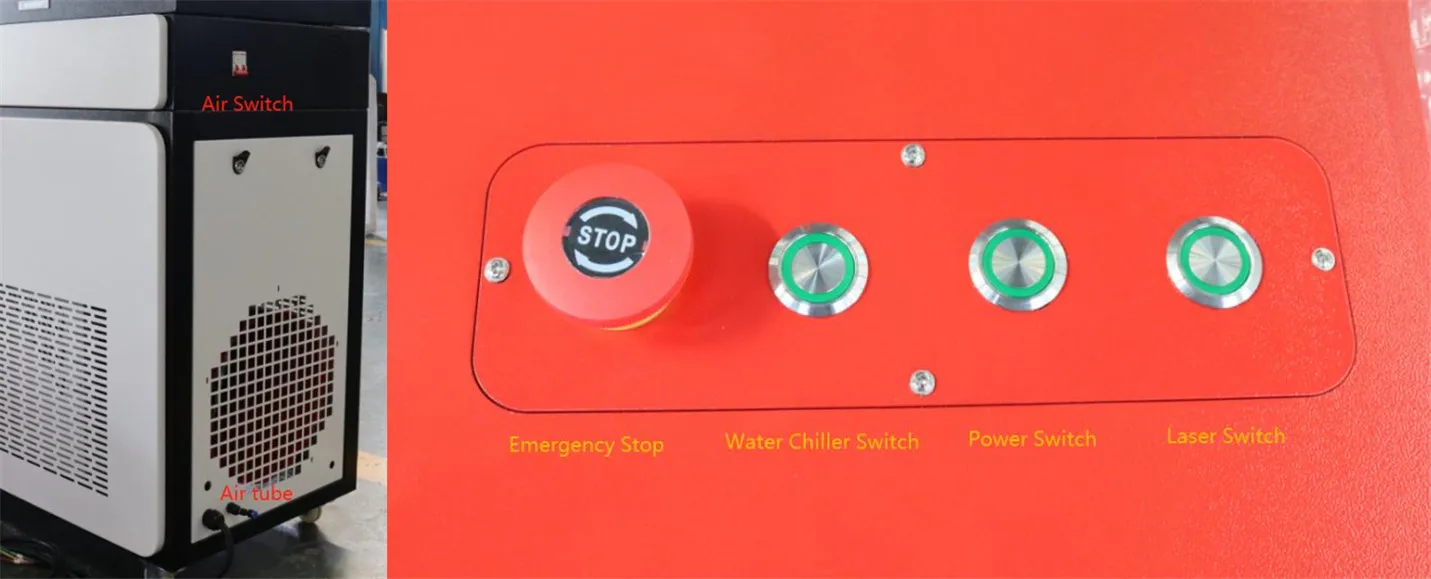

1.Start machine process: Connect the air tube--Open the Air switch--Loose the emergency stop switch--Press the system power switch--Press the water chiller power switch-- press the laser power switch--wait 20 seconds to start work.
2.Welding process: Clamp the welding protect clip to the work table--Set the parameters according to current work--Check whether the air flow suits for the welding requirement--Start from the welding head, to check whether the laser ray path protect work (Make the welding head towards the work panel out of touching, start laser to check. If none laser is normal. Touch the welding head with the testing panel , start laser to check, if with laser is normal). To start work after all right.
3.Close machine: Put well the welding head to the fixture, close the laser switch-- Close water chiller switch--Close the power switch--Press down the emergency stop switch--close the air switch-- take off the air tube.
2.Welding process: Clamp the welding protect clip to the work table--Set the parameters according to current work--Check whether the air flow suits for the welding requirement--Start from the welding head, to check whether the laser ray path protect work (Make the welding head towards the work panel out of touching, start laser to check. If none laser is normal. Touch the welding head with the testing panel , start laser to check, if with laser is normal). To start work after all right.
3.Close machine: Put well the welding head to the fixture, close the laser switch-- Close water chiller switch--Close the power switch--Press down the emergency stop switch--close the air switch-- take off the air tube.
Notice
1.Must wear Laser Goggle, mask, wear protect clothes, to protect the workers safety. Any hurt from wrong operation without business with our company.
2.Mustn’t use together with argon arc welder,electric welder, Co2 Protect Welder, to avoid current circle affect the electrical parts.
3.Mustn’t toward the welder head to any body part. Can’t put the welder head onto ground, pay attention to dust proof all the time.
4.Please notice the fiber cable don’t bend circle diameter less than 20cm, to avoid damage the fiber.
5.If any unexpected case, press the emergency switch and contact us.
6.Must close all the power when change lens or check welding head.
7.The water temperature setting not differ more than 10 degree with the room temperature. It’s suggested to set during 26℃－ 30℃in summer, and 20℃－22℃ in winter. The large temperature difference may cause dew to the laser source. And must take method to avoid freezing when temperature lower than 4℃
2.Mustn’t use together with argon arc welder,electric welder, Co2 Protect Welder, to avoid current circle affect the electrical parts.
3.Mustn’t toward the welder head to any body part. Can’t put the welder head onto ground, pay attention to dust proof all the time.
4.Please notice the fiber cable don’t bend circle diameter less than 20cm, to avoid damage the fiber.
5.If any unexpected case, press the emergency switch and contact us.
6.Must close all the power when change lens or check welding head.
7.The water temperature setting not differ more than 10 degree with the room temperature. It’s suggested to set during 26℃－ 30℃in summer, and 20℃－22℃ in winter. The large temperature difference may cause dew to the laser source. And must take method to avoid freezing when temperature lower than 4℃
Packing & Delivery
Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.
Supply Ability: 100 sets / Month
Port: Qingdao
Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.
Packaging Detail: International standard plywood export box
Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS
About Us
Our Service
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1. Pre-sale ServiceBefore signing the contract, the company is free of charge for the customer product samples and technical and price consultation.
2. On-sale Service
If there is any technical problem in the process of product installation, you can contact the local regional manager or after-sales technical personnel at any time. If you need on-site technical support, you can communicate with the local sales manager and the company will coordinate and arrange.
3. After-sale Service
Within the scope of the warranty period of the contract, the response time of customer service is within 24 hours. During the warranty period, we will provide free and efficient technical service support for customers. After the warranty period, we will provide hardware and software support and enjoy free upgrade service of the software system for life.
Certifications
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Company Introduction
Jinan Lansen Laser Equipment Co., Ltd was established in 2010. We are located in Jinan city, Shandong, P.R. China, where is the CNC and Laser equipment production base. We commit ourselves to the development of CNC and Laser technologies always.
We now produce more than 40 models CNC and Laser equipment, includes Laser marking machine, Laser Engraving machine, Laser Cutting machine, CNC Router, CNC Plasma Cutting machine and so on.
Our Laser Marking machine includes Co2 Laser Marking machine which used for nonmetal material mark and cut, Fiber Laser Marking machine which used for metal and some nonmetal mark and cut; Our Laser Engraving Cutting machine are also widely used in various fields, like art craft engraving cutting, stone engraving, cloth, leather and textile cutting, metal cutting, hobby and so on.
Our CNC Router is a more applied equipment for Industry. They are mainly used in woodworking and advertising lines. Then our CNC Plasma Cutting machine is mainly used in metal cutting work.
Our machines are welcomed worldwide and have exported to USA, Canada, Brazil, Panama, Ecuador, Peru, Chile, UK, Russia, Finland, Poland, France, Germany, Switzerland, Danmark, Italy, France, Spain, Estonia, Czech, Slovakia, Slovenia, Greece, Turkey, Australia, India, Tailand, Barlin, Hungry, Kazakhstan, Malaysia, Sri Lanka, Indonesia, Egypt and so on countries.
Our CNC Router is a more applied equipment for Industry. They are mainly used in woodworking and advertising lines. Then our CNC Plasma Cutting machine is mainly used in metal cutting work.
Our machines are welcomed worldwide and have exported to USA, Canada, Brazil, Panama, Ecuador, Peru, Chile, UK, Russia, Finland, Poland, France, Germany, Switzerland, Danmark, Italy, France, Spain, Estonia, Czech, Slovakia, Slovenia, Greece, Turkey, Australia, India, Tailand, Barlin, Hungry, Kazakhstan, Malaysia, Sri Lanka, Indonesia, Egypt and so on countries.
Jinan Lansen Laser Equipment Co., Ltd is with our own production line and export operations right, products provided by us directly, with shorter delivery time, longer warranty time, and OEM service is accepted; Without intermediate business, price better; various models and completely functions to meet various clients' requirement; Honest enterprise, can guarantee the quality, make the buyers more rest assured.
LANSEN Brand promise to supply HIGH quality products support you on expanding the market.
At the same time, we also provide OEM service.If you wish products with your own brand, if you need a more personalized type machine. The OEM service could provide you nice experience.
We wish we can establish long business cooperation relationship.
LANSEN Brand promise to supply HIGH quality products support you on expanding the market.
At the same time, we also provide OEM service.If you wish products with your own brand, if you need a more personalized type machine. The OEM service could provide you nice experience.
We wish we can establish long business cooperation relationship.
FAQ and troubleshooting
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1. The state of the laser head is not displayed: X.Y motor cable is loose, or 15V power input is interrupted, or the motor is damaged.
2. No on state display or intermittent light output during welding: it may be that the communication signal is not connected or the wire is loose and not plugged tightly, and the crocodile clamp does not form a loop with the X5 signal.Intermittent light may be due to the shaking of the nozzle during the welding process, or the plate rusted, not connected with the clamp.
3. The status of the welding torch is not displayed: it may be that the switch button of the welding torch tip is loose, the terminals are loose or the interface is unwelded.
4. Uncontrollable gas: the gas button on the touch screen is not closed, or the gas delay is set too high, or the positive and negative terminals of the air valve are connected in reverse.
5. The parameters of the handheld head LCD screen and the setting parameters of the touch screen are out of sync: the power supply input of the system 24V and the power supply input of the galvanometer 15V cannot be powered on at the same time, resulting in out-of-sync parameters and unable to update data.
6. Easy to burn the protective lens: the gas is not pure or no air pressure, the working environment is bad, the focus is off, the water cooling system is damaged, and other factors.During welding, the start and end delay of gas is set at about 150ms, and the focus position should be slightly off the positive focus, welding at about 2MM of negative defocus.
7. Overheat of welding torch head: the protective lens burns or the water circulation of chiller fails to pass or is caused by water fault.
2. No on state display or intermittent light output during welding: it may be that the communication signal is not connected or the wire is loose and not plugged tightly, and the crocodile clamp does not form a loop with the X5 signal.Intermittent light may be due to the shaking of the nozzle during the welding process, or the plate rusted, not connected with the clamp.
3. The status of the welding torch is not displayed: it may be that the switch button of the welding torch tip is loose, the terminals are loose or the interface is unwelded.
4. Uncontrollable gas: the gas button on the touch screen is not closed, or the gas delay is set too high, or the positive and negative terminals of the air valve are connected in reverse.
5. The parameters of the handheld head LCD screen and the setting parameters of the touch screen are out of sync: the power supply input of the system 24V and the power supply input of the galvanometer 15V cannot be powered on at the same time, resulting in out-of-sync parameters and unable to update data.
6. Easy to burn the protective lens: the gas is not pure or no air pressure, the working environment is bad, the focus is off, the water cooling system is damaged, and other factors.During welding, the start and end delay of gas is set at about 150ms, and the focus position should be slightly off the positive focus, welding at about 2MM of negative defocus.
7. Overheat of welding torch head: the protective lens burns or the water circulation of chiller fails to pass or is caused by water fault.
