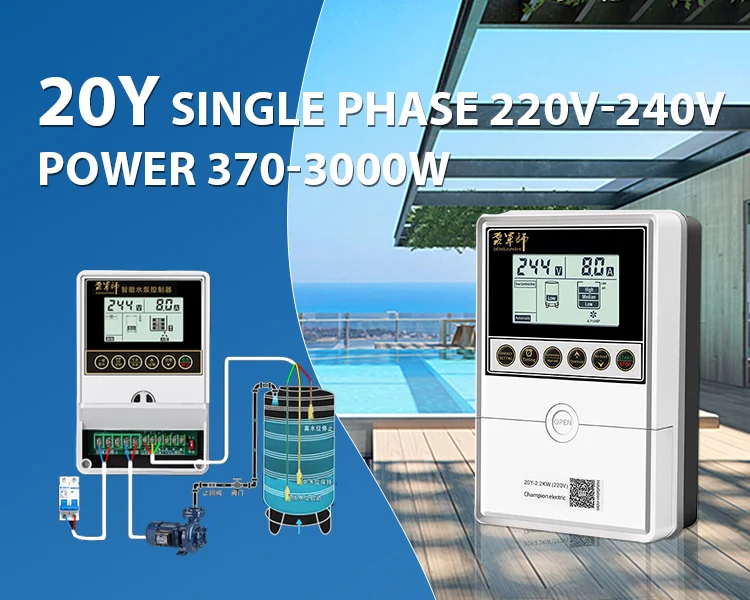

Electric 1 Phase Fully Automatic Water Tank Pump Control Box for submersible pump
- Category: >>>
- Supplier: Yueqing Haiyin Electric Co. Ltd.Yueqing Ltd.
Share on (1601272347381):
Product Overview
Description

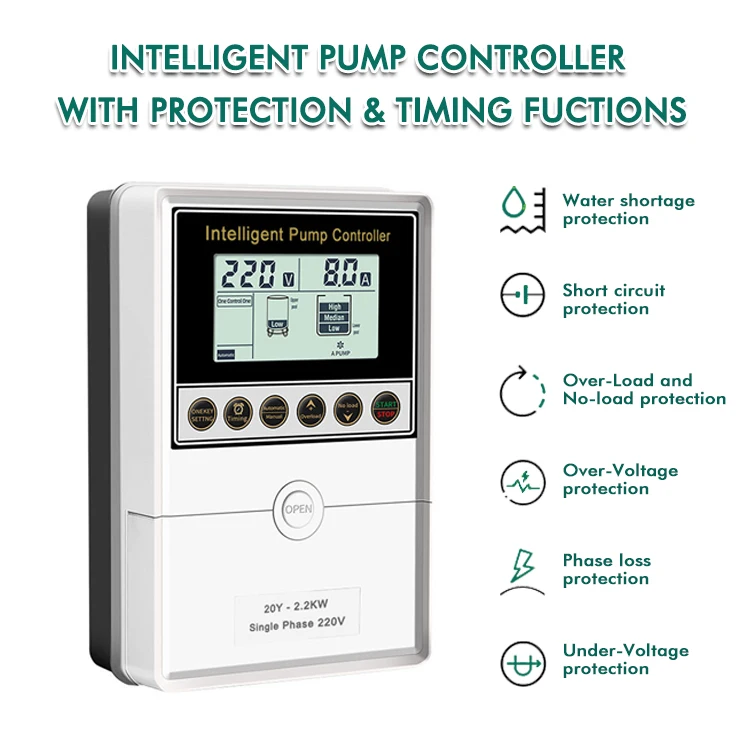

Intelligent Pump Controller Manufacturer Automatic Pump Control Panel for controlling and protecting universal pumps, such as submersible pumps, booster pumps, deep well pumps, and etc.
Product Description
————
Product Introduction
————
It can control with both level sensor and pressure gauge, which greatly saves the source of water and electricity energy costs and space. The machine adopts ABS plastic exterior case which will not deform within 10 years. Besides, the equipped current transformer and relay run stably. What’s more, the fully copper connecting terminals are strong and durable. In addition, the machine is equipped with original imported microcomputer single chip technology which guarantees powerful functions.
Features
——
1. One controller for two purposes Double-use function saves both cost and space. It can not only control through the water level, but also changing hydraulic pressure, which greatly improves work efficiency.
2. The strong ABS plastic exterior case to keep the controller for many years without distortion.
3. World-class components like current transformers and relays to guarantee the current and voltage.
4. The professional wiring and wall mounting design are easy and simple to operate and maintain.
5. Fully copper connecting terminals.
6. Imported high-end microcomputer single chip to provide users with powerful protective ability and energy saving, ensuring high-performance and stable operation of the pumps.
3. World-class components like current transformers and relays to guarantee the current and voltage.
4. The professional wiring and wall mounting design are easy and simple to operate and maintain.
5. Fully copper connecting terminals.
6. Imported high-end microcomputer single chip to provide users with powerful protective ability and energy saving, ensuring high-performance and stable operation of the pumps.
Details
——

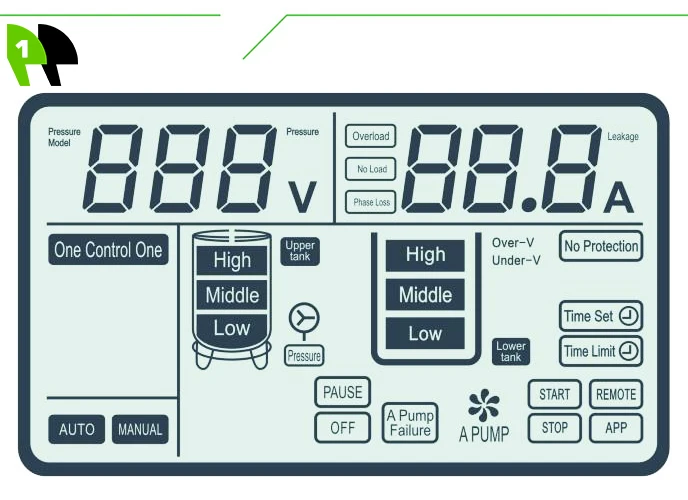

Integrated LCD display screen
—— Instant current and voltage viewing
—— Overload, no-load, and phase loss fault error display.
—— Real time monitoring of water level
in upper and lower water tanks.
—— Comprehensive display:
Manual and automatic modes,
Running and stopping states,
Timed settings.

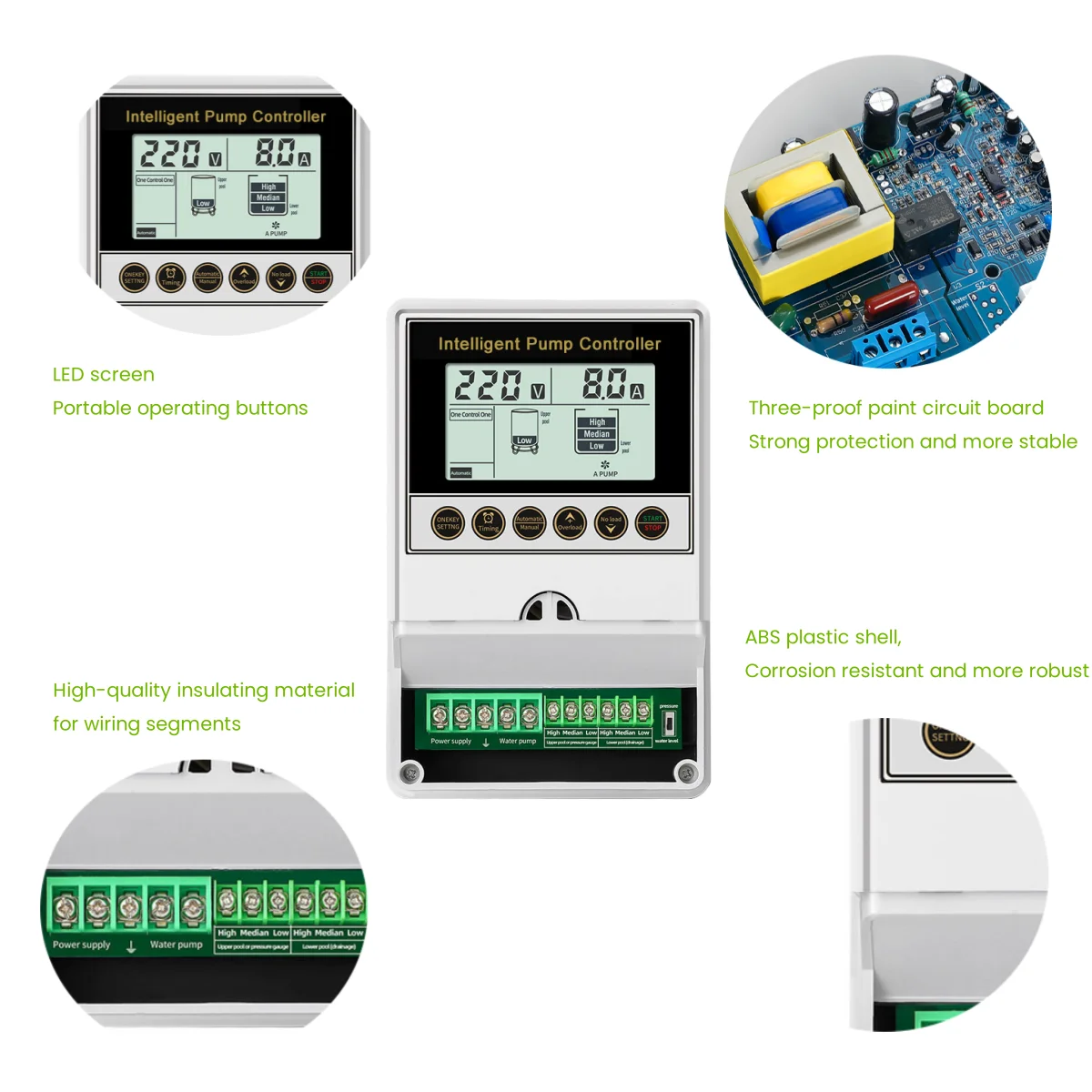

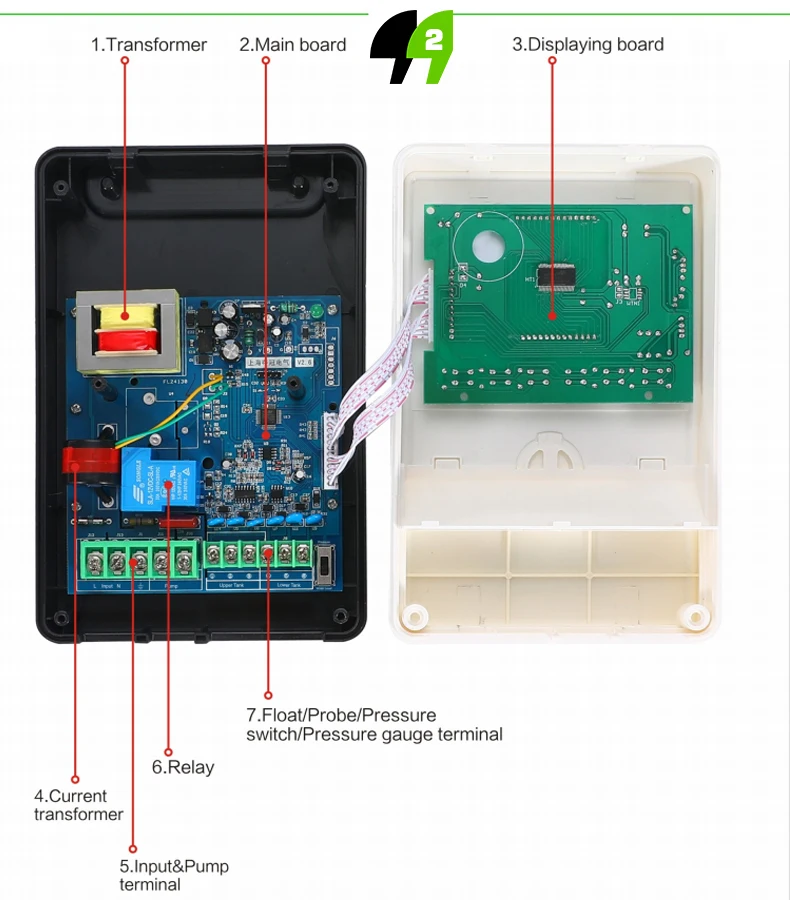

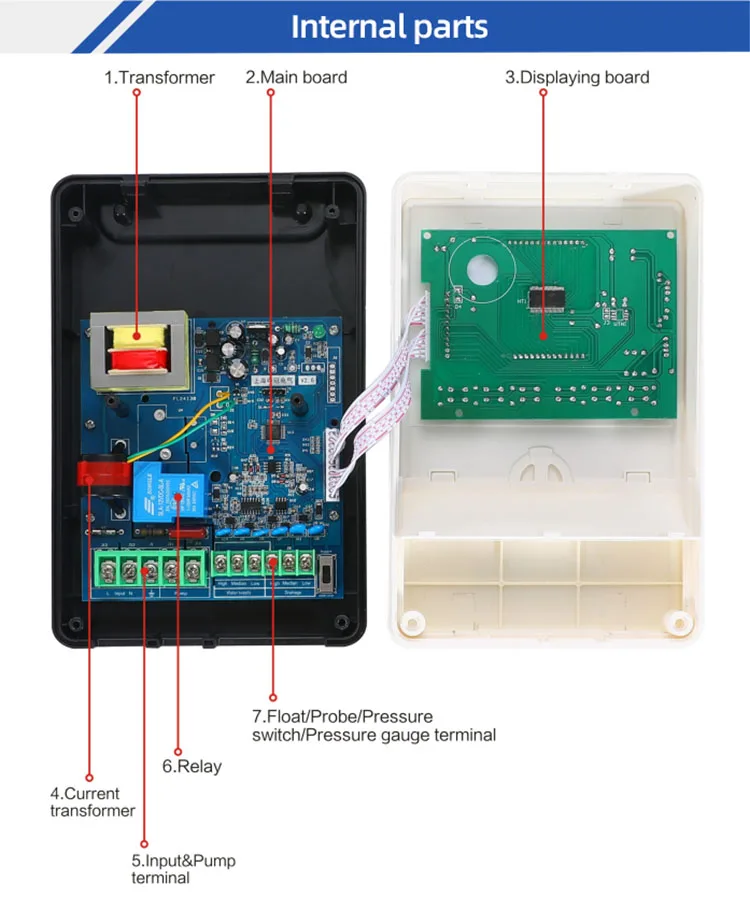

Internal components
1, Transformer ——
2, Main board ——
3, Displaying board ——
4, Current transformer ——
5, Input & Pump terminal ——
6, Relay ——
7, Sensor terminals ——

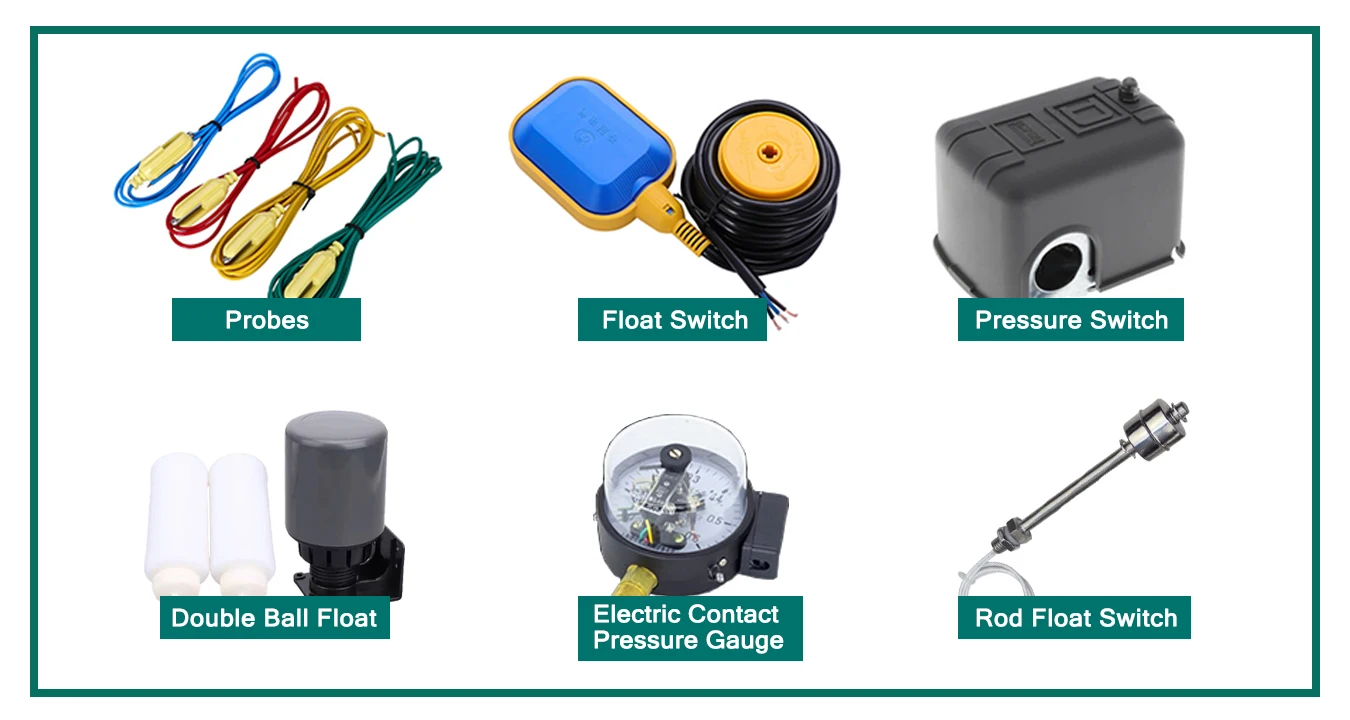

Probe
Float switch
Pressure switch
Pressure gauge
Flexible wiring methods
—— Suitable for diverse usage scenarios
—— Water supply
—— Drainage
—— Up and down tanks linkage control
—— More practical timing setting functions in the user manual.
Anti-rust protection, long-term non-use of the pump,15 days to start once for 3s.
Setting protection current for motor overload / no-load, No-load delay restart time adjustable.
Automatic restart when voltage comes to normal rating after over-voltage or under-voltage protection.
Application
——

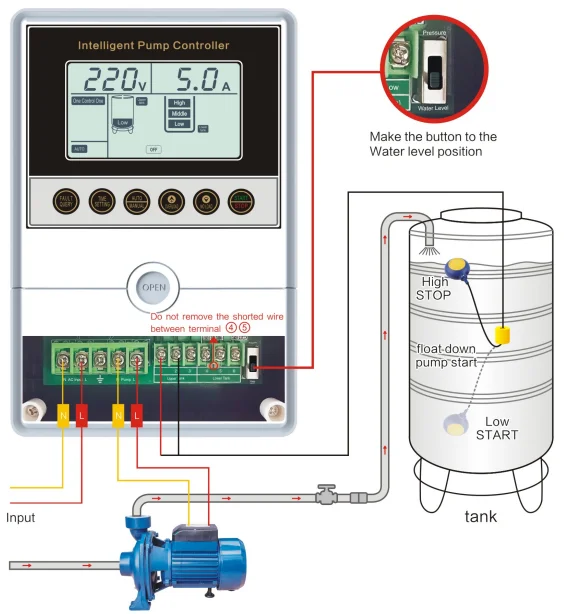

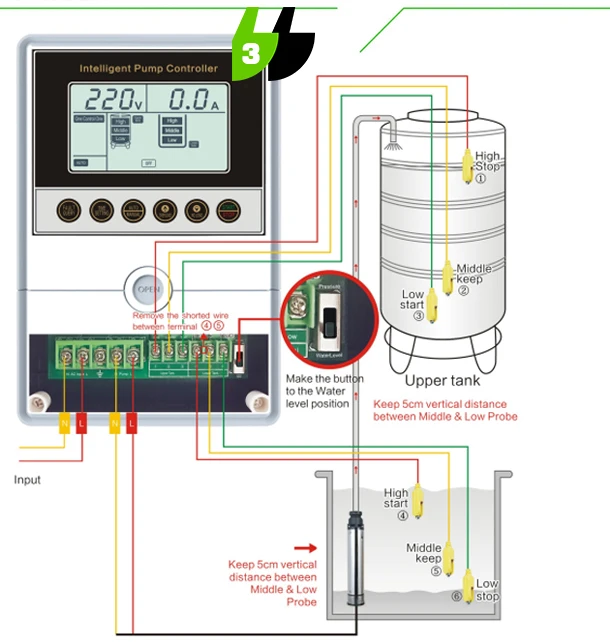

Installation step diagram (L-Live Wire, N-Neutral wire)
cut off power >> power wires >> pump wires >> sensor wires >> power on
Technical Parameters
———————
Model | 20Y-2.2KW | 20Y-3KW | 20Y-CBB | |||

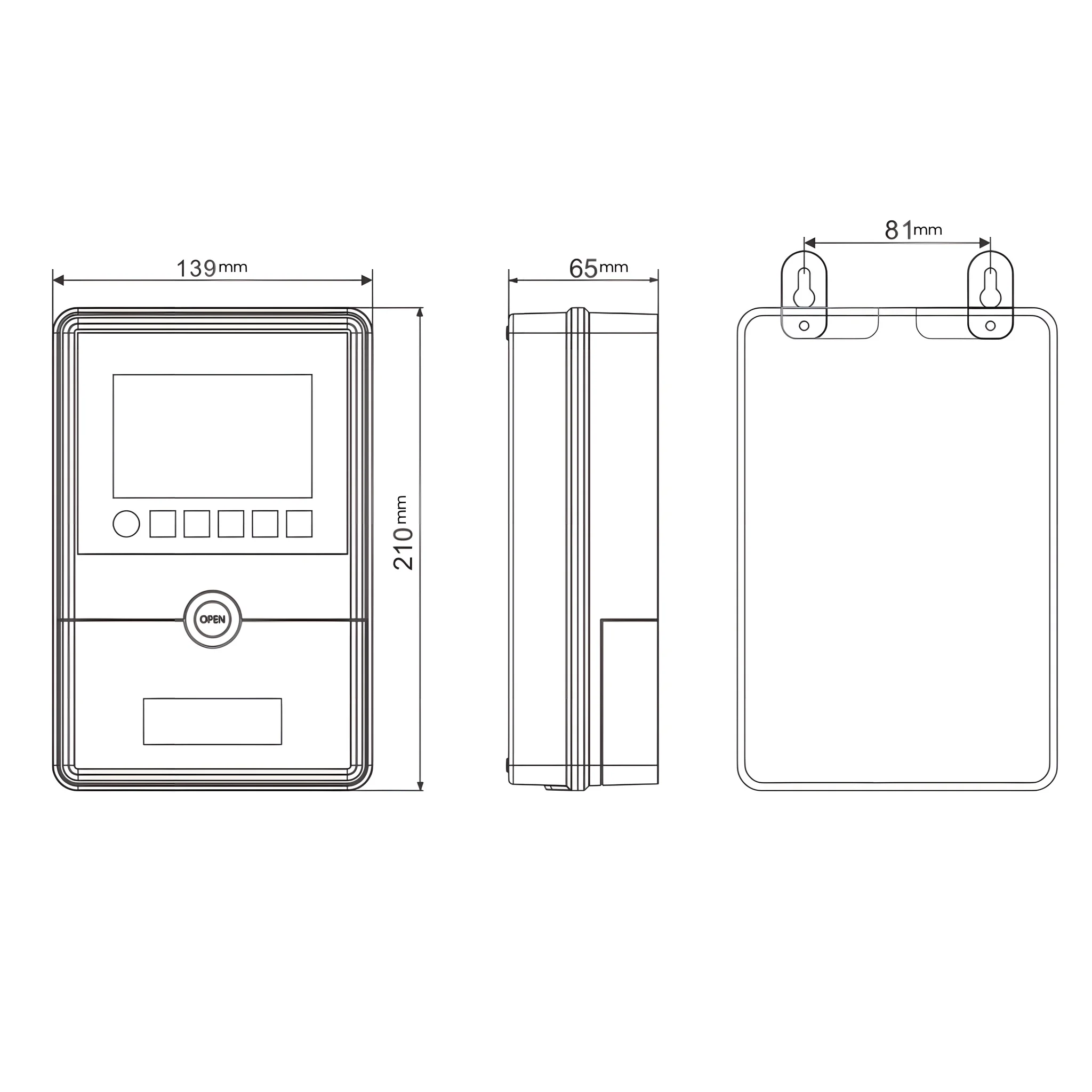

Size | 210x139x65mm | 210x139x65mm | 253x190x79mm | |||
Packaging size | 219x147x74mm | 219x147x74mm | 310x226x115mm | |||
Rated Power | 0.37-2.2KW | 0.37-3KW | 0.37-2.2KW | |||
Rated Voltage | 1AC 220-240V | 1AC 220-240V | 1AC 220-240V | |||
Protect Voltage | AC176-264V (adjustable) | |||||
Time setting ON | 0-99hours | |||||
Time setting OFF | 0-999 minutes | |||||
Over-voltage/under-voltage trip time: ≤3 seconds | ||||||
Overload/no load trip time: 0-600 seconds(ajustable) | ||||||
Phase loss trip time: <2 seconds | ||||||

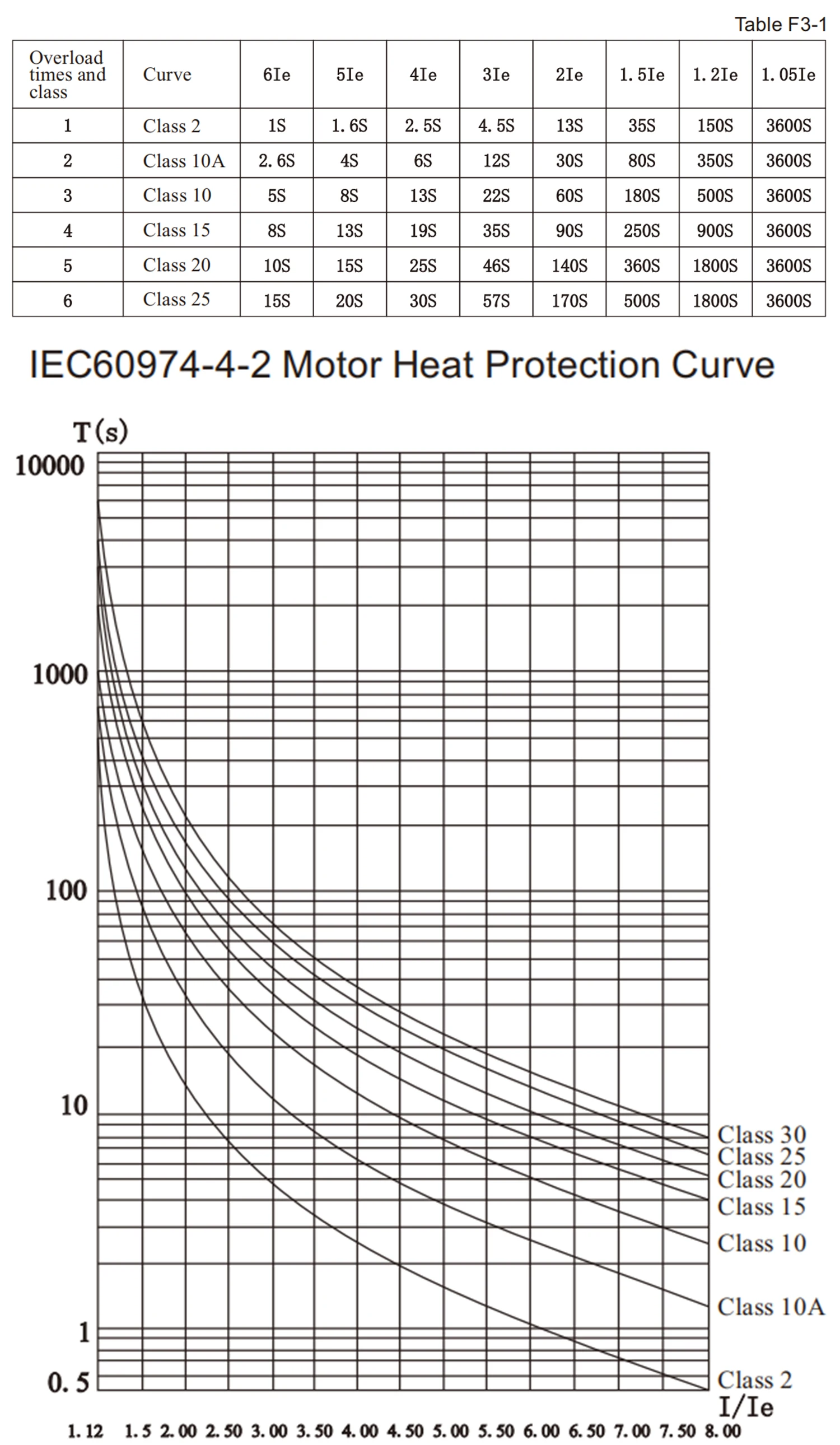

Motor Overload Inverse Time Limit Protection
Overload protection is for both startup and run of the pump controller.
◆ Startup overload is divided into 6 classes,factory default is 4(equal to IEC60947-4-2 Class 15).
The choice depends on load.The lower the class, the shorter protection trip time, and vice verse.
◆ Run overload is Class 2(IEC60947-4-2 Class 10A), refer to table F3-1 and IEC60974-4-2.

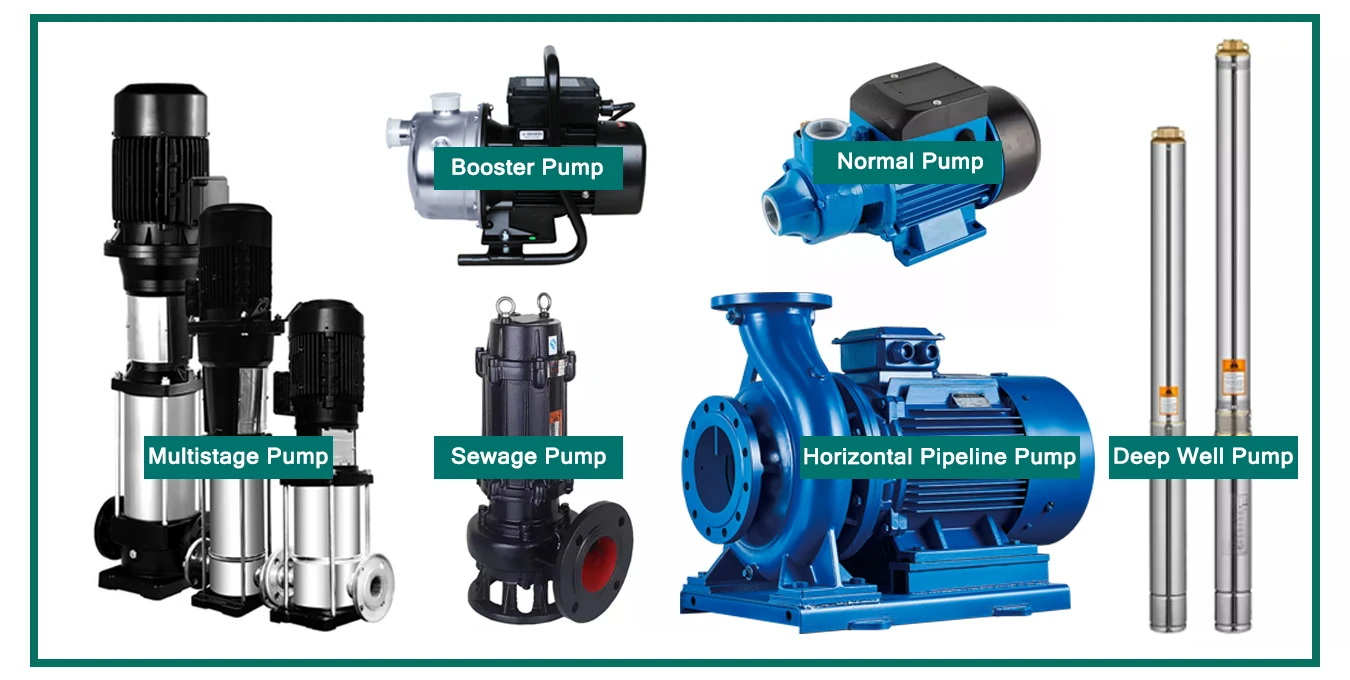

Intelligent Pump Controllers can control a wide range of pumps, such as subermersible pump, centrifugal pump, multistage pump, deep-well pump, sewage pump, booster pump, pipeline pump, ground pump.
The intelligent pump controller has extensive applications in water boosting, farm irrigation, sewage pumping, fountains, storage tanks, swimming pools, industrial buildings, mining pump systems, and other water treatment-related industries
FAQ
——————————
Q1 What is Intelligent pump controller?
A:Intelligent pump controller is a device used to control the operation of water pumps. Multiple protection functions, including over-current protection, under-voltage protection, overload protection, etc., to ensure a safe and stable operation of the pump. It is widely used in various water pump systems in industry, agriculture, construction and other fields, which improves the operation efficiency and reliability of pump.
Q2 What is the maximum power of the pump that can be controlled?
A:The maximum power of water pump controller is 30KW, more than 30KW, we recommend you to use inverter or soft starter.
Q3 Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and after shipment we will give you CE /Packing list/ Commercial Invoice/Sales contract for customs clearance.
Q4 Payment terms?
A:Alibaba trade assurance/TT/West Union/PayPal/LC/Cash and so on.
Q5 I don't know how to use after I receive or I have problems when use, how to do?
A:We can provide technical support, Whatsapp/Email/Phone till all of your problems finished.
Q6 I don't know which one is suitable for me?
A:please tell us below information:
1)local voltage:AC/DC,220V/380V,12V/24V
2)Power of the pump:1kw=0.75hp,
3)Number of pumps to be controlled
A:Intelligent pump controller is a device used to control the operation of water pumps. Multiple protection functions, including over-current protection, under-voltage protection, overload protection, etc., to ensure a safe and stable operation of the pump. It is widely used in various water pump systems in industry, agriculture, construction and other fields, which improves the operation efficiency and reliability of pump.
Q2 What is the maximum power of the pump that can be controlled?
A:The maximum power of water pump controller is 30KW, more than 30KW, we recommend you to use inverter or soft starter.
Q3 Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and after shipment we will give you CE /Packing list/ Commercial Invoice/Sales contract for customs clearance.
Q4 Payment terms?
A:Alibaba trade assurance/TT/West Union/PayPal/LC/Cash and so on.
Q5 I don't know how to use after I receive or I have problems when use, how to do?
A:We can provide technical support, Whatsapp/Email/Phone till all of your problems finished.
Q6 I don't know which one is suitable for me?
A:please tell us below information:
1)local voltage:AC/DC,220V/380V,12V/24V
2)Power of the pump:1kw=0.75hp,
3)Number of pumps to be controlled
