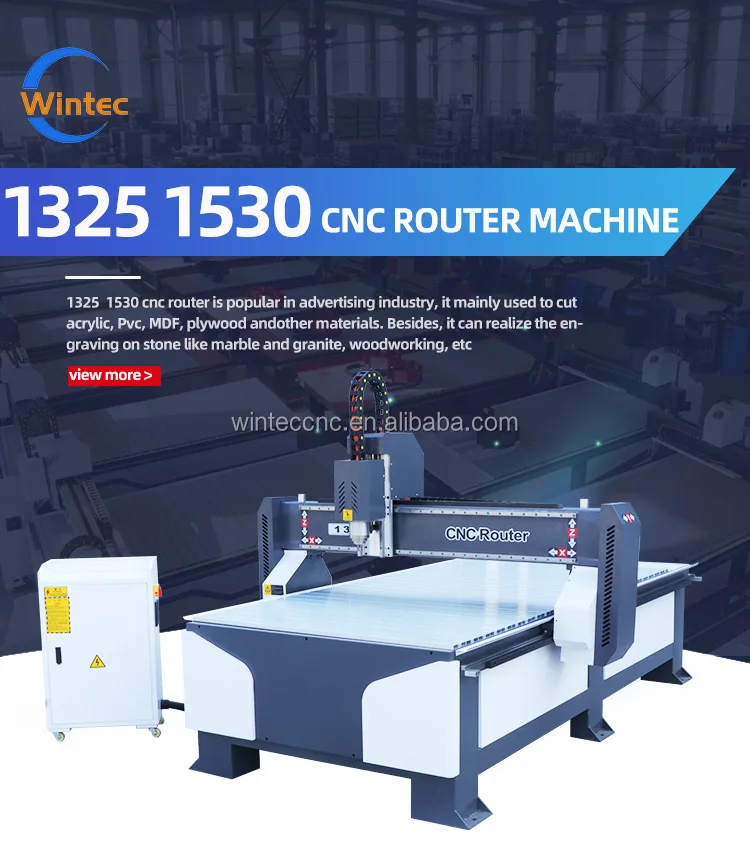

Hot sale 6090 1212 1325 Queenant CNC router machine woodworking 3D model making machine wood router for wood carving cutting mdf
- Category: >>>
- Supplier: Jinan Wintec Machinery Co. Ltd.
Share on (1601272364752):
Product Overview
Description

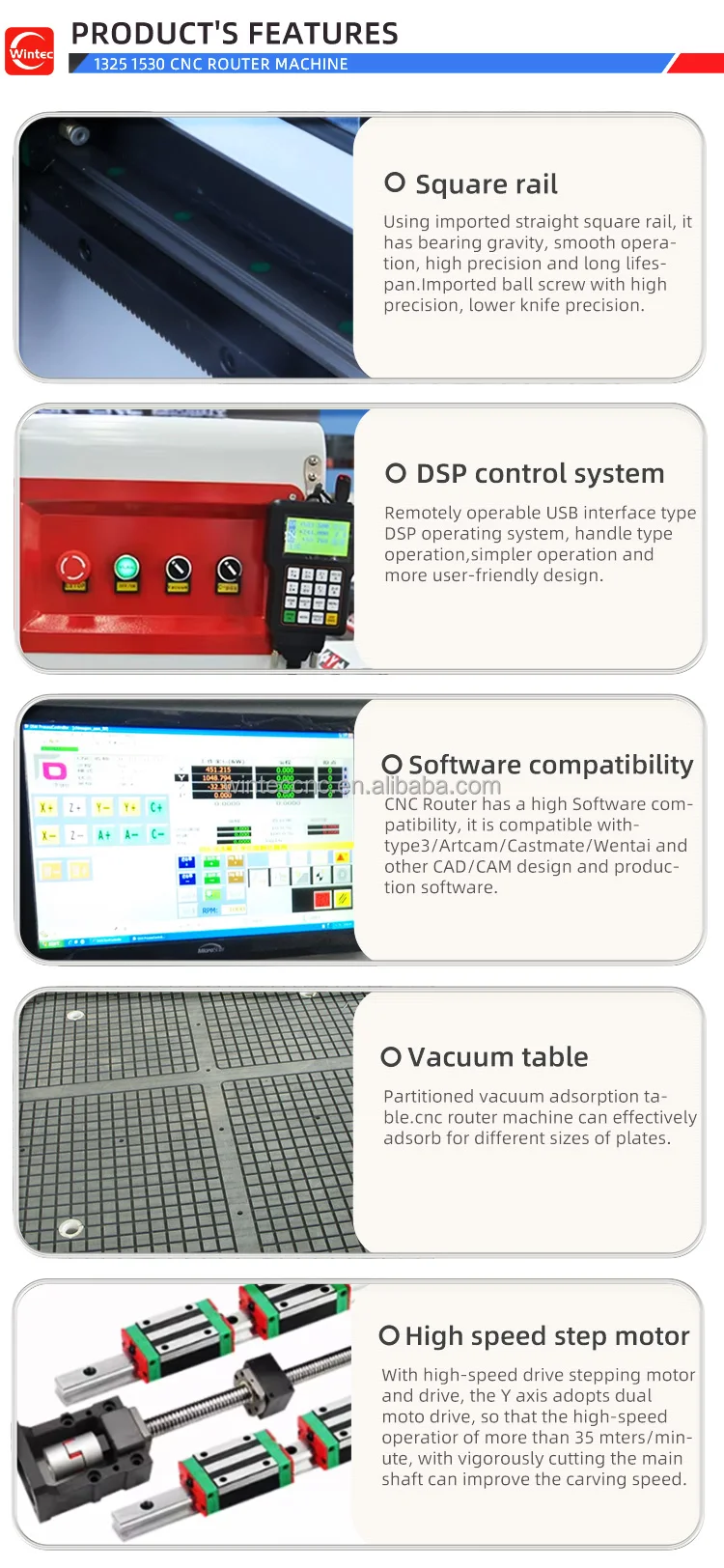

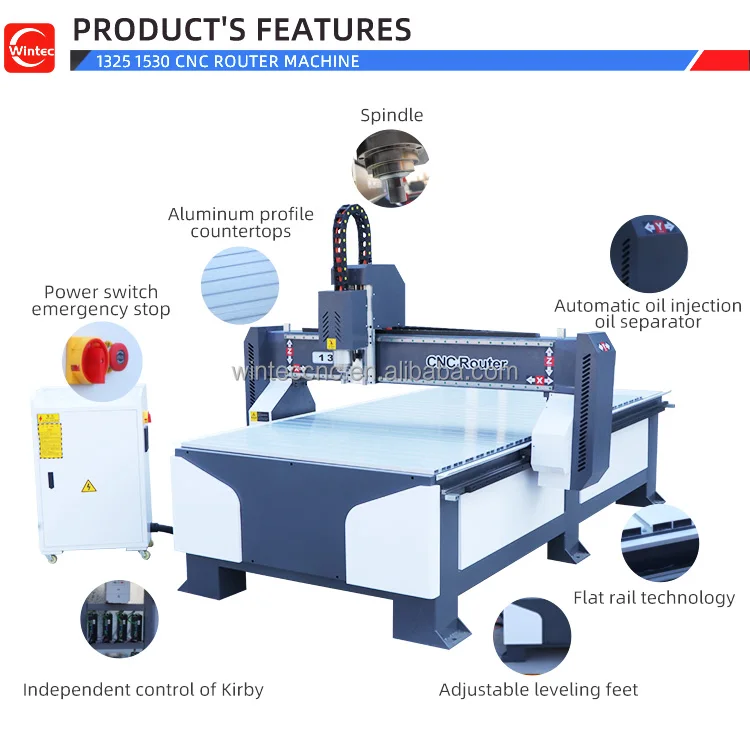

Features of CNC Router Cutting Engraving Machine

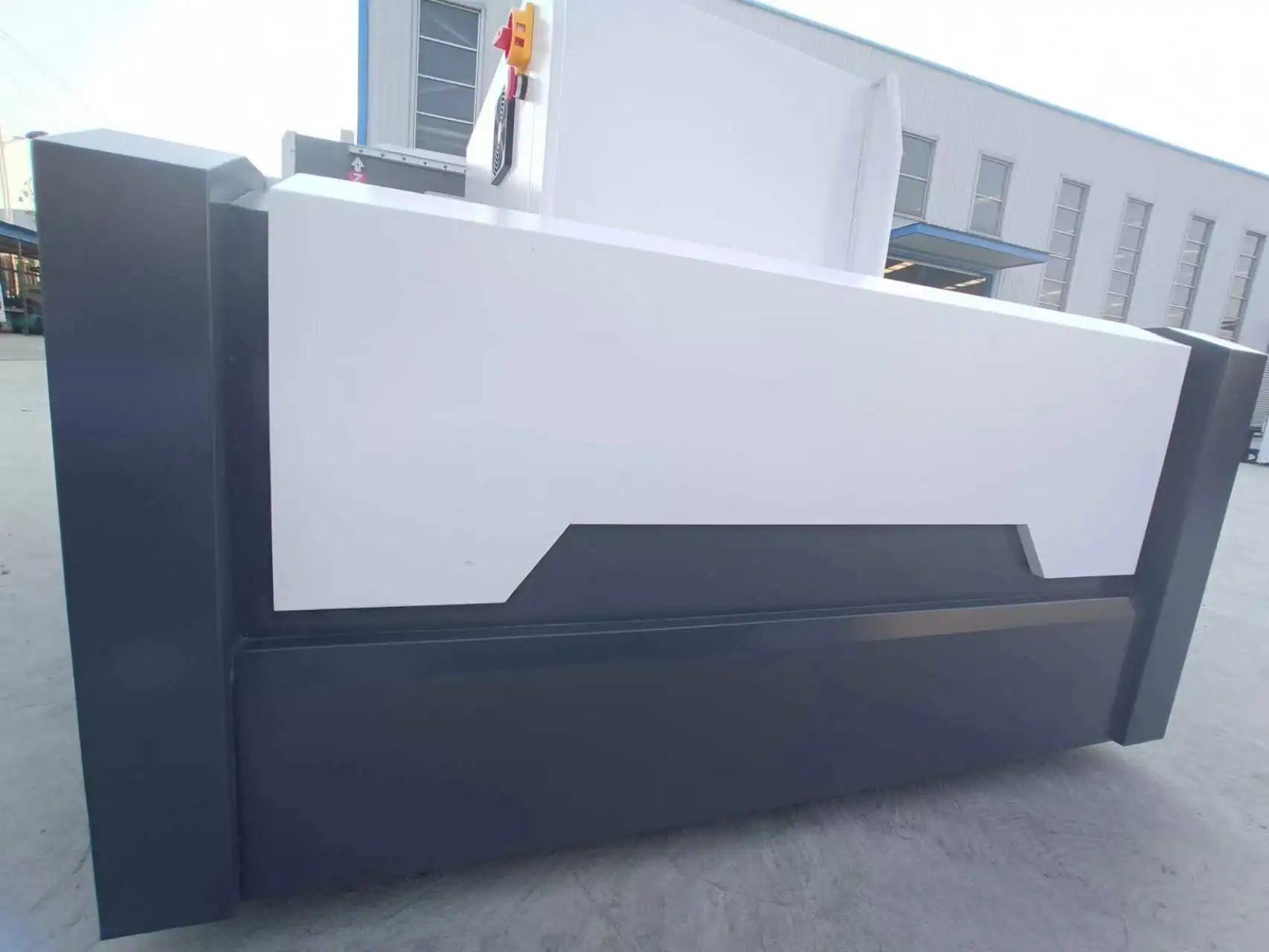

1. Whole machine is welded with thick square seamless steel structure, not easy to be deformed.

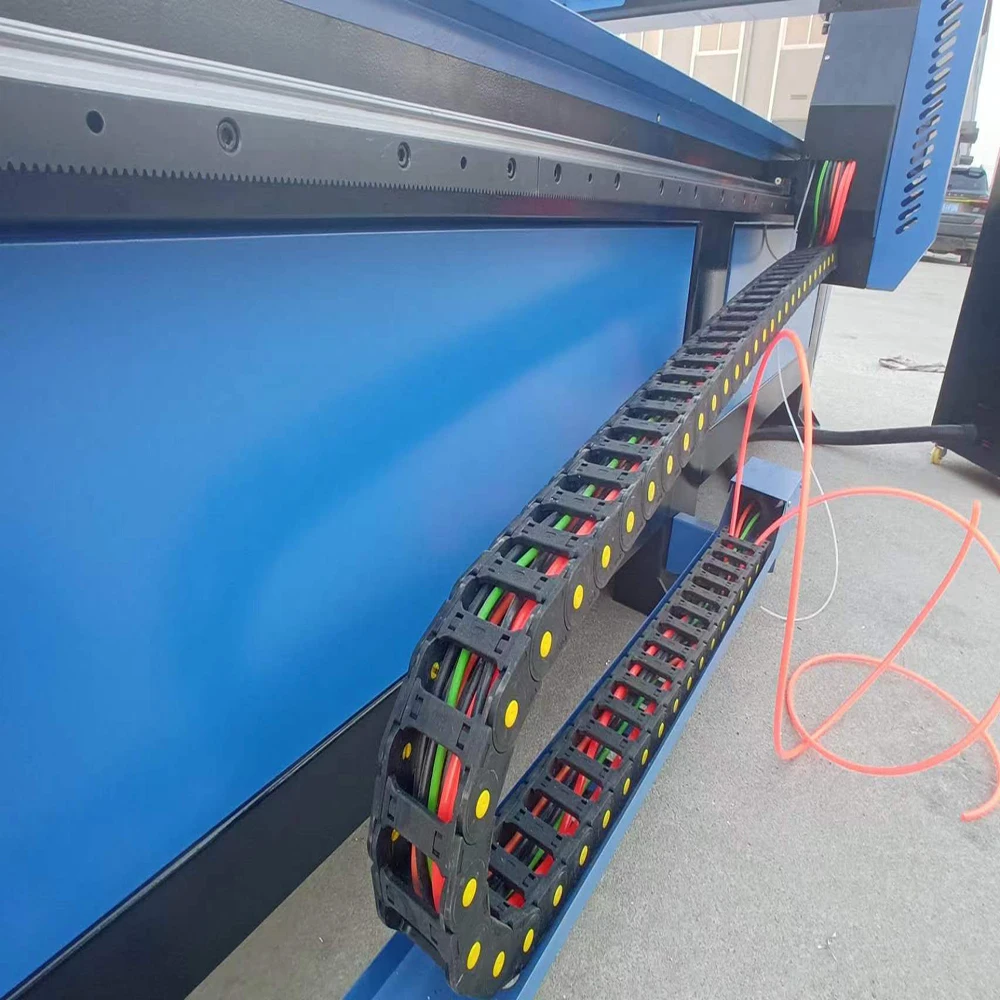

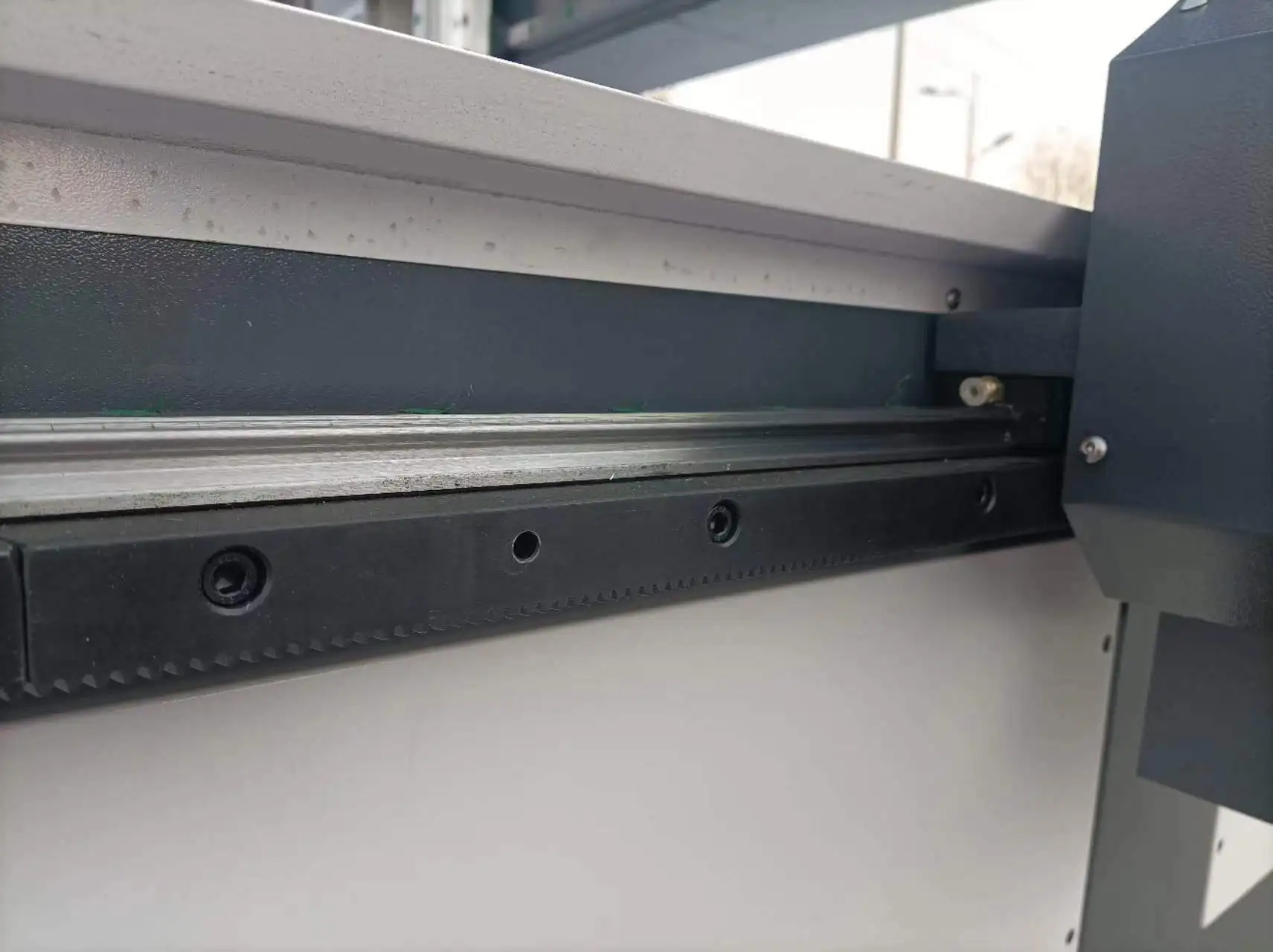

2. Three axes adopt high precision square orbit; X and Y axes adopt rack and pinion transmission, fast
working, high
efficiency and low cost. Z axis adopts ball screw,with high precision and long life time.

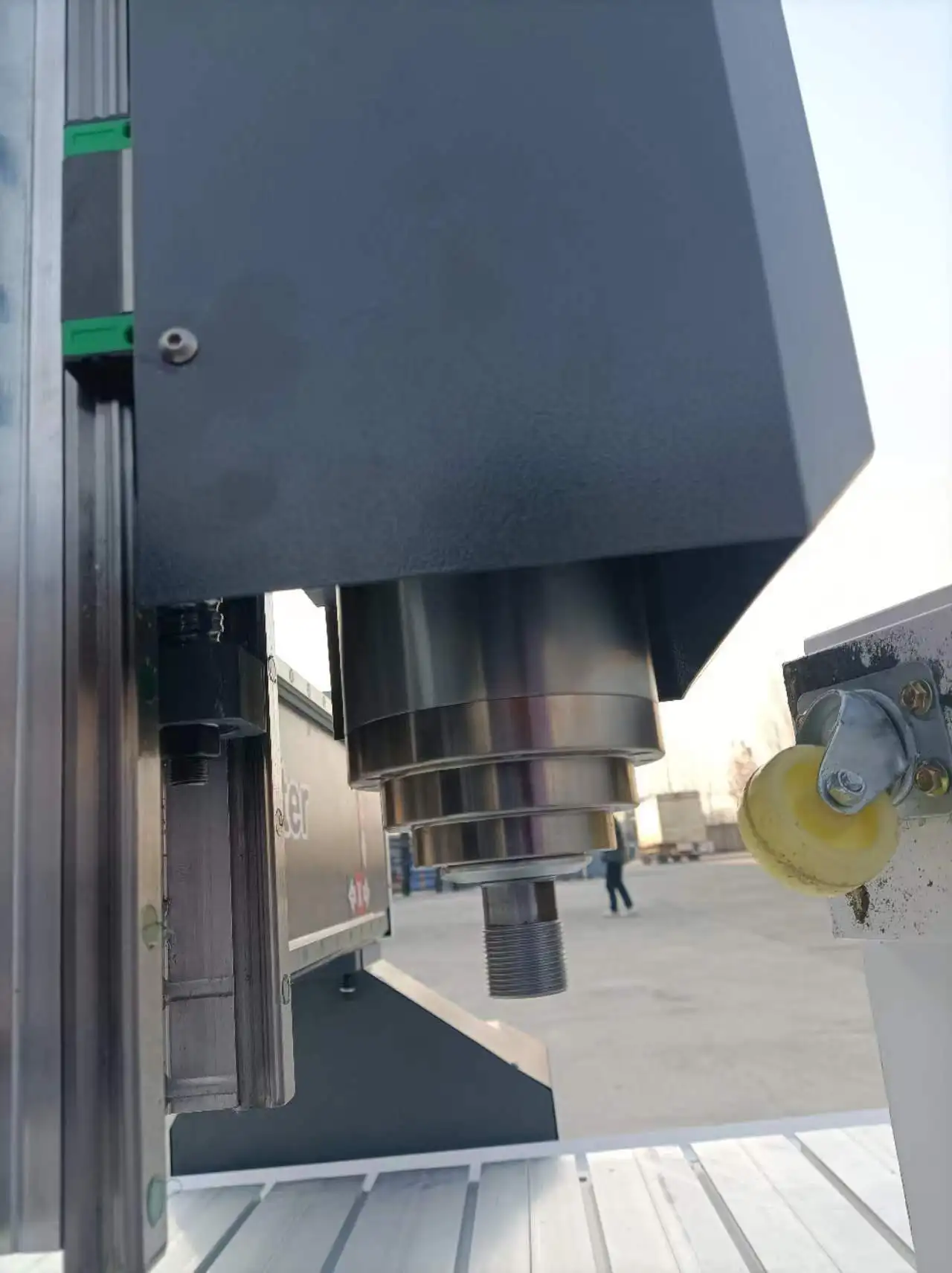

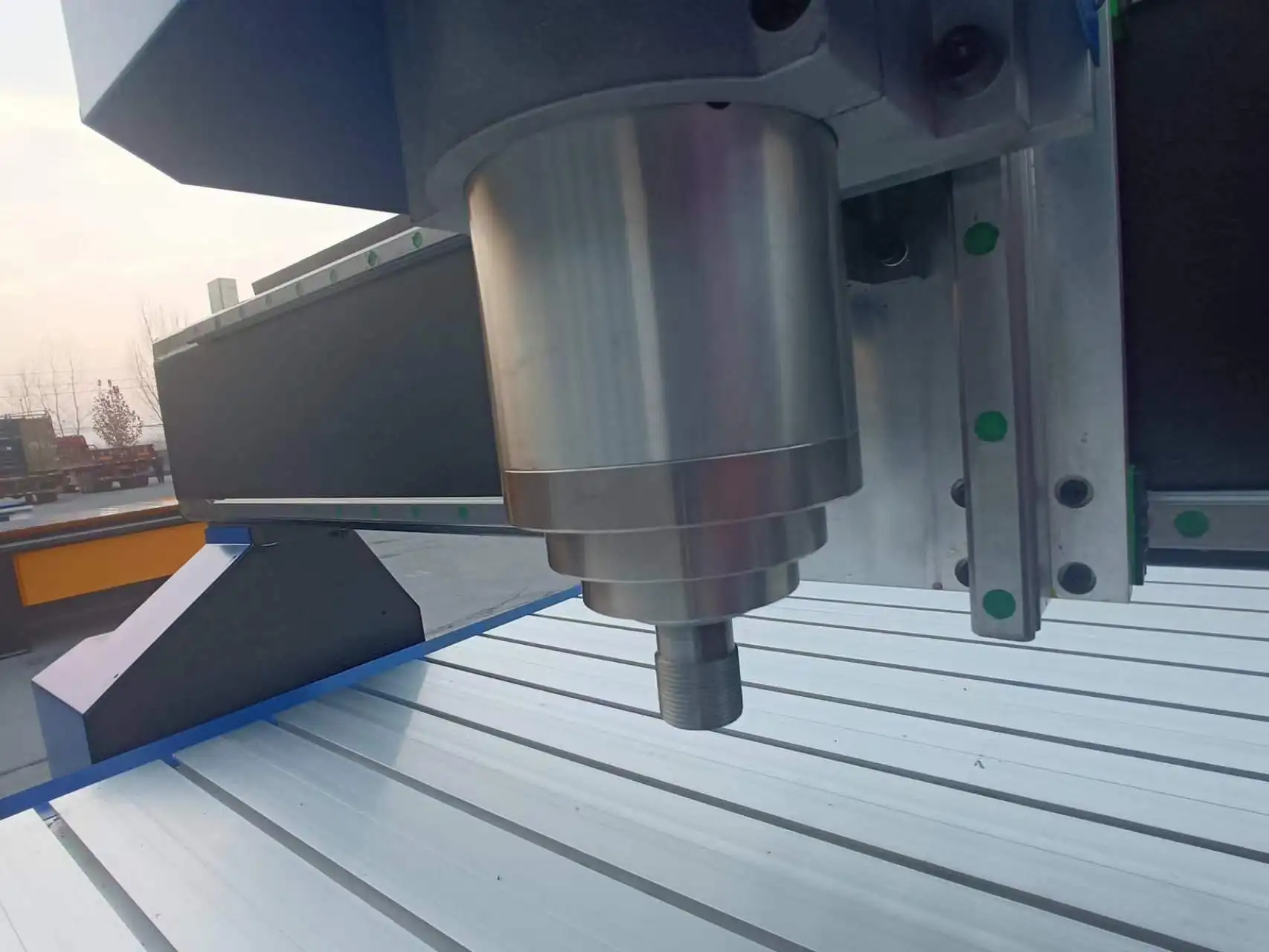

3. High power spindles have constant power, low noises and super strong cutting force, which improve
workingefficiency greatly.
4. Famous brand drivers and motors have characteristics such as powerful strength, fast processing speed.
5. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.
6. Perfect oil lubrication system makes maintenance much easier. And electric limit switch on all axis,
make sure machine running well.
7. Independent control box make control easier.
Parts of CNC Router You Can Choose
| 1. Spindle | Air Cooling Spindle or Water Cooling Spindle 4.5/5.5/6KW |
| 2. Inverter | Fulling or Best Inverter Ioutput 150% of rated torque at zero speed, can have "point to point" and relative distance control functions for position |
| 3. Motor& Drive | Stepper or Servo Motor and Driver Stepper and Servo motor driver can run with smaller noise, lower heating, smoother movement and havebetterperformances at higher speed |
| 4.Control system | DSP Control System (NC-Studio, Mach3 optional) |
| 5.Transmission | Taiwan TBI Ball Screw and Gear and Rack, Taiwan HINWIN Linear Rail |
| 6.Working table | T-slot and Vacuum Table Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables youto clamp the workpiece in place. |
Techinical parameter of cnc router machin
Name/Model | WT1325/WT1530 | |
Working area(X*Y*Z) mm | 1300*2500*200MM | |
Spindle motor | Brand | HQD |
Power | 3.5KW water cooling( optional air cooling spindle 4.5/6kw) | |
Rotating speed | 18000-24000rpm/Min | |
Driver system | Kind | Leadshine driver Stepper motor. |
Controllor | Weihong control system | |
Working table | T-slot table (optional vaumm table) | |
X Y transmission | Taiwan Hiwin square linear guide rail | |
Z transmission | Taiwan Hiwin square rail 20mm High precision TBI ball screw | |
Electric appliance | French Schneider | |
Bed frame | Aggravated bed (tempering treatment) | |
Traveling speed | X Y axis | 50-90m/Min |
Z axis | 6m/Min | |
Power type | 380V,50Hz | |
Running environment temperature | 0-45 centigrade | |
Relative humidity | 30%-75% | |
Command language | G Code | |
Delivery time and payment | 7-15 working days days after get 30% payment by T/T | |
Quality Control | 1.Strict control machine assembly each link,ensure machine clean and beautiful. 2.48 hours continuous work before shipping, ensure high quality. | |
After sales service | 3.24 hour technical support by email, calling or skype 4..English manual and video for machine using and maintaining. | |
Appliation Industry of CNC Router Machine
Stone Industry: Stone, ink-stone cutting, tomb stone, jade and marble products.Kitchen Ware Industry: Man-made
marble cabinet table surface.
Artwork Decoration Industry: Wood crafts, gift box, jewelry box and other exquisite art crafts. Woodworking industry
Chair, door, window, bed,
cabinet, kitchen ware and other furniture; Redwood classical and antique furniture, Exquisite European furniture,
decorative products sculpture
Mold Industry: Engraving copper, aluminum, and other metal molds;Building models, shoes, badge, embossed mould,
biscuit,candy, chocolate mould;
Artificial marble, plastic sheeting, PVC, wood, foam and other non-metallic mold. Original from

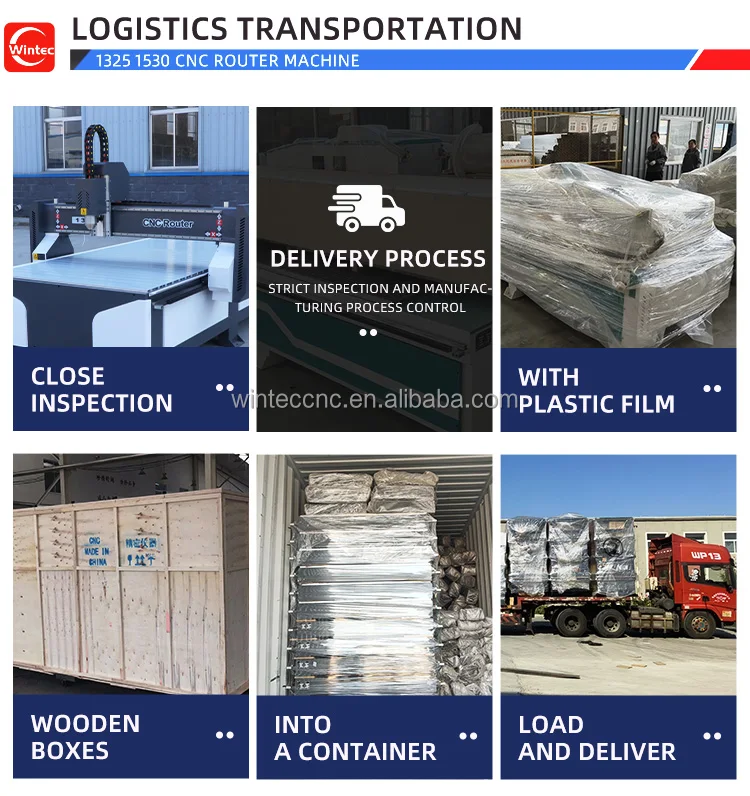

Packing and shipping
1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. when importing, the plywood case is with fumigation-free, the procedure is simple.
4. Delivery Detail: within 7-15 days after received your payment
For LCL Shipping (Less than Container Load),it is recommended to use export standard fumigation-free wooden boxes,
which are stronger and suitable for long-distance transportation.
For FCL Shipping (Full Container Load),it can be loaded directly at the factory without wooden boxes, and the maximum
number of machines can be loaded to reduce costs.
After-Sale Service
1.1.5years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free
of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery
7.Our staff can be sent to your company to install or adjust if necessary.
Welcome to Wintec Factory
FAQ
1,I need a CNC router,can you give me some suggestions?
A,Sure,we will give suggestions of the most suitable machine, Before that,we need to know some information,such as effective processing
area,materials,etc.,to getermine the main parameters.in addition,Our machines can be customized according to buyers’ request.
2,Which kind of materials can be processed on this machine?
A:Wood,mdf,stone,acrylic,glass,plastic,foam,aluminium,copper,and almost all kinds of non-steel materials.We have free training online.
If there is big trouble with your machine in the warranty time, we can repair it.
3,Are you a factory or trading company?
A:We are the manufacturer and we have 15 years factory experience.As only the machine made by ourself,the quality can be tursted,and the
most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy,so welcome
to visit to our factory.
4,How should i pay for my order?
A:You need to pay 30% as prepayment at first,then we will start to make production. When the machine is completed,we will send pictures or
videos to you,and then you need to pay the balance.We will ship the machine to you after we receive your full payment.
5,How long is the delivery time?
A:For standard machines,it will be 1-3 days;For non-standard machines and customized machines according to client'specific requirements,
it will be 10 to 15 days.
