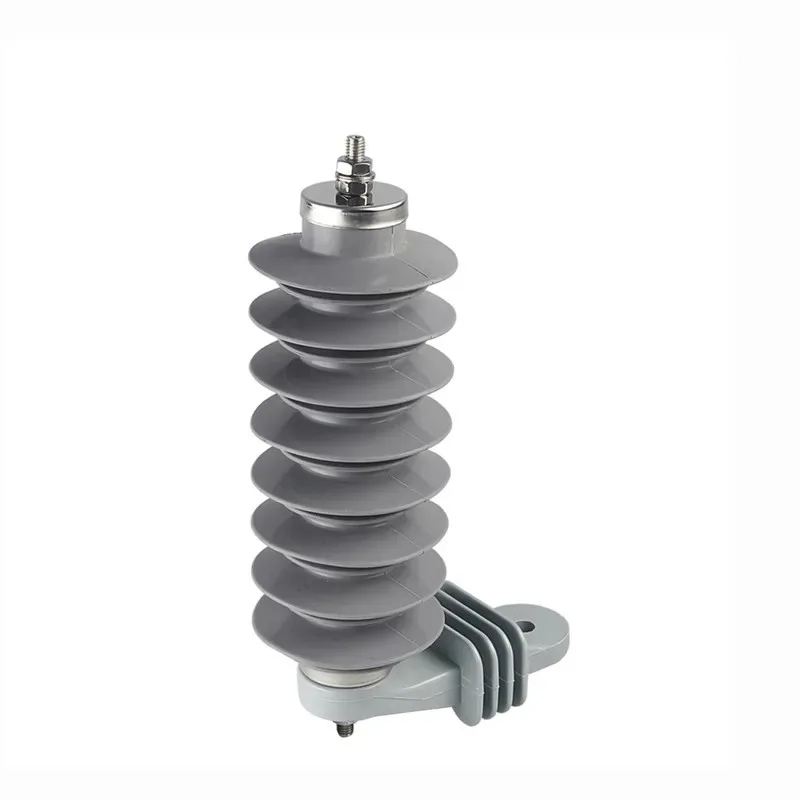

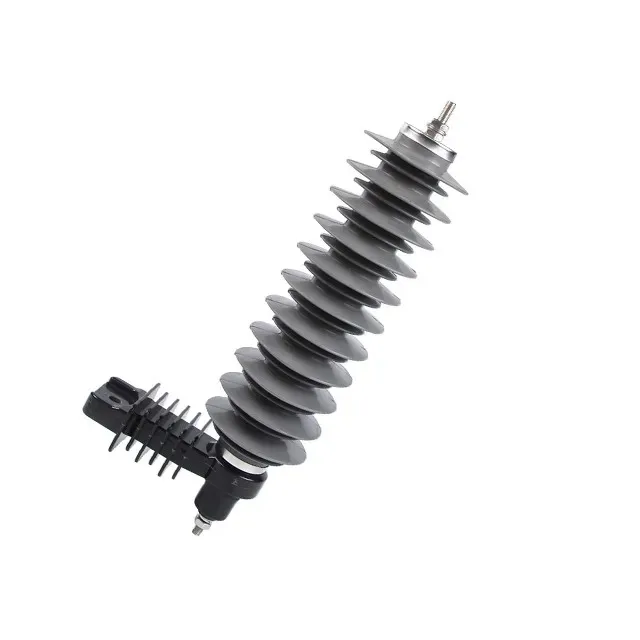

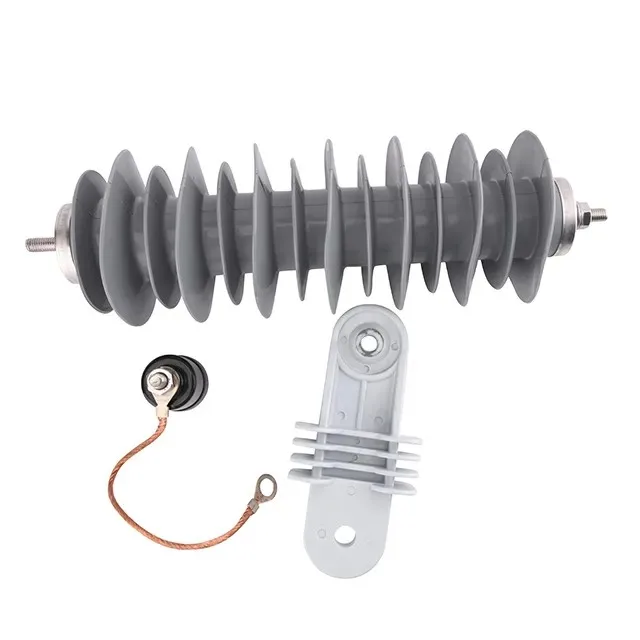

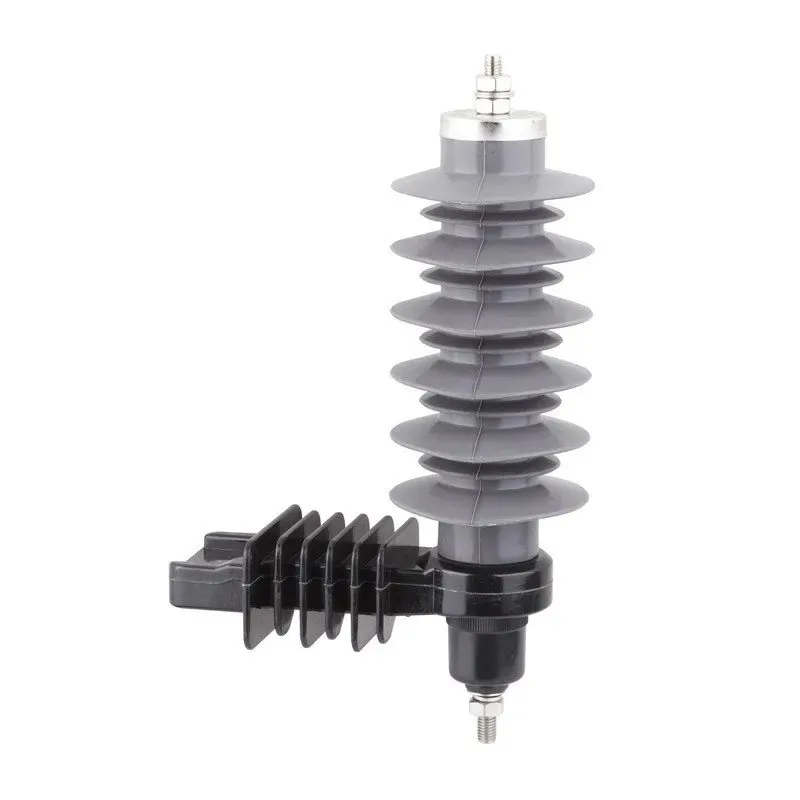

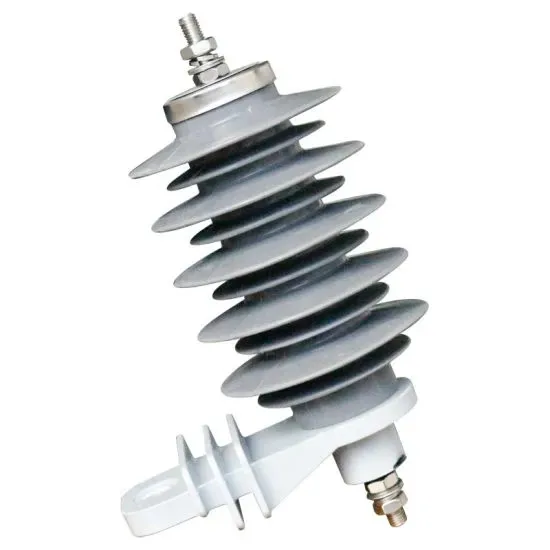

CNKEEYA Electrical Surge Suppressor Arrester 35kv 36kV
- Category: >>>
- Supplier: Zhejiang Hanya Electric Appliance Co. Ltd.
Share on (1601272378629):
Product Overview
Description
Products Description
HY10W line type lightning arrester is used to protect AC electrical equipment in power plants and substations from damage caused by atmospheric overvoltage and operating voltage. The standards for product production implementation are GB11032-2000 (eqv IEC-4:1991) "AC gapless metal oxide lightning arrester" and GB/T8952-2005 "Composite jacket gapless metal oxide lightning arrester for AC systems".
Small size, light weight, collision resistance, no damage during transportation, flexible installation, especially suitable for use in switchgear;Special structure, integral molding, no air gap, good sealing performance, moisture-proof and explosion-proof; Large creepage distance, good water increase ability, strong pollution resistance, stable performance, and reduced operation and maintenance;Unique formula of zinc oxide resistor, high capacity, low leakage;The actual DC reference voltage, square wave current capacity, and high current withstand capability are all higher than the
national standards;
Small size, light weight, collision resistance, no damage during transportation, flexible installation, especially suitable for use in switchgear;Special structure, integral molding, no air gap, good sealing performance, moisture-proof and explosion-proof; Large creepage distance, good water increase ability, strong pollution resistance, stable performance, and reduced operation and maintenance;Unique formula of zinc oxide resistor, high capacity, low leakage;The actual DC reference voltage, square wave current capacity, and high current withstand capability are all higher than the
national standards;
Gapless Arrester Electrical Parameter | ||||||||||||||
Type | Rated Voltage | MCOV | Max.Residual Viltage | 2ms square wave impulse withstand current | High current impulse withstand 4/10μs | |||||||||
Steep current impuise1/4μS | Switching current lmpulse30/60μs | Nominal current lmpulse 8/20μs | ||||||||||||
kV | kV | kV | kV | kV | A | kV | ||||||||
YH5W-18 | 18 | 15.3 | 61.5 | 46.5 | 54.0 | 100 | 65 | |||||||
YH10W-18 | 18 | 15.3 | 56.0 | 46.2 | 54.0 | 250 | 100 | |||||||
item | value |
Brand Name | CNKEEYA |
Place of Origin | China |
Province | Zhejiang |
Model Number | Y5(10)W |
Product name | Composite insulator |
Shell material | Ceramic |
Frequency | 50HZ |
Operating voltage | 110V 220V 48V 24V |
Operation method | Manual operation/manual operation and electric operation |
Resistance | 70-90 ohms |
Current ratio | 200.400.600/5 |
