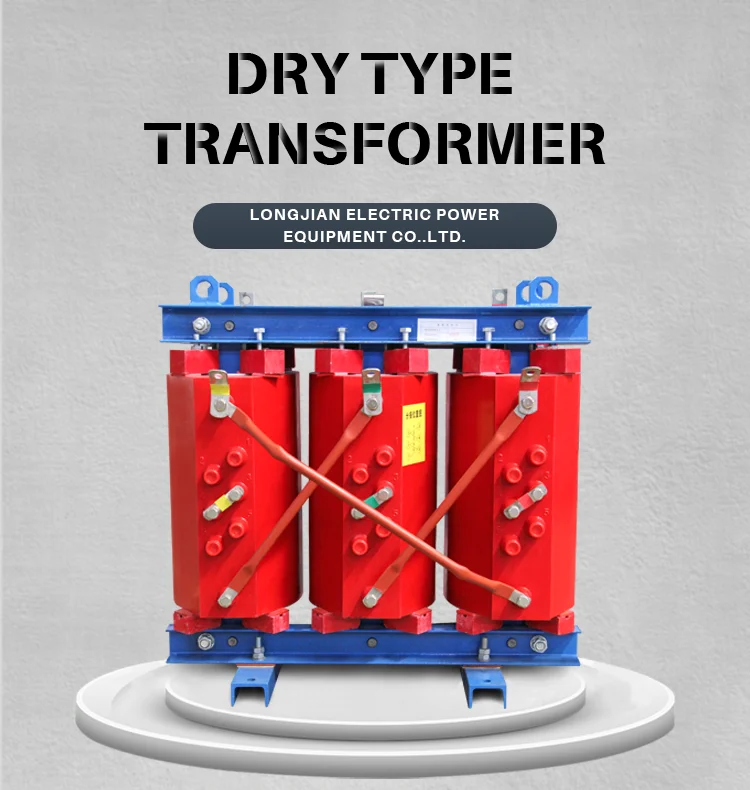

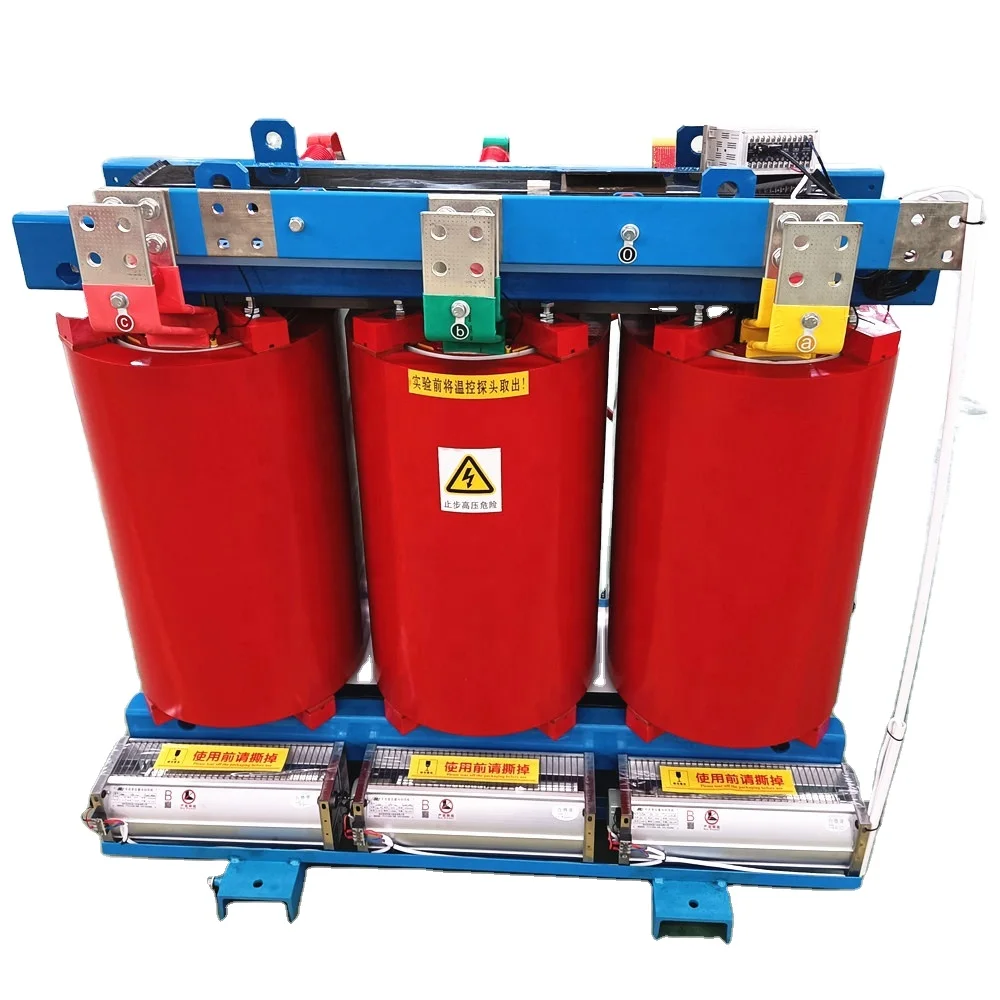

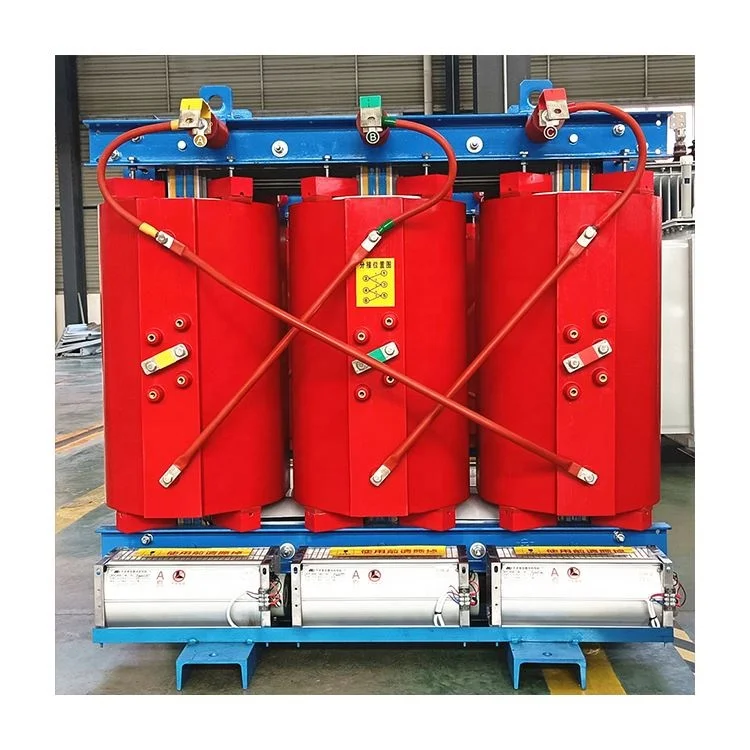

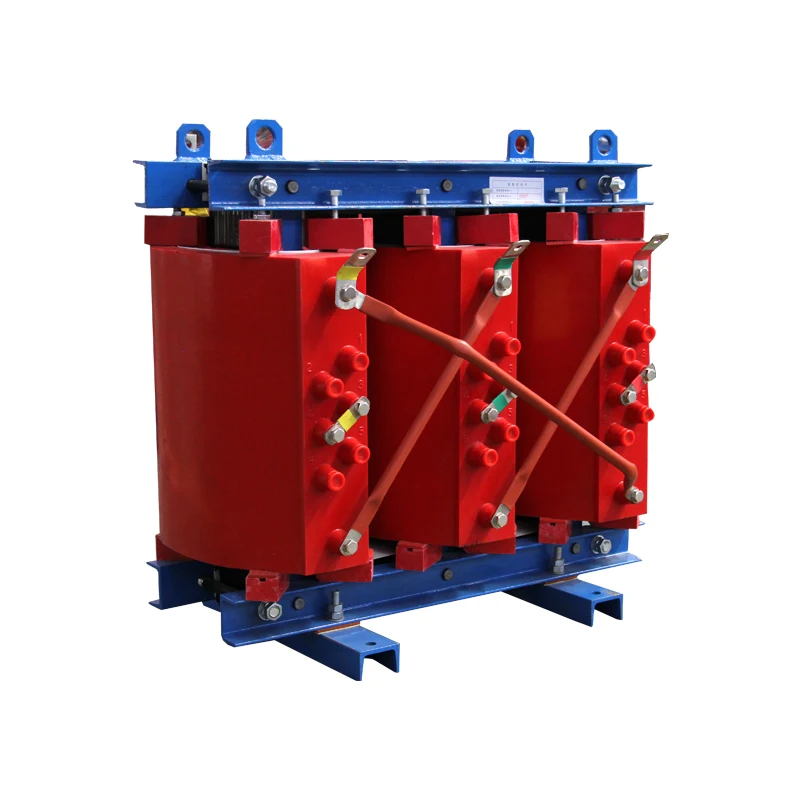

200kva 400Kva 750 kva 500kva Coper Winding Cast Resin 2500 2 mva power Electric transformer 10kv 11 Kv Dry Type Transformer
- Category: >>>
- Supplier: Henan Longjian Electric Power Equipment Co. Ltd.
Share on (1601272378637):
Product Overview
Description
Details Page
Parameter List
Capacity (KVA) | Voltage(KV) | Loss(W) | No load current | NoisedB (A) | Dimension(mm) | Weight(KG) | ||||
H.V | L.V | No load | On load | L*W*H | ||||||
30 | 36.6 10 10.5 11 13.2 | 0.4 or others | 190 | 700 | 2.2 | 43 | 680*400*686 | 300 | ||
50 | 270 | 990 | 2.0 | 43 | 690*400*686 | 360 | ||||
80 | 360 | 1370 | 1.8 | 43 | 730*450*796 | 500 | ||||
100 | 400 | 1570 | 1.8 | 44 | 730*500*816 | 600 | ||||
125 | 470 | 1840 | 1.6 | 44 | 780*600*950 | 700 | ||||
160 | 540 | 2120 | 1.4 | 44 | 950*650*1124 | 850 | ||||
200 | 620 | 2520 | 1.4 | 45 | 990*650*1164 | 950 | ||||
250 | 720 | 2750 | 1.4 | 45 | 1020*650*1207 | 1100 | ||||
315 | 880 | 3460 | 1.2 | 47 | 1050*750*1320 | 1250 | ||||
400 | 970 | 3980 | 1.2 | 48 | 1100*800*1450 | 1550 | ||||
500 | 1160 | 4880 | 1.2 | 48 | 1140*800*1430 | 1850 | ||||
630 | 1340 | 5870 | 1 | 50 | 1250*800*1500 | 1900 | ||||
800 | 1520 | 6950 | 1 | 52 | 1330*800*1540 | 2200 | ||||
1000 | 1760 | 8120 | 0.8 | 54 | 1400*960*1640 | 2750 | ||||
1250 | 2090 | 9690 | 0.8 | 55 | 1450*960*1840 | 4000 | ||||
2000 | 3320 | 14450 | 0.6 | 57 | 1680*960*1930 | 4800 | ||||
2500 | 4000 | 17170 | 0.6 | 57 | 1720*1010*1950 | 5500 | ||||
