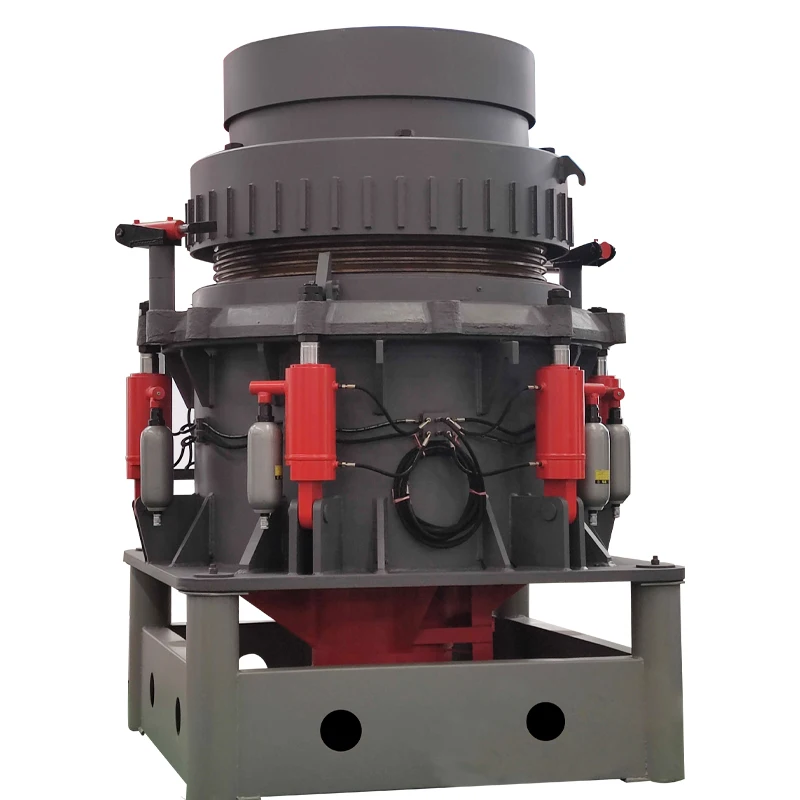

Good quality Hydraulic Cone Crusher Granite Limestone Stone Crushing Plant for sale with good price
- Category: >>>
- Supplier: Shanghai Jianye Heavy Industry Co. Ltd.
Share on (1601272381968):
Product Overview
Description
Products Description

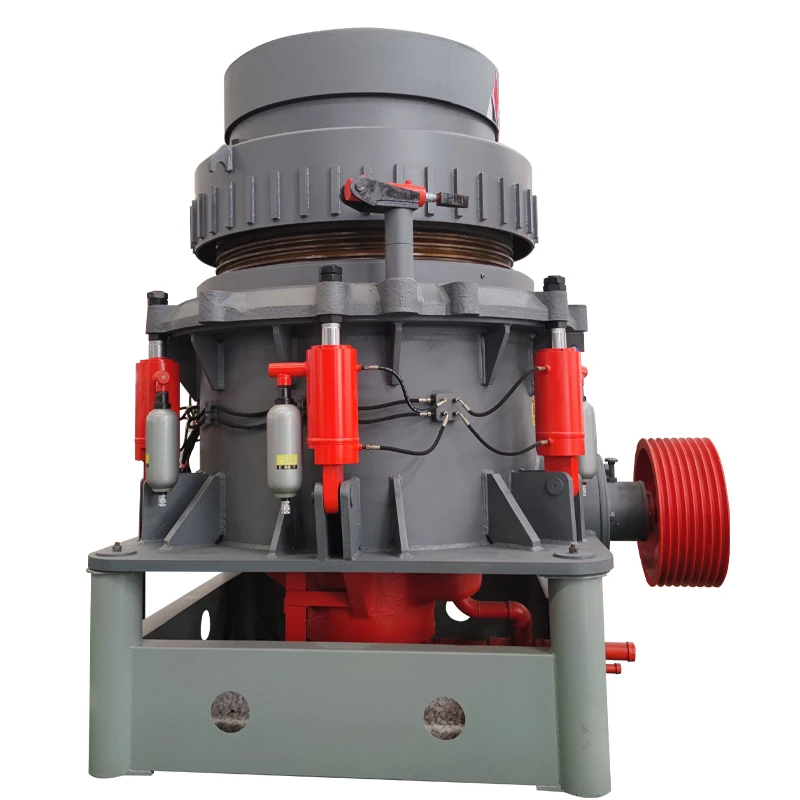

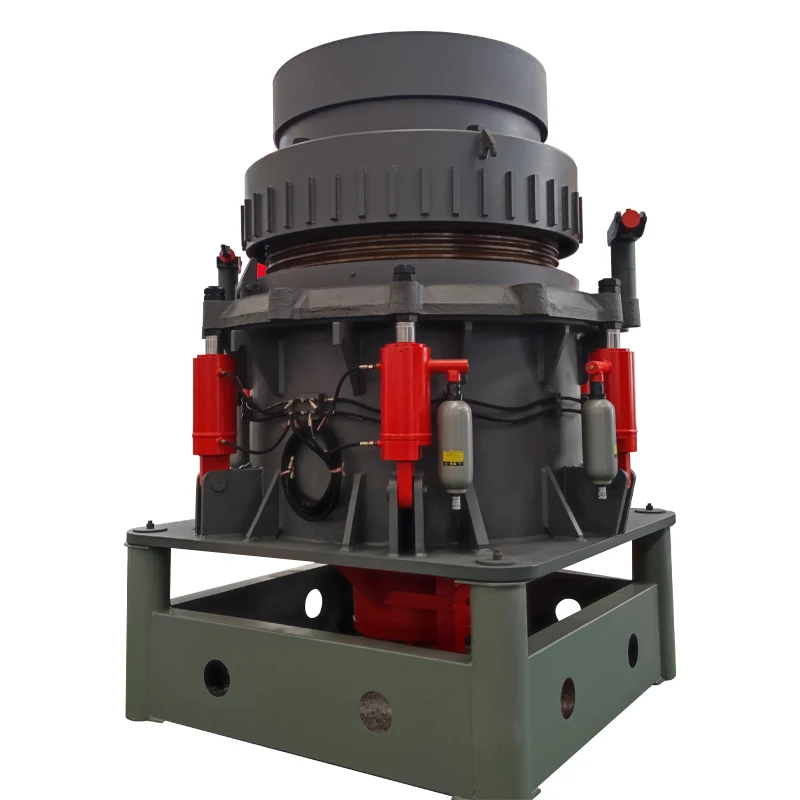

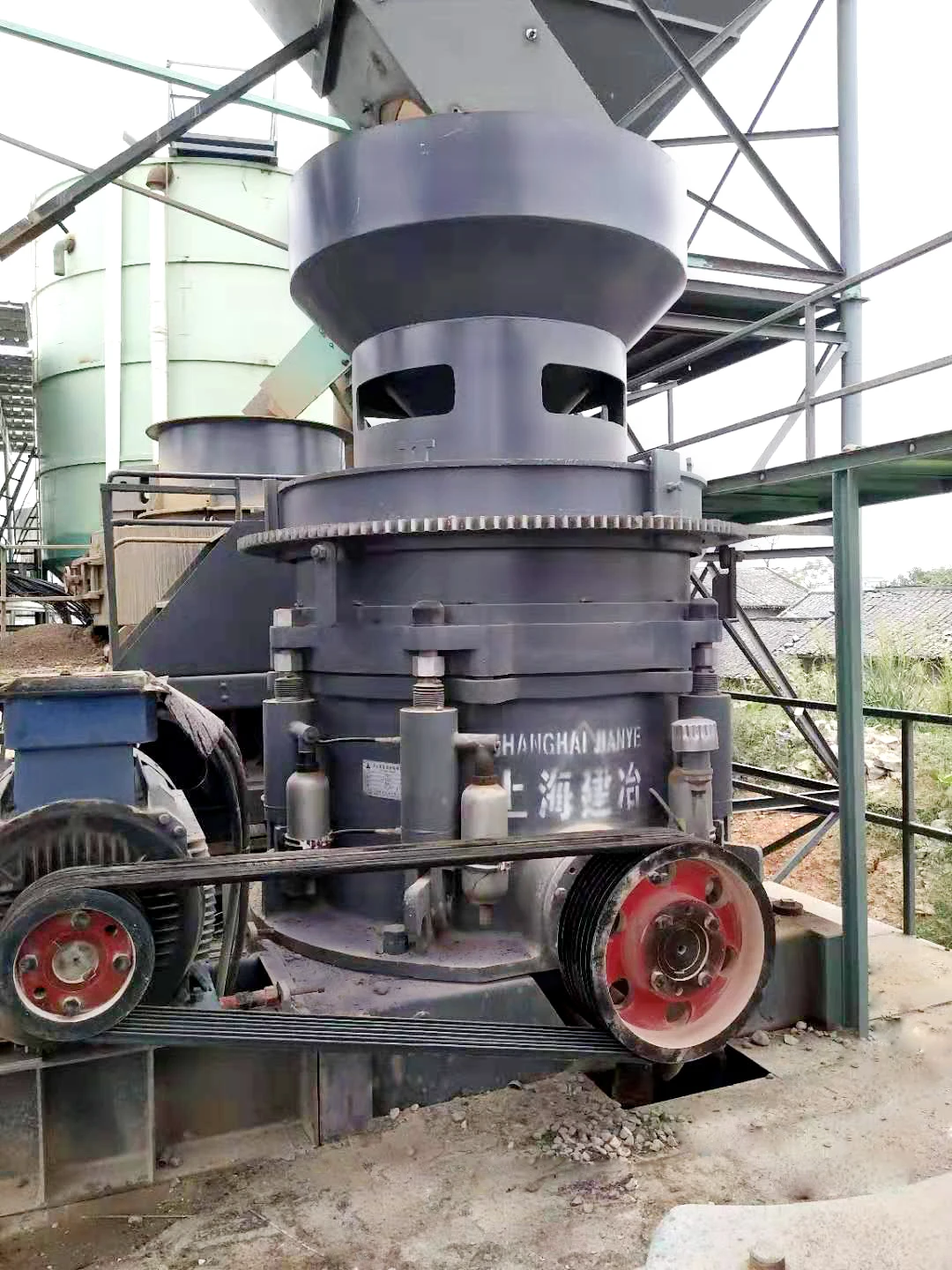

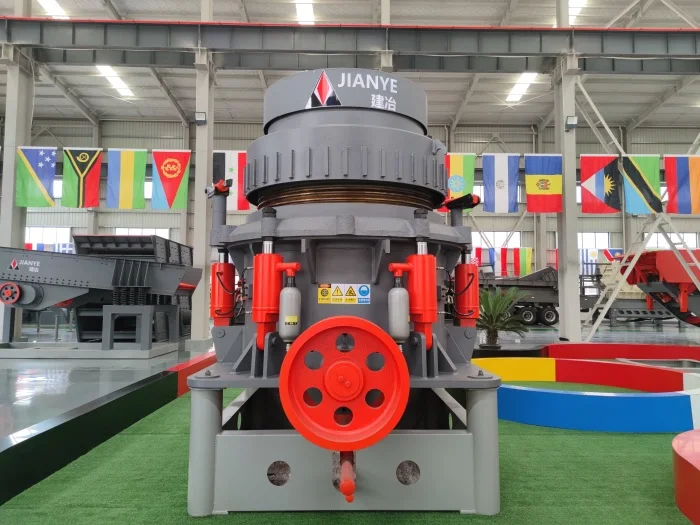

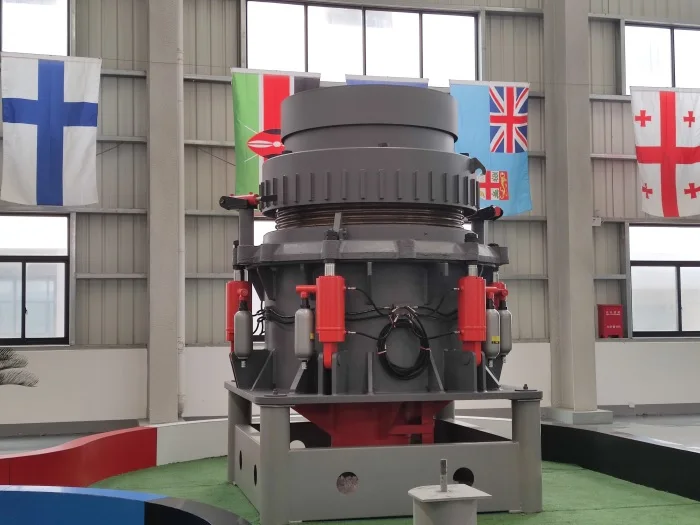

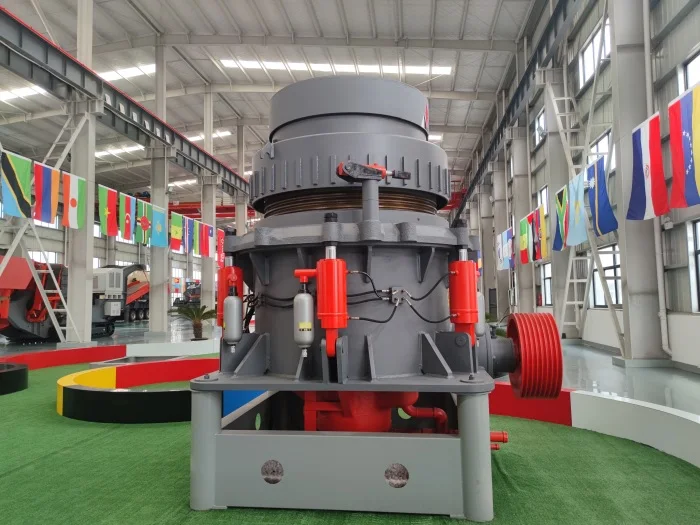

HPT multi cylinder hydraulic cone crusher
Shanghai Jianye HPT series multi cylinder hydraulic cone crusher is a new generation of high-efficiency hydraulic cone crusher, which is based on nearly 30 years of experience in crusher research and development, combined with advanced technology at home and abroad, after several generations of product development and application. Based on the traditional multi cylinder hydraulic cone breaking spindle fixed, eccentric sleeve around the spindle rotating structure and laminated crushing principle, HPT series has made a breakthrough optimization on the equipment structure, significantly improving the performance and crushing capacity of the equipment. The hydraulic lubrication system ensures the reliable operation of the equipment, and the operation control is more intelligent and humanized.
Application field
Feeding size： <350mm
Capacity： 7-2130T/h
Application field： HPT multi cylinder hydraulic cone crusher is used in metallurgy, mining, cement, chemical industry
Capacity： 7-2130T/h
Application field： HPT multi cylinder hydraulic cone crusher is used in metallurgy, mining, cement, chemical industry
and other industrial sectors, as well as highway construction, water conservancy engineering,
building gravel, sand making, etc.
Scope of application：It is suitable for crushing various ores and rocks with medium and above hardness, such as pebble,
Scope of application：It is suitable for crushing various ores and rocks with medium and above hardness, such as pebble,
dolomite, granite, rhyolite, diabase, basalt, etc.

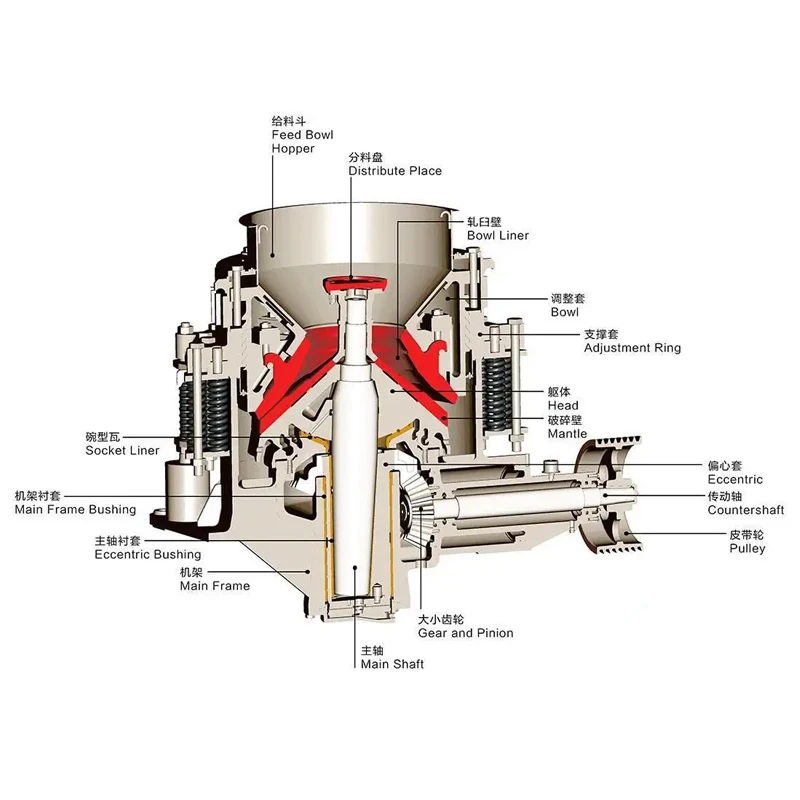

Working principle
When HPT series multi cylinder hydraulic cone crusher works, the motor drives the transmission shaft of the equipment through the belt pulley and V-belt. The transmission shaft drives the eccentric sleeve to rotate around the main shaft through the big and small bevel gears, and the eccentric sleeve drives the moving cone to do the rotary swing movement, so that the moving cone and the fixed cone are sometimes close to and sometimes far away from the mortar wall, and the materials are constantly squeezed and impacted in the crushing cavity formed by the rolling mortar wall and the broken wall And crushing, broken material discharged from the bottom. Equipme
Equipment advantage
1. Higher efficiency of structural upgrading
Based on the unique structure of fixed spindle and eccentric sleeve rotating around the spindle, the design of transmission rotating parts and lubrication seal structure is further optimized. The equipment has strong bearing capacity and low noise.
2、The hydraulic control is accurate and reliable
Using full hydraulic control, the equipment from safety cavity cleaning to adjustment and locking, all adopt hydraulic
operation, working more stable and reliable, easy to operate. Combined with rich practical experience, the hydraulic system structure is fully optimized, the regulation and control is more accurate, the automatic protection reaction speed is faster,and the fully automatic operation can be realized at the same time.
Based on the unique structure of fixed spindle and eccentric sleeve rotating around the spindle, the design of transmission rotating parts and lubrication seal structure is further optimized. The equipment has strong bearing capacity and low noise.
2、The hydraulic control is accurate and reliable
Using full hydraulic control, the equipment from safety cavity cleaning to adjustment and locking, all adopt hydraulic
operation, working more stable and reliable, easy to operate. Combined with rich practical experience, the hydraulic system structure is fully optimized, the regulation and control is more accurate, the automatic protection reaction speed is faster,and the fully automatic operation can be realized at the same time.
3、Control automation of hydraulic lubrication integrated equipment
Equipped with integrated hydraulic lubrication system and centralized automatic intelligent control system, the cost of
hydraulic lubrication investment is saved, and the operation status of equipment is monitored in real time. The control system is further optimized, the system is more stable and reliable, which ensures the safe and stable operation of the equipment, and the operation of the equipment is more labor-saving.
4、The shape of the discharging material is good
The laminated crushing principle is used to crush the materials. Through the optimization of equipment and cavity shape, the laminating crushing efficiency is improved. The crushing efficiency is high, and the wearing of vulnerable parts is low. The finished product is cubic in shape with high content of fine particles. The quality of finished products is improved and the production cost of equipment and the whole system is reduced.
5、Multi cavity conversion with one machine for multi use
It is equipped with a number of intermediate crushing and fine crushing cavities. Only a few parts such as the corresponding cavity type liner plate need to be replaced, and then the cavity types can be converted. Combined with the principle of laminated crushing, it can better meet the process requirements of medium crushing and fine crushing, and realize the multi-purpose of one machine. The crushing wall and mortar rolling wall are made of high manganese steel. Due to the change of crushing cavity shape and the protection of material layer during laminated crushing, the wear resistance is reduced, and the service life of cone crusher with conventional structure can be increased by 35% ~ 82%.
Equipped with integrated hydraulic lubrication system and centralized automatic intelligent control system, the cost of
hydraulic lubrication investment is saved, and the operation status of equipment is monitored in real time. The control system is further optimized, the system is more stable and reliable, which ensures the safe and stable operation of the equipment, and the operation of the equipment is more labor-saving.
4、The shape of the discharging material is good
The laminated crushing principle is used to crush the materials. Through the optimization of equipment and cavity shape, the laminating crushing efficiency is improved. The crushing efficiency is high, and the wearing of vulnerable parts is low. The finished product is cubic in shape with high content of fine particles. The quality of finished products is improved and the production cost of equipment and the whole system is reduced.
5、Multi cavity conversion with one machine for multi use
It is equipped with a number of intermediate crushing and fine crushing cavities. Only a few parts such as the corresponding cavity type liner plate need to be replaced, and then the cavity types can be converted. Combined with the principle of laminated crushing, it can better meet the process requirements of medium crushing and fine crushing, and realize the multi-purpose of one machine. The crushing wall and mortar rolling wall are made of high manganese steel. Due to the change of crushing cavity shape and the protection of material layer during laminated crushing, the wear resistance is reduced, and the service life of cone crusher with conventional structure can be increased by 35% ~ 82%.
Crusher parameters
model | Cavity type | Size of tight edgefeeding port (mm) | Discharge port size （mm） | Capacity (t/h) | Power (KW) |
HPT100 | C1(Ultra coarse | 140 | 19 | 50-140 | 90 |
C2(Coarse) | 100 | 13 | |||
M(Medium) | 70 | 9 | |||
F1(Fine) | 50 | 9 | |||
F2(Super fine) | 20 | 6 | |||
HPT200 | C2(Coarse) | 185 | 19 | 90-250 | 160 |
M(Medium) | 125 | 16 | |||
F1(Fine) | 75 | 13 | |||
F2(Super fine) | 50 | 10 | |||
HPT300 | C1(Ultra coarse) | 230 | 25 | 110-440 | 250 |
C2(Coarse) | 210 | 19 | |||
M(Medium) | 150 | 16 | |||
F1(Fine) | 105 | 13 | |||
F2(Super fine) | 80 | 10 | |||
HPT400 | C1(Ultra coarse) | 295 | 30 | 135-630 | 315 |
C2(Coarse) | 251 | 25 | |||
M(Medium) | 196 | 20 | |||
F1(Fine) | 110 | 13 | |||
F2(Super fine) | 90 | 名 | |||
HPT500 | C1(Ultra coarse) | 330 | 38 | 220-790 | 400 |
C2(Coarse) | 290 | 30 | |||
M(Medium) | 210 | 22 | |||
F1(Fine) | 135 | 16 | |||
F2(Super fine) | 95 | 13 | |||
HPT800 | C1(Ultra coarse) | 350 | 38 | 310-1200 | 630 |
C2(Coarse) | 299 | 32 | |||
M(Medium) | 265 | 25 | |||
F1(Fine) | 220 | 16 | |||
F2(Super fine) | 150 | 13 |
For more detailed information and free quotes, please click on "Contact Supplier" or chat now
